REFUELLING
Petrol engines: only refuel with unleaded petrol with
an octane rating (RON) of no less than 95 conform-
ing to the European specification EN 228.
Diesel engines: only use diesel fuel for motor vehicles
conforming to the European specification EN 590. The
use of other products or mixtures may damage the en-
gine beyond repair and consequently invalidate the war-
ranty, depending on the damage caused.
STARTING THE ENGINE
Petrol engines: make sure that the handbrake is en-
gaged, place the gear lever in neutral, fully depress the
clutch without depressing the accelerator, then turn
the ignition key to AVV and release it as soon as the
engine has started.
Diesel engines: turn the ignition key to MAR and wait
until the warning lights Y(or symbol on the display)
and mgo off. Then, turn the ignition key to AVV and
release it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
The catalytic silencer reaches high temperatures dur-
ing operation. Do not park the on grass, dry leaves, pine
needles or other flammable material as this constitutes
a fire hazard.
RESPECTING THE ENVIRONMENT
The vehicle is fitted with a system that allows contin-
uous diagnosis of the emission-related components in
order to help protect the environment.
K
ELECTRICAL ACCESSORIES
If, after buying the vehicle, you decide to add electri-
cal accessories (with the risk of gradually draining the
battery), visit the Fiat Service Network. They can cal-
culate the overall electrical requirement and check that
the vehicle’s electrical system can support the required
load.
CODE card
Keep it in a safe place, not in the vehicle. You should
have the electronic code from the CODE card with
you at all times.
SCHEDULED MAINTENANCE
Correct maintenance is essential for ensuring the ve-
hicle stays in tip-top condition and retains its safety fea-
tures, its environmental friendliness and low running
costs for a long time to come.
THE OWNER’S HANDBOOK CONTAINS…
... information, tips and important warnings on the cor-
rect use and maintenance of your vehicle over time as
well as safe driving tips. Pay special attention to the sym-
bols
"(personal safety) #(protecting the environ-
ment) !(risk of serious damage to the vehicle).
READ THIS CAREFULLY!
Page 8 of 274

7
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0022mfig. 5F0V0005mfig. 6
Replacing the battery of the key with remote
control fig. 6
To replace the battery, proceed as follows:
❒press button A and bring the metal insert B to the open
position;
❒turn the screw C to :using a fine screwdriver;
❒take out the battery case D and replace the battery E,
respecting its polarity;
❒refit the battery case D inside the key and lock it by
turning the screw C to
Á. Button
Qunlocks all the doors (including the tailgate, the
rear swing doors and the sliding side doors for ver-
sions/markets where provided).
Button Álocks all the doors;
Button Punlocks the boot, the rear swing doors and the
sliding side doors (depending on the version).
Unlocking the load compartment from inside the
vehicle (Cargo versions)
Pressing button A-fig. 5 unlocks the loading area (rear
swing doors/boot and sliding side doors) from inside the
vehicle. If the LED is on, the load compartment is locked.
Used batteries are harmful to the environ-
ment. You can dispose of them either in the
correct containers as specified by law or by
taking them to the Fiat Service Network, who will
deal with their disposal.
Page 50 of 274

49
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
INTERNAL AIR RECIRCULATION
ACTIVATION
Press button E: when the function is on, the button LED
lights up.
It is advisable to switch the internal air recirculation on
while standing in queues or in tunnels to prevent the in-
troduction of polluted air. Do not use the function for a
long time, particularly if there are many passengers on
board, to prevent the windows from misting up.
WARNING The air recirculation system makes it possi-
ble to reach the required heating or cooling conditions
faster. It is not advisable to switch the air recirculation
on when it is rainy/cold or the windows might steam up,
especially if the climate control system is not turned on.
CLIMATE CONTROL (cooling)
Proceed as follows:
❒turn knob A to the blue section;
❒turn knob B to the required speed;
❒turn knob C to ¶;
❒press buttons ❄and E (button LEDs on). HEATED REAR WINDSCREEN AND DOOR
MIRRORS DEMISTING/DEFROSTING
(for versions/markets where provided)
Press button F (to activate; when this function is on, the
LED on button F (lights up.
This function is timed and will turn off automatically after
20 minutes. Press button F (again to switch it off before
20 minutes elapse.
WARNING Do not apply stickers to the inside of the heat-
ed rear windscreen over the heating filaments to avoid
damage that might cause it to stop working properly.
REGULATING THE FAN SPEED
To ventilate the passenger compartment properly, pro-
ceed as follows:
❒fully open the central and side air diffusers;
❒turn knob A to the blue section;
❒turn knob B to the required speed;
❒turn knob C to ¶;
❒turn off internal air recirculation (button E LED off).
Page 55 of 274

54
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Air distribution buttons (B)
By pressing these buttons, it is possible to set one of the
seven possible air distributions manually:
▲Air flow to the windscreen and front side window dif-
fusers to demist or defrost them.
˙Air flow to the centre and side dashboard diffusers to
ventilate the chest and the face during the hot
season.
▼Air flow to the front and rear footwell diffusers.
Thanks to the natural tendency of hot air to rise up-
wards, this distribution pattern allows the passenger
compartment to warm up as quickly as possible, pro-
viding an immediate feeling of warmth.
˙
▼Air flow distribution split between footwell diffusers
(hotter air) and central and side dashboard vents
(cooler air). This distribution mode is particularly use-
ful in spring and autumn on sunny days.
▲
▼Air flow distribution split between the footwell dif-
fusers and the windscreen and front side windows de-
frosting/demisting diffusers. This allows an adequate
warming of the passenger compartment and prevents
the windows from steaming up.
The distribution set is shown by the corresponding LEDs
in the selected buttons coming on.
To restore automatic control of the air distribution after
a manual selection, press the AUTO button. This function may be used to heat up the passenger com-
partment exploiting the system potential to the maximum.
In this condition, the system stops controlling the tem-
perature automatically and sets the air mixing to maximum
heating. The air speed and distribution are fixed.
In particular, if the heating fluid is not sufficiently hot, the
maximum fan speed does not come on straight away in or-
der to limit the intake of insufficiently hot air into the pas-
senger compartment.
All manual settings will be allowed when this function
is on.
To switch the function off, simply turn the temperature
knob anticlockwise and set the required temperature.
❒LO function (maximum cooling):
select by turning the temperature knob anticlockwise un-
der the minimum value (16 °C).
This function may be used to cool down the passenger
compartment exploiting the system potential to the max-
imum. In this condition, the system stops controlling the
temperature automatically and sets the air mixing to max-
imum cooling. The air speed and distribution are fixed. All
manual settings will be allowed when this function is on.
To switch the function off, simply turn the temperature
knob clockwise and set the required temperature.
Page 56 of 274

55
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

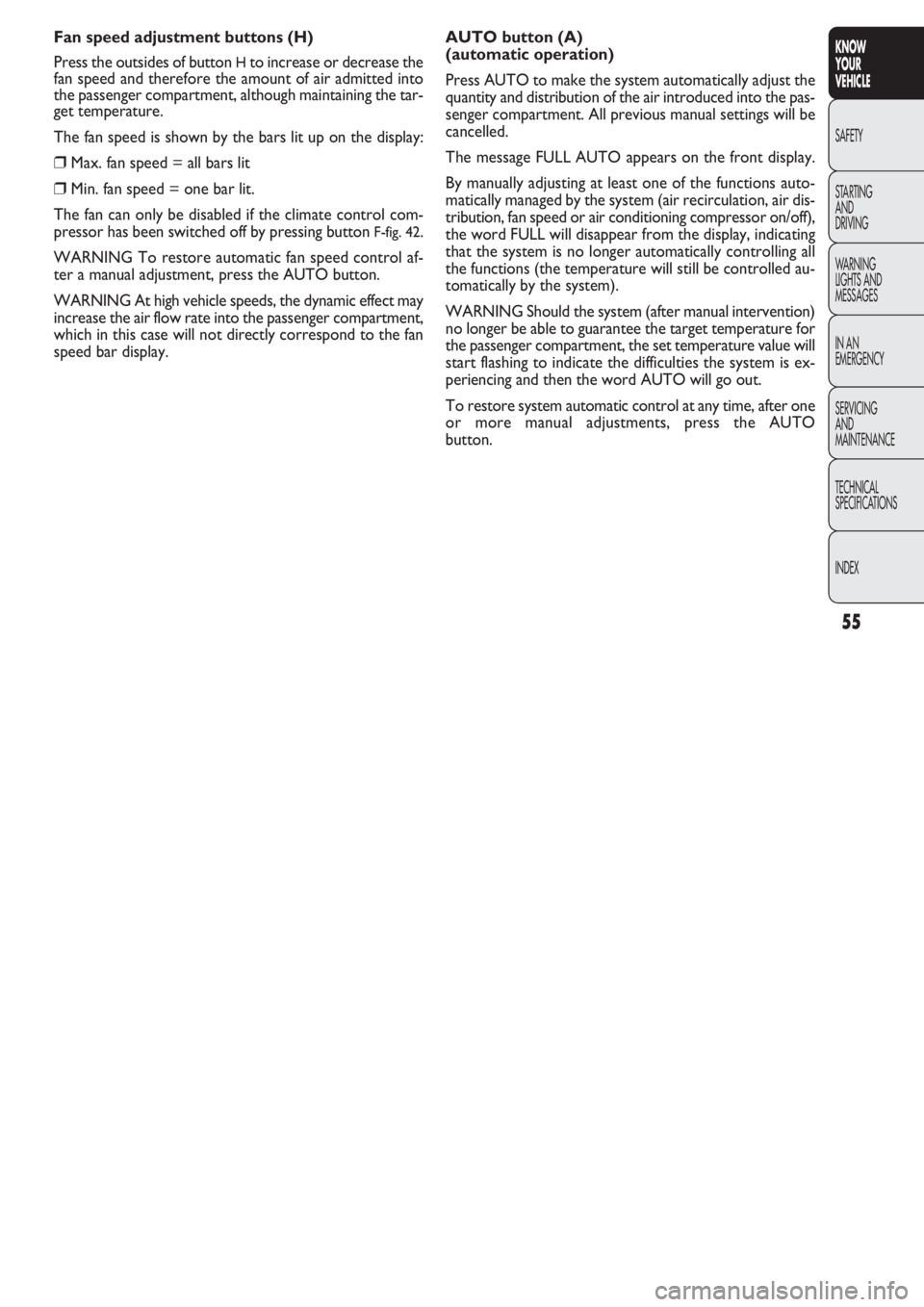

AUTO button (A)
(automatic operation)
Press AUTO to make the system automatically adjust the
quantity and distribution of the air introduced into the pas-
senger compartment. All previous manual settings will be
cancelled.
The message FULL AUTO appears on the front display.
By manually adjusting at least one of the functions auto-
matically managed by the system (air recirculation, air dis-
tribution, fan speed or air conditioning compressor on/off),
the word FULL will disappear from the display, indicating
that the system is no longer automatically controlling all
the functions (the temperature will still be controlled au-
tomatically by the system).
WARNING Should the system (after manual intervention)
no longer be able to guarantee the target temperature for
the passenger compartment, the set temperature value will
start flashing to indicate the difficulties the system is ex-
periencing and then the word AUTO will go out.
To restore system automatic control at any time, after one
or more manual adjustments, press the AUTO
button. Fan speed adjustment buttons (H)
Press the outsides of button
Hto increase or decrease the
fan speed and therefore the amount of air admitted into
the passenger compartment, although maintaining the tar-
get temperature.
The fan speed is shown by the bars lit up on the display:
❒Max. fan speed = all bars lit
❒Min. fan speed = one bar lit.
The fan can only be disabled if the climate control com-
pressor has been switched off by pressing button
F-fig. 42.
WARNING To restore automatic fan speed control af-
ter a manual adjustment, press the AUTO button.
WARNING At high vehicle speeds, the dynamic effect may
increase the air flow rate into the passenger compartment,
which in this case will not directly correspond to the fan
speed bar display.
Page 57 of 274

56
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

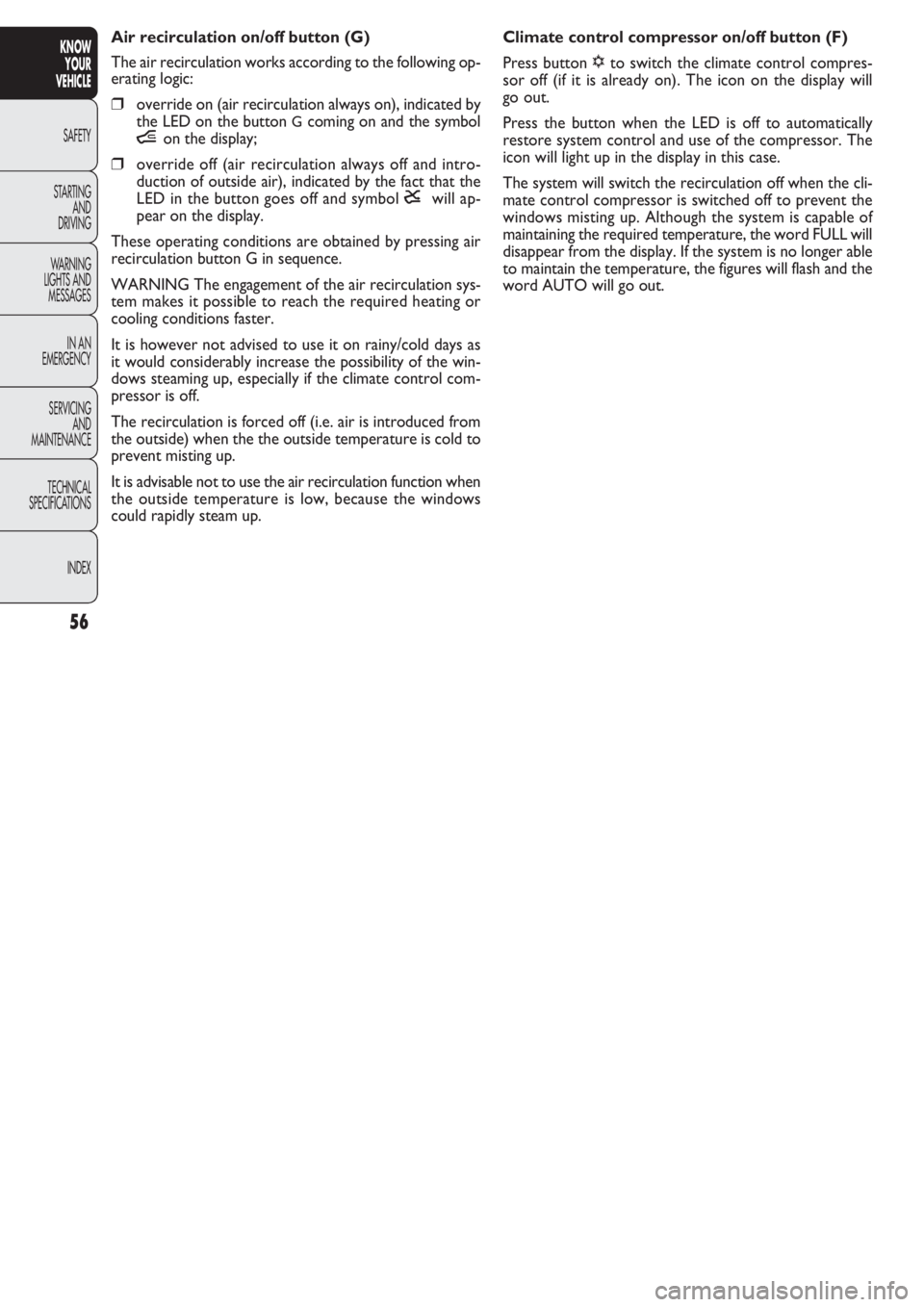

Climate control compressor on/off button (F)
Press button √to switch the climate control compres-
sor off (if it is already on). The icon on the display will
go out.
Press the button when the LED is off to automatically
restore system control and use of the compressor. The
icon will light up in the display in this case.
The system will switch the recirculation off when the cli-
mate control compressor is switched off to prevent the
windows misting up. Although the system is capable of
maintaining the required temperature, the word FULL will
disappear from the display. If the system is no longer able
to maintain the temperature, the figures will flash and the
word AUTO will go out. Air recirculation on/off button (G)
The air recirculation works according to the following op-
erating logic:
❒override on (air recirculation always on), indicated by
the LED on the button
Gcoming on and the symbol
íon the display;
❒override off (air recirculation always off and intro-
duction of outside air), indicated by the fact that the
LED in the button goes off and symbol êwill ap-
pear on the display.
These operating conditions are obtained by pressing air
recirculation button G in sequence.
WARNING The engagement of the air recirculation sys-
tem makes it possible to reach the required heating or
cooling conditions faster.
It is however not advised to use it on rainy/cold days as
it would considerably increase the possibility of the win-
dows steaming up, especially if the climate control com-
pressor is off.
The recirculation is forced off (i.e. air is introduced from
the outside) when the the outside temperature is cold to
prevent misting up.
It is advisable not to use the air recirculation function when
the outside temperature is low, because the windows
could rapidly steam up.
Page 58 of 274

57
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
❒the maximum air temperature for the HI air is set in
both areas;
❒sets the fan speed set according to the engine coolant
temperature to limit the flow of air that is insufficiently
warm to demist the windows;
❒the air flow is directed to the windscreen and front
door window glasses diffusers;
❒switches on the heated rear windscreen
WARNING The rapid demisting/defrosting function for
the windows remains on for about 3 minutes from when
the engine coolant reaches the appropriate temperature
for a rapid demisting of the windows.
When this function is active, the LED in the correspond-
ing button and the one for the heated rear windscreen but-
ton switch on. The message FULL AUTO goes off on the
display.
You can only adjust the fan speed and switch the heated
rear windscreen off manually when this function is active.
To restore the previous operating conditions, simply press
button B, air recirculation button G, compressor button
F or AUTO button A. IMPORTANT With the compressor off, it is not possible
to introduce air into the passenger compartment at a tem-
perature lower than that of the outside air. In certain
weather conditions, the windows could mist up rapidly due
to the non-dehumidified air.
The switching off of the compressor remains memorised
even when the engine has been stopped.
To restore automatic compressor engagement control,
press the √button again (in this case, the system will work
only as a heater) or press the AUTO button.
With the compressor switched off, if the outside tem-
perature is higher than the one set, the system is not ca-
pable of satisfying this request and signals it by the digits
for the temperature setting flashing after which the word
AUTO goes out.
With the climate control compressor off, the fan speed
can be set to zero manually (no bar shown).
With the compressor enabled and the engine started, the
fan speed may only be reduced to the minimum setting
(one bar shown).
Button for rapid window demisting/defrosting (D)
Press this button and the climate control system will au-
tomatically switch on all the functions required for fast
windscreen and side window demisting/defrosting:
❒the climate control compressor is turned on when
weather conditions are suitable;
❒the air recirculation is turned off;
Page 61 of 274

60
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
FV0053mfig. 46
Lane change function
If you wish to signal a lane change, put the left lever in the
temporary position for less than half a second. The direc-
tion indicator on the side selected will flash five times and
then go out automatically.
“FOLLOW ME HOME” DEVICE
This device lights up the space in front of the vehicle for
a short time.
Activation
With the ignition key in the STOP position or extracted,
pull the lever towards the steering wheel and move it with-
in 2 minutes of the engine switching off.
Each time the lever is moved, the lights stay on for an ex-
tra 30 seconds up to a maximum of 210 seconds; then the
lights are switched off automatically.
Each time the lever is moved, warning light 3 on the in-
strument panel comes on and the corresponding mes-
sage will appear on the display (see “Warning lights and
messages”) for as long as the function remains on. The
warning light comes on when the lever is operated and
stays on until the function is automatically deactivated. Each
movement of the lever only increases the amount of time
the lights stay on.
Deactivation
Keep the lever pulled towards the steering wheel for more

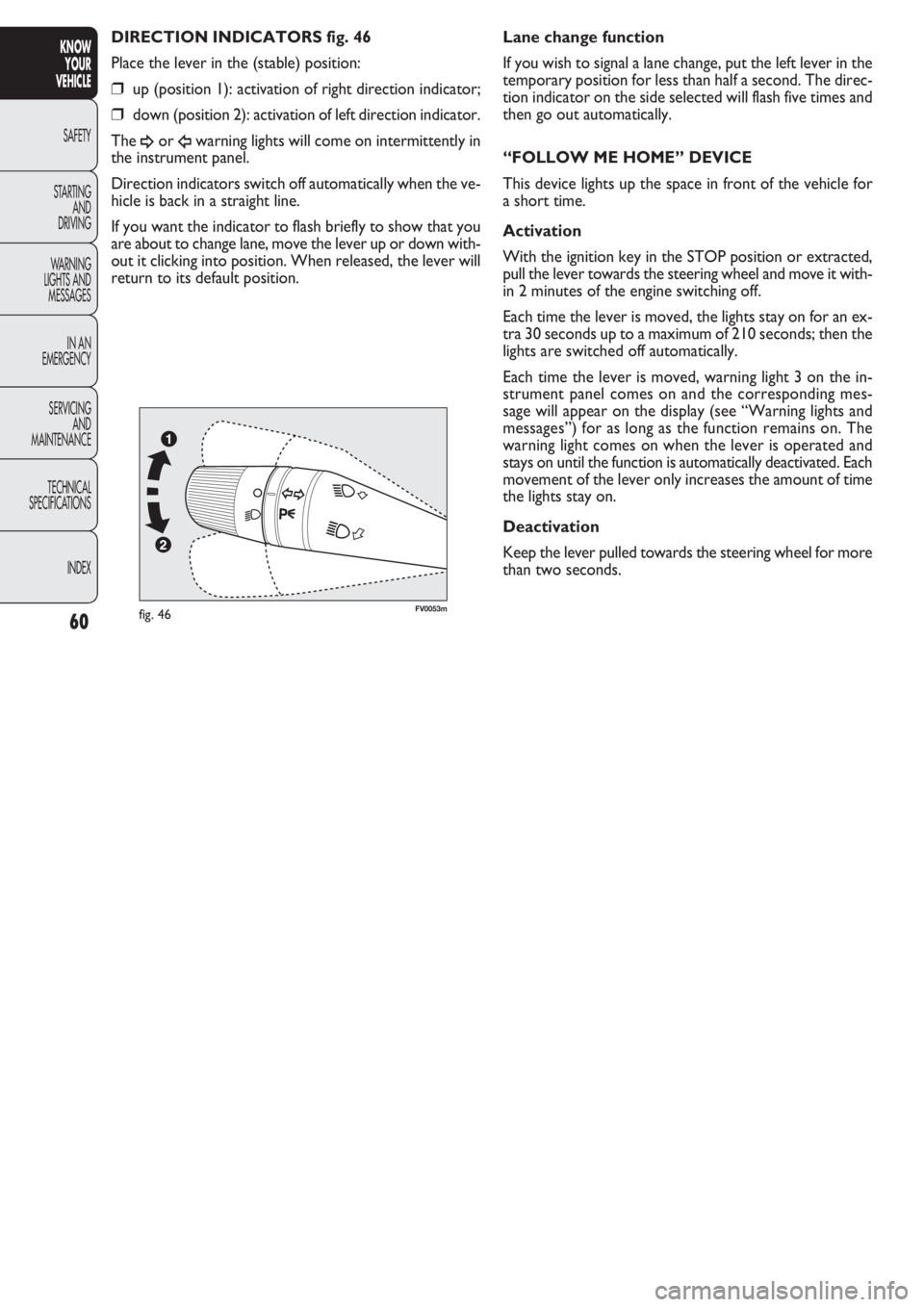

than two seconds. DIRECTION INDICATORS fig. 46
Place the lever in the (stable) position:
❒up (position 1): activation of right direction indicator;
❒down (position 2): activation of left direction indicator.
The
¥or Îwarning lights will come on intermittently in
the instrument panel.
Direction indicators switch off automatically when the ve-
hicle is back in a straight line.
If you want the indicator to flash briefly to show that you
are about to change lane, move the lever up or down with-
out it clicking into position. When released, the lever will
return to its default position.
Page 65 of 274

64
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Each movement of the lever will correspond to a slight re-
duction in speed of about 1 km/h, while keeping the lever
held downwards will correspond to a continuous speed
reduction.
Switching the device off
The device can be switched off by the driver in the fol-
lowing ways:
❒turning the twist switch A to the OFF position;
❒switching off the engine.
Deactivating the function
The device can be de-activated by the driver in the fol-
lowing ways:
❒pressing the brake pedal when the device is adjusting
the speed;
❒pressing the clutch pedal when the device is adjusting
the speed;
❒pressing the button B – fig. 48 when the device is ad-
justing the speed (for versions/markets, where pro-
vided);
❒pressing the accelerator pedal; in this case, the sys-
tem is not really de-activated but the request for ac-
celeration takes priority. The cruise control is, how-
ever, active and you do not need to press button B -
fig. 48 to restore the previous conditions after accel-
erating. Restoring the memorized speed
If the device has been switched off, for example by press-
ing the brake or clutch pedal, the memorized speed can
be restored as follows:
❒accelerate gradually until reaching a speed approaching
the memorised speed;
❒engage the gear selected at the time of speed memo-
rizing;
❒press button B-fig. 48.
Increasing the memorized speed
This can be done in two ways:
❒by pressing the accelerator and then memorizing the
new speed reached;
or
❒by moving the lever upwards (+).
Each operation of the lever will correspond to a slight in-
crease in speed of about 1 km/h, while keeping the lever
upwards will correspond to a continuous speed increase.
Reducing the memorized speed
This can be done in two ways:
❒by turning the device off and then memorizing a new
speed;
or
❒by moving the lever downwards (–) until reaching the
new speed, which will be memorized automatically.
Page 71 of 274

F0V0019mfig. 56
FRONT FOG LIGHTS fig. 56
(for versions/markets where provided)
Press button 5to switch them on. The warning light 5
in the instrument panel will come on.
When the fog lights are on, the side lights also come on,
while the daytime running lights go off irrespective of the
position of the twist switch.
Press the button again to turn the lights off.
REAR FOG LAMPS fig. 56
Press button
4to switch them on when the dipped head-
lamps or front fog lamps are on. The warning light
4in the
instrument panel will come on.
Press the button again to turn the lights off, or turn off the
dipped headlamps and/or the front fog lamps (where pro-
vided).
FUEL CUT-OFF SYSTEM
This system triggers after a collision and activates the fol-
lowing:
❒cut-off of fuel supply with consequent switching off of
the engine;
❒doors automatically unlocked;
❒switching on of all interior lights.
When the system has been triggered, the message “Fuel
cut off, see handbook” is displayed on some versions.
Check carefully for fuel leaks, for instance in the engine
compartment, under the vehicle or near the tank area.
After a crash, turn the ignition key to STOP to avoid drain-
ing the battery.
CONTROLS
HAZARD WARNING LIGHTS
They are turned on by pressing switch A-fig. 56, regard-
less of the ignition key position. With the device on, warn-
ing lights
Îand¥light up in the instrument panel. Press
switch A again to turn the lights off.
WARNING The use of hazard warning lights is governed
by the highway code of the country you are in. Keep to
the rules.
Emergency braking
(for versions/markets where provided)
During emergency braking, the hazard warning lights come
on automatically and warning lights
Îand¥light up in the
panel at the same time. They go out automatically as soon
as the emergency braking is over. This function complies
with the relevant legal regulations currently in force.
70
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
