52
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
G Air recirculation control button.
H Fan speed increase/decrease control buttons.
I Temperature increase/decrease control knob.
L Heated rear windscreen and electric door mirror
on/off button
(for versions/markets where provided).

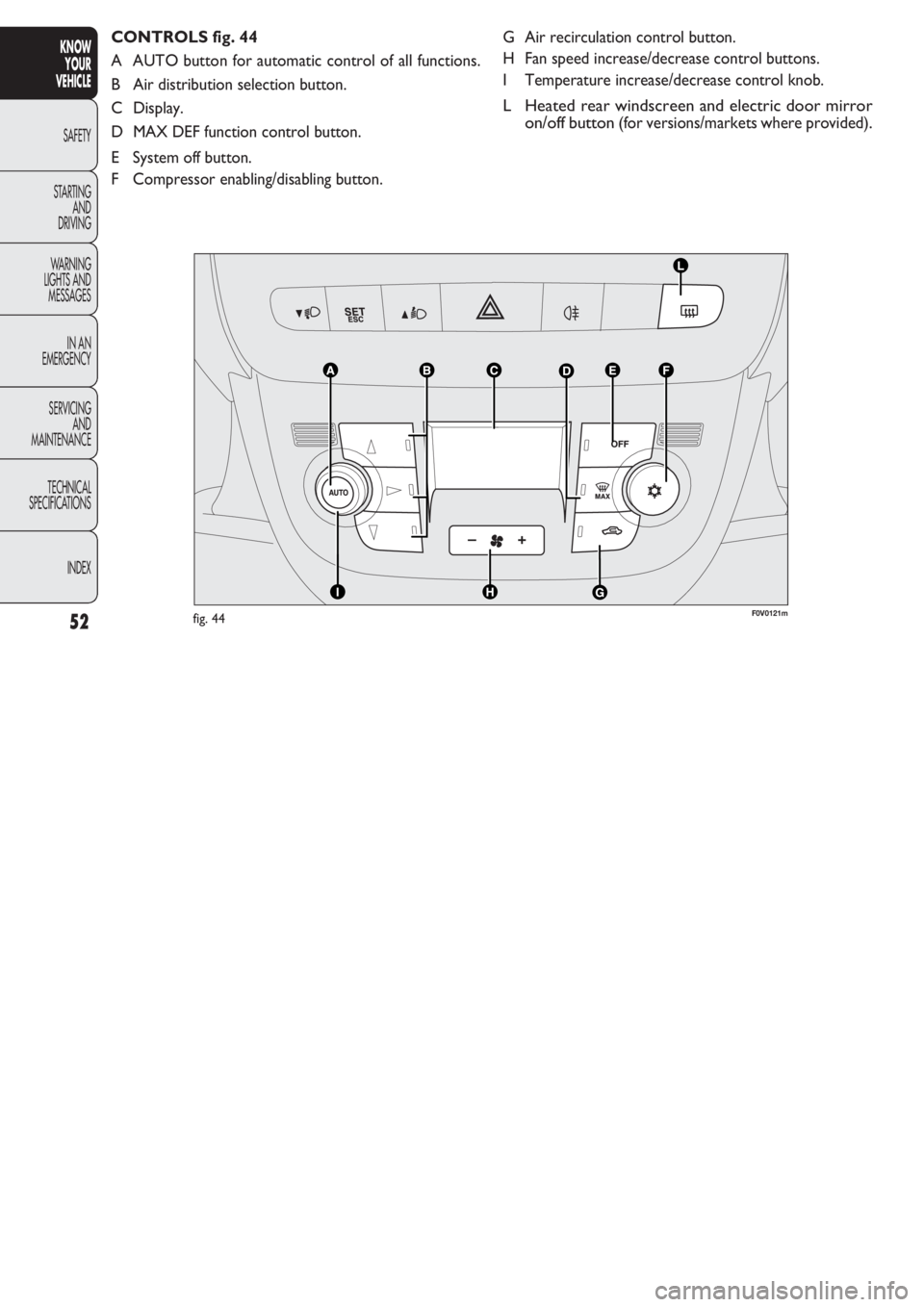

CONTROLS fig. 44
A AUTO button for automatic control of all functions.
B Air distribution selection button.
C Display.
D MAX DEF function control button.
E System off button.
F Compressor enabling/disabling button.
F0V0121mfig. 44

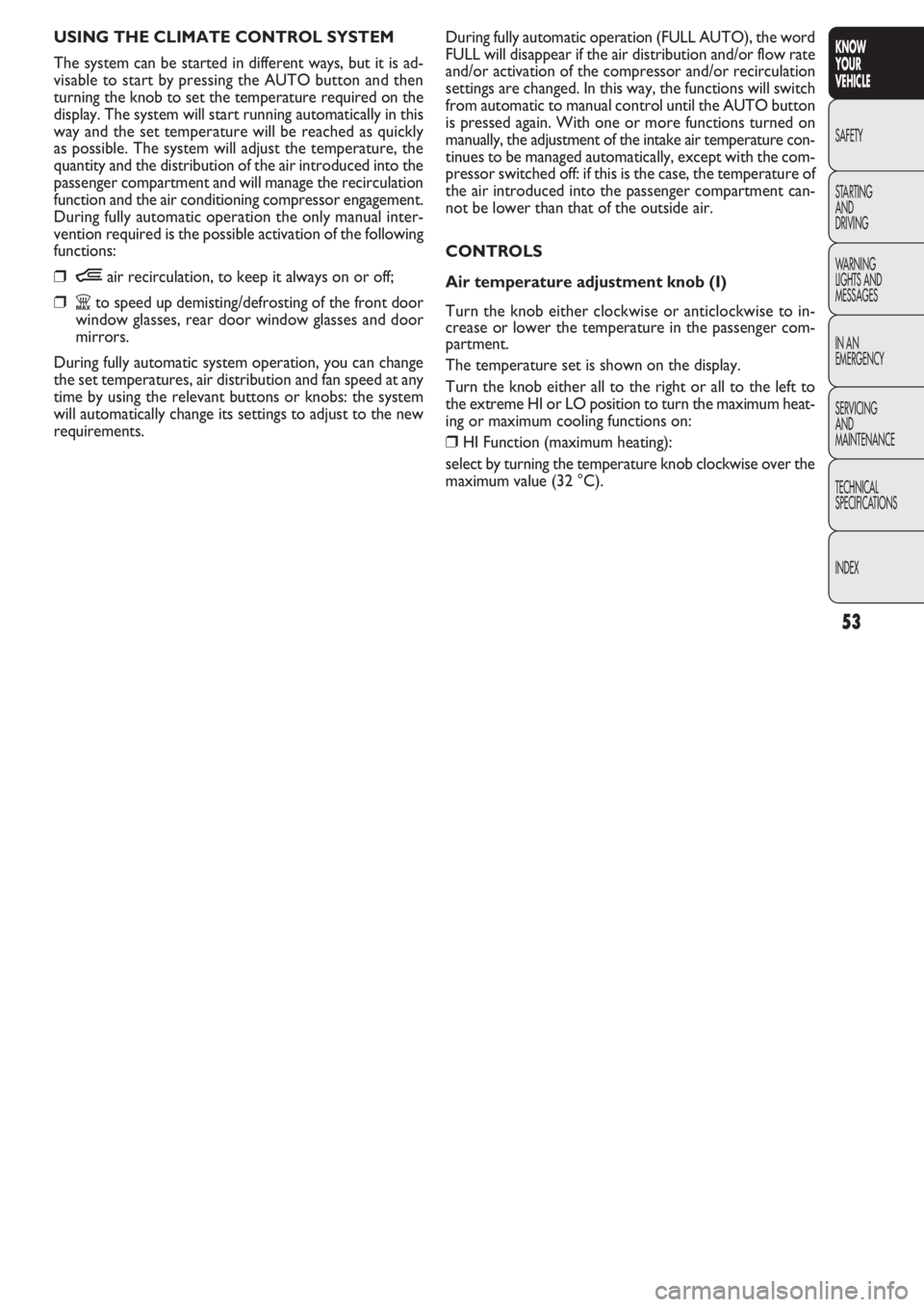

53
KNOW
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
During fully automatic operation (FULL AUTO), the word
FULL will disappear if the air distribution and/or flow rate
and/or activation of the compressor and/or recirculation
settings are changed. In this way, the functions will switch
from automatic to manual control until the AUTO button
is pressed again. With one or more functions turned on
manually, the adjustment of the intake air temperature con-
tinues to be managed automatically, except with the com-
pressor switched off: if this is the case, the temperature of
the air introduced into the passenger compartment can-
not be lower than that of the outside air.
CONTROLS
Air temperature adjustment knob (I)
Turn the knob either clockwise or anticlockwise to in-
crease or lower the temperature in the passenger com-
partment.
The temperature set is shown on the display.
Turn the knob either all to the right or all to the left to
the extreme HI or LO position to turn the maximum heat-
ing or maximum cooling functions on:
❒HI Function (maximum heating):
select by turning the temperature knob clockwise over the
maximum value (32 °C). USING THE CLIMATE CONTROL SYSTEM
The system can be started in different ways, but it is ad-
visable to start by pressing the AUTO button and then
turning the knob to set the temperature required on the
display. The system will start running automatically in this
way and the set temperature will be reached as quickly
as possible. The system will adjust the temperature, the
quantity and the distribution of the air introduced into the
passenger compartment and will manage the recirculation
function and the air conditioning compressor engagement.
During fully automatic operation the only manual inter-
vention required is the possible activation of the following
functions:
❒Òair recirculation, to keep it always on or off;
❒Zto speed up demisting/defrosting of the front door
window glasses, rear door window glasses and door
mirrors.
During fully automatic system operation, you can change
the set temperatures, air distribution and fan speed at any
time by using the relevant buttons or knobs: the system
will automatically change its settings to adjust to the new
requirements.

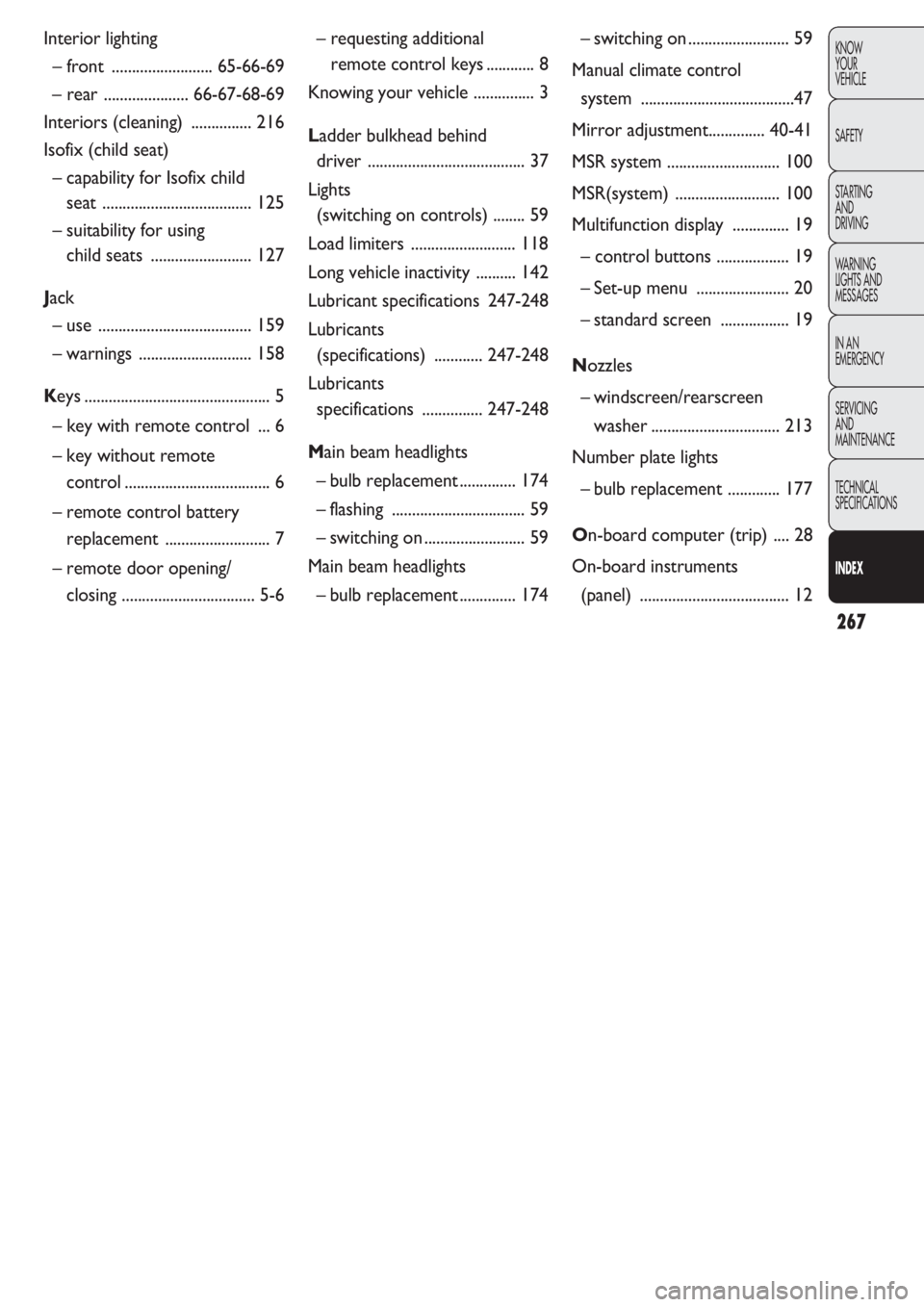

267
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Interior lighting
– front .........................65-66-69
– rear .....................66-67-68-69
Interiors (cleaning) ............... 216
Isofix (child seat)
– capability for Isofix child
seat ..................................... 125
– suitability for using
child seats ......................... 127
Jack
– use ...................................... 159
– warnings ............................ 158
Keys .............................................. 5
– key with remote control ... 6
– key without remote
control.................................... 6
– remote control battery
replacement .......................... 7
– remote door opening/
closing ................................. 5-6– requesting additional
remote control keys ............ 8
Knowing your vehicle ............... 3
Ladder bulkhead behind
driver ....................................... 37
Lights
(switching on controls) ........ 59
Load limiters .......................... 118
Long vehicle inactivity .......... 142
Lubricant specifications 247-248
Lubricants
(specifications) ............247-248
Lubricants
specifications ...............247-248
Main beam headlights
– bulb replacement .............. 174
– flashing ................................. 59
– switching on......................... 59
Main beam headlights
– bulb replacement .............. 174– switching on......................... 59
Manual climate control
system ......................................47
Mirror adjustment.............. 40-41
MSR system ............................ 100
MSR(system) .......................... 100
Multifunction display .............. 19
– control buttons .................. 19
– Set-up menu ....................... 20
– standard screen ................. 19
Nozzles
–
windscreen/rearscreen
washer ................................ 213
Number plate lights
– bulb replacement ............. 177
On-board computer (trip) .... 28
On-board instruments
(panel) ..................................... 12
