NUMBERPLATE LIGHTS
(for versions with swing doors)
Proceed as follows to replace the bulbs A-fig. 162:
❒ manoeuvre the holding tabs at the points indicated in
the diagram, and remove the lens by lifting to the left;
❒ remove the bulbs by releasing them from the side con-
tacts; insert the new bulbs and make sure they are cor-
rectly clamped between these contacts;
NUMBERPLATE LIGHTS
(for hatchback versions)
Proceed as follows to replace the bulbs A-fig. 160:
❒
manoeuvre the holding tabs at the points indicated by
the arrows, and remove the bulb holder;
❒ turn the bulb holder B-fig. 161 anticlockwise, then re-
move the bulb C.
F0V0036mfig. 162
F0V0231mfig. 159b

178
KNOWYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA TIONS
INDEX❒ open the cover B-fig. 164 as shown;
❒ remove bulb C-fig. 165 by releasing it from the side con-
tacts, then insert the new bulb and make sure it is cor-
rectly clamped between these contacts;
❒ close the cover and secure the ceiling light into its hous-
ing, making sure it locks properly into place.CHANGING AN INTERIOR BULB

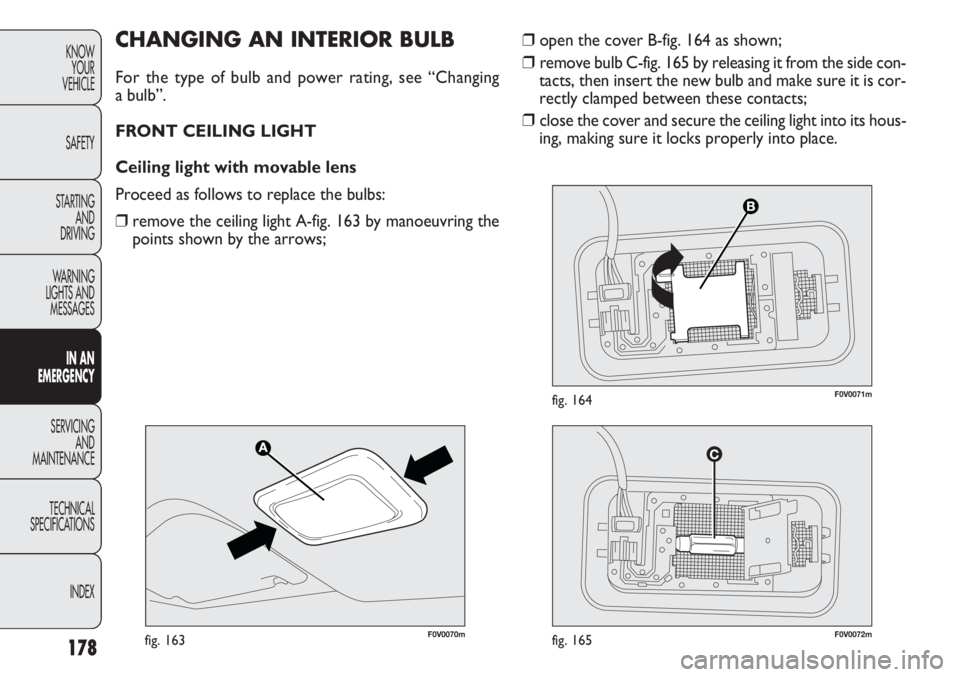

For the type of bulb and power rating, see “Changing
a bulb”.
FRONT CEILING LIGHT
Ceiling light with movable lens
Proceed as follows to replace the bulbs:
❒ remove the ceiling light A-fig. 163 by manoeuvring the
points shown by the arrows;
F0V0070mfig. 163F0V0072mfig. 165
F0V0071mfig. 164

179
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX❒ replace bulbs C by releasing them from the side con-
tacts and making sure that the new bulbs are correctly
clamped between these contacts;
❒ close the flap B-fig. 167 and refit the ceiling light A-fig.
166 in its housing, making sure it locks into place cor-
rectly.
REAR CEILING LIGHT
To change the bulb, proceed as follows:
❒ remove the ceiling light A-fig. 168 by manoeuvring the
points shown by the arrows;
❒ open the cover B-fig. 169 as shown;
❒ remove bulb C-fig. 170 by releasing it from the side con-
tacts, then insert the new bulb and make sure it is cor-
rectly clamped between these contacts;
❒ close the cover B-fig. 169 and secure the ceiling light in-
to its housing, making sure it locks properly into place.
Ceiling light with spot lights (where provided)
Proceed as follows to replace the bulbs:
❒
manipulate the points shown by the arrows and remove
ceiling light A-fig. 166;
❒ open the protective flap B-fig. 167;
F0V0074mfig. 167
F0V0073mfig. 166
F0V0075mfig. 168

180
KNOWYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA TIONS
INDEX
F0V0072mfig. 170
\002 \003 \004\005
F0V0176mfig. 171
❒
do so by manoeuvring the points shown by the arrows;
❒ replace bulb C-fig. 172 by releasing it from the side con-
tacts and making sure that the new bulb is correctly
clamped between these contacts;

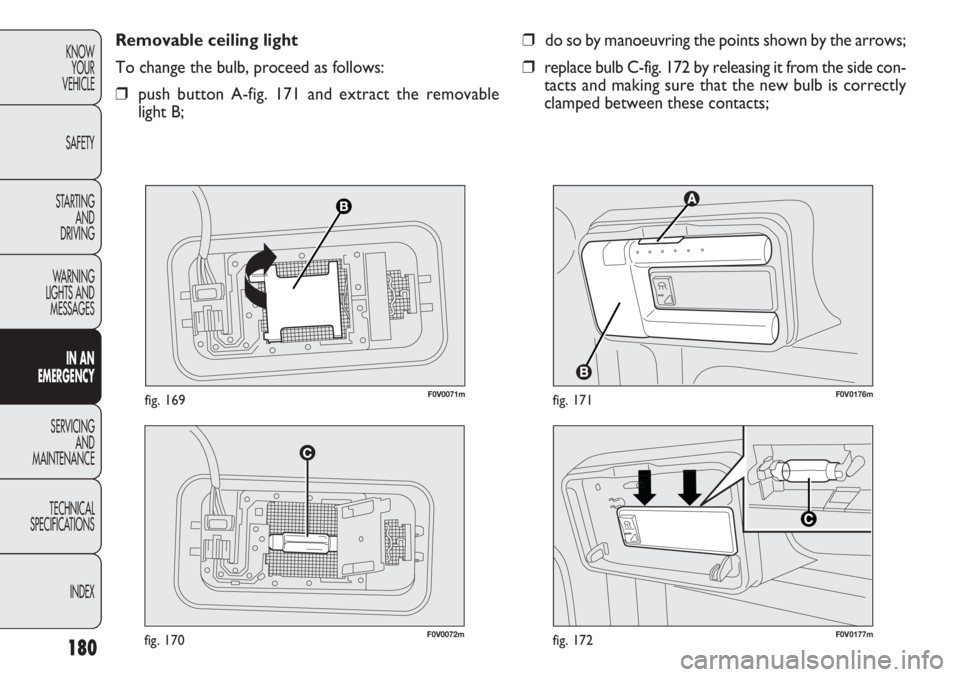

Removable ceiling light
