FIAT DOBLO COMBI 2013 Owner handbook (in English)

CONTINUOUSLY ON:ENGINE OIL PRESSURE
LOW (red)
FLASHING:
ENGINE OIL DEGRADED
(only Multijet versions with DPF – red)
When the ignition key is turned to MAR, the warning light
switches on, but it should go out as soon as the engine is
started.
1. Engine oil pressure low
The warning light turns on and stays on constantly along
with a message on the display (in versions/markets where
provided) when the system detects that engine oil pres-
sure is low.
147
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WA R N I N G
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA TIONS
INDEXv
If the warning light vturns on when the
car is travelling (on certain versions to-
gether with the message on the display), stop the
car immediately and contact a Fiat Dealership.
WARNING
2. Engine oil degraded (only Multijet versions with DPF)
The warning light will flash and a specific message will ap-
pear on the display (for versions/markets where provid-
ed). The warning light may flash in the following ways, de-
pending on the version:
– for one minute every two hours;
– for three minute cycles with the warning light off for
intervals of five seconds until oil is changed.
After the initial warning, each time the engine is started
up, the warning light will continue to flash in the same ways
as described above, until the oil is changed. A specific mes-
sage will appear on the display (for versions/markets where
provided) in addition to the warning light.
If the warning light flashes, this does not mean that the ve-
hicle is defective, but simply informs the driver that it is
now necessary to change the oil as a result of regular ve-
hicle use.
Note that engine oil degrades faster under the following
circumstances:
– mainly town use of the vehicle which makes the DPF re-
generation process more frequent
– use of the vehicle for short journies, preventing the en-
gine from reaching operating temperature
– repeated interruption of the regeneration process, sig-
nalled by the DPF warning light coming on.

148
KNOWYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA TIONS
INDEXDegraded engine oil should be replaced as
soon as possible after the warning light
comes on, and never more than 500 km after it
first comes on. F ailure to change the oil within the
first 500 km may result in severe damage to the
engine and invalidate the warranty. Remember
that when the warning light comes on, it does not
mean that the level of engine oil is low, so if the
light flashes you do not need to top up the engine
oil.
WARNING
SEAT BELT NOT FASTENED (red)
The warning light on the panel comes on steadi-
ly when the vehicle is stationary and the driver’s
seat belt is not correctly fastened. It will flash, and
be accompanied by an audible warning, if the front seat belts
are not correctly fastened when the vehicle is moving.
The SBR (Seat Belt Reminder) system’s audible warning
can be disabled only by a Fiat Dealership.
On some versions, the system can be reactivated from the
setup menu.
<
DOOR OPEN (red)
On certain versions, the warning light turns on
when one or more doors, the boot or the bon-
net are not properly closed.
A specific message is displayed on certain versions.
You will hear a warning sound if a door is open and the
vehicle is moving.
ENGINE OIL LOW (red)
When turning the ignition key to MAR, the warn-
ing light turns on but it should go off after a few
seconds.
This warning light appears on the panel when the engine
oil level falls below the minimum recommended value. Re-
store the correct engine oil level (see “Checking fluid lev-
els” in the “Servicing and maintenance” section).
A specific message is displayed on certain versions.
´
k

149
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WA R N I NG
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA TIONS
INDEXA specific message is displayed on certain versions.
Under these conditions, the vehicle can continue trav-
elling at moderate speed without demanding excessive
effort from the engine. Prolonged use of the vehicle
with the warning light on may cause damage. Go to a
Fiat Dealership as soon as possible.
The warning light goes out after the fault disappears,
but the notification is stored in the system.
❒ flashing: this indicates possible damage to the catalytic
converter (see “EOBD system” in the “Dashboard and
controls” section).
If the light flashes, come off the accelerator pedal to re-
duce engine revs until the warning light stops flashing;
continue the journey at moderate speed, trying to avoid
driving conditions that may cause further flashing, and
get to a Fiat Dealership as soon as possible.
INJECTION SYSTEM FAILURE
(Multijet versions – amber)
EOBD ENGINE MANAGEMENT
SYSTEM FAILURE
(petrol versions – amber)
Injection system failure
Under normal conditions, turning the ignition key to MAR,
the warning light turns on but it should go off after the en-
gine starts. If the warning light stays on or comes on when
travelling, it means there is a fault in the injection system
which could cause loss of performance, poor handling and
high fuel consumption levels.
A specific message is displayed on certain versions.
Under these conditions, the vehicle can continue travel-
ling at moderate speed without demanding excessive ef-
fort from the engine. In any case, you should go to a Fiat
Dealership as soon as possible.
EOBD engine management system failure
Under normal conditions, turning the ignition key to MAR,
the warning light turns on but it should go off after the en-
gine starts.
This indicates that the warning light is working correctly.
If the warning light either stays on or comes on during
your journey:
❒ on permanently: this means there is a fault in the sup-
ply/ignition system which could cause high exhaust
emissions, loss of performance, poor handling and high
fuel consumption levels.
U
Go to a Fiat Dealership as soon as possi-
ble if warning light
Udoes not light up
when the key is turned to MAR or if, while
travelling, the warning light comes on either per-
manently or flashing (along with a message on the
display on certain versions). The operation of the
Uwarning light may be checked by traffic police
using appropriate equipment. Respect the regula-
tions in force in the country where you are driving.

150
KNOWYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA TIONS
INDEX
FUEL RESERVE (amber)
When the ignition key is turned to MAR, the
warning light turns on but should go off after a few
seconds.
The warning light turns on when 8-10 litres of fuel are
left in the tank.
IMPORTANT The warning light will blink to indicate a sys-
tem failure. If this happens, go to a Fiat Dealership to have
the system checked.
DPF (PARTICULATE FILTER)
CLEANING IN PROGRESS
(only Multijet versions with DPF
– amber)
When the ignition key is turned to MAR, the warning light
turns on but should go off after a few seconds. The warn-
ing light stays on constantly to notify the driver that the
DPF system needs to eliminate captured pollutants (par-
ticulate) by the regeneration process.
The warning light does not come on during every DPF
regeneration, but only when driving conditions require no-
tification to the driver.
The warning light will go off if the vehicle stays in motion
until regeneration has been completed. The process nor-
mally takes about 15 minutes. Optimum conditions for
completing the process are achieved by travelling at
60 km/h with engine revs above 2000 rpm.
If this warning light comes on, it does not mean the vehi-
cle is defective, so there is no need to take it to a garage.
A specific message will appear on the display when the
warning light comes on (for versions/markets where pro-
vided).
h
ç
Always drive at a speed appropriate to the
traffic conditions, the weather and speed
limits. The engine may be turned off while the DPF
light is on; however, repeated interruption of the re-
generation process may result in premature degra-
dation of the engine oil. For this reason, it is always
advisable to wait for the light to go off before turn-
ing off the engine, following the instructions ap-
pearing above. It is recommended to complete DPF
regeneration with the vehicle stationary.
WARNING

151
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WA R N I NG
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA TIONS
INDEX
Glow plug preheating fault
The warning light flashes if there is a fault in the preheat-
ing system. Go to a Fiat Dealership as soon as possible.
A specific message is displayed on some versions. GLOW PLUG PREHEATING
(Multijet versions – amber)
GLOW PLUG PREHEATING FAULT
(Multijet versions – amber)
Glow plugs preheating
This warning light comes on when the key is turned to
MAR. It will go out as soon as the glow plugs have reached
a preset temperature. Start the engine as soon as the warn-
ing light goes out.
IMPORTANT In hot outside temperatures, the warning
light may stay on for only a very short time.
m
WATER IN DIESEL FILTER (Multijet versions – amber)
When the ignition key is turned to MAR, the
warning light turns on but should go off after a few
seconds.
The warning light
cturns on when there is water in the
diesel filter. A specific message is displayed on certain ver-
sions.
c
The presence of water in the fuel supply cir-
cuit may cause severe damage to the in-
jection system and irregular engine opera-
tion. If warning light
ccomes on (with a message
on the display on some versions), go to a Fiat Deal-
ership as soon as possible to have the system bled.
Water may have entered the tank if this appears
immediately after refuelling: if this happens, switch
the engine off immediately and contact a Fiat Deal-
ership.

152
KNOWYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA TIONS
INDEX
EXTERIOR LIGHTS FAULT(amber)
The warning light comes on (on some versions)
when a failure is detected in one of the following
lights:
– sidelights/taillights
– daytime running lights
– brake lights
– rear fog lights
– direction indicators
– number plate lights.
The failure relating to these lights could be: one or more
blown bulbs, a blown protection fuse or a break in the
electrical connection.
On certain versions, warning light è turns on as an al-
ternative.
A specific message is displayed on certain versions.
W
GENERIC WARNING (amber)
The warning light turns on in the following cir-
cumstances:
Engine oil pressure sensor failure
The warning light turns on when a failure is detected in
the engine oil pressure sensor.
Go to a Fiat Dealership to have the fault fixed as soon as
possible.
Exterior lights failure
(for versions/markets where provided)
See the section on warning light
6.
Fuel cut-off switch tripped
The warning light comes on when the fuel cut-off switch
is triggered.
A specific message is displayed on certain versions.
Parking sensor fault
(for versions/markets where provided)
See the section on warning light t.
Start&Stop system fault
(for versions/markets where provided)
The warning light comes on when a failure is detected in
the Start&Stop system.
è
FIAT CODE VEHICLE PROTECTION SYSTEM FAILURE (amber)
Warning light
Ymay come on (and a message on the dis-
play may appear on certain versions) to indicate that there
is a fault in the Fiat Code system or, if applicable, the alarm
system; in this case, contact a Fiat Dealership as soon as
possible.
Y

153
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WA R N I NG
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA TIONS
INDEXBRAKE PADS WORN (amber)
The warning light comes on if the front brake
pads are worn; in this case, have them changed as
soon as possible.
A specific message is displayed on certain versions.
d
PARKING SENSOR FAULT (amber)
(for versions/markets where provided)
The warning light turns on when a failure is de-
tected in the parking sensors.
On certain versions, warning light
èturns on as an al-
ternative. In this case, contact a Fiat Dealership.
A specific message is displayed on certain versions.
t
START&STOP SYSTEM FAILURE (amber)
(for versions/markets where provided)
The warning light comes on when a failure is de-
tected in the Start&Stop system. On certain versions,
warning light èturns on as an alternative.
In this case, contact a Fiat Dealership.
A specific message is displayed on certain versions.
j
SIDE LIGHTS AND TAILLIGHTS (green)
FOLLOW ME HOME (green)
Side lights/taillights
The warning light comes on when the side/taillights are
turned on.
Follow Me Home
The warning light will turn on when this device is active
(see “Follow Me Home” in the “Dashboard and controls”
section).
A specific message appears on the display.
3
FRONT FOG LIGHTS (green) The warning light comes on when the front fog
lights are turned on.
5
REAR FOG LIGHTS (amber)
The warning light comes on when the rear fog
lights are turned on.
4
CRUISE CONTROL (green) (for versions/markets where provided)
The warning light turns on, together with a mes-
sage on the display, when the cruise control twist
switch is turned to ON.
Ü

RIGHT-HAND DIRECTION INDICATOR (green – intermittent)
The warning light turns on when the direction
indicator stalk is moved upwards or, together with
the left indicator, when the hazard lights button is pressed.
154
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA TIONS
INDEXLEFT-HAND DIRECTIONINDICATOR (green – intermittent)
The warning light turns on when the direction
indicator stalk is moved downwards or, together
with the right indicator, when the hazard lights button is
pressed.
MAIN BEAM HEADLIGHTS (blue)The warning light comes on when the main
beams are turned on.
ASR SYSTEM
(versions with multifunction display)
(for versions/markets, where provided)
The ASR system can be turned off by pressing the but-
ton ASR OFF.
The display will show a specific message to warn the dri-
ver that the system is off; at the same time, the button LED
will turn on.
Î
¥
1
When you press ASR OFF again, the button LED will turn
off and the display will show a specific message to inform
you that the system is on again.
GEAR SHIFT INDICATOR
(for versions/markets where provided)
On vehicles with a manual gearbox, the gear shift indica-
tor suggests gear changes to the driver (SHIFT UP or
SHIFT DOWN) via a special display on the control pan-
el. This suggestion to change gear is designed to improve
consumption and ensure the best driving style.
NB The sign on the instrument panel remains on until the
driver changes gear or until the driving conditions return
to a situation where a gear change is not required to re-
duce consumption.

155
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0V0147mfig. 128
STARTING THE ENGINE
EMERGENCY STARTING
If the instrument panel warning light
Ystays on perma-
nently, contact a Fiat Dealership immediately.
JUMP STARTING
If the battery is flat, the engine may be started using an aux-
iliary battery with an equal or slightly higher capacity than
the flat one.
IN AN EMERGENCY
In an emergency, we recommend that you call the freephone number found i\
n the Warranty Booklet. You can
also go to the www.fiat.com website to find your nearest Fiat Dealership\
.
To do so, proceed as follows (fig. 128):
❒ connect the positive terminals (+ sign near the termi-
nal) of the two batteries with a jump lead;
❒ with a second lead, connect the negative terminal (–) of
the auxiliary battery to an earthing point E on the en-
gine or the gearbox of the car to be started;
❒ start the engine.
❒ when the engine has been started, follow the sequence
above in reverse order to remove the leads.
If after a few attempts the engine does not start, do not
keep trying but contact a Fiat Dealership.
IMPORTANT Do not directly connect the negative ter-
minals of the two batteries: sparks could ignite explosive
gas released from the battery. If the auxiliary battery is
installed on another vehicle, prevent accidental contact be-
tween metallic parts of the two vehicles.

156
KNOWYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA TIONS

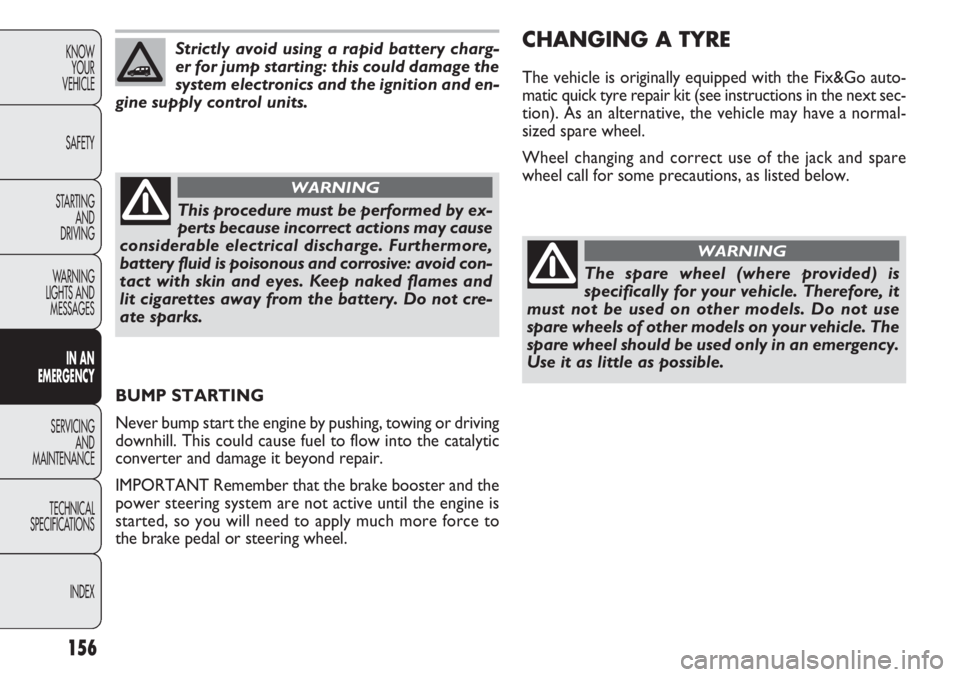

INDEXStrictly avoid using a rapid battery charg-
er for jump starting: this could damage the
system electronics and the ignition and en-
gine supply control units.
This procedure must be performed by ex-
perts because incorrect actions may cause
considerable electrical discharge. Furthermore,
battery fluid is poisonous and corrosive: avoid con-
tact with skin and eyes. Keep naked flames and
lit cigarettes away from the battery. Do not cre-
ate sparks.
WARNING
BUMP STARTING
Never bump start the engine by pushing, towing or driving
downhill. This could cause fuel to flow into the catalytic
converter and damage it beyond repair.
IMPORTANT Remember that the brake booster and the
power steering system are not active until the engine is
started, so you will need to apply much more force to
the brake pedal or steering wheel.
CHANGING A TYRE
The vehicle is originally equipped with the Fix&Go auto-
matic quick tyre repair kit (see instructions in the next sec-
tion). As an alternative, the vehicle may have a normal-
sized spare wheel.
Wheel changing and correct use of the jack and spare
wheel call for some precautions, as listed below.
The spare wheel (where provided) is
specifically for your vehicle. Therefore, it
must not be used on other models. Do not use
spare wheels of other models on your vehicle. The
spare wheel should be used only in an emergency.
Use it as little as possible.
WARNING
