Page 62 of 323
– door opening with window
moving, due to the intervention of
the anti-pinch system;
– 50 window movements without
ever closing the window;
– 3 door opening movements, with
moving window, without ever
closing the window.
Proceed as follows for the
initialisation:
1. completely close the driver's door
window, keeping the operating
button pressed for at least 5
seconds after the (upper) end of
travel position
2. proceed in the same way on the
passenger's side door button and
on the buttons of rear doors.
WARNING
28) Incorrect use of the electric
windows may be dangerous.
Before and during their operation,
ensure that any passengers are
not at risk from the moving glass
either by personal objects getting
caught in the mechanism or by
being hit by it directly.
29) When leaving the vehicle,
always remove the ignition key to
avoid the risk of injury due to
accidental operation of the
electric windows.
CONTROLS
FOG LIGHTS
(for versions/markets, where
provided)
Press the
button to turn them
on. The
warning light on the
panel switches on.
When the fog lights are on, the side
lights also come on, while the
daytime running lights go off
irrespective of the position of the
twist switch.
Press the button again to switch the
lights off.
72F0V0507
58
KNOW YOUR VEHICLE
Page 73 of 323
WARNING
44) Strictly adhere to the laws in
force concerning maximum
clearance.
45) Check that the attachment fixing
screws are tight after a few
kilometres.
IMPORTANT
8) Evenly distribute the load and
take into account, when driving,
the increased responsiveness
of the vehicle to side wind.
9) Never exceed the maximum
permitted loads (see chapter
“Technical specifications”).
HEADLIGHTS
LIGHT BEAM
ALIGNMENT
The correct alignment of the
headlights is essential for the
comfort and safety of the driver and
other road users. To ensure the
best visibility when travelling with the
headlights on, the headlight
alignment must be correct. Contact
a Fiat Dealership to have the
headlights checked and adjusted.
HEADLIGHT
ALIGNMENT
CORRECTOR
This device works with the ignition
key in the MAR position and the
dipped beam headlights on.
The vehicle tilts backwards when it
is laden, raising the beam. The
beams must therefore be realigned
in this case.Headlight alignment
adjustment
Press theandfig. 109
buttons on the control panel to
adjust.
The display located on the
instrument panel provides a visual
indication of the adjustment
position.
Position 0 - one or two people in the
front seats.
Position 1 - five people.
Position 2 - five people + load in the
luggage compartment.
Position 3 - driver + maximum
permitted load stowed in the
luggage compartment.
IMPORTANT Check the light beam
alignment every time the load
transported changes.
FOG LIGHTS
ALIGNMENT
(for versions/markets, where
provided)
Contact a Fiat Dealership to have
the headlights checked and
adjusted.
69
Page 93 of 323
TRIP COMPUTER
IN BRIEF
The Trip computer is used to
display information on vehicle
operation when the ignition key is
turned to MAR. This function
allows you to define two separate
trips, called "Trip A" and "Trip
B", for monitoring the "complete
mission" (journey) of the vehicle in
a reciprocally independent
manner. Both functions can be
reset (reset means start of a new
journey).
"Trip A" can be used to display the
values relating to:
❒External temperature
❒Range
❒Distance travelled A
❒Average consumption A
❒Instant consumption
❒Average speed A
❒Trip time A (driving time)
❒Reset Trip A
"Trip B", available on multifunction
display only, is used to display
the values relating to:
❒Distance travelled B
❒Average consumption B
❒Average speed B
❒Trip time B (driving time)
❒Trip B reset
11)
Values displayed
External temperature
Indicates the temperature outside
the vehicle passenger compartment.
Range (for versions/markets, where
provided)
This indicates the distance that can
still be travelled with the fuel in the
tank, assuming that driving style
remains unvaried. The display will
show the reading "----"when the
following events take place:
❒range is lower than 50 km (or
corresponding figure in mi)
❒vehicle is left parked with the engine
running for a long time
IMPORTANT The range can be
affected by several factors: driving
style (see paragraph “Driving style”
in the “Starting and driving” section),
type of route (motorway, towns
and cities, mountain roads, etc…),
usage conditions (load, tyre
pressures, etc…). Trip planning must
therefore take the above into
account.
Distance travelled
This value shows the distance
travelled from the start of the new
journey.
Average consumption (for
versions/markets, where provided)
This value shows the approximate
average fuel consumption from
the start of the new journey.
Instant consumption (for versions/
markets where provided)
This value shows the fuel
consumption. The value is
constantly updated. The display will
show "----"ifthevehicle is parked
with the engine running.
89
Page 114 of 323
ACTIVE SAFETY
SYSTEMS
The vehicle has the following active
safety systems:
❒ABS;
❒EBD system;
❒Brake Assist system;
❒ESP system;
❒ASR system;
❒Hill Holder system;
❒MSR system;
For the operation of the systems,
see the following pages.
ABS
This is an integral part of the braking
system, which prevents one or
more wheels from locking or slipping
regardless of the road surface
conditions and braking intensity,
ensuring control of the vehicle even
during emergency braking.
The EBD system (Electronic Braking
Force Distribution) completes the
system allowing the brake force to
be distributed between the front and
rear wheels.
IMPORTANT To get the maximum
efficiency of the braking system,
a bedding-in period of about 500
km is needed: during this period it is
better to avoid sharp, repeated
and prolonged braking.
SYSTEM
INTERVENTION
The driver can feel that the ABS has
come into action because the brake
pedal pulsates slightly and the
system gets noisier: it means that
the vehicle speed should be altered
to suit the type of road surface.
53) 54) 55)
FAULT INDICATIONS
ABS failure
This is indicated by the
warning
light in the instrument panel coming
on (together with the appropriate
message on the multifunction
display on some versions) (see the
“Warning lights and messages”
chapter).
In this case, the braking system will
still be effective, although without
the extra capacity offered by the
ABS.
Drive carefully to the nearest Fiat
Dealership to have the system
checked.
EBD failure
This is indicated by the
and
warning lights in the instrument
panel coming on (together with
the appropriate message on the
multifunction display on some
versions) (see the “Warning lights
and messages” chapter).
110
SAFETY
Page 115 of 323
In this case, the rear wheels may
suddenly lock and the vehicle may
swerve when braking sharply. Drive
carefully to the nearest Fiat
Dealership to have the system
checked.
56)
BRAKE ASSIST
(integrated ESP
emergency braking
assistance)
(for versions/markets, where
provided)
This system (which cannot be
deactivated) recognises emergency
braking conditions according to
the speed of operation of the brake
pedal and provides an additional
hydraulic braking pressure to
support that provided by the driver.
This allows faster and more powerful
operation of the braking system.
Brake Assist is deactivated on the
versions equipped with ESP, in
the event of ESP system failure
(indicated by the
warning light
coming on together with the
message in the multifunction display,
where provided).
57)
WARNING
53) When the ABS cuts in and you
feel the brake pedal pulsating,
do not raise your foot, but keep it
pressed; in doing so you will stop
in the shortest amount of space
possible depending on the current
road conditions.
54) If the ABS intervenes, it is a sign
that the grip between tyre and the
road surface has reached the
limit: you must slow down to
adapt the speed to the road grip
available.
55) The ABS exploits the grip
available to the full, but it cannot
improve it. Therefore, you should
take great care when driving on
slippery surfaces, without taking
unnecessary risks.56) If only the
warning light
lights up in the instrument panel
(with a message in the display
on some versions), stop the
vehicle immediately and contact
the nearest Fiat Dealership. Fluid
leaking from the hydraulic system
will compromise the operation
of the braking system, whether it
is of the conventional type or
with ABS.
57) When the ABS cuts in and you
feel the brake pedal pulsating,
do not raise your foot, but keep it
pressed; in doing so you will stop
in the shortest amount of space
possible depending on the current
road conditions.
111
Page 117 of 323
During this release stage, the typical
brake disengagement noise
indicating that the vehicle is going to
move imminently will be heard.
Fault indications
Any system fault is indicated by the
turning on of the
warning light on
the instrument panel with digital
display and the
warning light on
the instrument panel with
multifunction display (for versions/
markets where provided) (see
section “Warning lights and
messages”).
IMPORTANT The Hill Holder system
is not a parking brake, therefore
do not leave the vehicle without
activating the handbrake, switching
off the engine and engaging first
gear.
59)
ASR SYSTEM (Antislip
Regulator)
This is a traction control system that
cuts in automatically every time
one or both drive wheels slip.Depending on the slipping
conditions, two different control
systems are activated:
❒if the slipping involves both drive
wheels, the ASR intervenes reducing
the power transmitted by the engine;
❒if the slipping only involves one of the
drive wheels, it intervenes
automatically braking the wheel that
is slipping.
The action of the ASR system is
particularly helpful in the following
circumstances:
❒slipping of the inner wheel on bends
due to dynamic variations in the load
or excessive acceleration;
❒excessive power transmitted to the
wheels, also in relation to road
surface conditions;
❒acceleration on slippery, snowy or icy
road surfaces;
❒loss of grip on wet road surfaces
(aquaplaning).
MSR system (engine
drive regulation)
This is a system that, in the event of
a sudden gear down shift, cuts in
and provides torque to the engine
thus preventing excessive drive
wheel drive which, especially in poor
grip conditions, can lead to a loss
of stability.
Engagement/
disengagement of the
ASR system
The ASR system switches on
automatically each time the engine
is started.
Whilst driving, the ASR can be
switched off and subsequently
switched on again by pressing the
fig. 118 button on the dashboard.
Switching off is shown by the
warning light on the instrument
panel switching on and a dedicated
message shown in the multifunction
display, where provided.
If the ASR is switched off when
driving, it is automatically switched
on again when the vehicle is started
up.
113
Page 118 of 323
When travelling on snowy roads with
snow chains, it may be helpful to
turn the ASR off: in fact, in these
conditions, the driving wheels
slipping when moving off gives you
better traction.
60)
For the correct operation of the ASR
system, the tyres must absolutely
be the same make and type on
all wheels, in perfect condition and,
above all, of the type, make and size
specified.FAULT INDICATIONS
In the event of a fault, the ASR will
be automatically switched off and
the
warning light will appear
permanently on the instrument panel
along with a message on the
multifunction display, where
provided (see “Warning lights and
messages”). In this case, contact a
Fiat Dealership as soon as possible.
WARNING
58) Do not take unnecessary risks,
even if your vehicle is fitted with
an ESC system. Your driving style
must always be suited to the
road conditions, visibility
and traffic. The driver is always
responsible for road safety.
59) For the ESC and ASR systems to
function correctly, all four tyres
must be the same brand and type,
must be in excellent condition
and, above all, must be of the
prescribed type and size.60) Do not take unnecessary risks,
even if your vehicle is fitted with
this system. Your driving style
must always be suited to the road
conditions, visibility and traffic.
The driver is always responsible
for road safety.
118F0V0576
114
SAFETY

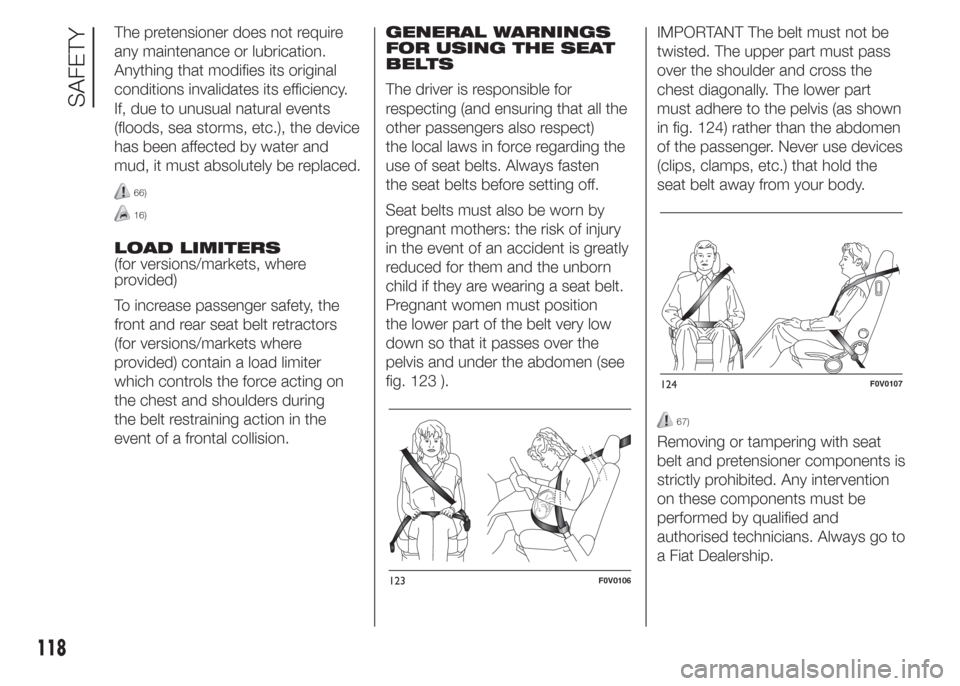

Page 122 of 323
The pretensioner does not require
any maintenance or lubrication.
Anything that modifies its original
conditions invalidates its efficiency.
If, due to unusual natural events
(floods, sea storms, etc.), the device
has been affected by water and
mud, it must absolutely be replaced.
66)
16)
LOAD LIMITERS
(for versions/markets, where
provided)
To increase passenger safety, the
front and rear seat belt retractors
(for versions/markets where
provided) contain a load limiter
which controls the force acting on
the chest and shoulders during
the belt restraining action in the
event of a frontal collision.GENERAL WARNINGS
FOR USING THE SEAT
BELTS
The driver is responsible for
respecting (and ensuring that all the
other passengers also respect)
the local laws in force regarding the
use of seat belts. Always fasten
the seat belts before setting off.
Seat belts must also be worn by
pregnant mothers: the risk of injury
in the event of an accident is greatly
reduced for them and the unborn
child if they are wearing a seat belt.
Pregnant women must position
the lower part of the belt very low
down so that it passes over the
pelvis and under the abdomen (see
fig. 123 ).IMPORTANT The belt must not be
twisted. The upper part must pass
over the shoulder and cross the
chest diagonally. The lower part
must adhere to the pelvis (as shown
in fig. 124) rather than the abdomen
of the passenger. Never use devices
(clips, clamps, etc.) that hold the
seat belt away from your body.
67)
Removing or tampering with seat
belt and pretensioner components is
strictly prohibited. Any intervention
on these components must be
performed by qualified and
authorised technicians. Always go to
a Fiat Dealership.
123F0V0106
124F0V0107
118
SAFETY

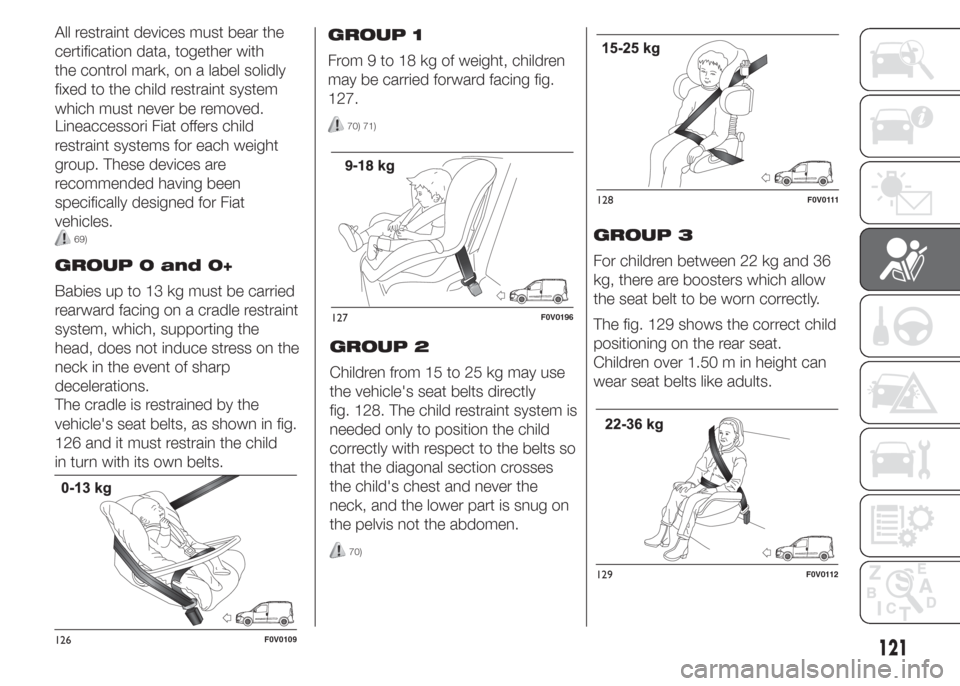

Page 125 of 323
All restraint devices must bear the
certification data, together with
the control mark, on a label solidly
fixed to the child restraint system
which must never be removed.
Lineaccessori Fiat offers child
restraint systems for each weight
group. These devices are
recommended having been
specifically designed for Fiat
vehicles.
69)
GROUP 0 and 0+
Babies up to 13 kg must be carried
rearward facing on a cradle restraint
system, which, supporting the
head, does not induce stress on the
neck in the event of sharp
decelerations.
The cradle is restrained by the
vehicle's seat belts, as shown in fig.
126 and it must restrain the child
in turn with its own belts.GROUP 1
From 9 to 18 kg of weight, children
may be carried forward facing fig.
127.
70) 71)
GROUP 2
Children from 15 to 25 kg may use
the vehicle's seat belts directly
fig. 128. The child restraint system is
needed only to position the child
correctly with respect to the belts so
that the diagonal section crosses
the child's chest and never the
neck, and the lower part is snug on
the pelvis not the abdomen.
70)
GROUP 3
For children between 22 kg and 36
kg, there are boosters which allow
the seat belt to be worn correctly.
The fig. 129 shows the correct child
positioning on the rear seat.
Children over 1.50 m in height can
wear seat belts like adults.
126F0V0109
127F0V0196
128F0V0111
121
129F0V0112
Page 140 of 323
STARTING THE
ENGINE
The vehicle is fitted with an
immobiliser: if the engine fails to
start, see the paragraph on “The
Fiat CODE system” in the
“Dashboard and controls” section.
The engine may be noisier during
the first few seconds of operation,
especially after a long period of
inactivity. This is due to the hydraulic
tappets, the timing system chosen
for petrol engine versions to reduce
the number of servicing
interventions, and affects neither
functionality nor reliability.
17) 18)
78)
PROCEDURE FOR
PETROL VERSIONS
Proceed as follows:
❒engage the handbrake;
❒put the gear lever into neutral;
❒fully depress the clutch pedal,
without touching the accelerator;
❒turn the ignition key to AVV and
release it as soon as the engine
starts.
If the engine does not start at the
first attempt, return the ignition key
to STOP before repeating the
starting procedure.
If, when the ignition key is on MAR,
the instrument panel warning light
remains on together with
warning light
, turn the key to
STOP and then back to MAR; if the
warning light remains on, try the
other keys provided with the vehicle.
If you are still unable to start the
engine, perform the emergency
starting procedure (see "Emergency
starting" in the "In an emergency"
chapter) and contact a Fiat
Dealership.
PROCEDURE FOR
DIESEL VERSIONS
Proceed as follows:
❒engage the handbrake;
❒put the gear lever into neutral;
❒turn the ignition key to MAR: the
warning lights
andon
the instrument panel will turn on;
❒wait for the warning lights
and
to switch off. The hotter the
engine is, the quicker this will
happen;❒fully depress the clutch pedal,
without touching the accelerator;
❒turn the ignition key to AVV as soon
as warning light
switches off.
Waiting too long will waste the
heating work carried out by the glow
plugs.
Release the key as soon as the
engine starts.
IMPORTANT With the engine cold,
the accelerator pedal must be
fully released when you turn the
ignition key to AVV.
If the engine does not start at the
first attempt, return the ignition key
to STOP before repeating the
starting procedure.
If, when the ignition key is at MAR
the
warning light remains lit, turn
the key to STOP and then back to
MAR; if the warning light remains lit,
try with the other keys provided
with the vehicle. If you still cannot
start the engine, contact a Fiat
Dealership.
19)
136
STARTING AND DRIVING
