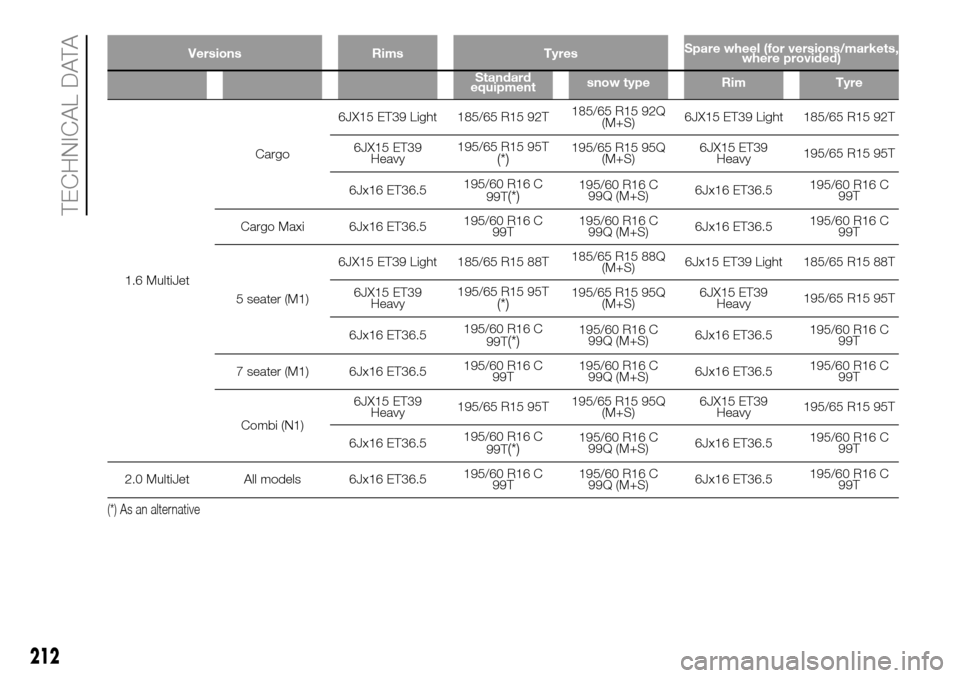

technical data FIAT DOBLO COMBI 2016 2.G User Guide

Versions Rims TyresSpare wheel (for versions/markets,
where provided)
Standard
equipmentsnow type Rim Tyre
1.6 MultiJetCargo6JX15 ET39 Light 185/65 R15 92T185/65 R15 92Q
(M+S)6JX15 ET39 Light 185/65 R15 92T
6JX15 ET39
Heavy195/65 R15 95T
(*)195/65 R15 95Q
(M+S)6JX15 ET39
Heavy195/65 R15 95T
6Jx16 ET36.5195/60 R16 C
99T
(*)195/60 R16 C
99Q (M+S)6Jx16 ET36.5195/60 R16 C
99T
Cargo Maxi 6Jx16 ET36.5195/60 R16 C
99T195/60 R16 C
99Q (M+S)6Jx16 ET36.5195/60 R16 C
99T
5 seater (M1)6JX15 ET39 Light 185/65 R15 88T185/65 R15 88Q
(M+S)6Jx15 ET39 Light 185/65 R15 88T
6JX15 ET39
Heavy195/65 R15 95T
(*)195/65 R15 95Q
(M+S)6JX15 ET39
Heavy195/65 R15 95T
6Jx16 ET36.5195/60 R16 C
99T
(*)195/60 R16 C
99Q (M+S)6Jx16 ET36.5195/60 R16 C
99T
7 seater (M1) 6Jx16 ET36.5195/60 R16 C
99T195/60 R16 C
99Q (M+S)6Jx16 ET36.5195/60 R16 C
99T
Combi (N1)6JX15 ET39
Heavy195/65 R15 95T195/65 R15 95Q
(M+S)6JX15 ET39
Heavy195/65 R15 95T
6Jx16 ET36.5195/60 R16 C
99T
(*)195/60 R16 C
99Q (M+S)6Jx16 ET36.5195/60 R16 C
99T
2.0 MultiJet All models 6Jx16 ET36.5195/60 R16 C
99T195/60 R16 C
99Q (M+S)6Jx16 ET36.5195/60 R16 C
99T
(*) As an alternative
212
TECHNICAL DATA

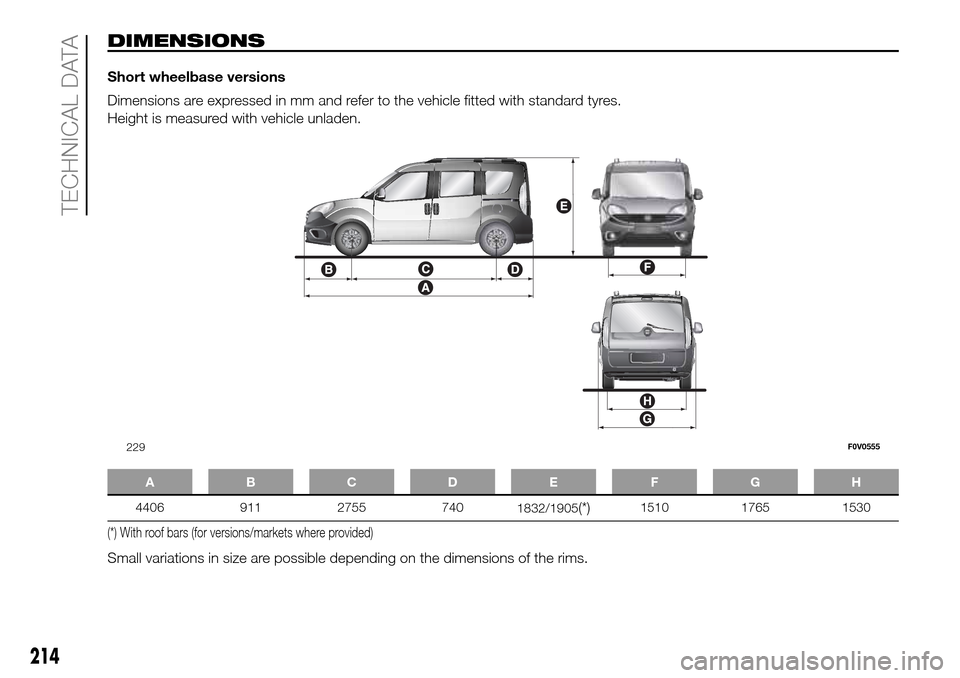

DIMENSIONS
Short wheelbase versions
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
Height is measured with vehicle unladen.
ABCDE FGH
4406 911 2755 740
1832/1905(*)1510 1765 1530
(*) With roof bars (for versions/markets where provided)
Small variations in size are possible depending on the dimensions of the rims.
229F0V0555
214
TECHNICAL DATA

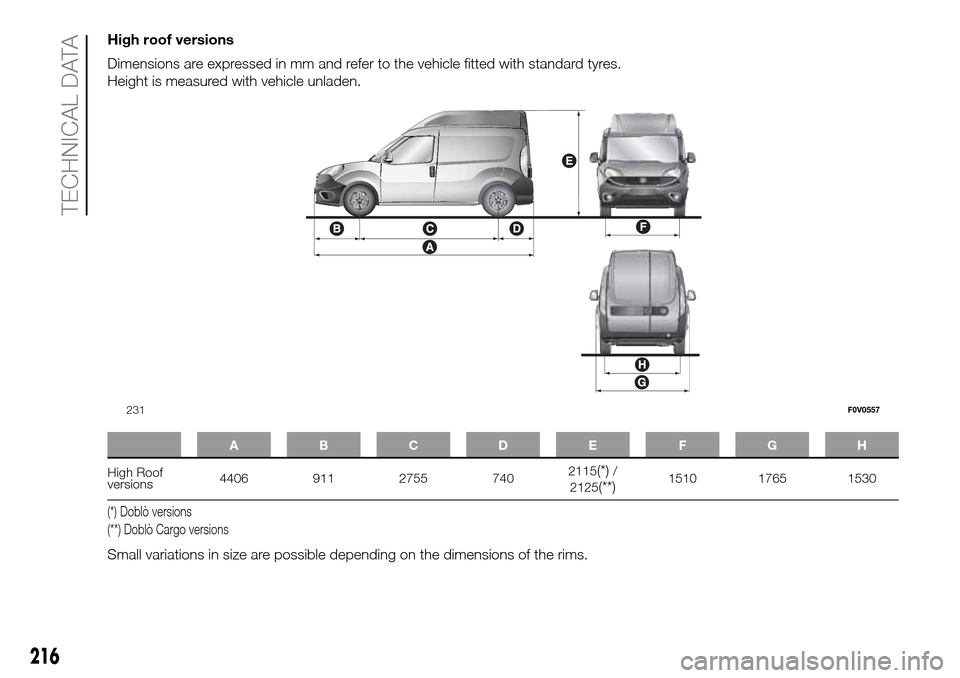

High roof versions
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
Height is measured with vehicle unladen.
ABCDE FGH
High Roof
versions4406 911 2755 7402115(*)/
2125(**)1510 1765 1530
(*) Doblò versions
(**) Doblò Cargo versions
Small variations in size are possible depending on the dimensions of the rims.
231F0V0557
216
TECHNICAL DATA

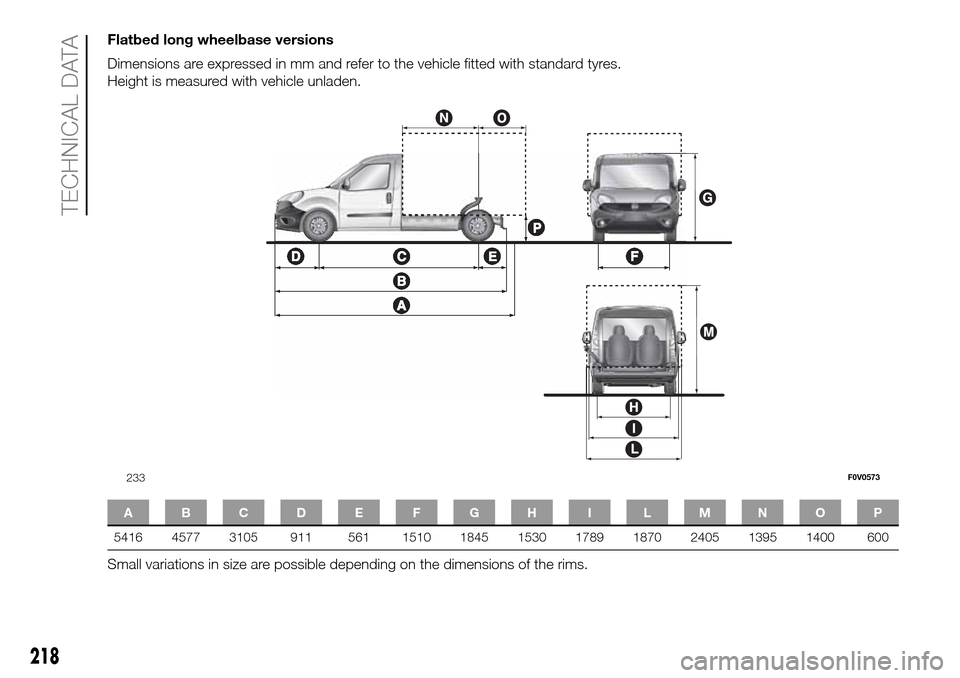

Flatbed long wheelbase versions
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
Height is measured with vehicle unladen.
ABCDE FGH I LMNOP
5416 4577 3105 911 561 1510 1845 1530 1789 1870 2405 1395 1400 600
Small variations in size are possible depending on the dimensions of the rims.
233F0V0573
218
TECHNICAL DATA

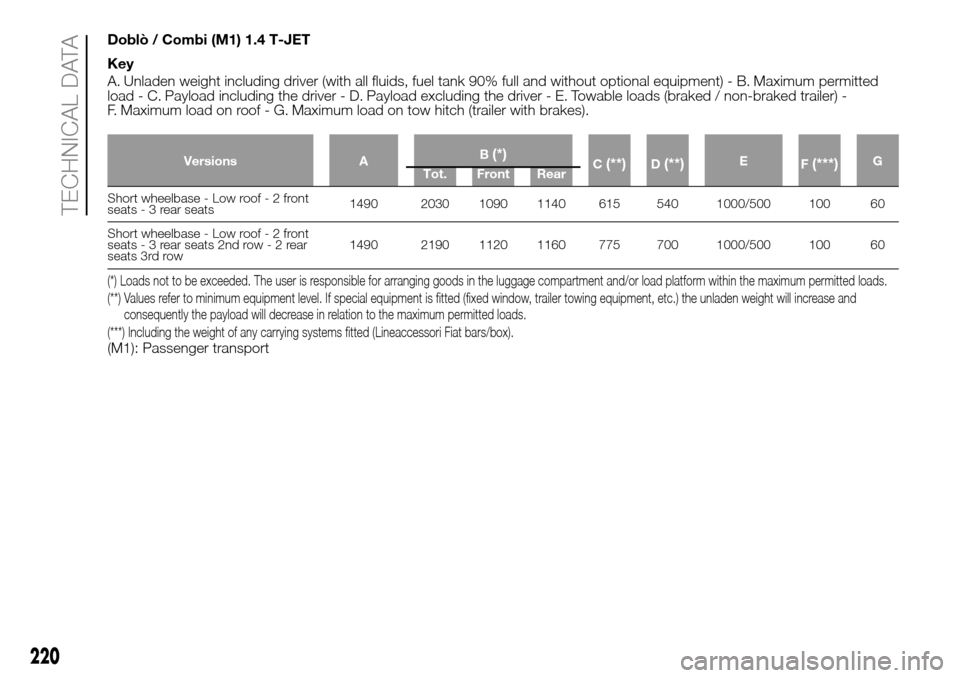

Doblò / Combi (M1) 1.4 T-JET
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats-3rearseats1490 2030 1090 1140 615 540 1000/500 100 60
Short wheelbase - Low roof-2front
seats-3rearseats 2nd row-2rear
seats 3rd row1490 2190 1120 1160 775 700 1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(M1): Passenger transport
220
TECHNICAL DATA

Doblò / Combi (M1) 2.0 Multijet
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats-3rearseats1555 2085 1130 1140 605 530 1500/500 100 60
Short wheelbase - High roof-2front
seats-3rearseats1615 2155 1120 1450 615 540 1500/500 - 60
Short wheelbase - Low roof-2front
seats-3rearseats 2nd row-2rear
seats 3rd row1555 2255 1120 1220 775 700 1500/500 100 60
Long wheelbase - Low roof-2front
seats-3rearseats1615 2105 1200 1450 565 490 1500/500 100 60
Long wheelbase - High roof-2front
seats-3rearseats1675 2215 1200 1450 615 540 1500/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(M1): Passenger transport
222
TECHNICAL DATA

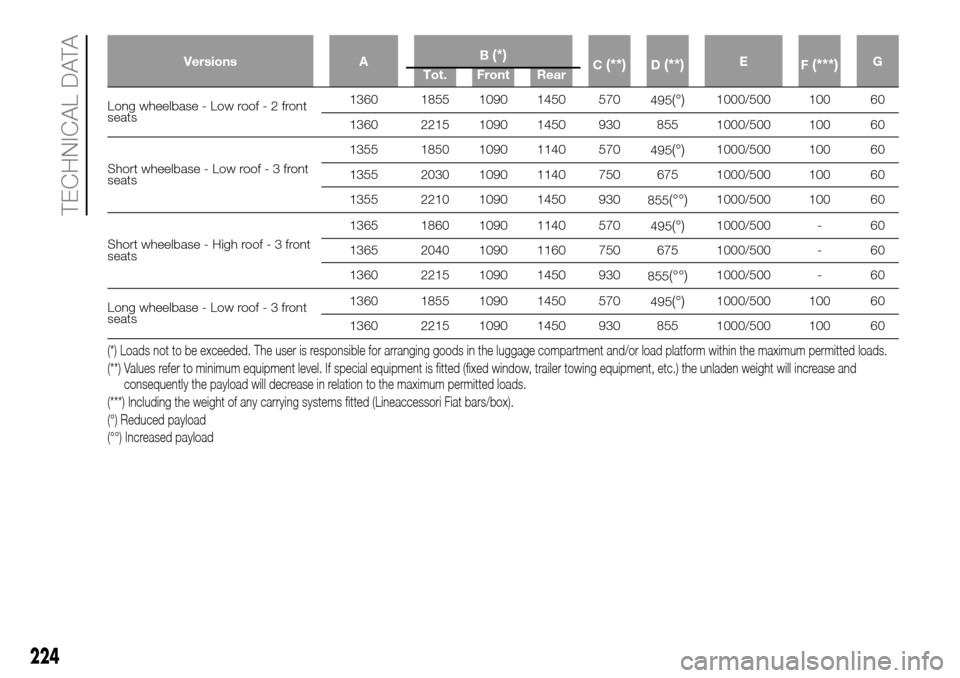

Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Long wheelbase - Low roof-2front
seats1360 1855 1090 1450 570
495(°)1000/500 100 60
1360 2215 1090 1450 930 855 1000/500 100 60
Short wheelbase - Low roof-3front
seats1355 1850 1090 1140 570
495
(°)1000/500 100 60
1355 2030 1090 1140 750 675 1000/500 100 60
1355 2210 1090 1450 930
855
(°°)1000/500 100 60
Short wheelbase - High roof-3front
seats1365 1860 1090 1140 570
495
(°)1000/500 - 60
1365 2040 1090 1160 750 675 1000/500 - 60
1360 2215 1090 1450 930
855
(°°)1000/500 - 60
Long wheelbase - Low roof-3front
seats1360 1855 1090 1450 570
495
(°)1000/500 100 60
1360 2215 1090 1450 930 855 1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
224
TECHNICAL DATA

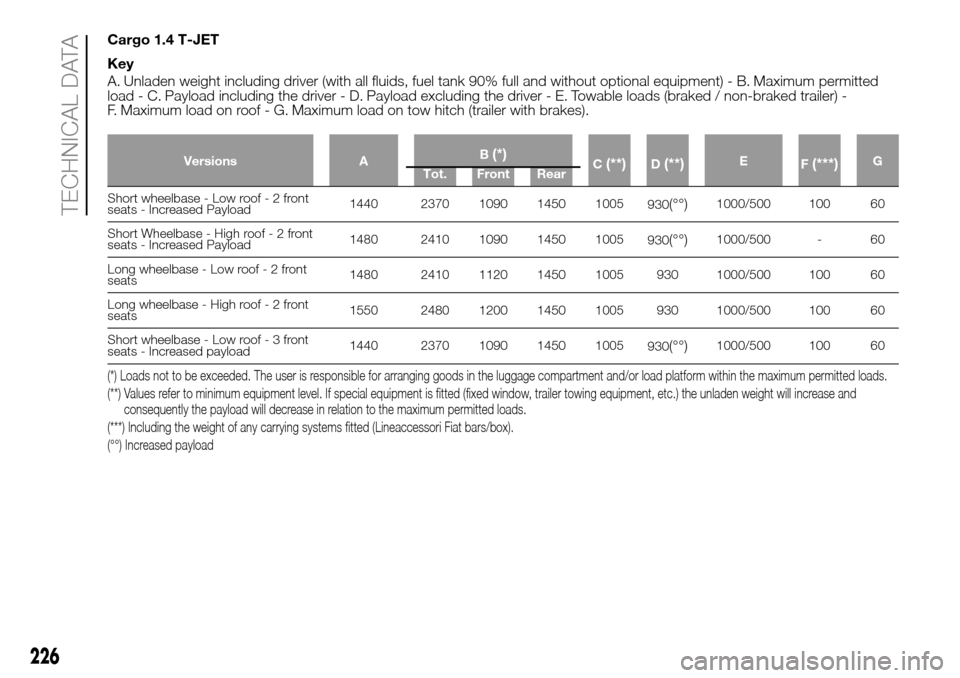

Cargo 1.4 T-JET
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats - Increased Payload1440 2370 1090 1450 1005
930(°°)1000/500 100 60
Short Wheelbase - High roof-2front
seats - Increased Payload1480 2410 1090 1450 1005
930
(°°)1000/500 - 60
Long wheelbase - Low roof-2front
seats1480 2410 1120 1450 1005 930 1000/500 100 60
Long wheelbase - High roof-2front
seats1550 2480 1200 1450 1005 930 1000/500 100 60
Short wheelbase - Low roof-3front
seats - Increased payload1440 2370 1090 1450 1005
930
(°°)1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°°) Increased payload
226
TECHNICAL DATA

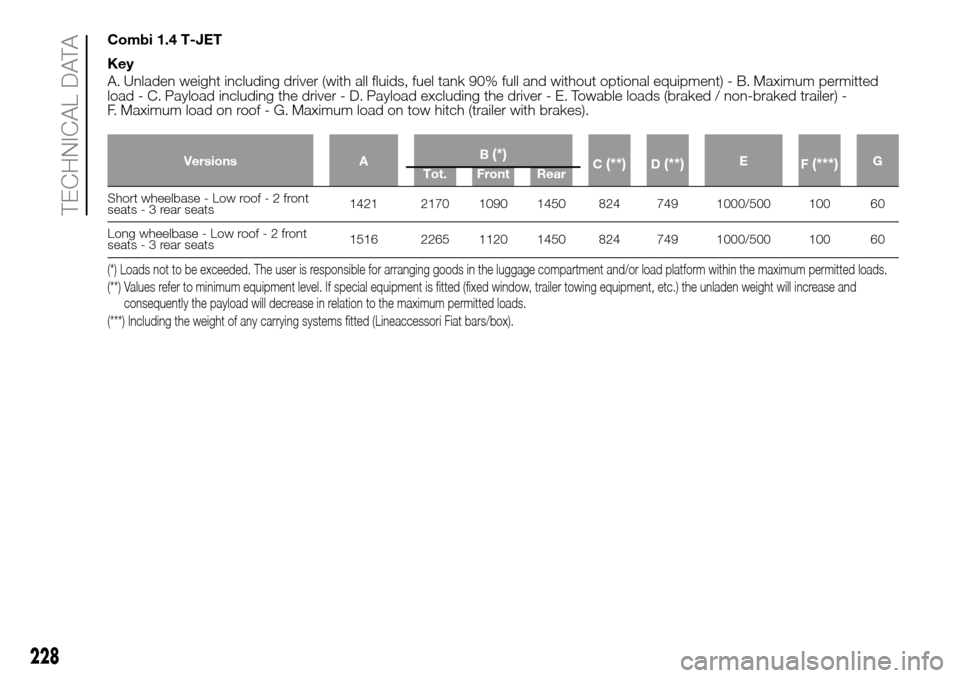

Combi 1.4 T-JET
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats-3rearseats1421 2170 1090 1450 824 749 1000/500 100 60
Long wheelbase - Low roof-2front
seats-3rearseats1516 2265 1120 1450 824 749 1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
228
TECHNICAL DATA

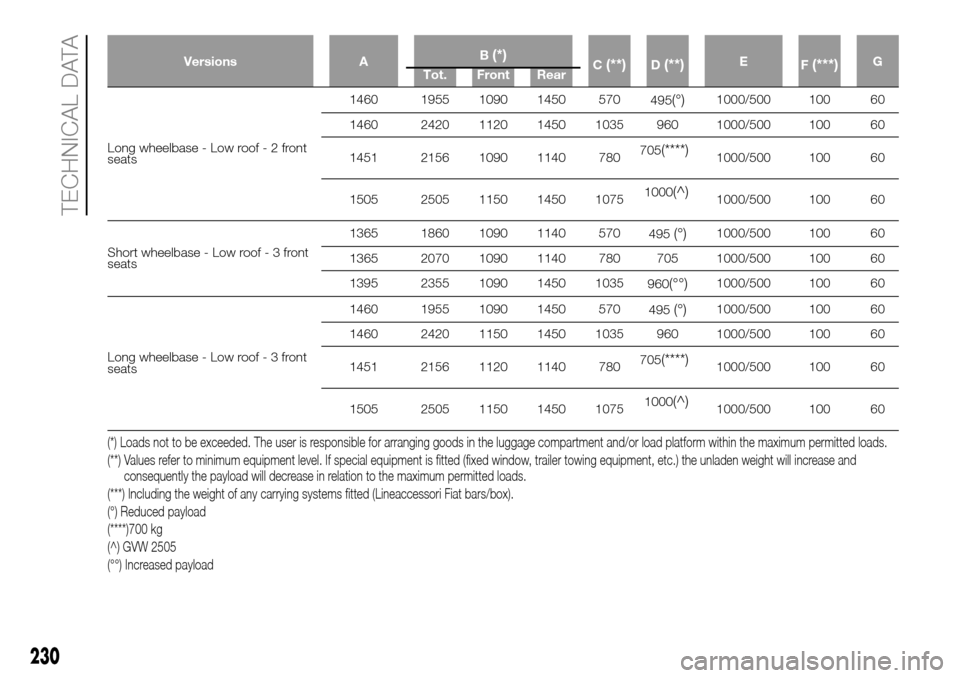

Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Long wheelbase - Low roof-2front
seats1460 1955 1090 1450 570
495
(°)1000/500 100 60
1460 2420 1120 1450 1035 960 1000/500 100 60
1451 2156 1090 1140 780705
(****)1000/500 100 60
1505 2505 1150 1450 10751000
(^)1000/500 100 60
Short wheelbase - Low roof-3front
seats1365 1860 1090 1140 570
495
(°)1000/500 100 60
1365 2070 1090 1140 780 705 1000/500 100 60
1395 2355 1090 1450 1035
960
(°°)1000/500 100 60
Long wheelbase - Low roof-3front
seats1460 1955 1090 1450 570
495
(°)1000/500 100 60
1460 2420 1150 1450 1035 960 1000/500 100 60
1451 2156 1120 1140 780705
(****)1000/500 100 60
1505 2505 1150 1450 10751000
(^)1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(****)700 kg
(^) GVW 2505
(°°) Increased payload
230
