technical data FIAT DOBLO COMBI 2016 2.G Service Manual

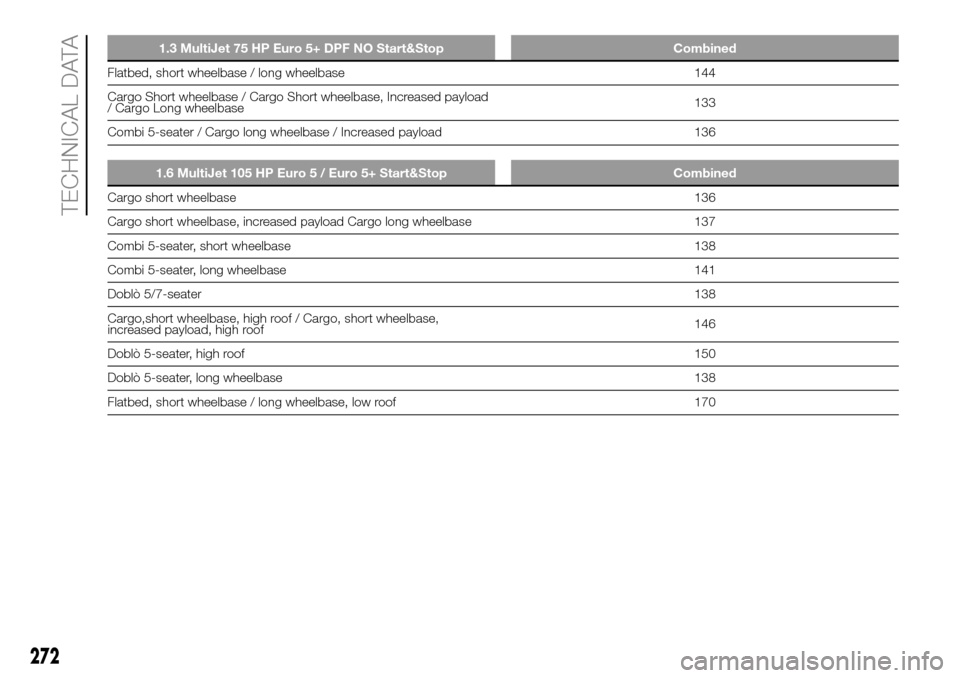

1.3 MultiJet 75 HP Euro 5+ DPF NO Start&Stop Combined
Flatbed, short wheelbase / long wheelbase 144
Cargo Short wheelbase / Cargo Short wheelbase, Increased payload
/ Cargo Long wheelbase133
Combi 5-seater / Cargo long wheelbase / Increased payload 136
1.6 MultiJet 105 HP Euro 5 / Euro 5+ Start&Stop Combined
Cargo short wheelbase136
Cargo short wheelbase, increased payload Cargo long wheelbase 137
Combi 5-seater, short wheelbase 138
Combi 5-seater, long wheelbase 141
Doblò 5/7-seater138
Cargo,short wheelbase, high roof / Cargo, short wheelbase,
increased payload, high roof146
Doblò 5-seater, high roof150
Doblò 5-seater, long wheelbase 138
Flatbed, short wheelbase / long wheelbase, low roof 170
272
TECHNICAL DATA

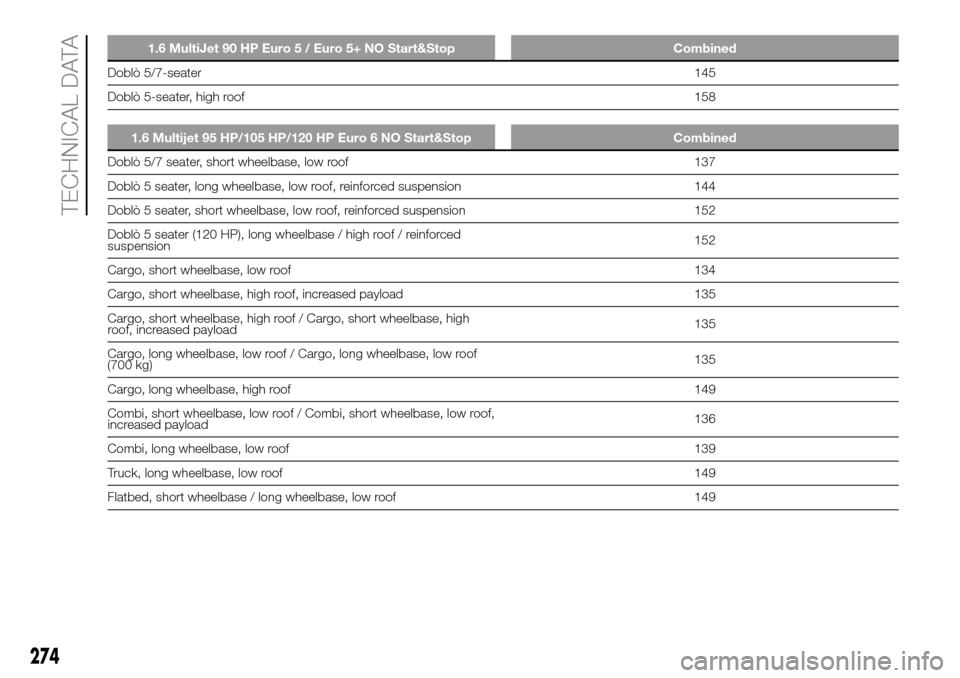

1.6 MultiJet 90 HP Euro 5 / Euro 5+ NO Start&Stop Combined
Doblò 5/7-seater145
Doblò 5-seater, high roof158
1.6 Multijet 95 HP/105 HP/120 HP Euro 6 NO Start&Stop Combined
Doblò 5/7 seater, short wheelbase, low roof 137
Doblò 5 seater, long wheelbase, low roof, reinforced suspension 144
Doblò 5 seater, short wheelbase, low roof, reinforced suspension 152
Doblò 5 seater (120 HP), long wheelbase / high roof / reinforced
suspension152
Cargo, short wheelbase, low roof 134
Cargo, short wheelbase, high roof, increased payload 135
Cargo, short wheelbase, high roof / Cargo, short wheelbase, high
roof, increased payload135
Cargo, long wheelbase, low roof / Cargo, long wheelbase, low roof
(700 kg)135
Cargo, long wheelbase, high roof 149
Combi, short wheelbase, low roof / Combi, short wheelbase, low roof,
increased payload136
Combi, long wheelbase, low roof 139
Truck, long wheelbase, low roof 149
Flatbed, short wheelbase / long wheelbase, low roof 149
274
TECHNICAL DATA

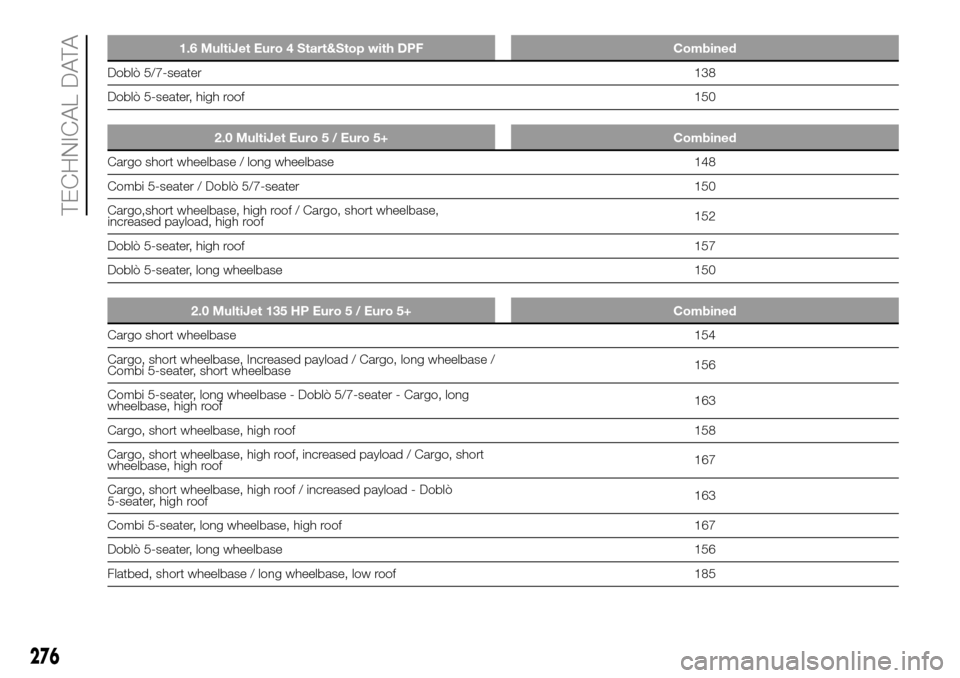

1.6 MultiJet Euro 4 Start&Stop with DPF Combined
Doblò 5/7-seater138
Doblò 5-seater, high roof150
2.0 MultiJet Euro 5 / Euro 5+ Combined
Cargo short wheelbase / long wheelbase 148
Combi 5-seater / Doblò 5/7-seater 150
Cargo,short wheelbase, high roof / Cargo, short wheelbase,
increased payload, high roof152
Doblò 5-seater, high roof157
Doblò 5-seater, long wheelbase 150
2.0 MultiJet 135 HP Euro 5 / Euro 5+ Combined
Cargo short wheelbase154
Cargo, short wheelbase, Increased payload / Cargo, long wheelbase /
Combi 5-seater, short wheelbase156
Combi 5-seater, long wheelbase - Doblò 5/7-seater - Cargo, long
wheelbase, high roof163
Cargo, short wheelbase, high roof 158
Cargo, short wheelbase, high roof, increased payload / Cargo, short
wheelbase, high roof167
Cargo, short wheelbase, high roof / increased payload - Doblò
5-seater, high roof163
Combi 5-seater, long wheelbase, high roof 167
Doblò 5-seater, long wheelbase 156
Flatbed, short wheelbase / long wheelbase, low roof 185
276
TECHNICAL DATA

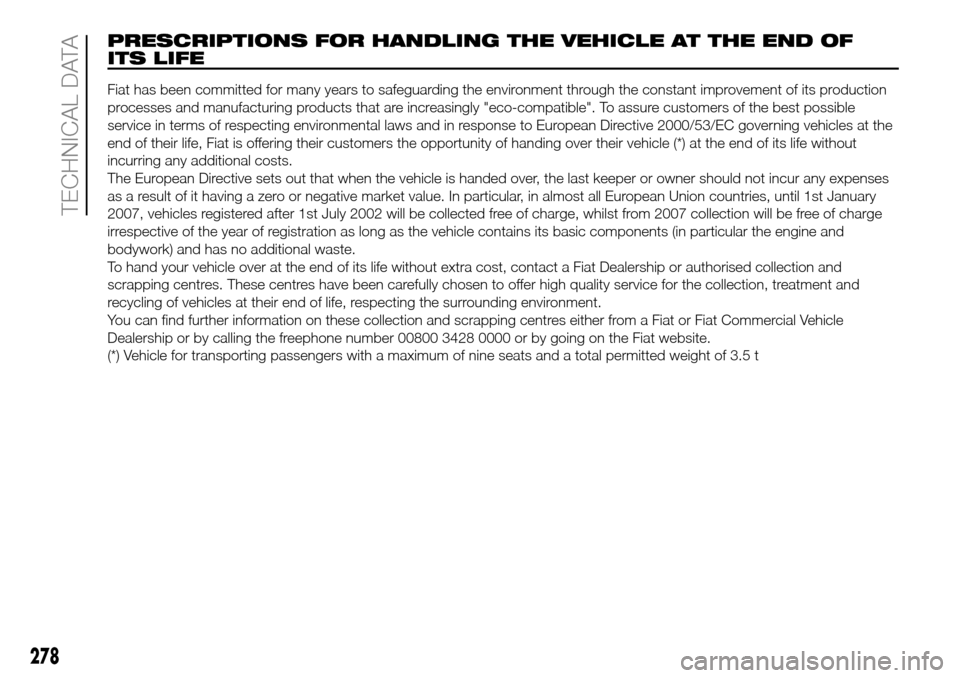

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF
ITS LIFE
Fiat has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To assure customers of the best possible
service in terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the
end of their life, Fiat is offering their customers the opportunity of handing over their vehicle (*) at the end of its life without
incurring any additional costs.
The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any expenses
as a result of it having a zero or negative market value. In particular, in almost all European Union countries, until 1st January
2007, vehicles registered after 1st July 2002 will be collected free of charge, whilst from 2007 collection will be free of charge
irrespective of the year of registration as long as the vehicle contains its basic components (in particular the engine and
bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, contact a Fiat Dealership or authorised collection and
scrapping centres. These centres have been carefully chosen to offer high quality service for the collection, treatment and
recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from a Fiat or Fiat Commercial Vehicle
Dealership or by calling the freephone number 00800 3428 0000 or by going on the Fiat website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
278
TECHNICAL DATA

The data contained in this publication is intended merely as a guide. FCA Italy S.p.A. reserves the right to modify the models and
versions described in this booklet at any time for technical and commercial reasons.
If you have any further questions please consult your FIAT dealer.
Printed in recycled paper without chlorine.
