technical data FIAT DOBLO COMBI 2016 2.G Owner's Manual

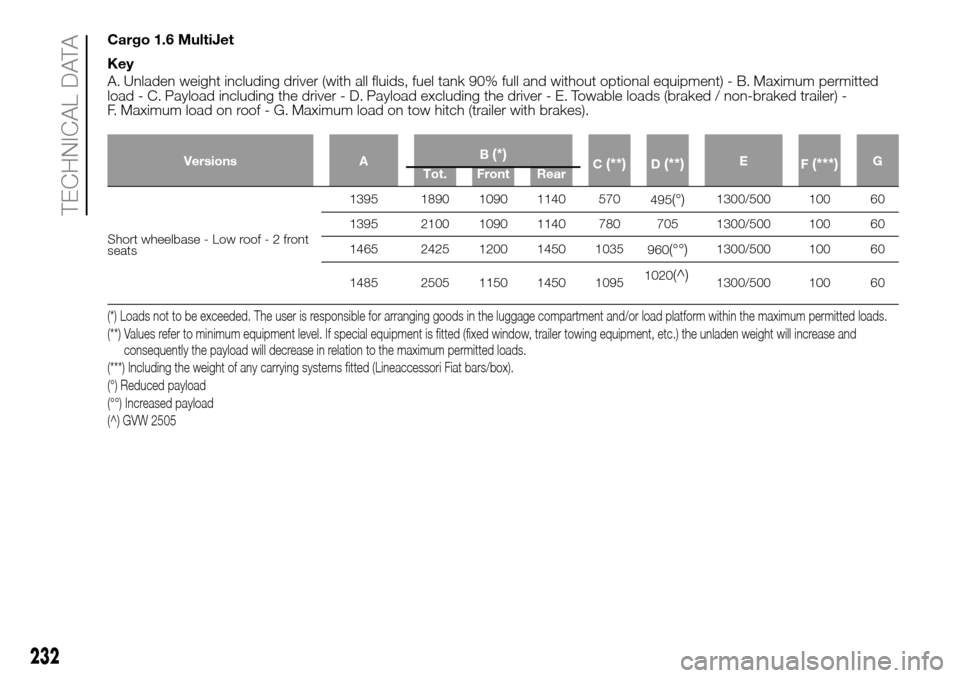

Cargo 1.6 MultiJet
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats1395 1890 1090 1140 570
495
(°)1300/500 100 60
1395 2100 1090 1140 780 705 1300/500 100 60
1465 2425 1200 1450 1035
960
(°°)1300/500 100 60
1485 2505 1150 1450 10951020
(^)1300/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
(^) GVW 2505
232
TECHNICAL DATA

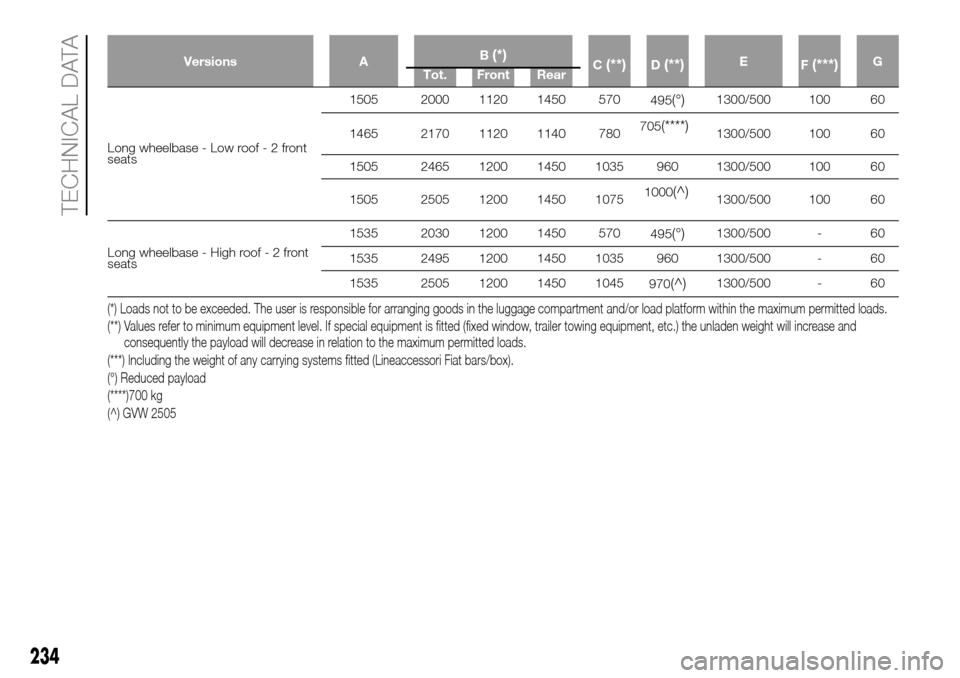

Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Long wheelbase - Low roof-2front
seats1505 2000 1120 1450 570
495
(°)1300/500 100 60
1465 2170 1120 1140 780705
(****)1300/500 100 60
1505 2465 1200 1450 1035 960 1300/500 100 60
1505 2505 1200 1450 10751000
(^)1300/500 100 60
Long wheelbase - High roof-2front
seats1535 2030 1200 1450 570
495
(°)1300/500 - 60
1535 2495 1200 1450 1035 960 1300/500 - 60
1535 2505 1200 1450 1045
970
(^)1300/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(****)700 kg
(^) GVW 2505
234
TECHNICAL DATA

Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Long wheelbase - Low roof-3front
seats1505 2000 1135 1450 570
495
(°)1300/500 100 60
1465 2170 1150 1140 780705
(****)1300/500 100 60
1505 2465 1200 1450 1035 960 1300/500 100 60
1505 2505 1233 1450 10751000
(^)1300/500 100 60
Long wheelbase - High roof-3front
seats1535 2030 1200 1450 570
495
(°)1300/500 - 60
1535 2495 1233 1450 1035 960 1300/500 - 60
1535 2505 1233 1450 1045
970
(^)1300/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(****)700 kg
(^) GVW 2505
236
TECHNICAL DATA

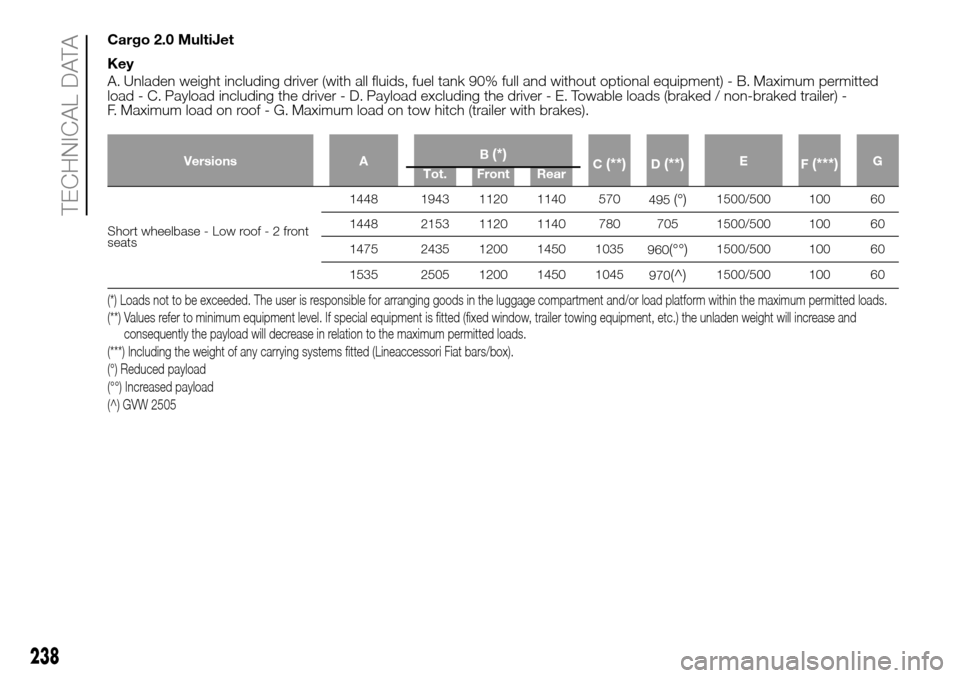

Cargo 2.0 MultiJet
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats1448 1943 1120 1140 570
495
(°)1500/500 100 60
1448 2153 1120 1140 780 705 1500/500 100 60
1475 2435 1200 1450 1035
960
(°°)1500/500 100 60
1535 2505 1200 1450 1045
970
(^)1500/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
(^) GVW 2505
238
TECHNICAL DATA

Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear

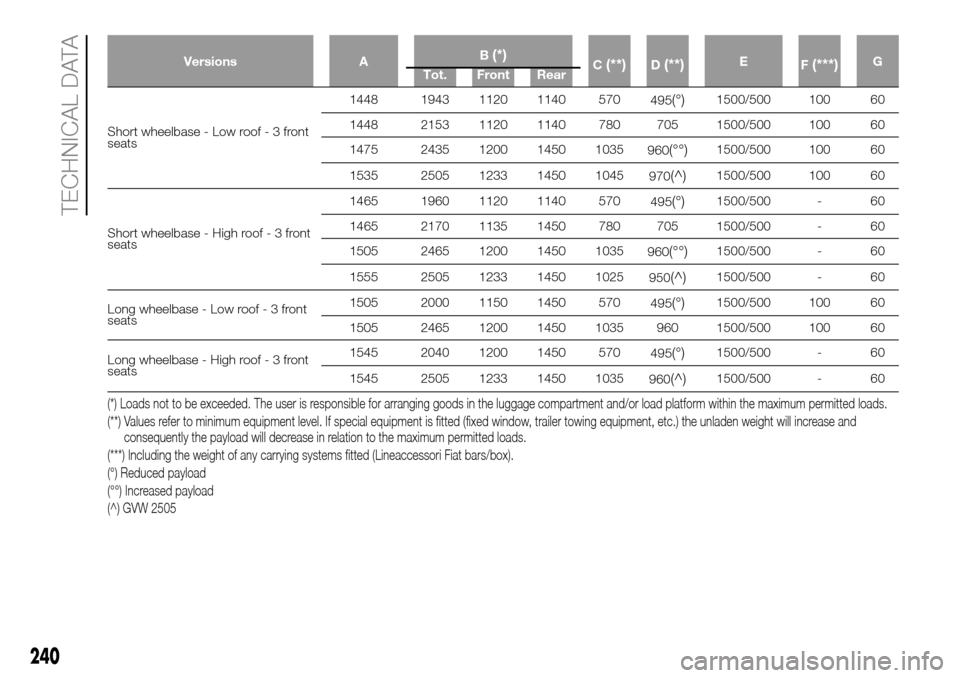

Short wheelbase - Low roof-3front
seats1448 1943 1120 1140 570
495
(°)1500/500 100 60
1448 2153 1120 1140 780 705 1500/500 100 60
1475 2435 1200 1450 1035
960
(°°)1500/500 100 60
1535 2505 1233 1450 1045
970
(^)1500/500 100 60
Short wheelbase - High roof-3front
seats1465 1960 1120 1140 570
495
(°)1500/500 - 60
1465 2170 1135 1450 780 705 1500/500 - 60
1505 2465 1200 1450 1035
960
(°°)1500/500 - 60
1555 2505 1233 1450 1025
950
(^)1500/500 - 60
Long wheelbase - Low roof-3front
seats1505 2000 1150 1450 570
495
(°)1500/500 100 60
1505 2465 1200 1450 1035 960 1500/500 100 60
Long wheelbase - High roof-3front
seats1545 2040 1200 1450 570
495
(°)1500/500 - 60
1545 2505 1233 1450 1035
960
(^)1500/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
(^) GVW 2505
240
TECHNICAL DATA

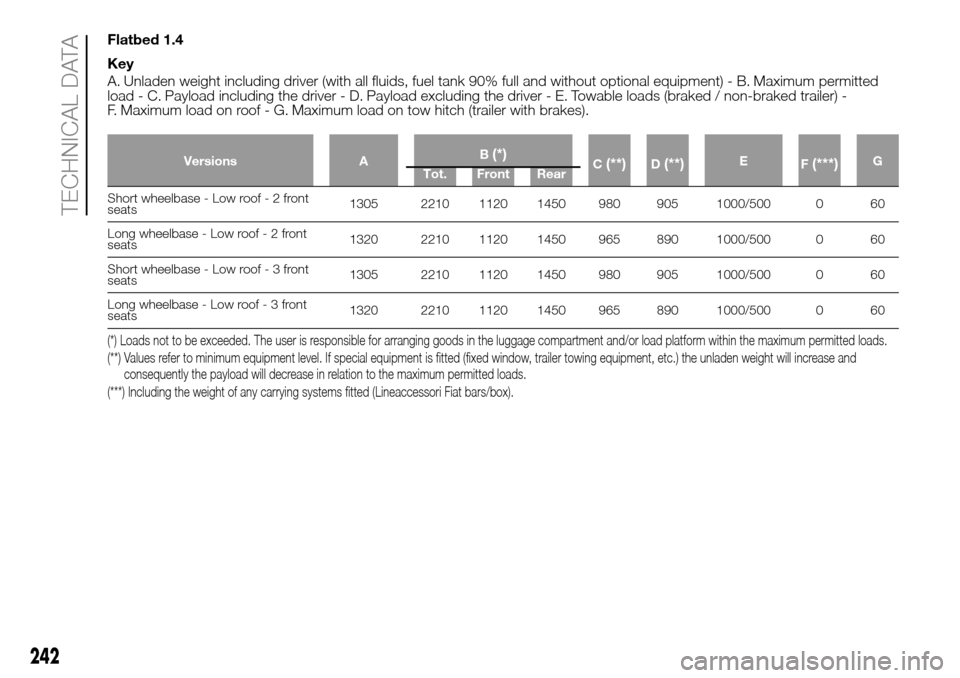

Flatbed 1.4
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats1305 2210 1120 1450 980 905 1000/500 0 60
Long wheelbase - Low roof-2front
seats1320 2210 1120 1450 965 890 1000/500 0 60
Short wheelbase - Low roof-3front
seats1305 2210 1120 1450 980 905 1000/500 0 60
Long wheelbase - Low roof-3front
seats1320 2210 1120 1450 965 890 1000/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
242
TECHNICAL DATA

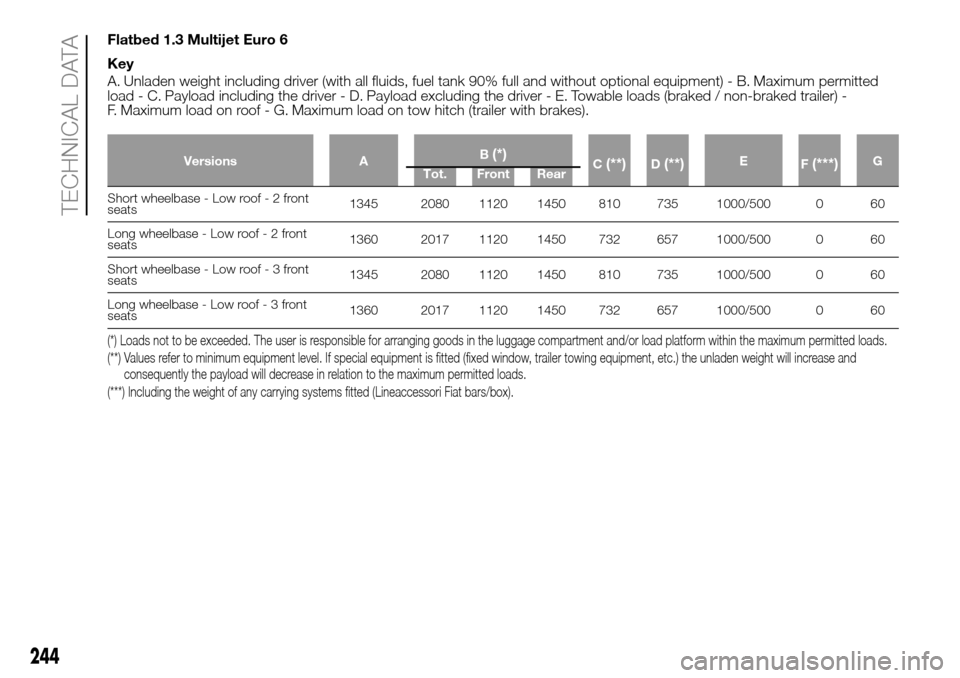

Flatbed 1.3 Multijet Euro 6
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats1345 2080 1120 1450 810 735 1000/500 0 60
Long wheelbase - Low roof-2front
seats1360 2017 1120 1450 732 657 1000/500 0 60
Short wheelbase - Low roof-3front
seats1345 2080 1120 1450 810 735 1000/500 0 60
Long wheelbase - Low roof-3front
seats1360 2017 1120 1450 732 657 1000/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
244
TECHNICAL DATA

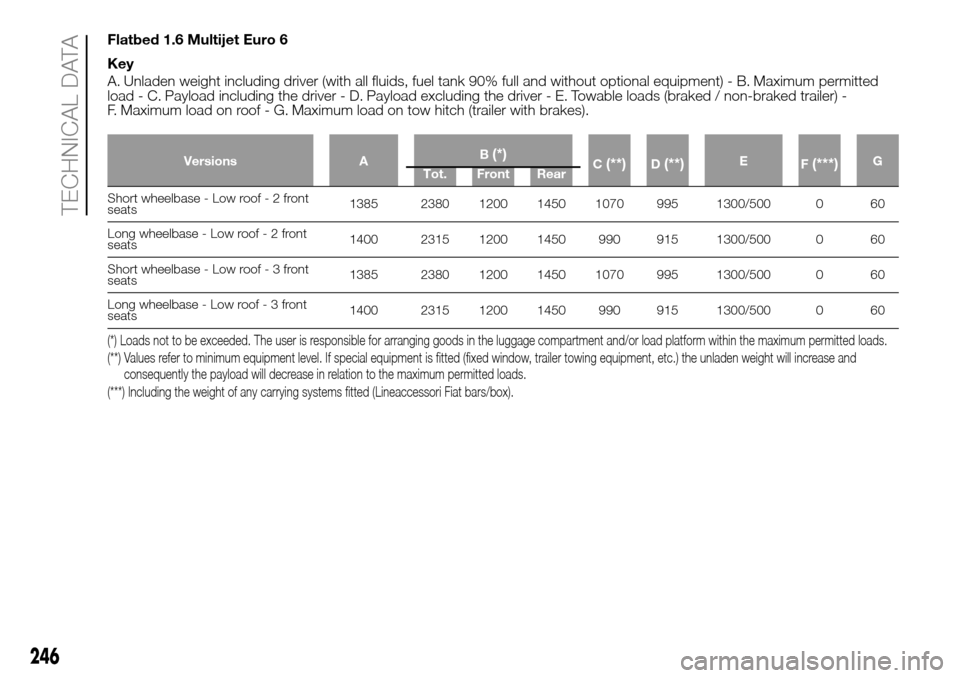

Flatbed 1.6 Multijet Euro 6
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats1385 2380 1200 1450 1070 995 1300/500 0 60
Long wheelbase - Low roof-2front
seats1400 2315 1200 1450 990 915 1300/500 0 60
Short wheelbase - Low roof-3front
seats1385 2380 1200 1450 1070 995 1300/500 0 60
Long wheelbase - Low roof-3front
seats1400 2315 1200 1450 990 915 1300/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
246
TECHNICAL DATA

REFUELLING
1.4 1.4 T-JETPrescribed fuels and original
lubricants
Fuel tank: 60 litres 60
Unleaded petrol not less than 95
RON (EN 228 specification)
including a reserve of: 8–10 litres 8-10
Engine cooling system: 5 litres 5.8 litresMixture of distilled water and
PARAFLU
UPliquid at 50%(***)
Engine sump: 2.35 litres/2kg 2.1kg
SELENIA K P.E.
Engine sump and filter: 2.7 litres / 2.3 kg 2.45 kg
Gearbox casing/differential: 1.76 litres / 1.5 kg 1.5 kgTUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with ABS
anti-lock device:0.450 kg 0.450 kg TUTELA TOP 4
Hydraulic power steering: 0.900 kg 0.900 kg TUTELA TRANSMISSION GI/E
Windscreen / rear window
washer fluid reservoir (litres):2.2
(*)/6(**)litres2.2(*)/6(**)litresMixture of water and TUTELA
PROFESSIONAL SC35
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(*) For Doblò versions without headlamp washers.
(**) For Doblò/Doblò Combi/Doblò Cargo versions with headlamp washers.
248
TECHNICAL DATA

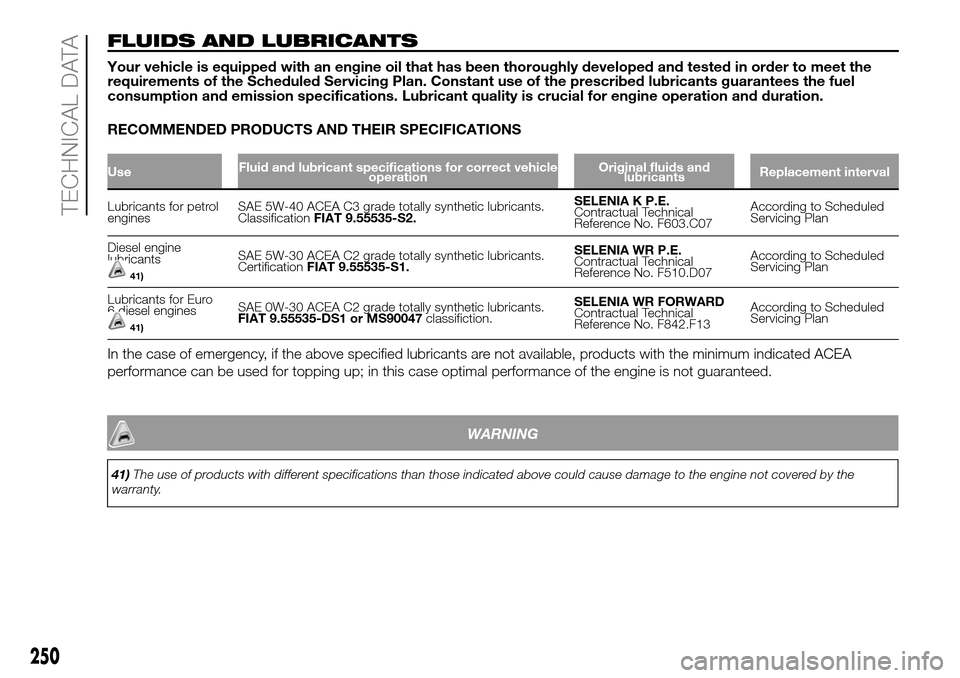

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the
requirements of the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel
consumption and emission specifications. Lubricant quality is crucial for engine operation and duration.
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
UseFluid and lubricant specifications for correct vehicle
operationOriginal fluids and
lubricantsReplacement interval
Lubricants for petrol
enginesSAE 5W-40 ACEA C3 grade totally synthetic lubricants.
ClassificationFIAT 9.55535-S2.SELENIA K P.E.
Contractual Technical
Reference No. F603.C07According to Scheduled
Servicing Plan
Diesel engine
lubricants
41)
SAE 5W-30 ACEA C2 grade totally synthetic lubricants.
CertificationFIAT 9.55535-S1.SELENIA WR P.E.
Contractual Technical
Reference No. F510.D07According to Scheduled
Servicing Plan
Lubricants for Euro
6 diesel engines
41)
SAE 0W-30 ACEA C2 grade totally synthetic lubricants.
FIAT 9.55535-DS1 or MS90047classifiction.SELENIA WR FORWARD
Contractual Technical
Reference No. F842.F13According to Scheduled
Servicing Plan
In the case of emergency, if the above specified lubricants are not available, products with the minimum indicated ACEA
performance can be used for topping up; in this case optimal performance of the engine is not guaranteed.
250
TECHNICAL DATA
WARNING
41)The use of products with different specifications than those indicated above could cause damage to the engine not covered by the
warranty.
