key FIAT DOBLO COMBI 2017 2.G Manual Online

Flatbed 1.3 Multijet Euro 6
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (braked trailer).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats1345 2080 1120 1450 810 735 1000/500 0 60
Long wheelbase - Low roof-2front
seats1360 2017 1120 1450 732 657 1000/500 0 60
Short wheelbase - Low roof-3front
seats1345 2080 1120 1450 810 735 1000/500 0 60
Long wheelbase - Low roof-3front
seats1360 2017 1120 1450 732 657 1000/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing device, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including any installed roof carrier systems (Lineaccessori Fiat bars/box).
250
TECHNICAL DATA

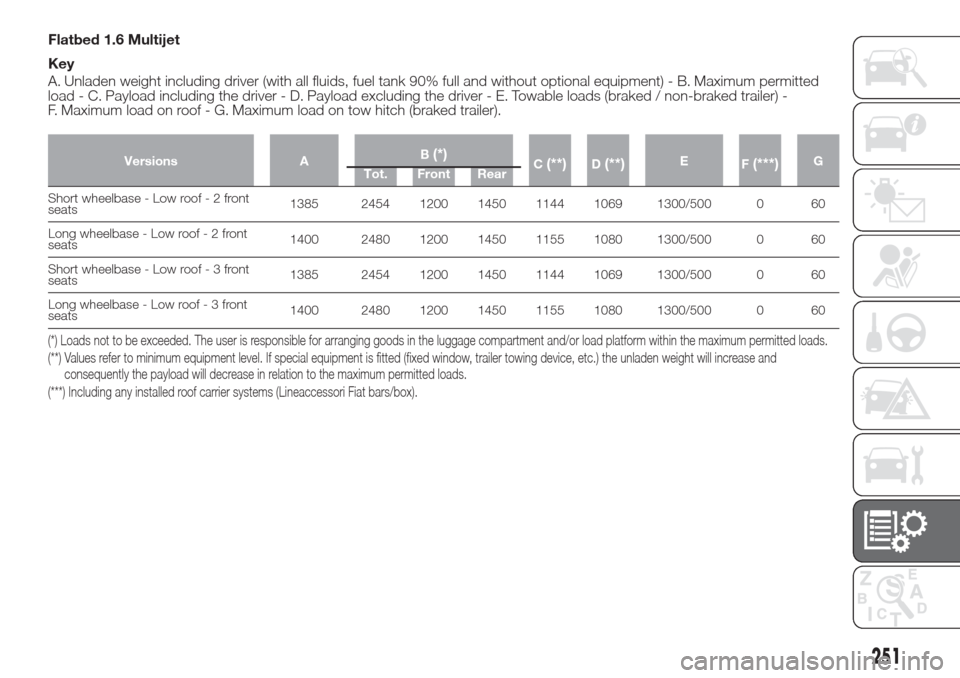

Flatbed 1.6 Multijet
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (braked trailer).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats1385 2454 1200 1450 1144 1069 1300/500 0 60
Long wheelbase - Low roof-2front
seats1400 2480 1200 1450 1155 1080 1300/500 0 60
Short wheelbase - Low roof-3front
seats1385 2454 1200 1450 1144 1069 1300/500 0 60
Long wheelbase - Low roof-3front
seats1400 2480 1200 1450 1155 1080 1300/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing device, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including any installed roof carrier systems (Lineaccessori Fiat bars/box).
251

Flatbed 1.6 Multijet Euro 6
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (braked trailer).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats1385 2380 1200 1450 1070 995 1300/500 0 60
Long wheelbase - Low roof-2front
seats1400 2315 1200 1450 990 915 1300/500 0 60
Short wheelbase - Low roof-3front
seats1385 2380 1200 1450 1070 995 1300/500 0 60
Long wheelbase - Low roof-3front
seats1400 2315 1200 1450 990 915 1300/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing device, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including any installed roof carrier systems (Lineaccessori Fiat bars/box).
252
TECHNICAL DATA

Flatbed 2.0 Multijet
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (braked trailer).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats1425 2494 1200 1450 1144 1069 1500/500 0 60
Long wheelbase - Low roof-2front
seats1440 2505 1200 1450 1140 1065 1500/500 0 60
Short wheelbase - Low roof-3front
seats1425 2494 1200 1450 1144 1069 1500/500 0 60
Long wheelbase - Low roof-3front
seats1440 2505 1200 1450 1140 1065 1500/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing device, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including any installed roof carrier systems (Lineaccessori Fiat bars/box).
253
