technical data FIAT DOBLO COMBI 2018 Owner handbook (in English)

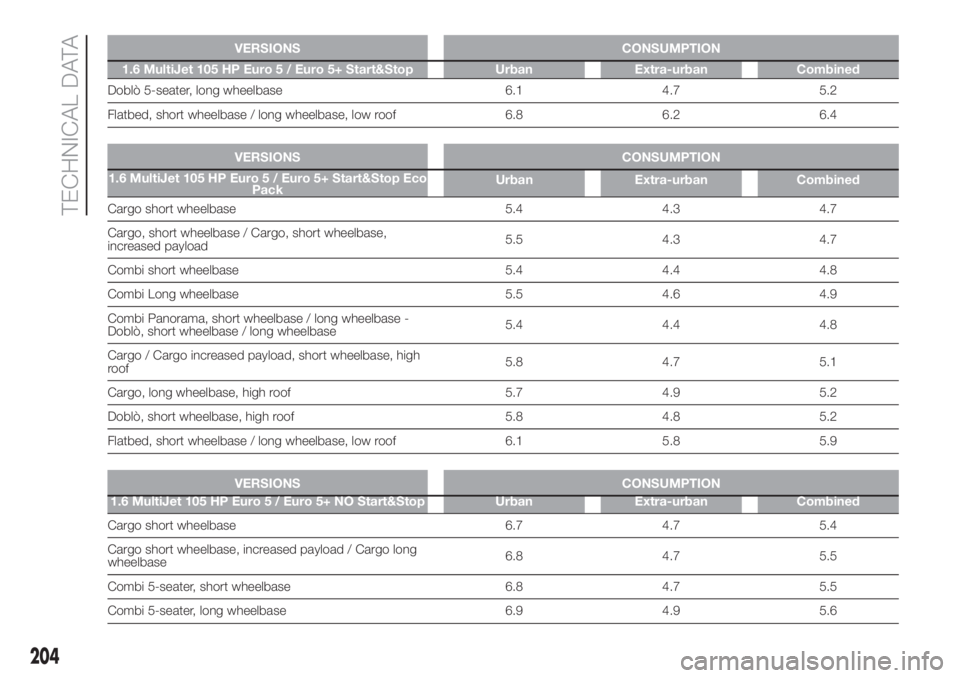

VERSIONS CONSUMPTION
1.6 MultiJet 105 HP Euro 5 / Euro 5+ Start&Stop Urban Extra-urban Combined
Doblò 5-seater, long wheelbase 6.1 4.7 5.2
Flatbed, short wheelbase / long wheelbase, low roof 6.8 6.2 6.4
.
VERSIONS CONSUMPTION
1.6 MultiJet 105 HP Euro 5 / Euro 5+ Start&Stop Eco
PackUrban Extra-urban Combined
Cargo short wheelbase 5.4 4.3 4.7
Cargo, short wheelbase / Cargo, short wheelbase,
increased payload5.5 4.3 4.7
Combi short wheelbase 5.4 4.4 4.8
Combi Long wheelbase 5.5 4.6 4.9
Combi Panorama, short wheelbase / long wheelbase -
Doblò, short wheelbase / long wheelbase5.4 4.4 4.8
Cargo / Cargo increased payload, short wheelbase, high
roof5.8 4.7 5.1
Cargo, long wheelbase, high roof 5.7 4.9 5.2
Doblò, short wheelbase, high roof 5.8 4.8 5.2
Flatbed, short wheelbase / long wheelbase, low roof 6.1 5.8 5.9
.
VERSIONS CONSUMPTION
1.6 MultiJet 105 HP Euro 5 / Euro 5+ NO Start&Stop Urban Extra-urban Combined
Cargo short wheelbase 6.7 4.7 5.4
Cargo short wheelbase, increased payload / Cargo long
wheelbase6.8 4.7 5.5
Combi 5-seater, short wheelbase 6.8 4.7 5.5
Combi 5-seater, long wheelbase 6.9 4.9 5.6
204
TECHNICAL DATA

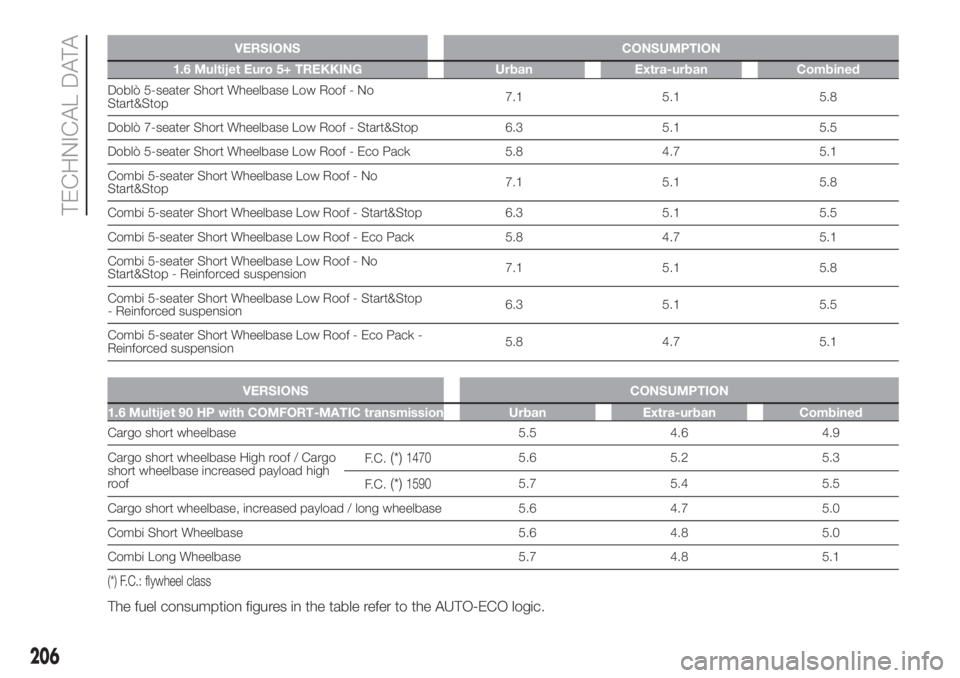

VERSIONS CONSUMPTION
1.6 Multijet Euro 5+ TREKKING Urban Extra-urban Combined
Doblò 5-seater Short Wheelbase Low Roof - No
Start&Stop7.1 5.1 5.8
Doblò 7-seater Short Wheelbase Low Roof - Start&Stop 6.3 5.1 5.5
Doblò 5-seater Short Wheelbase Low Roof - Eco Pack 5.8 4.7 5.1
Combi 5-seater Short Wheelbase Low Roof - No
Start&Stop7.1 5.1 5.8
Combi 5-seater Short Wheelbase Low Roof - Start&Stop 6.3 5.1 5.5
Combi 5-seater Short Wheelbase Low Roof - Eco Pack 5.8 4.7 5.1
Combi 5-seater Short Wheelbase Low Roof - No
Start&Stop - Reinforced suspension7.1 5.1 5.8
Combi 5-seater Short Wheelbase Low Roof - Start&Stop
- Reinforced suspension6.3 5.1 5.5
Combi 5-seater Short Wheelbase Low Roof - Eco Pack -
Reinforced suspension5.8 4.7 5.1
.
VERSIONS CONSUMPTION
1.6 Multijet 90 HP with COMFORT-MATIC transmission Urban Extra-urban Combined
Cargo short wheelbase 5.5 4.6 4.9
Cargo short wheelbase High roof / Cargo
short wheelbase increased payload high
roofF.C.
(*)14705.6 5.2 5.3
F.C.
(*)15905.7 5.4 5.5
Cargo short wheelbase, increased payload / long wheelbase 5.6 4.7 5.0
Combi Short Wheelbase 5.6 4.8 5.0
Combi Long Wheelbase 5.7 4.8 5.1
(*) F.C.: flywheel class
The fuel consumption figures in the table refer to the AUTO-ECO logic..
206
TECHNICAL DATA

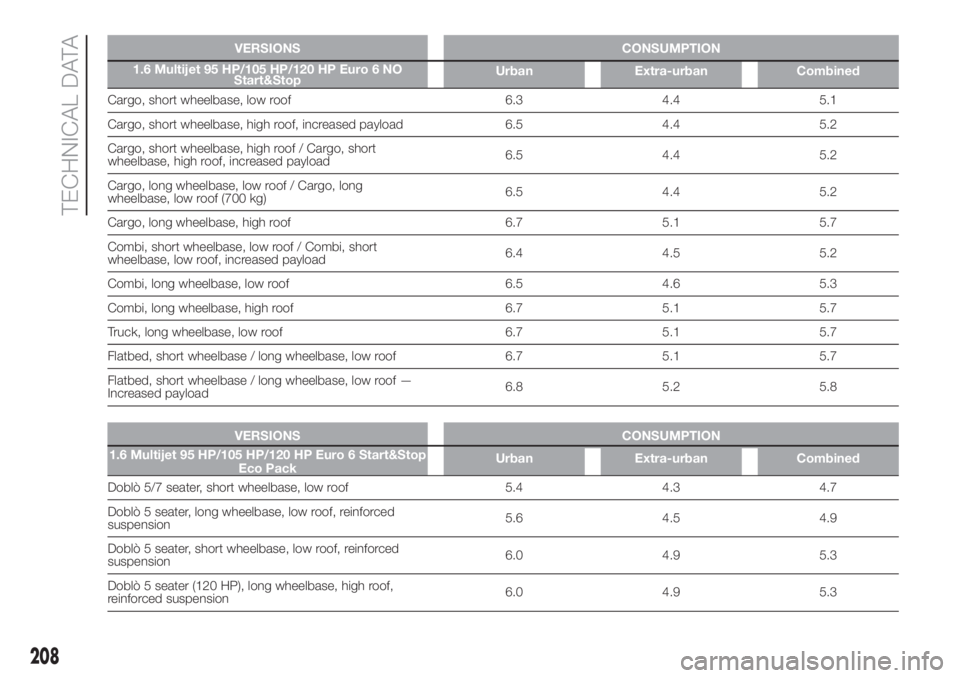

VERSIONS CONSUMPTION
1.6 Multijet 95 HP/105 HP/120 HP Euro 6 NO
Start&StopUrban Extra-urban Combined
Cargo, short wheelbase, low roof 6.3 4.4 5.1
Cargo, short wheelbase, high roof, increased payload 6.5 4.4 5.2
Cargo, short wheelbase, high roof / Cargo, short
wheelbase, high roof, increased payload6.5 4.4 5.2
Cargo, long wheelbase, low roof / Cargo, long
wheelbase, low roof (700 kg)6.5 4.4 5.2
Cargo, long wheelbase, high roof 6.7 5.1 5.7
Combi, short wheelbase, low roof / Combi, short
wheelbase, low roof, increased payload6.4 4.5 5.2
Combi, long wheelbase, low roof 6.5 4.6 5.3
Combi, long wheelbase, high roof 6.7 5.1 5.7
Truck, long wheelbase, low roof 6.7 5.1 5.7
Flatbed, short wheelbase / long wheelbase, low roof 6.7 5.1 5.7
Flatbed, short wheelbase / long wheelbase, low roof —
Increased payload6.8 5.2 5.8
.
VERSIONS CONSUMPTION
1.6 Multijet 95 HP/105 HP/120 HP Euro 6 Start&Stop
Eco PackUrban Extra-urban Combined
Doblò 5/7 seater, short wheelbase, low roof 5.4 4.3 4.7
Doblò 5 seater, long wheelbase, low roof, reinforced
suspension5.6 4.5 4.9
Doblò 5 seater, short wheelbase, low roof, reinforced
suspension6.0 4.9 5.3
Doblò 5 seater (120 HP), long wheelbase, high roof,
reinforced suspension6.0 4.9 5.3
208
TECHNICAL DATA

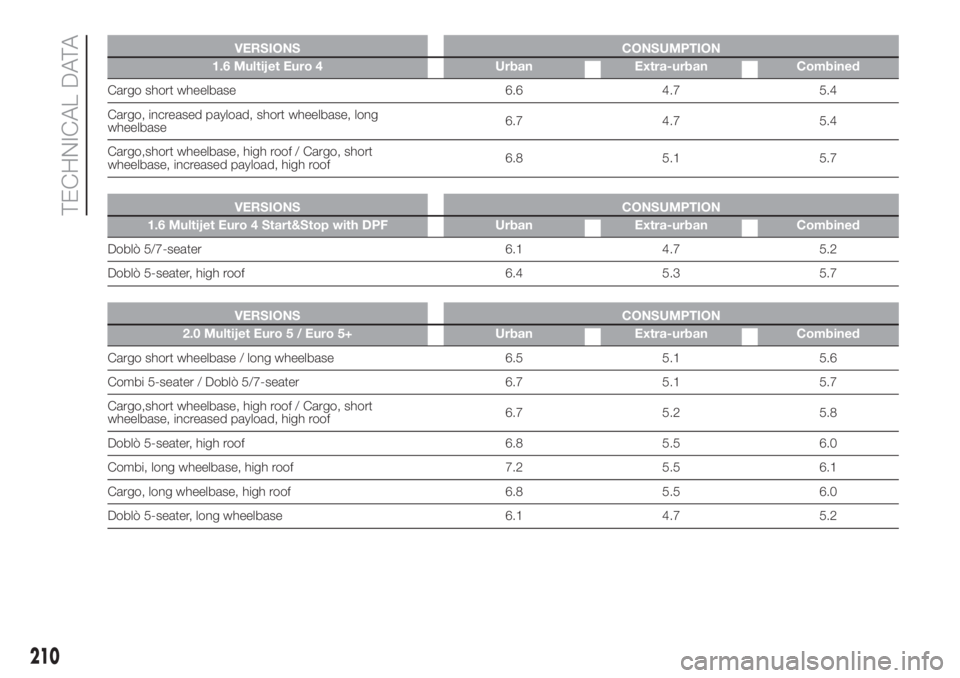

VERSIONS CONSUMPTION
1.6 Multijet Euro 4 Urban Extra-urban Combined
Cargo short wheelbase 6.6 4.7 5.4
Cargo, increased payload, short wheelbase, long
wheelbase6.7 4.7 5.4
Cargo,short wheelbase, high roof / Cargo, short
wheelbase, increased payload, high roof6.8 5.1 5.7
.
VERSIONS CONSUMPTION
1.6 Multijet Euro 4 Start&Stop with DPF Urban Extra-urban Combined
Doblò 5/7-seater 6.1 4.7 5.2
Doblò 5-seater, high roof 6.4 5.3 5.7
.
VERSIONS CONSUMPTION
2.0 Multijet Euro 5 / Euro 5+ Urban Extra-urban Combined
Cargo short wheelbase / long wheelbase 6.5 5.1 5.6
Combi 5-seater / Doblò 5/7-seater 6.7 5.1 5.7
Cargo,short wheelbase, high roof / Cargo, short
wheelbase, increased payload, high roof6.7 5.2 5.8
Doblò 5-seater, high roof 6.8 5.5 6.0
Combi, long wheelbase, high roof 7.2 5.5 6.1
Cargo, long wheelbase, high roof 6.8 5.5 6.0
Doblò 5-seater, long wheelbase 6.1 4.7 5.2
210
TECHNICAL DATA

VERSIONS CONSUMPTION
1.4 T-JET Natural Power Urban Extra-urban Combined
Doblò 5-seater (M1) - Short wheelbase - Long wheelbase
9.7(*) / 9.9 (**)6.1(*)/ 6.1(**)7.4(*)/ 7.5(**)
Cargo, short wheelbase, high roof
9.7(*)/10(**)6.5(*)/ 6.4(**)7.7(*)/ 7.7(**)
Combi long wheelbase
9.7(*)/10(**)6.3(*)/ 6.2(**)7.6(*)/ 7.6(**)
(*) Running on petrol
(**) Methane fuel supply (m3/100 km)
212
TECHNICAL DATA

1.4 16V Euro 5 / Euro 6 NO Start&Stop Combined
Cargo Short Wheelbase169
Cargo, short wheelbase, increased payload / Cargo, long wheelbase /
Combi 5-seater, short wheelbase / Combi 5-seater, long wheelbase172
Doblò 5/7-seater / Cargo, short wheelbase, high roof 173
Cargo, short wheelbase, high roof, increased payload / Doblò 5/7-
seater, high roof177
Flatbed, short wheelbase / long wheelbase, low roof 185
1.4 Euro 4 Combined
Cargo short wheelbase169
Cargo short wheelbase, increased payload / Cargo long wheelbase 174
Combi 5-seater - Doblò 5/7-seater 172
Cargo, short wheelbase, high roof 173
Doblò 5-seater, high roof177
1.4 T-JET Euro 5 / Euro 6 Combined
Cargo short wheelbase / Cargo long wheelbase 169
Cargo, short wheelbase, high roof 175
Cargo, long wheelbase, high roof 179
Combi 5 seats169
Combi 5-seater, long wheelbase 173
Doblò 5/7-seater169
214
TECHNICAL DATA

1.3 Multijet 80 HP/95 HP Euro 6 NO Start&Stop Combined
Cargo short wheelbase / Cargo short wheelbase, increased payload 133
Cargo, long wheelbase / Cargo, long wheelbase (700 kg) 136
Combi, short wheelbase / Combi, short wheelbase, increased
payload / Combi, long wheelbase136
Truck, long wheelbase140
Flatbed, short wheelbase / long wheelbase, low roof 140
1.3 Multijet Euro 4 Combined
Cargo short wheelbase / Cargo short wheelbase, increased payload 136
Cargo long wheelbase139
Combi 5 seats139
Flatbed, short wheelbase / long wheelbase, low roof 141
1.3 Multijet Euro 4 Start&Stop with DPF Combined
Doblò 5/7-seater129
1.3 MultiJet 75 HP Euro 5+ DPF Start&Stop Combined
Flatbed, short wheelbase / long wheelbase 137
Cargo short wheelbase / Cargo short wheelbase, increased payload 126
Cargo long wheelbase, increased payload / Combi 5-seater 129
1.3 MultiJet 75 HP Euro 5+ DPF NO Start&Stop Combined
Flatbed, short wheelbase / long wheelbase 144
Cargo Short wheelbase / Cargo Short wheelbase, Increased payload
/ Cargo Long wheelbase133
216
TECHNICAL DATA

1.6 MultiJet 105 HP Euro 5 / Euro 5+ NO Start&Stop Combined
Cargo short wheelbase143
Cargo Short wheelbase, Increased payload 144
Cargo, long wheelbase / Combi 5-seater, short wheelbase 145
Combi 5-seater, long wheelbase 148
Doblò 5/7-seater145
Cargo, long wheelbase, high roof 158
Cargo, short wheelbase, high roof 154
Cargo, short wheelbase, high roof / increased payload / Doblò
5-seater, high roof158
Doblò 5-seater, long wheelbase 145
Flatbed, short wheelbase / long wheelbase, low roof 178
1.6 MultiJet 90 HP Euro 5 / Euro 5+ NO Start&Stop Combined
Doblò 5/7-seater145
Doblò 5-seater, high roof158
1.6 Multijet Euro 5+ TREKKING Combined
Doblò 5-seater Short Wheelbase Low Roof - No Start&Stop 154
Doblò 7-seater Short Wheelbase Low Roof - Start&Stop 146
Doblò 5-seater Short Wheelbase Low Roof - Eco Pack 134
Doblò 5-seater Short Wheelbase Low Roof - No Start&Stop 154
Doblò 7-seater Short Wheelbase Low Roof - Start&Stop 146
Doblò 5-seater Short Wheelbase Low Roof - Eco Pack 134
Combi 5-seater Short Wheelbase Low Roof - No Start&Stop 154
218
TECHNICAL DATA

Versions with DUALOGIC™transmission Combined
1.6 Multijet
133 / 147(*)
1.6 Multijet NO Start&Stop
141 / 157(*)
(*) High roof versions
1.6 Multijet 95 HP/105 HP/120 HP Euro 6 NO Start&Stop Combined
Doblò 5/7 seater, short wheelbase, low roof 137
Doblò 5 seater, long wheelbase, low roof, reinforced suspension 144
Doblò 5 seater, short wheelbase, low roof, reinforced suspension 152
Doblò 5 seater (120 HP), long wheelbase / high roof / reinforced
suspension152
Cargo, short wheelbase, low roof 134
Cargo, short wheelbase, high roof, increased payload 135
Cargo, short wheelbase, high roof / Cargo, short wheelbase, high
roof, increased payload135
Cargo, long wheelbase, low roof / Cargo, long wheelbase, low roof
(700 kg)135
Cargo, long wheelbase, high roof 149
Combi, short wheelbase, low roof / Combi, short wheelbase, low roof,
increased payload136
Combi, long wheelbase, low roof 139
Combi, long wheelbase, high roof 149
Truck, long wheelbase, low roof 149
Flatbed, short wheelbase / long wheelbase, low roof 149
Flatbed, short wheelbase / long wheelbase, low roof — Increased
payload153
220
TECHNICAL DATA

1.6 Multijet Euro 4 Combined
Cargo short wheelbase143
Cargo, increased payload, short wheelbase, long wheelbase 144
Cargo, short wheelbase, high roof / Cargo, short wheelbase, high
roof, increased payload152
1.6 Multijet Euro 4 Start&Stop with DPF Combined
Doblò 5/7-seater138
Doblò 5-seater, high roof150
2.0 Multijet Euro 5 / Euro 5+ Combined
Cargo short wheelbase / long wheelbase 148
Combi 5-seater / Doblò 5/7-seater 150
Cargo,short wheelbase, high roof / Cargo, short wheelbase,
increased payload, high roof152
Doblò 5-seater, high roof157
Doblò 5-seater, long wheelbase 150
2.0 MultiJet 135 HP Euro 5 / Euro 5+ Combined
Cargo short wheelbase154
Cargo, short wheelbase, Increased payload / Cargo, long wheelbase /
Combi 5-seater, short wheelbase156
Combi 5-seater, long wheelbase / Doblò 5/7-seater / Cargo, long
wheelbase, high roof163
Cargo, short wheelbase, high roof 158
Cargo, short wheelbase, high roof, increased payload / Cargo, short
wheelbase, high roof167
222
