technical data FIAT DOBLO COMBI 2018 Owner handbook (in English)

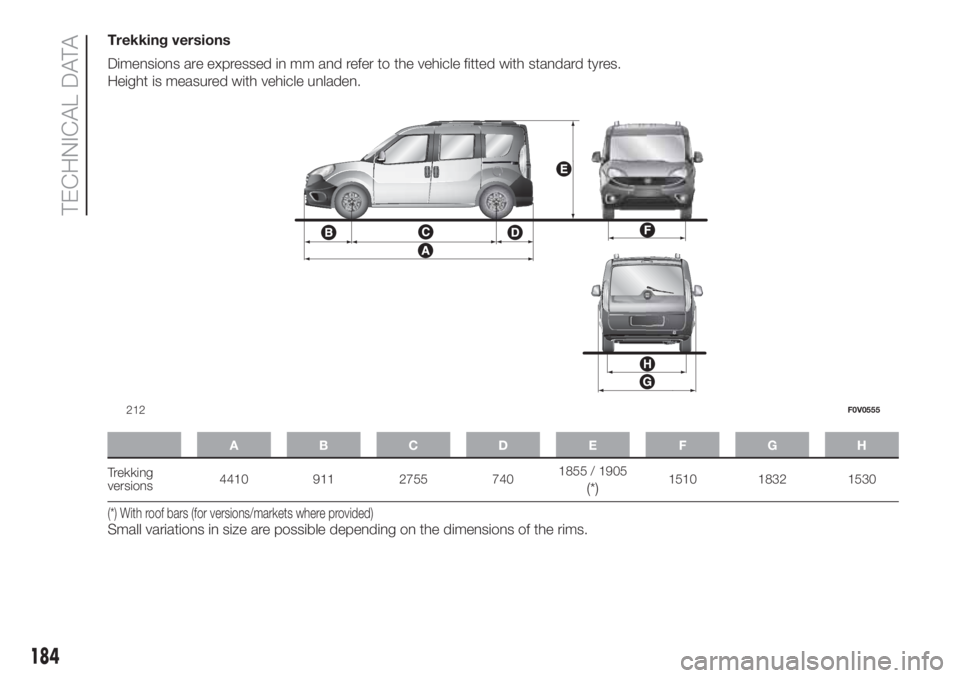

Trekking versions
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
Height is measured with vehicle unladen.
ABCDE FGH
Trekking
versions4410 911 2755 7401855 / 1905(*)1510 1832 1530
(*) With roof bars (for versions/markets where provided)Small variations in size are possible depending on the dimensions of the rims.
212F0V0555
184
TECHNICAL DATA

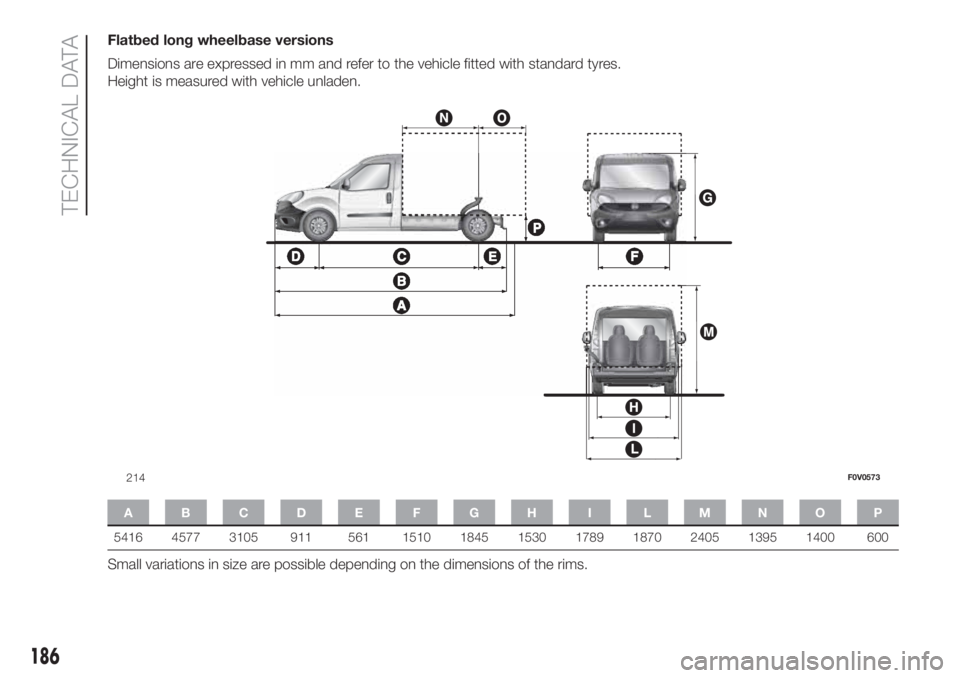

Flatbed long wheelbase versions
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
Height is measured with vehicle unladen.
ABCDE FGH I LMNOP
5416 4577 3105 911 561 1510 1845 1530 1789 1870 2405 1395 1400 600
Small variations in size are possible depending on the dimensions of the rims.
214F0V0573
186
TECHNICAL DATA

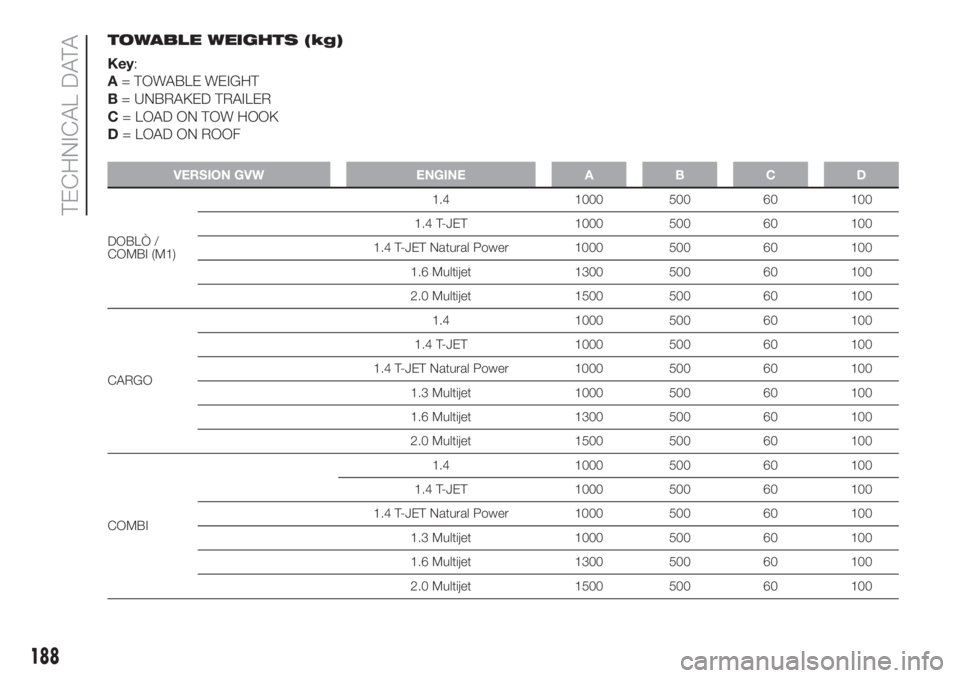

TOWABLE WEIGHTS (kg)
Key:
A= TOWABLE WEIGHT
B= UNBRAKED TRAILER
C= LOAD ON TOW HOOK
D= LOAD ON ROOF
VERSION GVW ENGINE A B C D
DOBLÒ /
COMBI (M1)1.4 1000 500 60 100
1.4 T-JET 1000 500 60 100
1.4 T-JET Natural Power 1000 500 60 100
1.6 Multijet 1300 500 60 100
2.0 Multijet 1500 500 60 100
CARGO1.4 1000 500 60 100
1.4 T-JET 1000 500 60 100
1.4 T-JET Natural Power 1000 500 60 100
1.3 Multijet 1000 500 60 100
1.6 Multijet 1300 500 60 100
2.0 Multijet 1500 500 60 100
COMBI1.4 1000 500 60 100
1.4 T-JET 1000 500 60 100
1.4 T-JET Natural Power 1000 500 60 100
1.3 Multijet 1000 500 60 100
1.6 Multijet 1300 500 60 100
2.0 Multijet 1500 500 60 100
188
TECHNICAL DATA

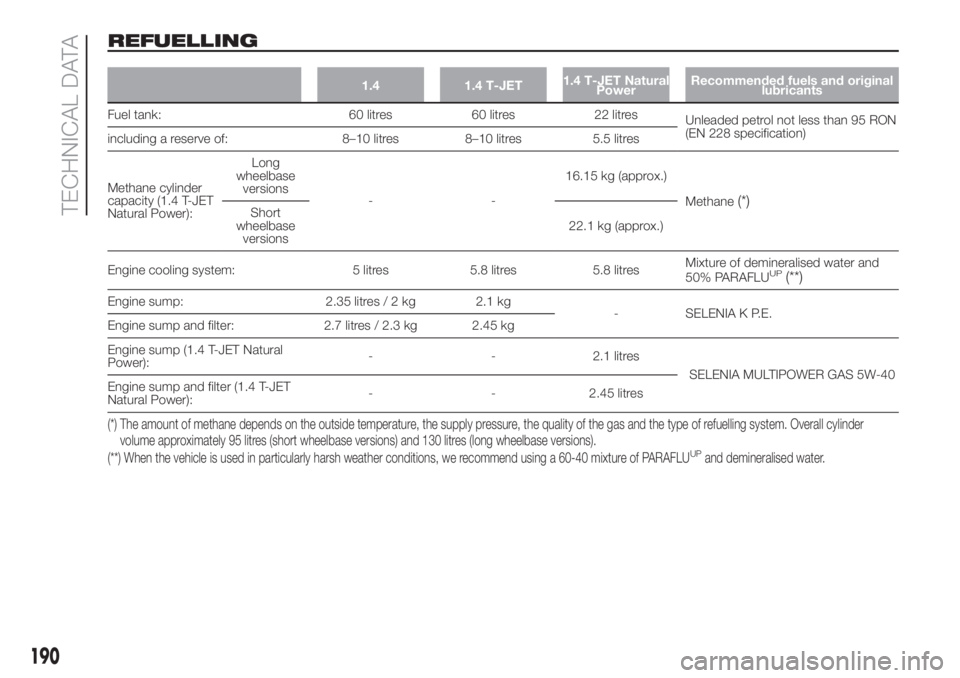

REFUELLING
1.4 1.4 T-JET1.4 T-JET Natural
PowerRecommended fuels and original
lubricants
Fuel tank: 60 litres 60 litres 22 litres
Unleaded petrol not less than 95 RON
(EN 228 specification)
including a reserve of: 8–10 litres 8–10 litres 5.5 litres
Methane cylinder
capacity (1.4 T-JET
Natural Power):Long
wheelbase
versions
--16.15 kg (approx.)
Methane
(*)Short
wheelbase
versions22.1 kg (approx.)
Engine cooling system: 5 litres 5.8 litres 5.8 litresMixture of demineralised water and
50% PARAFLU
UP(**)
Engine sump: 2.35 litres/2kg 2.1kg
- SELENIA K P.E.
Engine sump and filter: 2.7 litres / 2.3 kg 2.45 kg
Engine sump (1.4 T-JET Natural
Power):- - 2.1 litres
SELENIA MULTIPOWER GAS 5W-40
Engine sump and filter (1.4 T-JET
Natural Power):- - 2.45 litres
(*) The amount of methane depends on the outside temperature, the supply pressure, the quality of the gas and the type of refuelling system. Overall cylinder
volume approximately 95 litres (short wheelbase versions) and 130 litres (long wheelbase versions).
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand demineralised water.
190
TECHNICAL DATA

1.3 Multijet 1.6 Multijet 2.0 MultijetRecommended fuels and
original lubricants
Fuel tank: 60 litres 60 litres 60 litres
Diesel for motor vehicles (EN590
Specification)
including a reserve of: 8–10 litres 8–10 litres 8–10 litres
Engine cooling system: 5.2 litres 6.7 litres 6.7 litresMixture of distilled water and
PARAFLU
UPliquid at 50%(***)
Engine sump: 3 litres / 2.5 kg 4.5 litres / 3.6 kg 4.5 litres / 3.6 kgSELENIA WR P.E. (Euro 5
versions) / SELENIA WR
FORWARD (Euro 6 versions) Engine sump and filter: 3.2 litres / 2.7 kg 4.9 litres / 3.9 kg 4.9 litres / 3.9 kg
Gearbox casing/differential: 2 litres / 1.7 kg 2 litres / 1.7 kg 2 litres / 1.7 kgTUTELA TRANSMISSION
GEARFORCE
COMFORT-MATIC and
DUALOGIC™transmission
actuation hydraulic system (1.6
Multijet 90 HP versions)— 0.7 litres / 0.59 kg —TUTELA CS SPEED Special oil
with “ATF DEXRON III” type
additive
Hydraulic brake circuit with ABS: 0.450 kg 0.450 kg 0.450 kg TUTELA TOP 4/S
Hydraulic power steering: 0.900 kg 0.900 kg 0.900 kg TUTELA TRANSMISSION GI/E
Windscreen/headlight washer
reservoir:2.2
(*)/6(**)litres2.2(*)/6(**)litres2.2(*)/6(**)litresMixture of water and
PETRONAS DURANCE SC35
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(*) For Doblò versions without headlamp washers.
(**) For Doblò/Doblò Combi/Doblò Cargo versions with headlamp washers.
192
TECHNICAL DATA

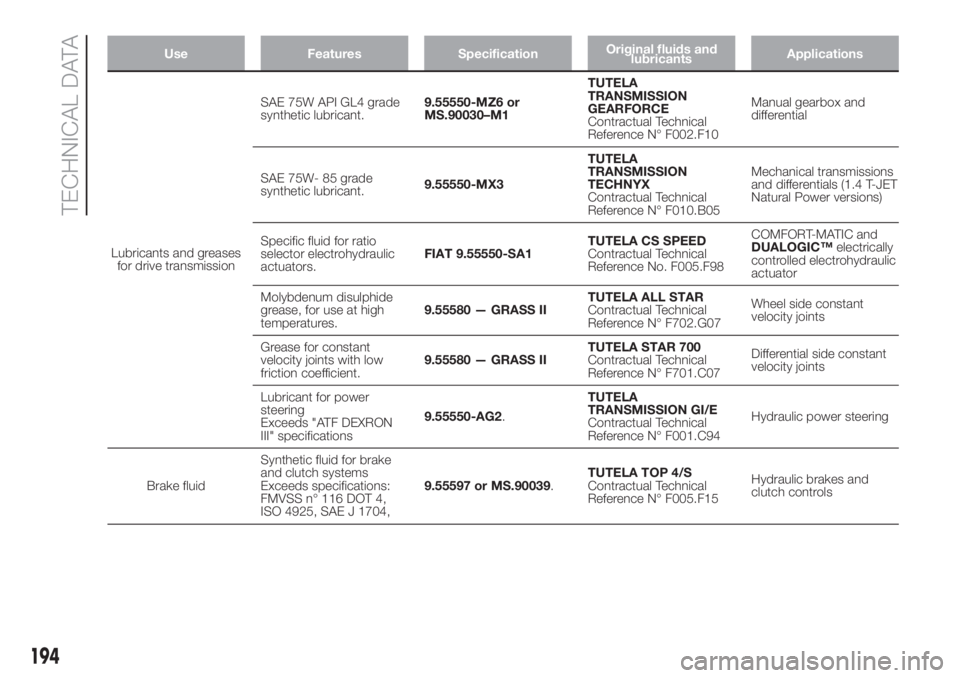

Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants and greases
for drive transmissionSAE 75W API GL4 grade
synthetic lubricant.9.55550-MZ6 or
MS.90030–M1TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference N° F002.F10Manual gearbox and
differential
SAE 75W- 85 grade
synthetic lubricant.9.55550-MX3TUTELA
TRANSMISSION
TECHNYX
Contractual Technical
Reference N° F010.B05Mechanical transmissions
and differentials (1.4 T-JET
Natural Power versions)
Specific fluid for ratio
selector electrohydraulic
actuators.FIAT 9.55550-SA1TUTELA CS SPEED
Contractual Technical
Reference No. F005.F98COMFORT-MATIC and
DUALOGIC™electrically
controlled electrohydraulic
actuator
Molybdenum disulphide
grease, for use at high
temperatures.9.55580 — GRASS IITUTELA ALL STAR
Contractual Technical
Reference N° F702.G07Wheel side constant
velocity joints
Grease for constant
velocity joints with low
friction coefficient.9.55580 — GRASS IITUTELA STAR 700
Contractual Technical
Reference N° F701.C07Differential side constant
velocity joints
Lubricant for power
steering
Exceeds "ATF DEXRON
III" specifications9.55550-AG2.TUTELA
TRANSMISSION GI/E
Contractual Technical
Reference N° F001.C94Hydraulic power steering
Brake fluidSynthetic fluid for brake
and clutch systems
Exceeds specifications:
FMVSS n° 116 DOT 4,
ISO 4925, SAE J 1704,9.55597 or MS.90039.TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15Hydraulic brakes and
clutch controls
194
TECHNICAL DATA

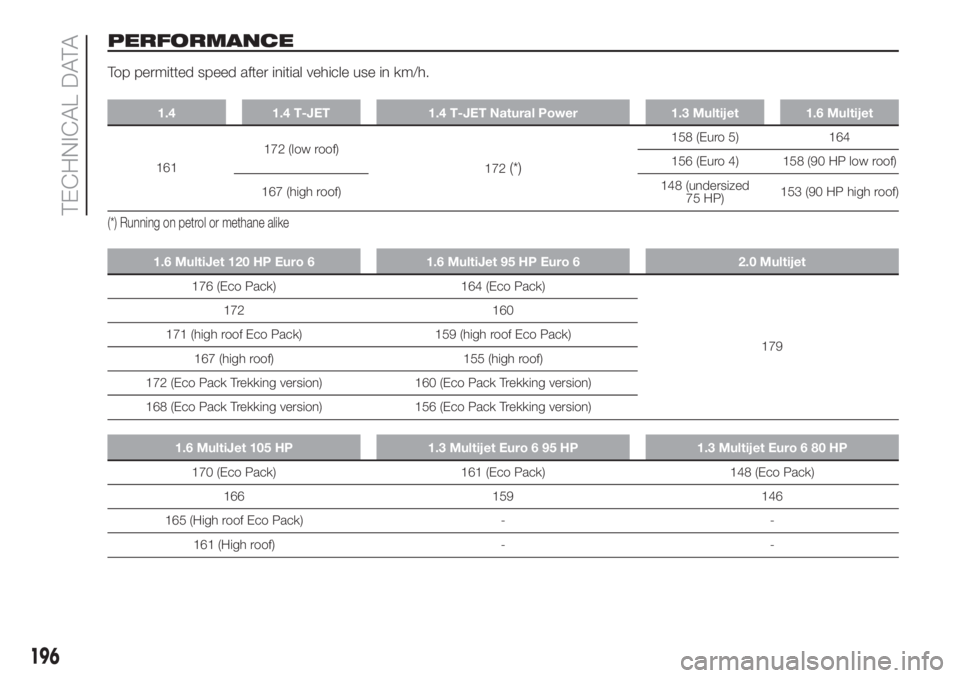

PERFORMANCE
Top permitted speed after initial vehicle use in km/h.
1.4 1.4 T-JET 1.4 T-JET Natural Power 1.3 Multijet 1.6 Multijet
161172 (low roof)
172(*)
158 (Euro 5) 164
156 (Euro 4) 158 (90 HP low roof)
167 (high roof)148 (undersized
75 HP)153 (90 HP high roof)
(*) Running on petrol or methane alike
1.6 MultiJet 120 HP Euro 6 1.6 MultiJet 95 HP Euro 6 2.0 Multijet
176 (Eco Pack) 164 (Eco Pack)
179 172 160
171 (high roof Eco Pack) 159 (high roof Eco Pack)
167 (high roof) 155 (high roof)
172 (Eco Pack Trekking version) 160 (Eco Pack Trekking version)
168 (Eco Pack Trekking version) 156 (Eco Pack Trekking version)
1.6 MultiJet 105 HP 1.3 Multijet Euro 6 95 HP 1.3 Multijet Euro 6 80 HP
170 (Eco Pack) 161 (Eco Pack) 148 (Eco Pack)
166 159 146
165 (High roof Eco Pack) - -
161 (High roof) - -
196
TECHNICAL DATA

FUEL
CONSUMPTION
The fuel consumption figures given in
the tables below are determined on the
basis of the type-approval tests laid
down by specific European Directives.
These consumption values refer to
basic vehicles without optionals.
The following procedures are used to
measure the fuel consumption:
urban cycle: begins with cold
starting, followed by driving simulating
the use of the vehicle in town;
extra-urban cycle: driving that
simulates using the vehicle out of town
with frequent acceleration in all gears;
the speed varies from 0 to 120 km/h;
combined consumption: calculated
with a weighting of approximately
37% of the urban cycle and 63% of the
extra-urban cycle.
IMPORTANT The type of route, traffic
situations, weather conditions, driving
style, general conditions of the vehicle,
trim level/equipment/accessories,
climate control system, vehicle load,
roof rack, other situations that affect
aerodynamics or air drag may lead to
different fuel consumption levels than
those measured.
198
TECHNICAL DATA

.
VERSIONS CONSUMPTION

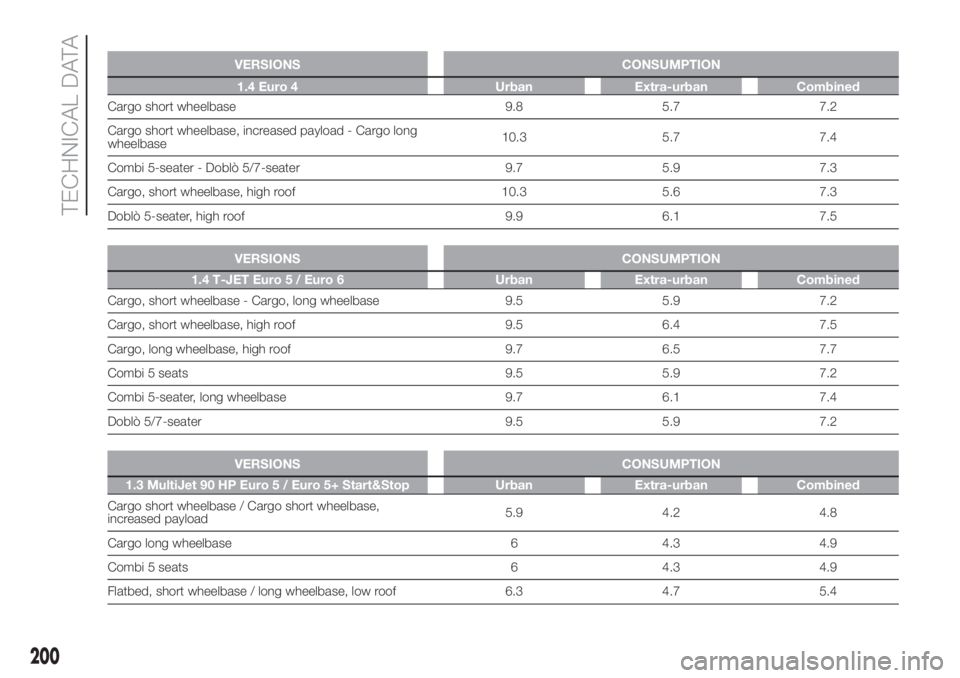

1.4 Euro 4 Urban Extra-urban Combined
Cargo short wheelbase 9.8 5.7 7.2
Cargo short wheelbase, increased payload - Cargo long
wheelbase10.3 5.7 7.4
Combi 5-seater - Doblò 5/7-seater 9.7 5.9 7.3
Cargo, short wheelbase, high roof 10.3 5.6 7.3
Doblò 5-seater, high roof 9.9 6.1 7.5
.
VERSIONS CONSUMPTION
1.4 T-JET Euro 5 / Euro 6 Urban Extra-urban Combined
Cargo, short wheelbase - Cargo, long wheelbase 9.5 5.9 7.2
Cargo, short wheelbase, high roof 9.5 6.4 7.5
Cargo, long wheelbase, high roof 9.7 6.5 7.7
Combi 5 seats 9.5 5.9 7.2
Combi 5-seater, long wheelbase 9.7 6.1 7.4
Doblò 5/7-seater 9.5 5.9 7.2
.
VERSIONS CONSUMPTION
1.3 MultiJet 90 HP Euro 5 / Euro 5+ Start&Stop Urban Extra-urban Combined
Cargo short wheelbase / Cargo short wheelbase,
increased payload5.9 4.2 4.8
Cargo long wheelbase 6 4.3 4.9
Combi 5 seats 6 4.3 4.9
Flatbed, short wheelbase / long wheelbase, low roof 6.3 4.7 5.4
.
200
TECHNICAL DATA

VERSIONS CONSUMPTION

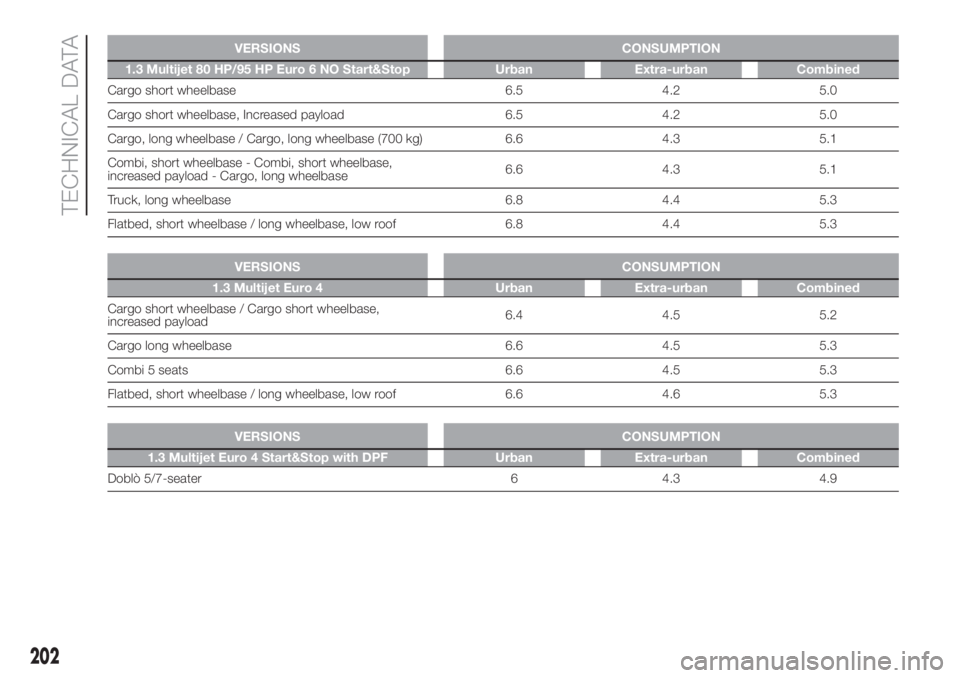

1.3 Multijet 80 HP/95 HP Euro 6 NO Start&Stop Urban Extra-urban Combined
Cargo short wheelbase 6.5 4.2 5.0
Cargo short wheelbase, Increased payload 6.5 4.2 5.0
Cargo, long wheelbase / Cargo, long wheelbase (700 kg) 6.6 4.3 5.1
Combi, short wheelbase - Combi, short wheelbase,
increased payload - Cargo, long wheelbase6.6 4.3 5.1
Truck, long wheelbase 6.8 4.4 5.3
Flatbed, short wheelbase / long wheelbase, low roof 6.8 4.4 5.3
.
VERSIONS CONSUMPTION
1.3 Multijet Euro 4 Urban Extra-urban Combined
Cargo short wheelbase / Cargo short wheelbase,
increased payload6.4 4.5 5.2
Cargo long wheelbase 6.6 4.5 5.3
Combi 5 seats 6.6 4.5 5.3
Flatbed, short wheelbase / long wheelbase, low roof 6.6 4.6 5.3
.
VERSIONS CONSUMPTION
1.3 Multijet Euro 4 Start&Stop with DPF Urban Extra-urban Combined
Doblò 5/7-seater 6 4.3 4.9
202
