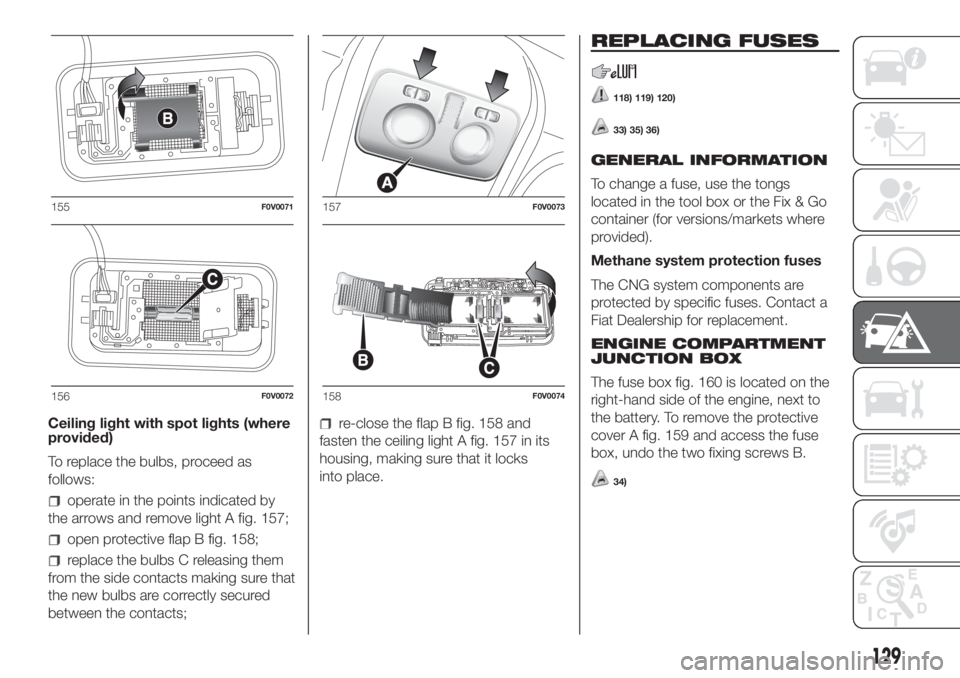

Ceiling light with spot lights (where
provided)
To replace the bulbs, proceed as
follows:
operate in the points indicated by
the arrows and remove light A fig. 157;
open protective flap B fig. 158;
replace the bulbs C releasing them
from the side contacts making sure that
the new bulbs are correctly secured
between the contacts;
re-close the flap B fig. 158 and
fasten the ceiling light A fig. 157 in its
housing, making sure that it locks
into place.
REPLACING FUSES
118) 119) 120)
33) 35) 36)
GENERAL INFORMATION
To change a fuse, use the tongs
located in the tool box or the Fix & Go
container (for versions/markets where
provided).
Methane system protection fuses
The CNG system components are
protected by specific fuses. Contact a
Fiat Dealership for replacement.
ENGINE COMPARTMENT
JUNCTION BOX
The fuse box fig. 160 is located on the
right-hand side of the engine, next to
the battery. To remove the protective
cover A fig. 159 and access the fuse
box, undo the two fixing screws B.
34)
155F0V0071
156F0V0072
157F0V0073
158F0V0074
129

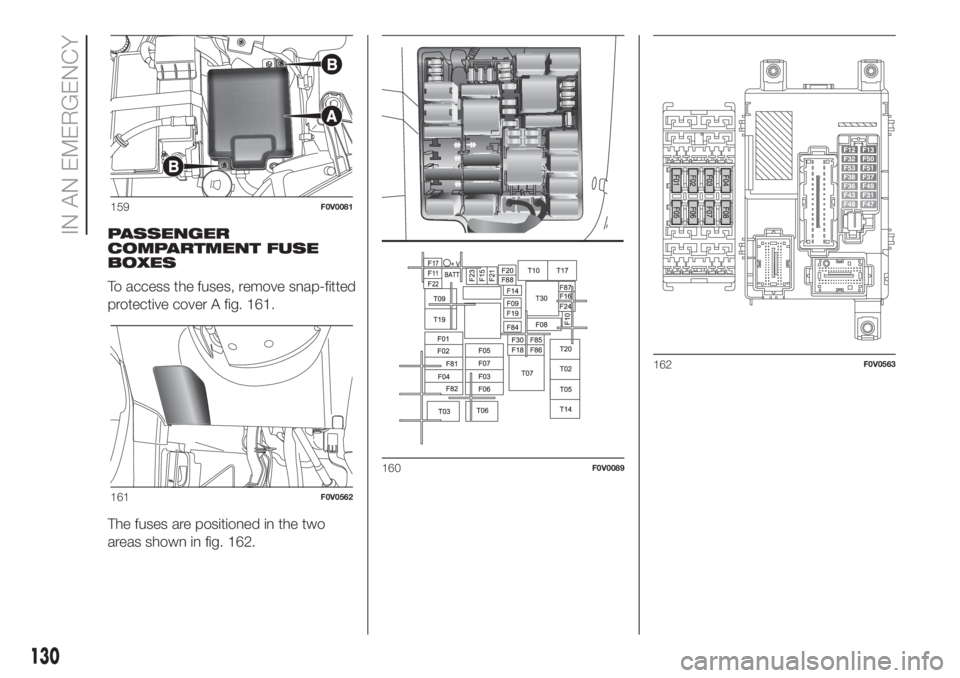

PASSENGER
COMPARTMENT FUSE
BOXES
To access the fuses, remove snap-fitted
protective cover A fig. 161.
The fuses are positioned in the two
areas shown in fig. 162.
159F0V0081
161F0V0562
160F0V0089
162F0V0563
130
IN AN EMERGENCY

Engine compartment junction box
fig. 159 - fig. 160
DEVICE PROTECTEDFUSE AMPERE
Remote control switch for opening swing door (Cargo version) F09 10
Single tone hornF10 10
Main beamsF14 15
Heated rear windowF20 30
Fog lightsF30 15
Rear power socketF85 15
Passenger compartment power socket F86 15
131

Passenger compartment fuse boxes
fig. 161 - fig. 162
DEVICE PROTECTEDFUSE AMPERE
Door locking/unlocking motors, dead lock actuator motors, tailgate unlocking motor F38 20
Supply + battery for EOBD diagnosis socket, radio, tyre pressure monitoring control unit F36 10
Windscreen/rear window washer pump F43 15
Window winder motor for front door passenger side F48 20
Left low beam, headlight corrector F13 7.5
Window winder motor for front door driver's side F47 20
Heated driver seatF1 10
Heated passenger seatF2 10
Cigarette lighterF3 15
Third power socket on dashboard F4 20
Driver's side rear electric window F5 20
Passenger's side rear electric window F6 20
WARNING
118)If the replaced fuse blows again, contact a Fiat Dealership.
119)Never replace a fuse with another with a higher amp rating; DANGER OF FIRE. If a general protection fuse (MEGA-FUSE, MIDI-FUSE) is
activated, contact a Fiat Dealership. Before replacing a fuse, make sure that the ignition key has been removed and that all the other services
are switched off and/or disengaged.
120)Contact a Fiat Dealership if a safety system (airbags, brakes), engine system (engine, gearbox) or steering system general protection
fuse blows.
132
IN AN EMERGENCY

WARNING
33)Never replace a fuse with metal wires or other material.
34)If you need to wash the engine compartment, take care not to directly hit the fuse box and the window wiper motors with the water jet.
35)The Comfort-Matic/Dualogic system components are protected by specific fuses. Contact a Fiat Dealership for replacement.
36)The Natural Power system components are protected by specific fuses. Contact a Fiat Dealership for replacement.
