FIAT DOBLO PANORAMA 2015 2.G Owners Manual
Page 1 of 323
Page 2 of 323

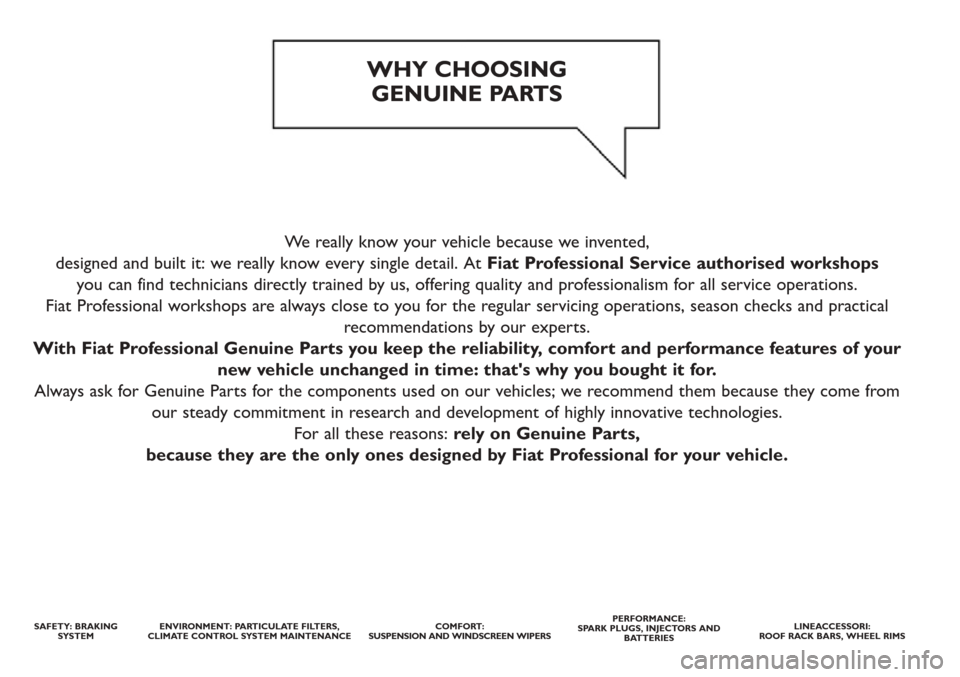

We really know your vehicle because we invented,
designed and built it: we really know every single detail. At Fiat Professional Service authorised workshops
you can find technicians directly trained by us, offering quality and professionalism for all service operations.
Fiat Professional workshops are always close to you for the regular servicing operations, season checks and practical recommendations by our experts.
With Fiat Professional Genuine Parts you keep the reliability, comfort and performance features of your new vehicle unchanged in time: that's why you bought it for.
Always ask for Genuine Parts for the components used on our vehicles; we recommend them because they come from our steady commitment in research and development of highly innovative technologies. For all these reasons: rely on Genuine Parts,
because they are the only ones designed by Fiat Professional for your vehicle.
SAFETY: BRAKING SYSTEMENVIRONMENT: PARTICULATE FILTERS,
CLIMATE CONTROL SYSTEM MAINTENANCECOMFORT:
SUSPENSION AND WINDSCREEN WIPERSPERFORMANCE:
SPARK PLUGS, INJECTORS AND BATTERIESLINEACCESSORI:
ROOF RACK BARS, WHEEL RIMS
WHY CHOOSING GENUINE PARTS
Page 3 of 323
Page 4 of 323
Page 5 of 323
We would like to congratulate and thank you for choosing a Fiat Doblò.
We have written this handbook to help you get to know all the features of your vehicle and use it in the best possible way.
Here you will find information, advice and important warnings regarding use of your vehicle and how to achieve the best performance from the
technical features of your Fiat Doblò.
You are advised to read it right through before taking to the road for the first time, to become familiar with the controls and above all with those
concerning brakes, steering and gearbox; at the same time, you can understand the vehicle behaviour on different road surfaces.
This document also provides a description of special features and tips, as well as essential information for the safe driving, care and
maintenance of your Fiat Doblò over time.
After reading it, you are advised to keep the handbook inside the vehicle, for an easy reference and for making sure it remains on board the
vehicle should it be sold.
In the attached Warranty Booklet you will also find a description of the Services that Fiat offers to its customers, the Warranty Certificate and
the detail of the terms and conditions for maintaining its validity.
We are sure that these will help you to get in touch with and appreciate your new vehicle and the service provided by the people at Fiat.
Enjoy reading. Happy motoring!
Page 6 of 323
Petrol engines: only refuel with unleaded petrol with octane rating (RON) not less than 95 in compliance with the European specification
EN228.Diesel engines: only refuel with diesel fuel conforming to the European specification EN590. The use of other products or mixtures
may damage the engine beyond repair and consequently invalidate the warranty, due to the damage caused.
STARTING THE ENGINE
Petrol engines: make sure that the handbrake is engaged; set the gear lever to neutral; fully depress the clutch pedal without pressing the
accelerator, then turn the ignition key to AVV and release it as soon as the engine has started.Diesel engines: turn the ignition key to MAR
and wait for the
andwarning lights to switch off. Then turn the ignition key to AVV and release it as soon as the engine has
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperatures during operation. Do not park on grass, dry leaves, pine needles or other flammable
material: fire hazard.
RESPECTING THE ENVIRONMENT
The vehicle is fitted with a system that allows continuous diagnosis of the emission-related components in order to help protect the
If, after buying the vehicle, you decide to add electrical accessories (with the risk of gradually draining the battery), visit a Fiat Dealership. They
can calculate the overall electrical requirement and check that the vehicle's electrical system can support the required load.
Correct maintenance enables the vehicle to perfectly maintain performance and safety characteristics, its environmental friendliness and low
running costs over time.
Page 7 of 323
USE OF THE OWNER HANDBOOK
Each time direction instructions (left/right or forwards/backwards) about the vehicle are given, these must be
intended as regarding an occupant in the driver's seat. Special cases not complying with this rule will be specified as
appropriate in the text.
The figures in the Owner Handbook are provided by way of example only: this might imply that some details of the
image do not correspond to the actual arrangement of your vehicle. In addition, the Handbook has been conceived
considering vehicles with steering wheel on the left side; it is therefore possible that on vehicles with steering wheel
on the right side, the position or construction of some controls is not exactly mirror-like with respect to the figure.
To identify the chapter with the information needed you can consult the index at the end of this Owner Handbook.
Chapters can be rapidly identified with dedicated graphic tabs, at the side of each odd page. A few pages further
there is a key for getting to know the chapter order and the relevant symbols in the tabs. There is in any case a
textual indication of the current chapter at the side of each even page.
WARNINGS AND PRECAUTIONS
While reading this Owner Handbook you will find a series ofWARNINGSto prevent procedures that could damage
There are alsoPRECAUTIONSthat must be carefully followed to prevent incorrect use of the components of the
vehicle, which could cause accidents or injuries.
Therefore allWARNINGSandPRECAUTIONSmust always be carefully followed.
WARNINGSandPRECAUTIONSare recalled in the text with the following symbols:
NOTE These symbols, when necessary, are indicated besides the title or at the end of the line and are followed by a
number. That number recalls the corresponding warning at the end of the relevant section.
Page 8 of 323
This Owner Handbook describes all Fiat Doblò versions. Options, equipment dedicated to specific
markets or versions are not explicitly indicated in the text: as a consequence, you should only consider
the information which is related to the trim level, engine and version that you have purchased. Any
content introduced throughout the production of the model, outside the explicit request of options at the
time of purchase, will be identified with the wording(for versions/markets, where provided).
All data contained in this publication are intended to help you use your vehicle in the best possible way.
Fiat aims at a constant improvement of the vehicles produced. For this reason it reserves the right to
make changes to the model described for technical and/or commercial reasons.
For further information, contact a Fiat Dealership.
Some vehicle components have coloured labels whose symbols indicate precautions to be observed when using this
A plate summarising these symbols can also be found under the bonnet.
Page 9 of 323
VEHICLE MODIFICATIONS / ALTERATIONS
Any change or alteration of the vehicle might seriously affect its safety and road holding, thus causing accidents, in
which the occupants could even be fatally injured.
ACCESSORIES PURCHASED BY THE OWNER
If after buying the vehicle, you decide to install electrical accessories that require a permanent electrical supply (e.g.
radio, satellite anti-theft system, etc.) or accessories that in any case burden the electrical supply, contact a Fiat
Dealership, whose personnel will check whether the vehicles's electrical system is able to withstand the load
required, or whether it needs to be integrated with a more powerful battery.
IMPORTANT Take care when fitting additional spoilers, alloy wheels or non-standard wheel hubs: they could reduce
the ventilation of the brakes and affect efficiency under sharp, repeated braking or on long descents. Make sure
that nothing obstructs the pedal stroke (mats, etc.).
INSTALLING ELECTRICAL/ELECTRONIC DEVICES
Electrical and electronic devices installed after buying the vehicle and available as after-sales must carry the following
Fiat authorises the installation of transceivers provided that installation is carried out at a specialised centre, in a
workmanlike fashion and in compliance with manufacturer's specifications.
IMPORTANT Traffic authorities may not allow the vehicle on the road if devices are fitted that involve modifications to
the features of the vehicle. This may also cause lapse of the warranty in relation to faults caused by the change or
either directly or indirectly related to it.
Fiat shall not be liable for damage caused by the installation of accessories either not supplied or recommended by
Fiat and/or not installed in compliance with the provided instructions.
RADIO TRANSMITTERS AND MOBILE PHONES
Radio transmitters (car phones, CB radios etc.) cannot be used inside the vehicle unless a separate aerial is
Page 10 of 323
Transmission and reception of these devices may be affected by the shielding effect of the vehicle body. As far as the
use of EC-approved mobile phones is concerned (GSM, GPRS, UMTS, LTE), follow the usage instructions provided
by the mobile phone Manufacturer.
IMPORTANT The use of such devices inside the passenger compartment (without an external aerial) may, in addition
to potential damage to the health of the passengers, cause malfunctions in the vehicle’s electronic systems,
compromising the safety of the vehicle.
