FIAT DOBLO PANORAMA 2015 2.G Owner's Manual

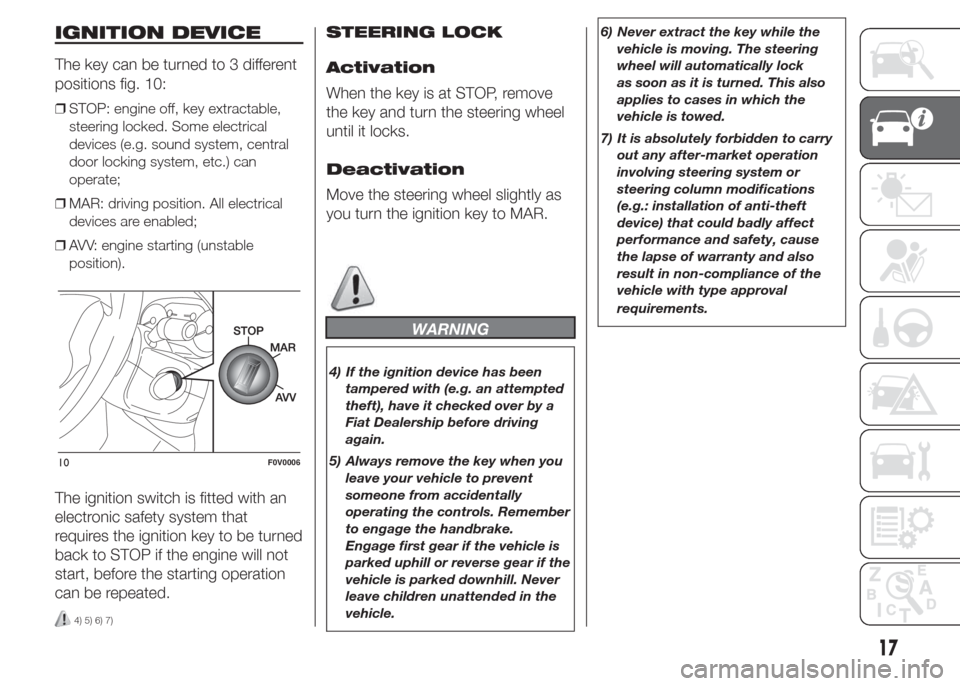

IGNITION DEVICE
The key can be turned to 3 different
positions fig. 10:
❒STOP: engine off, key extractable,
steering locked. Some electrical
devices (e.g. sound system, central
door locking system, etc.) can
operate;
❒MAR: driving position. All electrical
devices are enabled;
❒AVV: engine starting (unstable
position).
The ignition switch is fitted with an
electronic safety system that
requires the ignition key to be turned
back to STOP if the engine will not
start, before the starting operation
can be repeated.
4) 5) 6) 7)
STEERING LOCK
Activation
When the key is at STOP, remove
the key and turn the steering wheel
until it locks.
Deactivation
Move the steering wheel slightly as
you turn the ignition key to MAR.
WARNING
4) If the ignition device has been
tampered with (e.g. an attempted
theft), have it checked over by a
Fiat Dealership before driving
again.
5) Always remove the key when you
leave your vehicle to prevent
someone from accidentally
operating the controls. Remember
to engage the handbrake.
Engage first gear if the vehicle is
parked uphill or reverse gear if the
vehicle is parked downhill. Never
leave children unattended in the
vehicle.6) Never extract the key while the
vehicle is moving. The steering
wheel will automatically lock
as soon as it is turned. This also
applies to cases in which the
vehicle is towed.
7) It is absolutely forbidden to carry
out any after-market operation
involving steering system or
steering column modifications
(e.g.: installation of anti-theft
device) that could badly affect
performance and safety, cause
the lapse of warranty and also
result in non-compliance of the
vehicle with type approval
requirements.
10F0V0006
17

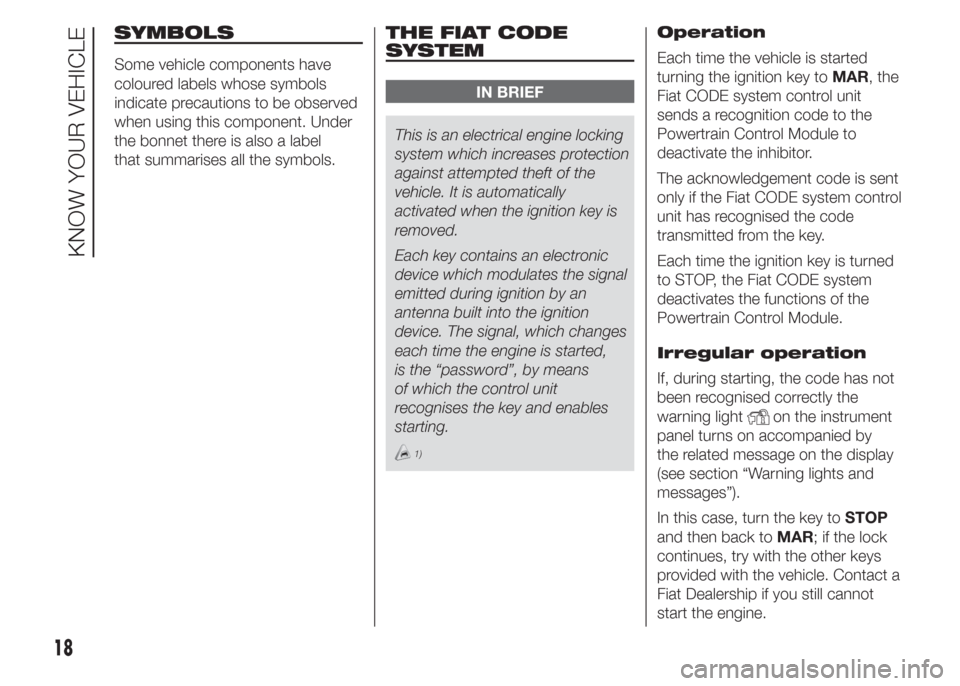

SYMBOLS
Some vehicle components have
coloured labels whose symbols
indicate precautions to be observed
when using this component. Under
the bonnet there is also a label
that summarises all the symbols.
THE FIAT CODE
SYSTEM
IN BRIEF
This is an electrical engine locking
system which increases protection
against attempted theft of the
vehicle. It is automatically
activated when the ignition key is
removed.
Each key contains an electronic
device which modulates the signal
emitted during ignition by an
antenna built into the ignition
device. The signal, which changes
each time the engine is started,
is the “password”, by means
of which the control unit
recognises the key and enables
starting.
1)
Operation
Each time the vehicle is started
turning the ignition key toMAR, the
Fiat CODE system control unit
sends a recognition code to the
Powertrain Control Module to
deactivate the inhibitor.
The acknowledgement code is sent
only if the Fiat CODE system control
unit has recognised the code
transmitted from the key.
Each time the ignition key is turned
to STOP, the Fiat CODE system
deactivates the functions of the
Powertrain Control Module.
Irregular operation
If, during starting, the code has not
been recognised correctly the
warning light
on the instrument
panel turns on accompanied by
the related message on the display
(see section “Warning lights and
messages”).
In this case, turn the key toSTOP
and then back toMAR; if the lock
continues, try with the other keys
provided with the vehicle. Contact a
Fiat Dealership if you still cannot
start the engine.
18
KNOW YOUR VEHICLE

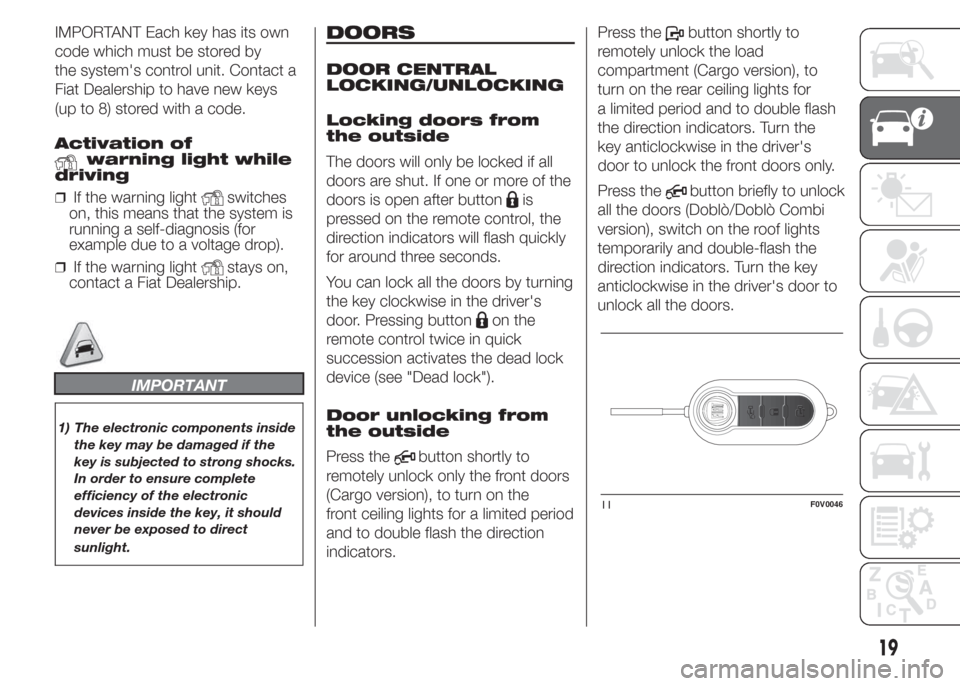

IMPORTANT Each key has its own
code which must be stored by
the system's control unit. Contact a
Fiat Dealership to have new keys
(up to 8) stored with a code.
Activation of
warning light while
driving
❒If the warning lightswitches
on, this means that the system is
running a self-diagnosis (for
example due to a voltage drop).
❒If the warning lightstays on,
contact a Fiat Dealership.
IMPORTANT
1) The electronic components inside
the key may be damaged if the
key is subjected to strong shocks.
In order to ensure complete
efficiency of the electronic
devices inside the key, it should
never be exposed to direct
sunlight.
DOORS
DOOR CENTRAL
LOCKING/UNLOCKING
Locking doors from
the outside
The doors will only be locked if all
doors are shut. If one or more of the
doors is open after button
is
pressed on the remote control, the
direction indicators will flash quickly
for around three seconds.
You can lock all the doors by turning
the key clockwise in the driver's
door. Pressing button
on the
remote control twice in quick
succession activates the dead lock
device (see "Dead lock").
Door unlocking from
the outside
Press the
button shortly to
remotely unlock only the front doors
(Cargo version), to turn on the
front ceiling lights for a limited period
and to double flash the direction
indicators.Press the
button shortly to
remotely unlock the load
compartment (Cargo version), to
turn on the rear ceiling lights for
a limited period and to double flash
the direction indicators. Turn the
key anticlockwise in the driver's
door to unlock the front doors only.
Press the
button briefly to unlock
all the doors (Doblò/Doblò Combi
version), switch on the roof lights
temporarily and double-flash the
direction indicators. Turn the key
anticlockwise in the driver's door to
unlock all the doors.
11F0V0046
19

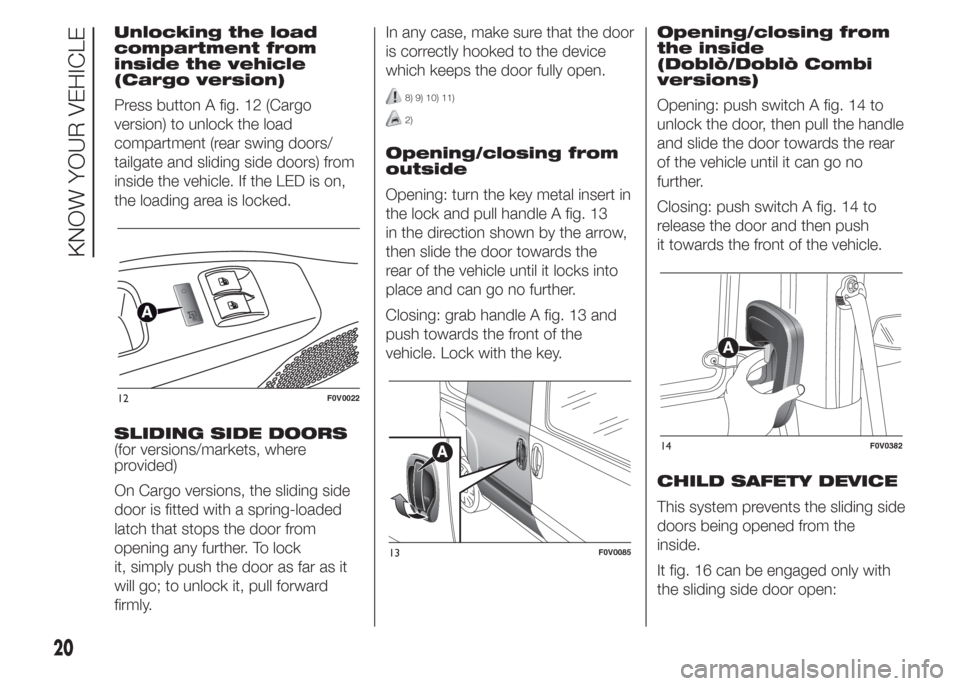

Unlocking the load
compartment from
inside the vehicle
(Cargo version)
Press button A fig. 12 (Cargo
version) to unlock the load
compartment (rear swing doors/
tailgate and sliding side doors) from
inside the vehicle. If the LED is on,
the loading area is locked.
SLIDING SIDE DOORS
(for versions/markets, where
provided)
On Cargo versions, the sliding side
door is fitted with a spring-loaded
latch that stops the door from
opening any further. To lock
it, simply push the door as far as it
will go; to unlock it, pull forward
firmly.In any case, make sure that the door
is correctly hooked to the device
which keeps the door fully open.
8) 9) 10) 11)
2)
Opening/closing from
outside
Opening: turn the key metal insert in
the lock and pull handle A fig. 13
in the direction shown by the arrow,
then slide the door towards the
rear of the vehicle until it locks into
place and can go no further.
Closing: grab handle A fig. 13 and
push towards the front of the
vehicle. Lock with the key.Opening/closing from
the inside
(Doblò/Doblò Combi
versions)
Opening: push switch A fig. 14 to
unlock the door, then pull the handle
and slide the door towards the rear
of the vehicle until it can go no
further.
Closing: push switch A fig. 14 to
release the door and then push
it towards the front of the vehicle.
CHILD SAFETY DEVICE
This system prevents the sliding side
doors being opened from the
inside.
It fig. 16 can be engaged only with
the sliding side door open:
12F0V0022
13F0V0085
14F0V0382
20
KNOW YOUR VEHICLE

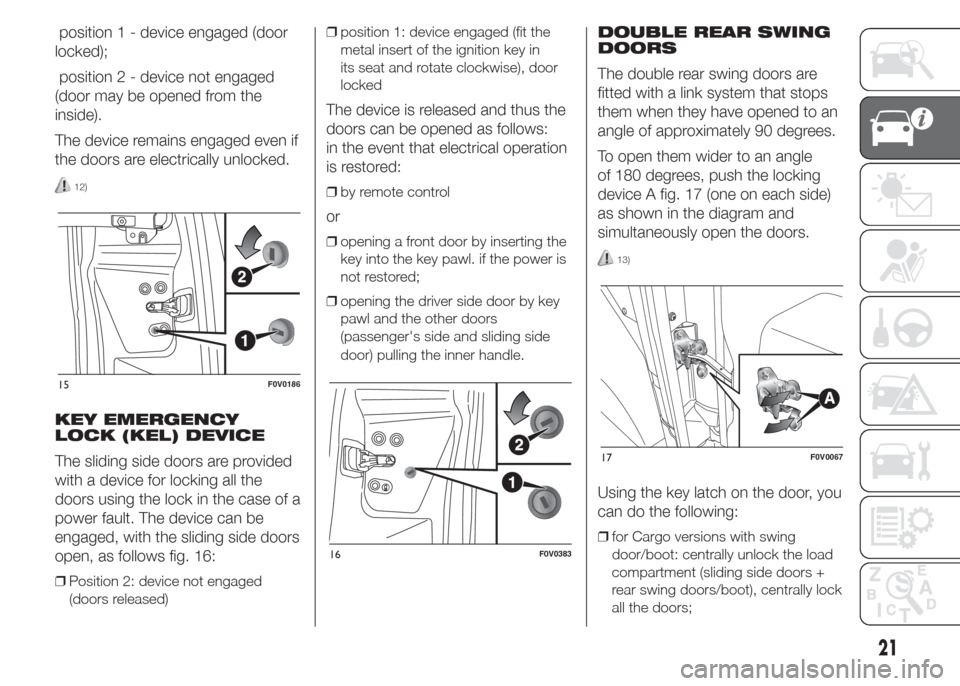

position 1 - device engaged (door
locked);
position 2 - device not engaged
(door may be opened from the
inside).
The device remains engaged even if
the doors are electrically unlocked.
12)
KEY EMERGENCY
LOCK (KEL) DEVICE
The sliding side doors are provided
with a device for locking all the
doors using the lock in the case of a
power fault. The device can be
engaged, with the sliding side doors
open, as follows fig. 16:
❒Position 2: device not engaged
(doors released)❒position 1: device engaged (fit the
metal insert of the ignition key in
its seat and rotate clockwise), door
locked
The device is released and thus the
doors can be opened as follows:
in the event that electrical operation
is restored:
❒by remote control
or
❒opening a front door by inserting the
key into the key pawl. if the power is
not restored;
❒opening the driver side door by key
pawl and the other doors
(passenger's side and sliding side
door) pulling the inner handle.
DOUBLE REAR SWING
DOORS
The double rear swing doors are
fitted with a link system that stops
them when they have opened to an
angle of approximately 90 degrees.
To open them wider to an angle
of 180 degrees, push the locking
device A fig. 17 (one on each side)
as shown in the diagram and
simultaneously open the doors.
13)
Using the key latch on the door, you
can do the following:
❒for Cargo versions with swing
door/boot: centrally unlock the load
compartment (sliding side doors +
rear swing doors/boot), centrally lock
all the doors;
15F0V0186
16F0V0383
17F0V0067
21

❒for Doblò/Doblò Combi versions with
swing door: local unlocking/locking.
Opening/closing the
first swing door from
the outside
To open the door, turn the key metal
insert in the lock or press button
on the remote control and then
pull handle A fig. 18 in the direction
of the arrow. To close the door,
turn the key metal insert in the
closing direction or press button
on the remote control.
14)
Emergency opening of
the first swing door
from the inside
From inside, use device A fig. 19.
Opening the second
swing door
After having opened the first door,
pull handle A fig. 20 in the direction
shown by the arrow.
IMPORTANT Pull handle A fig. 20
only in the direction shown in the
diagram.

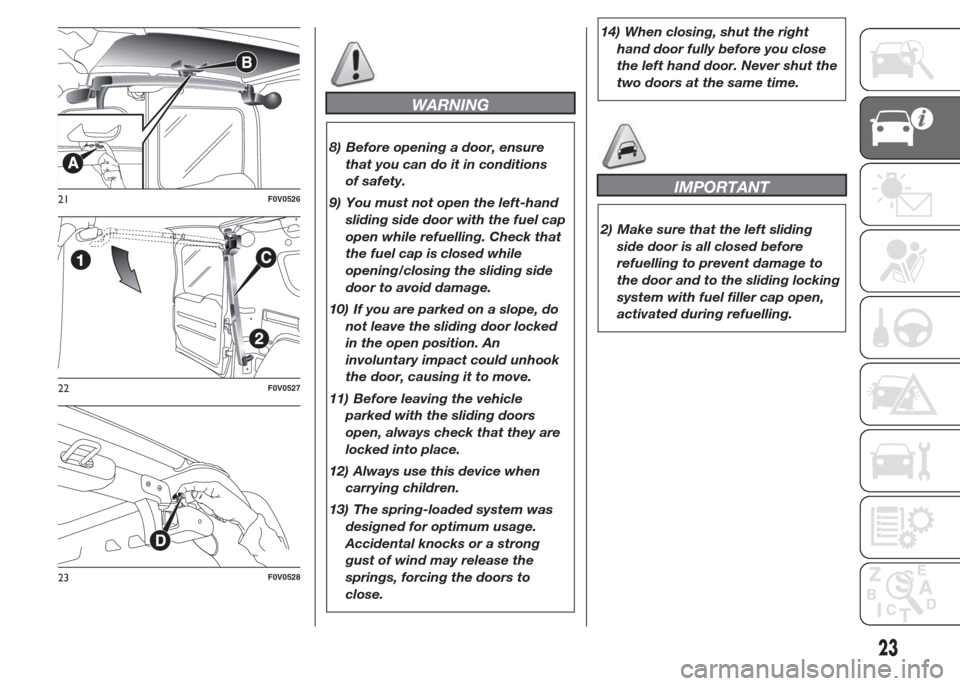

FIXED WINDOW
(for versions/markets, where
provided)
Using the fixed window:
❒Open the swing doors.❒Push lever A fig. 21 downwards,
ensuring that it is held down until the
lock goes beyond the crossmember;
❒Open using both hands, making sure
to aid the fixed window opening by
using handle B fig. 21;
❒To close, pull the fixed window
downwards using the suitable handle
B.
IMPORTANT The fixed window
remains open up to a speed of 110
km/h.
With the fixed window open it is
possible, if necessary, to lower the
crossmember C, accompanying
it from position 1 to position 2 fig.
22.
To release and lower the
crossmember, act, with rear doors
open, on lever D fig. 23.
18F0V0518
19F0V0080
20F0V0078
22
KNOW YOUR VEHICLE

WARNING
8) Before opening a door, ensure
that you can do it in conditions
of safety.
9) You must not open the left-hand
sliding side door with the fuel cap
open while refuelling. Check that
the fuel cap is closed while
opening/closing the sliding side
door to avoid damage.
10) If you are parked on a slope, do
not leave the sliding door locked
in the open position. An
involuntary impact could unhook
the door, causing it to move.
11) Before leaving the vehicle
parked with the sliding doors
open, always check that they are
locked into place.
12) Always use this device when
carrying children.
13) The spring-loaded system was
designed for optimum usage.
Accidental knocks or a strong
gust of wind may release the
springs, forcing the doors to
close.14) When closing, shut the right
hand door fully before you close
the left hand door. Never shut the
two doors at the same time.
IMPORTANT
2) Make sure that the left sliding
side door is all closed before
refuelling to prevent damage to
the door and to the sliding locking
system with fuel filler cap open,
activated during refuelling.
21F0V0526
22F0V0527
23F0V0528
23

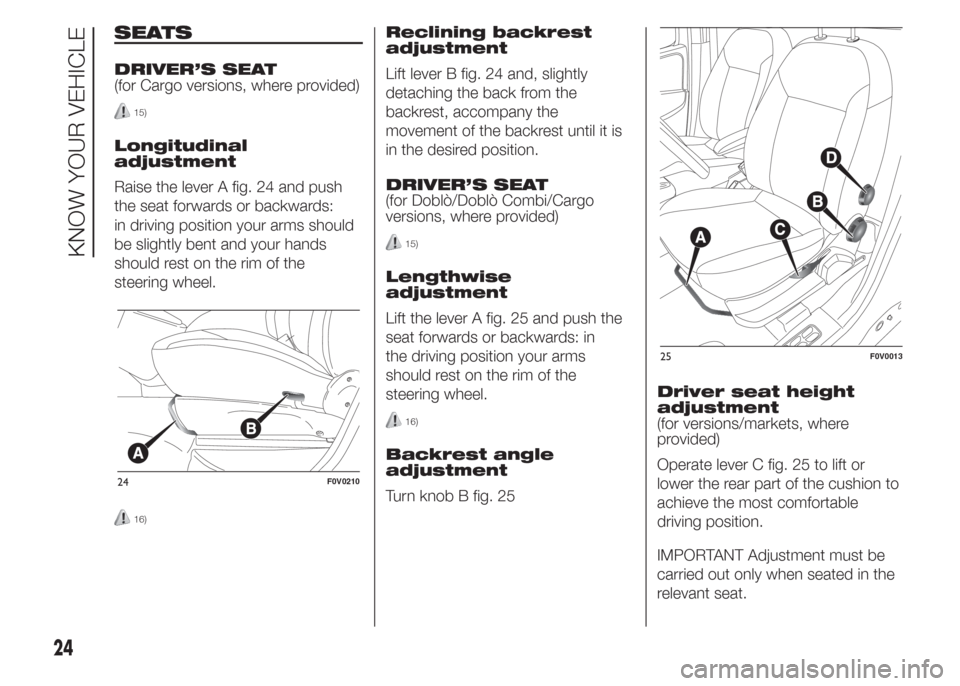

SEATS
DRIVER’S SEAT
(for Cargo versions, where provided)
15)
Longitudinal
adjustment
Raise the lever A fig. 24 and push
the seat forwards or backwards:
in driving position your arms should
be slightly bent and your hands
should rest on the rim of the
steering wheel.
16)
Reclining backrest
adjustment
Lift lever B fig. 24 and, slightly
detaching the back from the
backrest, accompany the
movement of the backrest until it is
in the desired position.
DRIVER’S SEAT
(for Doblò/Doblò Combi/Cargo
versions, where provided)
15)
Lengthwise
adjustment
Lift the lever A fig. 25 and push the
seat forwards or backwards: in
the driving position your arms
should rest on the rim of the
steering wheel.
16)
Backrest angle
adjustment
Turn knob B fig. 25Driver seat height
adjustment
(for versions/markets, where
provided)
Operate lever C fig. 25 to lift or
lower the rear part of the cushion to
achieve the most comfortable
driving position.
IMPORTANT Adjustment must be
carried out only when seated in the
relevant seat.
24F0V0210
25F0V0013
24
KNOW YOUR VEHICLE

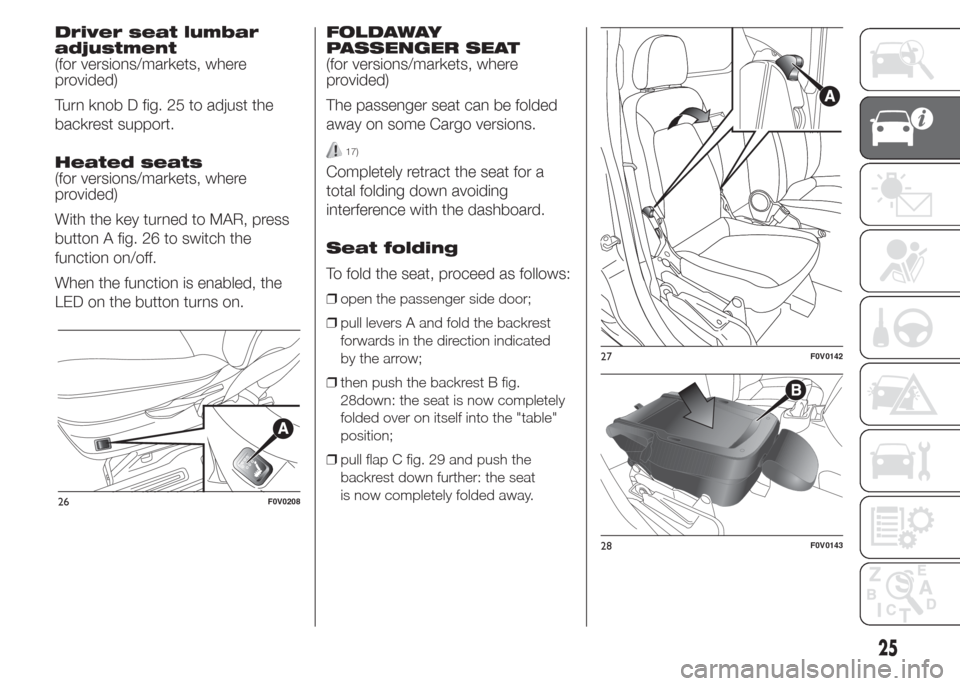

Driver seat lumbar
adjustment
(for versions/markets, where
provided)
Turn knob D fig. 25 to adjust the
backrest support.
Heated seats
(for versions/markets, where
provided)
With the key turned to MAR, press
button A fig. 26 to switch the
function on/off.
When the function is enabled, the
LED on the button turns on.FOLDAWAY
PASSENGER SEAT
(for versions/markets, where
provided)
The passenger seat can be folded
away on some Cargo versions.
17)
Completely retract the seat for a
total folding down avoiding
interference with the dashboard.
Seat folding
To fold the seat, proceed as follows:
❒open the passenger side door;
❒pull levers A and fold the backrest
forwards in the direction indicated
by the arrow;
❒then push the backrest B fig.
28down: the seat is now completely
folded over on itself into the "table"
position;
❒pull flap C fig. 29 and push the
backrest down further: the seat
is now completely folded away.
26F0V0208
27F0V0142
28F0V0143
25

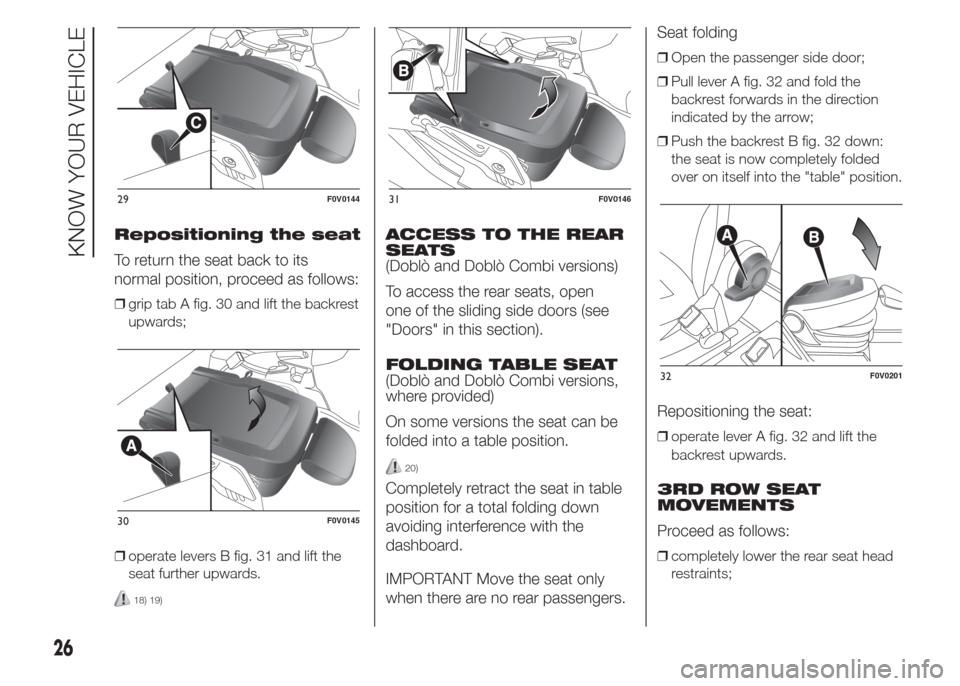

Repositioning the seat
To return the seat back to its
normal position, proceed as follows:
❒grip tab A fig. 30 and lift the backrest
upwards;
❒operate levers B fig. 31 and lift the
seat further upwards.
18) 19)
ACCESS TO THE REAR
SEATS
(Doblò and Doblò Combi versions)
To access the rear seats, open
one of the sliding side doors (see
"Doors" in this section).
FOLDING TABLE SEAT
(Doblò and Doblò Combi versions,
where provided)
On some versions the seat can be
folded into a table position.
20)
Completely retract the seat in table
position for a total folding down
avoiding interference with the
dashboard.
IMPORTANT Move the seat only
when there are no rear passengers.Seat folding
❒Open the passenger side door;
❒Pull lever A fig. 32 and fold the
backrest forwards in the direction
indicated by the arrow;
❒Push the backrest B fig. 32 down:
the seat is now completely folded
over on itself into the "table" position.
Repositioning the seat:
❒operate lever A fig. 32 and lift the
backrest upwards.
3RD ROW SEAT
MOVEMENTS
Proceed as follows:
❒completely lower the rear seat head
restraints;
29F0V0144
30F0V0145
31F0V0146
32F0V0201
26
KNOW YOUR VEHICLE
