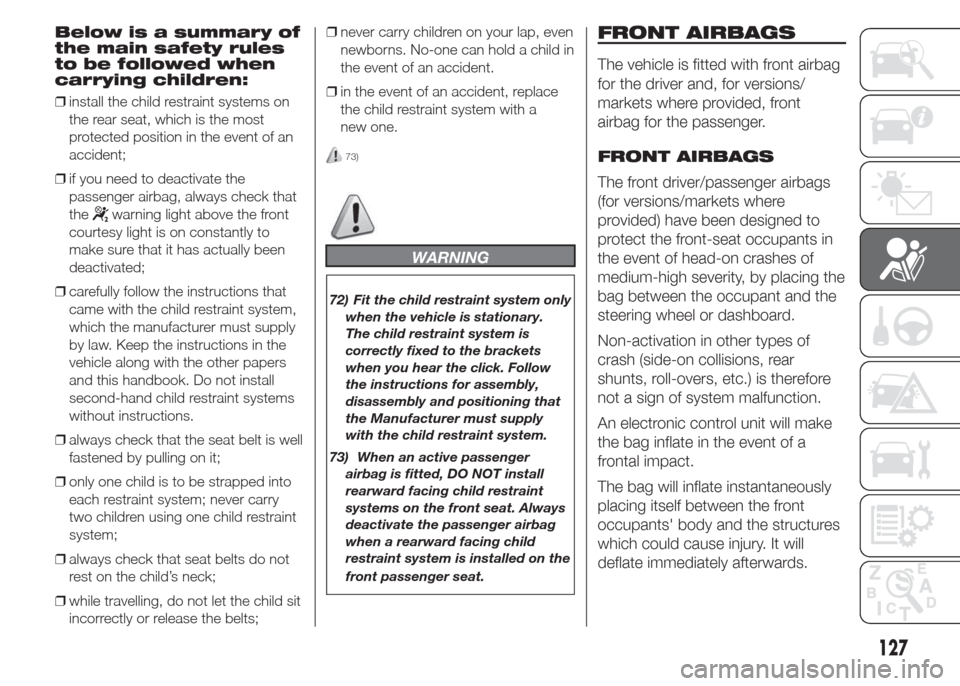

Below is a summary of
the main safety rules
to be followed when
carrying children:
❒install the child restraint systems on
the rear seat, which is the most
protected position in the event of an
accident;
❒if you need to deactivate the
passenger airbag, always check that
the
warning light above the front
courtesy light is on constantly to
make sure that it has actually been
deactivated;
❒carefully follow the instructions that
came with the child restraint system,
which the manufacturer must supply
by law. Keep the instructions in the
vehicle along with the other papers
and this handbook. Do not install
second-hand child restraint systems
without instructions.
❒always check that the seat belt is well
fastened by pulling on it;
❒only one child is to be strapped into
each restraint system; never carry
two children using one child restraint
system;
❒always check that seat belts do not
rest on the child’s neck;
❒while travelling, do not let the child sit
incorrectly or release the belts;❒never carry children on your lap, even
newborns. No-one can hold a child in
the event of an accident.
❒in the event of an accident, replace
the child restraint system with a
new one.
73)
WARNING
72) Fit the child restraint system only
when the vehicle is stationary.
The child restraint system is
correctly fixed to the brackets
when you hear the click. Follow
the instructions for assembly,
disassembly and positioning that
the Manufacturer must supply
with the child restraint system.
73) When an active passenger
airbag is fitted, DO NOT install
rearward facing child restraint
systems on the front seat. Always
deactivate the passenger airbag
when a rearward facing child
restraint system is installed on the
front passenger seat.
FRONT AIRBAGS
The vehicle is fitted with front airbag
for the driver and, for versions/
markets where provided, front
airbag for the passenger.
FRONT AIRBAGS
The front driver/passenger airbags
(for versions/markets where
provided) have been designed to
protect the front-seat occupants in
the event of head-on crashes of
medium-high severity, by placing the
bag between the occupant and the
steering wheel or dashboard.
Non-activation in other types of
crash (side-on collisions, rear
shunts, roll-overs, etc.) is therefore
not a sign of system malfunction.
An electronic control unit will make
the bag inflate in the event of a
frontal impact.
The bag will inflate instantaneously
placing itself between the front
occupants' body and the structures
which could cause injury. It will
deflate immediately afterwards.
127

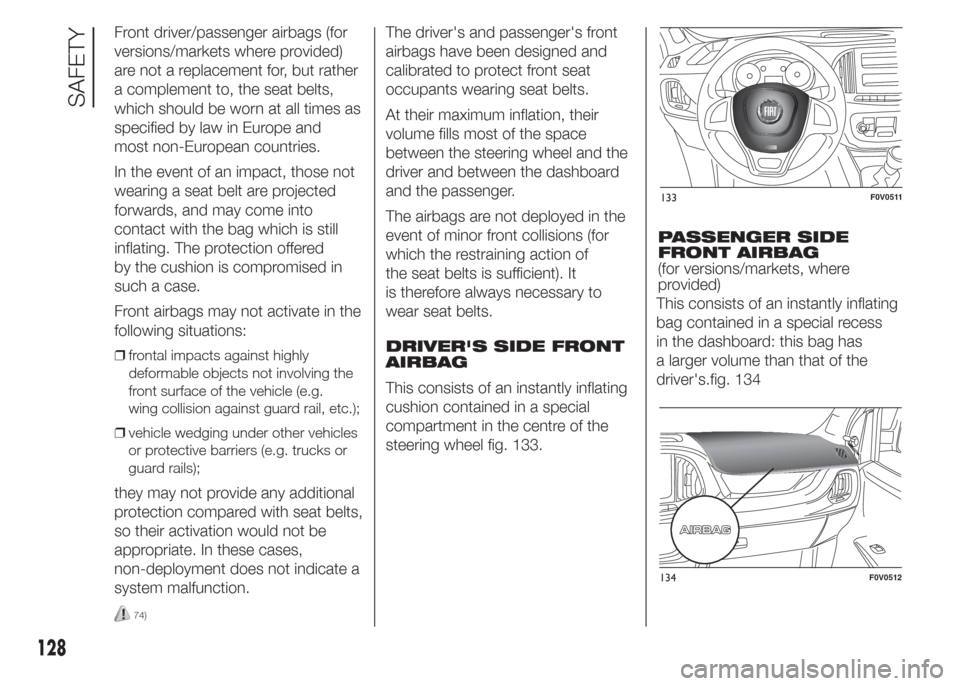

Front driver/passenger airbags (for
versions/markets where provided)
are not a replacement for, but rather
a complement to, the seat belts,
which should be worn at all times as
specified by law in Europe and
most non-European countries.
In the event of an impact, those not
wearing a seat belt are projected
forwards, and may come into
contact with the bag which is still
inflating. The protection offered
by the cushion is compromised in
such a case.
Front airbags may not activate in the
following situations:
❒frontal impacts against highly
deformable objects not involving the
front surface of the vehicle (e.g.
wing collision against guard rail, etc.);
❒vehicle wedging under other vehicles
or protective barriers (e.g. trucks or
guard rails);
they may not provide any additional
protection compared with seat belts,
so their activation would not be
appropriate. In these cases,
non-deployment does not indicate a
system malfunction.
74)
The driver's and passenger's front
airbags have been designed and
calibrated to protect front seat
occupants wearing seat belts.
At their maximum inflation, their
volume fills most of the space
between the steering wheel and the
driver and between the dashboard
and the passenger.
The airbags are not deployed in the
event of minor front collisions (for
which the restraining action of
the seat belts is sufficient). It
is therefore always necessary to
wear seat belts.
DRIVER'S SIDE FRONT
AIRBAG
This consists of an instantly inflating
cushion contained in a special
compartment in the centre of the
steering wheel fig. 133.PASSENGER SIDE
FRONT AIRBAG
(for versions/markets, where
provided)
This consists of an instantly inflating
bag contained in a special recess
in the dashboard: this bag has
a larger volume than that of the
driver's.fig. 134
133F0V0511
134F0V0512
128
SAFETY

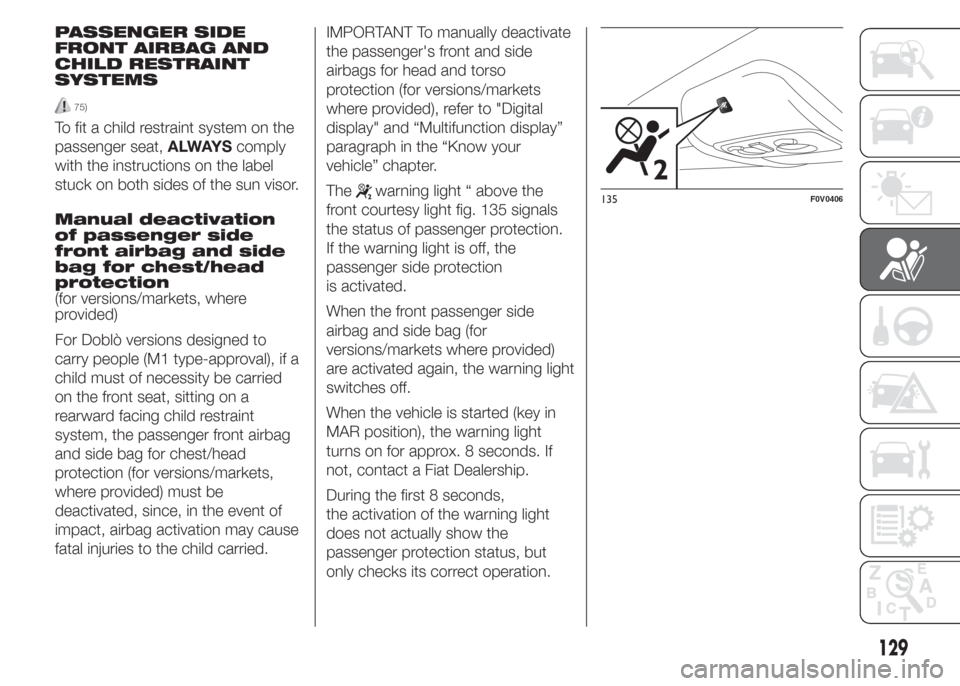

PASSENGER SIDE
FRONT AIRBAG AND
CHILD RESTRAINT
SYSTEMS
75)
To fit a child restraint system on the
passenger seat,ALWAYScomply
with the instructions on the label
stuck on both sides of the sun visor.
Manual deactivation
of passenger side
front airbag and side
bag for chest/head
protection
(for versions/markets, where
provided)
For Doblò versions designed to
carry people (M1 type-approval), if a
child must of necessity be carried
on the front seat, sitting on a
rearward facing child restraint
system, the passenger front airbag
and side bag for chest/head
protection (for versions/markets,
where provided) must be
deactivated, since, in the event of
impact, airbag activation may cause
fatal injuries to the child carried.IMPORTANT To manually deactivate
the passenger's front and side
airbags for head and torso
protection (for versions/markets
where provided), refer to "Digital
display" and “Multifunction display”
paragraph in the “Know your
vehicle” chapter.
The
warning light “ above the
front courtesy light fig. 135 signals
the status of passenger protection.
If the warning light is off, the
passenger side protection
is activated.
When the front passenger side
airbag and side bag (for
versions/markets where provided)
are activated again, the warning light
switches off.
When the vehicle is started (key in
MAR position), the warning light
turns on for approx. 8 seconds. If
not, contact a Fiat Dealership.
During the first 8 seconds,
the activation of the warning light
does not actually show the
passenger protection status, but
only checks its correct operation.135F0V0406
129

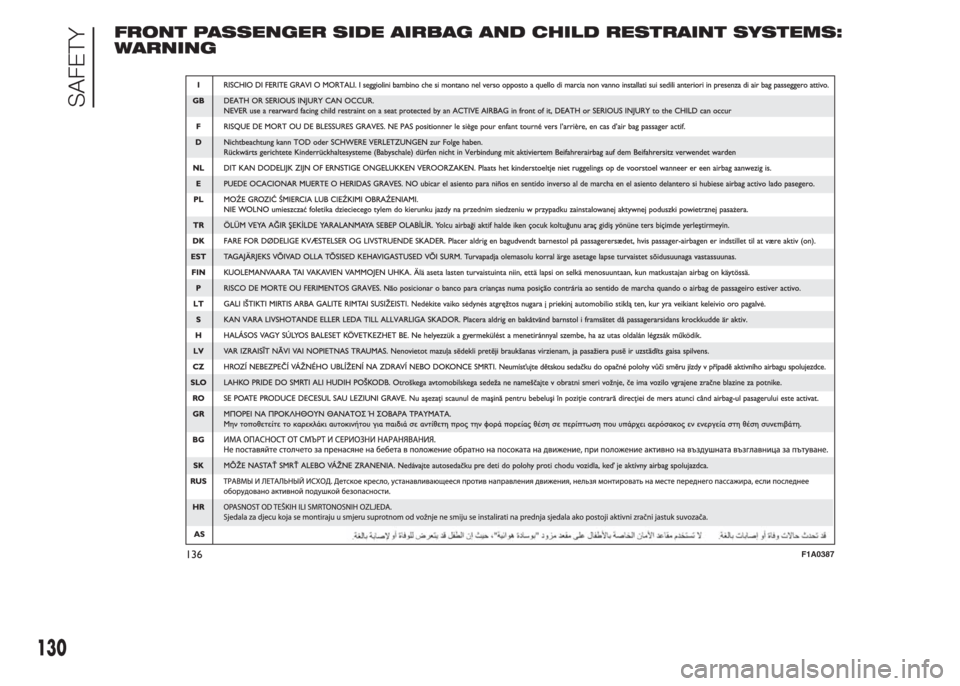

FRONT PASSENGER SIDE AIRBAG AND CHILD RESTRAINT SYSTEMS:
WARNING
136F1A0387
130
SAFETY

WARNING
74) Do not apply stickers or other objects to the steering wheel, the dashboard in the passenger side airbag area and
the seats. Never put objects (e.g. mobile phones) on the passenger side of the dashboard since they could interfere
with correct inflation of the passenger airbag and also cause serious injury to the passengers.
75) When an active passenger airbag is fitted, DO NOT install rearward facing child restraint systems on the front seat.
Deployment of the airbag in an accident could cause fatal injuries to the child regardless of the severity of the
impact. Therefore, always deactivate the passenger side airbag when a rearward facing child restraint system is
installed on the front passenger seat. The front passenger seat must also be positioned back as far as possible in
order to prevent the child restraint system from coming into contact with the dashboard. Immediately reactivate the
passenger airbag as soon as the child restraint system has been removed.
131

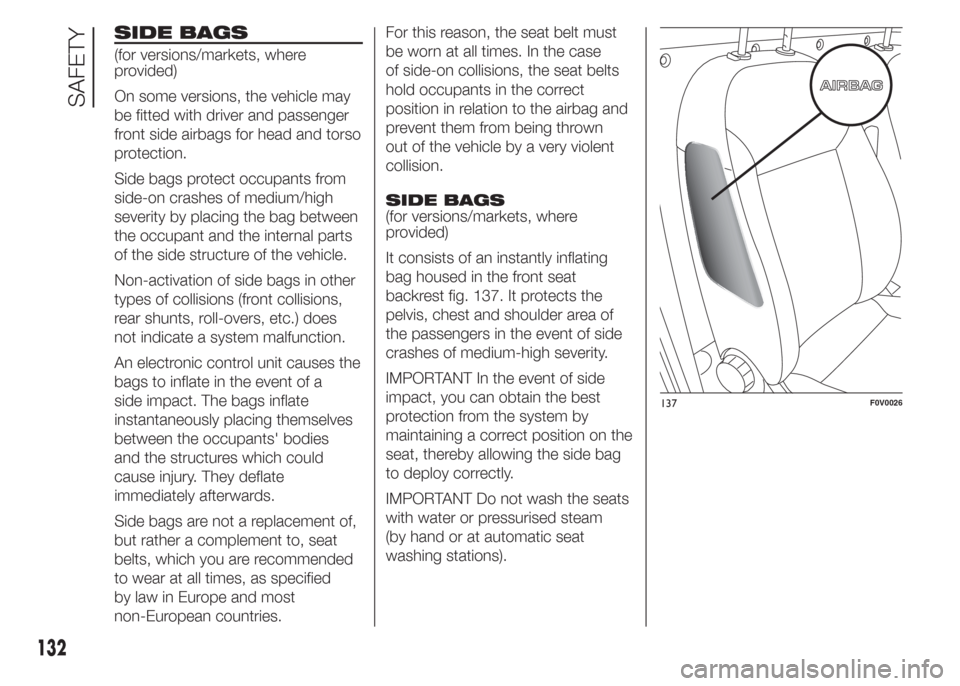

SIDE BAGS
(for versions/markets, where
provided)
On some versions, the vehicle may
be fitted with driver and passenger
front side airbags for head and torso
protection.
Side bags protect occupants from
side-on crashes of medium/high
severity by placing the bag between
the occupant and the internal parts
of the side structure of the vehicle.
Non-activation of side bags in other
types of collisions (front collisions,
rear shunts, roll-overs, etc.) does
not indicate a system malfunction.
An electronic control unit causes the
bags to inflate in the event of a
side impact. The bags inflate
instantaneously placing themselves
between the occupants' bodies
and the structures which could
cause injury. They deflate
immediately afterwards.
Side bags are not a replacement of,
but rather a complement to, seat
belts, which you are recommended
to wear at all times, as specified
by law in Europe and most
non-European countries.For this reason, the seat belt must
be worn at all times. In the case
of side-on collisions, the seat belts
hold occupants in the correct
position in relation to the airbag and
prevent them from being thrown
out of the vehicle by a very violent
collision.
SIDE BAGS
(for versions/markets, where
provided)
It consists of an instantly inflating
bag housed in the front seat
backrest fig. 137. It protects the
pelvis, chest and shoulder area of
the passengers in the event of side
crashes of medium-high severity.
IMPORTANT In the event of side
impact, you can obtain the best
protection from the system by
maintaining a correct position on the
seat, thereby allowing the side bag
to deploy correctly.
IMPORTANT Do not wash the seats
with water or pressurised steam
(by hand or at automatic seat
washing stations).
137F0V0026
132
SAFETY

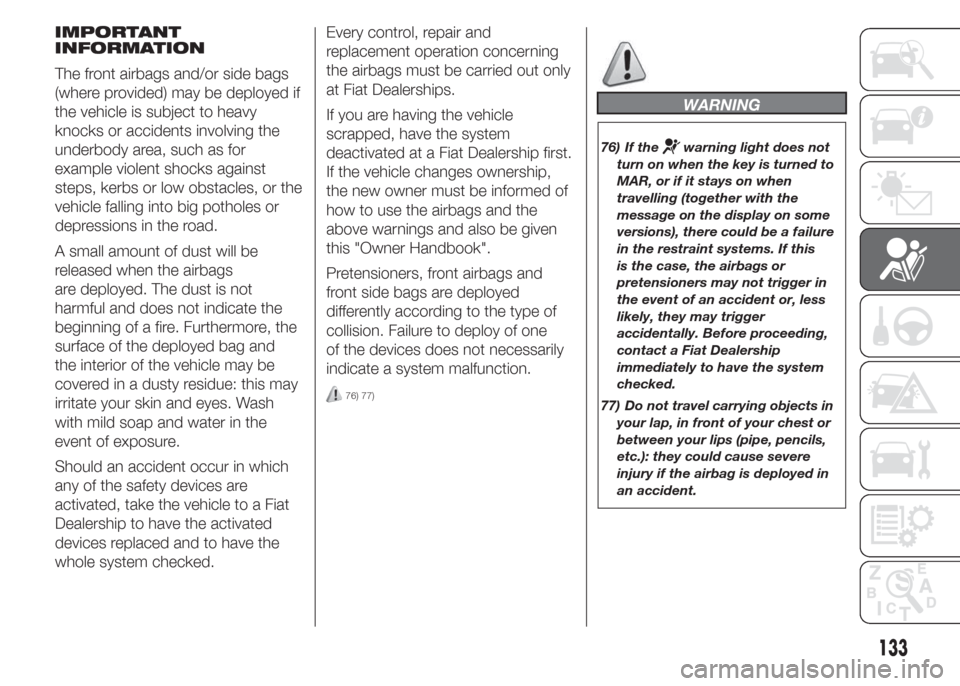

IMPORTANT
INFORMATION
The front airbags and/or side bags
(where provided) may be deployed if
the vehicle is subject to heavy
knocks or accidents involving the
underbody area, such as for
example violent shocks against
steps, kerbs or low obstacles, or the
vehicle falling into big potholes or
depressions in the road.
A small amount of dust will be
released when the airbags
are deployed. The dust is not
harmful and does not indicate the
beginning of a fire. Furthermore, the
surface of the deployed bag and
the interior of the vehicle may be
covered in a dusty residue: this may
irritate your skin and eyes. Wash
with mild soap and water in the
event of exposure.
Should an accident occur in which
any of the safety devices are
activated, take the vehicle to a Fiat
Dealership to have the activated
devices replaced and to have the
whole system checked.Every control, repair and
replacement operation concerning
the airbags must be carried out only
at Fiat Dealerships.
If you are having the vehicle
scrapped, have the system
deactivated at a Fiat Dealership first.
If the vehicle changes ownership,
the new owner must be informed of
how to use the airbags and the
above warnings and also be given
this "Owner Handbook".
Pretensioners, front airbags and
front side bags are deployed
differently according to the type of
collision. Failure to deploy of one
of the devices does not necessarily
indicate a system malfunction.
76) 77)
WARNING
76) If thewarning light does not
turn on when the key is turned to
MAR, or if it stays on when
travelling (together with the
message on the display on some
versions), there could be a failure
in the restraint systems. If this
is the case, the airbags or
pretensioners may not trigger in
the event of an accident or, less
likely, they may trigger
accidentally. Before proceeding,
contact a Fiat Dealership
immediately to have the system
checked.
77) Do not travel carrying objects in
your lap, in front of your chest or
between your lips (pipe, pencils,
etc.): they could cause severe
injury if the airbag is deployed in
an accident.
133

134
This page is intentionally left blank

STARTING AND DRIVING
Let’s get to the "heart" of the
vehicle: seeing how you can exploit
all of its potential to the full.
We’ll look at how to drive it safely in
any situation, so that it can be a
welcome companion, with our
comfort and our wallets in mind.STARTING THE ENGINE .................136
HANDBRAKE ..................................138
USING THE GEARBOX ...................139
START&STOP SYSTEM ..................140
TPMS (TYRE PRESSURE
MONITORING SYSTEM) .................144
SPEED BLOCK ...............................147
CRUISE CONTROL .........................148
TRACTION PLUS SYSTEM .............150
PARKING SENSORS.......................150
REFUELLING THE VEHICLE ...........152
SAVING FUEL .................................154
TOWING TRAILERS ........................156
SNOW TYRES ................................156
SNOW CHAINS...............................157
135

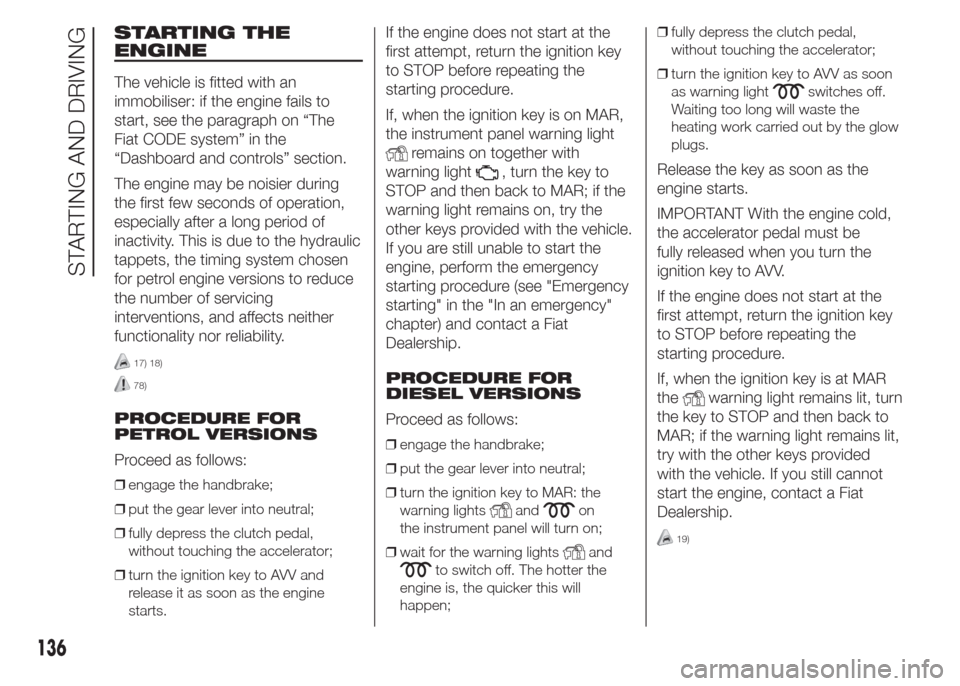

STARTING THE
ENGINE
The vehicle is fitted with an
immobiliser: if the engine fails to
start, see the paragraph on “The
Fiat CODE system” in the
“Dashboard and controls” section.
The engine may be noisier during
the first few seconds of operation,
especially after a long period of
inactivity. This is due to the hydraulic
tappets, the timing system chosen
for petrol engine versions to reduce
the number of servicing
interventions, and affects neither
functionality nor reliability.
17) 18)
78)
PROCEDURE FOR
PETROL VERSIONS
Proceed as follows:
❒engage the handbrake;
❒put the gear lever into neutral;
❒fully depress the clutch pedal,
without touching the accelerator;
❒turn the ignition key to AVV and
release it as soon as the engine
starts.
If the engine does not start at the
first attempt, return the ignition key
to STOP before repeating the
starting procedure.
If, when the ignition key is on MAR,
the instrument panel warning light
remains on together with
warning light
, turn the key to
STOP and then back to MAR; if the
warning light remains on, try the
other keys provided with the vehicle.
If you are still unable to start the
engine, perform the emergency
starting procedure (see "Emergency
starting" in the "In an emergency"
chapter) and contact a Fiat
Dealership.
PROCEDURE FOR
DIESEL VERSIONS
Proceed as follows:
❒engage the handbrake;
❒put the gear lever into neutral;
❒turn the ignition key to MAR: the
warning lights
andon
the instrument panel will turn on;
❒wait for the warning lights
and
to switch off. The hotter the
engine is, the quicker this will
happen;❒fully depress the clutch pedal,
without touching the accelerator;
❒turn the ignition key to AVV as soon
as warning light
switches off.
Waiting too long will waste the
heating work carried out by the glow
plugs.
Release the key as soon as the
engine starts.
IMPORTANT With the engine cold,
the accelerator pedal must be
fully released when you turn the
ignition key to AVV.
If the engine does not start at the
first attempt, return the ignition key
to STOP before repeating the
starting procedure.
If, when the ignition key is at MAR
the
warning light remains lit, turn
the key to STOP and then back to
MAR; if the warning light remains lit,
try with the other keys provided
with the vehicle. If you still cannot
start the engine, contact a Fiat
Dealership.
19)
136
STARTING AND DRIVING
