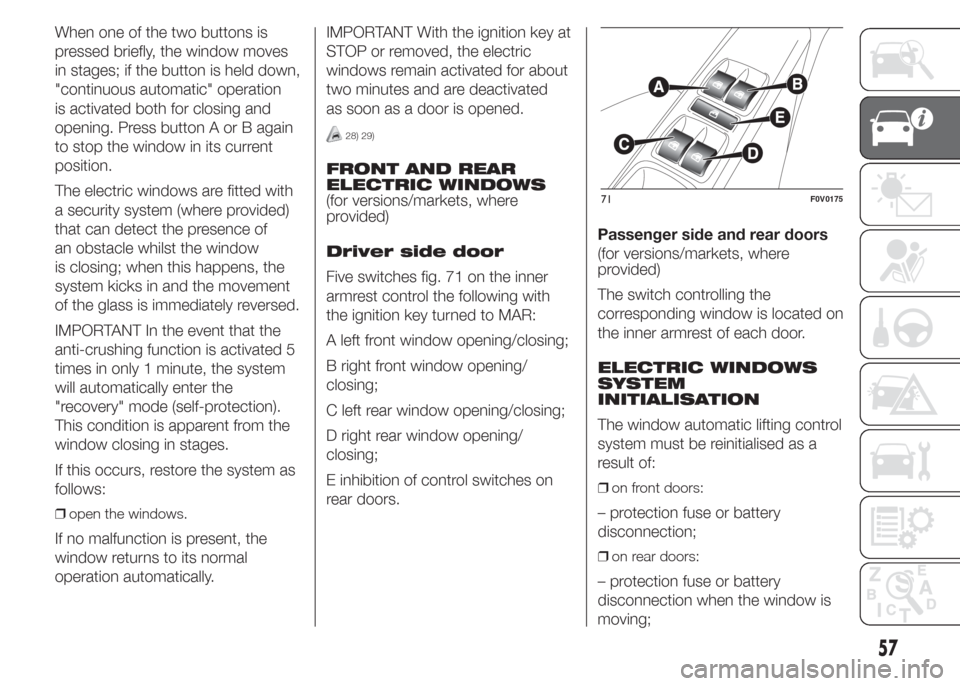

When one of the two buttons is
pressed briefly, the window moves
in stages; if the button is held down,
"continuous automatic" operation
is activated both for closing and
opening. Press button A or B again
to stop the window in its current
position.
The electric windows are fitted with
a security system (where provided)
that can detect the presence of
an obstacle whilst the window
is closing; when this happens, the
system kicks in and the movement
of the glass is immediately reversed.
IMPORTANT In the event that the
anti-crushing function is activated 5
times in only 1 minute, the system
will automatically enter the
"recovery" mode (self-protection).
This condition is apparent from the
window closing in stages.
If this occurs, restore the system as
follows:
❒open the windows.
If no malfunction is present, the
window returns to its normal
operation automatically.IMPORTANT With the ignition key at
STOP or removed, the electric
windows remain activated for about
two minutes and are deactivated
as soon as a door is opened.
28) 29)
FRONT AND REAR
ELECTRIC WINDOWS
(for versions/markets, where
provided)
Driver side door
Five switches fig. 71 on the inner
armrest control the following with
the ignition key turned to MAR:
A left front window opening/closing;
B right front window opening/
closing;
C left rear window opening/closing;
D right rear window opening/
closing;
E inhibition of control switches on
rear doors.Passenger side and rear doors
(for versions/markets, where
provided)
The switch controlling the
corresponding window is located on
the inner armrest of each door.
ELECTRIC WINDOWS
SYSTEM
INITIALISATION
The window automatic lifting control
system must be reinitialised as a
result of:
❒on front doors:
– protection fuse or battery
disconnection;
❒on rear doors:
– protection fuse or battery
disconnection when the window is
moving;
71F0V0175
57
Page 62 of 323

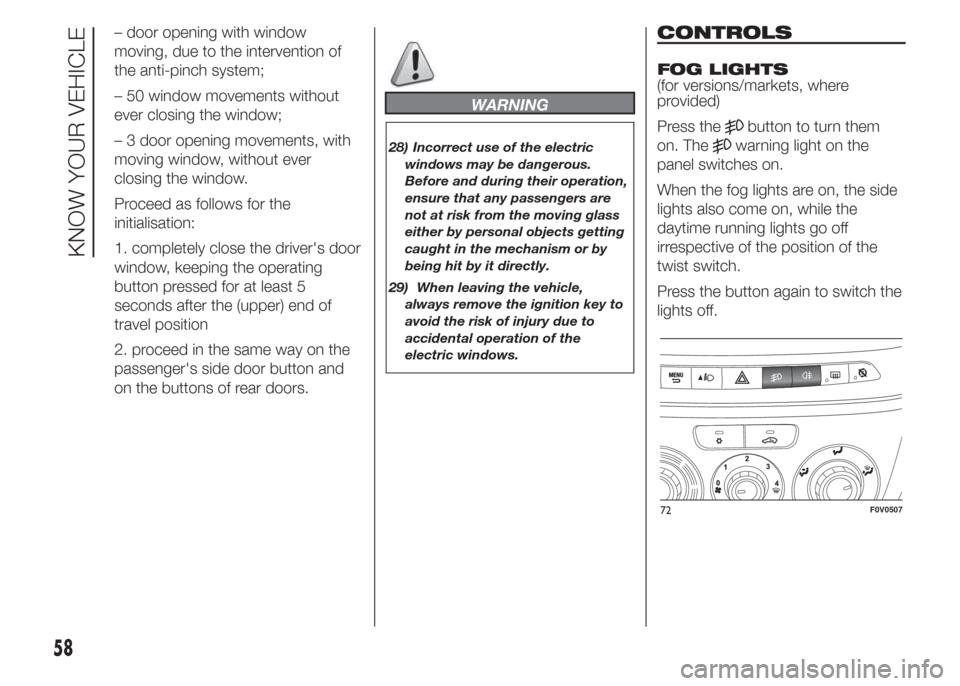

– door opening with window
moving, due to the intervention of
the anti-pinch system;
– 50 window movements without
ever closing the window;
– 3 door opening movements, with
moving window, without ever
closing the window.
Proceed as follows for the
initialisation:
1. completely close the driver's door
window, keeping the operating
button pressed for at least 5
seconds after the (upper) end of
travel position
2. proceed in the same way on the
passenger's side door button and
on the buttons of rear doors.
WARNING
28) Incorrect use of the electric
windows may be dangerous.
Before and during their operation,
ensure that any passengers are
not at risk from the moving glass
either by personal objects getting
caught in the mechanism or by
being hit by it directly.
29) When leaving the vehicle,
always remove the ignition key to
avoid the risk of injury due to
accidental operation of the
electric windows.
CONTROLS
FOG LIGHTS
(for versions/markets, where
provided)
Press the
button to turn them
on. The
warning light on the
panel switches on.
When the fog lights are on, the side
lights also come on, while the
daytime running lights go off
irrespective of the position of the
twist switch.
Press the button again to switch the
lights off.
72F0V0507
58
KNOW YOUR VEHICLE
Page 63 of 323

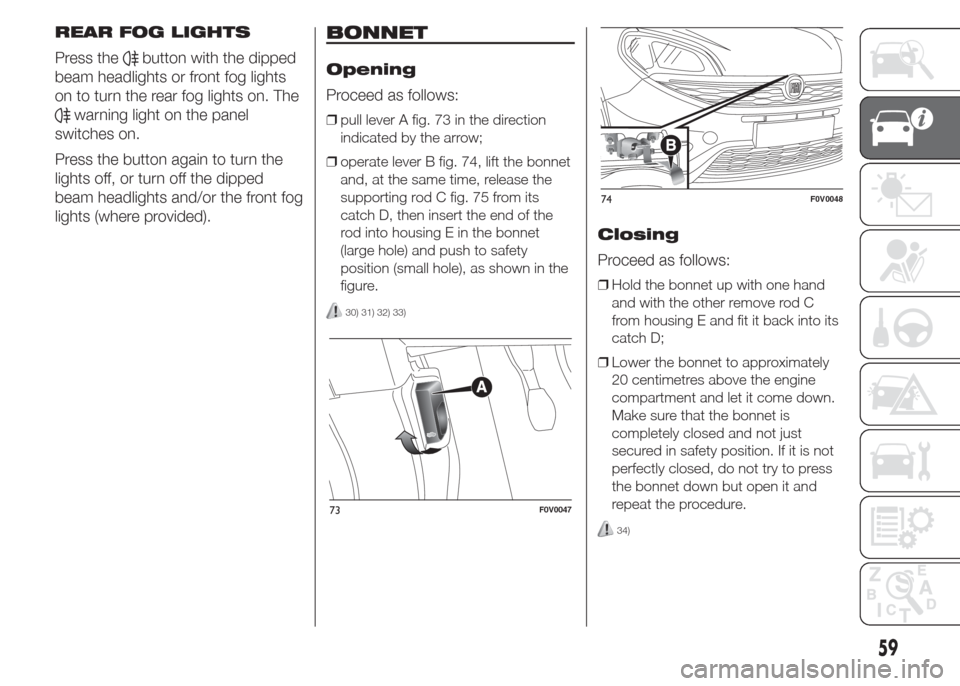

REAR FOG LIGHTS
Press the
button with the dipped
beam headlights or front fog lights
on to turn the rear fog lights on. The
warning light on the panel
switches on.
Press the button again to turn the
lights off, or turn off the dipped
beam headlights and/or the front fog
lights (where provided).
BONNET
Opening
Proceed as follows:
❒pull lever A fig. 73 in the direction
indicated by the arrow;
❒operate lever B fig. 74, lift the bonnet
and, at the same time, release the
supporting rod C fig. 75 from its
catch D, then insert the end of the
rod into housing E in the bonnet
(large hole) and push to safety
position (small hole), as shown in the
figure.
30) 31) 32) 33)
Closing
Proceed as follows:
❒Hold the bonnet up with one hand
and with the other remove rod C
from housing E and fit it back into its
catch D;
❒Lower the bonnet to approximately
20 centimetres above the engine
compartment and let it come down.
Make sure that the bonnet is
completely closed and not just
secured in safety position. If it is not
perfectly closed, do not try to press
the bonnet down but open it and
repeat the procedure.
34)
73F0V0047
74F0V0048
59
Page 64 of 323

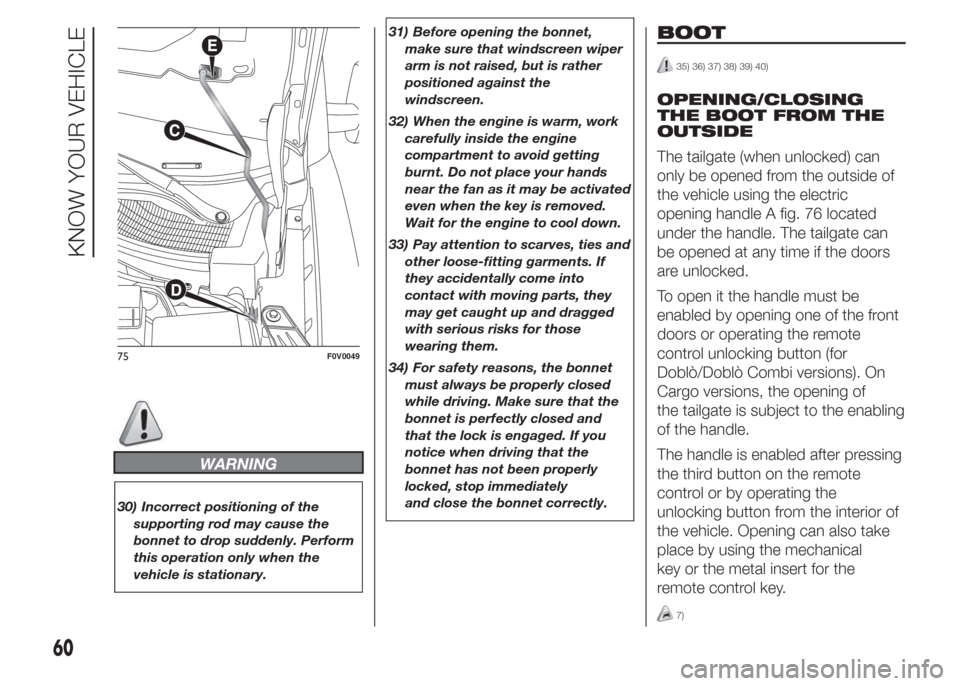

WARNING
30) Incorrect positioning of the
supporting rod may cause the
bonnet to drop suddenly. Perform
this operation only when the
vehicle is stationary.31) Before opening the bonnet,
make sure that windscreen wiper
arm is not raised, but is rather
positioned against the
windscreen.
32) When the engine is warm, work
carefully inside the engine
compartment to avoid getting
burnt. Do not place your hands
near the fan as it may be activated
even when the key is removed.
Wait for the engine to cool down.
33) Pay attention to scarves, ties and
other loose-fitting garments. If
they accidentally come into
contact with moving parts, they
may get caught up and dragged
with serious risks for those
wearing them.
34) For safety reasons, the bonnet
must always be properly closed
while driving. Make sure that the
bonnet is perfectly closed and
that the lock is engaged. If you
notice when driving that the
bonnet has not been properly
locked, stop immediately
and close the bonnet correctly.
BOOT
35) 36) 37) 38) 39) 40)
OPENING/CLOSING
THE BOOT FROM THE
OUTSIDE
The tailgate (when unlocked) can
only be opened from the outside of
the vehicle using the electric
opening handle A fig. 76 located
under the handle. The tailgate can
be opened at any time if the doors
are unlocked.
To open it the handle must be
enabled by opening one of the front
doors or operating the remote
control unlocking button (for
Doblò/Doblò Combi versions). On
Cargo versions, the opening of
the tailgate is subject to the enabling
of the handle.
The handle is enabled after pressing
the third button on the remote
control or by operating the
unlocking button from the interior of
the vehicle. Opening can also take
place by using the mechanical
key or the metal insert for the
remote control key.
7)
75F0V0049
60
KNOW YOUR VEHICLE
Page 65 of 323

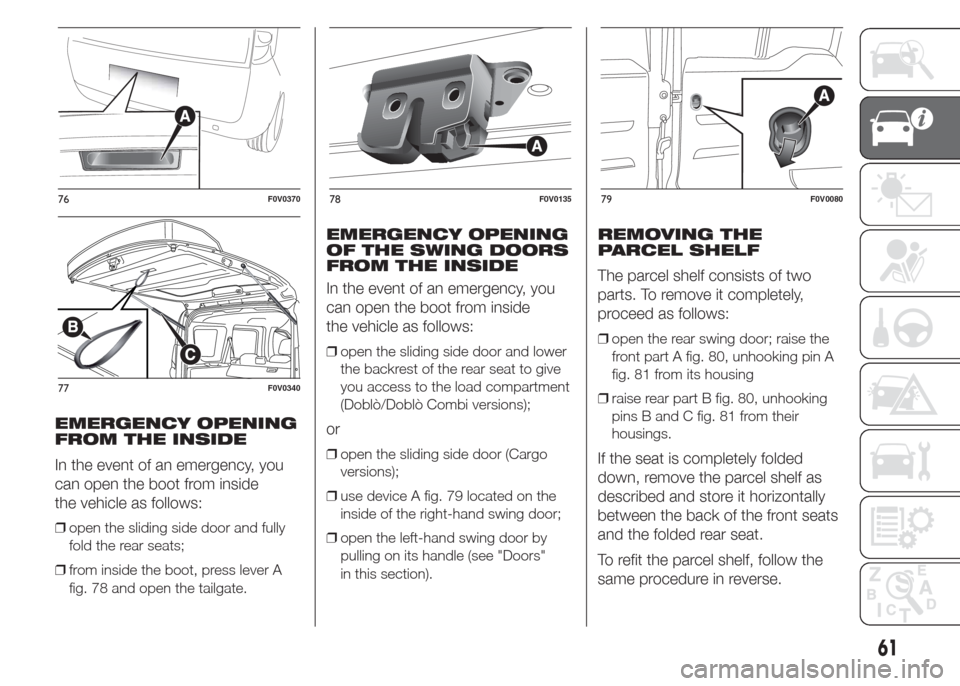

EMERGENCY OPENING
FROM THE INSIDE
In the event of an emergency, you
can open the boot from inside
the vehicle as follows:
❒open the sliding side door and fully
fold the rear seats;
❒from inside the boot, press lever A
fig. 78 and open the tailgate.
EMERGENCY OPENING
OF THE SWING DOORS
FROM THE INSIDE
In the event of an emergency, you
can open the boot from inside
the vehicle as follows:
❒open the sliding side door and lower
the backrest of the rear seat to give
you access to the load compartment
(Doblò/Doblò Combi versions);
or
❒open the sliding side door (Cargo
versions);
❒use device A fig. 79 located on the
inside of the right-hand swing door;
❒open the left-hand swing door by
pulling on its handle (see "Doors"
in this section).
REMOVING THE
PARCEL SHELF
The parcel shelf consists of two
parts. To remove it completely,
proceed as follows:
❒open the rear swing door; raise the
front part A fig. 80, unhooking pin A
fig. 81 from its housing
❒raise rear part B fig. 80, unhooking
pins B and C fig. 81 from their
housings.
If the seat is completely folded
down, remove the parcel shelf as
described and store it horizontally
between the back of the front seats
and the folded rear seat.
To refit the parcel shelf, follow the
same procedure in reverse.
76F0V0370
77F0V0340
78F0V013579F0V0080
61
Page 66 of 323

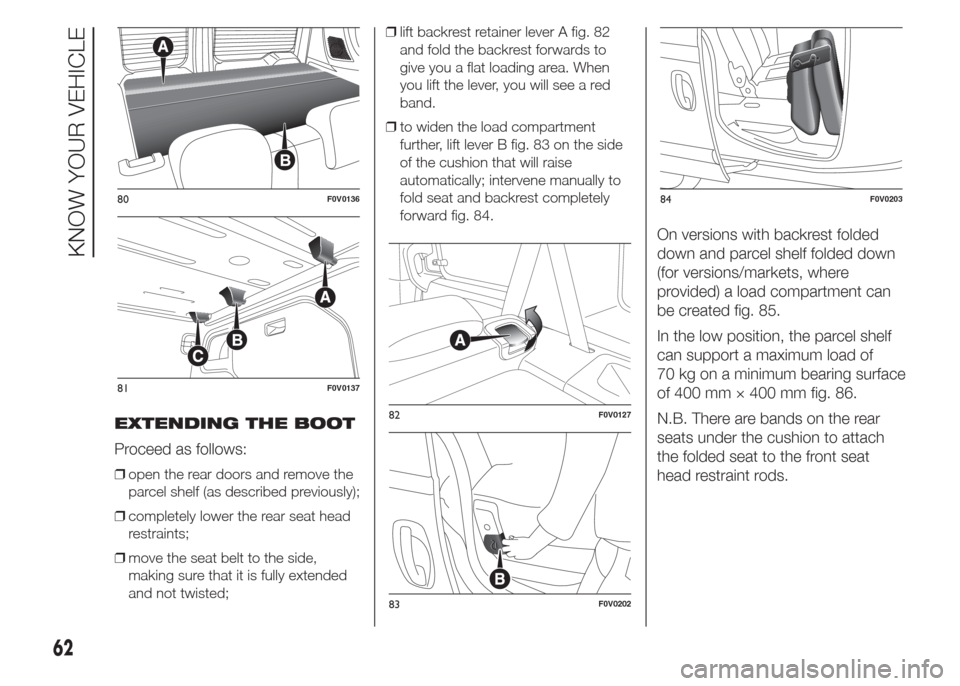

EXTENDING THE BOOT
Proceed as follows:
❒open the rear doors and remove the
parcel shelf (as described previously);
❒completely lower the rear seat head
restraints;
❒move the seat belt to the side,
making sure that it is fully extended
and not twisted;❒lift backrest retainer lever A fig. 82
and fold the backrest forwards to
give you a flat loading area. When
you lift the lever, you will see a red
band.
❒to widen the load compartment
further, lift lever B fig. 83 on the side
of the cushion that will raise
automatically; intervene manually to
fold seat and backrest completely
forward fig. 84.
On versions with backrest folded
down and parcel shelf folded down
(for versions/markets, where
provided) a load compartment can
be created fig. 85.
In the low position, the parcel shelf
can support a maximum load of
70 kg on a minimum bearing surface
of 400 mm × 400 mm fig. 86.
N.B. There are bands on the rear
seats under the cushion to attach
the folded seat to the front seat
head restraint rods.
80F0V0136
81F0V0137
82F0V0127
83F0V0202
84F0V0203
62
KNOW YOUR VEHICLE
Page 67 of 323

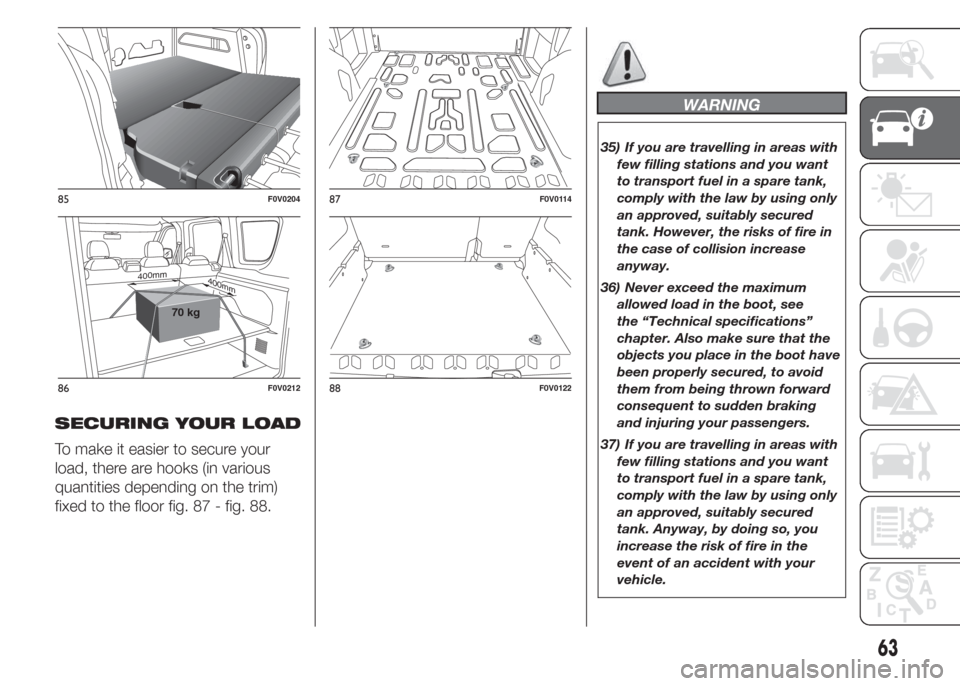

SECURING YOUR LOAD
To make it easier to secure your
load, there are hooks (in various
quantities depending on the trim)
fixed to the floor fig. 87 - fig. 88.
WARNING
35) If you are travelling in areas with
few filling stations and you want
to transport fuel in a spare tank,
comply with the law by using only
an approved, suitably secured
tank. However, the risks of fire in
the case of collision increase
anyway.
36) Never exceed the maximum
allowed load in the boot, see
the “Technical specifications”
chapter. Also make sure that the
objects you place in the boot have
been properly secured, to avoid
them from being thrown forward
consequent to sudden braking
and injuring your passengers.
37) If you are travelling in areas with
few filling stations and you want
to transport fuel in a spare tank,
comply with the law by using only
an approved, suitably secured
tank. Anyway, by doing so, you
increase the risk of fire in the
event of an accident with your
vehicle.
85F0V0204
400mm400mm
70 kg
86F0V0212
87F0V0114
88F0V0122
63
Page 68 of 323

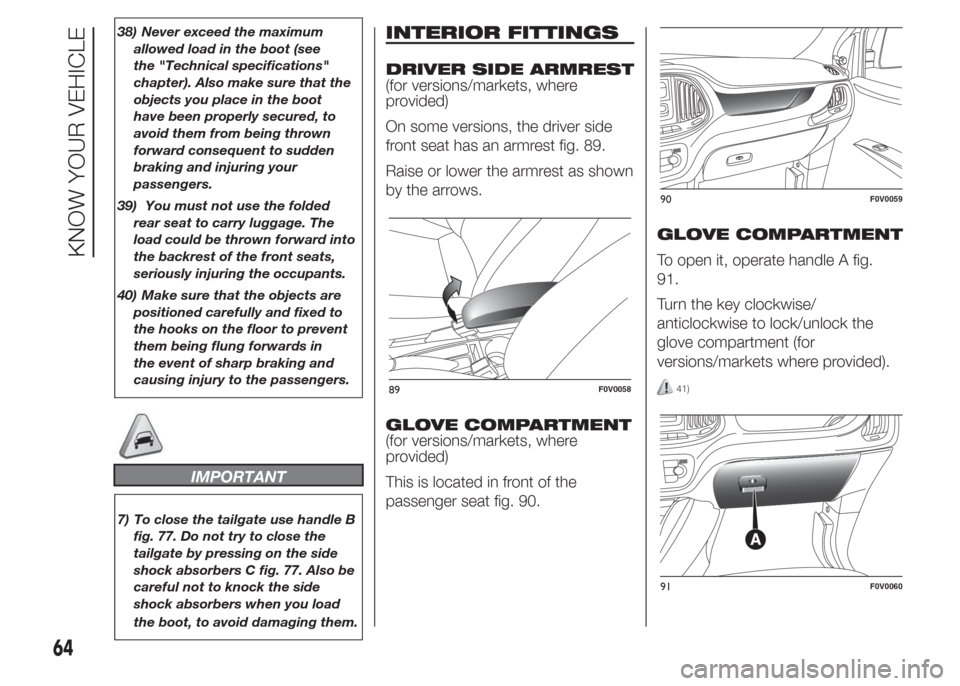

38) Never exceed the maximum
allowed load in the boot (see
the "Technical specifications"
chapter). Also make sure that the
objects you place in the boot
have been properly secured, to
avoid them from being thrown
forward consequent to sudden
braking and injuring your
passengers.
39) You must not use the folded
rear seat to carry luggage. The
load could be thrown forward into
the backrest of the front seats,
seriously injuring the occupants.
40) Make sure that the objects are
positioned carefully and fixed to
the hooks on the floor to prevent
them being flung forwards in
the event of sharp braking and
causing injury to the passengers.
IMPORTANT
7) To close the tailgate use handle B
fig. 77. Do not try to close the
tailgate by pressing on the side
shock absorbers C fig. 77. Also be
careful not to knock the side
shock absorbers when you load
the boot, to avoid damaging them.
INTERIOR FITTINGS
DRIVER SIDE ARMREST
(for versions/markets, where
provided)
On some versions, the driver side
front seat has an armrest fig. 89.
Raise or lower the armrest as shown
by the arrows.
GLOVE COMPARTMENT
(for versions/markets, where
provided)
This is located in front of the
passenger seat fig. 90.GLOVE COMPARTMENT
To open it, operate handle A fig.
91.
Turn the key clockwise/
anticlockwise to lock/unlock the
glove compartment (for
versions/markets where provided).
41)89F0V0058
90F0V0059
91F0V0060
64
KNOW YOUR VEHICLE
Page 69 of 323

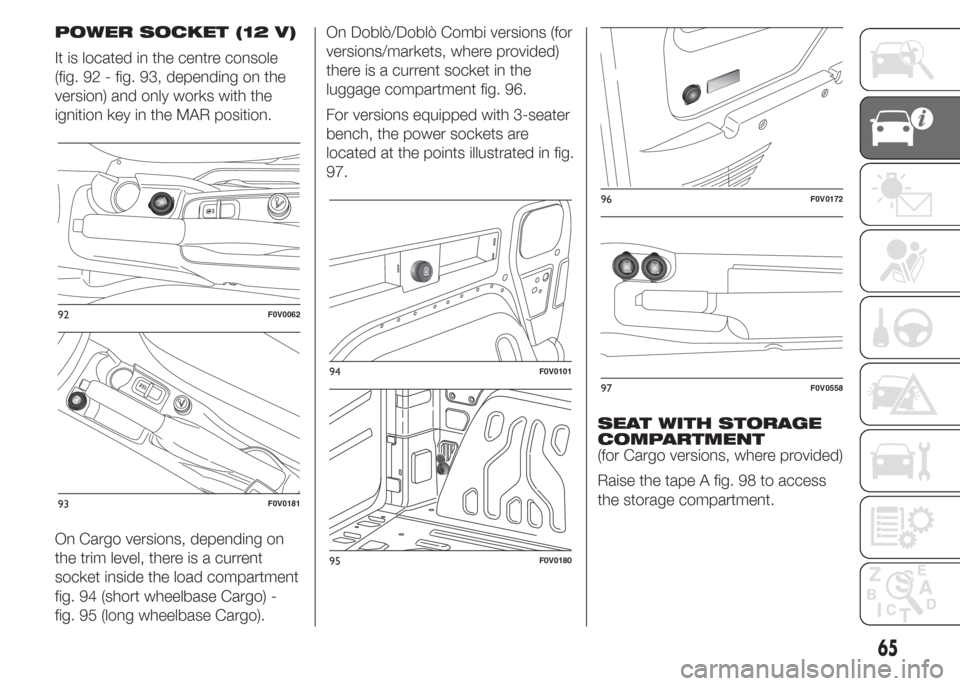

POWER SOCKET (12 V)
It is located in the centre console
(fig. 92 - fig. 93, depending on the
version) and only works with the
ignition key in the MAR position.
On Cargo versions, depending on
the trim level, there is a current
socket inside the load compartment
fig. 94 (short wheelbase Cargo) -
fig. 95 (long wheelbase Cargo).On Doblò/Doblò Combi versions (for
versions/markets, where provided)
there is a current socket in the
luggage compartment fig. 96.
For versions equipped with 3-seater
bench, the power sockets are
located at the points illustrated in fig.
97.
SEAT WITH STORAGE
COMPARTMENT
(for Cargo versions, where provided)
Raise the tape A fig. 98 to access
the storage compartment.
92F0V0062
93F0V0181
94F0V0101
95F0V0180
96F0V0172
97F0V0558
65
Page 70 of 323

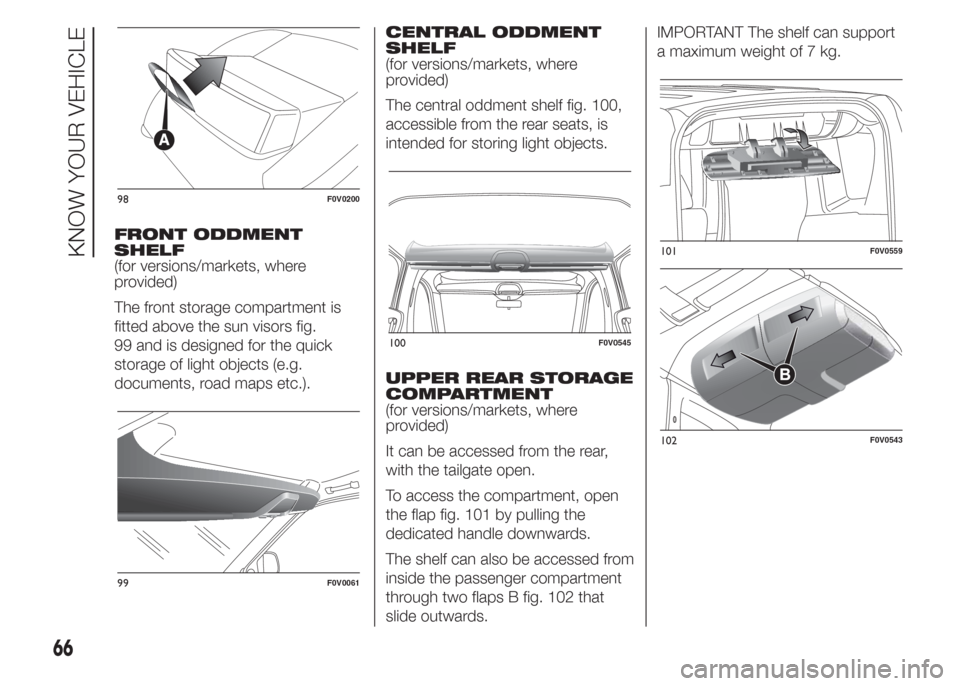

FRONT ODDMENT
SHELF
(for versions/markets, where
provided)
The front storage compartment is
fitted above the sun visors fig.
99 and is designed for the quick
storage of light objects (e.g.
documents, road maps etc.).CENTRAL ODDMENT
SHELF
(for versions/markets, where
provided)
The central oddment shelf fig. 100,
accessible from the rear seats, is
intended for storing light objects.
UPPER REAR STORAGE
COMPARTMENT
(for versions/markets, where
provided)
It can be accessed from the rear,
with the tailgate open.
To access the compartment, open
the flap fig. 101 by pulling the
dedicated handle downwards.
The shelf can also be accessed from
inside the passenger compartment
through two flaps B fig. 102 that
slide outwards.IMPORTANT The shelf can support
a maximum weight of 7 kg.
98F0V0200
99F0V0061
100F0V0545
101F0V0559
102F0V0543
66
KNOW YOUR VEHICLE
