FIAT DOBLO PANORAMA 2016 2.G Owners Manual

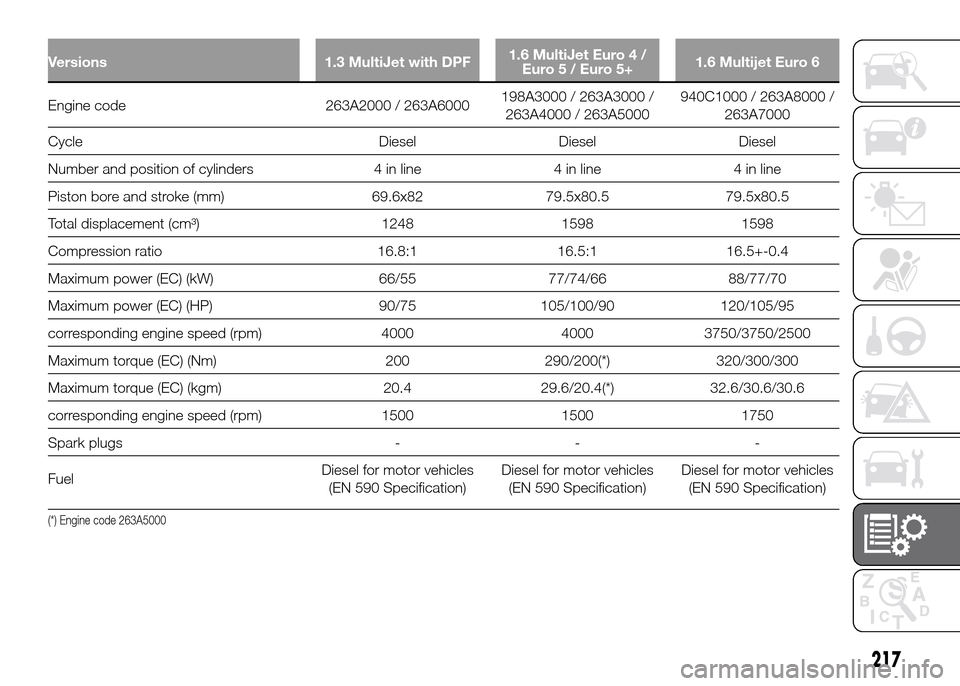

Versions 1.3 MultiJet with DPF1.6 MultiJet Euro 4 /
Euro 5 / Euro 5+1.6 Multijet Euro 6
Engine code 263A2000 / 263A6000198A3000 / 263A3000 /
263A4000 / 263A5000940C1000 / 263A8000 /
263A7000
Cycle Diesel Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 69.6x82 79.5x80.5 79.5x80.5
Total displacement (cm³) 1248 1598 1598
Compression ratio 16.8:1 16.5:1 16.5+-0.4
Maximum power (EC) (kW) 66/55 77/74/66 88/77/70
Maximum power (EC) (HP) 90/75 105/100/90 120/105/95
corresponding engine speed (rpm) 4000 4000 3750/3750/2500
Maximum torque (EC) (Nm) 200 290/200(*) 320/300/300
Maximum torque (EC) (kgm) 20.4 29.6/20.4(*) 32.6/30.6/30.6
corresponding engine speed (rpm) 1500 1500 1750
Spark plugs - - -
FuelDiesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)
(*) Engine code 263A5000
217

Versions 2.0 Multijet
Engine code 263A1000
CycleDiesel
Number and position of cylinders 4 in line
Piston bore and stroke (mm) 83x90.5
Total displacement (cm³) 1956
Compression ratio 16.5:1
Maximum power (EC) (kW) 99
Maximum power (EC) (HP) 135
corresponding engine speed (rpm) 3500
Maximum torque (EC) (Nm) 320
Maximum torque (EC) (kgm) 32.6
corresponding engine speed (rpm) 1500
Spark plugs -
Fuel Diesel for motor vehicles (EN 590 Specification)
218
TECHNICAL SPECIFICATIONS

SUPPLY
40)
Versions Supply
1.4Multipoint sequential timed electronic injection, returnless system
1.4 T-JETElectronically controlled phased sequential multipoint electronic injection with turbo and
intercooler
1.3 MultiJet
Electronically controlled Common Rail MultiJet direct injection with turbo and intercooler 1.6 MultiJet
2.0 MultiJet
IMPORTANT
40) Modifications or repairs to the fuel supply system that are not carried out correctly or do not take the system’s
technical specifications into account can cause malfunctions leading to the risk of fire.
219

TRANSMISSION
Gearbox Clutch Drive
Five or six gears (according to version) +
reverseSelf-adjusting pedal without idle stroke Front
220
TECHNICAL SPECIFICATIONS

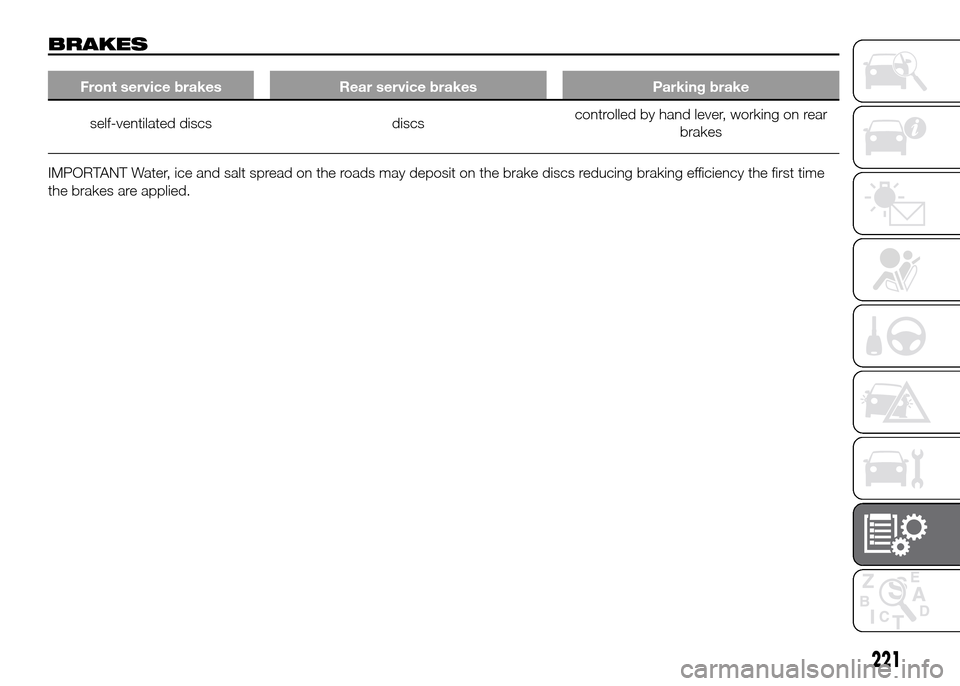

BRAKES
Front service brakes Rear service brakes Parking brake
self-ventilated discs discscontrolled by hand lever, working on rear
brakes
IMPORTANT Water, ice and salt spread on the roads may deposit on the brake discs reducing braking efficiency the first time
the brakes are applied.
221

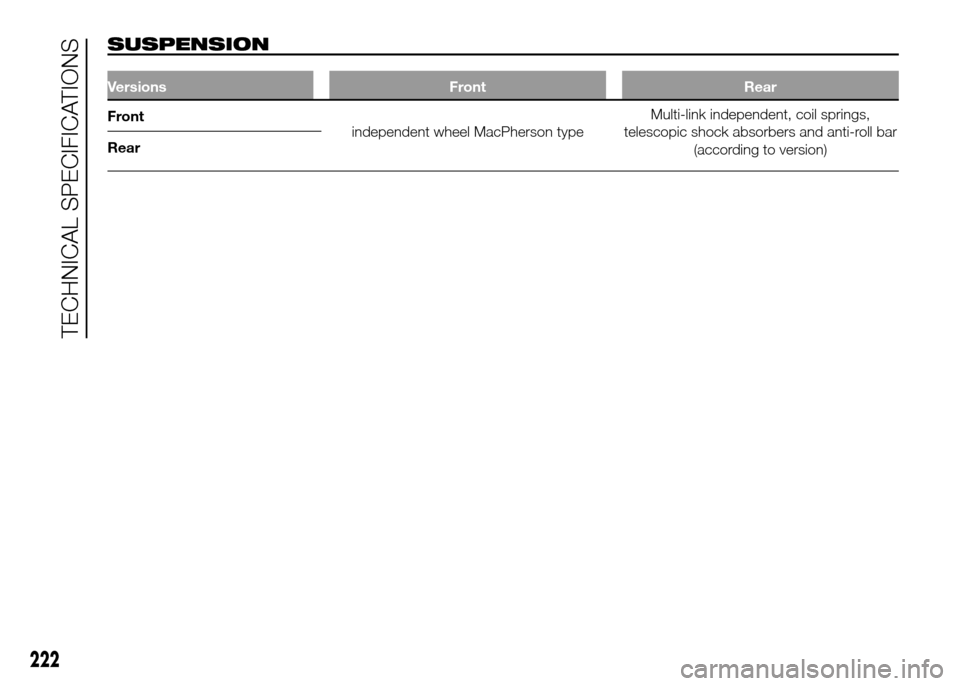

SUSPENSION
Versions Front Rear
Front
independent wheel MacPherson typeMulti-link independent, coil springs,
telescopic shock absorbers and anti-roll bar
(according to version) Rear
222
TECHNICAL SPECIFICATIONS

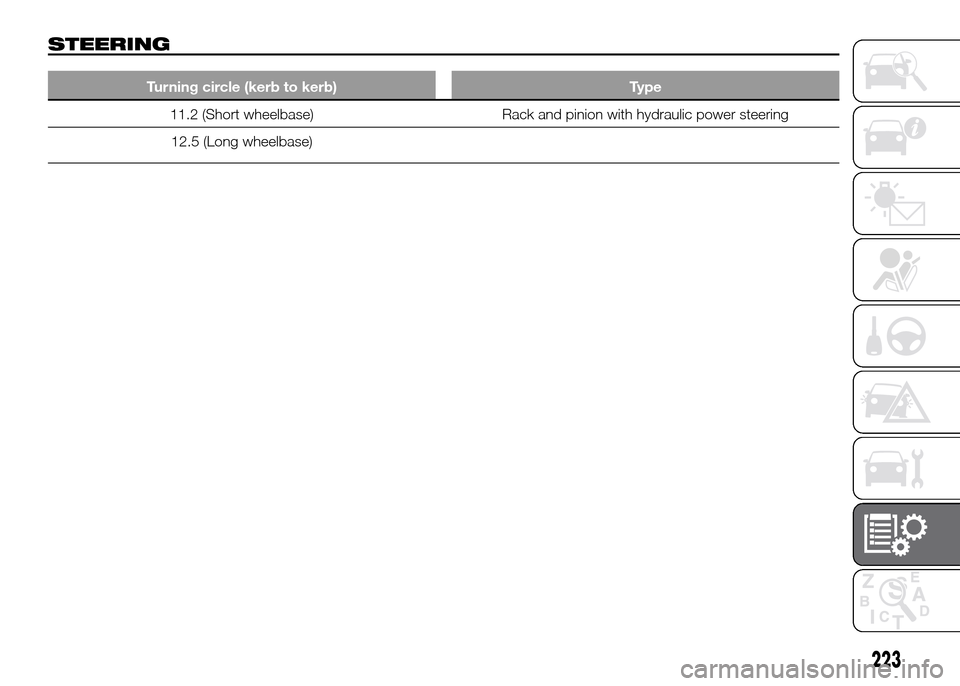

STEERING
Turning circle (kerb to kerb) Type
11.2 (Short wheelbase) Rack and pinion with hydraulic power steering
12.5 (Long wheelbase)
223

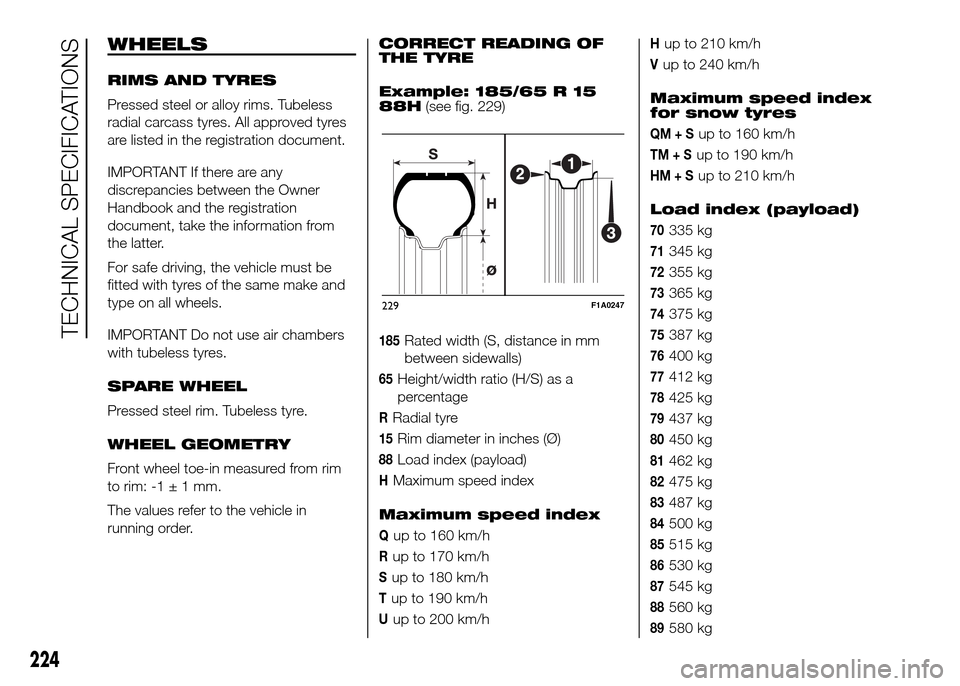

WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless
radial carcass tyres. All approved tyres
are listed in the registration document.
IMPORTANT If there are any
discrepancies between the Owner
Handbook and the registration
document, take the information from
the latter.
For safe driving, the vehicle must be
fitted with tyres of the same make and
type on all wheels.
IMPORTANT Do not use air chambers
with tubeless tyres.
SPARE WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured from rim
to rim: -1±1mm.
The values refer to the vehicle in
running order.CORRECT READING OF
THE TYRE
Example: 185/65 R 15
88H(see fig. 229)
185Rated width (S, distance in mm
between sidewalls)
65Height/width ratio (H/S) as a
percentage
RRadial tyre
15Rim diameter in inches (Ø)
88Load index (payload)
HMaximum speed index
Maximum speed index
Qup to 160 km/h
Rup to 170 km/h
Sup to 180 km/h
Tup to 190 km/h
Uup to 200 km/h
Hup to 210 km/h
Vup to 240 km/h
Maximum speed index
for snow tyres
QM+Sup to 160 km/h
TM+Sup to 190 km/h
HM+Sup to 210 km/h
Load index (payload)
70335 kg
71345 kg
72355 kg
73365 kg
74375 kg
75387 kg
76400 kg
77412 kg
78425 kg
79437 kg
80450 kg
81462 kg
82475 kg
83487 kg
84500 kg
85515 kg
86530 kg
87545 kg
88560 kg
89580 kg
229F1A0247
224
TECHNICAL SPECIFICATIONS

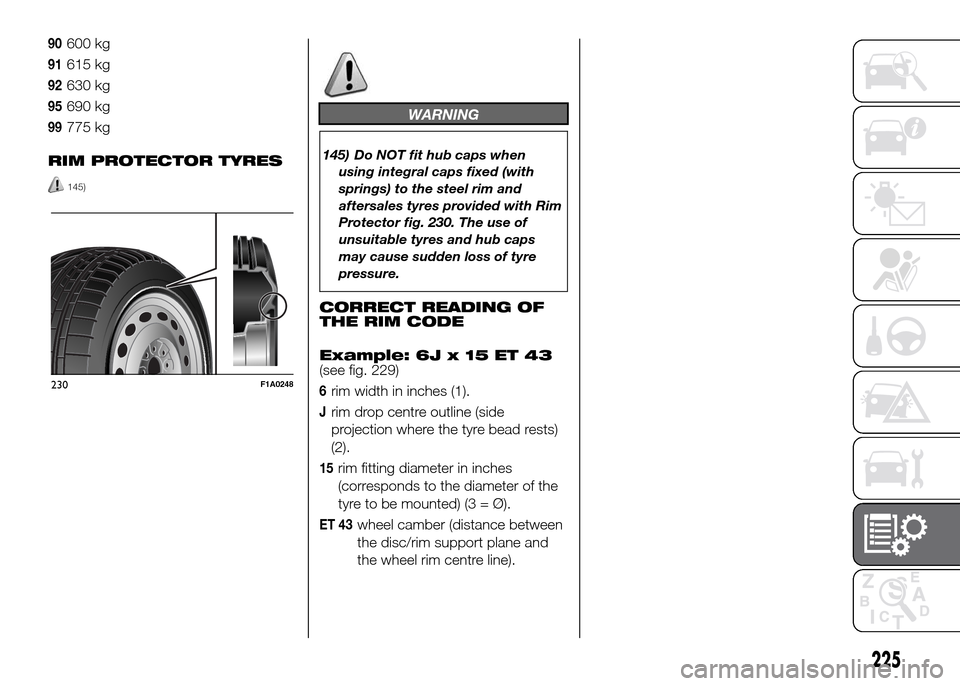

90600 kg
91615 kg
92630 kg
95690 kg
99775 kg
RIM PROTECTOR TYRES
145)
WARNING
145) Do NOT fit hub caps when
using integral caps fixed (with
springs) to the steel rim and
aftersales tyres provided with Rim
Protector fig. 230. The use of
unsuitable tyres and hub caps
may cause sudden loss of tyre
pressure.
CORRECT READING OF
THE RIM CODE
Example: 6J x 15 ET 43
(see fig. 229)
6rim width in inches (1).
Jrim drop centre outline (side
projection where the tyre bead rests)
(2).
15rim fitting diameter in inches
(corresponds to the diameter of the
tyre to be mounted) (3 = Ø).
ET 43wheel camber (distance between
the disc/rim support plane and
the wheel rim centre line).
230F1A0248
225

RIMS AND TYRES PROVIDED
Versions RimsTy r e sSpare wheel (for versions/
markets, where provided)
Standard
equipmentsnow type Rim Tyre
1.4 All models 6Jx16 ET36.5195/60 R16 C
99T195/60 R16 C
99Q (M+S)6Jx16 ET36.5195/60 R16 C
99T
1.4 T-JET All models 6Jx16 ET36.5195/60 R16 C
99/97T195/60 R16 C
99Q (M+S)6Jx16 ET36.5195/60 R16 C
99/97T
226
TECHNICAL SPECIFICATIONS
