FIAT DOBLO PANORAMA 2016 2.G Owners Manual

Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear

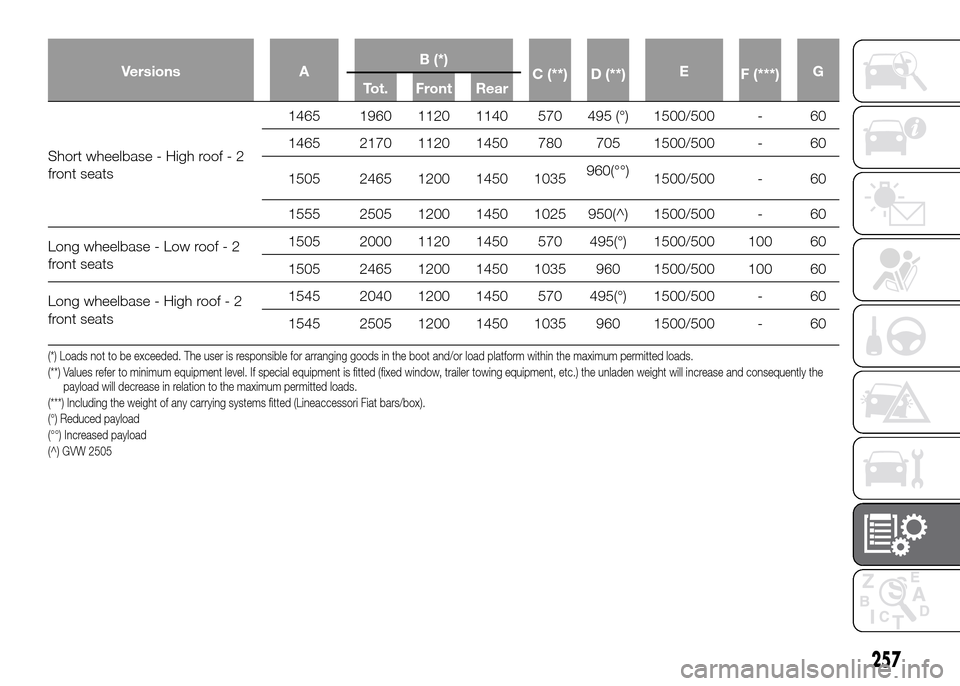

Short wheelbase - High roof - 2
front seats1465 1960 1120 1140 570 495 (°) 1500/500 - 60
1465 2170 1120 1450 780 705 1500/500 - 60
1505 2465 1200 1450 1035960(°°)
1500/500 - 60
1555 2505 1200 1450 1025 950(^) 1500/500 - 60
Long wheelbase - Low roof - 2
front seats1505 2000 1120 1450 570 495(°) 1500/500 100 60
1505 2465 1200 1450 1035 960 1500/500 100 60
Long wheelbase - High roof - 2
front seats1545 2040 1200 1450 570 495(°) 1500/500 - 60
1545 2505 1200 1450 1035 960 1500/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
(^) GVW 2505
257

Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear

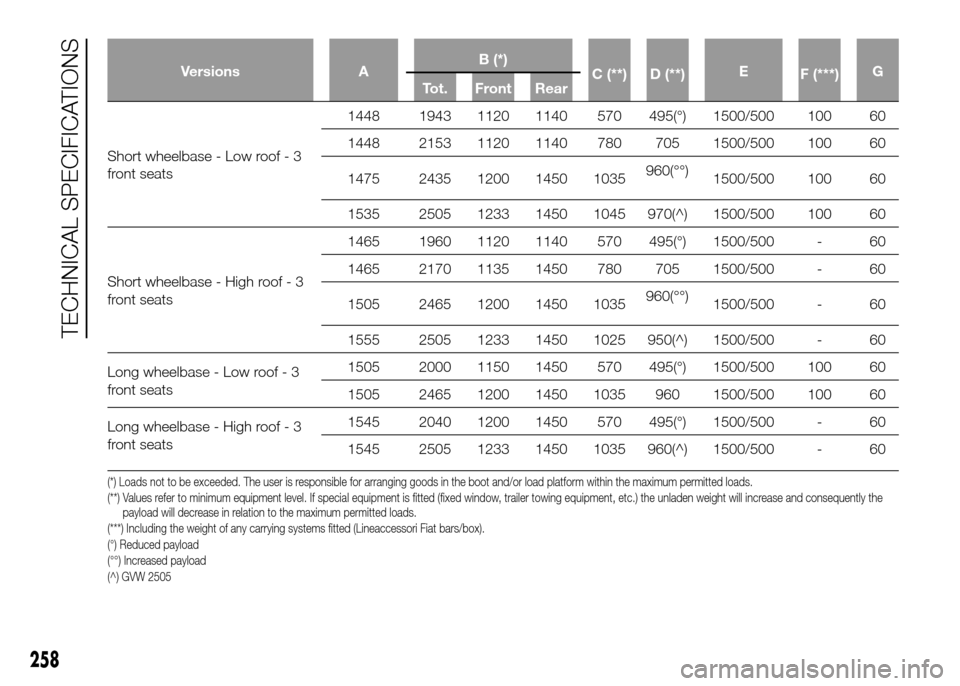

Short wheelbase - Low roof - 3
front seats1448 1943 1120 1140 570 495(°) 1500/500 100 60
1448 2153 1120 1140 780 705 1500/500 100 60
1475 2435 1200 1450 1035960(°°)
1500/500 100 60
1535 2505 1233 1450 1045 970(^) 1500/500 100 60
Short wheelbase - High roof - 3
front seats1465 1960 1120 1140 570 495(°) 1500/500 - 60
1465 2170 1135 1450 780 705 1500/500 - 60
1505 2465 1200 1450 1035960(°°)
1500/500 - 60
1555 2505 1233 1450 1025 950(^) 1500/500 - 60
Long wheelbase - Low roof - 3
front seats1505 2000 1150 1450 570 495(°) 1500/500 100 60
1505 2465 1200 1450 1035 960 1500/500 100 60
Long wheelbase - High roof - 3
front seats1545 2040 1200 1450 570 495(°) 1500/500 - 60
1545 2505 1233 1450 1035 960(^) 1500/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
(^) GVW 2505
258
TECHNICAL SPECIFICATIONS

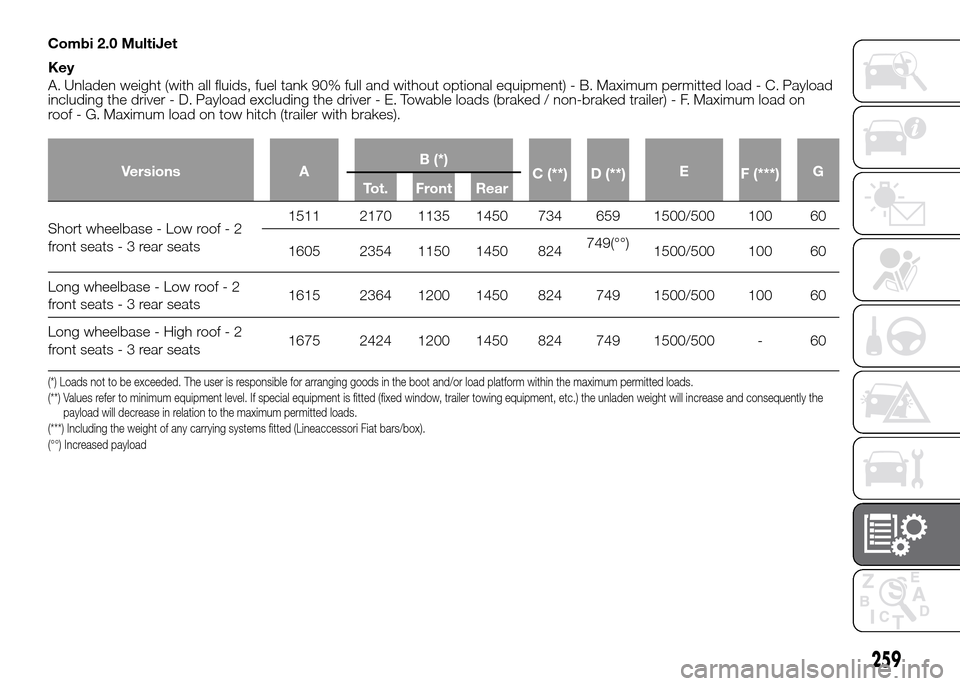

Combi 2.0 MultiJet
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats-3rearseats1511 2170 1135 1450 734 659 1500/500 100 60
1605 2354 1150 1450 824749(°°)
1500/500 100 60
Long wheelbase - Low roof - 2
front seats-3rearseats1615 2364 1200 1450 824 749 1500/500 100 60
Long wheelbase - High roof - 2
front seats-3rearseats1675 2424 1200 1450 824 749 1500/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°°) Increased payload
259

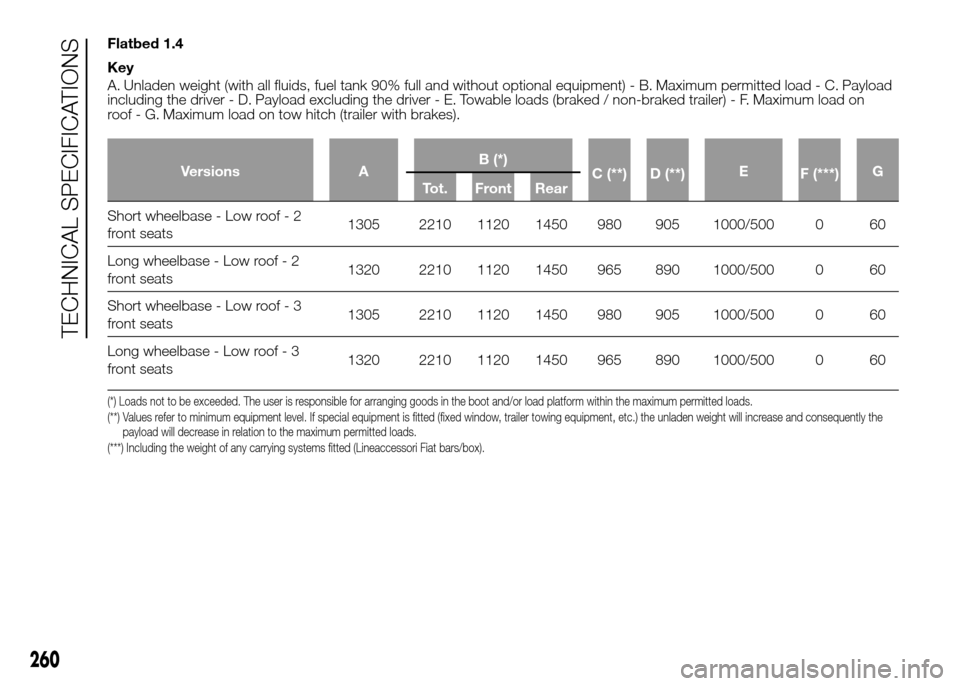

Flatbed 1.4
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats1305 2210 1120 1450 980 905 1000/500 0 60
Long wheelbase - Low roof - 2
front seats1320 2210 1120 1450 965 890 1000/500 0 60
Short wheelbase - Low roof - 3
front seats1305 2210 1120 1450 980 905 1000/500 0 60
Long wheelbase - Low roof - 3
front seats1320 2210 1120 1450 965 890 1000/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
260
TECHNICAL SPECIFICATIONS

Flatbed 1.3 MultiJet
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats1345 2414 1120 1450 1144 1069 1000/500 0 60
Long wheelbase - Low roof - 2
front seats1360 2440 1120 1450 1155 1080 1000/500 0 60
Short wheelbase - Low roof - 3
front seats1345 2414 1120 1450 1144 1069 1000/500 0 60
Long wheelbase - Low roof - 3
front seats1360 2440 1120 1450 1155 1080 1000/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
261

Flatbed 1.6 MultiJet
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats1385 2454 1200 1450 1144 1069 1300/500 0 60
Long wheelbase - Low roof - 2
front seats1400 2480 1200 1450 1155 1080 1300/500 0 60
Short wheelbase - Low roof - 3
front seats1385 2454 1200 1450 1144 1069 1300/500 0 60
Long wheelbase - Low roof - 3
front seats1400 2480 1200 1450 1155 1080 1300/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
262
TECHNICAL SPECIFICATIONS

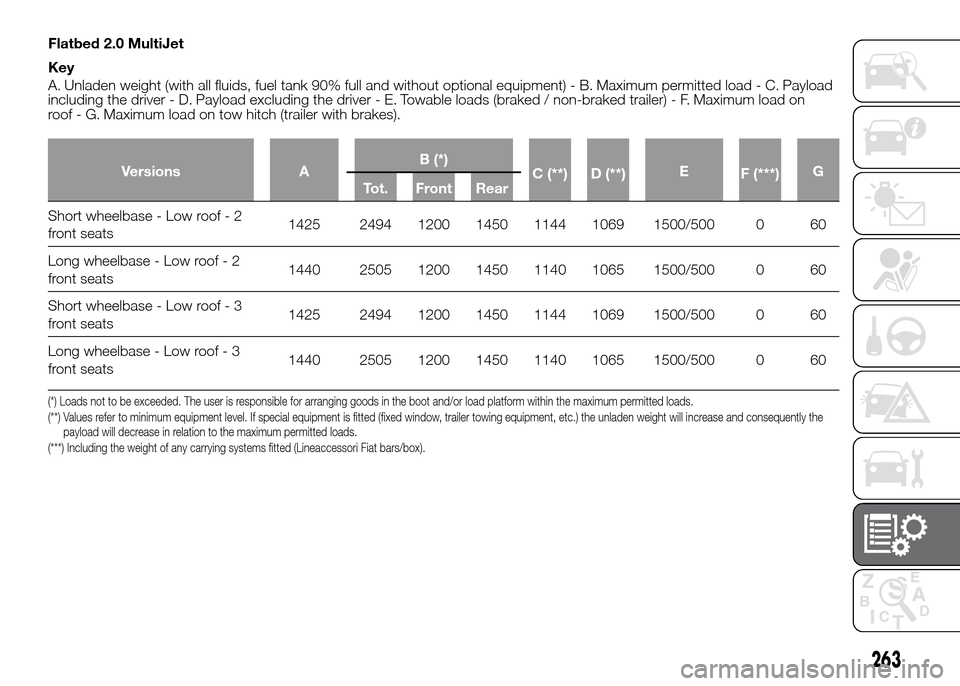

Flatbed 2.0 MultiJet
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats1425 2494 1200 1450 1144 1069 1500/500 0 60
Long wheelbase - Low roof - 2
front seats1440 2505 1200 1450 1140 1065 1500/500 0 60
Short wheelbase - Low roof - 3
front seats1425 2494 1200 1450 1144 1069 1500/500 0 60
Long wheelbase - Low roof - 3
front seats1440 2505 1200 1450 1140 1065 1500/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
263

SUPPLIES
1.4 1.4 T-JETPrescribed fuels and
original lubricants
Fuel tank: 60 litres 60Unleaded petrol not less than
95 RON (EN 228
specification) including a reserve of: 8–10 litres 8-10
Engine cooling system: 5 litres 5.8 litresMixture of demineralised
water and 50% PARAFLU
UP
(***)
Engine sump: 2.35 litres/2kg 2.1kg
SELENIA K P.E.
Engine sump and filter: 2.7 litres / 2.3 kg 2.45 kg
Gearbox casing/differential: 1.76 litres / 1.5 kg 1.5 kgTUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with
ABS anti-lock device:0.450 kg 0.450 kg TUTELA TOP 4
Hydraulic power steering: 0.900 kg 0.900 kgTUTELA TRANSMISSION
GI/E
Windscreen / rear window
washer fluid reservoir (litres):2,2 (*)
/6(**)litres2,2 (*)/6(**)litres
Mixture of water and
TUTELA PROFESSIONAL
SC35
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(*) For Doblò versions without headlamp washers.
(**) For Doblò/Doblò Combi/Doblò Cargo versions with headlamp washers.
264
TECHNICAL SPECIFICATIONS

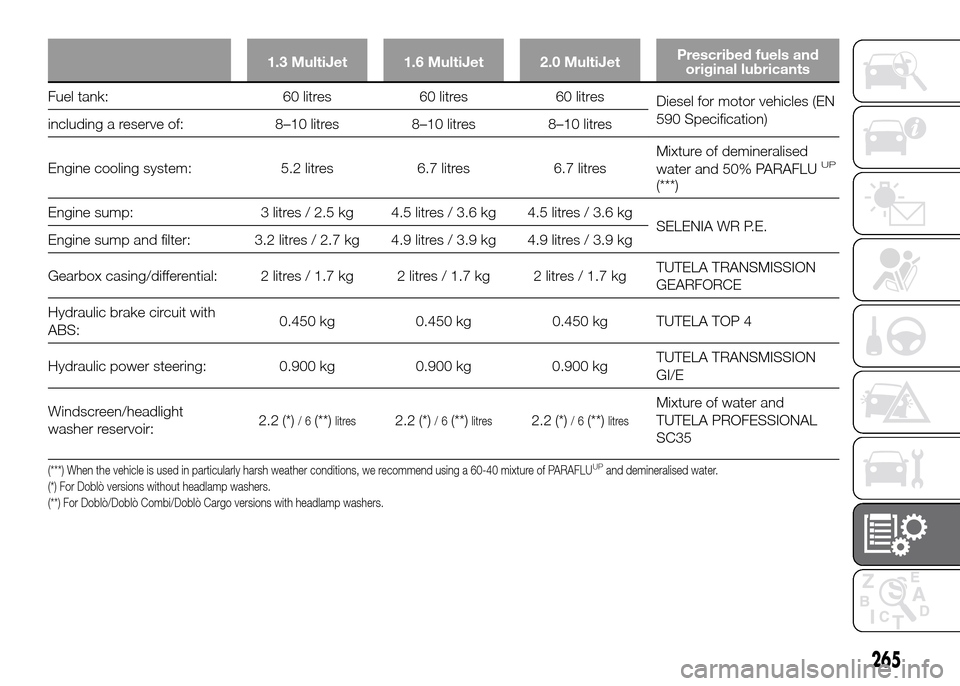

1.3 MultiJet 1.6 MultiJet 2.0 MultiJetPrescribed fuels and
original lubricants
Fuel tank: 60 litres 60 litres 60 litres
Diesel for motor vehicles (EN
590 Specification)
including a reserve of: 8–10 litres 8–10 litres 8–10 litres
Engine cooling system: 5.2 litres 6.7 litres 6.7 litresMixture of demineralised
water and 50% PARAFLU
UP
(***)
Engine sump: 3 litres / 2.5 kg 4.5 litres / 3.6 kg 4.5 litres / 3.6 kg
SELENIA WR P.E.
Engine sump and filter: 3.2 litres / 2.7 kg 4.9 litres / 3.9 kg 4.9 litres / 3.9 kg
Gearbox casing/differential: 2 litres / 1.7 kg 2 litres / 1.7 kg 2 litres / 1.7 kgTUTELA TRANSMISSION
GEARFORCE
Hydraulic brake circuit with
ABS:0.450 kg 0.450 kg 0.450 kg TUTELA TOP 4
Hydraulic power steering: 0.900 kg 0.900 kg 0.900 kgTUTELA TRANSMISSION
GI/E
Windscreen/headlight
washer reservoir:2.2 (*)
/6(**)litres2.2 (*)/6(**)litres2.2 (*)/6(**)litres
Mixture of water and
TUTELA PROFESSIONAL
SC35
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
(*) For Doblò versions without headlamp washers.
(**) For Doblò/Doblò Combi/Doblò Cargo versions with headlamp washers.
265

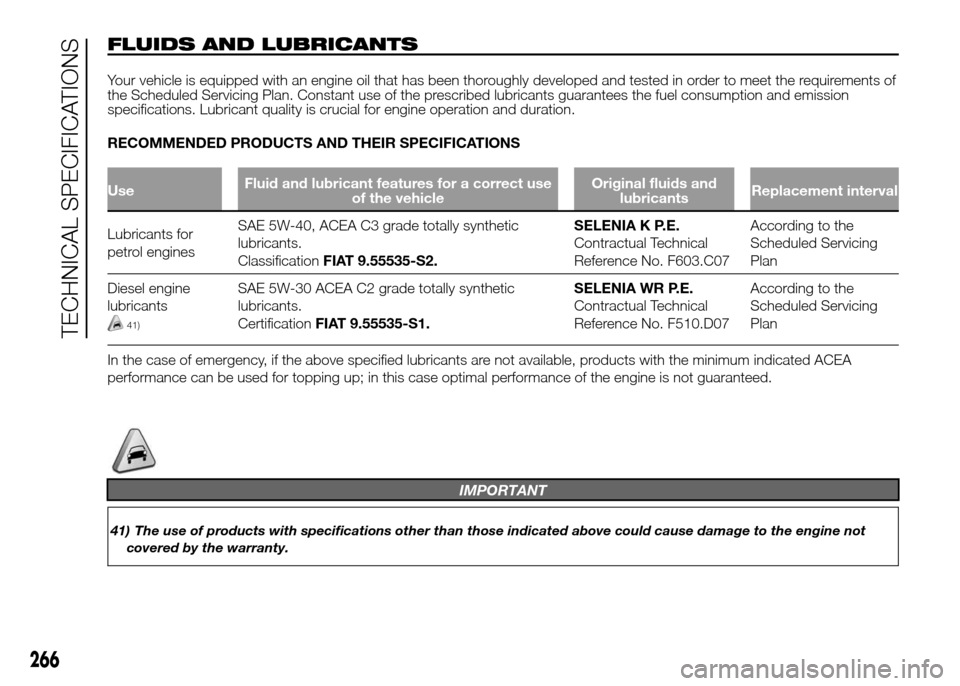

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
UseFluid and lubricant features for a correct use
of the vehicleOriginal fluids and
lubricantsReplacement interval
Lubricants for
petrol enginesSAE 5W-40, ACEA C3 grade totally synthetic
lubricants.
ClassificationFIAT 9.55535-S2.SELENIA K P.E.
Contractual Technical
Reference No. F603.C07According to the
Scheduled Servicing
Plan
Diesel engine
lubricants
41)
SAE 5W-30 ACEA C2 grade totally synthetic
lubricants.
CertificationFIAT 9.55535-S1.SELENIA WR P.E.
Contractual Technical
Reference No. F510.D07According to the
Scheduled Servicing
Plan
In the case of emergency, if the above specified lubricants are not available, products with the minimum indicated ACEA
performance can be used for topping up; in this case optimal performance of the engine is not guaranteed.
IMPORTANT
41) The use of products with specifications other than those indicated above could cause damage to the engine not
covered by the warranty.
266
TECHNICAL SPECIFICATIONS
