FIAT DUCATO 2008 Owner handbook (in English)

50
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

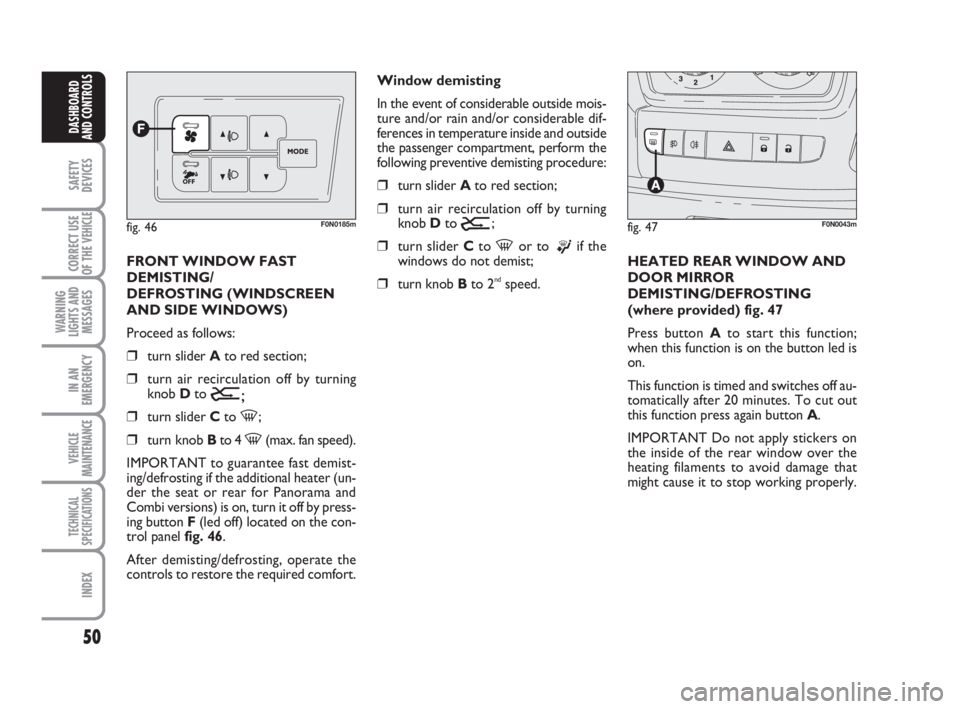

FRONT WINDOW FAST
DEMISTING/
DEFROSTING (WINDSCREEN
AND SIDE WINDOWS)
Proceed as follows:
❒turn slider Ato red section;
❒turn air recirculation off by turning
knob D to
Ú;
❒turn slider Cto -;
❒turn knob Bto 4 -(max. fan speed).
IMPORTANT to guarantee fast demist-
ing/defrosting if the additional heater (un-
der the seat or rear for Panorama and
Combi versions) is on, turn it off by press-
ing button F(led off) located on the con-
trol panel fig. 46.
After demisting/defrosting, operate the
controls to restore the required comfort.Window demisting
In the event of considerable outside mois-
ture and/or rain and/or considerable dif-
ferences in temperature inside and outside
the passenger compartment, perform the
following preventive demisting procedure:
❒turn slider Ato red section;
❒turn air recirculation off by turning
knob D to
Ú;
❒turn slider Cto -or to ®if the
windows do not demist;
❒turn knob Bto 2ndspeed.HEATED REAR WINDOW AND
DOOR MIRROR
DEMISTING/DEFROSTING
(where provided) fig. 47
Press button Ato start this function;
when this function is on the button led is
on.
This function is timed and switches off au-
tomatically after 20 minutes. To cut out
this function press again button A.
IMPORTANT Do not apply stickers on
the inside of the rear window over the
heating filaments to avoid damage that
might cause it to stop working properly.
fig. 46F0N0185mfig. 47F0N0043m
037-101 Ducato GB 6-11-2007 9:56 Pagina 50

51
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
MANUAL CLIMATE
CONTROL SYSTEM
(where provided)
CONTROLS fig. 48
Air temperature slider A
(mixing hot and cold air)
Red section = hot air
Blue section = cold air
Fan activation /speed adjustment
knob B
p0= fan off
1-2-3= fan speed
4
-= max. fan speed AIR RECIRCULATION
Turn knob D to
Ò.
This function is particularly useful when
the outside air is heavily polluted (in a traf-
fic jam, tunnel etc.). However, it is better
not to use it for long periods, especially
if there several people in the vehicle.IMPORTANT The inside air recirculation
system makes it possible to reach the re-
quired “heating” or “cooling” conditions
faster.
Do not use the air recirculation function
on rainy/cold days as it would consider-
ably increase the possibility of the win-
dows misting inside.
037-101 Ducato GB 6-11-2007 9:56 Pagina 51

52
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Air distribution slider C
¶to convey air to the centre and side
vents;
ßto warm the feet and convey cooler
air to the dashboard vents, in inter-
mediate temperature conditions;
©to heat with outside harsh tempera-
ture: to convey as much air as possi-
ble to the feet;Air recirculation on/off knob D
Press the button (button led on) to turn
air recirculation on.
Press the button again (button led off) to
turn air recirculation off.
Climate control system on/off
button E
Press the button (button led on) to turn
climate control system on.
Press the button again (button led off) to
turn climate control system off.
VENTILATION
To ventilate the passenger’s compartment
properly proceed as follows:
❒turn slider Ato blue section;
❒turn air recirculation off by turning
knob Dto
Ú;
❒turn slider Cto ¶;
❒turn knob Bto the required speed.
fig. 48F0N0029m
®to warm the feet and at the same time
demist the windscreen;
-for quick windscreen demisting.
037-101 Ducato GB 6-11-2007 9:56 Pagina 52

53
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

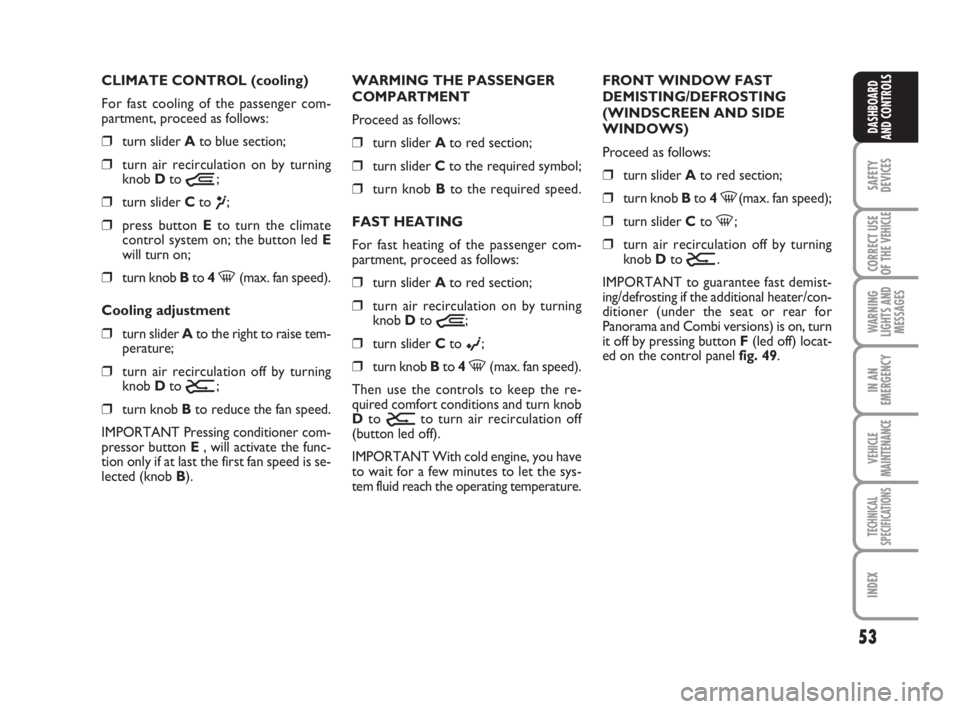

CLIMATE CONTROL (cooling)
For fast cooling of the passenger com-
partment, proceed as follows:
❒turn slider Ato blue section;
❒turn air recirculation on by turning
knob Dto
Ò;
❒turn slider Cto ¶;
❒press button Eto turn the climate
control system on; the button led E
will turn on;
❒turn knob Bto 4-(max. fan speed).
Cooling adjustment
❒turn slider Ato the right to raise tem-
perature;
❒turn air recirculation off by turning
knob Dto
Ú;
❒turn knob Bto reduce the fan speed.
IMPORTANT Pressing conditioner com-
pressor button E, will activate the func-
tion only if at last the first fan speed is se-
lected (knob B).WARMING THE PASSENGER
COMPARTMENT
Proceed as follows:
❒turn slider Ato red section;
❒turn slider Cto the required symbol;
❒turn knob Bto the required speed.
FAST HEATING
For fast heating of the passenger com-
partment, proceed as follows:
❒turn slider Ato red section;
❒turn air recirculation on by turning
knob Dto
Ò;
❒turn slider Cto ©;
❒turn knob Bto 4-(max. fan speed).
Then use the controls to keep the re-
quired comfort conditions and turn knob
Dto
Úto turn air recirculation off
(button led off).
IMPORTANT With cold engine, you have
to wait for a few minutes to let the sys-
tem fluid reach the operating temperature.FRONT WINDOW FAST
DEMISTING/DEFROSTING
(WINDSCREEN AND SIDE
WINDOWS)
Proceed as follows:
❒turn slider Ato red section;
❒turn knob Bto 4-(max. fan speed);
❒turn slider Cto -;
❒turn air recirculation off by turning
knob D to
Ú.
IMPORTANT to guarantee fast demist-
ing/defrosting if the additional heater/con-
ditioner (under the seat or rear for
Panorama and Combi versions) is on, turn
it off by pressing button F(led off) locat-
ed on the control panel fig. 49.
037-101 Ducato GB 6-11-2007 9:56 Pagina 53

54
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

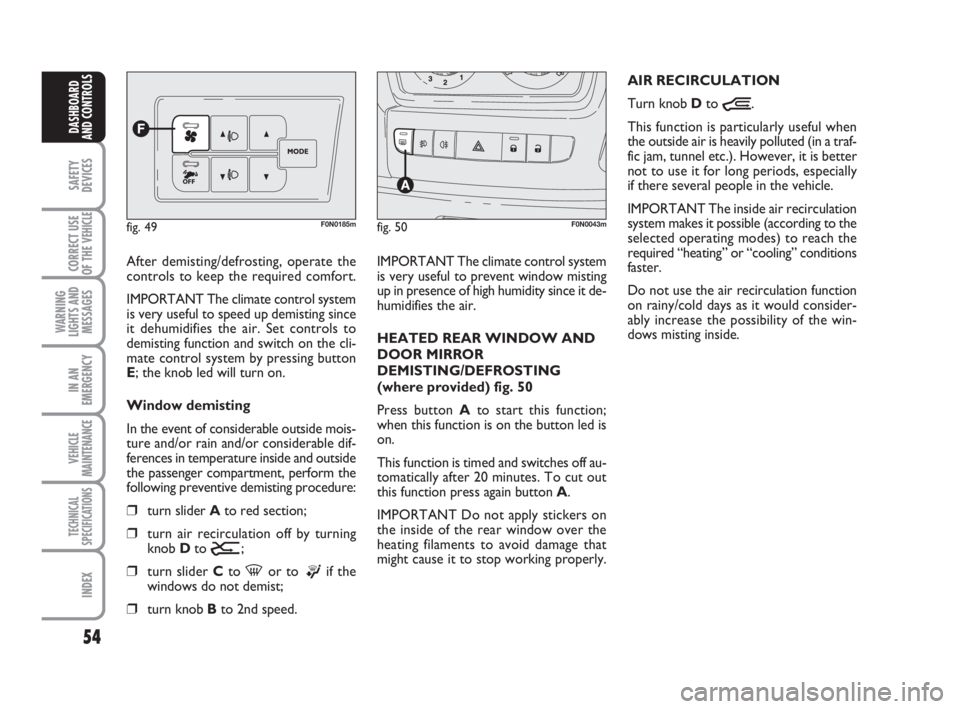

After demisting/defrosting, operate the
controls to keep the required comfort.
IMPORTANT The climate control system
is very useful to speed up demisting since
it dehumidifies the air. Set controls to
demisting function and switch on the cli-
mate control system by pressing button
E; the knob led will turn on.
Window demisting
In the event of considerable outside mois-
ture and/or rain and/or considerable dif-
ferences in temperature inside and outside
the passenger compartment, perform the
following preventive demisting procedure:
❒turn slider Ato red section;
❒turn air recirculation off by turning
knob Dto
Ú;
❒turn slider Cto -or to ®if the
windows do not demist;
❒turn knob Bto 2nd speed.
fig. 49F0N0185m
IMPORTANT The climate control system
is very useful to prevent window misting
up in presence of high humidity since it de-
humidifies the air.
HEATED REAR WINDOW AND
DOOR MIRROR
DEMISTING/DEFROSTING
(where provided) fig. 50
Press button Ato start this function;
when this function is on the button led is
on.
This function is timed and switches off au-
tomatically after 20 minutes. To cut out
this function press again button A.
IMPORTANT Do not apply stickers on
the inside of the rear window over the
heating filaments to avoid damage that
might cause it to stop working properly.AIR RECIRCULATION
Turn knob Dto
Ò.
This function is particularly useful when
the outside air is heavily polluted (in a traf-
fic jam, tunnel etc.). However, it is better
not to use it for long periods, especially
if there several people in the vehicle.
IMPORTANT The inside air recirculation
system makes it possible (according to the
selected operating modes) to reach the
required “heating” or “cooling” conditions
faster.
Do not use the air recirculation function
on rainy/cold days as it would consider-
ably increase the possibility of the win-
dows misting inside.
fig. 50F0N0043m
037-101 Ducato GB 6-11-2007 9:56 Pagina 54

55
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

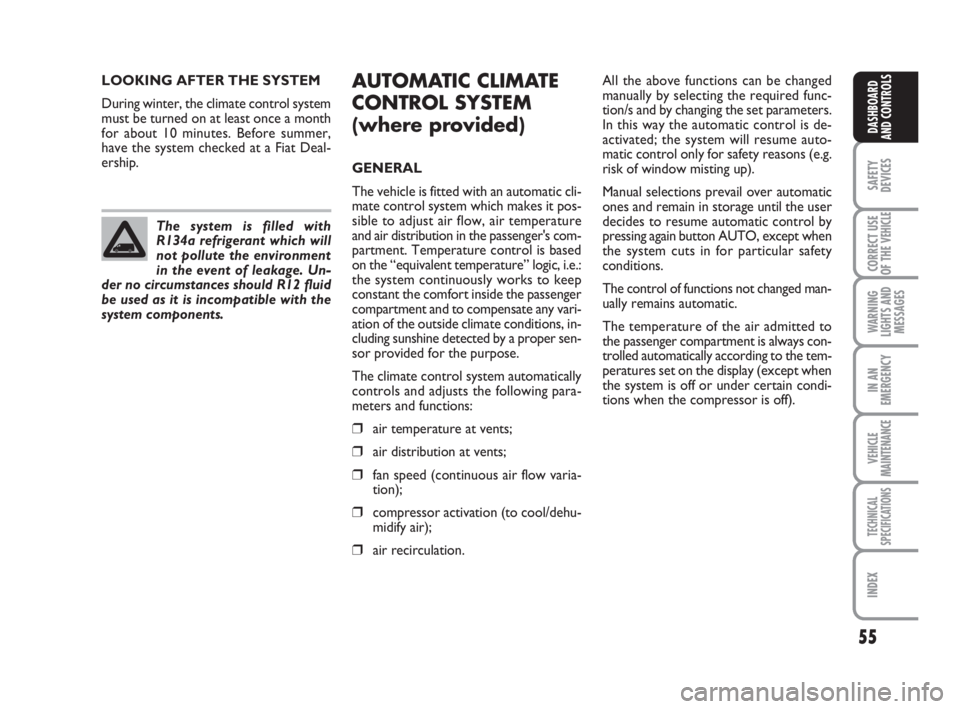

LOOKING AFTER THE SYSTEM
During winter, the climate control system
must be turned on at least once a month
for about 10 minutes. Before summer,
have the system checked at a Fiat Deal-
ership.
The system is filled with
R134a refrigerant which will
not pollute the environment
in the event of leakage. Un-
der no circumstances should R12 fluid
be used as it is incompatible with the
system components.AUTOMATIC CLIMATE
CONTROL SYSTEM
(where provided)
GENERAL
The vehicle is fitted with an automatic cli-
mate control system which makes it pos-
sible to adjust air flow, air temperature
and air distribution in the passenger's com-
partment. Temperature control is based
on the “equivalent temperature” logic, i.e.:
the system continuously works to keep
constant the comfort inside the passenger
compartment and to compensate any vari-
ation of the outside climate conditions, in-
cluding sunshine detected by a proper sen-
sor provided for the purpose.
The climate control system automatically
controls and adjusts the following para-
meters and functions:
❒air temperature at vents;
❒air distribution at vents;
❒fan speed (continuous air flow varia-
tion);
❒compressor activation (to cool/dehu-
midify air);
❒air recirculation.All the above functions can be changed
manually by selecting the required func-
tion/s and by changing the set parameters.
In this way the automatic control is de-
activated; the system will resume auto-
matic control only for safety reasons (e.g.
risk of window misting up).
Manual selections prevail over automatic
ones and remain in storage until the user
decides to resume automatic control by
pressing again button AUTO, except when
the system cuts in for particular safety
conditions.
The control of functions not changed man-
ually remains automatic.
The temperature of the air admitted to
the passenger compartment is always con-
trolled automatically according to the tem-
peratures set on the display (except when
the system is off or under certain condi-
tions when the compressor is off).
037-101 Ducato GB 6-11-2007 9:56 Pagina 55

56
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

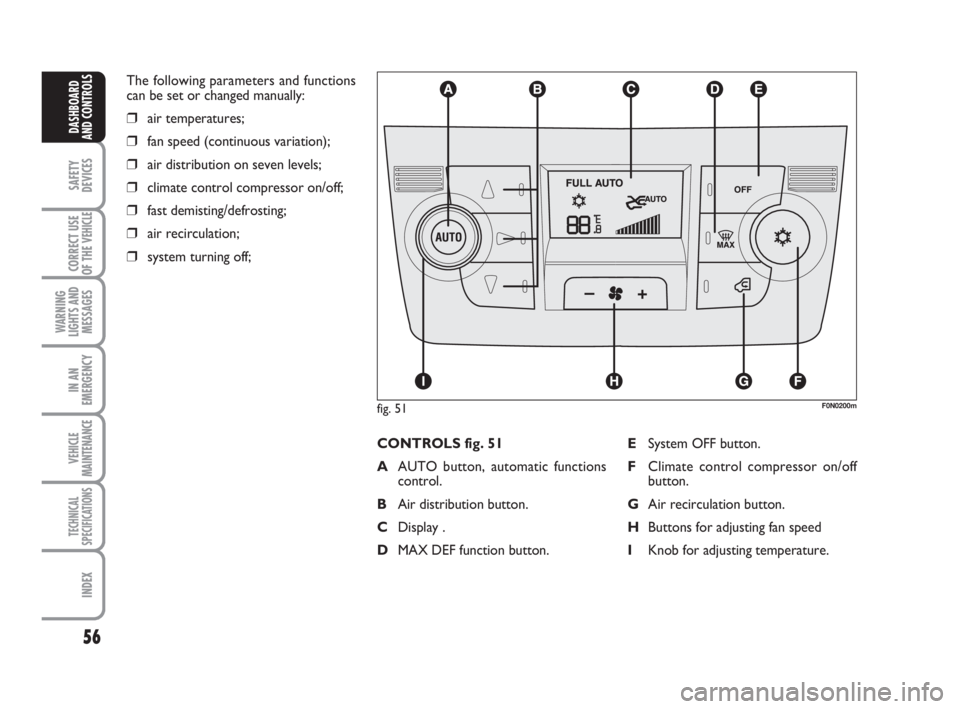

The following parameters and functions
can be set or changed manually:
❒air temperatures;
❒fan speed (continuous variation);
❒air distribution on seven levels;
❒climate control compressor on/off;
❒fast demisting/defrosting;
❒air recirculation;
❒system turning off;
fig. 51F0N0200m
CONTROLS fig. 51
AAUTO button, automatic functions
control.
BAir distribution button.
CDisplay .
DMAX DEF function button.ESystem OFF button.
FClimate control compressor on/off
button.
GAir recirculation button.
HButtons for adjusting fan speed
IKnob for adjusting temperature.
037-101 Ducato GB 6-11-2007 9:56 Pagina 56

57
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

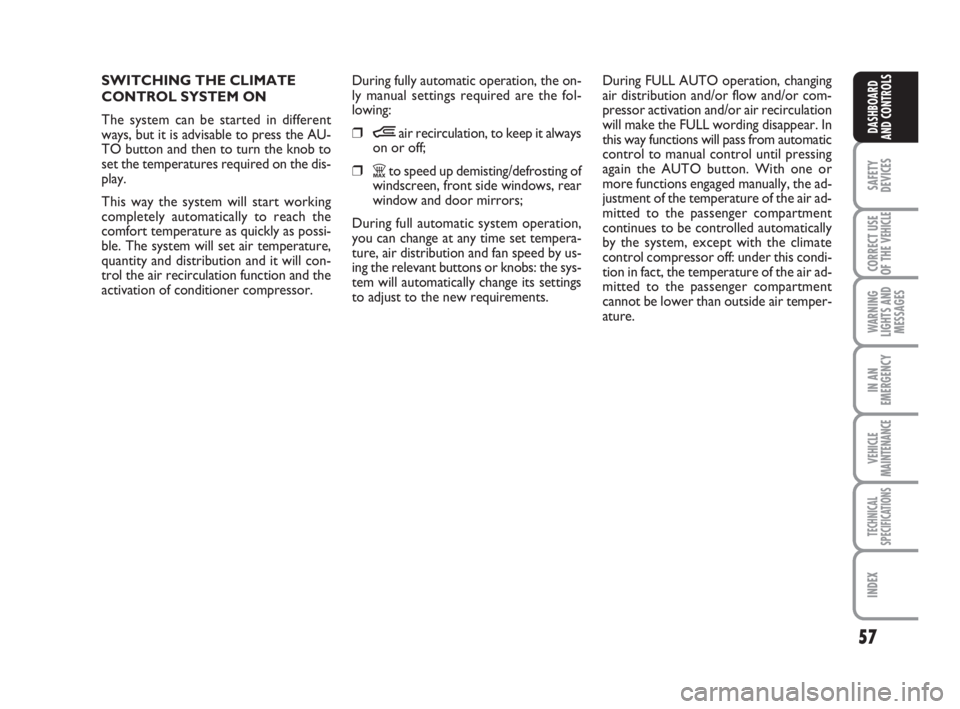

SWITCHING THE CLIMATE
CONTROL SYSTEM ON
The system can be started in different
ways, but it is advisable to press the AU-
TO button and then to turn the knob to
set the temperatures required on the dis-
play.
This way the system will start working
completely automatically to reach the
comfort temperature as quickly as possi-
ble. The system will set air temperature,
quantity and distribution and it will con-
trol the air recirculation function and the
activation of conditioner compressor.During fully automatic operation, the on-
ly manual settings required are the fol-
lowing:
❒Òair recirculation, to keep it always
on or off;
❒Zto speed up demisting/defrosting of
windscreen, front side windows, rear
window and door mirrors;
During full automatic system operation,
you can change at any time set tempera-
ture, air distribution and fan speed by us-
ing the relevant buttons or knobs: the sys-
tem will automatically change its settings
to adjust to the new requirements. During FULL AUTO operation, changing
air distribution and/or flow and/or com-
pressor activation and/or air recirculation
will make the FULL wording disappear. In
this way functions will pass from automatic
control to manual control until pressing
again the AUTO button. With one or
more functions engaged manually, the ad-
justment of the temperature of the air ad-
mitted to the passenger compartment
continues to be controlled automatically
by the system, except with the climate
control compressor off: under this condi-
tion in fact, the temperature of the air ad-
mitted to the passenger compartment
cannot be lower than outside air temper-
ature.
037-101 Ducato GB 6-11-2007 9:56 Pagina 57

58
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
CONTROLS
Air temperature
adjusting knob (I)
temperatura
Turning the knob
clockwise or counter-clockwise,
respectively raises or lowers the
temperature of the air required in the
passenger compartment.
Set temperature is shown on the
display.
Turning the knob fully clockwise or
counter-clockwise until it reaches the ex-
treme selections HI or LO, the maximum
heating or cooling functions are respec-
tively engaged:
❒HI function (highest heating power):
this is turned on by rotating the temper-
ature knob clockwise and passing the max.
temperature value (32 °C).
This function can be engaged when re-
quiring to heat the passenger compart-
ment as quickly as possible, exploiting the
maximum potential of the system. Under
these conditions, the system is no longer
controlled by the automatic temperature
adjustment system and sets air mixing to
maximum heating by modulating speed
and air distribution.
More particularly, max. fan speed will not
be immediately engaged if coolant is not
hot enough; this to prevent admitting air
that is not warm enough to the passenger
compartment.
All manual settings are possible with this
function on.To switch the function off, simply turn the
knob counter-clockwise and set the re-
quired temperature.
❒LO function (highest cooling power:
this is turned on by rotating the temper-
ature knob counter-clockwise and passing
the min. temperature value (16 °C).
This function can be engaged when re-
quiring to cool the passenger compart-
ment as quickly as possible, exploiting the
maximum potential of the system. Under
these conditions, the system is no longer
controlled by the automatic temperature
adjustment system and sets air mixing to
maximum cooling by modulating speed
and air distribution. All manual settings are
possible with this function on.
To switch the function off, simply turn the
knob clockwise and set the required tem-
perature.
037-101 Ducato GB 6-11-2007 9:56 Pagina 58

59
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

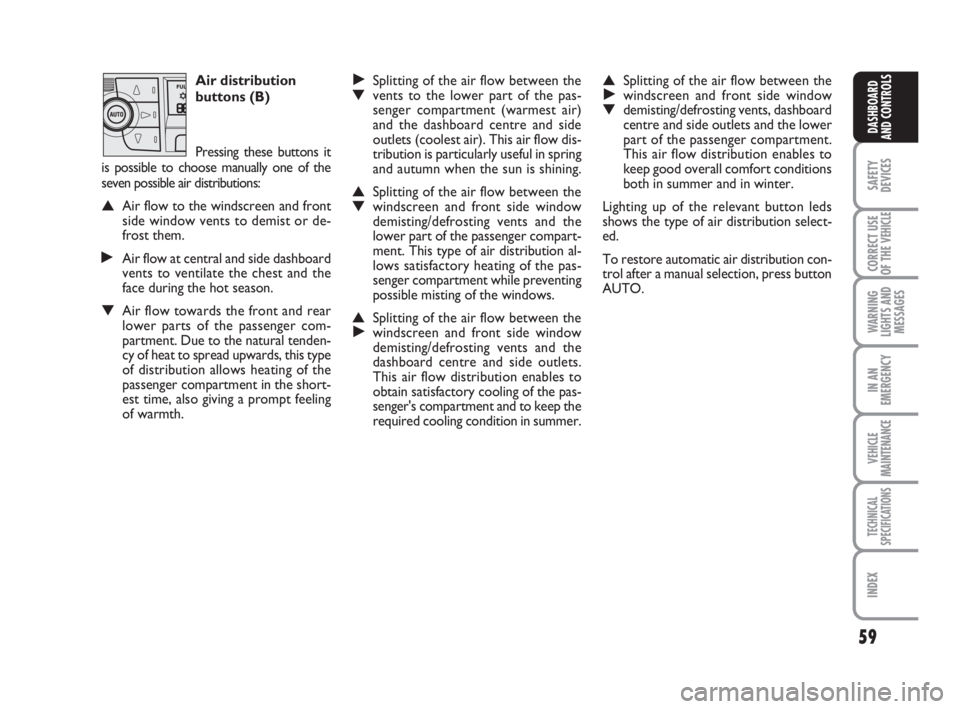

Air distribution
buttons (B)
Pressing these buttons it
is possible to choose manually one of the
seven possible air distributions:
▲Air flow to the windscreen and front
side window vents to demist or de-
frost them.
˙Air flow at central and side dashboard
vents to ventilate the chest and the
face during the hot season.
▼Air flow towards the front and rear
lower parts of the passenger com-
partment. Due to the natural tenden-
cy of heat to spread upwards, this type
of distribution allows heating of the
passenger compartment in the short-
est time, also giving a prompt feeling
of warmth.
˙Splitting of the air flow between the ▼vents to the lower part of the pas-
senger compartment (warmest air)
and the dashboard centre and side
outlets (coolest air). This air flow dis-
tribution is particularly useful in spring
and autumn when the sun is shining.
▲Splitting of the air flow between the ▼windscreen and front side window
demisting/defrosting vents and the
lower part of the passenger compart-
ment. This type of air distribution al-
lows satisfactory heating of the pas-
senger compartment while preventing
possible misting of the windows.
▲Splitting of the air flow between the ˙windscreen and front side window
demisting/defrosting vents and the
dashboard centre and side outlets.
This air flow distribution enables to
obtain satisfactory cooling of the pas-
senger's compartment and to keep the
required cooling condition in summer.
▲Splitting of the air flow between the ˙windscreen and front side window ▼demisting/defrosting vents, dashboard
centre and side outlets and the lower
part of the passenger compartment.
This air flow distribution enables to
keep good overall comfort conditions
both in summer and in winter.
Lighting up of the relevant button leds
shows the type of air distribution select-
ed.
To restore automatic air distribution con-
trol after a manual selection, press button
AUTO.
037-101 Ducato GB 6-11-2007 9:56 Pagina 59
