ç

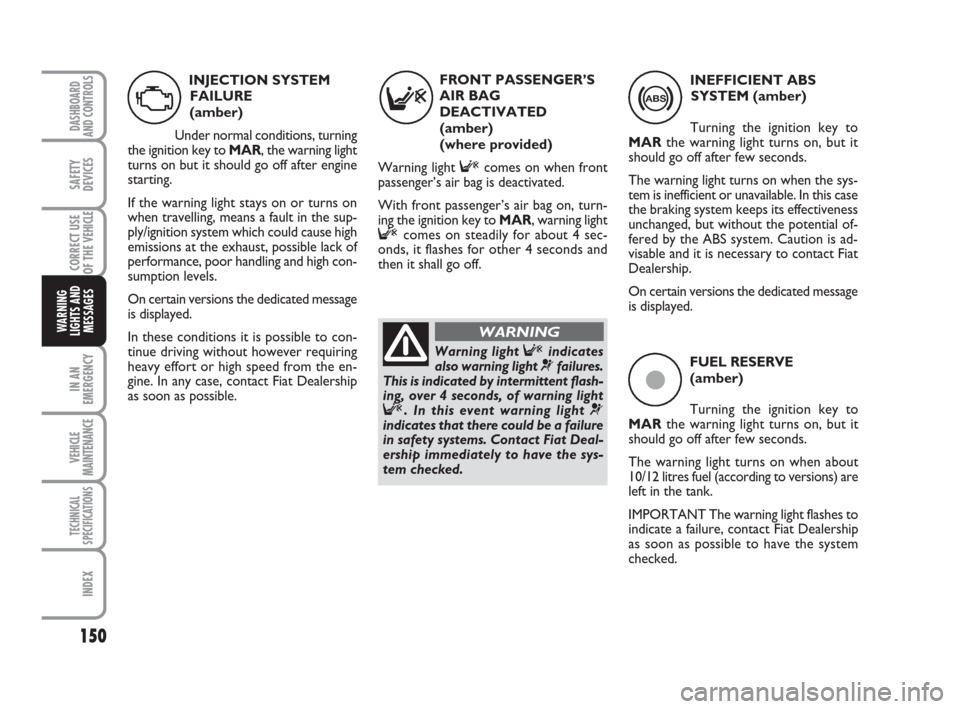

FUEL RESERVE
(amber)
Turning the ignition key to
MARthe warning light turns on, but it
should go off after few seconds.
The warning light turns on when about
10/12 litres fuel (according to versions) are
left in the tank.
IMPORTANT The warning light flashes to
indicate a failure, contact Fiat Dealership
as soon as possible to have the system
checked. INJECTION SYSTEM
FAILURE
(amber)
Under normal conditions, turning
the ignition key to MAR, the warning light
turns on but it should go off after engine
starting.
If the warning light stays on or turns on
when travelling, means a fault in the sup-
ply/ignition system which could cause high
emissions at the exhaust, possible lack of
performance, poor handling and high con-
sumption levels.
On certain versions the dedicated message
is displayed.
In these conditions it is possible to con-
tinue driving without however requiring
heavy effort or high speed from the en-
gine. In any case, contact Fiat Dealership
as soon as possible.
U
INEFFICIENT ABS
SYSTEM (amber)
Turning the ignition key to
MARthe warning light turns on, but it
should go off after few seconds.
The warning light turns on when the sys-
tem is inefficient or unavailable. In this case
the braking system keeps its effectiveness
unchanged, but without the potential of-
fered by the ABS system. Caution is ad-
visable and it is necessary to contact Fiat
Dealership.
On certain versions the dedicated message
is displayed.
>F
FRONT PASSENGER’S
AIR BAG
DEACTIVATED
(amber)
(where provided)
Warning light Fcomes on when front
passenger’s air bag is deactivated.
With front passenger’s air bag on, turn-
ing the ignition key to MAR, warning light
Fcomes on steadily for about 4 sec-
onds, it flashes for other 4 seconds and
then it shall go off.
Warning light Findicates
also warning light ¬failures.
This is indicated by intermittent flash-
ing, over 4 seconds, of warning light
F. In this event warning light ¬
indicates that there could be a failure
in safety systems. Contact Fiat Deal-
ership immediately to have the sys-
tem checked.
WARNING

151
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES

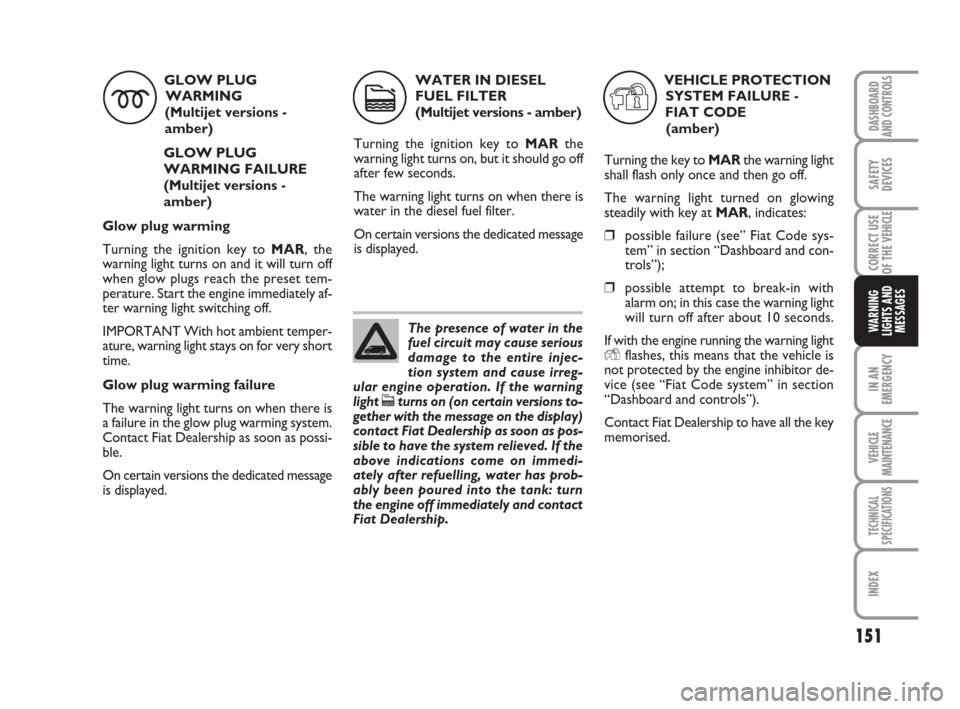

GLOW PLUG
WARMING
(Multijet versions -
amber)
GLOW PLUG
WARMING FAILURE
(Multijet versions -
amber)
Glow plug warming
Turning the ignition key to MAR, the
warning light turns on and it will turn off
when glow plugs reach the preset tem-
perature. Start the engine immediately af-
ter warning light switching off.
IMPORTANT With hot ambient temper-
ature, warning light stays on for very short
time.
Glow plug warming failure
The warning light turns on when there is
a failure in the glow plug warming system.
Contact Fiat Dealership as soon as possi-
ble.
On certain versions the dedicated message
is displayed.
m
WATER IN DIESEL
FUEL FILTER
(Multijet versions - amber)
Turning the ignition key to MARthe
warning light turns on, but it should go off
after few seconds.
The warning light turns on when there is
water in the diesel fuel filter.
On certain versions the dedicated message
is displayed.
c
The presence of water in the
fuel circuit may cause serious
damage to the entire injec-
tion system and cause irreg-
ular engine operation. If the warning
light cturns on (on certain versions to-
gether with the message on the display)
contact Fiat Dealership as soon as pos-
sible to have the system relieved. If the
above indications come on immedi-
ately after refuelling, water has prob-
ably been poured into the tank: turn
the engine off immediately and contact
Fiat Dealership.
VEHICLE PROTECTION
SYSTEM FAILURE -
FIAT CODE
(amber)
Turning the key to MARthe warning light
shall flash only once and then go off.
The warning light turned on glowing
steadily with key at MAR, indicates:
❒possible failure (see” Fiat Code sys-
tem” in section “Dashboard and con-
trols”);
❒possible attempt to break-in with
alarm on; in this case the warning light
will turn off after about 10 seconds.
If with the engine running the warning light
Yflashes, this means that the vehicle is
not protected by the engine inhibitor de-
vice (see “Fiat Code system” in section
“Dashboard and controls”).
Contact Fiat Dealership to have all the key
memorised.
Y

152
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES

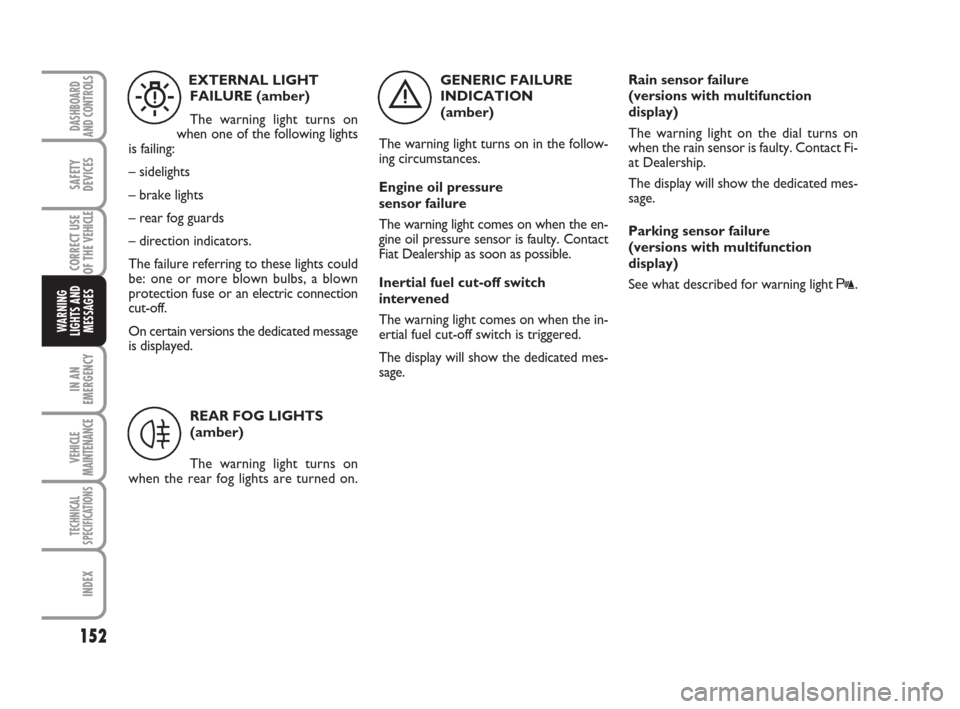

GENERIC FAILURE
INDICATION
(amber)
The warning light turns on in the follow-
ing circumstances.
Engine oil pressure
sensor failure
The warning light comes on when the en-
gine oil pressure sensor is faulty. Contact
Fiat Dealership as soon as possible.
Inertial fuel cut-off switch
intervened
The warning light comes on when the in-
ertial fuel cut-off switch is triggered.
The display will show the dedicated mes-
sage.
è
EXTERNAL LIGHT
FAILURE (amber)
The warning light turns on
when one of the following lights
is failing:
– sidelights
– brake lights
– rear fog guards
– direction indicators.
The failure referring to these lights could
be: one or more blown bulbs, a blown
protection fuse or an electric connection
cut-off.
On certain versions the dedicated message
is displayed.
W
REAR FOG LIGHTS
(amber)
The warning light turns on
when the rear fog lights are turned on.
4
Rain sensor failure
(versions with multifunction
display)
The warning light on the dial turns on
when the rain sensor is faulty. Contact Fi-
at Dealership.
The display will show the dedicated mes-
sage.
Parking sensor failure
(versions with multifunction
display)
See what described for warning light
t.

153
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
DIESEL PARTICULATE
FILTER CLOGGED
The warning light turns on when
the diesel particulate filter is clogged and
the driving conditions do not enable to ac-
tivate automatically the reclaiming proce-
dure.
To enable the cleaning procedure, keep
the vehicle running until the warning light
turns off.
The display will show the dedicated mes-
sage.ESP - ASR SYSTEM
FAILURE
(amber) (where provided)
HILL HOLDER FAILURE
(amber) (where provided)
Turning the ignition key to MARthe
warning light turns on, but it should go off
after few seconds.
ESP-ASR system failure
If the warning light does not go off or stays
on when travelling together with the but-
ton led ASR, contact Fiat Dealership.
On certain versions the dedicated mes-
sage is displayed.
NoteWarning light flashing when driving
indicates that the ESP system is active.
Hill Holder failure
The warning light will turn on when the
Hill Holder system is faulty. Contact Fiat
Dealership as soon as possible.
On certain versions the dedicated mes-
sage is displayed.
áh
BRAKE PAD WEAR
(amber)
The warning light on the dial
turns on if the front brake pads are worn;
in this case have them changed as soon
as possible.
On certain versions the dedicated mes-
sage is displayed.
d

154
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES

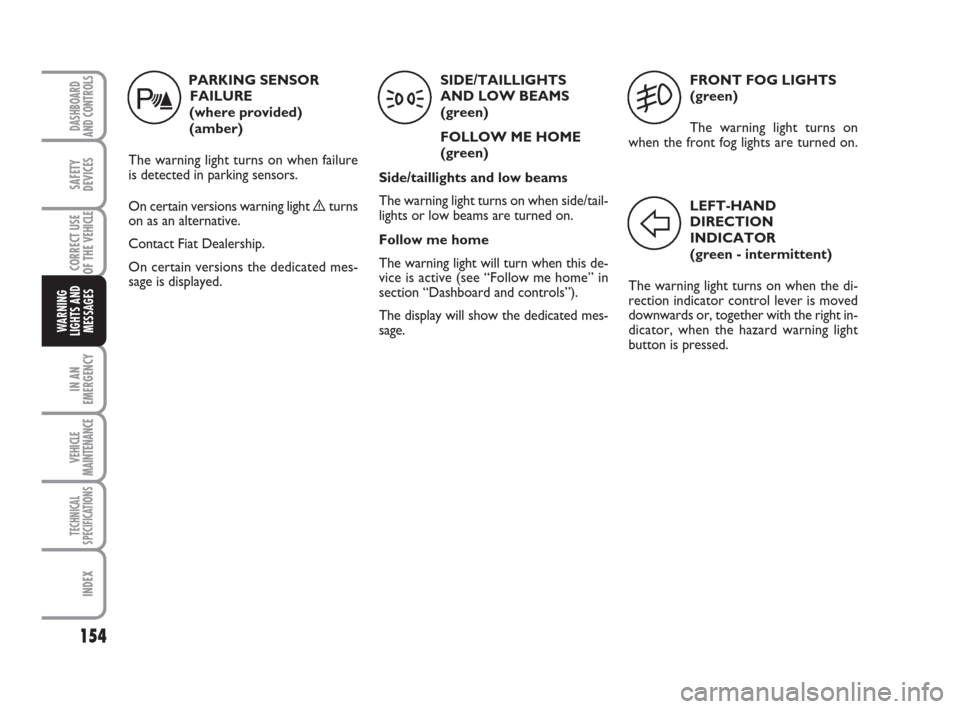

FRONT FOG LIGHTS
(green)
The warning light turns on
when the front fog lights are turned on.
5
LEFT-HAND
DIRECTION
INDICATOR
(green - intermittent)
The warning light turns on when the di-
rection indicator control lever is moved
downwards or, together with the right in-
dicator, when the hazard warning light
button is pressed.
F
PARKING SENSOR
FAILURE
(where provided)
(amber)
The warning light turns on when failure
is detected in parking sensors.
On certain versions warning light èturns
on as an alternative.
Contact Fiat Dealership.
On certain versions the dedicated mes-
sage is displayed.
t
SIDE/TAILLIGHTS
AND LOW BEAMS
(green)
FOLLOW ME HOME
(green)
Side/taillights and low beams
The warning light turns on when side/tail-
lights or low beams are turned on.
Follow me home
The warning light will turn when this de-
vice is active (see “Follow me home” in
section “Dashboard and controls”).
The display will show the dedicated mes-
sage.
3

155
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES

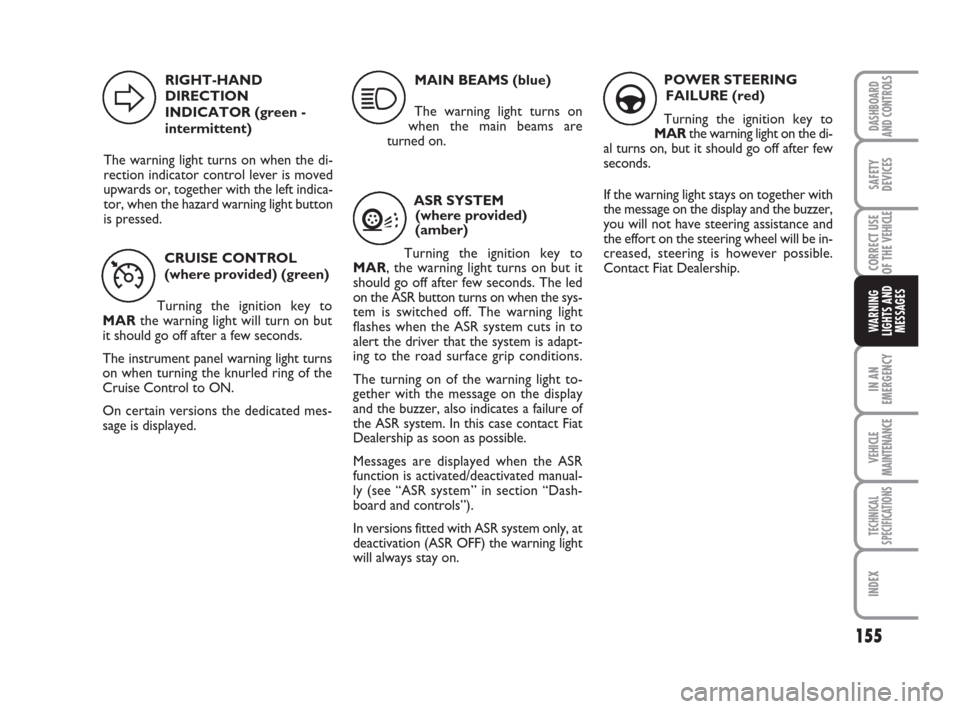

CRUISE CONTROL
(where provided) (green)
Turning the ignition key to
MARthe warning light will turn on but
it should go off after a few seconds.
The instrument panel warning light turns
on when turning the knurled ring of the
Cruise Control to ON.
On certain versions the dedicated mes-
sage is displayed.
Ü
MAIN BEAMS (blue)
The warning light turns on
when the main beams are
turned on.
1
RIGHT-HAND
DIRECTION
INDICATOR (green -
intermittent)
The warning light turns on when the di-
rection indicator control lever is moved
upwards or, together with the left indica-
tor, when the hazard warning light button
is pressed.
D
ASR SYSTEM
(where provided)
(amber)
Turning the ignition key to
MAR, the warning light turns on but it
should go off after few seconds. The led
on the ASR button turns on when the sys-
tem is switched off. The warning light
flashes when the ASR system cuts in to
alert the driver that the system is adapt-
ing to the road surface grip conditions.
The turning on of the warning light to-
gether with the message on the display
and the buzzer, also indicates a failure of
the ASR system. In this case contact Fiat
Dealership as soon as possible.
Messages are displayed when the ASR
function is activated/deactivated manual-
ly (see “ASR system” in section “Dash-
board and controls”).
In versions fitted with ASR system only, at
deactivation (ASR OFF) the warning light
will always stay on.
V
POWER STEERING
FAILURE (red)
Turning the ignition key to
MARthe warning light on the di-
al turns on, but it should go off after few
seconds.
If the warning light stays on together with
the message on the display and the buzzer,
you will not have steering assistance and
the effort on the steering wheel will be in-
creased, steering is however possible.
Contact Fiat Dealership.
g

156
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES

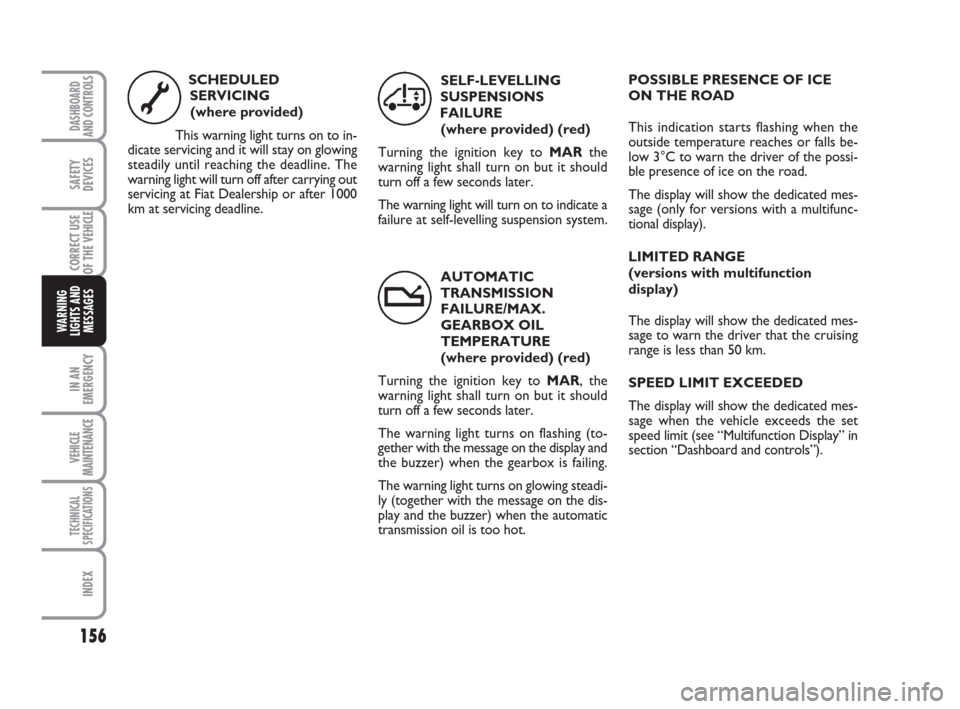

AUTOMATIC
TRANSMISSION
FAILURE/MAX.
GEARBOX OIL
TEMPERATURE
(where provided) (red)
Turning the ignition key to MAR, the
warning light shall turn on but it should
turn off a few seconds later.
The warning light turns on flashing (to-
gether with the message on the display and
the buzzer) when the gearbox is failing.
The warning light turns on glowing steadi-
ly (together with the message on the dis-
play and the buzzer) when the automatic
transmission oil is too hot. SCHEDULED
SERVICING
(where provided)
This warning light turns on to in-
dicate servicing and it will stay on glowing
steadily until reaching the deadline. The
warning light will turn off after carrying out
servicing at Fiat Dealership or after 1000
km at servicing deadline.SELF-LEVELLING
SUSPENSIONS
FAILURE
(where provided) (red)
Turning the ignition key to MARthe
warning light shall turn on but it should
turn off a few seconds later.
The warning light will turn on to indicate a
failure at self-levelling suspension system.POSSIBLE PRESENCE OF ICE
ON THE ROAD
This indication starts flashing when the
outside temperature reaches or falls be-
low 3°C to warn the driver of the possi-
ble presence of ice on the road.
The display will show the dedicated mes-
sage (only for versions with a multifunc-
tional display).
LIMITED RANGE
(versions with multifunction
display)
The display will show the dedicated mes-
sage to warn the driver that the cruising
range is less than 50 km.
SPEED LIMIT EXCEEDED
The display will show the dedicated mes-
sage when the vehicle exceeds the set
speed limit (see “Multifunction Display” in
section “Dashboard and controls”).
õŒ
t

157
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
ENGINE STARTING ........................................................... 158
IF A TYRE IS PUNCTURED............................................... 159
QUICK TYRE REPAIR KIT
FIX & GO automatic ........................................................... 163
WHEN NEEDING TO CHANGE A BULB ................... 168
IF AN EXTERIOR LIGHT BURNS OUT.......................... 170
IF AN INTERIOR LIGHT BURNS OUT.......................... 176
IF A FUSE BLOWS................................................................ 177
IF THE BATTERY IS FLAT .................................................. 185
JACKING THE VEHICLE ................................................... 186
TOWING THE VEHICLE ................................................... 186
II I
N N
A A
N N
E E
M M
E E
R R
G G
E E
N N
C C
Y Y
In an emergency we recommend that you call the toll-free number found on the
Warranty Booklet. You can also connect to the site www.fiat.com
to search for the nearest Fiat Dealership point

158
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
ENGINE
STARTING
EMERGENCY START-UP
If the instrument panel warning light
Yturns on glowing steadily, contact im-
mediately Fiat Dealership.
JUMP STARTING fig. 1-2
If the battery is flat, it is possible to start
the engine using an auxiliary battery with
the same capacity or a little higher than
the flat one.
Contact Fiat Dealership to have the bat-
tery checked/replaced.Proceed as follows:
❒lift the lid Ato connect to the battery
positive terminal fig. 1.
❒connect positive terminals (+near
the terminal) of the two batteries
with a jump lead;
❒connect with a second cable the nega-
tive terminal (–) of the auxiliary battery
to the ground point as shown in fig. 2;
❒start the engine;
❒when the engine has been started, re-
move the leads reversing the order
above.
If after a few attempts the engine does not
start, do not insist but contact the near-
est Fiat Dealership.
fig. 1F0N0075m
The starting procedure must
be carried out by qualified
personnel because incorrect opera-
tions may cause electrical discharge of
considerable intensity. The liquid con-
tained in the battery is poisonous and
corrosive. Avoid contact with the skin
and eyes. Keep naked flames and light-
ed cigarettes away from the battery
and do not cause sparks.
WARNING
fig. 2F0N0076m

159
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
IMPORTANT Never connect the negative
terminals of the two batteries directly:
sparks could ignite explosive gas released
from the battery. If the auxiliary battery is
installed on another vehicle, avoid any
metal parts on the latter and the vehicle
with the flat battery from accidentally
coming into contact.
BUMP STARTING
Never jump start the engine by pushing,
towing or driving downhill. This could
cause a flow of fuel into the catalytic con-
verter and damage it beyond repair.
IMPORTANT Remember that the brake
servo and the power steering system are
not activated until the engine is started, a
greater effort will therefore be required
to press the brake pedal or turn the steer-

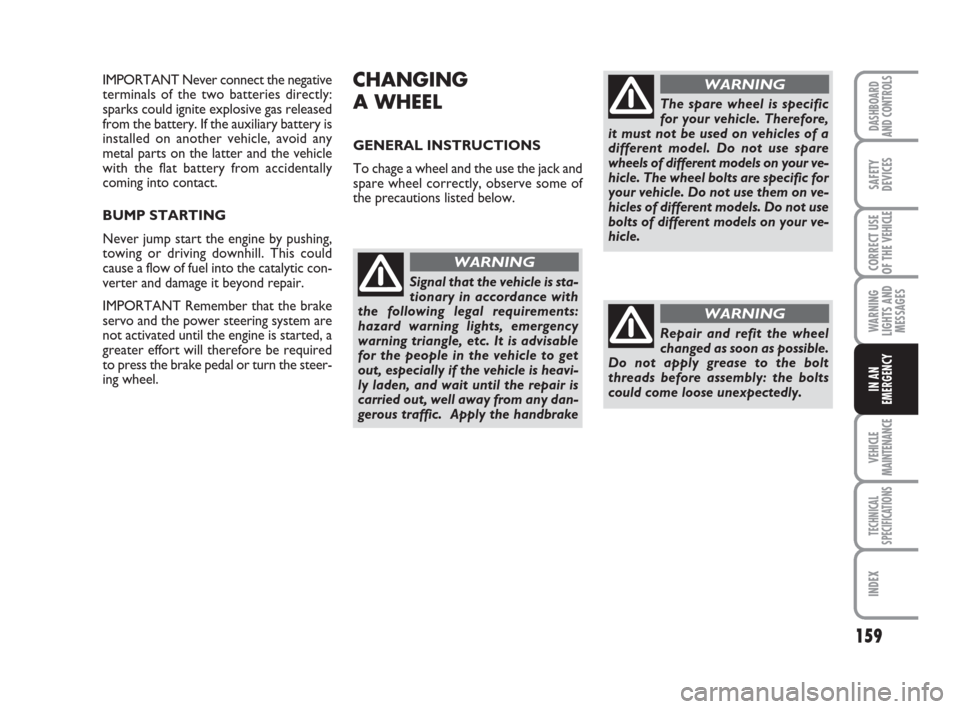

ing wheel.CHANGING
A WHEEL
GENERAL INSTRUCTIONS
To chage a wheel and the use the jack and
spare wheel correctly, observe some of
the precautions listed below.
Signal that the vehicle is sta-
tionary in accordance with
the following legal requirements:
hazard warning lights, emergency
warning triangle, etc. It is advisable
for the people in the vehicle to get
out, especially if the vehicle is heavi-
ly laden, and wait until the repair is
carried out, well away from any dan-
gerous traffic. Apply the handbrake
WARNING
The spare wheel is specific
for your vehicle. Therefore,
it must not be used on vehicles of a
different model. Do not use spare
wheels of different models on your ve-
hicle. The wheel bolts are specific for
your vehicle. Do not use them on ve-
hicles of different models. Do not use
bolts of different models on your ve-
hicle.
WARNING
Repair and refit the wheel
changed as soon as possible.
Do not apply grease to the bolt
threads before assembly: the bolts
could come loose unexpectedly.
WARNING
