technical specifications FIAT DUCATO 2009 Owner handbook (in English)

153
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

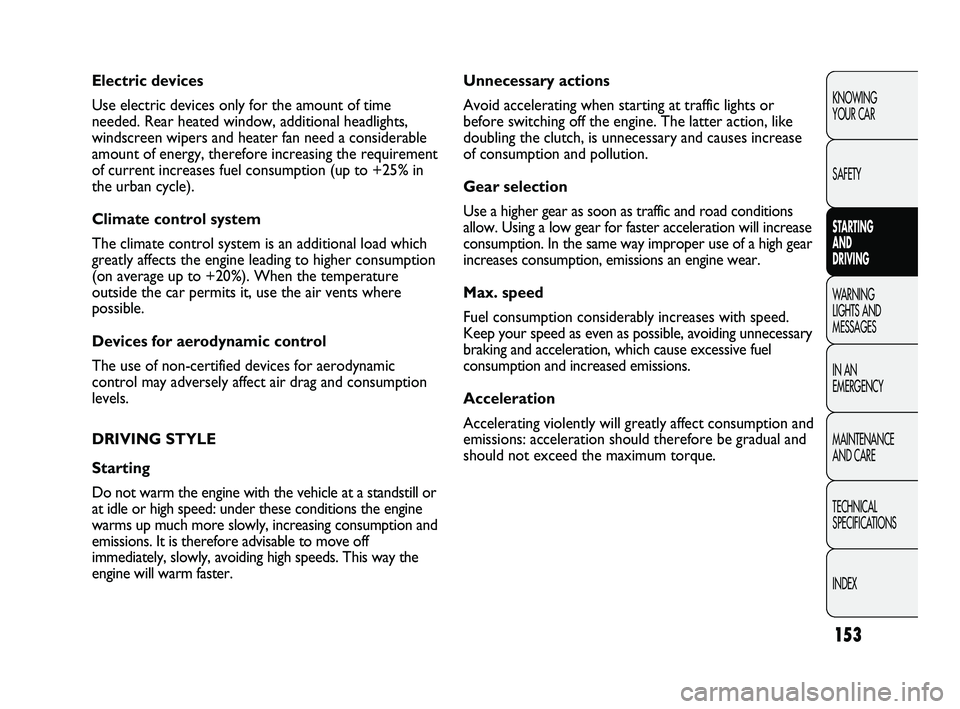

Unnecessary actions
Avoid accelerating when starting at traffic lights or
before switching off the engine. The latter action, like
doubling the clutch, is unnecessary and causes increase
of consumption and pollution.
Gear selection
Use a higher gear as soon as traffic and road conditions
allow. Using a low gear for faster acceleration will increase
consumption. In the same way improper use of a high gear
increases consumption, emissions an engine wear.
Max. speed
Fuel consumption considerably increases with speed.
Keep your speed as even as possible, avoiding unnecessary
braking and acceleration, which cause excessive fuel
consumption and increased emissions.
Acceleration
Accelerating violently will greatly affect consumption and
emissions: acceleration should therefore be gradual and
should not exceed the maximum torque. Electric devices
Use electric devices only for the amount of time
needed. Rear heated window, additional headlights,
windscreen wipers and heater fan need a considerable
amount of energy, therefore increasing the requirement
of current increases fuel consumption (up to +25% in
the urban cycle).
Climate control system
The climate control system is an additional load which
greatly affects the engine leading to higher consumption
(on average up to +20%). When the temperature
outside the car permits it, use the air vents where
possible.
Devices for aerodynamic control
The use of non-certified devices for aerodynamic
control may adversely affect air drag and consumption
levels.
DRIVING STYLE
Starting
Do not warm the engine with the vehicle at a standstill or
at idle or high speed: under these conditions the engine
warms up much more slowly, increasing consumption and
emissions. It is therefore advisable to move off
immediately, slowly, avoiding high speeds. This way the
engine will warm faster.
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 153

154
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
TOWING TRAILERS
IMPORTANT NOTES
The vehicle must be provided with a type-approved tow
hook and adequate electrical system to tow caravans or
trailers. Installation should be carried out by specialised
personnel who will issue the required papers for
travelling on roads.
Install any specific and/or additional rear view mirrors as
specified by the Highway Code.
Remember that when towing a trailer, steep hills are
harder to climb, the braking spaces increase and
overtaking takes longer depending on the overall weight.
Engage a low gear when driving downhill, rather than
constantly using the brake.
The weight of the trailer on the vehicle tow hook will
reduce the loading capacity of the vehicle by the same
amount. Consider the weight of the trailer fully laden,
including accessories and luggage, to make sure you do
not exceed the maximum towable weight (shown on
the vehicle registration document).
Do not exceed the speed limits specific for each country
you are driving in, in the case of vehicles towing trailers.
In any case, the top speed must not exceed 100 km/h.
Fit a suitable towing stabiliser to the trailer to be towed. CONDITIONS OF USE
Cold starting
Short journeys and frequent cold starts will prevent the
engine from reaching optimal running temperature.
Consequently, both consumption (from +15 to +30% on
urban cycle ) and emissions will increase.
Traffic and road conditions
Rather high consumption levels are linked to situations
with heavy traffic, for instance when travelling in queues
with frequent use of the lower gears or in cities with
many traffic lights. Winding mountain roads and rough
road surfaces also adversely affect consumption.
Traffic hold-ups
During prolonged hold-ups (e.g. level crossings) the
engine should be switched off.
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 154

155
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

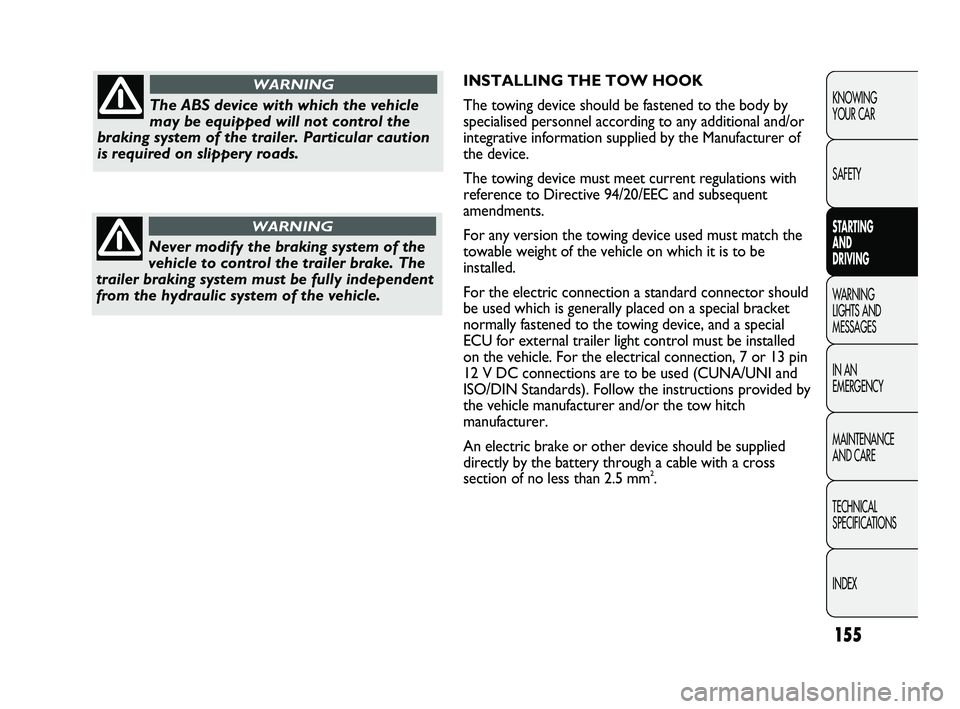

INSTALLING THE TOW HOOK
The towing device should be fastened to the body by
specialised personnel according to any additional and/or
integrative information supplied by the Manufacturer of
the device.
The towing device must meet current regulations with
reference to Directive 94/20/EEC and subsequent
amendments.
For any version the towing device used must match the
towable weight of the vehicle on which it is to be
installed.
For the electric connection a standard connector should
be used which is generally placed on a special bracket
normally fastened to the towing device, and a special
ECU for external trailer light control must be installed
on the vehicle. For the electrical connection, 7 or 13 pin
12 V DC connections are to be used (CUNA/UNI and
ISO/DIN Standards). Follow the instructions provided by
the vehicle manufacturer and/or the tow hitch
manufacturer.
An electric brake or other device should be supplied
directly by the battery through a cable with a cross
section of no less than 2.5 mm
2.
The ABS device with which the vehicle
may be equipped will not control the
braking system of the trailer. Particular caution
is required on slippery roads.
WARNING
Never modify the braking system of the
vehicle to control the trailer brake. The
trailer braking system must be fully independent
from the hydraulic system of the vehicle.
WARNING
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 155

156
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
IMPORTANT The engine must be running to use the
electric brake or a winch.
In addition to the electrical branches, the vehicle’s
electric system can only be connected to the supply
cable for an electric brake and to the cable for an
internal light, though not above 15 W. For connections
use the preset control unit with battery cable no less
than 2.5 mm
2.
IMPORTANT The trailer tow hook contributes to the
length of the vehicle. When installing on long wheelbase
versions, it is only possible to install removable tow
hooks because the total vehicle length limit of 6 metres
is exceeded.
If no trailer is fitted, the hook must be removed from
the attachment base and it must not exceed the
vehicle’s original length.IMPORTANT If you wish to leave the tow hook fitted
without towing a trailer, it is advisable to contact a Fiat
Dealership for the relevant system update operations
because the tow hook could be detected as an obstacle
by the central sensors.
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 156

157
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
Installation diagram for Van
versions – fig. 161
The tow hook structure must be
fastened in the points shown by the
symbol Øusing a total of 6
M10x1.25 screws and 4 M12 screws.
The internal back plates must be at
least 5 mm thick.
MAX LOAD ON BALL: 100/120 kg
according to the payload (see
“Weights” table in the “Technical
data” section).
After fitting, the screw
holes must be sealed to
prevent exhaust gas leaks.
WARNING
fig. 161F0N0189m
Existing hole
Existing nut
Existing nutExisting hole
Existing hole
laden
Standard ball M12
M12
M10 (3x)
M10 (3x)
M12
To install a tow hook, the bumpers
must be trimmed as described in the
supplier’s installation kit.
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 157

158
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
Installation diagram for Truck
and Chassis Cab versions
– fig. 162
Another tow hook specific to Truck
and Chassis Cab versions is shown
in fig. 162.
The structure Ømust be fastened in
the points shown using a total of
6 M10x1.25 screws and 4 M12
screws.
MAX LOAD ON BALL: 100/120 kg
according to the payload (see
“Weights” table in the “Technical
data” section).
After fitting, the screw
holes must be sealed to
prevent exhaust gas from
entering.
WARNING
fig. 162F0N0250m
Existing hole
Existing hole
Existing hole
Standard ball
laden
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 158

159
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

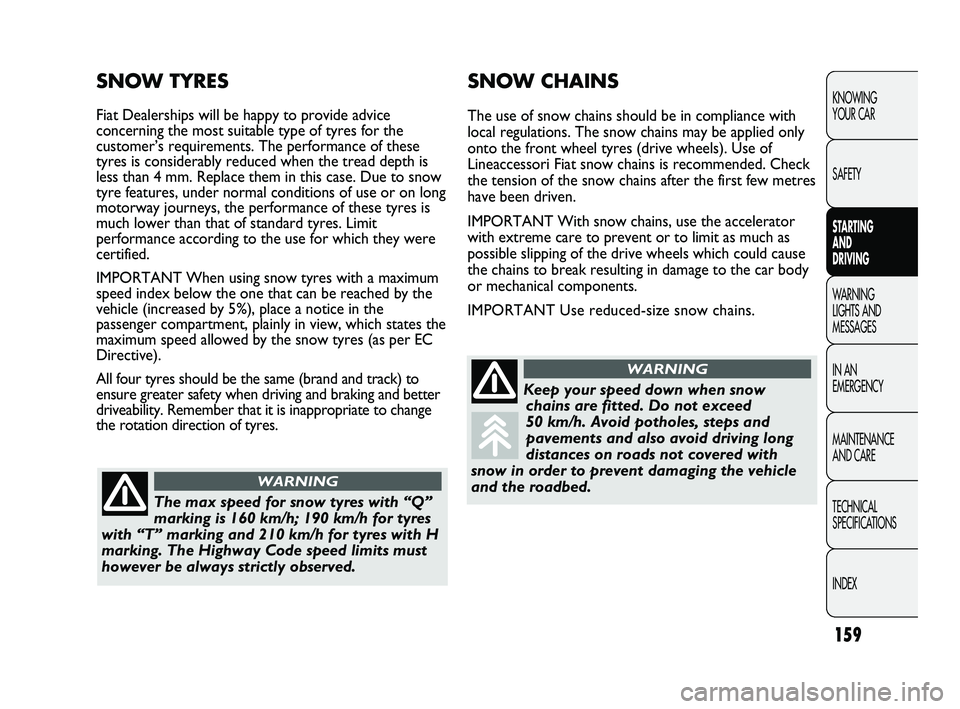

SNOW CHAINS
The use of snow chains should be in compliance with
local regulations. The snow chains may be applied only
onto the front wheel tyres (drive wheels). Use of
Lineaccessori Fiat snow chains is recommended. Check
the tension of the snow chains after the first few metres
have been driven.
IMPORTANT With snow chains, use the accelerator
with extreme care to prevent or to limit as much as
possible slipping of the drive wheels which could cause
the chains to break resulting in damage to the car body
or mechanical components.
IMPORTANT Use reduced-size snow chains.
SNOW TYRES
Fiat Dealerships will be happy to provide advice
concerning the most suitable type of tyres for the
customer’s requirements. The performance of these
tyres is considerably reduced when the tread depth is
less than 4 mm. Replace them in this case. Due to snow
tyre features, under normal conditions of use or on long
motorway journeys, the performance of these tyres is
much lower than that of standard tyres. Limit
performance according to the use for which they were
certified.
IMPORTANT When using snow tyres with a maximum
speed index below the one that can be reached by the
vehicle (increased by 5%), place a notice in the
passenger compartment, plainly in view, which states the
maximum speed allowed by the snow tyres (as per EC
Directive).
All four tyres should be the same (brand and track) to
ensure greater safety when driving and braking and better
driveability. Remember that it is inappropriate to change
the rotation direction of tyres.
The max speed for snow tyres with “Q”
marking is 160 km/h; 190 km/h for tyres
with “T” marking and 210 km/h for tyres with H
marking. The Highway Code speed limits must
however be always strictly observed.
WARNING
Keep your speed down when snow
chains are fitted. Do not exceed
50 km/h. Avoid potholes, steps and
pavements and also avoid driving long
distances on roads not covered with
snow in order to prevent damaging the vehicle
and the roadbed.
WARNING
147-160 DUCATO LUM EN 7ed 6/21/10 2:13 PM Page 159

161
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

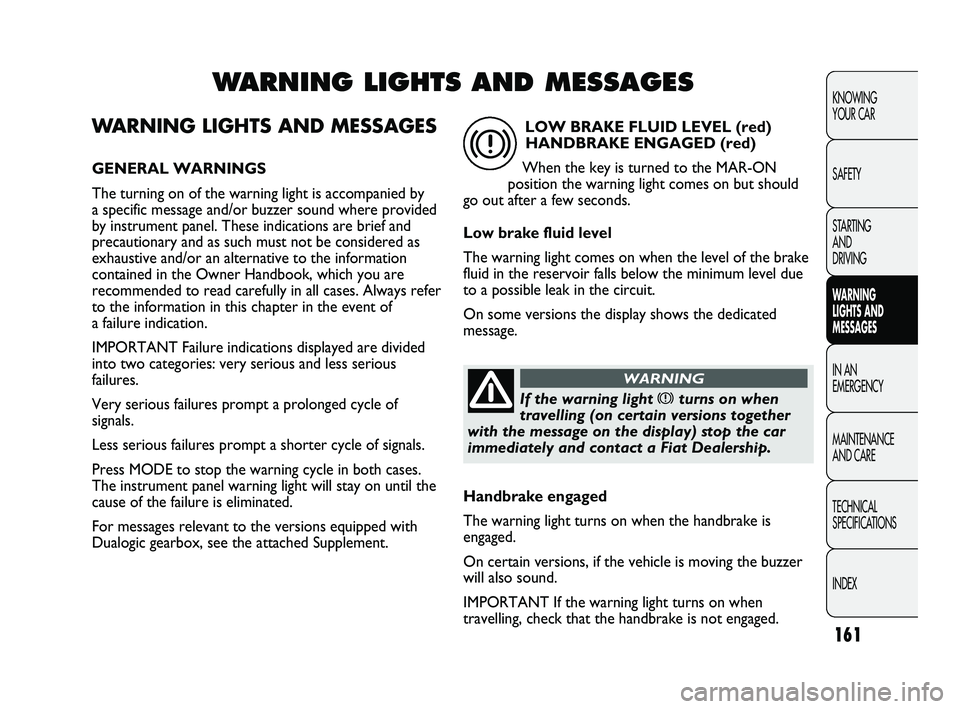

WARNING LIGHTS AND MESSAGES
GENERAL WARNINGS
The turning on of the warning light is accompanied by
a specific message and/or buzzer sound where provided
by instrument panel. These indications are brief and
precautionary and as such must not be considered as
exhaustive and/or an alternative to the information
contained in the Owner Handbook, which you are
recommended to read carefully in all cases. Always refer
to the information in this chapter in the event of
a failure indication.
IMPORTANT Failure indications displayed are divided
into two categories: very serious and less serious
failures.
Very serious failures prompt a prolonged cycle of
signals.
Less serious failures prompt a shorter cycle of signals.
Press MODE to stop the warning cycle in both cases.
The instrument panel warning light will stay on until the
cause of the failure is eliminated.
For messages relevant to the versions equipped with
Dualogic gearbox, see the attached Supplement.
WARNING LIGHTS AND MESSAGES
If the warning light xturns on when
travelling (on certain versions together
with the message on the display) stop the car
immediately and contact a Fiat Dealership.
WARNING
LOW BRAKE FLUID LEVEL (red)
HANDBRAKE ENGAGED (red)
When the key is turned to the MAR-ON
position the warning light comes on but should
go out after a few seconds.
Low brake fluid level
The warning light comes on when the level of the brake
fluid in the reservoir falls below the minimum level due
to a possible leak in the circuit.
On some versions the display shows the dedicated
message.
x
Handbrake engaged
The warning light turns on when the handbrake is
engaged.
On certain versions, if the vehicle is moving the buzzer
will also sound.
IMPORTANT If the warning light turns on when
travelling, check that the handbrake is not engaged.
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 161

162
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

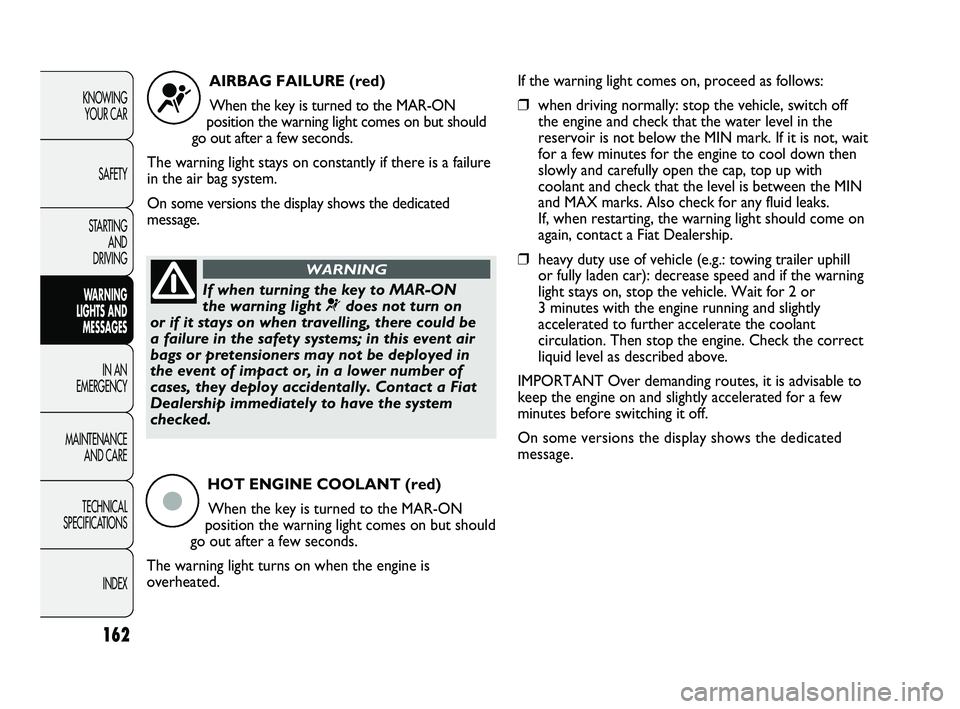

AIRBAG FAILURE (red)
When the key is turned to the MAR-ON
position the warning light comes on but should
go out after a few seconds.
The warning light stays on constantly if there is a failure
in the air bag system.
On some versions the display shows the dedicated
message.
¬
If when turning the key to MAR-ON
the warning light ¬does not turn on
or if it stays on when travelling, there could be
a failure in the safety systems; in this event air
bags or pretensioners may not be deployed in
the event of impact or, in a lower number of
cases, they deploy accidentally. Contact a Fiat
Dealership immediately to have the system
checked.
WARNING
HOT ENGINE COOLANT (red)
When the key is turned to the MAR-ON
position the warning light comes on but should
go out after a few seconds.
The warning light turns on when the engine is
overheated.
ç
If the warning light comes on, proceed as follows:
❒when driving normally: stop the vehicle, switch off
the engine and check that the water level in the
reservoir is not below the MIN mark. If it is not, wait
for a few minutes for the engine to cool down then
slowly and carefully open the cap, top up with
coolant and check that the level is between the MIN
and MAX marks. Also check for any fluid leaks.
If, when restarting, the warning light should come on
again, contact a Fiat Dealership.
❒heavy duty use of vehicle (e.g.: towing trailer uphill
or fully laden car): decrease speed and if the warning
light stays on, stop the vehicle. Wait for 2 or
3 minutes with the engine running and slightly
accelerated to further accelerate the coolant
circulation. Then stop the engine. Check the correct
liquid level as described above.
IMPORTANT Over demanding routes, it is advisable to
keep the engine on and slightly accelerated for a few
minutes before switching it off.
On some versions the display shows the dedicated
message.
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 162

163
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

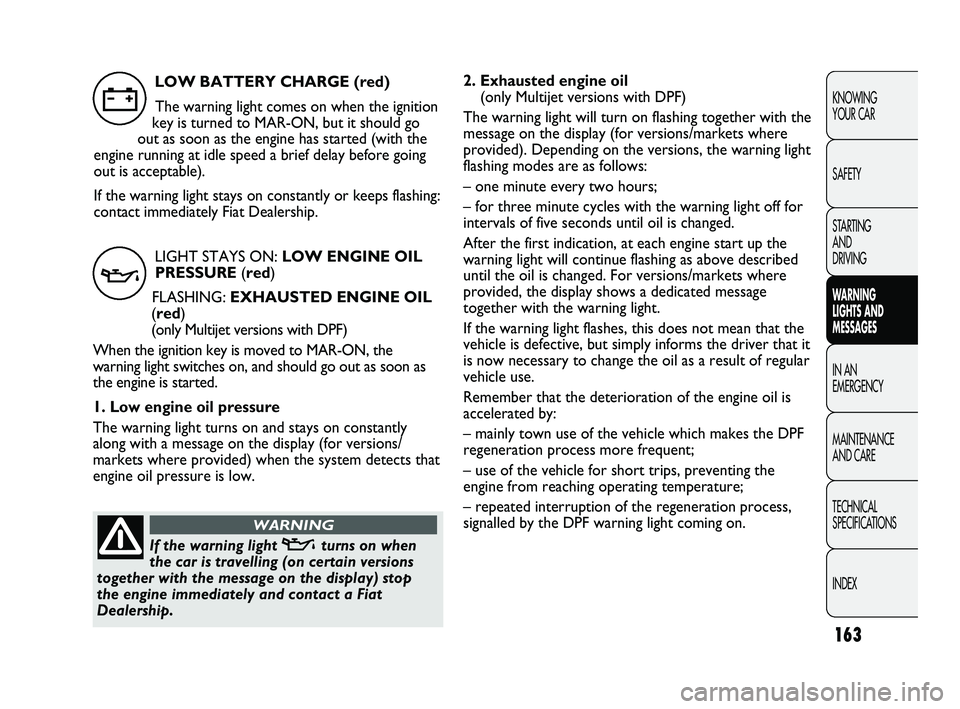

2. Exhausted engine oil
(only Multijet versions with DPF)
The warning light will turn on flashing together with the
message on the display (for versions/markets where
provided). Depending on the versions, the warning light
flashing modes are as follows:
– one minute every two hours;
– for three minute cycles with the warning light off for
intervals of five seconds until oil is changed.
After the first indication, at each engine start up the
warning light will continue flashing as above described
until the oil is changed. For versions/markets where
provided, the display shows a dedicated message
together with the warning light.
If the warning light flashes, this does not mean that the
vehicle is defective, but simply informs the driver that it
is now necessary to change the oil as a result of regular
vehicle use.
Remember that the deterioration of the engine oil is
accelerated by:
– mainly town use of the vehicle which makes the DPF
regeneration process more frequent;
– use of the vehicle for short trips, preventing the
engine from reaching operating temperature;
– repeated interruption of the regeneration process,
signalled by the DPF warning light coming on. LOW BATTERY CHARGE (red)
The warning light comes on when the ignition
key is turned to MAR-ON, but it should go
out as soon as the engine has started (with the
engine running at idle speed a brief delay before going
out is acceptable).
If the warning light stays on constantly or keeps flashing:
contact immediately Fiat Dealership.
w
LIGHT STAYS ON: LOW ENGINE OIL
PRESSURE (red)
FLASHING: EXHAUSTED ENGINE OIL
(red)
(only Multijet versions with DPF)
When the ignition key is moved to MAR-ON, the
warning light switches on, and should go out as soon as
the engine is started.
1. Low engine oil pressure
The warning light turns on and stays on constantly
along with a message on the display (for versions/
markets where provided) when the system detects that
engine oil pressure is low.
v
If the warning light vturns on when
the car is travelling (on certain versions
together with the message on the display) stop
the engine immediately and contact a Fiat
Dealership.
WARNING
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 163
