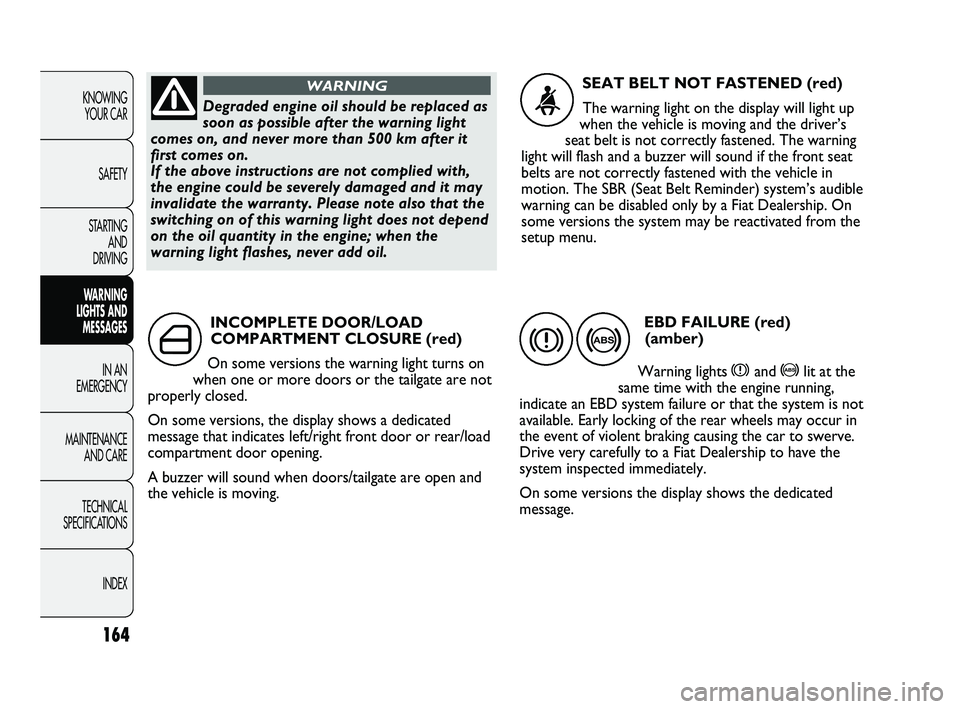

INCOMPLETE DOOR/LOAD
COMPARTMENT CLOSURE (red)
On some versions the warning light turns on
when one or more doors or the tailgate are not
properly closed.
On some versions, the display shows a dedicated
message that indicates left/right front door or rear/load
compartment door opening.
A buzzer will sound when doors/tailgate are open and
the vehicle is moving.
´
Degraded engine oil should be replaced as
soon as possible after the warning light
comes on, and never more than 500 km after it
first comes on.
If the above instructions are not complied with,
the engine could be severely damaged and it may
invalidate the warranty. Please note also that the
switching on of this warning light does not depend
on the oil quantity in the engine; when the
warning light flashes, never add oil.
WARNING
EBD FAILURE (red)
(amber)
Warning lights
xand >lit at the
same time with the engine running,
indicate an EBD system failure or that the system is not
available. Early locking of the rear wheels may occur in
the event of violent braking causing the car to swerve.
Drive very carefully to a Fiat Dealership to have the
system inspected immediately.
On some versions the display shows the dedicated
message.
>
SEAT BELT NOT FASTENED (red)
The warning light on the display will light up
when the vehicle is moving and the driver’s
seat belt is not correctly fastened. The warning
light will flash and a buzzer will sound if the front seat
belts are not correctly fastened with the vehicle in
motion. The SBR (Seat Belt Reminder) system’s audible
warning can be disabled only by a Fiat Dealership. On
some versions the system may be reactivated from the
setup menu.
<
x
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 164

165
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

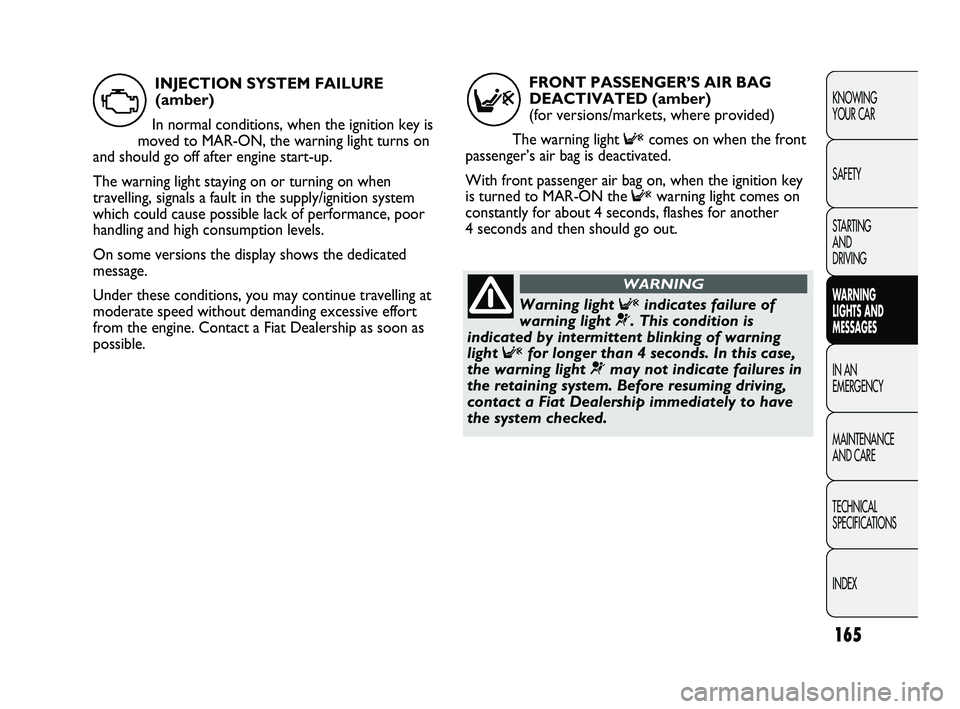

FRONT PASSENGER’S AIR BAG
DEACTIVATED (amber)
(for versions/markets, where provided)
The warning light
Fcomes on when the front
passenger’s air bag is deactivated.
With front passenger air bag on, when the ignition key
is turned to MAR-ON the
Fwarning light comes on
constantly for about 4 seconds, flashes for another
4 seconds and then should go out.
INJECTION SYSTEM FAILURE
(amber)
In normal conditions, when the ignition key is
moved to MAR-ON, the warning light turns on
and should go off after engine start-up.
The warning light staying on or turning on when
travelling, signals a fault in the supply/ignition system
which could cause possible lack of performance, poor
handling and high consumption levels.
On some versions the display shows the dedicated
message.
Under these conditions, you may continue travelling at
moderate speed without demanding excessive effort
from the engine. Contact a Fiat Dealership as soon as
possible.
UF
Warning light Findicates failure of
warning light ¬. This condition is
indicated by intermittent blinking of warning
light
Ffor longer than 4 seconds. In this case,
the warning light ¬may not indicate failures in
the retaining system. Before resuming driving,
contact a Fiat Dealership immediately to have
the system checked.
WARNING
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 165

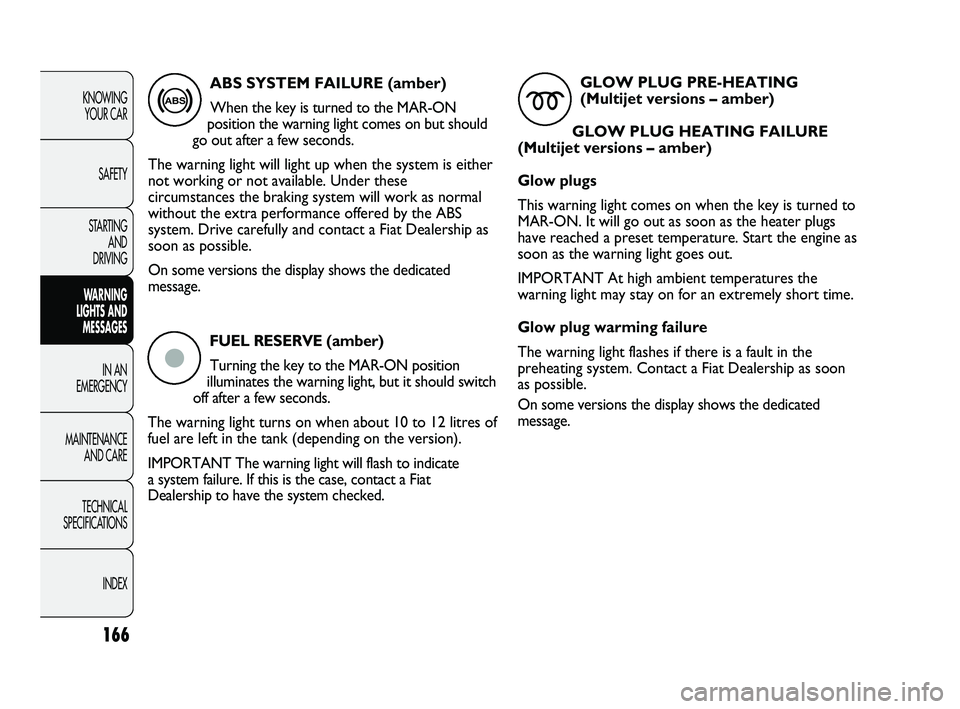

FUEL RESERVE (amber)
Turning the key to the MAR-ON position
illuminates the warning light, but it should switch
off after a few seconds.
The warning light turns on when about 10 to 12 litres of
fuel are left in the tank (depending on the version).
IMPORTANT The warning light will flash to indicate
a system failure. If this is the case, contact a Fiat
Dealership to have the system checked.
166
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEXç
ABS SYSTEM FAILURE (amber)
When the key is turned to the MAR-ON
position the warning light comes on but should
go out after a few seconds.
The warning light will light up when the system is either
not working or not available. Under these
circumstances the braking system will work as normal
without the extra performance offered by the ABS
system. Drive carefully and contact a Fiat Dealership as
soon as possible.
On some versions the display shows the dedicated
message.
>
GLOW PLUG PRE-HEATING
(Multijet versions – amber)
GLOW PLUG HEATING FAILURE
(Multijet versions – amber)
Glow plugs
This warning light comes on when the key is turned to
MAR-ON. It will go out as soon as the heater plugs
have reached a preset temperature. Start the engine as
soon as the warning light goes out.
IMPORTANT At high ambient temperatures the
warning light may stay on for an extremely short time.
Glow plug warming failure
The warning light flashes if there is a fault in the
preheating system. Contact a Fiat Dealership as soon
as possible.
On some versions the display shows the dedicated
message.
m
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 166

167
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

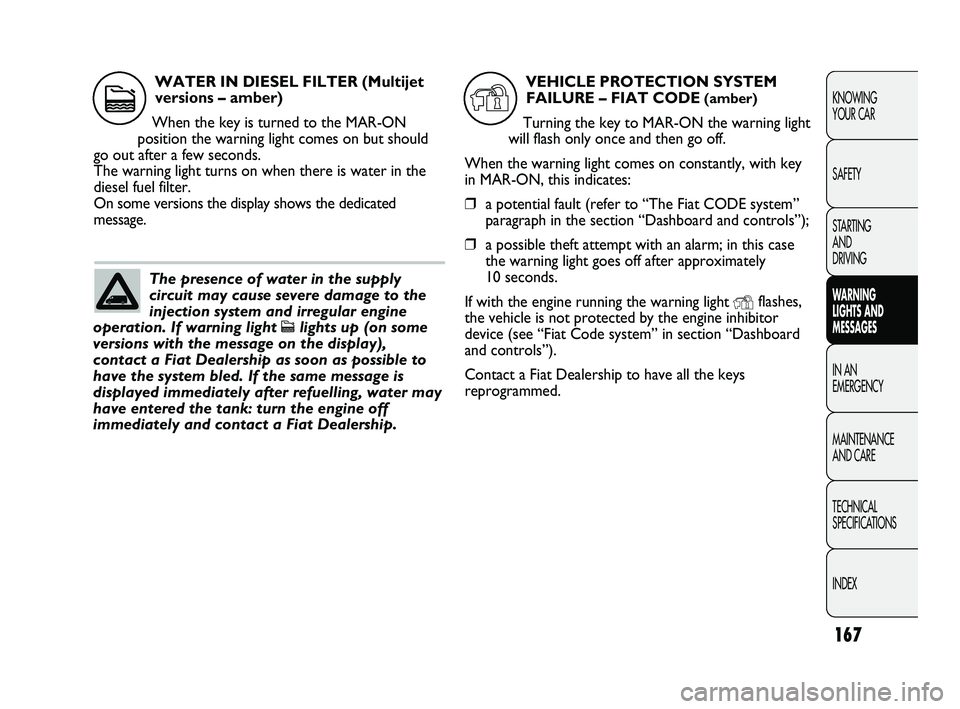

The presence of water in the supply
circuit may cause severe damage to the
injection system and irregular engine
operation. If warning light
clights up (on some
versions with the message on the display),
contact a Fiat Dealership as soon as possible to
have the system bled. If the same message is
displayed immediately after refuelling, water may
have entered the tank: turn the engine off
immediately and contact a Fiat Dealership.
WATER IN DIESEL FILTER (Multijet
versions – amber)
When the key is turned to the MAR-ON
position the warning light comes on but should
go out after a few seconds.
The warning light turns on when there is water in the
diesel fuel filter.
On some versions the display shows the dedicated
message.
c
VEHICLE PROTECTION SYSTEM
FAILURE – FIAT CODE
(amber)
Turning the key to MAR-ON the warning light
will flash only once and then go off.
When the warning light comes on constantly, with key
in MAR-ON, this indicates:
❒a potential fault (refer to “The Fiat CODE system”
paragraph in the section “Dashboard and controls”);
❒a possible theft attempt with an alarm; in this case
the warning light goes off after approximately
10 seconds.
If with the engine running the warning light
Yflashes,
the vehicle is not protected by the engine inhibitor
device (see “Fiat Code system” in section “Dashboard
and controls”).
Contact a Fiat Dealership to have all the keys
reprogrammed.
Y
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 167

168
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
EXTERNAL LIGHT FAILURE
(amber)
The warning light will come on (some versions
only) when a failure to one of the following lights
is detected:
– side lights
– brake lights
– rear fog lights
– direction indicators.
The failure relating to these lights could be: one or
more blown bulbs, a blown protection fuse or a break
in the electrical connection.
On some versions the display shows the dedicated
message.
W
REAR FOG LIGHTS (amber)
The warning light comes on when the rear fog
lights are turned on.
4
GENERIC FAILURE INDICATION
(amber)
The warning light turns on in the following
circumstances.
Engine oil pressure sensor failure
The warning light turns on when failure is detected in
engine oil pressure sensor. Contact a Fiat Dealership to
have the failure fixed as soon as possible.
Fuel cut-off switch tripped
The warning light comes on when the inertial fuel
cut-off switch is triggered.
The display will show the dedicated message.
Parking sensor fault
(versions with multifunction display)
The warning light comes on when a rain sensor failure is
detected. Go to a Fiat Dealership.
The display shows the dedicated message.
Rain sensor fault
(versions with multifunction display)
See what is described for warning light
t.
è
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 168

169
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

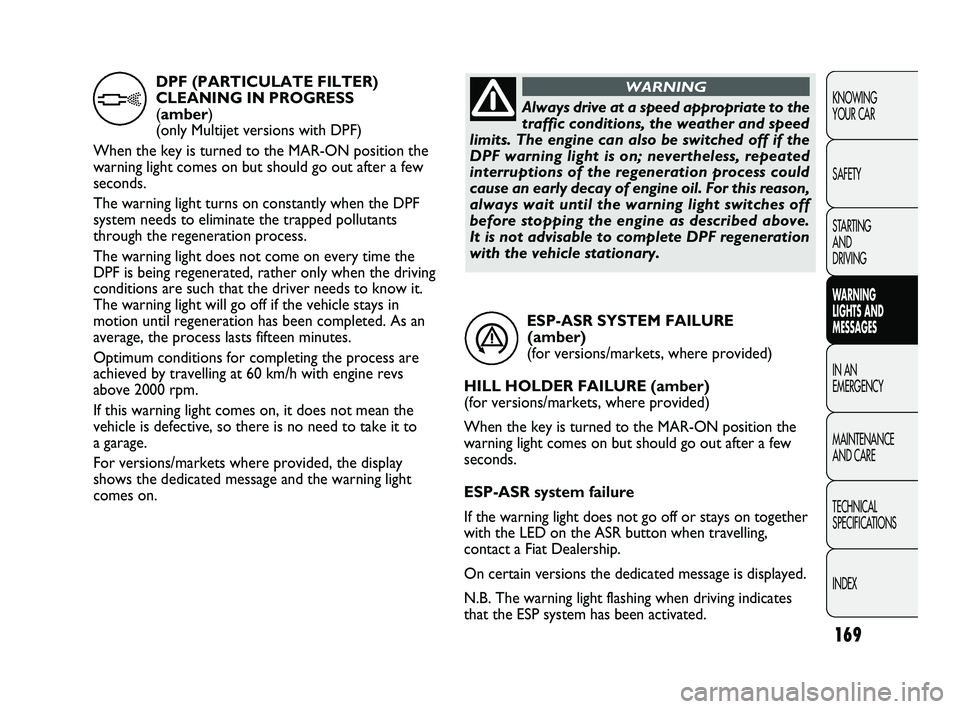

ESP-ASR SYSTEM FAILURE
(amber)
(for versions/markets, where provided)
HILL HOLDER FAILURE (amber)
(for versions/markets, where provided)
When the key is turned to the MAR-ON position the
warning light comes on but should go out after a few
seconds.
ESP-ASR system failure
If the warning light does not go off or stays on together
with the LED on the ASR button when travelling,
contact a Fiat Dealership.
On certain versions the dedicated message is displayed.
N.B. The warning light flashing when driving indicates
that the ESP system has been activated.
á
DPF (PARTICULATE FILTER)
CLEANING IN PROGRESS
(amber)
(only Multijet versions with DPF)
When the key is turned to the MAR-ON position the
warning light comes on but should go out after a few
seconds.
The warning light turns on constantly when the DPF
system needs to eliminate the trapped pollutants
through the regeneration process.
The warning light does not come on every time the
DPF is being regenerated, rather only when the driving
conditions are such that the driver needs to know it.
The warning light will go off if the vehicle stays in
motion until regeneration has been completed. As an
average, the process lasts fifteen minutes.
Optimum conditions for completing the process are
achieved by travelling at 60 km/h with engine revs
above 2000 rpm.
If this warning light comes on, it does not mean the
vehicle is defective, so there is no need to take it to
a garage.
For versions/markets where provided, the display
shows the dedicated message and the warning light
comes on.
hAlways drive at a speed appropriate to the
traffic conditions, the weather and speed
limits. The engine can also be switched off if the
DPF warning light is on; nevertheless, repeated
interruptions of the regeneration process could
cause an early decay of engine oil. For this reason,
always wait until the warning light switches off
before stopping the engine as described above.
It is not advisable to complete DPF regeneration
with the vehicle stationary.
WARNING
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 169

170
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
WORN BRAKE PADS
(amber)
The warning light on the dial turns on if the
front brake pads are worn; in this case have
them changed as soon as possible.
On certain versions the dedicated message is displayed.
d
Hill Holder failure
The warning light will turn on when the Hill Holder
system is faulty. In this case, contact a Fiat Dealership as
soon as possible.
On certain versions the dedicated message is displayed.
PARKING SENSOR FAILURE (amber)
(for versions/markets, where provided)
The warning light turns on when failure is
detected in the parking sensors.
On some versions warning light
èturns on as an
alternative.
Contact a Fiat Dealership.
On certain versions the dedicated message is displayed.
t
FRONT FOG LIGHTS (green)
The warning light turns on when the front fog
lights are turned on.
5
LEFT-HAND DIRECTION
INDICATOR (green – blinking)
The warning light turns on when the direction
indicator control lever is moved downwards or,
together with the right indicator, when the hazard
warning light button is pressed.
F
SIDE/TAIL LIGHTS
AND LOW BEAMS (green)
FOLLOW ME HOME (green)
Side/tail lights and low beams
The warning light comes on when side/tail lights or low
beams are turned on.
Follow me home
The warning light will turn on when this device is active
(see “Follow me home” in section “Dashboard and
controls”).
The display will show a dedicated message.
3
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 170

171
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

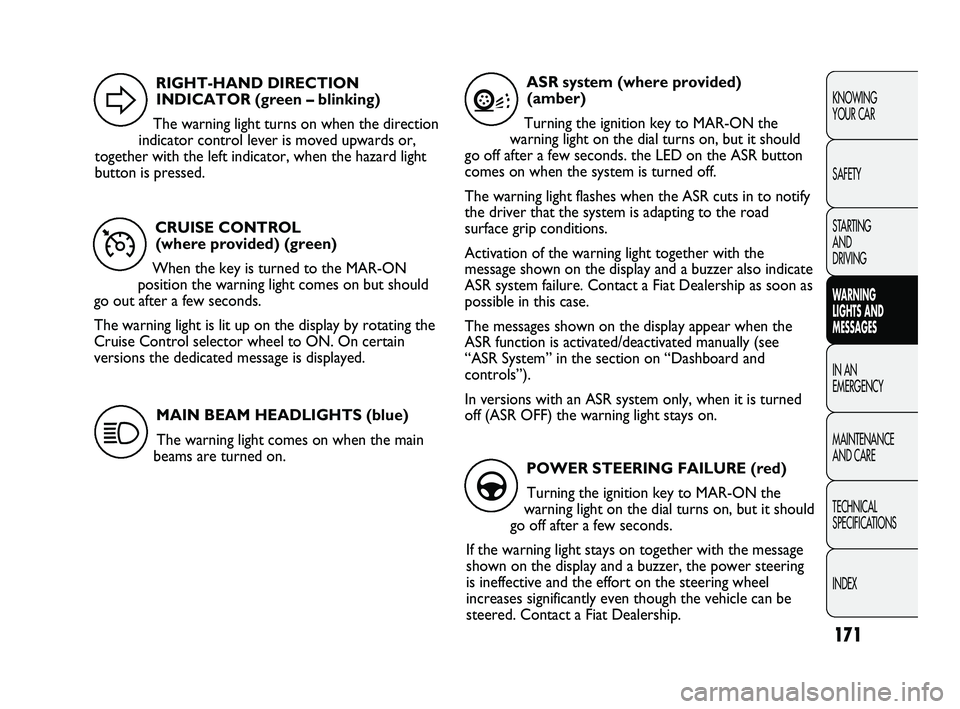

CRUISE CONTROL
(where provided) (green)
When the key is turned to the MAR-ON
position the warning light comes on but should
go out after a few seconds.
The warning light is lit up on the display by rotating the
Cruise Control selector wheel to ON. On certain
versions the dedicated message is displayed.
Ü
RIGHT-HAND DIRECTION
INDICATOR (green – blinking)
The warning light turns on when the direction
indicator control lever is moved upwards or,
together with the left indicator, when the hazard light
button is pressed.
D
MAIN BEAM HEADLIGHTS (blue)
The warning light comes on when the main
beams are turned on.
1
ASR system (where provided)
(amber)
Turning the ignition key to MAR-ON the
warning light on the dial turns on, but it should
go off after a few seconds. the LED on the ASR button
comes on when the system is turned off.
The warning light flashes when the ASR cuts in to notify
the driver that the system is adapting to the road
surface grip conditions.
Activation of the warning light together with the
message shown on the display and a buzzer also indicate
ASR system failure. Contact a Fiat Dealership as soon as
possible in this case.
The messages shown on the display appear when the
ASR function is activated/deactivated manually (see
“ASR System” in the section on “Dashboard and
controls”).
In versions with an ASR system only, when it is turned
off (ASR OFF) the warning light stays on.
V
POWER STEERING FAILURE (red)
Turning the ignition key to MAR-ON the
warning light on the dial turns on, but it should
go off after a few seconds.
If the warning light stays on together with the message
shown on the display and a buzzer, the power steering
is ineffective and the effort on the steering wheel
increases significantly even though the vehicle can be
steered. Contact a Fiat Dealership.
g
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 171

The warning light on the dial comes on constantly
(along with the display of the message and a buzzer) to
indicate that the automatic transmission oil
temperature is too high.
POSSIBLE ICE ON ROAD
This indication starts flashing when the outside
temperature reaches or falls below 3 °C to warn the
driver of the possible presence of ice on the road.
The display will show the dedicated message (only for
versions with a multifunction display).
LIMITED RANGE
(versions with multifunction display)
The display will show the dedicated message to warn
the driver that the vehicle’s range is less than 50 km.
SPEED LIMIT EXCEEDED
The display shows the dedicated message when the
vehicle exceeds the set speed limit (see “Multifunction
Display” in section “Dashboard and controls”).
172
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX

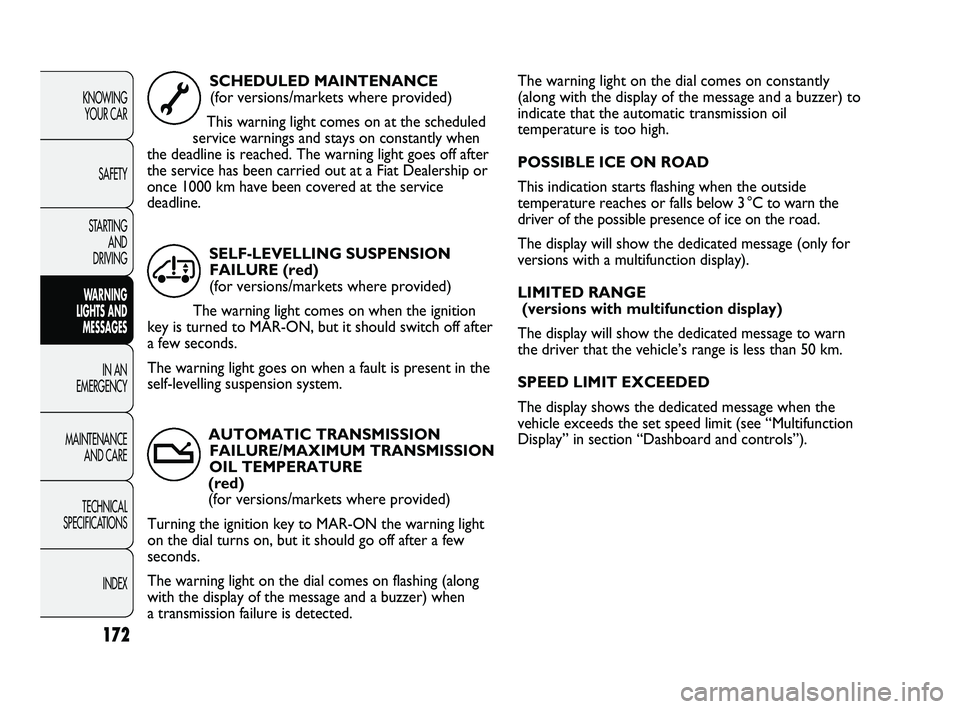

SCHEDULED MAINTENANCE
(for versions/markets where provided)
This warning light comes on at the scheduled
service warnings and stays on constantly when
the deadline is reached. The warning light goes off after
the service has been carried out at a Fiat Dealership or
once 1000 km have been covered at the service
deadline.
õ
AUTOMATIC TRANSMISSION
FAILURE/MAXIMUM TRANSMISSION
OIL TEMPERATURE
(red)
(for versions/markets where provided)
Turning the ignition key to MAR-ON the warning light
on the dial turns on, but it should go off after a few
seconds.
The warning light on the dial comes on flashing (along
with the display of the message and a buzzer) when
a transmission failure is detected.SELF-LEVELLING SUSPENSION
FAILURE (red)
(for versions/markets where provided)
The warning light comes on when the ignition
key is turned to MAR-ON, but it should switch off after
a few seconds.
The warning light goes on when a fault is present in the
self-levelling suspension system.
Œ
t
161-172 DUCATO LUM EN 7ed 6/21/10 2:14 PM Page 172

173
KNOWING
YOUR CAR
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
F0N0075mfig. 163F0N0076mfig. 164

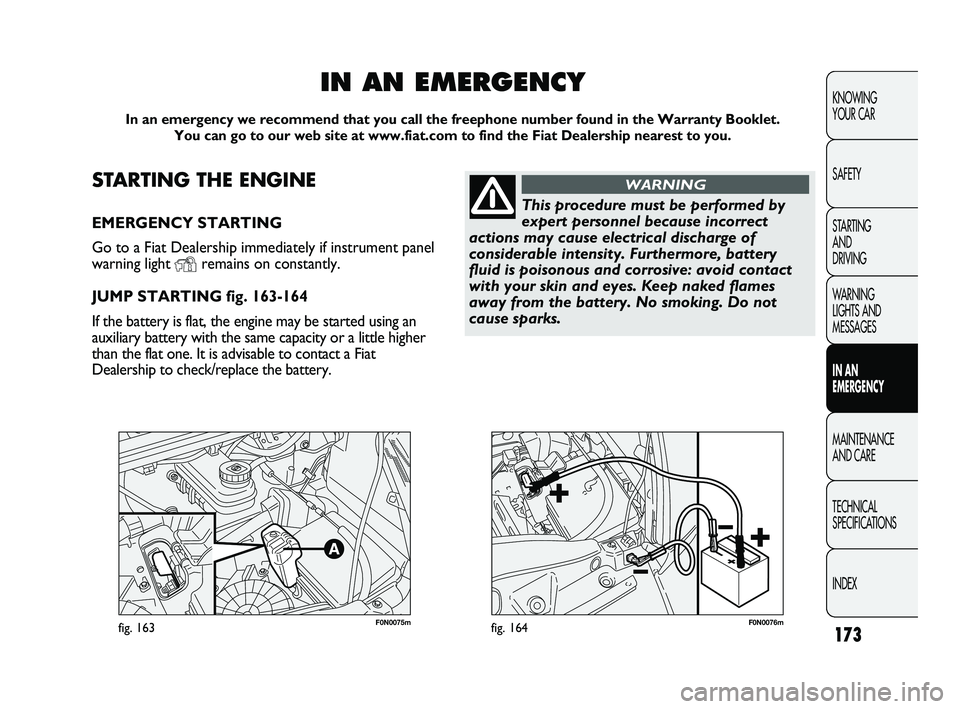

STARTING THE ENGINE
EMERGENCY STARTING
Go to a Fiat Dealership immediately if instrument panel
warning light
Yremains on constantly.
JUMP STARTING fig. 163-164
If the battery is flat, the engine may be started using an
auxiliary battery with the same capacity or a little higher
than the flat one. It is advisable to contact a Fiat
Dealership to check/replace the battery.
IN AN EMERGENCY
In an emergency we recommend that you call the freephone number found in the Warranty Booklet.
You can go to our web site at www.fiat.com to find the Fiat Dealership nearest to you.
This procedure must be performed by
expert personnel because incorrect
actions may cause electrical discharge of
considerable intensity. Furthermore, battery
fluid is poisonous and corrosive: avoid contact
with your skin and eyes. Keep naked flames
away from the battery. No smoking. Do not
cause sparks.
WARNING
173-206 DUCATO LUM EN 8ed 27-10-2010 15:45 Pagina 173
