ENGINE OIL LEVEL
GAUGE
(for versions/markets, where provided)
The gauge provides a graphic indication
of the level of oil in the engine.
When the ignition key is turned to the
MAR position, the display fig. 79 -
fig. 80 shows the oil level by turning
on/off five symbols.The gradual switching off of the
symbols indicates a decreasing oil level.
Four or five symbols light up to indicate
a sufficient level of oil in the sump. If
the fifth symbol is not lit, this does not
indicate a fault or that insufficient oil
is present in the sump.
If the oil level is lower than the minimum
required value, the display shows a
dedicated message indicating minimum
engine oil level and the need for a
top-up.
IMPORTANT To find out the correct oil
quantity, always check using the
dipstick (see paragraph “Checking
levels” in the section “Maintenance and
care”).
After a few seconds, the symbol display
indicating the amount of engine oil
disappears and:
When the next scheduled servicing
intervention is approaching, the time
to the next service is displayed and the
õ symbol lights up on the display.
When the service date is reached, the
display shows a dedicated message;
Later on, if the time for changing the
engine oil is getting close, the distance
until the next oil change will appear
on the display. When the service interval
has expired a dedicated warning will
be shown on the display.CONTROL BUTTONS
To scroll up through the
screen and the related options
or to increase the displayed
value.
MODEPress briefly to access the menu and/or
go to next screen or to confirm the
required menu option.
Hold down to go back to the standard
screen.
To scroll down through the
screen and the related options
or to decrease the displayed
value.
NoteThe
andbuttons turn
on various functions depending on the
situation, as follows:
79 - Versions with multifunction displayF1A0354
Liv.olio
MAX MIN
80 - Versions with reconfigurable multifunction
displayF1A0355
MODE
81F1A0304
53

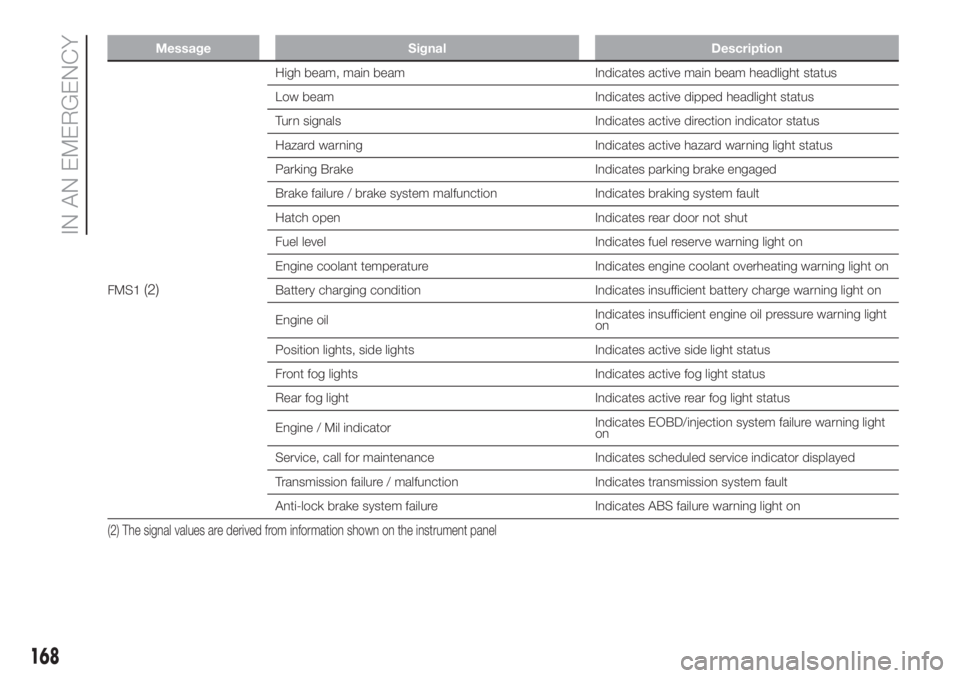

Message Signal Description
FMS1(2)
High beam, main beam Indicates active main beam headlight status
Low beam Indicates active dipped headlight status
Turn signals Indicates active direction indicator status
Hazard warning Indicates active hazard warning light status
Parking Brake Indicates parking brake engaged
Brake failure / brake system malfunction Indicates braking system fault
Hatch open Indicates rear door not shut
Fuel level Indicates fuel reserve warning light on
Engine coolant temperature Indicates engine coolant overheating warning light on
Battery charging condition Indicates insufficient battery charge warning light on
Engine oilIndicates insufficient engine oil pressure warning light
on
Position lights, side lights Indicates active side light status
Front fog lights Indicates active fog light status
Rear fog light Indicates active rear fog light status
Engine / Mil indicatorIndicates EOBD/injection system failure warning light
on
Service, call for maintenance Indicates scheduled service indicator displayed
Transmission failure / malfunction Indicates transmission system fault
Anti-lock brake system failure Indicates ABS failure warning light on
(2) The signal values are derived from information shown on the instrument panel
168
IN AN EMERGENCY

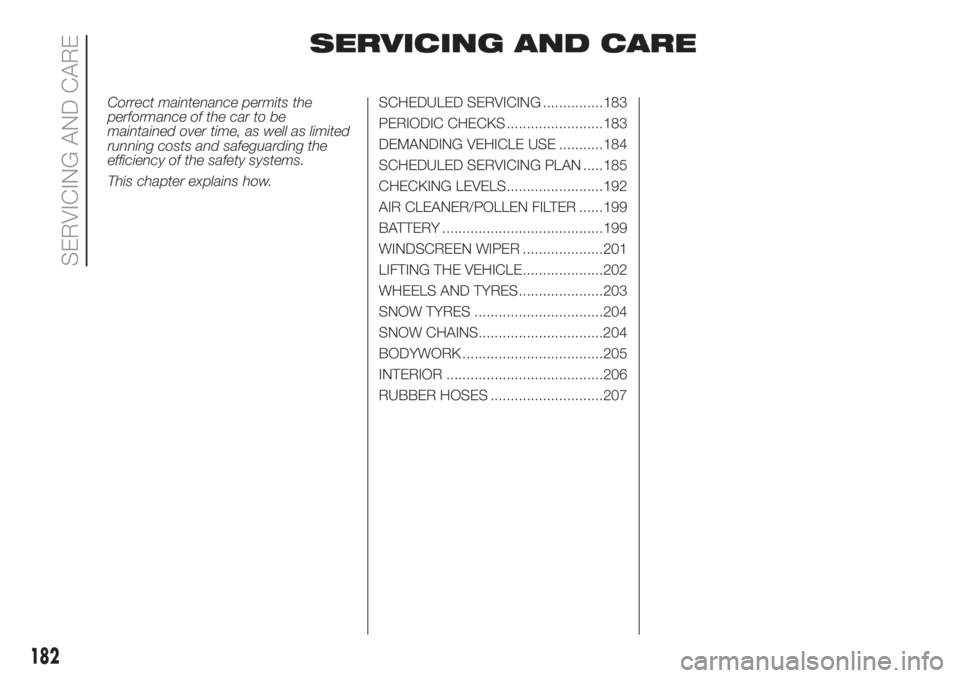

SERVICING AND CARE
Correct maintenance permits the
performance of the car to be
maintained over time, as well as limited
running costs and safeguarding the
efficiency of the safety systems.
This chapter explains how.SCHEDULED SERVICING ...............183
PERIODIC CHECKS ........................183
DEMANDING VEHICLE USE ...........184
SCHEDULED SERVICING PLAN .....185
CHECKING LEVELS........................192
AIR CLEANER/POLLEN FILTER ......199
BATTERY ........................................199
WINDSCREEN WIPER ....................201
LIFTING THE VEHICLE....................202
WHEELS AND TYRES.....................203
SNOW TYRES ................................204
SNOW CHAINS...............................204
BODYWORK ...................................205
INTERIOR .......................................206
RUBBER HOSES ............................207
182
SERVICING AND CARE

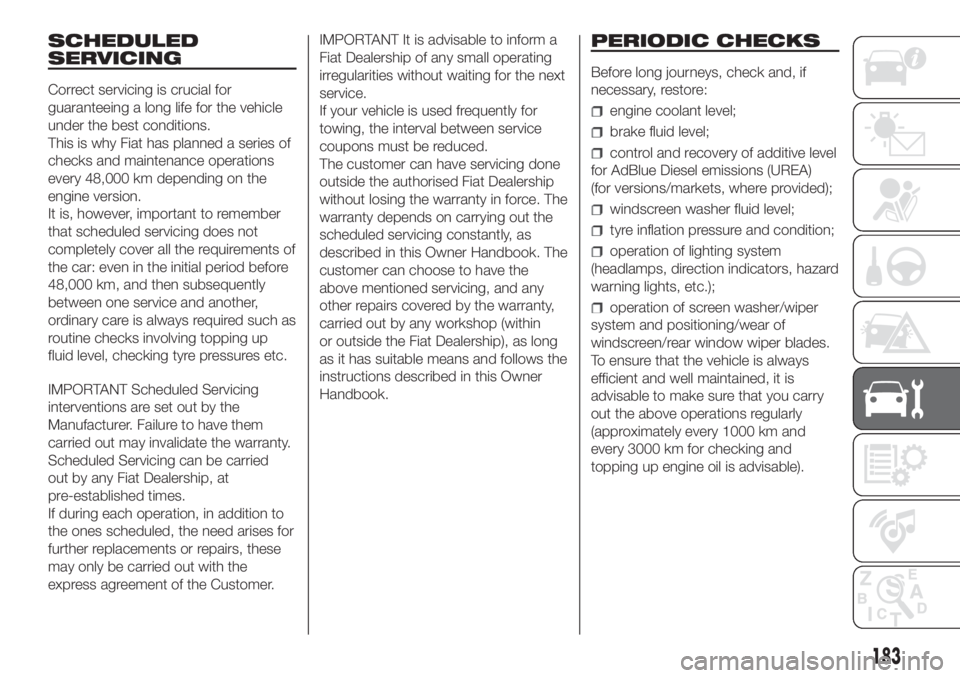

SCHEDULED
SERVICING
Correct servicing is crucial for
guaranteeing a long life for the vehicle
under the best conditions.
This is why Fiat has planned a series of
checks and maintenance operations
every 48,000 km depending on the
engine version.
It is, however, important to remember
that scheduled servicing does not
completely cover all the requirements of
the car: even in the initial period before
48,000 km, and then subsequently
between one service and another,
ordinary care is always required such as
routine checks involving topping up
fluid level, checking tyre pressures etc.
IMPORTANT Scheduled Servicing
interventions are set out by the
Manufacturer. Failure to have them
carried out may invalidate the warranty.
Scheduled Servicing can be carried
out by any Fiat Dealership, at
pre-established times.
If during each operation, in addition to
the ones scheduled, the need arises for
further replacements or repairs, these
may only be carried out with the
express agreement of the Customer.IMPORTANT It is advisable to inform a
Fiat Dealership of any small operating
irregularities without waiting for the next
service.
If your vehicle is used frequently for
towing, the interval between service
coupons must be reduced.
The customer can have servicing done
outside the authorised Fiat Dealership
without losing the warranty in force. The
warranty depends on carrying out the
scheduled servicing constantly, as
described in this Owner Handbook. The
customer can choose to have the
above mentioned servicing, and any
other repairs covered by the warranty,
carried out by any workshop (within
or outside the Fiat Dealership), as long
as it has suitable means and follows the
instructions described in this Owner
Handbook.
PERIODIC CHECKS
Before long journeys, check and, if
necessary, restore:
engine coolant level;
brake fluid level;
control and recovery of additive level
for AdBlue Diesel emissions (UREA)
(for versions/markets, where provided);
windscreen washer fluid level;
tyre inflation pressure and condition;
operation of lighting system
(headlamps, direction indicators, hazard
warning lights, etc.);
operation of screen washer/wiper
system and positioning/wear of
windscreen/rear window wiper blades.
To ensure that the vehicle is always
efficient and well maintained, it is
advisable to make sure that you carry
out the above operations regularly
(approximately every 1000 km and
every 3000 km for checking and
topping up engine oil is advisable).
183

AIR CLEANER/
POLLEN FILTER
Have the air cleaner replaced by a Fiat
Dealership.
AIR CLEANER – DUSTY
ROADS
(for versions/markets, where provided)
The air cleaner for dusty areas is
equipped with a visual filter clogging
indicator device A fig. 191.
Check the reading of the blockage
sensor at intervals (Refer to the "Service
Schedule" in the "Maintenance and
care" section).IMPORTANT To blow the filter use an
air jet, do not use water or liquid
detergents. Since this cleaner
is specific to versions designed for
dusty areas, it is advisable to contact a
Fiat Dealership to change the cleaner.
BATTERY
The battery is “limited maintenance”
type: under normal conditions of use,
the electrolyte does not need topping
up with distilled water.
It does, however, need to be checked
periodically at a Fiat Dealership or
by specialist personnel to make sure it
is working correctly.
The battery is located inside the
passenger compartment, in front of the
pedals. Remove the protective cover
to gain access to it.
191) 192)
REPLACING THE
BATTERY
If required, replace the battery with an
original spare part with the same
specifications.
If a battery with different specifications
is fitted, the service intervals given in
the “Scheduled Servicing Plan” will no
longer be valid.
Follow the battery manufacturer's
instructions for maintenance.
193) 194)
54) 55)
5)
191F1A0238
199

Fluids and lubricants ...................... 242
Follow Me Home device ................. 26
Front airbags .................................. 107
– Front airbag driver's side ........... 107
– Manually deactivating the
front airbag and side bag........... 108
– Passenger side front airbag ....... 108
Front fog lights ............................... 29
Front light clusters .......................... 146
Front roof light (changing a bulb) .... 151
Fuel consumption .......................... 245
Fuel cut-off switch .......................... 179
Fuel tank cap ................................. 126
Fuses (replacement) ....................... 151
Gateway fms module
.................... 165
Gear Shift Indicator ........................ 52
Hazard warning lights
................... 29
HBA (Hydraulic Brake Assist)
system ......................................... 83
HBA (system) ................................. 83
Head restraints
– Front ......................................... 43
Headlight alignment corrector ....... 27
Headlight washers ......................... 33
Headlights
– Headlight alignment corrector.... 27
– Light beam direction.................. 27
Heated rear window ....................... 30
Heating and ventilation ................... 34Heating and ventilation controls...... 35
Hill Descent .................................... 84
Hill Descent Control System ........... 84
Hill Holder (system) ........................ 82
Hill Holder system .......................... 82
Identification data
.......................... 209
Ignition switch ................................ 10
Independent additional heater ........ 38
Inflation pressure ............................ 221
Inflation procedure ......................... 175
Instrument panel ............................ 50
Interior ........................................... 206
Interior fittings ................................ 44
Isofix child restraint systems
(setup)
– Arrangement possibilities for
child restraint system on
seats of vehicle.......................... 103
Jump starting
................................ 177
Lifting the vehicle
.......................... 202
Light beam direction ...................... 27
Light bulbs
– Bulbs types ............................... 144
Lights off ........................................ 24
Loading advice............................... 133
Main beam headlights
.................. 25
Maintenance and care - regular
checks ......................................... 183
Maintenance and care -
Scheduled Servicing .................... 183Maintenance and care -
scheduled servicing plan .............. 185
Manually deactivating the front
airbag and side bag ..................... 108
MSR (System) ................................ 81
MSR system .................................. 81
Multifunction display
– Control buttons ......................... 53
– Setup menu .............................. 54
Nozzles
......................................... 202
Number plate lights ........................ 150
On-board instruments
................... 50
Parking lights
................................ 26
Parking sensors ............................. 122
Performance .................................. 232
Pollen filter ..................................... 199
Power Socket ................................ 44
Power steering ............................... 216
Power steering fluid........................ 196
Pre-tensioners................................ 94
Prolonged vehicle inactivity............. 141
Radio
............................................ 260
Rain sensor .................................... 32
Rear door with two wings............... 14
Rear fog lights ................................ 29
Rear view mirrors ........................... 22
Rear-view camera .......................... 123
Refuelling ....................................... 237
Refuelling the vehicle ...................... 125
