Backrest angle adjustment
Operate the lever A fig. 25.
Height adjustment
Operate the controls B fig. 25 or C fig.
25 to raise/lower the front/rear part
of the seat respectively.
Seat rotation
It may be turned through 180° toward
the seat on the opposite side and
approximately 35° toward the door It
may be locked in driving position or at
180°.
Operate the lever D fig. 26 (located on
the right side of the seat) to turn the
seat.
Before turning the seat, it must be
moved forward and only then adjusted
longitudinally fig. 23.
23)
Heated seats
(for versions/markets, where provided)
With the key in the MAR position, press
the button E fig. 27 to turn the function
on/off.CAPTAIN CHAIR SEAT
(for versions/markets, where provided)
The vehicle may be equipped with
the Captain Chair fig. 28, which,
depending on the version, may have
various adjustments (revolving or fixed,
with seat belt, etc.).
For the various adjustments refer to
what is described in the previous
paragraph "Revolving seat with seat
belt").
25F1A0028
26F1A0029
27F1A0030
28F1A0345
19
Page 22 of 304
FLAP ON BENCH
(for versions/markets, where provided)
The seat is equipped with a fold-down
flap that can be used as a document
support surface. To use, pull the tab A
fig. 29 and lower the flap. The flap is
equipped with two cup holder indents
and a support surface with a paper
holder clip.
24)
CARGO SPACE
(For versions/markets, where provided)
Depending on the version, you can
request an additional load compartment
fig. 30 located behind the cab.TRAY UNDER THE SEAT
(for versions/markets, where provided)
Under the driver's seat, there is a tray A
fig. 31, which can be easily removed
by sliding it out of the clips on the
support base.SEAT BASE PLASTIC
COVERS
(for versions/markets, where provided)
The front trim A fig. 32 can be opened
by using the release handle B fig. 32
at the top.
This gives access to the under-seat
compartment (see "under-seat
compartment" paragraph).
To make it easier to open the front
cover and gain access to the
compartment, the seat must be as far
back as possible.
To allow removal of the front cover, it
must be turned as far forward as
possible and withdrawn from the hooks
on the lower side by pulling toward
the front of the vehicle.
29F1A003130F1A0041
31F1A0032
20
KNOWING YOUR VEHICLE
Page 23 of 304
PANORAMA VERSIONS
Adjustment of passenger seat
reclining backrest
Turn the knob A fig. 33.
Access to second row seats
To access the second row of seats,
operate the lever B fig. 33 on the right
outside seat in the first row and tilt
the backrest forward, accompanying it
with your left hand.When the seat is restored to its normal
position, it engages with the retaining
device without the need to operate the
lever again.
On the one-piece Panorama seat in the
second row both side seats are fixed.
Folding middle seat backrest (2nd -
3rd row)
Lift the lever C fig. 33 and tilt the
backrest forward.
A hard surface on the back of the
middle seat is for use as an armrest
and table with cup holders.
Operate the lever to reposition the
backrest.
To lower the backrest of the middle
seat in the second row, remove the
head restraint to make it easier to
adjust the backrest of the middle seat
in the first row.
COMBI VERSIONS
Easy Entry position

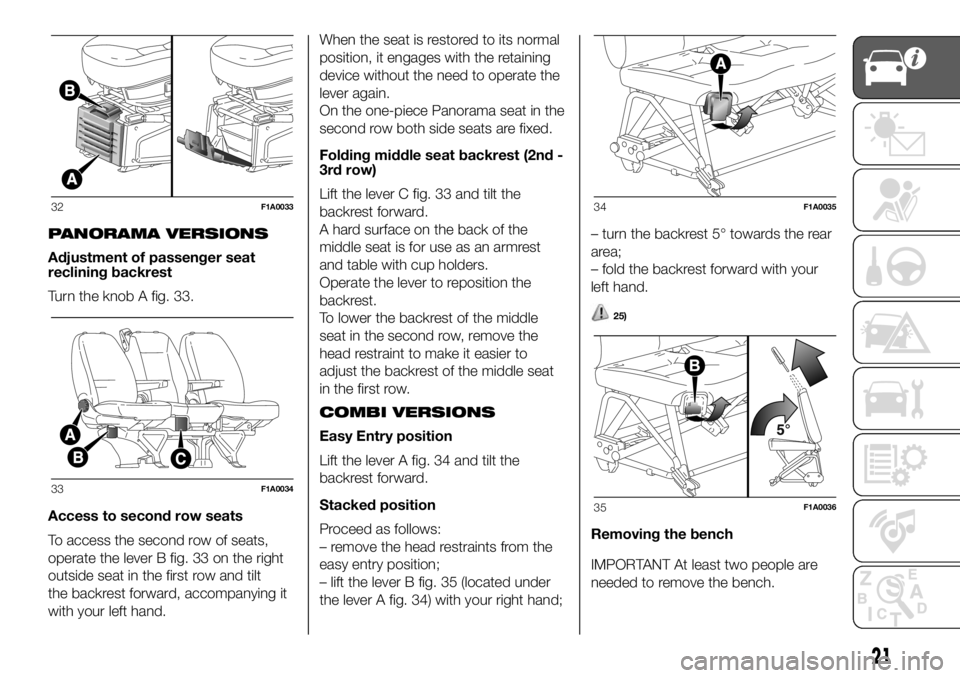

Lift the lever A fig. 34 and tilt the
backrest forward.
Stacked position
Proceed as follows:
– remove the head restraints from the
easy entry position;
– lift the lever B fig. 35 (located under
the lever A fig. 34) with your right hand;– turn the backrest 5° towards the rear
area;
– fold the backrest forward with your
left hand.
25)
Removing the bench
IMPORTANT At least two people are
needed to remove the bench.
32F1A0033
33F1A0034
34F1A0035
35F1A0036
21
Page 24 of 304
Proceed as follows to remove the
bench:
– from the stacked position, operate

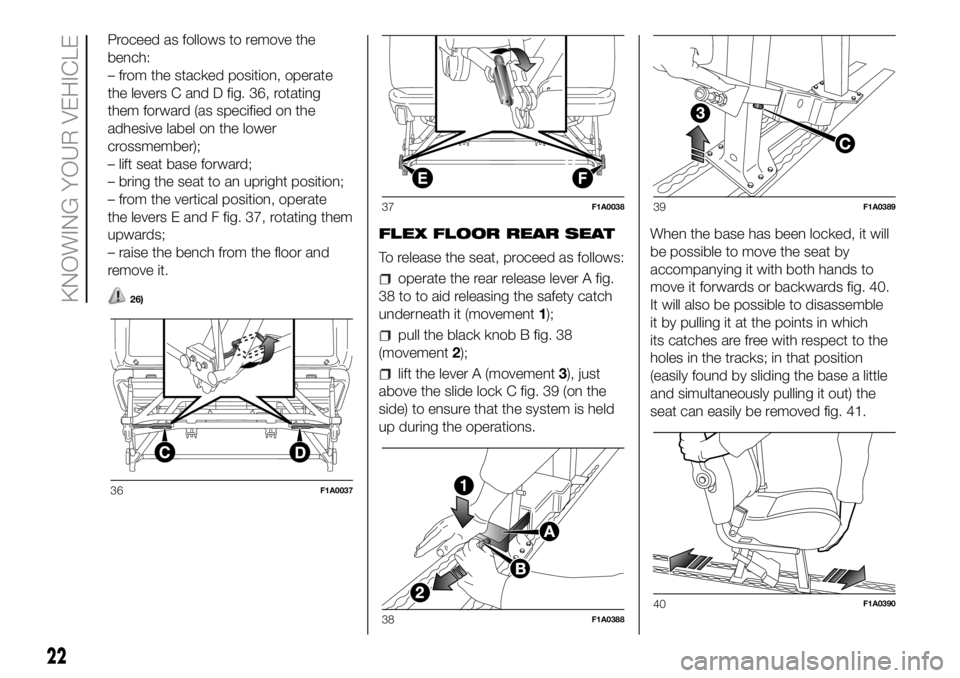

the levers C and D fig. 36, rotating
them forward (as specified on the
adhesive label on the lower
crossmember);
– lift seat base forward;
– bring the seat to an upright position;
– from the vertical position, operate
the levers E and F fig. 37, rotating them
upwards;
– raise the bench from the floor and
remove it.
26)
FLEX FLOOR REAR SEAT
To release the seat, proceed as follows:
operate the rear release lever A fig.
38 to to aid releasing the safety catch
underneath it (movement1);
pull the black knob B fig. 38
(movement2);
lift the lever A (movement3), just
above the slide lock C fig. 39 (on the
side) to ensure that the system is held
up during the operations.When the base has been locked, it will
be possible to move the seat by
accompanying it with both hands to
move it forwards or backwards fig. 40.
It will also be possible to disassemble
it by pulling it at the points in which
its catches are free with respect to the
holes in the tracks; in that position
(easily found by sliding the base a little
and simultaneously pulling it out) the
seat can easily be removed fig. 41.
36F1A0037
37F1A0038
38F1A0388
39F1A0389
40F1A0390
22
KNOWING YOUR VEHICLE
Page 25 of 304
After the sliding and removal
operations, the seat should be refitted
and secured to the rails on the floor
before driving, as follows:
fit the base on the rails;
push the latch lever downwards fig.
42 with sufficient force, until the system
locks.IMPORTANT The locking system is only
secured when the safety clip under
the lever locks it horizontally. If this does
not happen, check that the seat is in
the exact locking position in relation to
the rail (moving the seat backwards
or forwards a few millimetres until it is
properly attached). Once the
quick-release base is locked in position,
it will be as in the first stage, in other
words with the retaining lever perfectly
parallel to the floor guaranteeing that
the seat is securely fastened in the
selected position.
The seat can be turned 180º toward
the seat on the opposite side. To turn it,
see the "Seat with revolving base"
paragraph.
4-SEATER BENCH SEAT
(Crew Cab Van versions)
(for versions/markets, where provided)
For specific versions, the vehicle
features a 4-seater rear bench seat.

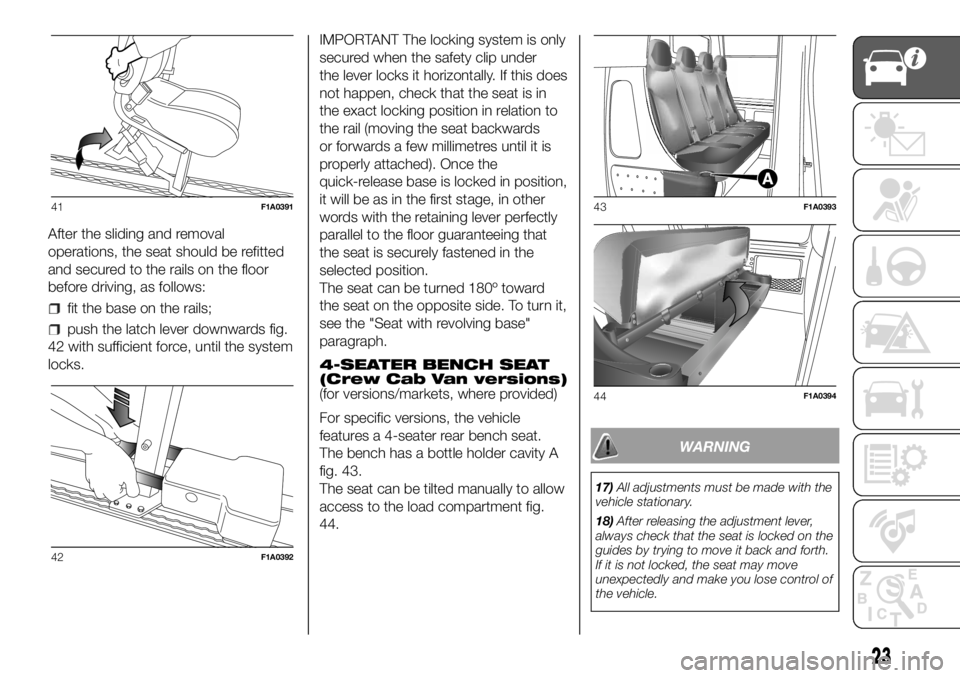

The bench has a bottle holder cavity A
fig. 43.
The seat can be tilted manually to allow
access to the load compartment fig.
44.
WARNING
17)All adjustments must be made with the
vehicle stationary.
18)After releasing the adjustment lever,
always check that the seat is locked on the
guides by trying to move it back and forth.
If it is not locked, the seat may move
unexpectedly and make you lose control of
the vehicle.
41F1A0391
42F1A0392
43F1A0393
44F1A0394
23
Page 26 of 304
19)For maximum safety, keep the backrest
upright, lean back into it and make sure
the seat belt fits closely across your chest
and pelvis.
20)Before putting on the seatbelt, ensure
that the armrests are vertical (see
paragraph on "seat belts ”).
21)Before unfastening the belts and
getting out of the vehicle, ensure that the
outer armrest (door side) is fully raised.
22)All adjustments must be made with the
vehicle stationary. In particular, while
turning the seat, take care that it does not
interfere with the handbrake lever.
23)Ensure the seat is locked in driving
position before starting up the vehicle.
24)Do not place heavy loads on the flap
with the vehicle in motion because they
could be thrown against the vehicle
occupants in the event of sudden braking
or impacts, causing severe injury.
25)Do not travel with passengers seated in
the 3rd row with the 2nd row bench folded
over. Do not place objects of any type on
the backrest of the 2nd row bench folded
over: in the event of impact or sharp
braking they could be thrown against the
occupants of the vehicle casing serious
injury. For more information, see the
contents of the adhesive plate located
under the bench.
26)When refitting the bench, ensure that it
is correctly locked to the floor guides.
WARNING
3)The fabric upholstery of your vehicle is
designed to withstand the normal wear
and tear of your vehicle for a long time.
You are however recommended to avoid
strong and/or continuous scratching
with clothing accessories such as metal
buckles, studs, Velcro fastenings and the
like, as these items cause stress of the
cover fabric that could lead to yarn
breaking and damage the upholstery.
STEERING WHEEL
The steering wheel position can be
adjusted axially.
To carry out the adjustment, proceed as
follows:

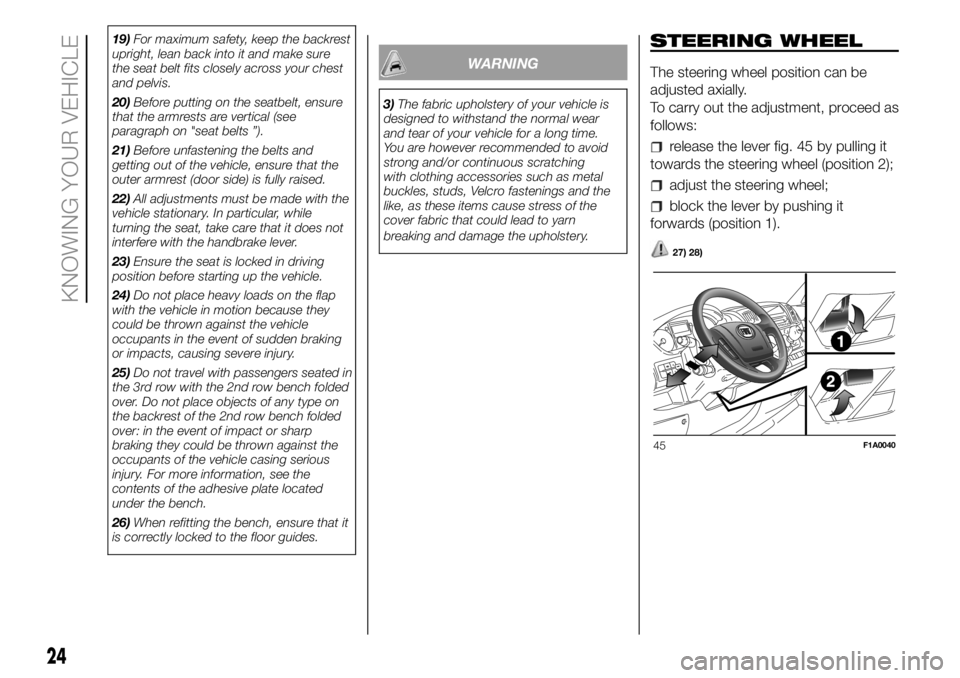

release the lever fig. 45 by pulling it
towards the steering wheel (position 2);
adjust the steering wheel;
block the lever by pushing it
forwards (position 1).
27) 28)
45F1A0040
24
KNOWING YOUR VEHICLE
Page 27 of 304
WARNING
27)Any steering wheel position adjustment
should only be carried out with the vehicle
stationary and the engine turned off.
28)It is absolutely forbidden to carry out
any after-market operation involving
steering system or steering column
modifications (e.g.: installation of anti-theft
device). This could badly affect
performance and safety, invalidate the
warranty and also result in the non-
compliance of the vehicle with approval
requirements.
REAR VIEW
MIRRORS
INTERIOR MIRROR

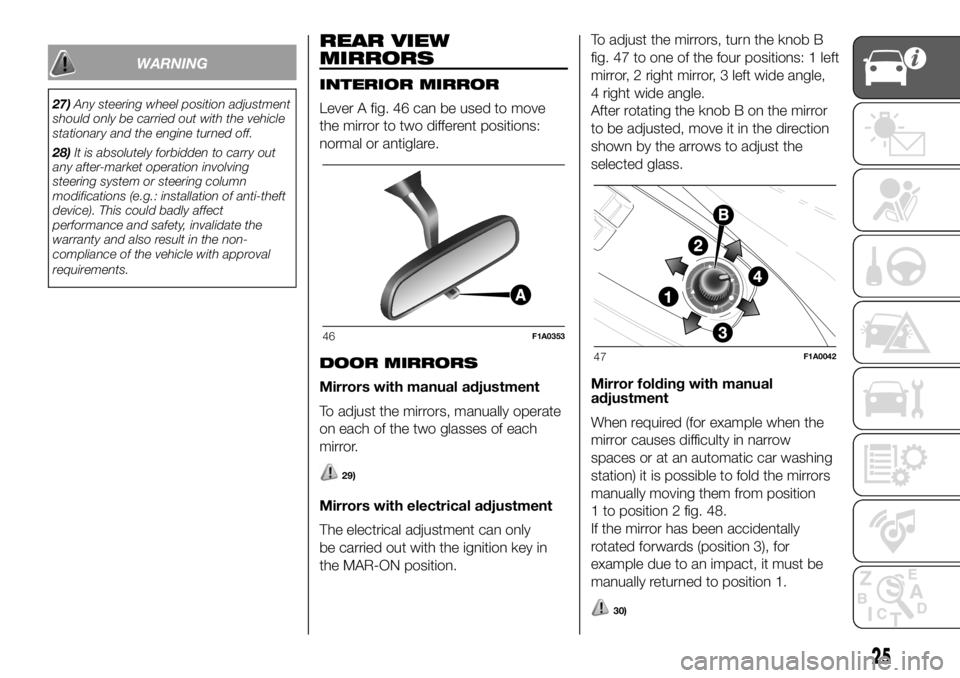

Lever A fig. 46 can be used to move
the mirror to two different positions:
normal or antiglare.
DOOR MIRRORS
Mirrors with manual adjustment
To adjust the mirrors, manually operate
on each of the two glasses of each
mirror.
29)
Mirrors with electrical adjustment
The electrical adjustment can only
be carried out with the ignition key in
the MAR-ON position.To adjust the mirrors, turn the knob B
fig. 47 to one of the four positions: 1 left
mirror, 2 right mirror, 3 left wide angle,
4 right wide angle.
After rotating the knob B on the mirror
to be adjusted, move it in the direction
shown by the arrows to adjust the
selected glass.
Mirror folding with manual
adjustment
When required (for example when the
mirror causes difficulty in narrow
spaces or at an automatic car washing
station) it is possible to fold the mirrors

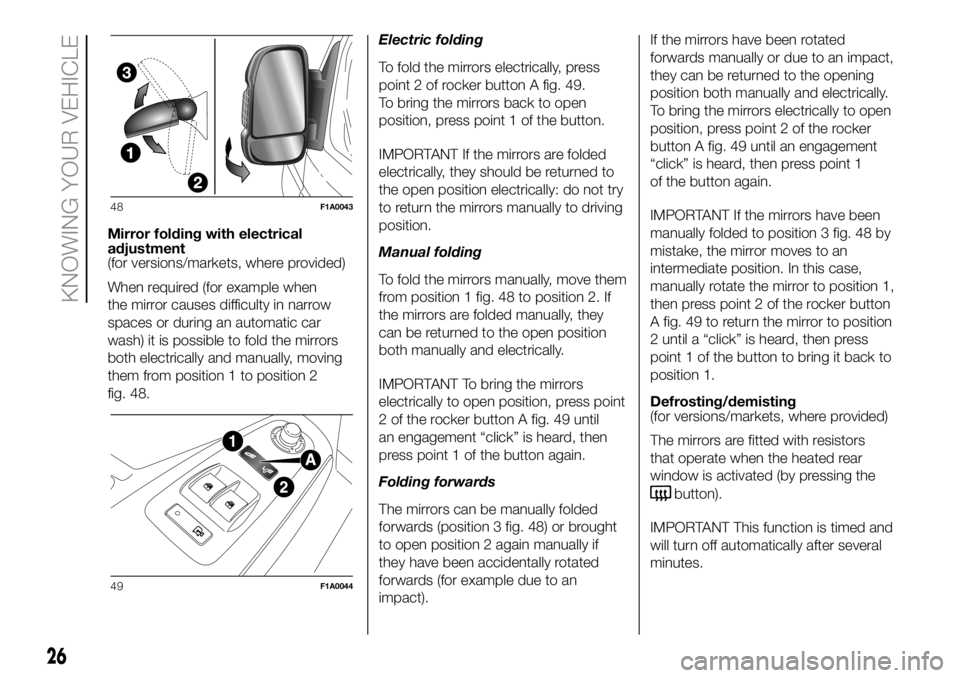

manually moving them from position
1 to position 2 fig. 48.
If the mirror has been accidentally
rotated forwards (position 3), for
example due to an impact, it must be
manually returned to position 1.
30)
46F1A0353
47F1A0042
25
Page 28 of 304
Mirror folding with electrical
adjustment
(for versions/markets, where provided)
When required (for example when
the mirror causes difficulty in narrow
spaces or during an automatic car
wash) it is possible to fold the mirrors
both electrically and manually, moving
them from position 1 to position 2
fig. 48.Electric folding
To fold the mirrors electrically, press
point 2 of rocker button A fig. 49.
To bring the mirrors back to open
position, press point 1 of the button.
IMPORTANT If the mirrors are folded
electrically, they should be returned to
the open position electrically: do not try
to return the mirrors manually to driving
position.
Manual folding
To fold the mirrors manually, move them
from position 1 fig. 48 to position 2. If
the mirrors are folded manually, they
can be returned to the open position
both manually and electrically.
IMPORTANT To bring the mirrors
electrically to open position, press point
2 of the rocker button A fig. 49 until
an engagement “click” is heard, then
press point 1 of the button again.
Folding forwards
The mirrors can be manually folded
forwards (position 3 fig. 48) or brought
to open position 2 again manually if
they have been accidentally rotated
forwards (for example due to an
impact).If the mirrors have been rotated
forwards manually or due to an impact,
they can be returned to the opening
position both manually and electrically.
To bring the mirrors electrically to open
position, press point 2 of the rocker
button A fig. 49 until an engagement
“click” is heard, then press point 1
of the button again.
IMPORTANT If the mirrors have been
manually folded to position 3 fig. 48 by
mistake, the mirror moves to an
intermediate position. In this case,
manually rotate the mirror to position 1,
then press point 2 of the rocker button
A fig. 49 to return the mirror to position
2 until a “click” is heard, then press
point 1 of the button to bring it back to
position 1.
Defrosting/demisting
(for versions/markets, where provided)
The mirrors are fitted with resistors
that operate when the heated rear
window is activated (by pressing the
button).
IMPORTANT This function is timed and
will turn off automatically after several
minutes.
48F1A0043
49F1A0044
26
KNOWING YOUR VEHICLE
Page 29 of 304
WARNING
29)As the driver's exterior mirror is curved,
it may slightly alter the perception of
distance of the reflected image. Further,
the reflective surface of the lower part
of the exterior mirrors is parabolic to
increase the field of view. The reflected
image size is thus reduced and gives the
impression that the reflected item is further
away than it actually is.
30)When driving the mirrors should always
remain in position 1.
EXTERIOR LIGHTS
IN BRIEF
The left stalk includes the controls for
the exterior lights.
Theexterior lights can only be
switched on when the ignition key is
in the ON position.
LIGHTS OFF
Ring turned to theOfig. 50 position.DAYTIME RUNNING
LIGHTS (DRL)
(for versions/markets, where provided)
With the key in MAR position and
the ring turned to theOposition fig. 50,
the daytime lights turn on automatically;
the other lights and the internal lighting
remain off. The automatic operation
of the daytime running lights can be
activated/deactivated, for versions/
markets where provided, via the display
menu (see "Display" in the "Knowing
the instrument panel" chapter).
If the daytime running lights are
deactivated, no light comes on when
the ring nut is turned toO.
31)
DIPPED HEADLIGHTS/
SIDE LIGHTS
With the ignition key turned to
MAR-ON, turn the ring nut to
fig.
51.
If dipped headlights are activated, the
daytime running lights switch off and
the side lights and dipped headlights
switch on.
The
warning light switches on in
the instrument panel.
When the ignition key is turned to
STOP or removed and the ring nut is
turned fromOto
, all the side lights
and the number plate lights come on.
50F1A0064
27
Page 30 of 304
Thewarning light will come on in
the instrument panel.
MAIN BEAM HEADLIGHTS
With the ring in the
position, pull the
stalk towards the steering wheel (2nd
unstable position) fig. 52.
The
warning light switches on in
the instrument panel.
To turn the main beams off, pull the
stalk towards the steering wheel again
(dipped beams will come back on).FLASHING THE
HEADLIGHTS
Pull the stalk towards the steering
wheel (1st unstable position) fig. 53
regardless of the position of the ring.
The
warning light switches on
in the instrument panel.
AUTOMATIC MAIN BEAM
HEADLIGHTS
In order not to dazzle other road users,
the main beam headlights are
automatically turned off when
approaching oncoming vehicles or
when following a vehicle travelling in the
same direction.
The system is enabled through the
menu item and by rotating the light
selector to the
position.When the main beam headlights are
turned on for the first time by pulling the
stalk, the function is enabled and the
icon is displayed; if the main beam
headlights are actually on, the
corresponding blue warning light
is
displayed as well.
If the driving speed is over 40 km/h and
the function is activated, pulling the
stalk again to the main beam headlight
position deactivates the function.
If the driving speed is below 15 km/h
and the function is activated, the
function switches the main beam
headlights off. Pulling the stalk again to
the main beam headlight position is
interpreted as a request for the main
beam headlights to stay on, therefore
the blue warning light
on the
dashboard turns on and the main beam
headlights stay on until the speed
exceeds 40 km/h again. The function is
enabled again automatically when 40
km/h is exceeded
.
If the stalk is pulled again in this
condition, to request main beam
headlight deactivation, the function
remains off and the main beam
headlights switch off.
Rotate the ring to the
position fig.
51 to disable the automatic function.
32) 33)
51F1A0065
52F1A0066
53F1A0067
28
KNOWING YOUR VEHICLE
