FIAT DUCATO 250 2009 3.G Radio CD MP3 Manual
Manufacturer: FIAT, Model Year: 2009, Model line: DUCATO 250, Model: FIAT DUCATO 250 2009 3.GPages: 34, PDF Size: 0.34 MB
Page 11 of 34
10
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER
QUICK
GUIDE

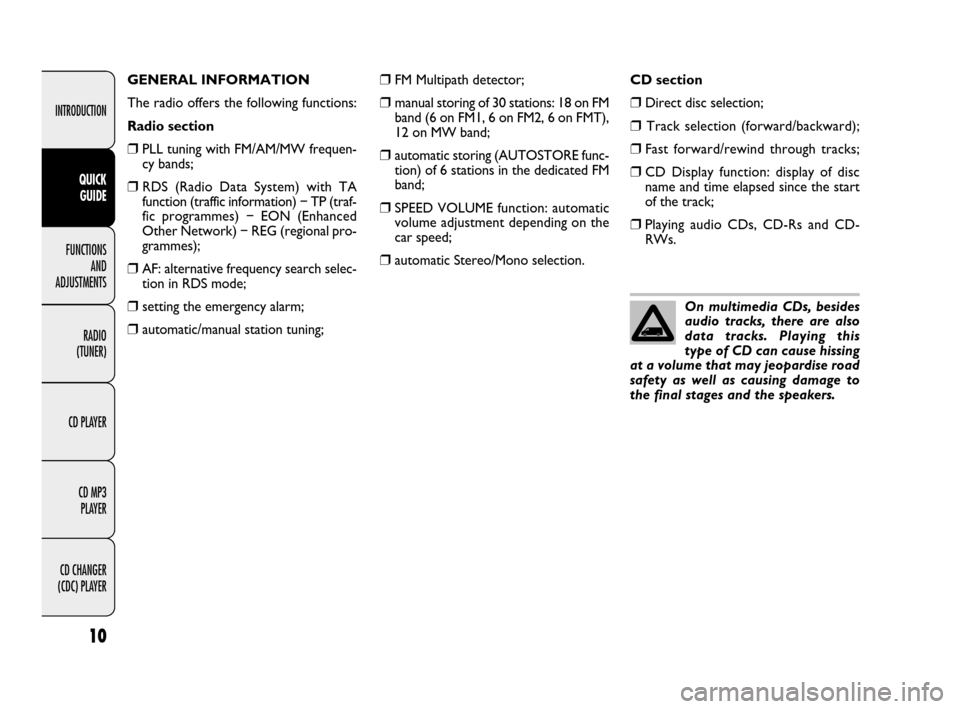

❒FM Multipath detector;
❒manual storing of 30 stations: 18 on FM
band (6 on FM1, 6 on FM2, 6 on FMT),
12 on MW band;
❒automatic storing (AUTOSTORE func-
tion) of 6 stations in the dedicated FM
band;
❒SPEED VOLUME function: automatic
volume adjustment depending on the
car speed;
❒automatic Stereo/Mono selection.CD section
❒Direct disc selection;
❒Track selection (forward/backward);
❒Fast forward/rewind through tracks;
❒CD Display function: display of disc
name and time elapsed since the start
of the track;
❒Playing audio CDs, CD-Rs and CD-
RWs. GENERAL INFORMATION
The radio offers the following functions:
Radio section
❒PLL tuning with FM/AM/MW frequen-
cy bands;
❒RDS (Radio Data System) with TA
function (traffic information) TP (traf-
fic programmes) EON (Enhanced
Other Network) REG (regional pro-
grammes);
❒AF: alternative frequency search selec-
tion in RDS mode;
❒setting the emergency alarm;
❒automatic/manual station tuning;
On multimedia CDs, besides
audio tracks, there are also
data tracks. Playing this
type of CD can cause hissing
at a volume that may jeopardise road
safety as well as causing damage to
the final stages and the speakers.
603_97_355 Radio Ducato SB08 EN 13-11-2009 10:11 Pagina 10
Page 12 of 34
11
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO (TUNER)
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER
QUICK
GUIDE

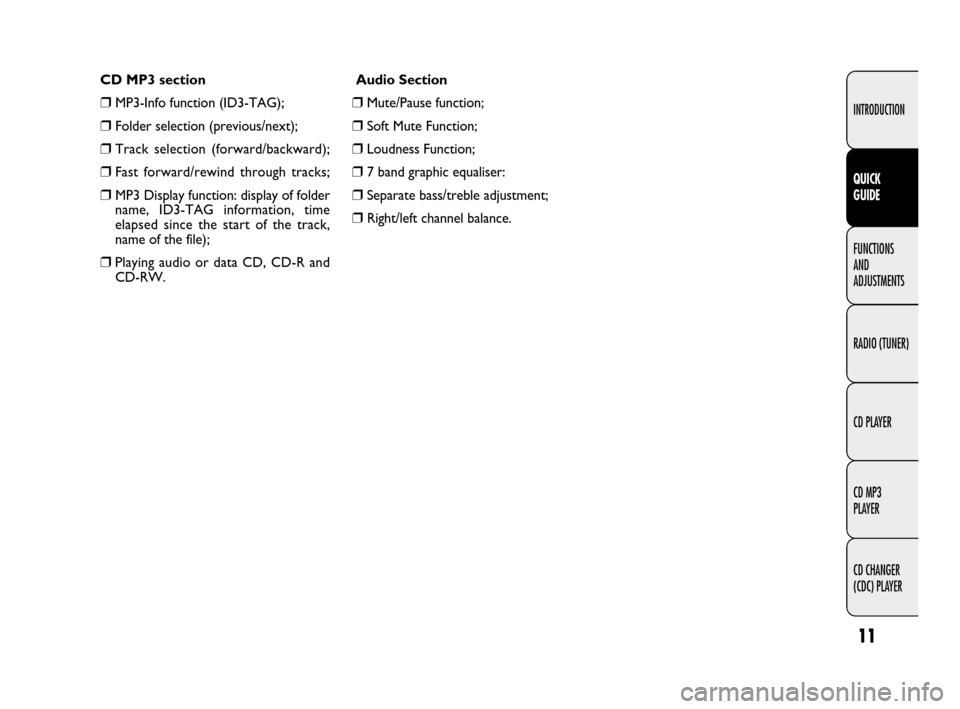

Audio Section
❒Mute/Pause function;
❒Soft Mute Function;
❒Loudness Function;
❒7 band graphic equaliser:
❒Separate bass/treble adjustment;
❒Right/left channel balance. CD MP3 section
❒MP3-Info function (ID3-TAG);
❒Folder selection (previous/next);
❒Track selection (forward/backward);
❒Fast forward/rewind through tracks;
❒MP3 Display function: display of folder
name, ID3-TAG information, time
elapsed since the start of the track,
name of the file);
❒Playing audio or data CD, CD-R and
CD-RW.
603_97_355 Radio Ducato SB08 EN 13-11-2009 10:11 Pagina 11
Page 13 of 34
12
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYERQUICK
GUIDE

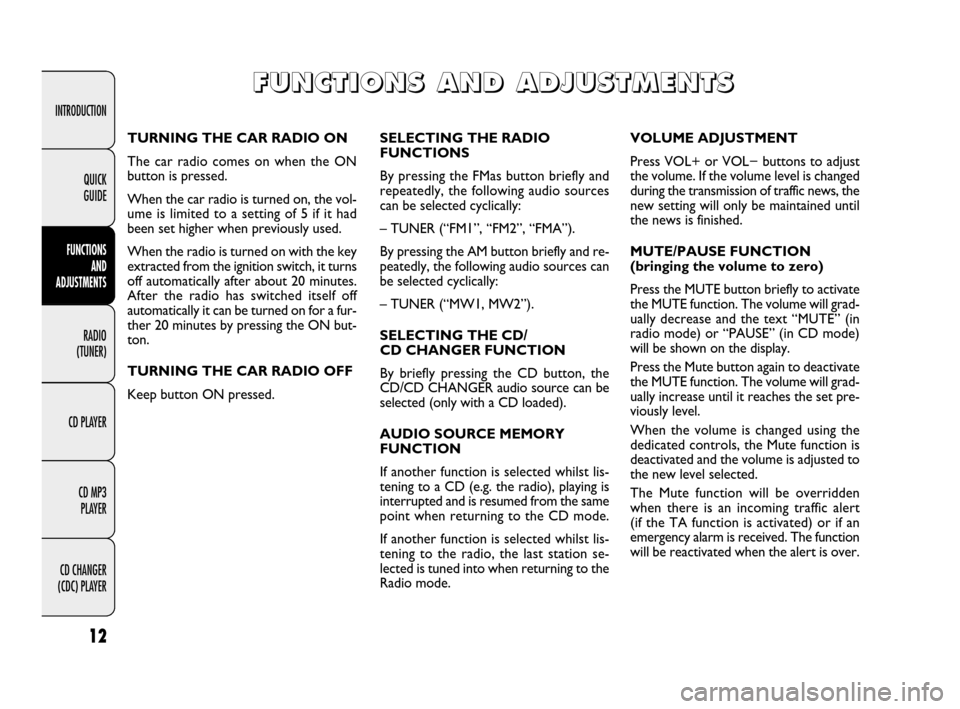

SELECTING THE RADIO
FUNCTIONS
By pressing the FMas button briefly and
repeatedly, the following audio sources
can be selected cyclically:
– TUNER (“FM1”, “FM2”, “FMA”).
By pressing the AM button briefly and re-
peatedly, the following audio sources can
be selected cyclically:
– TUNER (“MW1, MW2”).
SELECTING THE CD/
CD CHANGER FUNCTION
By briefly pressing the CD button, the
CD/CD CHANGER audio source can be
selected (only with a CD loaded).
AUDIO SOURCE MEMORY
FUNCTION
If another function is selected whilst lis-
tening to a CD (e.g. the radio), playing is
interrupted and is resumed from the same
point when returning to the CD mode.
If another function is selected whilst lis-
tening to the radio, the last station se-
lected is tuned into when returning to the
Radio mode.VOLUME ADJUSTMENT
Press VOL+ or VOL− buttons to adjust
the volume. If the volume level is changed
during the transmission of traffic news, the
new setting will only be maintained until
the news is finished.
MUTE/PAUSE FUNCTION
(bringing the volume to zero)
Press the MUTE button briefly to activate
the MUTE function. The volume will grad-
ually decrease and the text “MUTE” (in
radio mode) or “PAUSE” (in CD mode)
will be shown on the display.
Press the Mute button again to deactivate
the MUTE function. The volume will grad-
ually increase until it reaches the set pre-
viously level.
When the volume is changed using the
dedicated controls, the Mute function is
deactivated and the volume is adjusted to
the new level selected.
The Mute function will be overridden
when there is an incoming traffic alert
(if the TA function is activated) or if an
emergency alarm is received. The function
will be reactivated when the alert is over. TURNING THE CAR RADIO ON
The car radio comes on when the ON
button is pressed.
When the car radio is turned on, the vol-
ume is limited to a setting of 5 if it had
been set higher when previously used.
When the radio is turned on with the key
extracted from the ignition switch, it turns
off automatically after about 20 minutes.
After the radio has switched itself off
automatically it can be turned on for a fur-
ther 20 minutes by pressing the ON but-
ton.
TURNING THE CAR RADIO OFF
Keep button ON pressed.
F F
U U
N N
C C
T T
I I
O O
N N
S S
A A
N N
D D
A A
D D
J J
U U
S S
T T
M M
E E
N N
T T
S S
603_97_355 Radio Ducato SB08 EN 13-11-2009 10:11 Pagina 12
Page 14 of 34
13
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE

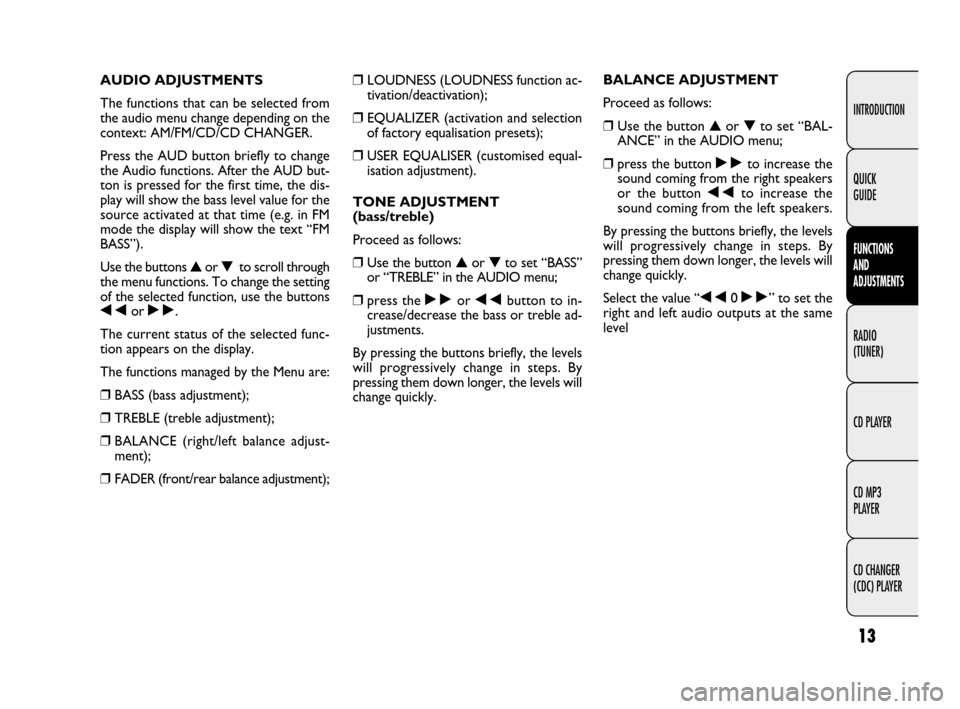

❒LOUDNESS (LOUDNESS function ac-
tivation/deactivation);
❒EQUALIZER (activation and selection
of factory equalisation presets);
❒USER EQUALISER (customised equal-
isation adjustment).
TONE ADJUSTMENT
(bass/treble)
Proceed as follows:
❒Use the button ▲or ▼to set “BASS”
or “TREBLE” in the AUDIO menu;
❒press the ˜or ÷button to in-
crease/decrease the bass or treble ad-
justments.
By pressing the buttons briefly, the levels
will progressively change in steps. By
pressing them down longer, the levels will
change quickly.BALANCE ADJUSTMENT
Proceed as follows:
❒Use the button ▲or ▼to set “BAL-
ANCE” in the AUDIO menu;
❒press the button ˜to increase the
sound coming from the right speakers
or the button ÷to increase the
sound coming from the left speakers.
By pressing the buttons briefly, the levels
will progressively change in steps. By
pressing them down longer, the levels will
change quickly.
Select the value “÷0 ˜” to set the
right and left audio outputs at the same
level AUDIO ADJUSTMENTS
The functions that can be selected from
the audio menu change depending on the
context: AM/FM/CD/CD CHANGER.
Press the AUD button briefly to change
the Audio functions. After the AUD but-
ton is pressed for the first time, the dis-
play will show the bass level value for the
source activated at that time (e.g. in FM
mode the display will show the text “FM
BASS”).
Use the buttons ▲or ▼ to scroll through
the menu functions. To change the setting
of the selected function, use the buttons
÷or ˜.
The current status of the selected func-
tion appears on the display.
The functions managed by the Menu are:
❒BASS (bass adjustment);
❒TREBLE (treble adjustment);
❒BALANCE (right/left balance adjust-
ment);
❒FADER (front/rear balance adjustment);
603_97_355 Radio Ducato SB08 EN 13-11-2009 10:11 Pagina 13

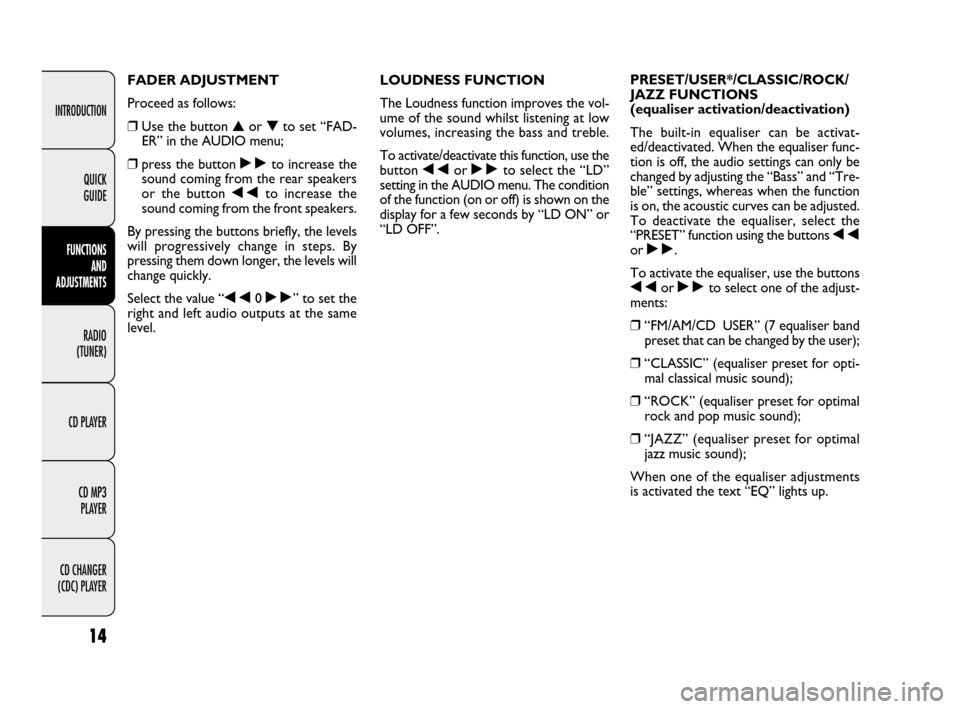

Page 15 of 34
14
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYERQUICK
GUIDE
LOUDNESS FUNCTION
The Loudness function improves the vol-
ume of the sound whilst listening at low
volumes, increasing the bass and treble.
To activate/deactivate this function, use the
button ÷or ˜to select the “LD”
setting in the AUDIO menu. The condition
of the function (on or off) is shown on the
display for a few seconds by “LD ON” or
“LD OFF”. PRESET/USER*/CLASSIC/ROCK/
JAZZ FUNCTIONS
(equaliser activation/deactivation)
The built-in equaliser can be activat-
ed/deactivated. When the equaliser func-
tion is off, the audio settings can only be
changed by adjusting the “Bass” and “Tre-
ble” settings, whereas when the function
is on, the acoustic curves can be adjusted.
To deactivate the equaliser, select the
“PRESET” function using the buttons ÷
or ˜.
To activate the equaliser, use the buttons
÷or ˜to select one of the adjust-
ments:
❒ “FM/AM/CD USER” (7 equaliser band
preset that can be changed by the user);
❒ “CLASSIC” (equaliser preset for opti-
mal classical music sound);
❒ “ROCK” (equaliser preset for optimal
rock and pop music sound);
❒ “JAZZ” (equaliser preset for optimal
jazz music sound);
When one of the equaliser adjustments
is activated the text “EQ” lights up. FADER ADJUSTMENT
Proceed as follows:
❒Use the button ▲or ▼to set “FAD-
ER” in the AUDIO menu;
❒press the button ˜to increase the
sound coming from the rear speakers
or the button ÷to increase the
sound coming from the front speakers.
By pressing the buttons briefly, the levels
will progressively change in steps. By
pressing them down longer, the levels will
change quickly.
Select the value “÷0 ˜” to set the
right and left audio outputs at the same
level.
603_97_355 Radio Ducato SB08 EN 13-11-2009 10:11 Pagina 14
Page 16 of 34
15
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE

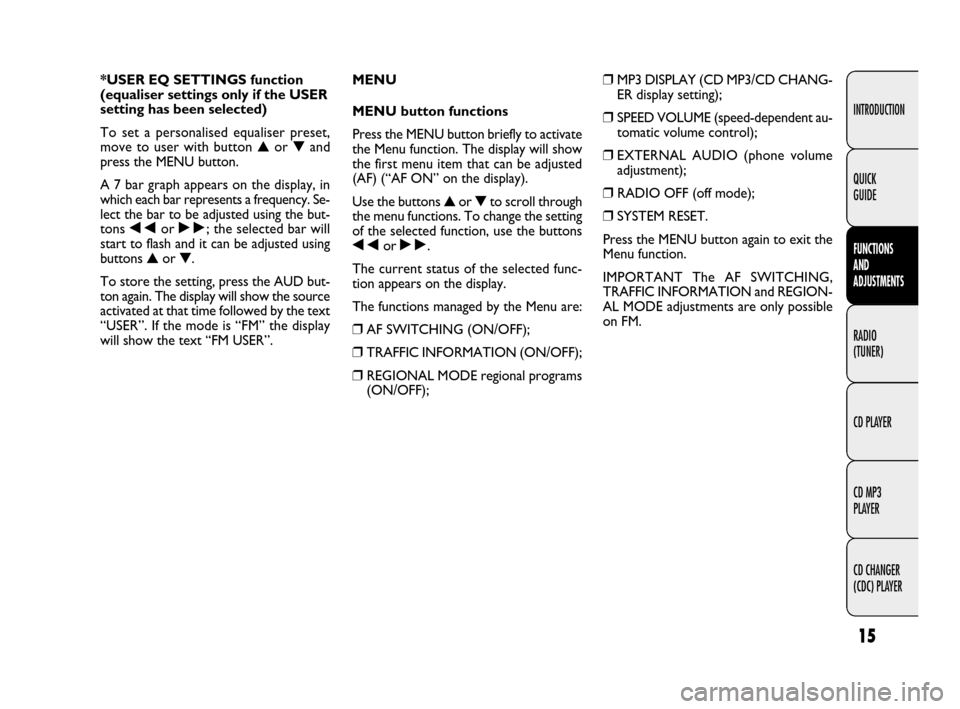

*USER EQ SETTINGS function
(equaliser settings only if the USER
setting has been selected)
To set a personalised equaliser preset,
move to user with button ▲or ▼and
press the MENU button.
A 7 bar graph appears on the display, in
which each bar represents a frequency. Se-
lect the bar to be adjusted using the but-
tons ÷or ˜; the selected bar will
start to flash and it can be adjusted using
buttons ▲or ▼.
To store the setting, press the AUD but-
ton again. The display will show the source
activated at that time followed by the text
“USER”. If the mode is “FM” the display
will show the text “FM USER”.MENU
MENU button functions
Press the MENU button briefly to activate
the Menu function. The display will show
the first menu item that can be adjusted
(AF) (“AF ON” on the display).
Use the buttons ▲or ▼to scroll through
the menu functions. To change the setting
of the selected function, use the buttons
÷or ˜.
The current status of the selected func-
tion appears on the display.
The functions managed by the Menu are:
❒AF SWITCHING (ON/OFF);
❒TRAFFIC INFORMATION (ON/OFF);
❒REGIONAL MODE regional programs
(ON/OFF);❒MP3 DISPLAY (CD MP3/CD CHANG-
ER display setting);
❒SPEED VOLUME (speed-dependent au-
tomatic volume control);
❒EXTERNAL AUDIO (phone volume
adjustment);
❒RADIO OFF (off mode);
❒SYSTEM RESET.
Press the MENU button again to exit the
Menu function.
IMPORTANT The AF SWITCHING,
TRAFFIC INFORMATION and REGION-
AL MODE adjustments are only possible
on FM.
603_97_355 Radio Ducato SB08 EN 13-11-2009 10:11 Pagina 15

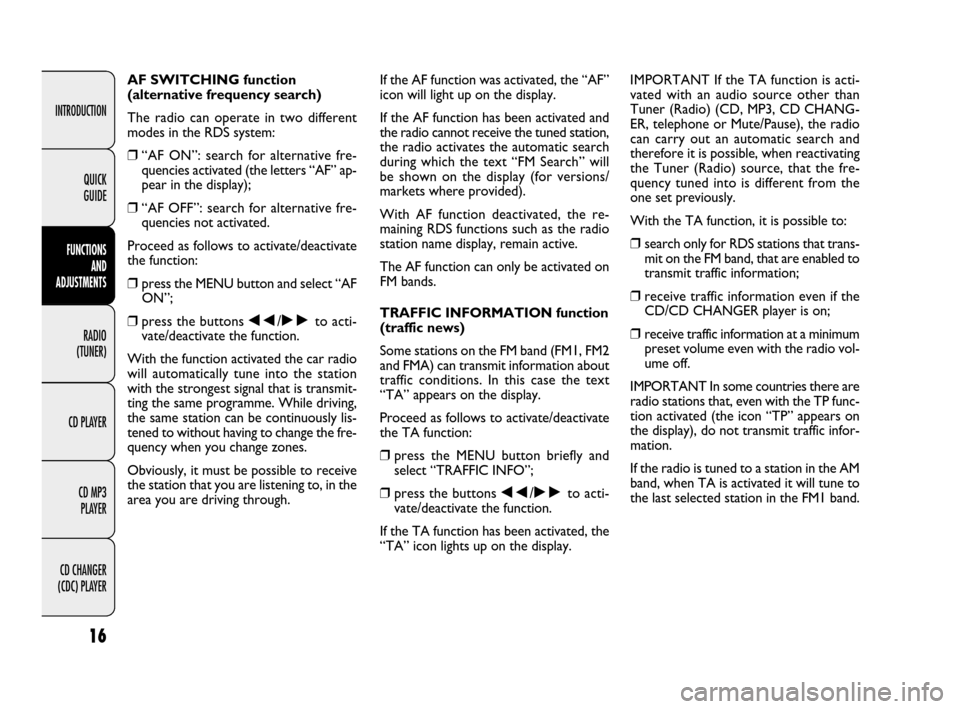

Page 17 of 34
16
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYERQUICK
GUIDE
AF SWITCHING function
(alternative frequency search)
The radio can operate in two different
modes in the RDS system:
❒“AF ON”: search for alternative fre-
quencies activated (the letters “AF” ap-
pear in the display);
❒“AF OFF”: search for alternative fre-
quencies not activated.
Proceed as follows to activate/deactivate
the function:
❒press the MENU button and select “AF
ON”;
❒press the buttons ÷/˜to acti-
vate/deactivate the function.
With the function activated the car radio
will automatically tune into the station
with the strongest signal that is transmit-
ting the same programme. While driving,
the same station can be continuously lis-
tened to without having to change the fre-
quency when you change zones.
Obviously, it must be possible to receive
the station that you are listening to, in the
area you are driving through.If the AF function was activated, the “AF”
icon will light up on the display.
If the AF function has been activated and
the radio cannot receive the tuned station,
the radio activates the automatic search
during which the text “FM Search” will
be shown on the display (for versions/
markets where provided).
With AF function deactivated, the re-
maining RDS functions such as the radio
station name display, remain active.
The AF function can only be activated on
FM bands.
TRAFFIC INFORMATION function
(traffic news)
Some stations on the FM band (FM1, FM2
and FMA) can transmit information about
traffic conditions. In this case the text
“TA” appears on the display.
Proceed as follows to activate/deactivate
the TA function:
❒press the MENU button briefly and
select “TRAFFIC INFO”;
❒press the buttons ÷/˜to acti-
vate/deactivate the function.
If the TA function has been activated, the
“TA” icon lights up on the display.IMPORTANT If the TA function is acti-
vated with an audio source other than
Tuner (Radio) (CD, MP3, CD CHANG-
ER, telephone or Mute/Pause), the radio
can carry out an automatic search and
therefore it is possible, when reactivating
the Tuner (Radio) source, that the fre-
quency tuned into is different from the
one set previously.
With the TA function, it is possible to:
❒search only for RDS stations that trans-
mit on the FM band, that are enabled to
transmit traffic information;
❒receive traffic information even if the
CD/CD CHANGER player is on;
❒receive traffic information at a minimum
preset volume even with the radio vol-
ume off.
IMPORTANT In some countries there are
radio stations that, even with the TP func-
tion activated (the icon “TP” appears on
the display), do not transmit traffic infor-
mation.
If the radio is tuned to a station in the AM
band, when TA is activated it will tune to
the last selected station in the FM1 band.
603_97_355 Radio Ducato SB08 EN 13-11-2009 10:11 Pagina 16
Page 18 of 34
17
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE

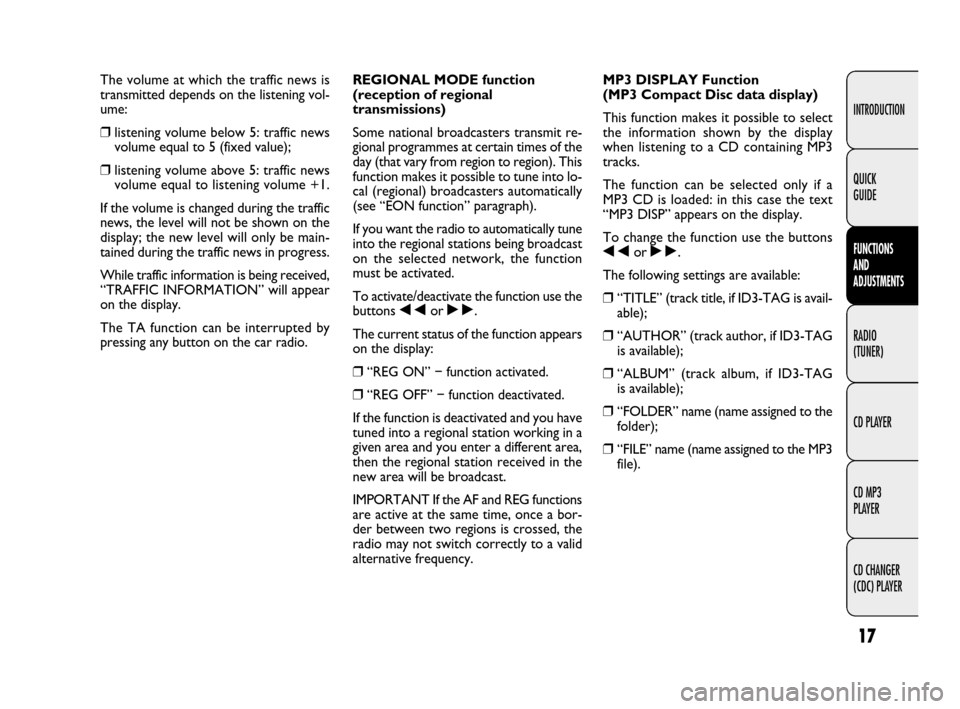

The volume at which the traffic news is
transmitted depends on the listening vol-
ume:
❒listening volume below 5: traffic news
volume equal to 5 (fixed value);
❒listening volume above 5: traffic news
volume equal to listening volume +1.
If the volume is changed during the traffic
news, the level will not be shown on the
display; the new level will only be main-
tained during the traffic news in progress.
While traffic information is being received,
“TRAFFIC INFORMATION” will appear
on the display.
The TA function can be interrupted by
pressing any button on the car radio.REGIONAL MODE function
(reception of regional
transmissions)
Some national broadcasters transmit re-
gional programmes at certain times of the
day (that vary from region to region). This
function makes it possible to tune into lo-
cal (regional) broadcasters automatically
(see “EON function” paragraph).
If you want the radio to automatically tune
into the regional stations being broadcast
on the selected network, the function
must be activated.
To activate/deactivate the function use the
buttons ÷or ˜.
The current status of the function appears
on the display:
❒“REG ON” function activated.
❒“REG OFF” function deactivated.
If the function is deactivated and you have
tuned into a regional station working in a
given area and you enter a different area,
then the regional station received in the
new area will be broadcast.
IMPORTANT If the AF and REG functions
are active at the same time, once a bor-
der between two regions is crossed, the
radio may not switch correctly to a valid
alternative frequency.MP3 DISPLAY Function
(MP3 Compact Disc data display)
This function makes it possible to select
the information shown by the display
when listening to a CD containing MP3
tracks.
The function can be selected only if a
MP3 CD is loaded: in this case the text
“MP3 DISP” appears on the display.
To change the function use the buttons
÷or ˜.
The following settings are available:
❒“TITLE” (track title, if ID3-TAG is avail-
able);
❒“AUTHOR” (track author, if ID3-TAG
is available);
❒“ALBUM” (track album, if ID3-TAG
is available);
❒“FOLDER” name (name assigned to the
folder);
❒“FILE” name (name assigned to the MP3
file).
603_97_355 Radio Ducato SB08 EN 13-11-2009 10:11 Pagina 17
Page 19 of 34
18
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYERQUICK
GUIDE

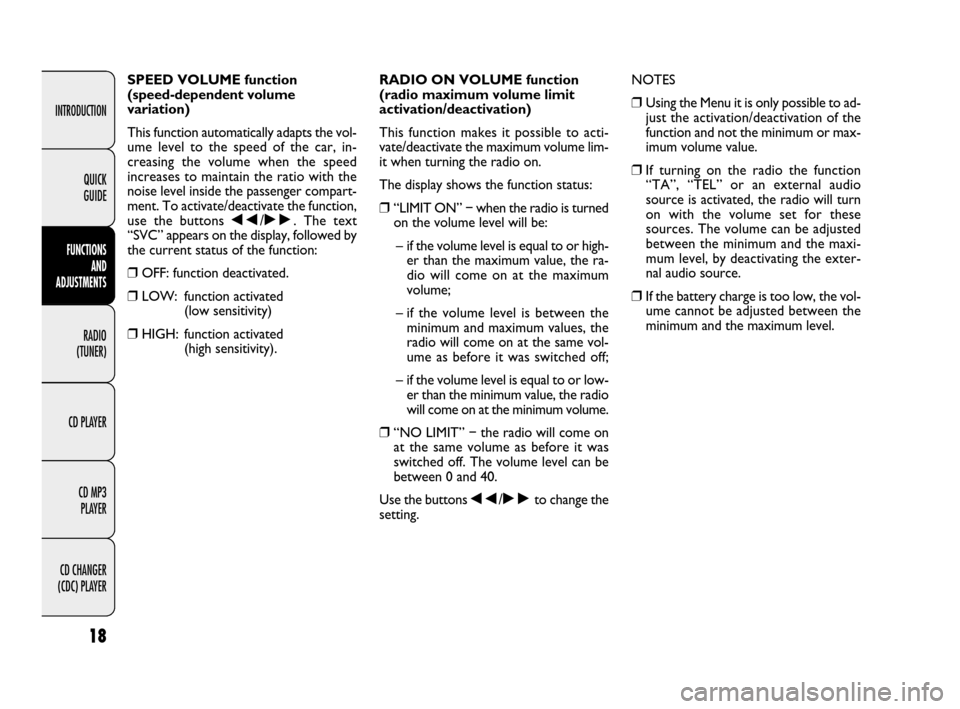

SPEED VOLUME function
(speed-dependent volume
variation)
This function automatically adapts the vol-
ume level to the speed of the car, in-
creasing the volume when the speed
increases to maintain the ratio with the
noise level inside the passenger compart-
ment. To activate/deactivate the function,
use the buttons ÷/˜. The text
“SVC” appears on the display, followed by
the current status of the function:
❒OFF: function deactivated.
❒LOW: function activated
(low sensitivity)
❒HIGH: function activated
(high sensitivity).RADIO ON VOLUME function
(radio maximum volume limit
activation/deactivation)
This function makes it possible to acti-
vate/deactivate the maximum volume lim-
it when turning the radio on.
The display shows the function status:
❒“LIMIT ON” when the radio is turned
on the volume level will be:
– if the volume level is equal to or high-
er than the maximum value, the ra-
dio will come on at the maximum
volume;
– if the volume level is between the
minimum and maximum values, the
radio will come on at the same vol-
ume as before it was switched off;
– if the volume level is equal to or low-
er than the minimum value, the radio
will come on at the minimum volume.
❒“NO LIMIT” the radio will come on
at the same volume as before it was
switched off. The volume level can be
between 0 and 40.
Use the buttons ÷/˜to change the
setting.NOTES
❒ Using the Menu it is only possible to ad-
just the activation/deactivation of the
function and not the minimum or max-
imum volume value.
❒If turning on the radio the function
“TA”, “TEL” or an external audio
source is activated, the radio will turn
on with the volume set for these
sources. The volume can be adjusted
between the minimum and the maxi-
mum level, by deactivating the exter-
nal audio source.
❒If the battery charge is too low, the vol-
ume cannot be adjusted between the
minimum and the maximum level.
603_97_355 Radio Ducato SB08 EN 13-11-2009 10:11 Pagina 18
Page 20 of 34
19
PRESENTAZIONEINTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
(TUNER)
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE

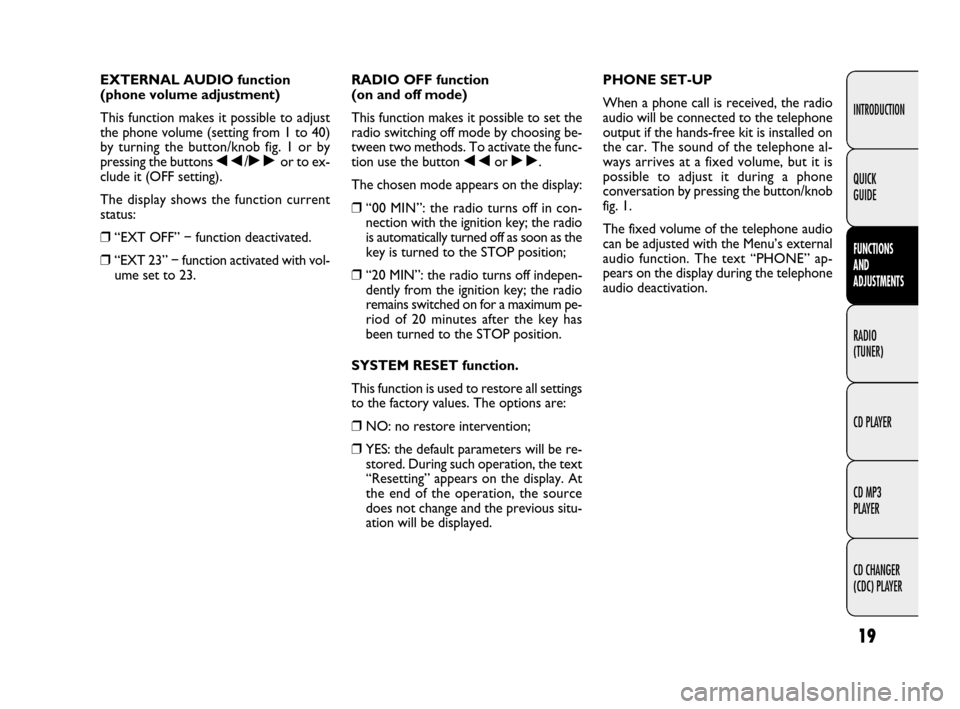

EXTERNAL AUDIO function
(phone volume adjustment)
This function makes it possible to adjust
the phone volume (setting from 1 to 40)
by turning the button/knob fig. 1 or by
pressing the buttons ÷/˜or to ex-
clude it (OFF setting).
The display shows the function current
status:
❒“EXT OFF” function deactivated.
❒“EXT 23” function activated with vol-
ume set to 23.RADIO OFF function
(on and off mode)
This function makes it possible to set the
radio switching off mode by choosing be-
tween two methods. To activate the func-
tion use the button ÷or ˜.
The chosen mode appears on the display:
❒“00 MIN”: the radio turns off in con-
nection with the ignition key; the radio
is automatically turned off as soon as the
key is turned to the STOP position;
❒“20 MIN”: the radio turns off indepen-
dently from the ignition key; the radio
remains switched on for a maximum pe-
riod of 20 minutes after the key has
been turned to the STOP position.
SYSTEM RESET function.
This function is used to restore all settings
to the factory values. The options are:
❒NO: no restore intervention;
❒YES: the default parameters will be re-
stored. During such operation, the text
“Resetting” appears on the display. At
the end of the operation, the source
does not change and the previous situ-
ation will be displayed.PHONE SET-UP
When a phone call is received, the radio
audio will be connected to the telephone
output if the hands-free kit is installed on
the car. The sound of the telephone al-
ways arrives at a fixed volume, but it is
possible to adjust it during a phone
conversation by pressing the button/knob
fig. 1.
The fixed volume of the telephone audio
can be adjusted with the Menu’s external
audio function. The text “PHONE” ap-
pears on the display during the telephone
audio deactivation.
603_97_355 Radio Ducato SB08 EN 13-11-2009 10:11 Pagina 19
