Engine FIAT DUCATO BASE CAMPER 2014 Owner handbook (in English)

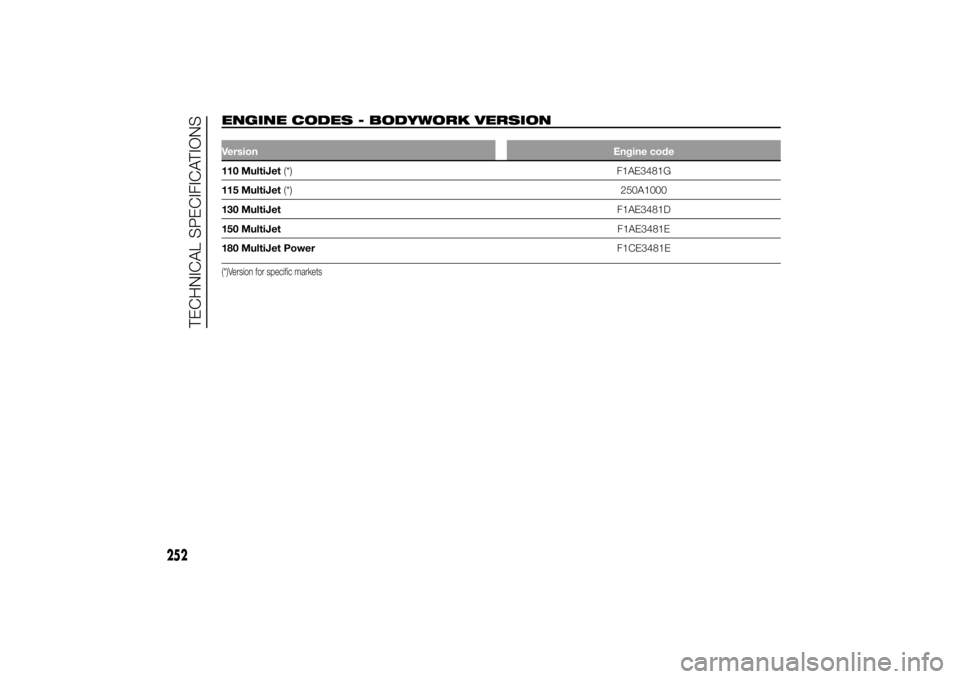

ENGINE CODES - BODYWORK VERSION
.
VersionEngine code110 MultiJet(*) F1AE3481G
115 MultiJet(*)250A1000
130 MultiJetF1AE3481D
150 MultiJetF1AE3481E
180 MultiJet PowerF1CE3481E(*)Version for specific markets
252
TECHNICAL SPECIFICATIONS

PPanoramaR6/9 seater crew cab
253

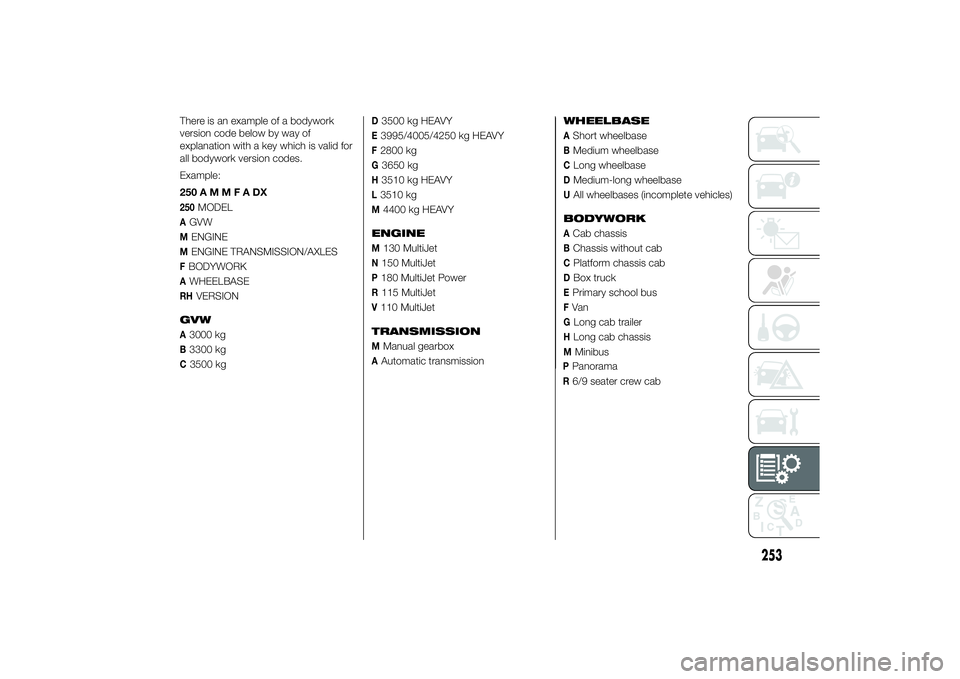

There is an example of a bodywork
version code below by way of
explanation with a key which is valid for
all bodywork version codes.
Example:
250AMMFADX250
MODEL
AGVWM
ENGINE
M
ENGINE TRANSMISSION/AXLES
FBODYWORKAWHEELBASERH
VERSION
GVW
A3000 kgB3300 kgC3500 kg
D3500 kg HEAVYE3995/4005/4250 kg HEAVYF2800 kgG3650 kgH3510 kg HEAVYL3510 kgM
4400 kg HEAVY
ENGINE
M
130 MultiJet
N150 MultiJetP180 MultiJet PowerR115 MultiJetV110 MultiJet
TRANSMISSIONM
Manual gearbox
AAutomatic transmissionWHEELBASE
AShort wheelbaseBMedium wheelbaseCLong wheelbaseDMedium-long wheelbaseUAll wheelbases (incomplete vehicles)
BODYWORKACab chassisBChassis without cabCPlatform chassis cabDBox truckEPrimary school busFVa nGLong cab trailerHLong cab chassisM
Minibus

ENGINEGeneral information
110 MultiJet (*) 115 MultiJet (*)130 MultiJet 150 MultiJet180 MultiJet
PowerType code F1AE3481G 250A1000 F1AE3481D F1AE3481E F1CE3481E
Cycle Diesel Diesel Diesel Diesel Diesel
Number and layout of
cylinders4 in line 4 in line 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 88 x 94 83 x 90.4 88 x 94 88 x 94 95.8 x 104
Total displacement (cm³) 2287 1956 2287 2287 2999
Compression ratio 16,2 : 1 16,5 : 1 16,2 : 1 16,2 : 1 17,5 : 1
Maximum power (EC) (kW) 82,5 84,6 96 109 130
Maximum power (EC) (HP) 110 115 130 148 177
Corresponding engine speed
(rpm)3600 3750 3600 3600 3500
Maximum torque (EC) (Nm) 300 280 320 350 400
Corresponding engine speed
(rpm)1800 1500 1800 1500 1400
Fuel Diesel for motor vehicles (EN590 specification)(*)Version for specific markets
254
TECHNICAL SPECIFICATIONS

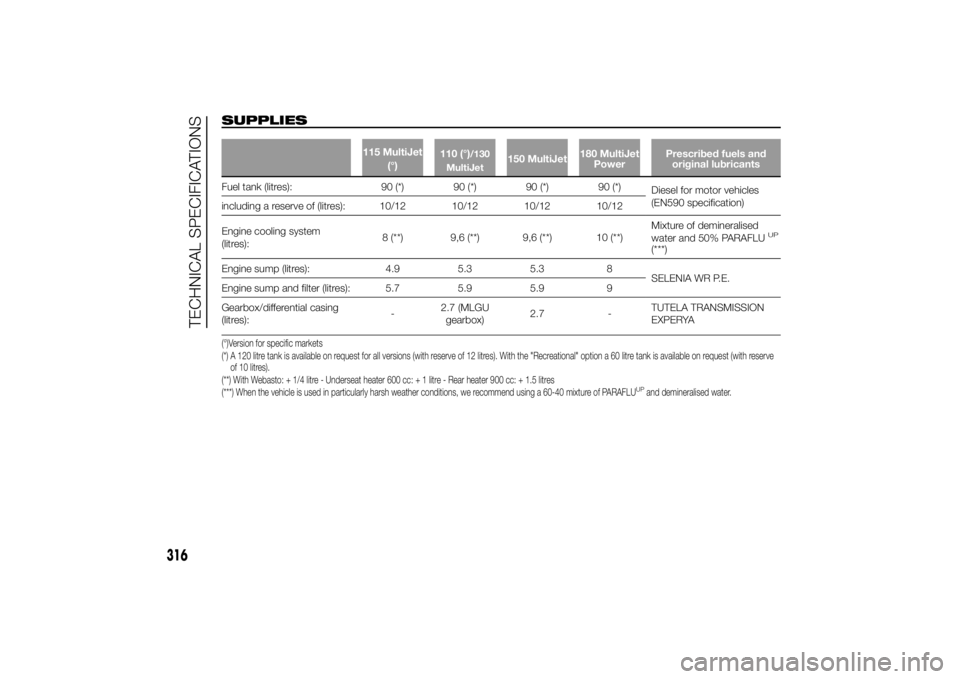

SUPPLIES
115 MultiJet
(°)110 (°)
/130
MultiJet
150 MultiJet180 MultiJet
PowerPrescribed fuels and
original lubricants
Fuel tank (litres): 90 (*) 90 (*) 90 (*) 90 (*)
Diesel for motor vehicles
(EN590 specification)
including a reserve of (litres): 10/12 10/12 10/12 10/12
Engine cooling system
(litres):8 (**) 9,6 (**) 9,6 (**) 10 (**)Mixture of demineralised
water and 50% PARAFLU
UP
(***)
Engine sump (litres): 4.9 5.3 5.3 8
SELENIA WR P.E.
Engine sump and filter (litres): 5.7 5.9 5.9 9
Gearbox/differential casing
(litres):-2.7 (MLGU
gearbox)2.7 -TUTELA TRANSMISSION
EXPERYA
(°)Version for specific markets
(*) A 120 litre tank is available on request for all versions (with reserve of 12 litres). With the "Recreational" option a 60 litre tank is available on request (with reserve
of 10 litres).
(**) With Webasto: + 1/4 litre - Underseat heater 600 cc: + 1 litre - Rear heater 900 cc: + 1.5 litres
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU
UPand demineralised water.
316
TECHNICAL SPECIFICATIONS

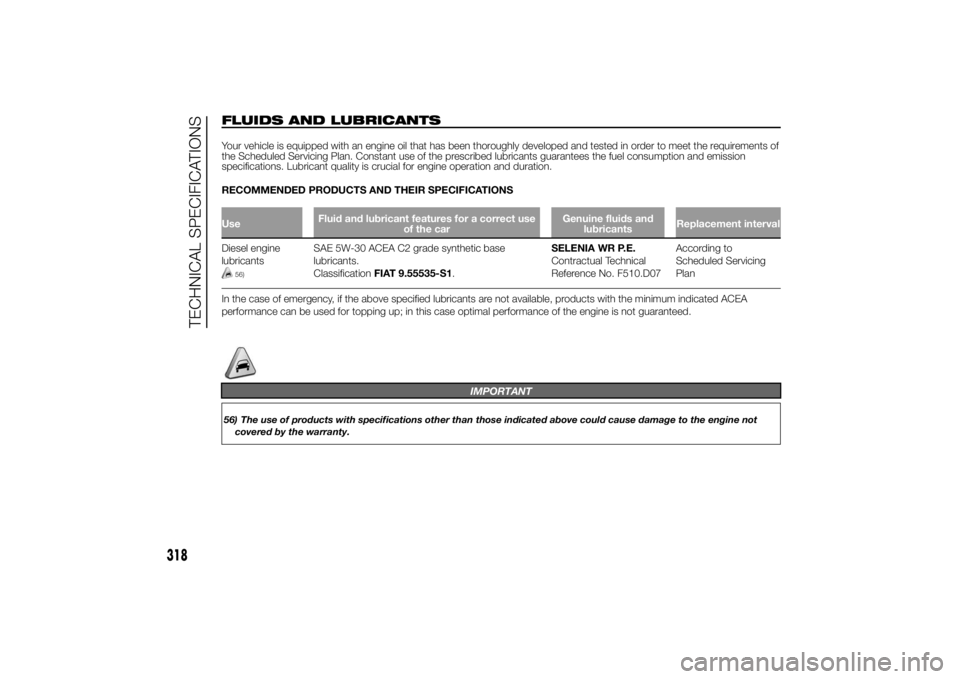

FLUIDS AND LUBRICANTSYour vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONSUseFluid and lubricant features for a correct use
of the carGenuine fluids and
lubricantsReplacement intervalDiesel engine
lubricants
56)
SAE 5W-30 ACEA C2 grade synthetic base
lubricants.
ClassificationFIAT 9.55535-S1.SELENIA WR P.E.
Contractual Technical
Reference No. F510.D07According to
Scheduled Servicing
Plan
In the case of emergency, if the above specified lubricants are not available, products with the minimum indicated ACEA
performance can be used for topping up; in this case optimal performance of the engine is not guaranteed.
IMPORTANT
56) The use of products with specifications other than those indicated above could cause damage to the engine not
covered by the warranty.
318
TECHNICAL SPECIFICATIONS

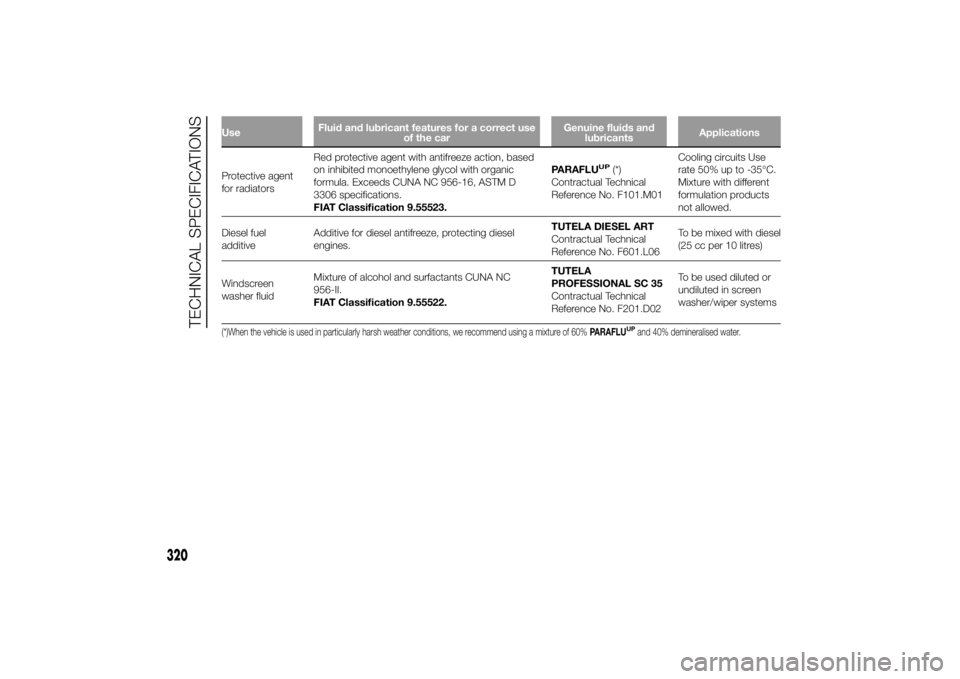

UseFluid and lubricant features for a correct use
of the carGenuine fluids and
lubricantsApplicationsProtective agent
for radiatorsRed protective agent with antifreeze action, based
on inhibited monoethylene glycol with organic
formula. Exceeds CUNA NC 956-16, ASTM D
3306 specifications.
FIAT Classification 9.55523.PARAFLU
UP
(*)
Contractual Technical
Reference No. F101.M01Cooling circuits Use
rate 50% up to -35°C.
Mixture with different
formulation products
not allowed.
Diesel fuel
additiveAdditive for diesel antifreeze, protecting diesel
engines.TUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel
(25 cc per 10 litres)
Windscreen
washer fluidMixture of alcohol and surfactants CUNA NC
956-II.
FIAT Classification 9.55522.TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in screen
washer/wiper systems
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLU
UPand 40% demineralised water.
320
TECHNICAL SPECIFICATIONS

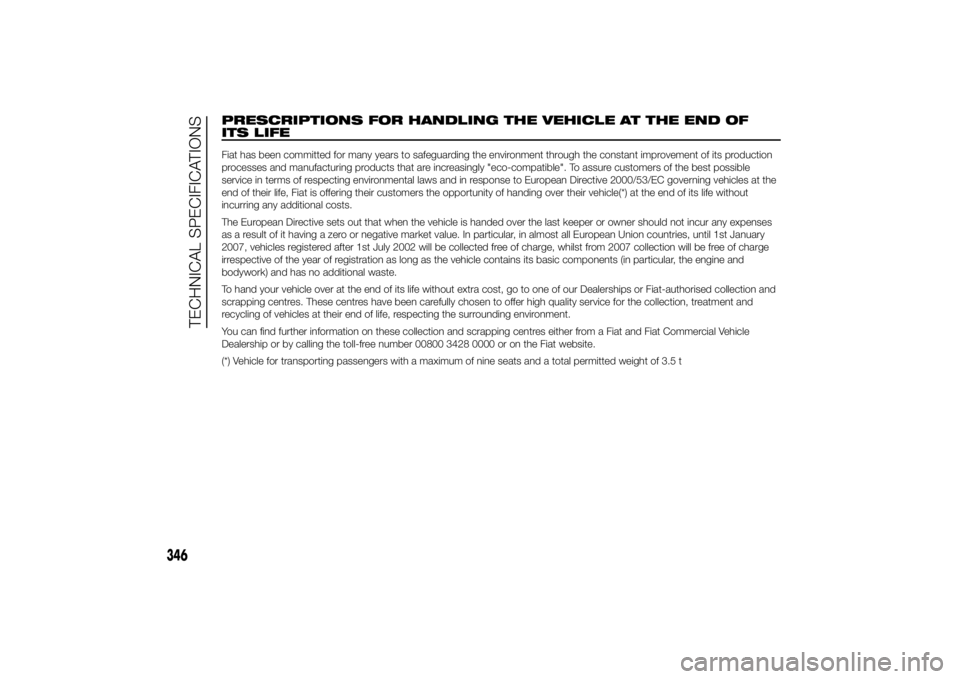

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF
ITS LIFEFiat has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To assure customers of the best possible
service in terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the
end of their life, Fiat is offering their customers the opportunity of handing over their vehicle(*) at the end of its life without
incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur any expenses
as a result of it having a zero or negative market value. In particular, in almost all European Union countries, until 1st January
2007, vehicles registered after 1st July 2002 will be collected free of charge, whilst from 2007 collection will be free of charge
irrespective of the year of registration as long as the vehicle contains its basic components (in particular, the engine and
bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, go to one of our Dealerships or Fiat-authorised collection and
scrapping centres. These centres have been carefully chosen to offer high quality service for the collection, treatment and
recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from a Fiat and Fiat Commercial Vehicle
Dealership or by calling the toll-free number 00800 3428 0000 or on the Fiat website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
346
TECHNICAL SPECIFICATIONS

WHATTODOIF
Fault Possible solution
... A TYRE IS PUNCTURED.Use the Fix&Go tyre repair kit. See page 196.
Replace the tyre. See page 191
... A TYRE DEFLATES. Restore the correct pressure. See page 263.
... THE INTERNAL ROOF LIGHT DOES NOT
SWITCH ON.Replace the bulb.See page 211 or contact a
Fiat Dealership.
... AN EXTERNAL BULB (main beam, dipped
beam headlights...) DOES NOT COME ON.Replace the bulb.See page 205 or contact a
Fiat Dealership.
... THE REMOTE CONTROL DOES NOT
WORK.Replace the batteries inside the remote
control.See page 12 or contact a
Fiat Dealership.
... AN ELECTRIC WINDOW DOES NOT
WORK.Check the relevant protection fuse.See page 212 or contact a
Fiat Dealership.
Have the relevant window raising / lowering
motor checked.Contact a Fiat Dealership.
... THE ENGINE DOES NOT START OR
STOPS WHEN DRIVING.Check that there is sufficient fuel in the tank;
refuel if necessary.See page 100.
...DIESEL FUEL IS FROZEN.Use winter diesel fuel or a suitable additive. See page 320
In the case of VOR, warm up the diesel filter
area and the upstream/downstream circuits, if
possible.-
...INCORRECT FITTING OF THE AFTER
MARKET SYSTEMS.Carefully follow the instructions in the Owner
Handbook in order to prevent affecting the
correct operation of the vehicle.See page 99 or contact a
Fiat Dealership.

Fault Possible solution
...STEERING STUCK WITH VOR AND
STEERING LOCK ENGAGED.If the vehicle is parked with the wheels
completely steered, the steering wheel must
be turned in the direction opposite to the end
of travel position, while taking the key to
MAR-ON.-
... THE ENGINE DOES NOT START, THE
STARTER DOES NOT TURN.The battery might be empty, check its charge
status. If necessary carry out an emergency
starting.See page 190.
The battery quick-release terminal might have
disconnected, check the correct connection
on the battery negative pole.-
The battery protection fuse might be broken.
Do not force starting by keeping on taking the
key to AVV. Do not connect any external
device to the battery.See page 212 or contact a
Fiat Dealership.
... THE ENGINE DOES NOT START
FOLLOWING AN IMPACT.Fuel supply might be interrupted following
activation of the fuel cut off inertia switch.
Check the system re-activation procedure.See page 57.
