FIAT DUCATO BASE CAMPER 2015 Owner handbook (in English)

FVa n
GLong cab trailer
HLong cab chassis
MMinibus
PPanorama
R6/9 seater crew cab
257

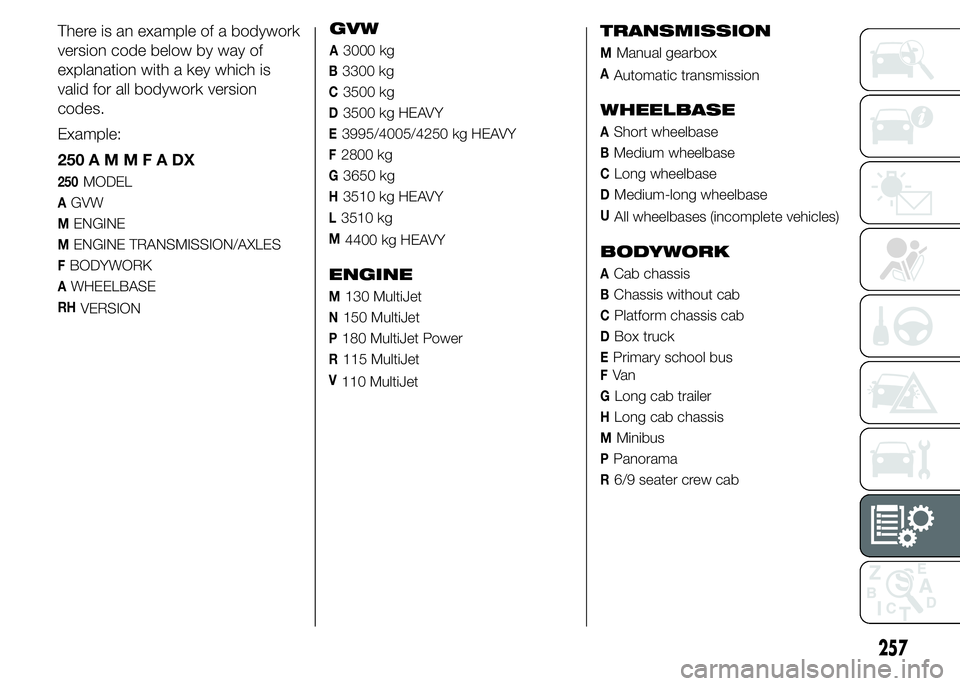

There is an example of a bodywork
version code below by way of
explanation with a key which is
valid for all bodywork version
codes.
Example:
250AMMFADX
250MODEL
AGVW
MENGINE
MENGINE TRANSMISSION/AXLES
FBODYWORK
AWHEELBASE
RHVERSION
GVW
A3000 kg
B3300 kg
C3500 kg
D3500 kg HEAVY
E3995/4005/4250 kg HEAVY
F2800 kg
G3650 kg
H3510 kg HEAVY
L3510 kg
M4400 kg HEAVY
ENGINE
M130 MultiJet
N150 MultiJet
P180 MultiJet Power
R115 MultiJet
V110 MultiJet
TRANSMISSION
MManual gearbox
AAutomatic transmission
WHEELBASE
AShort wheelbase
BMedium wheelbase
CLong wheelbase
DMedium-long wheelbase
UAll wheelbases (incomplete vehicles)
BODYWORK
ACab chassis
BChassis without cab
CPlatform chassis cab
DBox truck
EPrimary school bus

ENGINE
General information
110 MultiJet (*) 115 MultiJet (*)130 MultiJet 150 MultiJet180 MultiJet
Power
Type code F1AE3481G 250A1000 F1AE3481D F1AE3481E F1CE3481E
Cycle Diesel Diesel Diesel Diesel Diesel
Number and layout of
cylinders4 in line 4 in line 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 88 x 94 83 x 90.4 88 x 94 88 x 94 95.8 x 104
Total displacement (cm³) 2287 1956 2287 2287 2999
Compression ratio 16,2 : 1 16,5 : 1 16,2 : 1 16,2 : 1 17,5 : 1
Maximum power (EC) (kW) 82,5 84,6 96 109 130
Maximum power (EC) (HP) 110 115 130 148 177
Corresponding engine speed
(rpm)3600 3750 3600 3600 3500
Maximum torque (EC) (Nm) 300 280 320 350 400
Corresponding engine speed
(rpm)1800 1500 1800 1500 1400
Fuel Diesel for motor vehicles (EN590 specification)
(*)Version for specific markets
258
TECHNICAL SPECIFICATIONS

POWER SUPPLY
Versions Power supply
All Common Rail direct injection
200)
WARNING
200) Modifications or repairs to the fuel supply system that are not carried out properly or do not take the system’s
technical specifications into account may cause malfunctions leading to a risk of fire.
259

TRANSMISSION
Versions Gearbox Clutch Drive
115 MultiJet(*)Five forward gears and
reverse with synchronizers
for forward gear
engagement
Self-adjusting pedal without
idle strokeFront 110 MultiJet(*)
Six forward gears plus
reverse with synchronisers
for forward gear
engagement 130 MultiJet
150 MultiJet
180 MultiJet Power
(*)Version for specific markets
260
TECHNICAL SPECIFICATIONS

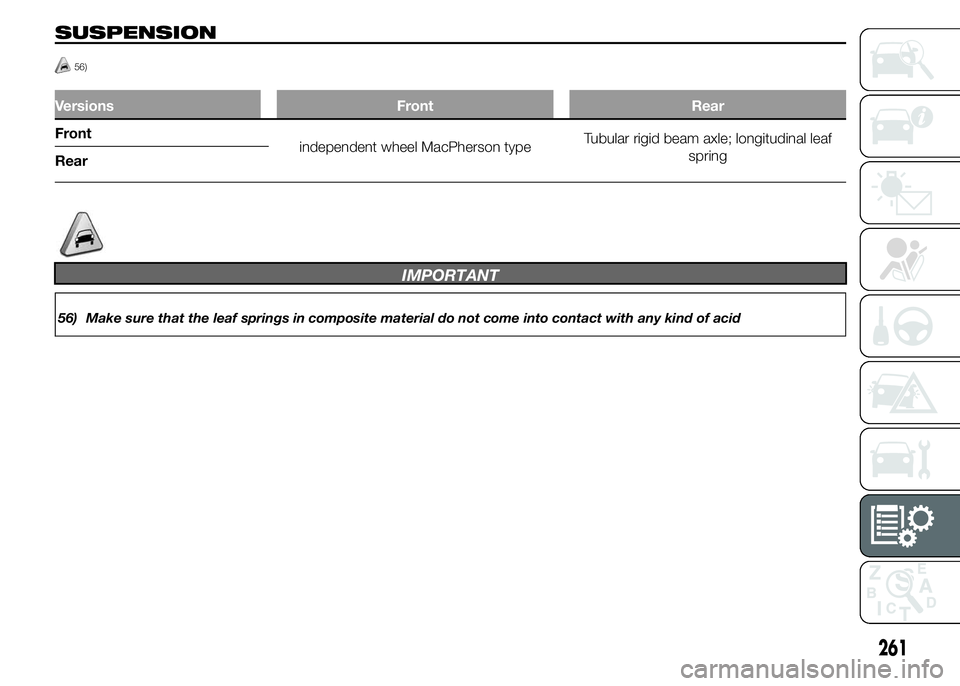

SUSPENSION
56)
Versions Front Rear
Front
independent wheel MacPherson typeTubular rigid beam axle; longitudinal leaf
spring
Rear
IMPORTANT
56) Make sure that the leaf springs in composite material do not come into contact with any kind of acid
261

BRAKES
Front service brakes Rear service brakes Parking brake
self-ventilated discs discscontrolled by hand lever, working on rear
brakes
IMPORTANT Water, ice and salt spread on the roads may deposit on the brake discs reducing braking efficiency
the first time the brakes are applied.
262
TECHNICAL SPECIFICATIONS

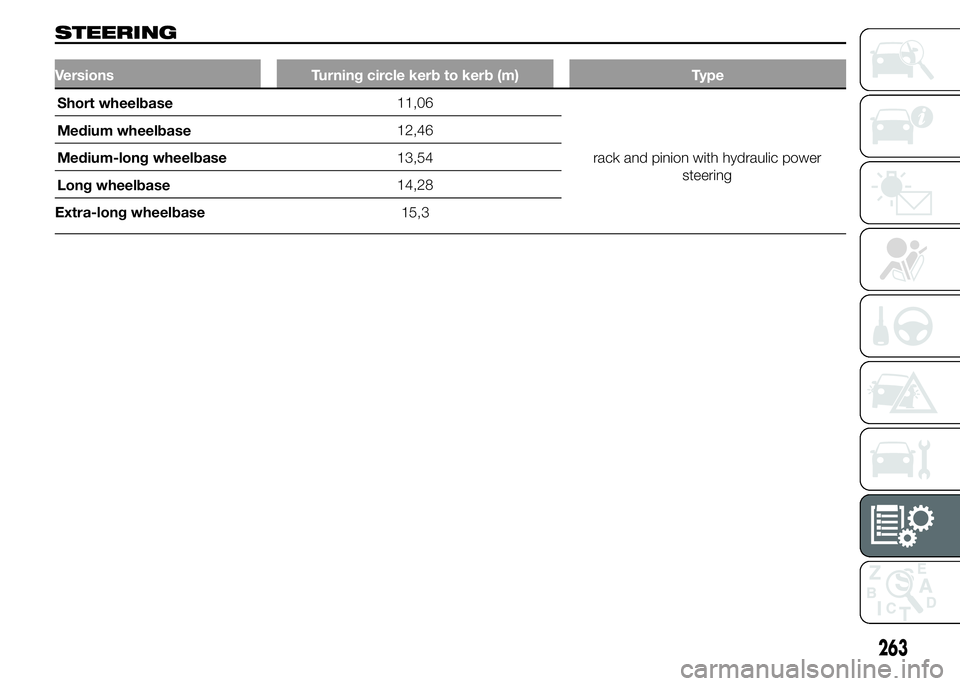

STEERING
Versions Turning circle kerb to kerb (m) Type
11,06
12,46
13,54
14,28
Extra-long wheelbase15,3
263
Short wheelbase
Medium wheelbase
Medium-long wheelbase
Long wheelbaserack and pinion with hydraulic power
steering

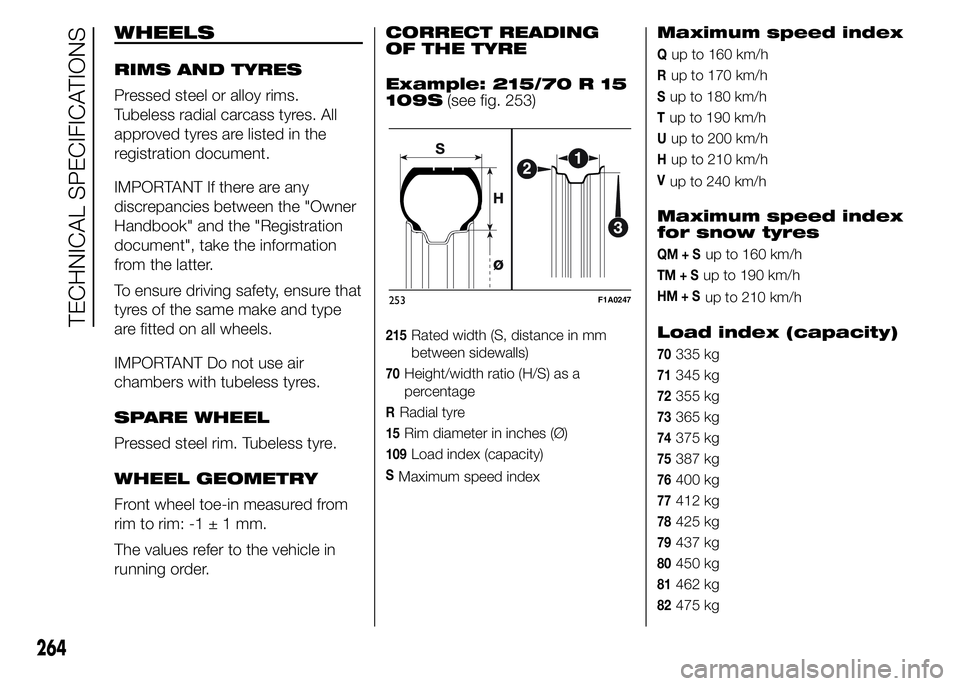

WHEELS
RIMS AND TYRES
Pressed steel or alloy rims.
Tubeless radial carcass tyres. All
approved tyres are listed in the
registration document.
IMPORTANT If there are any
discrepancies between the "Owner
Handbook" and the "Registration
document", take the information
from the latter.
To ensure driving safety, ensure that
tyres of the same make and type
are fitted on all wheels.
IMPORTANT Do not use air
chambers with tubeless tyres.
SPARE WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured from
rim to rim: -1±1mm.
The values refer to the vehicle in
running order.CORRECT READING
OF THE TYRE
Example: 215/70 R 15
109S(see fig. 253)
215Rated width (S, distance in mm
between sidewalls)
70Height/width ratio (H/S) as a
percentage
RRadial tyre
15Rim diameter in inches (Ø)
109Load index (capacity)
SMaximum speed index
Maximum speed index
Qup to 160 km/h
Rup to 170 km/h
Sup to 180 km/h
Tup to 190 km/h
Uup to 200 km/h
Hup to 210 km/h
Vup to 240 km/h
Maximum speed index
for snow tyres
QM+Sup to 160 km/h
TM+Sup to 190 km/h
HM+Sup to 210 km/h
Load index (capacity)
70335 kg
71345 kg
72355 kg
73365 kg
74375 kg
75387 kg
76400 kg
77412 kg
78425 kg
79437 kg
80450 kg
81462 kg
82475 kg
253F1A0247
264
TECHNICAL SPECIFICATIONS

83487 kg
84500 kg
85515 kg
86530 kg
87545 kg
88560 kg
89580 kg
90600 kg
91615 kg
92630 kg
93650 kg
94670 kg
95690 kg
96710 kg
97730 kg
98750 kg
99775 kg
100800 kg
101825 kg
102850 kg
103875 kg
104900 kg
105925 kg
106950 kg
107975 kg
1081000 kg
1091030 kg
1101060 kg
1111090 kg
1121120 kg
1131150 kg
1141180 kg
1151215 kg
1161250 kg
1171285 kg
1181320 kg
1191360 kg

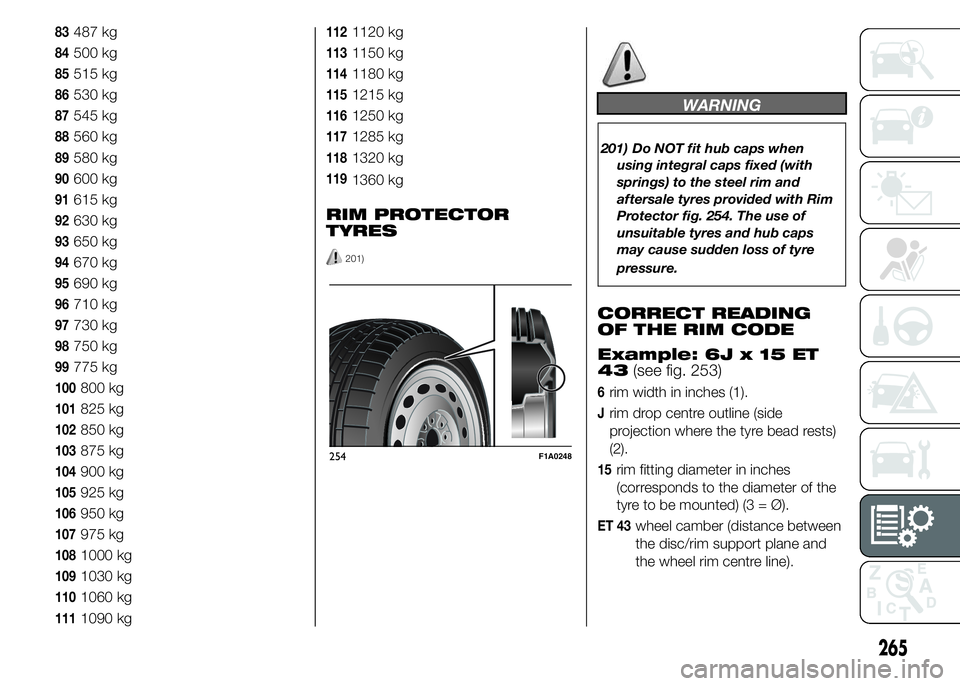

RIM PROTECTOR
TYRES
201)
WARNING
201) Do NOT fit hub caps when
using integral caps fixed (with
springs) to the steel rim and
aftersale tyres provided with Rim
Protector fig. 254. The use of
unsuitable tyres and hub caps
may cause sudden loss of tyre
pressure.
CORRECT READING
OF THE RIM CODE
Example: 6J x 15 ET
43(see fig. 253)
6rim width in inches (1).
Jrim drop centre outline (side
projection where the tyre bead rests)
(2).
15rim fitting diameter in inches
(corresponds to the diameter of the
tyre to be mounted) (3 = Ø).
ET 43wheel camber (distance between
the disc/rim support plane and
the wheel rim centre line).
254F1A0248
265

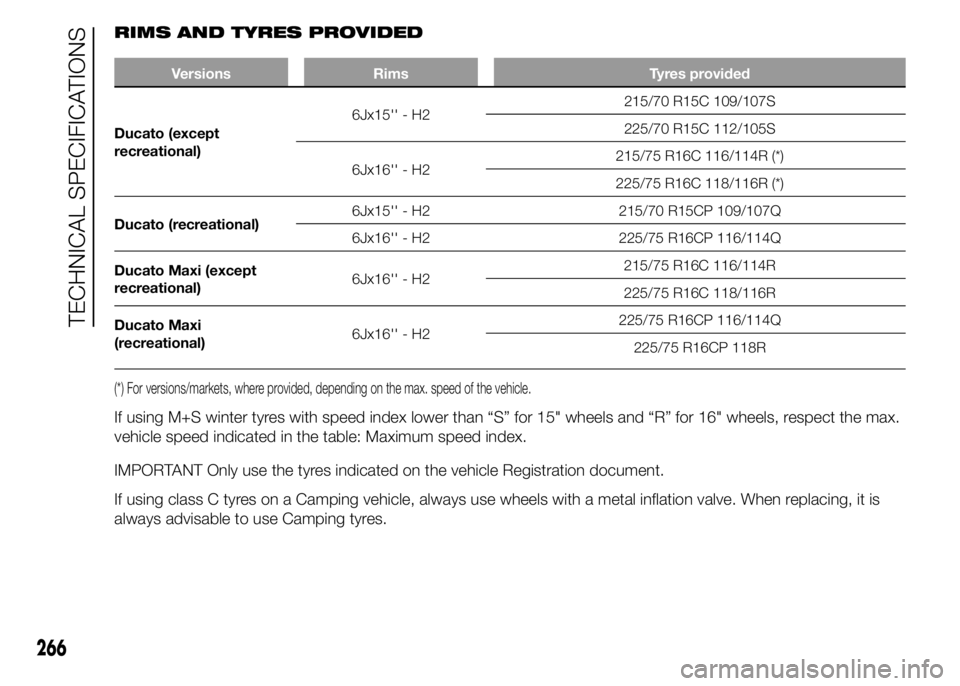

RIMS AND TYRES PROVIDED
Versions Rims Tyres provided
Ducato (except
recreational)6Jx15'' - H2215/70 R15C 109/107S
225/70 R15C 112/105S
6Jx16'' - H2215/75 R16C 116/114R (*)
225/75 R16C 118/116R (*)
Ducato (recreational)6Jx15'' - H2 215/70 R15CP 109/107Q
6Jx16'' - H2 225/75 R16CP 116/114Q
Ducato Maxi (except
recreational)6Jx16'' - H2215/75 R16C 116/114R
225/75 R16C 118/116R
Ducato Maxi
(recreational)6Jx16'' - H2225/75 R16CP 116/114Q
225/75 R16CP 118R
(*) For versions/markets, where provided, depending on the max. speed of the vehicle..
If using M+S winter tyres with speed index lower than “S” for 15" wheels and “R” for 16" wheels, respect the max.
vehicle speed indicated in the table: Maximum speed index.
IMPORTANT Only use the tyres indicated on the vehicle Registration document.
If using class C tyres on a Camping vehicle, always use wheels with a metal inflation valve. When replacing, it is
always advisable to use Camping tyres.
266
TECHNICAL SPECIFICATIONS
