FIAT DUCATO BASE CAMPER 2015 Owner handbook (in English)

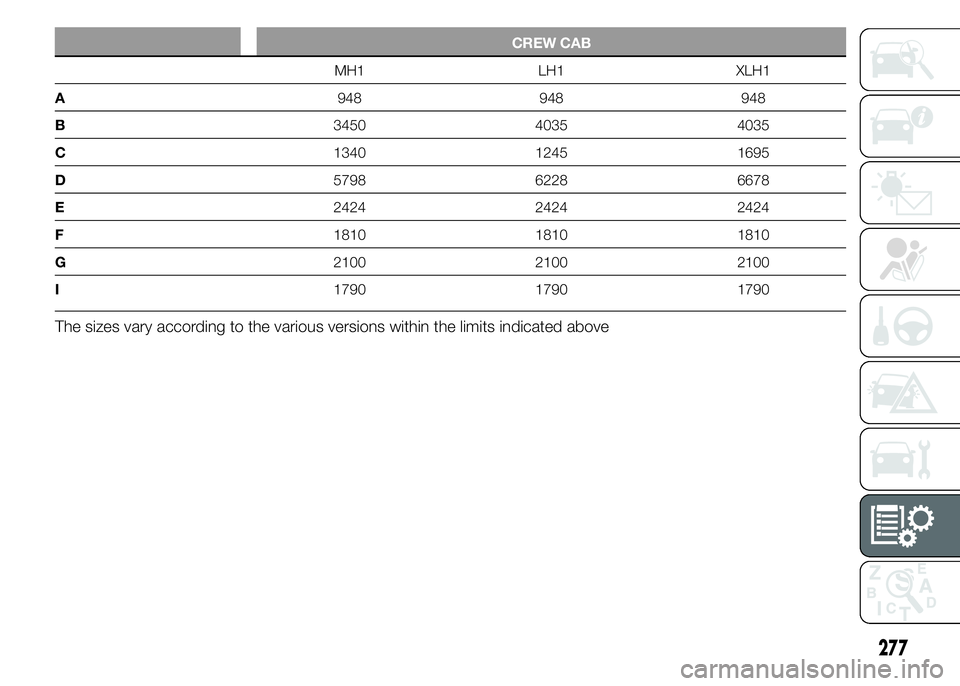

CREW CAB
MH1 LH1 XLH1
A948 948 948
B3450 4035 4035
C1340 1245 1695
D5798 6228 6678
E2424 2424 2424
F1810 1810 1810
G2100 2100 2100
I1790 1790 1790
The sizes vary according to the various versions within the limits indicated above
277

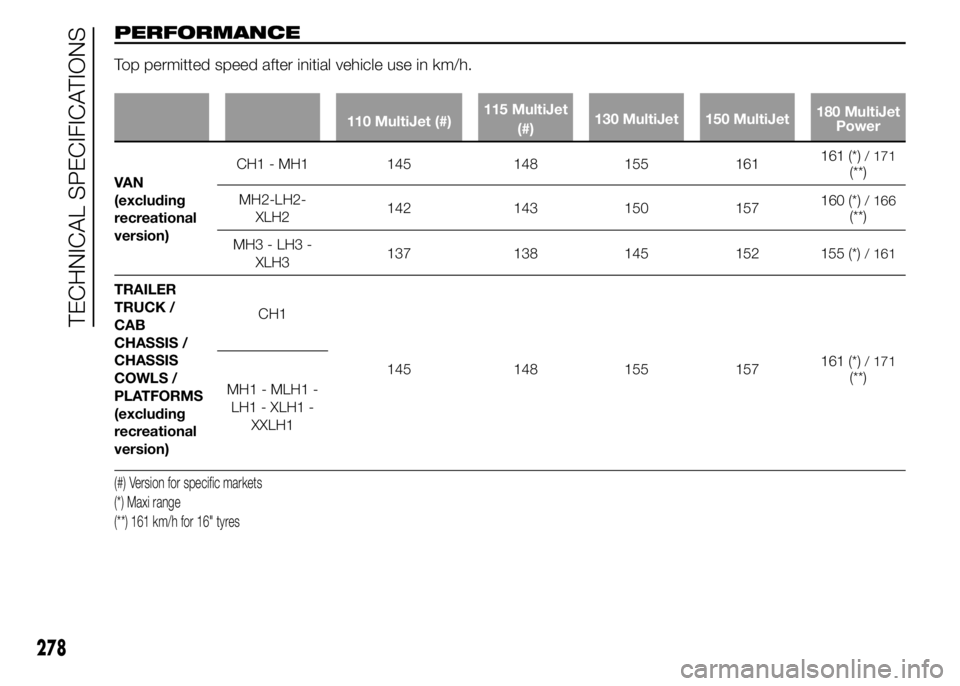

PERFORMANCE
Top permitted speed after initial vehicle use in km/h.
110 MultiJet (#)115 MultiJet
(#)130 MultiJet 150 MultiJet180 MultiJet
Power
VAN
(excluding
recreational
version)CH1 - MH1 145 148 155 161161 (*)
/ 171(**)
MH2-LH2-
XLH2142 143 150 157160 (*)
/ 166(**)
MH3 - LH3 -
XLH3137 138 145 152 155 (*)
/ 161
TRAILER
TRUCK /
CAB
CHASSIS /
CHASSIS
COWLS /
PLATFORMS
(excluding
recreational
version)CH1
145 148 155 157161 (*)
/ 171(**)
MH1 - MLH1 -
LH1 - XLH1 -
XXLH1
(#) Version for specific markets
(*) Maxi range
(**) 161 km/h for 16" tyres
278
TECHNICAL SPECIFICATIONS

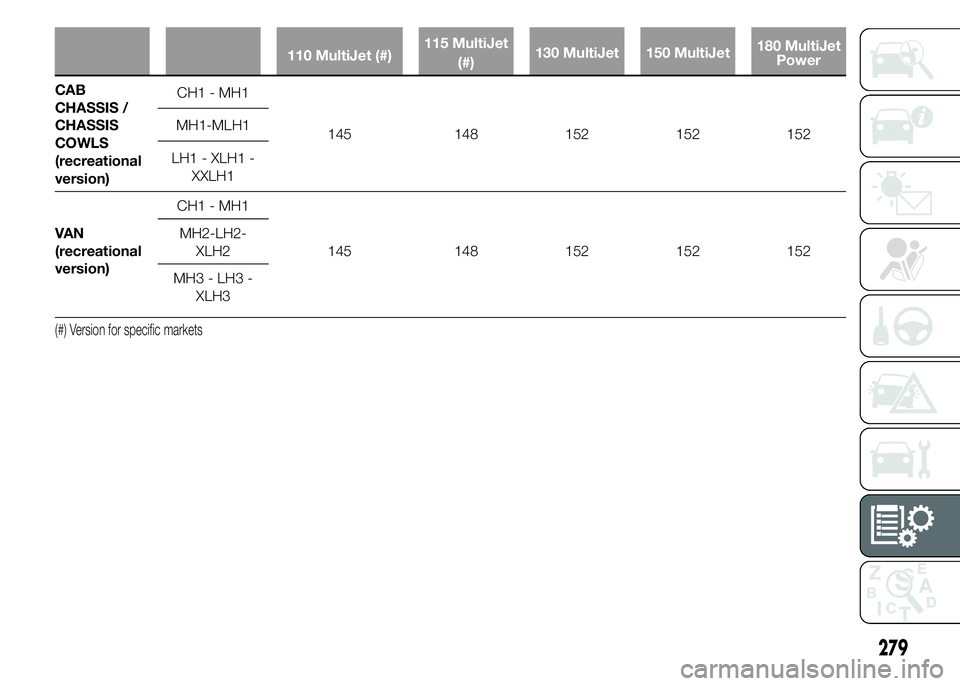

110 MultiJet (#)115 MultiJet
(#)130 MultiJet 150 MultiJet180 MultiJet
Power
CAB
CHASSIS /
CHASSIS
COWLS
(recreational
version)CH1 - MH1
145 148 152 152 152 MH1-MLH1
LH1 - XLH1 -
XXLH1
VAN
(recreational
version)CH1 - MH1
145 148 152 152 152 MH2-LH2-
XLH2
MH3 - LH3 -
XLH3
(#) Version for specific markets
279

WEIGHTS
VAN WEIGHTS
2800 kg GVW versions(*) 3510 kg GVW versions(*)
110 (**)
/130/150 MultiJet110 (**)/130/150 MultiJet
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1845 ÷ 1860 1860 ÷ 2000
Payload (***)
including the driver:
Maximum permitted loads (°)
– front axle: 1630 1850
– rear axle: 1650 2000
– total: 2800 3510
Towable loads
– braked trailer: 2000 2500
– non-braked trailer: 750 750
Maximum load on ball joint (braked trailer): 100 100
(*) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.
(**) Version for specific markets
(***) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(°) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
280
TECHNICAL SPECIFICATIONS

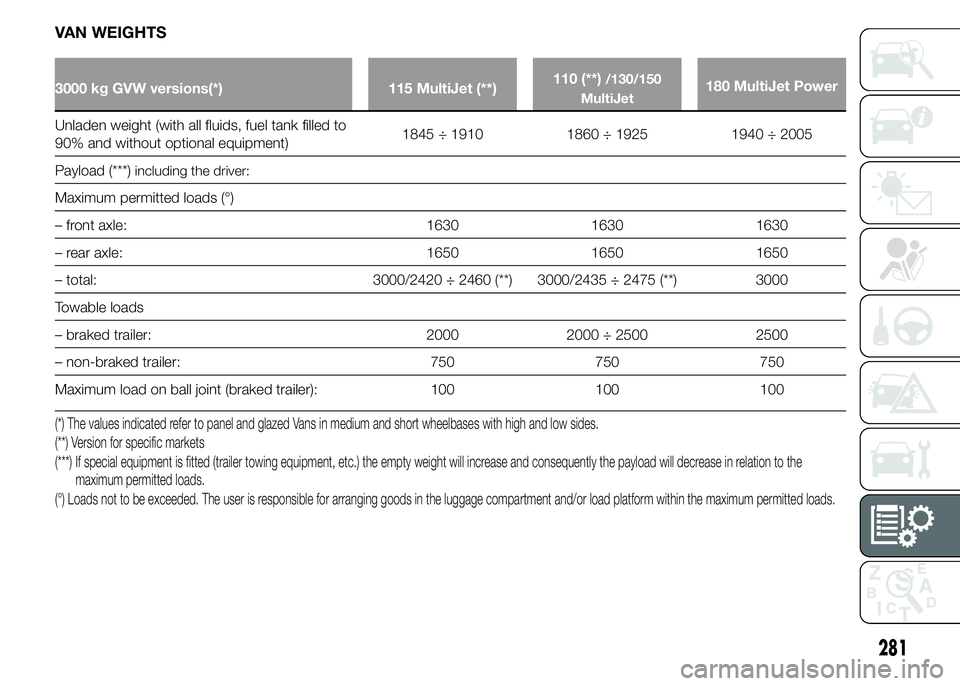

VAN WEIGHTS
3000 kg GVW versions(*) 115 MultiJet (**)110 (**)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1845 ÷ 1910 1860 ÷ 1925 1940 ÷ 2005
Payload (***)
including the driver:
Maximum permitted loads (°)
– front axle: 1630 1630 1630
– rear axle: 1650 1650 1650
– total: 3000/2420 ÷ 2460 (**) 3000/2435 ÷ 2475 (**) 3000
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.
(**) Version for specific markets
(***) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(°) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
281

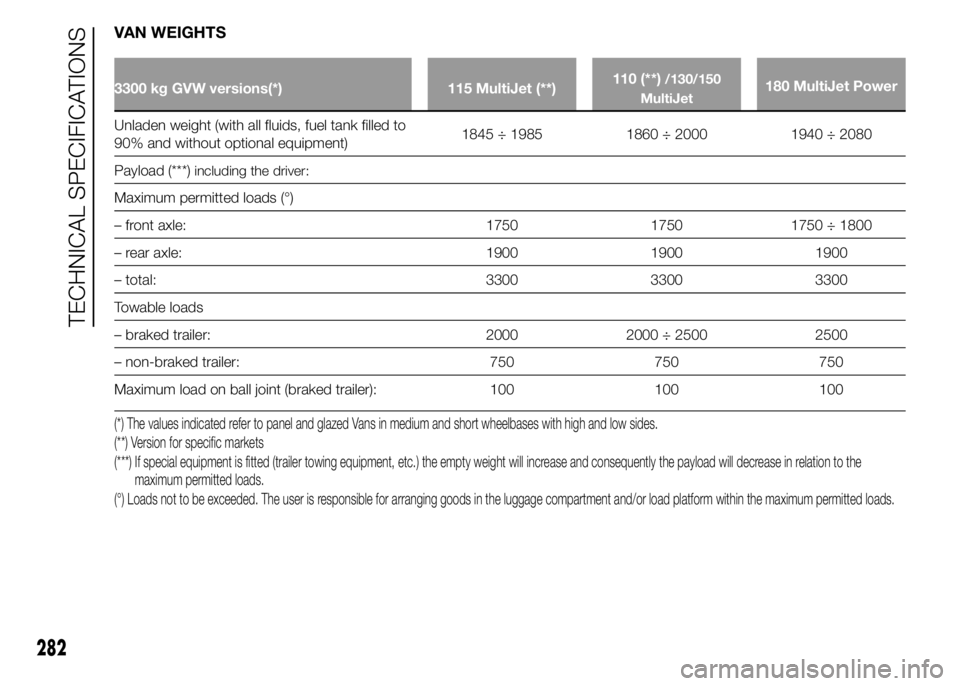

VAN WEIGHTS
3300 kg GVW versions(*) 115 MultiJet (**)110 (**)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1845 ÷ 1985 1860 ÷ 2000 1940 ÷ 2080
Payload (***)
including the driver:
Maximum permitted loads (°)
– front axle: 1750 1750 1750 ÷ 1800
– rear axle: 1900 1900 1900
– total: 3300 3300 3300
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.
(**) Version for specific markets
(***) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(°) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
282
TECHNICAL SPECIFICATIONS

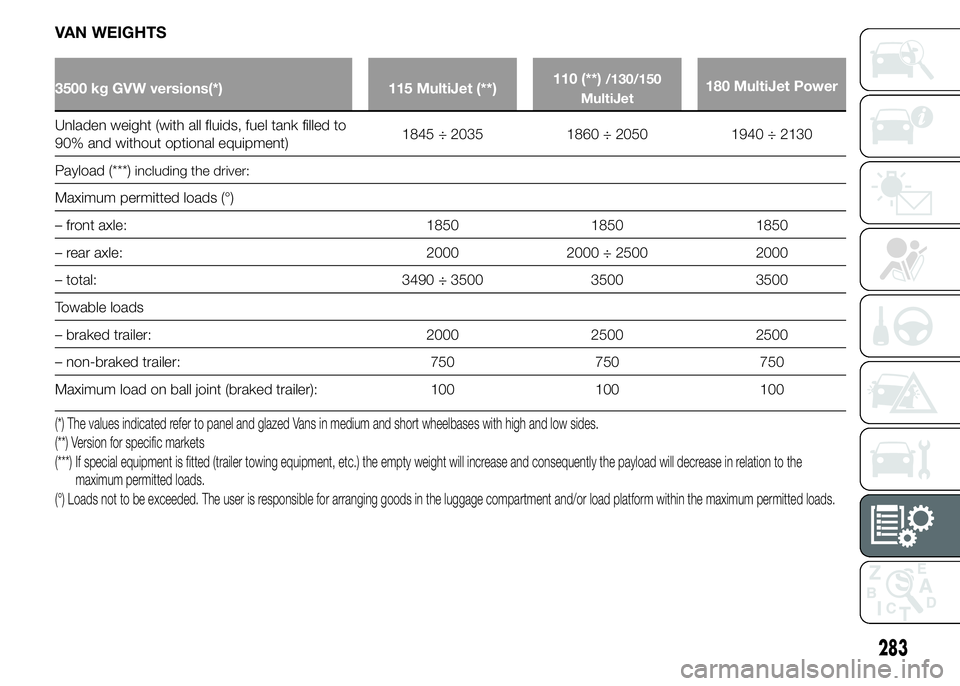

VAN WEIGHTS
3500 kg GVW versions(*) 115 MultiJet (**)110 (**)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1845 ÷ 2035 1860 ÷ 2050 1940 ÷ 2130
Payload (***)
including the driver:
Maximum permitted loads (°)
– front axle: 1850 1850 1850
– rear axle: 2000 2000 ÷ 2500 2000
– total: 3490 ÷ 3500 3500 3500
Towable loads
– braked trailer: 2000 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.
(**) Version for specific markets
(***) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(°) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
283

VAN WEIGHTS (MAXI versions)
3500 kg GVW versions(*)3995 kg - 4005 kg - 4250 kg GVW
versions(*)
110 (**)
/130/
150 MultiJet180 MultiJet
Power110 (**)/130/
150 MultiJet180 MultiJet
Power
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1900 ÷ 2135 1980 ÷ 2215 1945 ÷ 2135 2025 ÷ 2215
Payload (***)
including the driver:
Maximum permitted loads (°)
– front axle: 2100 2100 2100 2100
– rear axle: 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500
– total: 3500 3500 3995 ÷ 4250 3995 ÷ 4250
Towable loads
– braked trailer: 3000 3000 2000 ÷ 2500 2000 ÷ 2500
– non-braked trailer: 750 750 750 750
Maximum load on ball joint (braked trailer): 120 120 100 100
(*) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.
(**) Version for specific markets
(***) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(°) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
284
TECHNICAL SPECIFICATIONS

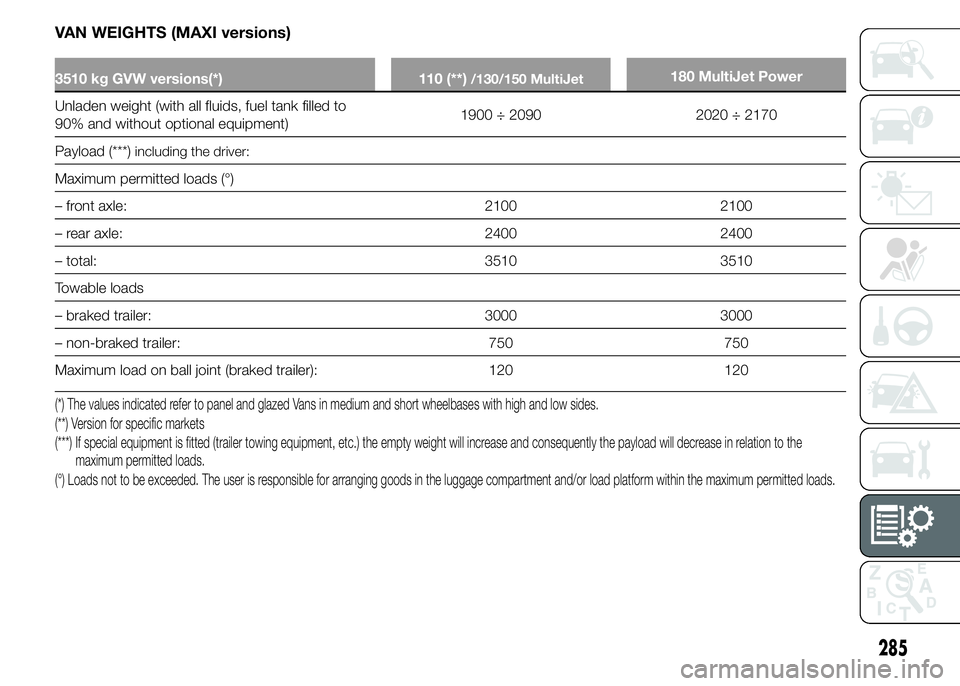

VAN WEIGHTS (MAXI versions)
3510 kg GVW versions(*) 110 (**)/130/150 MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1900 ÷ 2090 2020 ÷ 2170
Payload (***)
including the driver:
Maximum permitted loads (°)
– front axle: 2100 2100
– rear axle: 2400 2400
– total: 3510 3510
Towable loads
– braked trailer: 3000 3000
– non-braked trailer: 750 750
Maximum load on ball joint (braked trailer): 120 120
(*) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.
(**) Version for specific markets
(***) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(°) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
285

TRAILER TRUCK WEIGHTS
3000 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90% and without optional equipment)1795 ÷ 1875 1810 ÷ 1890 1890 ÷ 1935
Payload (**)
including the driver:
Maximum permitted loads (***)
– front axle: 1630 1630 1630
– rear axle: 1650 1650 1650
– total: 2935 ÷ 3000 2935 ÷ 3000 3000
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(**) If special equipment is fitted (trailer towing equipment, etc.) the empty weight will increase and consequently the payload will decrease in relation to the
maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
286
TECHNICAL SPECIFICATIONS
