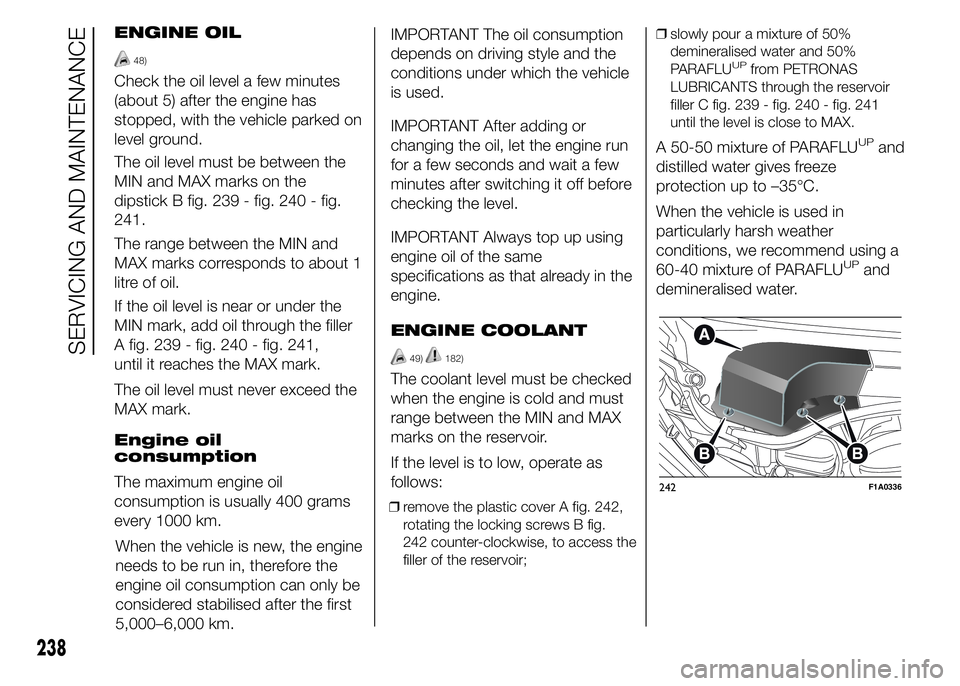

ENGINE OIL
48)
Check the oil level a few minutes
(about 5) after the engine has
stopped, with the vehicle parked on
level ground.
The oil level must be between the
MIN and MAX marks on the
dipstick B fig. 239 - fig. 240 - fig.
241.
The range between the MIN and
MAX marks corresponds to about 1
litre of oil.
If the oil level is near or under the
MIN mark, add oil through the filler
A fig. 239 - fig. 240 - fig. 241,
until it reaches the MAX mark.
The oil level must never exceed the
MAX mark.
Engine oil
consumption
The maximum engine oil
consumption is usually 400 grams
every 1000 km.
When the vehicle is new, the engine
needs to be run in, therefore the
engine oil consumption can only be
considered stabilised after the first
5,000–6,000 km.IMPORTANT The oil consumption
depends on driving style and the
conditions under which the vehicle
is used.
IMPORTANT After adding or
changing the oil, let the engine run
for a few seconds and wait a few
minutes after switching it off before
checking the level.
IMPORTANT Always top up using
engine oil of the same
specifications as that already in the
engine.
ENGINE COOLANT
49)182)
The coolant level must be checked
when the engine is cold and must
range between the MIN and MAX
marks on the reservoir.
If the level is to low, operate as
follows:
❒remove the plastic cover A fig. 242,
rotating the locking screws B fig.
242 counter-clockwise, to access the
filler of the reservoir;❒slowly pour a mixture of 50%
demineralised water and 50%
PARAFLU
UPfrom PETRONAS
LUBRICANTS through the reservoir
filler C fig. 239 - fig. 240 - fig. 241
until the level is close to MAX.
A 50-50 mixture of PARAFLUUPand
distilled water gives freeze
protection up to –35°C.
When the vehicle is used in
particularly harsh weather
conditions, we recommend using a
60-40 mixture of PARAFLU
UPand
demineralised water.
242F1A0336
238
SERVICING AND MAINTENANCE

POWER STEERING
FLUID
188)
3)
51)
Check that the liquid contained in
the tank is at the maximum level.
This operation must be carried out
with the vehicle level and with
the engine off and cold.
Proceed as follows:
❒remove the plastic cover A fig. 242,
rotating the locking screws B fig.
242 counter-clockwise, to access the
filler of the reservoir;
❒check that the fluid level is up to the
MAX mark on the dipstick attached
to the fuel cap F fig. 239 - fig. 240
- fig. 241 (use the level shown on the
20°C side of the dipstick to check
when cold).
If the level of the fluid in the tank is
lower than the specified level,
top up using only one of the
products indicated in the "Fluid and
lubricants" table in the "Technical
specifications" section, proceeding
as follows:
❒Start the engine and wait for the fluid
level in the tank to stabilise.❒With the engine running, turn the
steering wheel from right to left
fully several times.
❒Top up the fuel to the MAX level and
then retighten the cap.
WINDSCREEN/REAR
WINDOW WASHER
FLUID
183) 184)
To add fluid:
❒remove cap D fig. 239 - fig. 240 - fig.
241, pulling the retaining tooth
outward;
❒pull the opening of the pipe upwards
to remove the telescopic funnel fig.
243.
IMPORTANT Before opening the
cap, make sure it is correctly
oriented (as illustrated in fig. 243) to
prevent it from being damaged
and interfering with the adjacent
mechanical parts. Otherwise, turn it
until it reaches the correct position.
Fill according to the following
instructions:
Use a mixture of water and TUTELA
PROFESSIONAL SC 35, in the
following concentrations:
30% TUTELA PROFESSIONAL SC
35 and 70% water in summer.50% TUTELA PROFESSIONAL SC
35 and 50% water in winter.
At temperatures below –20°C, use
undiluted TUTELA PROFESSIONAL
SC 35 fluid.
To close the cap, operate as
follows:
❒push the funnel fully until it locks;
243F1A0396
239
❒close the cap.
185)

BRAKE FLUID
186) 187)
50)
Undo the cap E fig. 239 - fig. 240 -
fig. 241 and check that the liquid
contained in the reservoir is at
the maximum level.
The fluid level in the reservoir must
not exceed the MAX mark.
Use the brake fluid shown in the
"Fluids and lubricants" table (see
"Technical Specifications").
NOTE Carefully clean the cap of the
reservoir and the surrounding
surface.
Take great care to ensure that
impurities do not enter the reservoir
when the plug is opened.
For topping-up, always use a funnel
with integrated filter with mesh
equal to or lower than 0.12 mm.IMPORTANT Brake fluid absorbs
moisture. For this reason, if the
vehicle is mainly used in areas with
a high degree of atmospheric
humidity, the fluid should be
replaced at more frequent intervals
than specified in the “Scheduled
Servicing Plan”.
IMPORTANT
47) When topping up, take care not
to mix up the various types of
fluids: they are not compatible
with each other and could
seriously damage the car.
48) The used engine oil and the filter
that has been replaced contain
substances that are harmful to
the environment. To change the
oil and filters, we advise you to
contact a Fiat Dealership.49) PARAFLU
UPantifreeze is used in
the engine cooling system. Use
fluid of the same type as that
contained in the cooling system
for any top-ups. PARAFLU
UP
cannot be mixed with any other
type of fluid. If this happens, do
not start the engine and contact a
Fiat Dealership.
50) Avoid allowing brake fluid, which
is extremely corrosive, to come
into contact with painted areas.
Should it happen, wash
immediately with water.
51) Do not press the power steering
end of travel lock for longer than 8
consecutive seconds with the
engine running because it will
cause noise and risk damaging
the system.
WARNING
180) Never smoke when performing
operations in the engine
compartment. Flammable gases
and fumes may be present and
risk igniting.
240
SERVICING AND MAINTENANCE

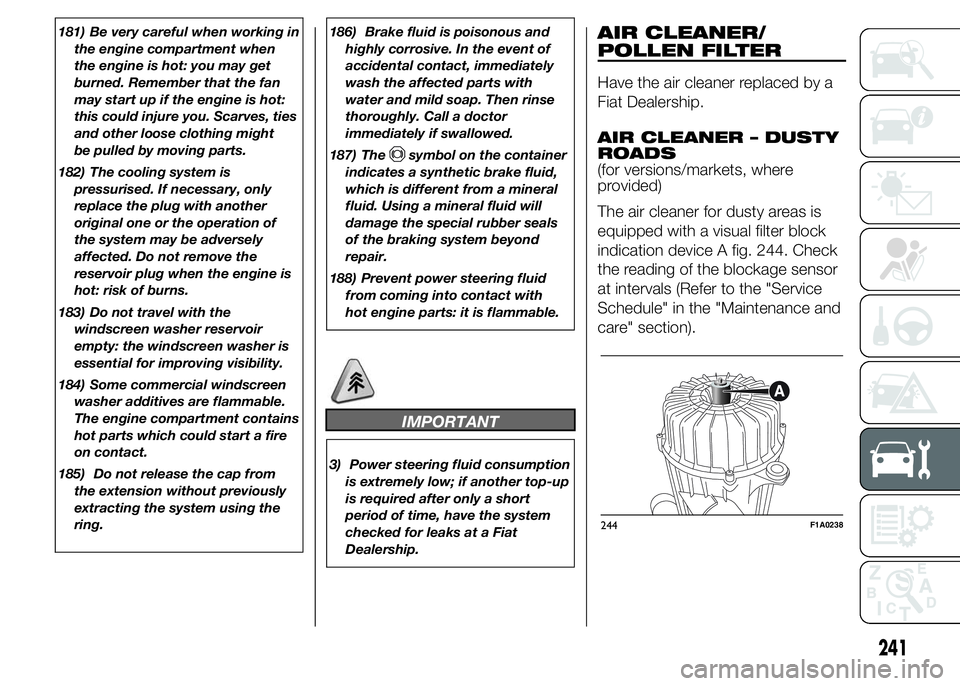

181) Be very careful when working in
the engine compartment when
the engine is hot: you may get
burned. Remember that the fan
may start up if the engine is hot:
this could injure you. Scarves, ties
and other loose clothing might
be pulled by moving parts.
182) The cooling system is
pressurised. If necessary, only
replace the plug with another
original one or the operation of
the system may be adversely
affected. Do not remove the
reservoir plug when the engine is
hot: risk of burns.
183) Do not travel with the
windscreen washer reservoir
empty: the windscreen washer is
essential for improving visibility.
184) Some commercial windscreen
washer additives are flammable.
The engine compartment contains
hot parts which could start a fire
on contact.
185) Do not release the cap from
the extension without previously
extracting the system using the
ring.186) Brake fluid is poisonous and
highly corrosive. In the event of
accidental contact, immediately
wash the affected parts with
water and mild soap. Then rinse
thoroughly. Call a doctor
immediately if swallowed.
187) The
symbol on the container
indicates a synthetic brake fluid,
which is different from a mineral
fluid. Using a mineral fluid will
damage the special rubber seals
of the braking system beyond
repair.
188) Prevent power steering fluid
from coming into contact with
hot engine parts: it is flammable.
IMPORTANT
3) Power steering fluid consumption
is extremely low; if another top-up
is required after only a short
period of time, have the system
checked for leaks at a Fiat
Dealership.
AIR CLEANER/
POLLEN FILTER
Have the air cleaner replaced by a
Fiat Dealership.
AIR CLEANER – DUSTY
ROADS
(for versions/markets, where
provided)
The air cleaner for dusty areas is
equipped with a visual filter block
indication device A fig. 244. Check
the reading of the blockage sensor
at intervals (Refer to the "Service
Schedule" in the "Maintenance and
care" section).
244F1A0238
241

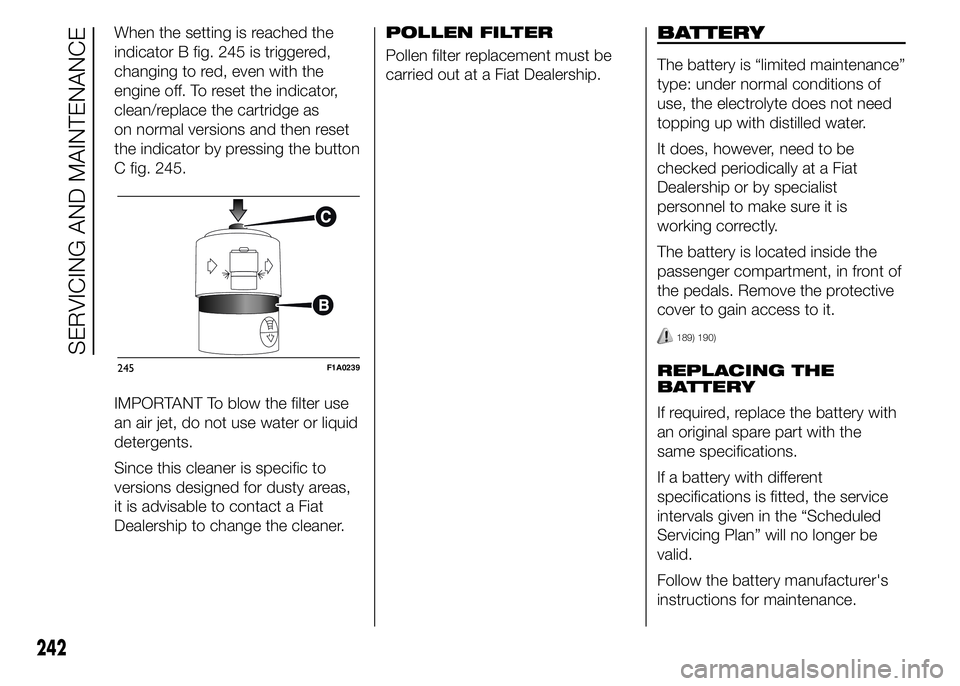

When the setting is reached the
indicator B fig. 245 is triggered,
changing to red, even with the
engine off. To reset the indicator,
clean/replace the cartridge as
on normal versions and then reset
the indicator by pressing the button
C fig. 245.
IMPORTANT To blow the filter use
an air jet, do not use water or liquid
detergents.
Since this cleaner is specific to
versions designed for dusty areas,
it is advisable to contact a Fiat
Dealership to change the cleaner.POLLEN FILTER
Pollen filter replacement must be
carried out at a Fiat Dealership.BATTERY
The battery is “limited maintenance”
type: under normal conditions of
use, the electrolyte does not need
topping up with distilled water.
It does, however, need to be
checked periodically at a Fiat
Dealership or by specialist
personnel to make sure it is
working correctly.
The battery is located inside the
passenger compartment, in front of
the pedals. Remove the protective
cover to gain access to it.
189) 190)
REPLACING THE
BATTERY
If required, replace the battery with
an original spare part with the
same specifications.
If a battery with different
specifications is fitted, the service
intervals given in the “Scheduled
Servicing Plan” will no longer be
valid.
Follow the battery manufacturer's
instructions for maintenance.245F1A0239
242
SERVICING AND MAINTENANCE

52) 53)
191) 192)
4)

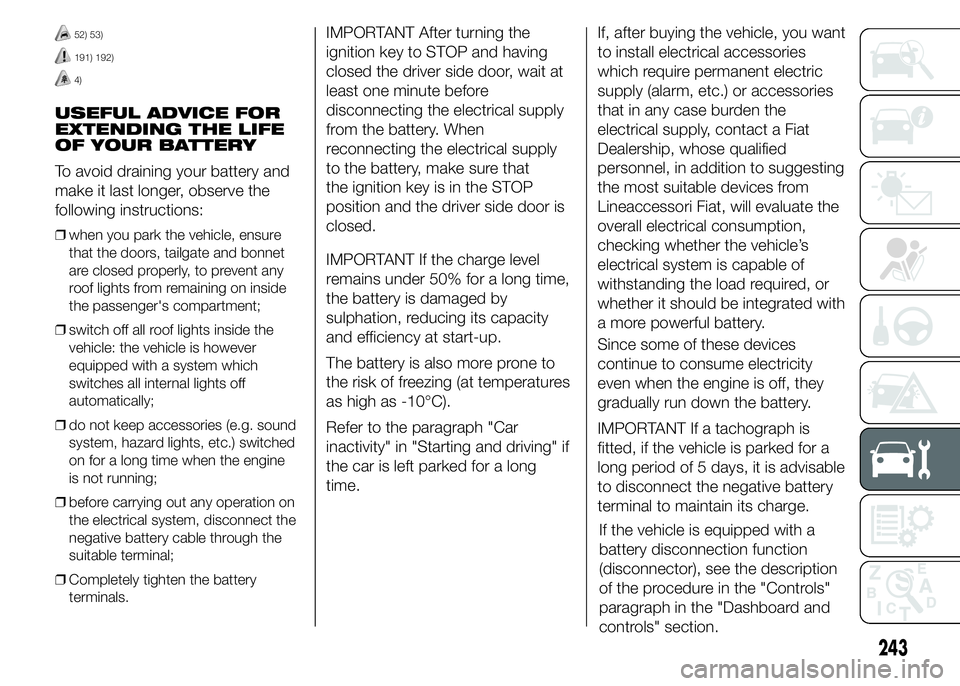

USEFUL ADVICE FOR
EXTENDING THE LIFE
OF YOUR BATTERY
To avoid draining your battery and
make it last longer, observe the
following instructions:
❒when you park the vehicle, ensure
that the doors, tailgate and bonnet
are closed properly, to prevent any
roof lights from remaining on inside
the passenger's compartment;
❒switch off all roof lights inside the
vehicle: the vehicle is however
equipped with a system which
switches all internal lights off
automatically;
❒do not keep accessories (e.g. sound
system, hazard lights, etc.) switched
on for a long time when the engine
is not running;
❒before carrying out any operation on
the electrical system, disconnect the
negative battery cable through the
suitable terminal;
❒Completely tighten the battery
terminals.
IMPORTANT After turning the
ignition key to STOP and having
closed the driver side door, wait at
least one minute before
disconnecting the electrical supply
from the battery. When
reconnecting the electrical supply
to the battery, make sure that
the ignition key is in the STOP
position and the driver side door is
closed.
IMPORTANT If the charge level
remains under 50% for a long time,
the battery is damaged by
sulphation, reducing its capacity
and efficiency at start-up.
The battery is also more prone to
the risk of freezing (at temperatures
as high as -10°C).
Refer to the paragraph "Car
inactivity" in "Starting and driving" if
the car is left parked for a long
time.If, after buying the vehicle, you want
to install electrical accessories
which require permanent electric
supply (alarm, etc.) or accessories
that in any case burden the
electrical supply, contact a Fiat
Dealership, whose qualified
personnel, in addition to suggesting
the most suitable devices from
Lineaccessori Fiat, will evaluate the
overall electrical consumption,
checking whether the vehicle’s
electrical system is capable of
withstanding the load required, or
whether it should be integrated with
a more powerful battery.
Since some of these devices
continue to consume electricity
even when the engine is off, they
gradually run down the battery.
IMPORTANT If a tachograph is
fitted, if the vehicle is parked for a
long period of 5 days, it is advisable
to disconnect the negative battery
terminal to maintain its charge.
243
If the vehicle is equipped with a
battery disconnection function
(disconnector), see the description
of the procedure in the "Controls"
paragraph in the "Dashboard and
controls" section.

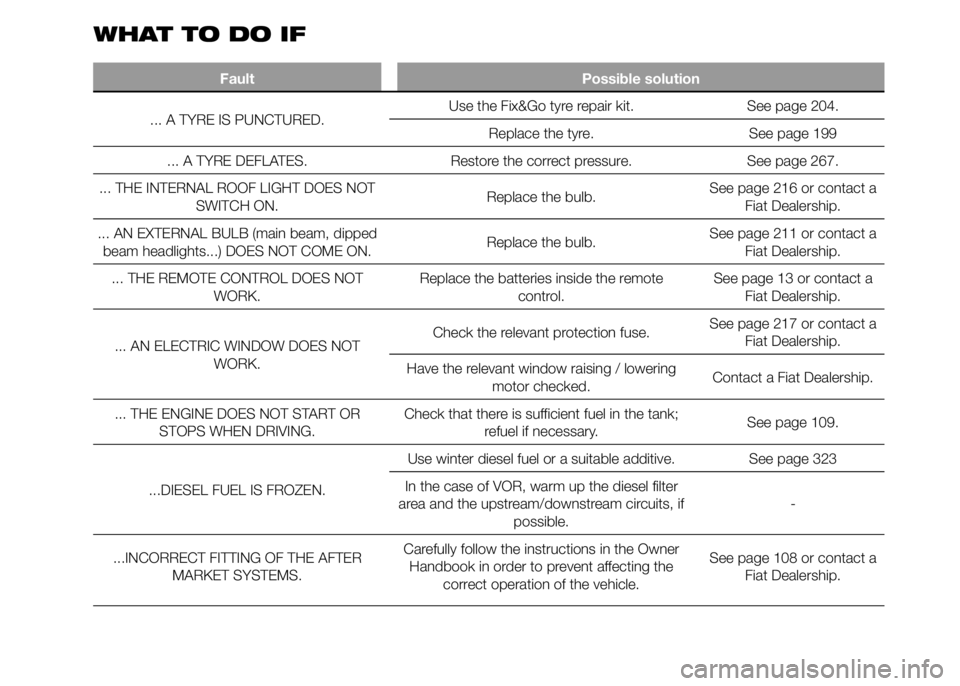

WHATTODOIF
Fault Possible solution
... A TYRE IS PUNCTURED.Use the Fix&Go tyre repair kit. See page 204.
Replace the tyre. See page 199
... A TYRE DEFLATES. Restore the correct pressure. See page 267.
... THE INTERNAL ROOF LIGHT DOES NOT
SWITCH ON.Replace the bulb.See page 216 or contact a
Fiat Dealership.
... AN EXTERNAL BULB (main beam, dipped
beam headlights...) DOES NOT COME ON.Replace the bulb.See page 211 or contact a
Fiat Dealership.
... THE REMOTE CONTROL DOES NOT
WORK.Replace the batteries inside the remote
control.See page 13 or contact a
Fiat Dealership.
... AN ELECTRIC WINDOW DOES NOT
WORK.Check the relevant protection fuse.See page 217 or contact a
Fiat Dealership.
Have the relevant window raising / lowering
motor checked.Contact a Fiat Dealership.
... THE ENGINE DOES NOT START OR
STOPS WHEN DRIVING.Check that there is sufficient fuel in the tank;
refuel if necessary.See page 109.
...DIESEL FUEL IS FROZEN.Use winter diesel fuel or a suitable additive. See page 323
In the case of VOR, warm up the diesel filter
area and the upstream/downstream circuits, if
possible.-
...INCORRECT FITTING OF THE AFTER
MARKET SYSTEMS.Carefully follow the instructions in the Owner
Handbook in order to prevent affecting the
correct operation of the vehicle.See page 108 or contact a
Fiat Dealership.

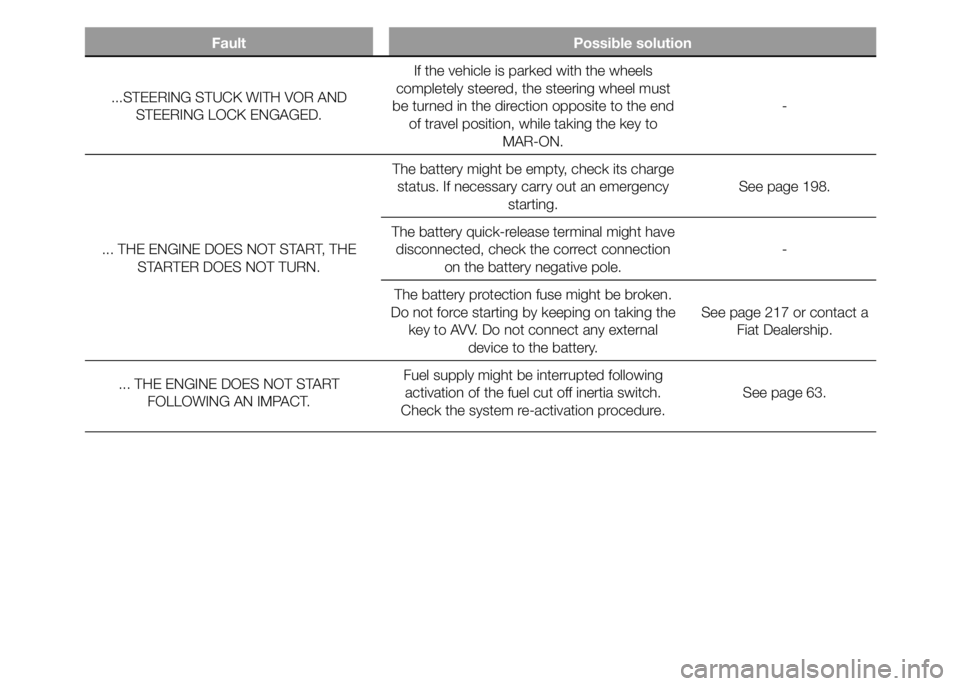

Fault Possible solution
...STEERING STUCK WITH VOR AND
STEERING LOCK ENGAGED.If the vehicle is parked with the wheels
completely steered, the steering wheel must
be turned in the direction opposite to the end
of travel position, while taking the key to
MAR-ON.-
... THE ENGINE DOES NOT START, THE
STARTER DOES NOT TURN.The battery might be empty, check its charge
status. If necessary carry out an emergency
starting.See page 198.
The battery quick-release terminal might have
disconnected, check the correct connection
on the battery negative pole.-
The battery protection fuse might be broken.
Do not force starting by keeping on taking the
key to AVV. Do not connect any external
device to the battery.See page 217 or contact a
Fiat Dealership.
... THE ENGINE DOES NOT START
FOLLOWING AN IMPACT.Fuel supply might be interrupted following
activation of the fuel cut off inertia switch.
Check the system re-activation procedure.See page 63.

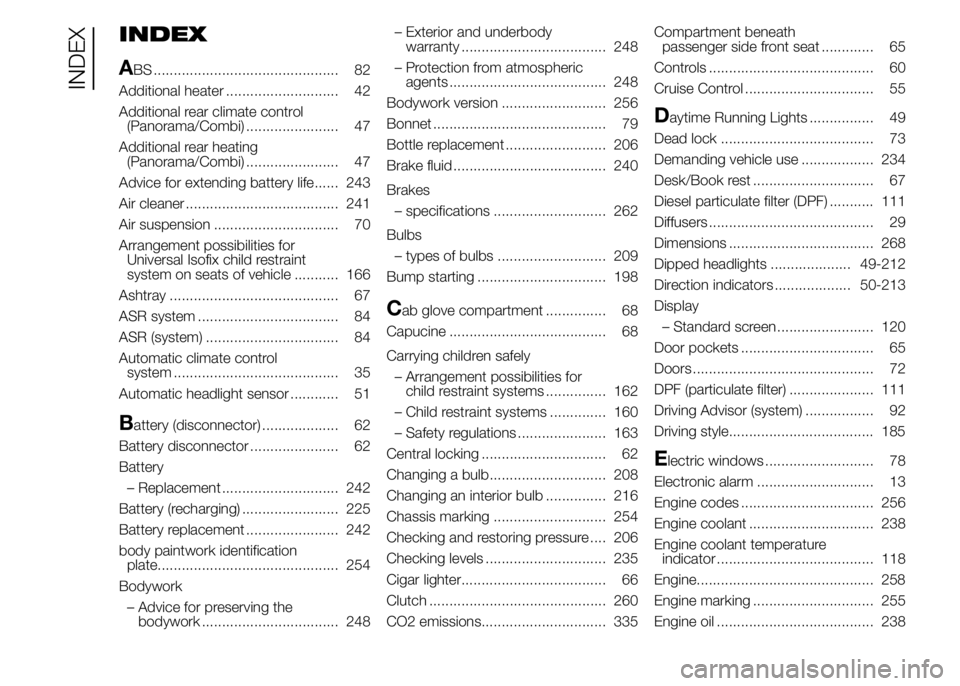

INDEX
A
BS .............................................. 82
Additional heater ............................ 42
Additional rear climate control
(Panorama/Combi) ....................... 47
Additional rear heating
(Panorama/Combi) ....................... 47
Advice for extending battery life...... 243
Air cleaner ...................................... 241
Air suspension ............................... 70
Arrangement possibilities for
Universal Isofix child restraint
system on seats of vehicle ........... 166
Ashtray .......................................... 67
ASR system ................................... 84
ASR (system) ................................. 84
Automatic climate control
system ......................................... 35
Automatic headlight sensor ............ 51
Battery (disconnector) ................... 62
Battery disconnector ...................... 62
Battery
– Replacement ............................. 242
Battery (recharging) ........................ 225
Battery replacement ....................... 242
body paintwork identification
plate............................................. 254
Bodywork
– Advice for preserving the
bodywork .................................. 248– Exterior and underbody
warranty .................................... 248
– Protection from atmospheric
agents ....................................... 248
Bodywork version .......................... 256
Bonnet ........................................... 79
Bottle replacement ......................... 206
Brake fluid ...................................... 240
Brakes
– specifications ............................ 262
Bulbs
– types of bulbs ........................... 209
Bump starting ................................ 198
Cab glove compartment ............... 68
Capucine ....................................... 68
Carrying children safely
– Arrangement possibilities for
child restraint systems ............... 162
– Child restraint systems .............. 160
– Safety regulations ...................... 163
Central locking ............................... 62
Changing a bulb............................. 208
Changing an interior bulb ............... 216
Chassis marking ............................ 254
Checking and restoring pressure .... 206
Checking levels .............................. 235
Cigar lighter.................................... 66
Clutch ............................................ 260
CO2 emissions............................... 335Compartment beneath
passenger side front seat ............. 65
Controls ......................................... 60
Cruise Control ................................ 55
Daytime Running Lights ................ 49
Dead lock ...................................... 73
Demanding vehicle use .................. 234
Desk/Book rest .............................. 67
Diesel particulate filter (DPF) ........... 111
Diffusers ......................................... 29
Dimensions .................................... 268
Dipped headlights .................... 49-212
Direction indicators ................... 50-213
Display
– Standard screen ........................ 120
Door pockets ................................. 65
Doors ............................................. 72
DPF (particulate filter) ..................... 111
Driving Advisor (system) ................. 92
Driving style.................................... 185
Electric windows ........................... 78
Electronic alarm ............................. 13
Engine codes ................................. 256
Engine coolant ............................... 238
Engine coolant temperature
indicator ....................................... 118
Engine............................................ 258
Engine marking .............................. 255
Engine oil ....................................... 238
INDEX

Engine oil level gauge ..................... 119
EOBD system ................................ 100
ESC (system) ................................. 83
External lights................................. 48
Fiat CODE system......................... 10
Fix&Go Automatic quick tyre
repair kit ........................ 204-205-206
Flap on bench ............................ 19-69
Flashing ......................................... 50
Flex Floor rear seat......................... 21
Fluids and lubricants ...................... 321
Fog lights ................................. 61-213
Follow Me Home device ................. 51
Follow me home ............................ 51
Front airbags .................................. 170
– Driver's side front airbag............ 170
– Manually deactivating the
front airbag and side bag........... 171
– Passenger side front airbag ....... 171
Front roof light (changing a bulb) .... 216
Fuel consumption .......................... 324
Fuel cut-off switch ......................... 63
Fuel level gauge ............................. 118
Fuel tank cap ................................. 110
Fuses (replacement) ....................... 218
Gearbox ....................................... 183
Gear lever ...................................... 183
Gear Shift Indicator ........................ 120
Glove compartment ....................... 64Glove compartment with lock......... 64
Hazard warning lights ................... 60
HBA (Hydraulic Brake Assist)
system ......................................... 85
HBA (system) ................................. 85
Headlight alignment corrector ........ 81
Headlights
– Headlight alignment corrector.... 81
– Light beam direction.................. 81
Headlight washers .................... 54-247
Head restraints
– Front ......................................... 24
Heated rear window ....................... 61
Heating and ventilation controls...... 29
Heating and ventilation ................... 28
Hill Descent Control System ........... 86
Hill Descent .................................... 86
Hill Holder system .......................... 84
Hill Holder (system) ........................ 84
Identification data .......................... 254
Ignition switch ................................ 15
Independent additional heater ........ 42
Inflation pressure ............................ 267
Inflation procedure ......................... 205
Instrument panel ............................ 114
Interior fittings ................................ 64
Interiors .......................................... 250
Isofix child restraint systems
(setup)– Arrangement possibilities for
child restraint system on
seats of vehicle.......................... 166
Jump starting ................................ 198
Lectern ......................................... 67
Lifting the vehicle ........................... 226
Light beam direction ...................... 81
Lights off ........................................ 48
Loading advice............................... 184
Main beam headlights............. 49-212
Maintenance and care - regular
checks ......................................... 234
Maintenance and care -
Scheduled Servicing .................... 230
Maintenance and care -
scheduled servicing plan .............. 231
Manual climate control system ....... 32
Manually deactivating the front
airbag and side bag ..................... 171
Moving footboard ........................... 75
MSR system .................................. 82
MSR (system)................................. 82
Multifunction display
– Control buttons ......................... 121
– Setup menu .............................. 121
Number plate lights....................... 215
On-board instruments................... 114
Parking ......................................... 181
Parking lights.............................. 50-61
