check engine FIAT DUCATO BASE CAMPER 2015 Owner handbook (in English)

READ THIS CAREFULLY
REFUELLING
Only refuel with automotive diesel conforming to the European specification EN590. The use of other products or mixtures may damage the
engine beyond repair and consequently invalidate the warranty, due to the damage caused.
STARTING THE ENGINE
Make sure that the handbrake is engaged; set the gear lever to neutral; fully depress the clutch pedal without pressing the accelerator, then
turn the ignition key to MAR-ON and wait for the warning lightsandto switch off; turn the ignition key to AVV and release it as
soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperatures during operation. Do not park on grass, dry leaves, pine needles or other flammable
material: fire hazard.
RESPECTING THE ENVIRONMENT
The vehicle is fitted with a system that allows continuous diagnosis of the emission-related components in order to help protect the
environment.
ELECTRICAL ACCESSORIES
If, after buying the vehicle, you decide to add electrical accessories (with the risk of gradually draining the battery), visit a Fiat Dealership. They
can calculate the overall electrical requirement and check that the vehicle's electrical system can support the required load.
SCHEDULED SERVICING
Correct maintenance enables the vehicle to perfectly maintain performance and safety characteristics, its environmental friendliness and low
running costs over time.
THE OWNER HANDBOOK CONTAINS
... important information, advice and warnings for correct use, driving safety and maintenance of your vehicle over time. Special attention
must be paid to the symbols(safety of persons)(environmental protection)(vehicle integrity).

GRAPHICAL INDEX
.
HEADLIGHTS
❒Bulb types ..........................................209
❒Daytime running lights ......................... 48
❒Side lights/dipped beam headlights .... 49
❒Main beam headlights ......................... 49
❒Bulb replacement ................................211
WHEELS
❒Rims and tyres ....................................266
❒Tyre pressure ......................................267
❒Replacing a wheel ...............................199
❒Fix&Go tyre repair kit ...........................204
DOOR MIRRORS
❒Adjustment ......................................... 25
❒Folding ............................................... 26
DOORS
❒Central opening/closing ...................... 72
WINDSCREEN WIPERS
❒Operation ........................................... 53
❒Blade replacement ..............................246
ENGINE
❒Checking levels ...................................235
❒Technical data .....................................258
1F1A5000
5

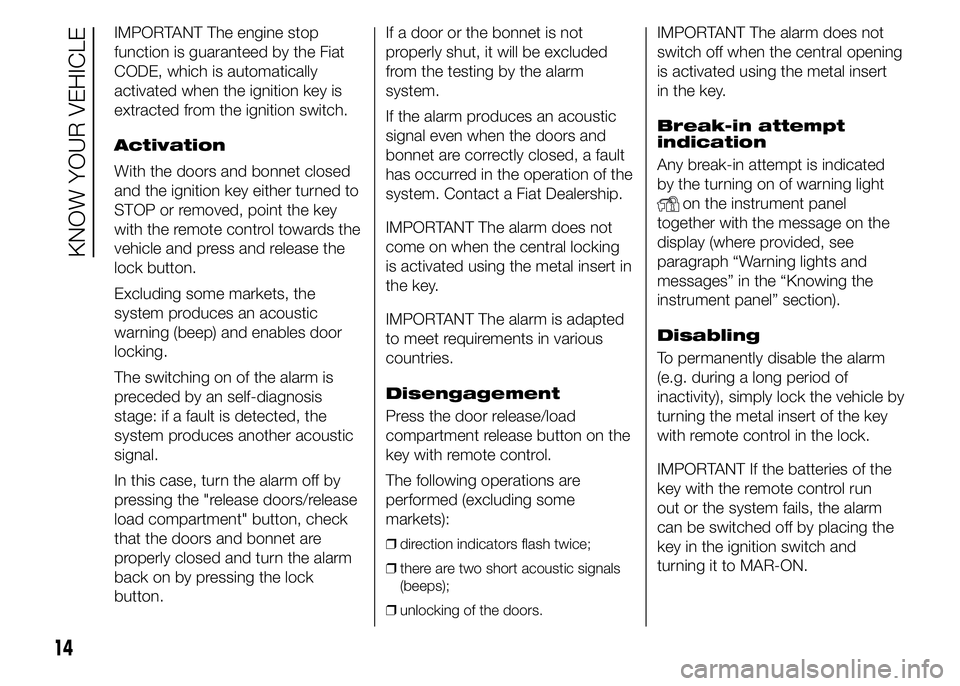

IMPORTANT The engine stop
function is guaranteed by the Fiat
CODE, which is automatically
activated when the ignition key is
extracted from the ignition switch.
Activation
With the doors and bonnet closed
and the ignition key either turned to
STOP or removed, point the key
with the remote control towards the
vehicle and press and release the
lock button.
Excluding some markets, the
system produces an acoustic
warning (beep) and enables door
locking.
The switching on of the alarm is
preceded by an self-diagnosis
stage: if a fault is detected, the
system produces another acoustic
signal.
In this case, turn the alarm off by
pressing the "release doors/release
load compartment" button, check
that the doors and bonnet are
properly closed and turn the alarm
back on by pressing the lock
button.If a door or the bonnet is not
properly shut, it will be excluded
from the testing by the alarm
system.
If the alarm produces an acoustic
signal even when the doors and
bonnet are correctly closed, a fault
has occurred in the operation of the
system. Contact a Fiat Dealership.
IMPORTANT The alarm does not
come on when the central locking
is activated using the metal insert in
the key.
IMPORTANT The alarm is adapted
to meet requirements in various
countries.
Disengagement
Press the door release/load
compartment release button on the
key with remote control.
The following operations are
performed (excluding some
markets):
❒direction indicators flash twice;
❒there are two short acoustic signals
(beeps);
❒unlocking of the doors.
IMPORTANT The alarm does not
switch off when the central opening
is activated using the metal insert
in the key.
Break-in attempt
indication
Any break-in attempt is indicated
by the turning on of warning light
on the instrument panel
together with the message on the
display (where provided, see
paragraph “Warning lights and
messages” in the “Knowing the
instrument panel” section).
Disabling
To permanently disable the alarm
(e.g. during a long period of
inactivity), simply lock the vehicle by
turning the metal insert of the key
with remote control in the lock.
IMPORTANT If the batteries of the
key with the remote control run
out or the system fails, the alarm
can be switched off by placing the
key in the ignition switch and
turning it to MAR-ON.
14
KNOW YOUR VEHICLE

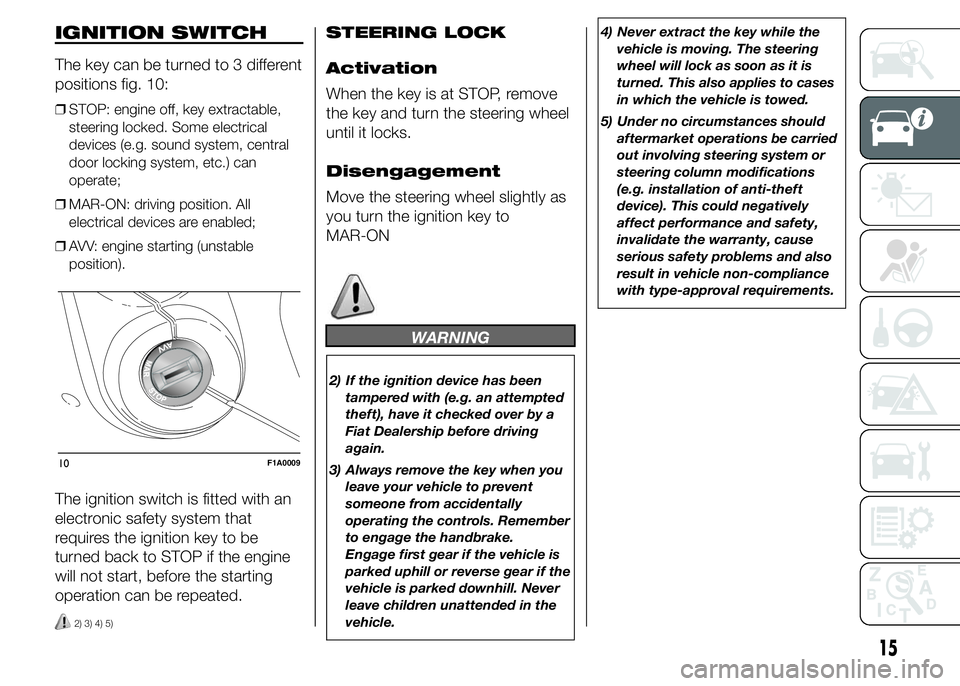

IGNITION SWITCH
The key can be turned to 3 different
positions fig. 10:
❒STOP: engine off, key extractable,
steering locked. Some electrical
devices (e.g. sound system, central
door locking system, etc.) can
operate;
❒MAR-ON: driving position. All
electrical devices are enabled;
❒AVV: engine starting (unstable
position).
The ignition switch is fitted with an
electronic safety system that
requires the ignition key to be
turned back to STOP if the engine
will not start, before the starting
operation can be repeated.
2) 3) 4) 5)
STEERING LOCK
Activation
When the key is at STOP, remove
the key and turn the steering wheel
until it locks.
Disengagement
Move the steering wheel slightly as
you turn the ignition key to
MAR-ON
WARNING
2) If the ignition device has been
tampered with (e.g. an attempted
theft), have it checked over by a
Fiat Dealership before driving
again.
3) Always remove the key when you
leave your vehicle to prevent
someone from accidentally
operating the controls. Remember
to engage the handbrake.
Engage first gear if the vehicle is
parked uphill or reverse gear if the
vehicle is parked downhill. Never
leave children unattended in the
vehicle.4) Never extract the key while the
vehicle is moving. The steering
wheel will lock as soon as it is
turned. This also applies to cases
in which the vehicle is towed.
5) Under no circumstances should
aftermarket operations be carried
out involving steering system or
steering column modifications
(e.g. installation of anti-theft
device). This could negatively
affect performance and safety,
invalidate the warranty, cause
serious safety problems and also
result in vehicle non-compliance
with type-approval requirements.
10F1A0009
15

ADDITIONAL
HEATER
(for versions/markets, where
provided)
On some versions, an additional
heater is also present beneath the
driver's seat. The fan for this heater
is operated by means of the button
F located on the control panel fig.
53.
INDEPENDENT
ADDITIONAL
HEATER
(for versions/markets, where
provided)
The vehicle is available, on request,
with two different independent
heaters: one fully automatic, the
other which can be programmed.
AUTOMATIC VERSION
The additional heater is turned on in
automatic mode when the engine
is started and the required outside
temperature and coolant conditions
are present. Deactivation is always
automatic.
21)
IMPORTANT During periods with
low outdoor temperatures when the
device cuts in, check that the fuel
level is always higher than the
reserve level. Otherwise the device
could lock and require the
assistance of a Fiat Dealership.PROGRAMMABLE
VERSION
The additional heater operates
completely independently of engine
operation and allows the following:
❒heating the passenger compartment
with the engine off
❒defrosting the windows;
❒heat the engine coolant and then the
engine itself prior to starting.
The system consists of:
❒a diesel burner for heating the water
with an exhaust silencer for the
combustion gases;
❒a metering pump connected to the
reservoir pipes for supplying the
burner;
❒a heat exchanger connected to the
engine cooling system pipes;
❒a control unit connected to the
passenger compartment
heating/ventilation system to allow
automatic operation;
❒an electronic control unit for
controlling and adjusting the built-in
burner;
MODEF
53F1A0305
42
KNOW YOUR VEHICLE

❒a digital timer fig. 54 for turning the
heater on manually or for
programming the time that it comes
on.
The additional heater (during winter)
heats, maintains the temperature
of and circulates engine coolant for
a set time period in order to ensure
optimum engine and passenger
compartment conditions at engine
start-up.
The heater can operate
automatically when programmed
with a digital timer or manually
by pressing the 'immediate heating'
button on the timer.
After heater activation, whether
programmed or manually, the
electronic control unit operates the
coolant pump and turns on the
burner in accordance with pre-set,
controlled procedures.
The circulation pump output is also
controlled by the electronic control
unit in order to minimise the initial
heating time.
When the system operates, the
control unit turns on the passenger
compartment heater unit fan at
the second speed.The thermal power of the boiler is
regulated automatically by the
electronic control unit depending on
the temperature of the engine
coolant.
IMPORTANT The heater is
equipped with a thermal limiter that
cuts off combustion in the case of
overheating due to insufficient
coolant/coolant leaks. In this case,
after repairing the fault in the
cooling system and/or topping up
the fluid, press the program
selection button before turning the
heater back on.
The heater can turn off
spontaneously due to misfiring after
start-up or because the flame
goes out during operation. In this
case, carry out the turning off
procedure and try to turn the heater
back on. If it still does not work,
consult a Fiat Dealership.Activation of the
heating system
When an automatic climate control
system is present, the control
unit sets the air temperature and
distribution when the heater is
turned on from the park position.
When a manual heater/climate
control is present, to obtain
maximum heater efficiency, check
that the passenger compartment
heating/ventilation temperature
adjustment knob is in the 'hot air'
position.
To prioritise passenger
compartment pre-heating, set the
air distribution knob to the
position.
To prioritise windscreen demisting,
set the air distribution knob to
position.
To obtain both functions, set the air
distribution knob to
position.
43

Hold button 4 pressed again. At the
same time press button 3 or 8.
The preset activation duration
is displayed and warning light 9 or
2 flashes.
Set the activation duration with
button 3 or 8.
The set activation duration is stored
as soon as the text in the display
disappears, or pressing button 4.
Switching the heating
system off
Deactivation of the system,
depending on the type of activation
(automatic or manual), may be:
❒automaticwhen the programmed
duration is over; when the set time
is over, the display switches off.
❒manualpressing the “immediate
heating” button on the timer again
(flame button 6).
In both cases, the heating warning
light, the display lighting and the
passenger compartment heater fan
go off and burning stops.The fluid circulation pump
continues to work for around two
minutes to dissipate as much
heat as possible; the heater can be
turned back on during this stage.
22)
IMPORTANT The parking heater
goes off when battery voltage is low
to allow the vehicle to be started.
IMPORTANT Before turning on the
device, ensure that the fuel level
is above the reserve. Otherwise the
device could lock and require the
assistance of a Fiat Dealership.
❒Always turn off the heater when
refuelling and near service stations to
avoid the risk of explosion or fire
hazards.
❒Do not park the vehicle on
inflammable material such as paper,
grass or dry leaves: fire hazard!
❒The temperature near the heater
should not exceed 120°C (e.g. during
oven painting in a body shop). The
electronic control unit components
may be damaged at higher
temperatures.❒Whilst the heater is operating with the
engine switched off, it absorbs
energy from the battery; the engine
should therefore be left running
for a while to make sure that the
battery is properly recharged.
❒To check the coolant level, follow the
instructions in the "Vehicle
maintenance" chapter, "Engine
coolant system fluid" paragraph. The
water in the heating circuit must
contain a minimum percentage of
10% antifreeze.
❒For maintenance and repairs, consult
only a Fiat Dealership and use only
original parts.MAINTENANCE
Have the additional heater checked
regularly at a Fiat Dealership (and
always at the start of every winter).
This will guarantee safe and
economic operation of the heater
as well as a long duration.
46
KNOW YOUR VEHICLE

FUEL CUT-OFF
SWITCH
The vehicle is fitted with a safety
switch that, in the event of a crash,
comes into operation by cutting
off the fuel supply and turning
off the engine as a consequence.When the inertia switch cuts in, it
cuts off the fuel supply and also
activates the hazard warning lights,
side lights and courtesy lights
while releasing all the doors and
displaying the relevant message;
they are deactivated by pressing
button A. On some versions, there
is also a safety relay that activates
in the event of impact to cut off
the electrical supply. In this way,
fuel is prevented from escaping
if the pipes are broken and the
formation of sparks or electrical
discharges following damage to the
vehicle electrical components is
avoided.
29) 30)
IMPORTANT After an accident,
remember to remove the key from
the ignition device to prevent the
battery from running down. If no
fuel leaks or damage to vehicle's
electrical devices (e.g. headlights)
are detected after the impact and
the vehicle is able to set off again,
reactivate the automatic fuel cut-off
switch.Restoring the fuel
cut-off switch
Press button A fig. 81 to reactivate
the fuel cut off switch.WARNING
29) If, after an impact, you smell fuel
or notice leaks from the fuel
system, do not reactivate the
switch to avoid the risk of fire.
30) Before reactivating the fuel
cut-off switch, carefully check for
fuel leaks or damage to the
vehicle's electrical devices (e.g.
headlights).
79F1A0303
80F1A0085
81F1A0086
63

BONNET
OPENING
Proceed as follows:
❒open the driver's door to gain access
to the bonnet release handle;
❒pull the lever fig. 119 in the direction
indicated by the arrow;
❒lift lever A fig. 120 as shown in the
figure;
❒lift the bonnet and, at the same time,
release the bonnet stay fig. 121 from
its locking device D, then insert the
end C fig. 122 of the bonnet stay into
the housing E.
IMPORTANT Before opening the
bonnet, check that the windscreen
wiper arms are not lifted from the
windscreen.CLOSING
Proceed as follows:
❒hold the bonnet up with one hand
and with the other remove the stay
C fig. 122 from the housing E and fit
it back in its locking device D fig.
121;
❒lower the bonnet to approximately 20
centimetres from the engine
compartment and let it drop. Make
sure that the bonnet is completely
closed and not only fastened by the
locking device by trying to open it.
If it is not perfectly closed, do not try
to press the bonnet down but open
it and repeat the procedure.
IMPORTANT Always check that the
bonnet is closed correctly to
prevent it from opening while the
vehicle is travelling.
45) 46) 47)
119F1A0126
120F1A0339
121F1A0349
122F1A0129
79

The system also has a connector
that can be interfaced with
appropriate equipment, which
makes it possible to read the error
codes stored in the control unit
together with a series of specific
parameters for engine operation
and diagnosis. This check can also
be carried out by traffic control
authorities.
IMPORTANT After eliminating the
failure, to check the system
completely, Fiat Dealerships run a
bench test and, if necessary, road
tests which may also call for a
long journey.PARKING SENSORS
The parking sensors are located in
the rear bumper fig. 132 and their
function is to inform the driver,
through an intermittent acoustic
signal, about the presence of
obstacles behind the vehicle.
ACTIVATION
The sensors are automatically
activated when reverse gear is
engaged.
As the obstacle behind the vehicle
gets closer to the bumper, the
frequency of the acoustic signal
increases.ACOUSTIC SIGNAL
When reverse gear is engaged an
intermittent acoustic signal is
automatically activated.
The acoustic signal:
❒increase as the distance between the
vehicle and the obstacle decreases;
❒becomes continuous when the
distance between the vehicle and the
obstacle is less than 30 cm and
stops immediately if the distance
increases;
❒remains constant if the distance
remains unchanged; if this situation
concerns the side sensors, the
buzzer will stop after about 3
seconds to avoid, for example,
warning indications in the event of
manoeuvres along walls.
If several obstacles are detected by
the sensors, only the nearest one
is considered.
132F1A0134
101
