fuse box FIAT DUCATO BASE CAMPER 2015 Owner handbook (in English)

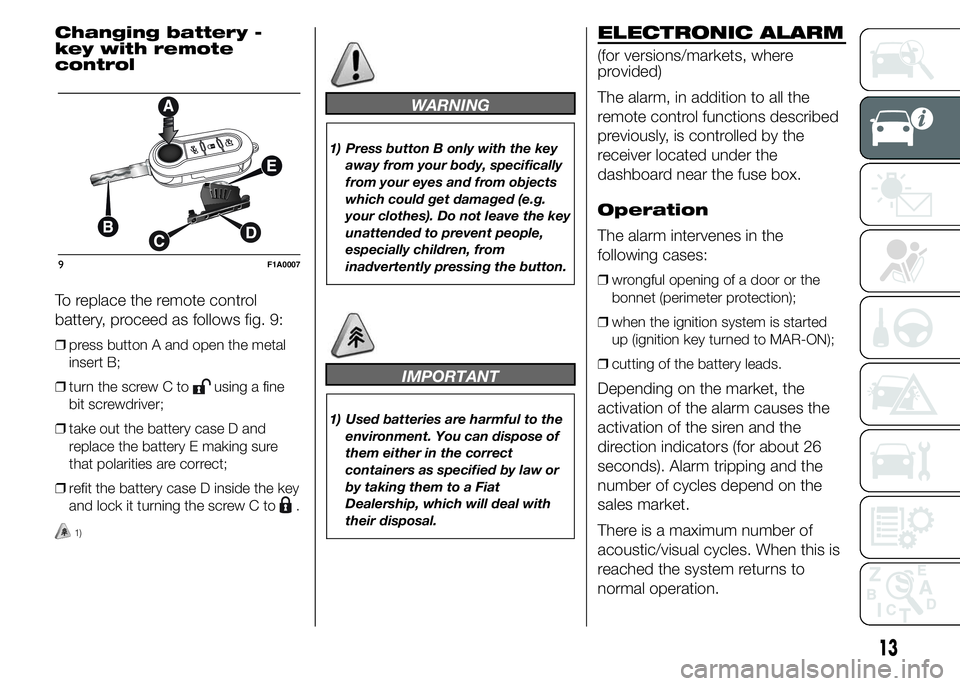

Changing battery -
key with remote
control
To replace the remote control
battery, proceed as follows fig. 9:
❒press button A and open the metal
insert B;
❒turn the screw C to
using a fine
bit screwdriver;
❒take out the battery case D and
replace the battery E making sure
that polarities are correct;
❒refit the battery case D inside the key
and lock it turning the screw C to
.
1)
WARNING
1) Press button B only with the key
away from your body, specifically
from your eyes and from objects
which could get damaged (e.g.
your clothes). Do not leave the key
unattended to prevent people,
especially children, from
inadvertently pressing the button.
IMPORTANT
1) Used batteries are harmful to the
environment. You can dispose of
them either in the correct
containers as specified by law or
by taking them to a Fiat
Dealership, which will deal with
their disposal.
ELECTRONIC ALARM
(for versions/markets, where
provided)
The alarm, in addition to all the
remote control functions described
previously, is controlled by the
receiver located under the
dashboard near the fuse box.
Operation
The alarm intervenes in the
following cases:
❒wrongful opening of a door or the
bonnet (perimeter protection);
❒when the ignition system is started
up (ignition key turned to MAR-ON);
❒cutting of the battery leads.
Depending on the market, the
activation of the alarm causes the
activation of the siren and the
direction indicators (for about 26
seconds). Alarm tripping and the
number of cycles depend on the
sales market.
There is a maximum number of
acoustic/visual cycles. When this is
reached the system returns to
normal operation.
9F1A0007
13

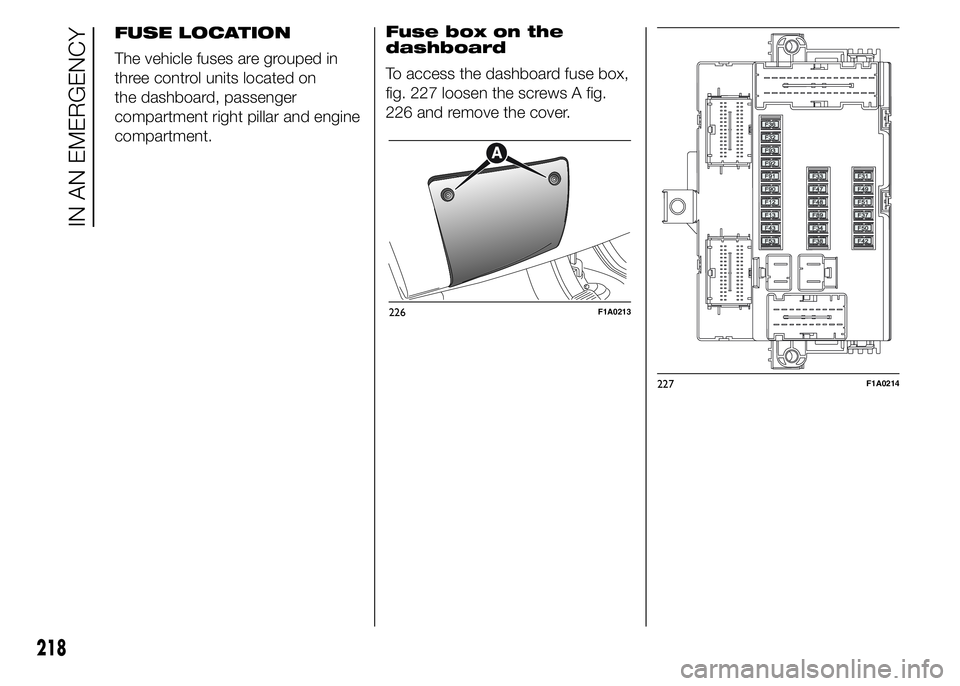

Fuse box on the
dashboard
To access the dashboard fuse box,
fig. 227 loosen the screws A fig.
226 and remove the cover.
226F1A0213
227F1A0214
218
IN AN EMERGENCY
FUSE LOCATION
The vehicle fuses are grouped in
three control units located on
the dashboard, passenger
compartment right pillar and engine
compartment.

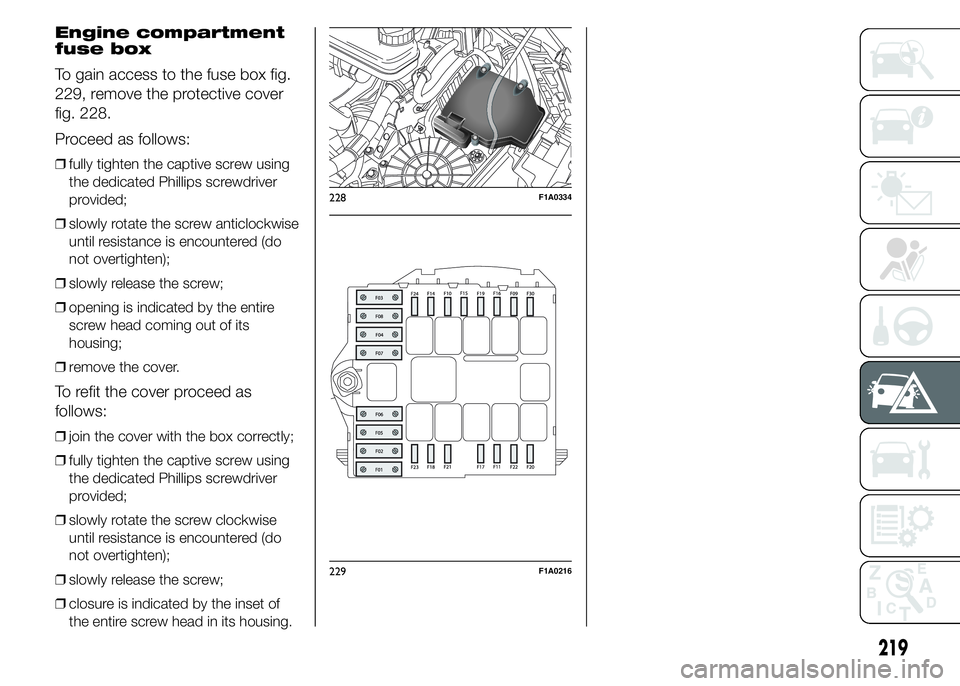

Engine compartment
fuse box
To gain access to the fuse box fig.
229, remove the protective cover
fig. 228.
Proceed as follows:
❒fully tighten the captive screw using
the dedicated Phillips screwdriver
provided;
❒slowly rotate the screw anticlockwise
until resistance is encountered (do
not overtighten);
❒slowly release the screw;
❒opening is indicated by the entire
screw head coming out of its
housing;
❒remove the cover.
To refit the cover proceed as
follows:
❒join the cover with the box correctly;
❒fully tighten the captive screw using
the dedicated Phillips screwdriver
provided;
❒slowly rotate the screw clockwise
until resistance is encountered (do
not overtighten);
❒slowly release the screw;
❒closure is indicated by the inset of
the entire screw head in its housing.
228F1A0334
229F1A0216
219

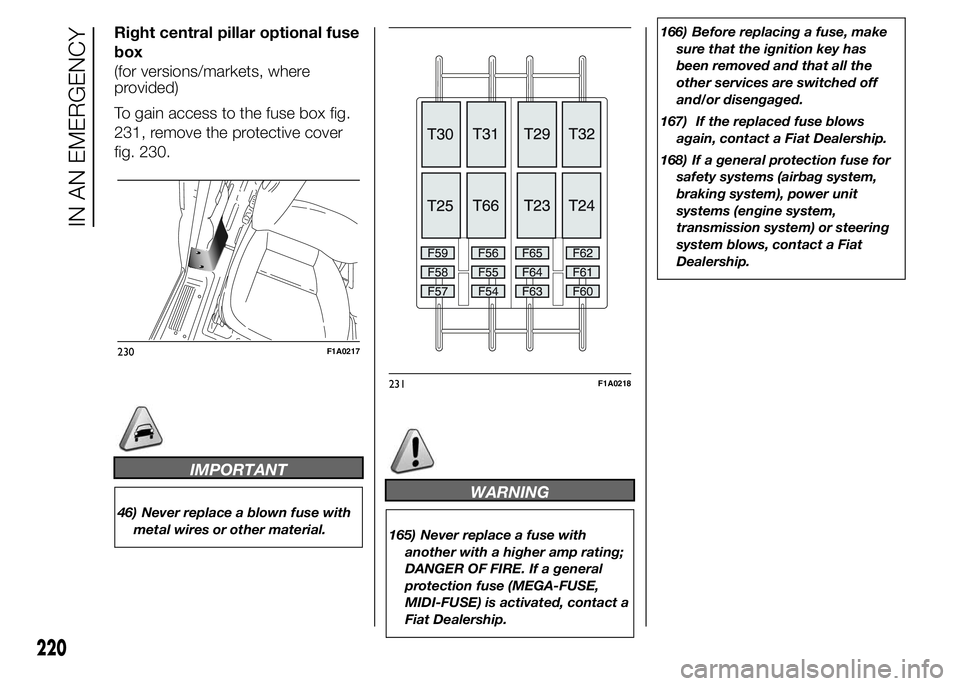

Right central pillar optional fuse
box
(for versions/markets, where
provided)
To gain access to the fuse box fig.
231, remove the protective cover
fig. 230.
IMPORTANT
46) Never replace a blown fuse with
metal wires or other material.
WARNING
165) Never replace a fuse with
another with a higher amp rating;
DANGER OF FIRE. If a general
protection fuse (MEGA-FUSE,
MIDI-FUSE) is activated, contact a
Fiat Dealership.166) Before replacing a fuse, make
sure that the ignition key has
been removed and that all the
other services are switched off
and/or disengaged.
167) If the replaced fuse blows
again, contact a Fiat Dealership.
168) If a general protection fuse for
safety systems (airbag system,
braking system), power unit
systems (engine system,
transmission system) or steering
system blows, contact a Fiat
Dealership.
230F1A0217
231F1A0218
220
IN AN EMERGENCY

Dashboard fuse box
fig. 226 - fig. 227
DEVICE PROTECTED FUSE AMPERE
Right dipped beam headlight F12 7,5
Left dipped headlight F13 7,5
Engine compartment control unit relay, dashboard control unit relay (+key) F31 5
Lighting of roof lights in the passenger compartment (+battery) F32 7,5
Battery monitoring sensor for Start&Stop versions (+battery) F33 7,5
Minibus interior lights (emergency) F34 7,5
Radio, climate control, alarm, tachograph, battery disconnecting control unit,
Webasto timer (+battery)F36 10
Brake light control (main), third brake light, instrument panel (+key) F37 7,5
Door lock (+battery) F38 20
Windscreen wiper (+key) F43 20
Driver's side electric window F47 20
Passenger side electric window F48 20
Parking sensor control unit, radio, steering wheel controls, central control panel,
left control panel, auxiliary panel, battery disconnecting control unit (+key)F49 5
Climate control, power steering control unit, reverse lights, diesel filter water
sensor, flow meter, tachograph (+key)F51 5
Instrument panel (+battery) F53 7,5
AbsentF89 -
221

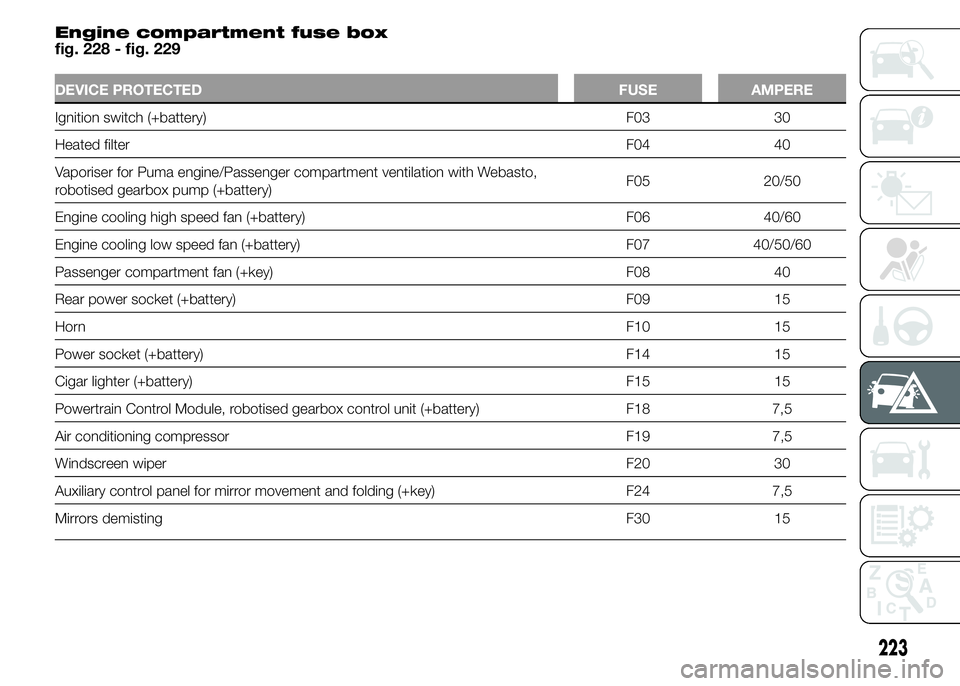

Engine compartment fuse box
fig. 228 - fig. 229
DEVICE PROTECTED FUSE AMPERE
Ignition switch (+battery) F03 30
Heated filterF04 40
Vaporiser for Puma engine/Passenger compartment ventilation with Webasto,
robotised gearbox pump (+battery)F05 20/50
Engine cooling high speed fan (+battery) F06 40/60
Engine cooling low speed fan (+battery) F07 40/50/60
Passenger compartment fan (+key) F08 40
Rear power socket (+battery) F09 15
HornF10 15
Power socket (+battery) F14 15
Cigar lighter (+battery) F15 15
Powertrain Control Module, robotised gearbox control unit (+battery) F18 7,5
Air conditioning compressor F19 7,5
Windscreen wiper F20 30
Auxiliary control panel for mirror movement and folding (+key) F24 7,5
Mirrors demisting F30 15
223

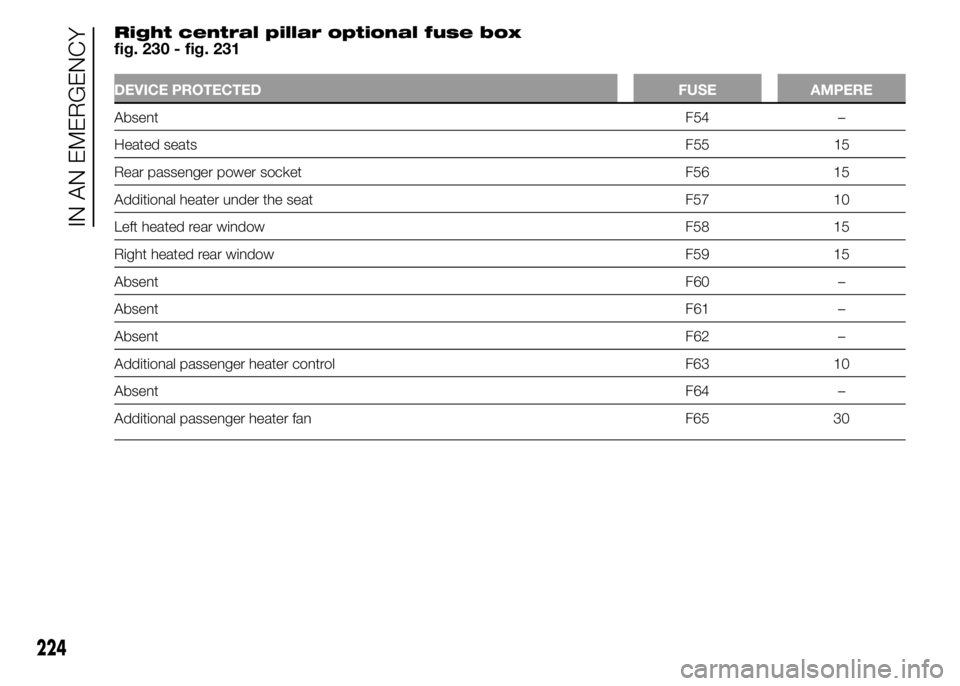

Right central pillar optional fuse box
fig. 230 - fig. 231
DEVICE PROTECTED FUSE AMPERE
AbsentF54 –
Heated seatsF55 15
Rear passenger power socket F56 15
Additional heater under the seat F57 10
Left heated rear window F58 15
Right heated rear window F59 15
AbsentF60 –
AbsentF61 –
AbsentF62 –
Additional passenger heater control F63 10
AbsentF64 –
Additional passenger heater fan F65 30
224
IN AN EMERGENCY

If you put the car through a car
wash, follow these
recommendations:
❒remove the aerial from the roof so it
does not get damaged;
❒the vehicle should be washed with
water added to a soapy solution;
❒rinse thoroughly to avoid soap marks
remaining on the bodywork or less
visible parts.
55)
Dry the less visible parts, such as
the door frames, bonnet and the
headlight frames with special care,
as in these areas water may
stagnate more easily. It is a good
idea to leave the vehicle outdoors
for a while after washing it to give
the water time to evaporate.
Do not wash the vehicle after it has
been left in the sun or with the
bonnet hot: this may alter the shine
of the paintwork.Exterior plastic parts should be
cleaned in the same way as the rest
of the vehicle. Where possible, do
not park the vehicle under trees;
the resinous substances released
by many species give the paint
a dull appearance and increase the
possibility of corrosion.
IMPORTANT Bird droppings must
be washed off immediately and
thoroughly as the acid they contain
is particularly aggressive.5)
Windows
To clean glasses, use specific
cleaning products. Use clean cloths
to avoid scratching the glass or
damaging the transparency.
IMPORTANT Wipe the rear window
inside gently with a cloth following
the direction of the filaments to
avoid damaging the heating device.Engine compartment
At the end of each winter,
thoroughly wash the engine
compartment, taking care to avoid
spraying the water jet directly
onto the electronic control units and
the relay/fuse box on the left side
of the engine compartment (driving
direction). Have this operation
performed at a specialised
workshop.
IMPORTANT The washing should
take place with the engine cold and
the ignition key in the STOP
position. After the washing
operation, make sure that the
various protections (e.g. rubber
caps and guards) have not been
removed or damaged.
Front headlights
IMPORTANT Never use aromatic
substances (e.g. petrol) or ketones
(e.g. acetone) for cleaning the
plastic lenses of the front
headlights.
249

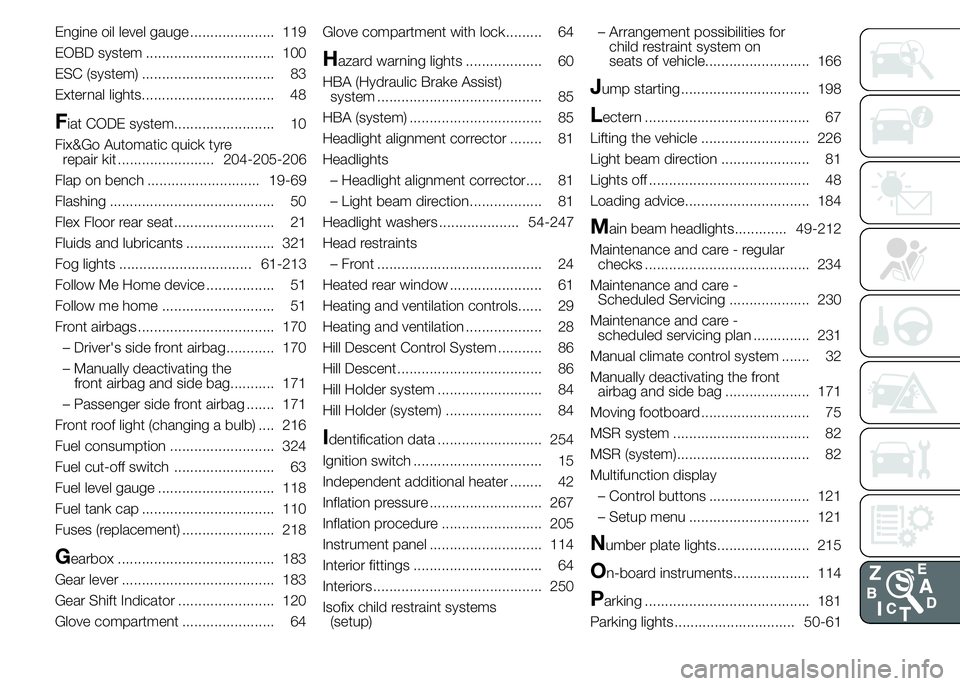

Engine oil level gauge ..................... 119
EOBD system ................................ 100
ESC (system) ................................. 83
External lights................................. 48
Fiat CODE system......................... 10
Fix&Go Automatic quick tyre
repair kit ........................ 204-205-206
Flap on bench ............................ 19-69
Flashing ......................................... 50
Flex Floor rear seat......................... 21
Fluids and lubricants ...................... 321
Fog lights ................................. 61-213
Follow Me Home device ................. 51
Follow me home ............................ 51
Front airbags .................................. 170
– Driver's side front airbag............ 170
– Manually deactivating the
front airbag and side bag........... 171
– Passenger side front airbag ....... 171
Front roof light (changing a bulb) .... 216
Fuel consumption .......................... 324
Fuel cut-off switch ......................... 63
Fuel level gauge ............................. 118
Fuel tank cap ................................. 110
Fuses (replacement) ....................... 218
Gearbox ....................................... 183
Gear lever ...................................... 183
Gear Shift Indicator ........................ 120
Glove compartment ....................... 64Glove compartment with lock......... 64
Hazard warning lights ................... 60
HBA (Hydraulic Brake Assist)
system ......................................... 85
HBA (system) ................................. 85
Headlight alignment corrector ........ 81
Headlights
– Headlight alignment corrector.... 81
– Light beam direction.................. 81
Headlight washers .................... 54-247
Head restraints
– Front ......................................... 24
Heated rear window ....................... 61
Heating and ventilation controls...... 29
Heating and ventilation ................... 28
Hill Descent Control System ........... 86
Hill Descent .................................... 86
Hill Holder system .......................... 84
Hill Holder (system) ........................ 84
Identification data .......................... 254
Ignition switch ................................ 15
Independent additional heater ........ 42
Inflation pressure ............................ 267
Inflation procedure ......................... 205
Instrument panel ............................ 114
Interior fittings ................................ 64
Interiors .......................................... 250
Isofix child restraint systems
(setup)– Arrangement possibilities for
child restraint system on
seats of vehicle.......................... 166
Jump starting ................................ 198
Lectern ......................................... 67
Lifting the vehicle ........................... 226
Light beam direction ...................... 81
Lights off ........................................ 48
Loading advice............................... 184
Main beam headlights............. 49-212
Maintenance and care - regular
checks ......................................... 234
Maintenance and care -
Scheduled Servicing .................... 230
Maintenance and care -
scheduled servicing plan .............. 231
Manual climate control system ....... 32
Manually deactivating the front
airbag and side bag ..................... 171
Moving footboard ........................... 75
MSR system .................................. 82
MSR (system)................................. 82
Multifunction display
– Control buttons ......................... 121
– Setup menu .............................. 121
Number plate lights....................... 215
On-board instruments................... 114
Parking ......................................... 181
Parking lights.............................. 50-61
