FIAT DUCATO BASE CAMPER 2017 Owner handbook (in English)

What it means What to do

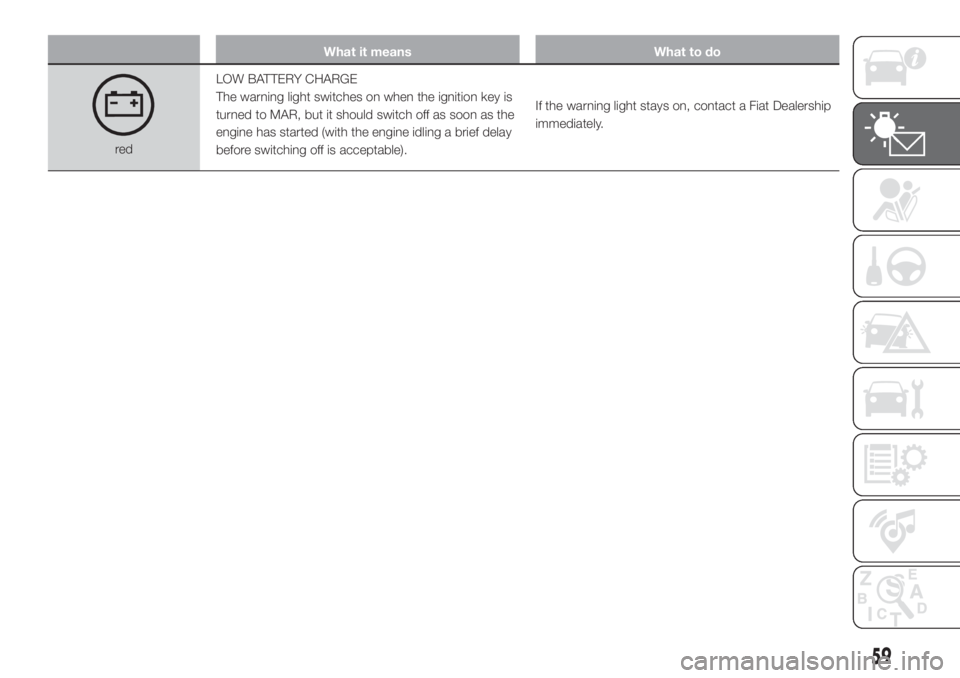

redLOW BATTERY CHARGE
The warning light switches on when the ignition key is
turned to MAR, but it should switch off as soon as the
engine has started (with the engine idling a brief delay
before switching off is acceptable).If the warning light stays on, contact a Fiat Dealership
immediately.
59

What it means What to do
redLOW ENGINE OIL PRESSURE
When the key is turned to MAR the warning light
comes on, but should go out as soon as the engine is
started.
The warning light switches on constantly together with
the message in the display when the system detects
that the engine oil pressure is insufficient.
8)
ENGINE OIL DETERIORATED
(MultiJet versions with DPF only)
The warning light starts to flash together with a
message on the display (for versions/markets, where
provided) when the system detects that the engine oil
has deteriorated.
If the warning light flashes, this does not mean that the
vehicle is faulty, but simply informs the driver that it is
now necessary to change the engine oil as a result of
regular vehicle use. If the oil is not changed, warning
light
will also come on and engine operation is
limited to 3000 rpm when a second threshold is
reached.
If the oil is still not changed, when a third deterioration
threshold is reached, the engine is limited to 1500 rpm
to avoid damage.Contact a Fiat Dealership as soon as possible.
45) 46)
Remember that the deterioration of the engine oil is
accelerated by:
– mainly town use of the vehicle which makes the DPF
regeneration process more frequent
– use of the vehicle for short trips, preventing the
engine from reaching operating temperature
– repeated interruption of the regeneration process,
signalled by the DPF warning light coming on.
60
KNOWING THE INSTRUMENT PANEL

What it means What to do
redINCOMPLETE DOOR/LOAD COMPARTMENT
CLOSURE
On certain versions the warning light switches on
when one or more doors or the load compartment are
not completely shut.
On some versions, the display shows a dedicated
message that indicates left/right front door or rear/load
compartment door opening.
A buzzer will sound when doors/tailgate are open and
the vehicle is moving.
redPOWER STEERING FAILURE
When the ignition key is turned to MAR-ON the
warning light on the dial turns on, but it should turn off
after a few seconds.
If the warning light stays on together with the message
shown on the display and a buzzer, the power steering
is ineffective and the effort on the steering wheel
increases significantly even though the vehicle can be
steered.Contact a Fiat Dealership.
redSELF-LEVELLING SUSPENSION FAILURE
(for versions/markets, where provided)
The warning light comes on when the ignition key is
turned to MAR, but should go off after a few seconds.
The warning light switches on when a fault is present
in the self-levelling suspension system.
61

WARNING
43)If thewarning light does not switch on when the key is turned to MAR or if it stays on when driving (together with the message on the
display), there may be a fault in the restraint systems; in this case, the airbags or pretensioners may not deploy in the event of an accident
or, in a lower number of cases, they could deploy erroneously. Before continuing, contact a Fiat Dealership to have the system checked
immediately.
44)A failure of the
warning light is indicated by thewarning light flashing or, depending on the version, by theicon turning on
continuously on the display. In this case, thewarning light may not indicate a possible problem with the airbag restraint system. Before
continuing, contact a Fiat Dealership to have the system checked immediately.
45)If the
warning light comes on, the exhausted engine oil should be changed as soon as possible, never drive more than 500 km from
the first switching-on of this warning light. Failure to observe the above may result in severe damage to the engine and invalidate the warranty.
Remember that when this warning light comes on, it does not mean that the level of engine oil is low, so if it flashes you do not need to top
up the engine oil.
46)If the
warning light flashes when driving, contact a Fiat Dealership.
62
KNOWING THE INSTRUMENT PANEL

WARNING
8)If thewarning light switches on when driving, stop the engine immediately and contact a Fiat Dealership.
What it means What to do

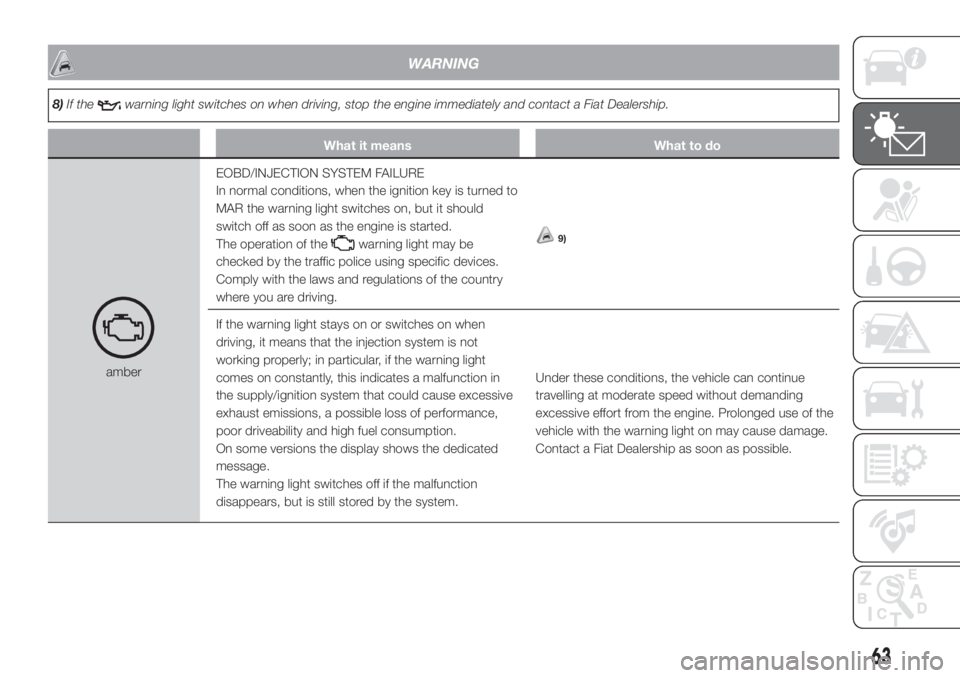

amberEOBD/INJECTION SYSTEM FAILURE
In normal conditions, when the ignition key is turned to
MAR the warning light switches on, but it should
switch off as soon as the engine is started.
The operation of the
warning light may be
checked by the traffic police using specific devices.
Comply with the laws and regulations of the country
where you are driving.9)
If the warning light stays on or switches on when
driving, it means that the injection system is not
working properly; in particular, if the warning light
comes on constantly, this indicates a malfunction in
the supply/ignition system that could cause excessive
exhaust emissions, a possible loss of performance,
poor driveability and high fuel consumption.
On some versions the display shows the dedicated
message.
The warning light switches off if the malfunction
disappears, but is still stored by the system.Under these conditions, the vehicle can continue
travelling at moderate speed without demanding
excessive effort from the engine. Prolonged use of the
vehicle with the warning light on may cause damage.
Contact a Fiat Dealership as soon as possible.
63

What it means What to do

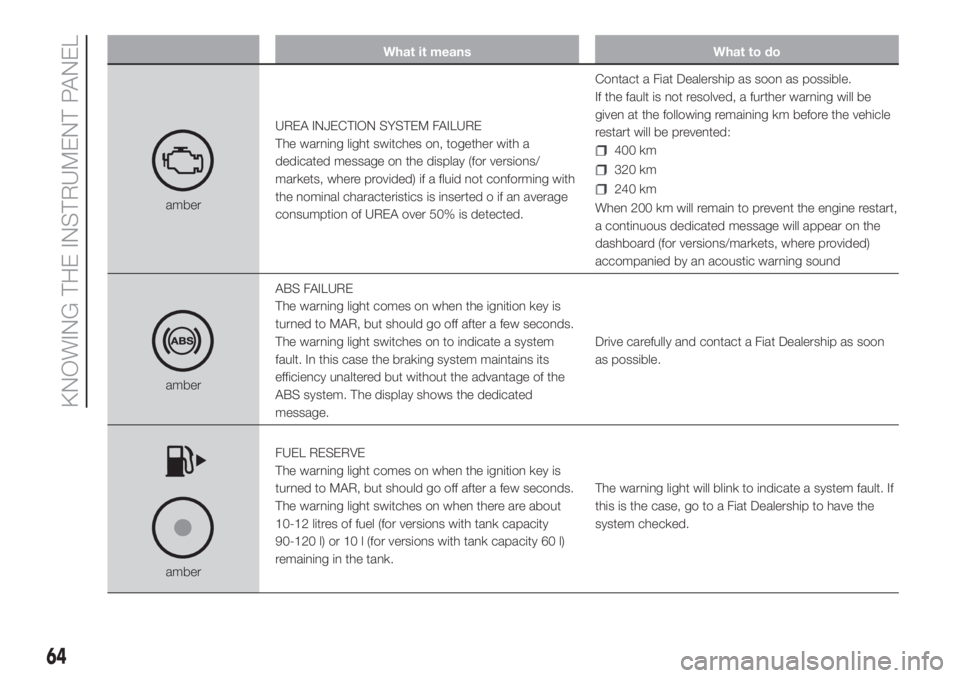

amberUREA INJECTION SYSTEM FAILURE
The warning light switches on, together with a
dedicated message on the display (for versions/
markets, where provided) if a fluid not conforming with
the nominal characteristics is inserted o if an average
consumption of UREA over 50% is detected.Contact a Fiat Dealership as soon as possible.
If the fault is not resolved, a further warning will be
given at the following remaining km before the vehicle
restart will be prevented:
400 km
320 km
240 km
When 200 km will remain to prevent the engine restart,
a continuous dedicated message will appear on the
dashboard (for versions/markets, where provided)
accompanied by an acoustic warning sound
amberABS FAILURE
The warning light comes on when the ignition key is
turned to MAR, but should go off after a few seconds.
The warning light switches on to indicate a system
fault. In this case the braking system maintains its
efficiency unaltered but without the advantage of the
ABS system. The display shows the dedicated
message.Drive carefully and contact a Fiat Dealership as soon
as possible.
amberFUEL RESERVE
The warning light comes on when the ignition key is
turned to MAR, but should go off after a few seconds.
The warning light switches on when there are about
10-12 litres of fuel (for versions with tank capacity
90-120 l) or 10 l (for versions with tank capacity 60 l)
remaining in the tank.The warning light will blink to indicate a system fault. If
this is the case, go to a Fiat Dealership to have the
system checked.
64
KNOWING THE INSTRUMENT PANEL

What it means What to do

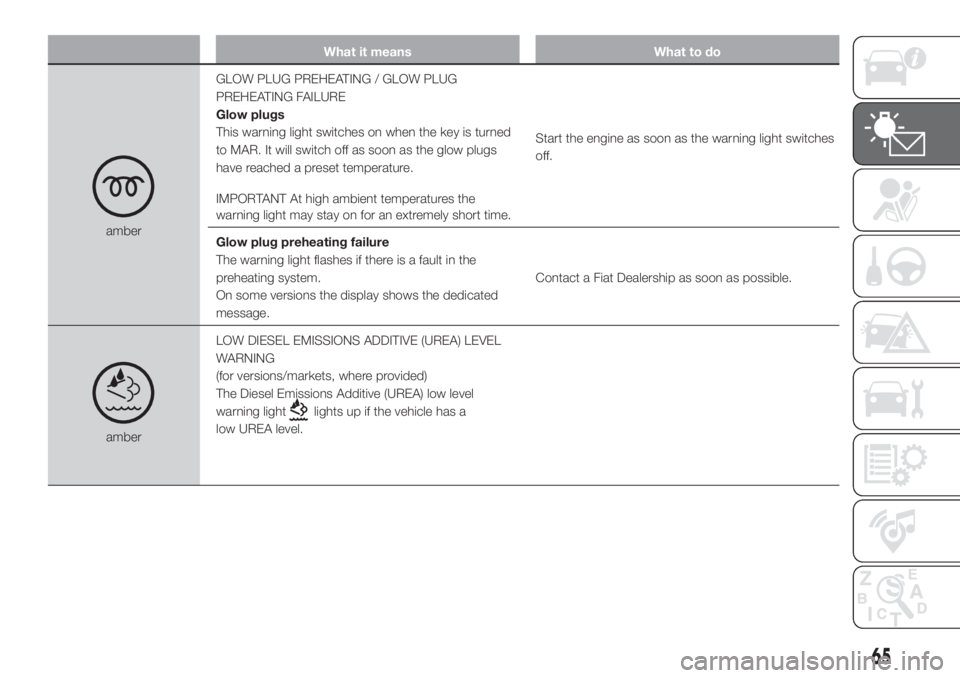

amberGLOW PLUG PREHEATING / GLOW PLUG
PREHEATING FAILURE
Glow plugs
This warning light switches on when the key is turned
to MAR. It will switch off as soon as the glow plugs
have reached a preset temperature.
IMPORTANT At high ambient temperatures the
warning light may stay on for an extremely short time.Start the engine as soon as the warning light switches
off.
Glow plug preheating failure
The warning light flashes if there is a fault in the
preheating system.
On some versions the display shows the dedicated
message.Contact a Fiat Dealership as soon as possible.
amberLOW DIESEL EMISSIONS ADDITIVE (UREA) LEVEL
WARNING
(for versions/markets, where provided)
The Diesel Emissions Additive (UREA) low level
warning light
lights up if the vehicle has a
low UREA level.
65

What it means What to do

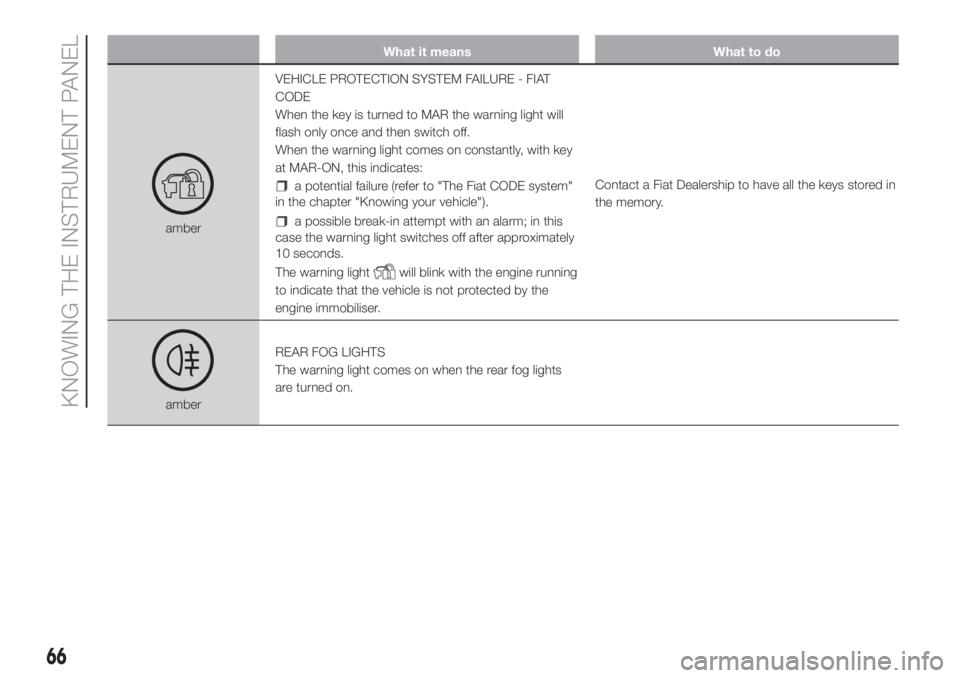

amberVEHICLE PROTECTION SYSTEM FAILURE - FIAT
CODE
When the key is turned to MAR the warning light will
flash only once and then switch off.
When the warning light comes on constantly, with key
at MAR-ON, this indicates:
a potential failure (refer to "The Fiat CODE system"
in the chapter "Knowing your vehicle").
a possible break-in attempt with an alarm; in this
case the warning light switches off after approximately
10 seconds.
The warning light
will blink with the engine running
to indicate that the vehicle is not protected by the
engine immobiliser.Contact a Fiat Dealership to have all the keys stored in
the memory.
amberREAR FOG LIGHTS
The warning light comes on when the rear fog lights
are turned on.
66
KNOWING THE INSTRUMENT PANEL

What it means What to do
amberGENERAL FAILURE WARNING
(Versions with multifunction display)
The warning light turns on in the following
circumstances:
If the fuel inertia cut-off switch is activated
Light failure (rear fog lamps, direction indicators,
brake lights, number plate lights, side lights, daytime
running lights, main beam automatism, trailer direction
indicators, trailer side lights)The failure relating to these lights could be: one or
more blown bulbs, a blown protection fuse or a break
in the electrical connection.
Airbag warning light failure (generic failure warning
light flashing)In this case, the warning light may not indicate
problems with the restraint systems. Before
continuing, contact a Fiat Dealership to have the
system checked immediately.
Rain sensor failure
Diesel filter sensor failure
Trailer connection failure
Audio system failure
Engine oil pressure sensor failure
Parking sensor failure
Water in diesel fuel filterGo to a Fiat Dealership to have the fault fixed as soon
as possible.
67

What it means What to do
amberDPF (PARTICULATE FILTER) CLEANING UNDERWAY
(for versions/markets, where provided)
The warning light comes on when the ignition key is
turned to MAR, but should go off after a few seconds.
The warning light switches on constantly to inform the
driver that the DPF system needs to eliminate the
trapped pollutants (particulate) through the
regeneration process.
A specific message will appear on the display when
the warning light comes on (for versions/markets,
where provided).The warning light does not come on during every DPF
regeneration, but only when driving conditions require
that the driver is notified. The warning light will go off if
the vehicle stays in motion until regeneration has been
completed. On average, the process lasts 15 minutes.
Optimum conditions for completing the process are
achieved by travelling at 60 km/h with engine revs
above 2000 rpm. If this warning light comes on, it
does not mean there is a vehicle defect, so there is no
need to take it to a garage.
10)
47)
amberESC-ASR SYSTEM / TRACTION PLUS FAILURE
On certain versions a dedicated message is displayed.
Flashing of the warning light while driving indicates the
intervention of the ESC system.If the warning light does not switch off, or stays on
when travelling, contact a Fiat Dealership.
Hill Holder failure
The warning light will turn on when the Hill Holder
system is faulty.
On certain versions a dedicated message is displayed.In this case, contact a Fiat Dealership as soon as
possible.
amberBRAKE PAD WEAR
The warning light switches on if the front or rear brake
pads are worn.
On certain versions a dedicated message is displayed.Have them replaced as soon as possible.
