WEIGHTS AND
LOADS
To identify the weights and loads for
this vehicle, refer to the plate shown in
fig. 190 or (for versions/markets, where
provided) in fig. 191 and described in
the “Vehicle summary identification and
paintwork plate” chapter, or refer to
the vehicle registration certificate
showing the type-approved weights (for
markets, where provided).
DMaximum permitted weight of fully
laden vehicle (GVW).
EMaximum permitted weight of the
vehicle (GVW) fully laden plus trailer. If
there is no value in the field or if
there is a dash, it means that the
vehicle cannot tow.
FMaximum permitted weight on first
axle (front).
GMaximum permitted weight on
second axle (rear).
To calculate the towable weight with a
braked trailer, take the difference
between values E and D shown on the
plate.
E.g.: E= 6000 kg - D= 3500 kg
Braked trailer=2500 kg
IMPORTANTDo not exceed the
indicated trailer and towable weights.
IMPORTANTRespect the vehicle
towing capacities.
The tables show the towable weight for
engine version.
(For versions/markets, where provided)
EMaximum permitted weight of fully
laden vehicle (GVW)
FMaximum permitted weight of the
vehicle (GVW) fully laden plus trailer. If
there is no value in the field or if
there is a dash, it means that the
vehicle cannot tow
GMaximum permitted weight on first
front axle
HMaximum permitted weight on
second rear axle
To calculate the towable weight with a
braked trailer, take the difference
between values F and E shown on the
plate.
E.g.: F= 6000 kg - E= 3500 kg
Braked trailer=2500 kg
IMPORTANT Do not exceed the
indicated trailer and towable weights.
IMPORTANT Respect the vehicle
towing capacities. The tables show the
towable weight for engine version.
XXXXXX
XXXVERSIONE-VERSION
N° PER RICAMBI
N° FOR SPARES
MADE IN TURKEY
XXXXxxx
MOTORE-ENGINECODICE COLORE/PAINT
2 - 1 -
Kg
Kg
Kg
Kg
XXXX XXXX XXXX
190F0V0726
191F0T0245
176
TECHNICAL DATA

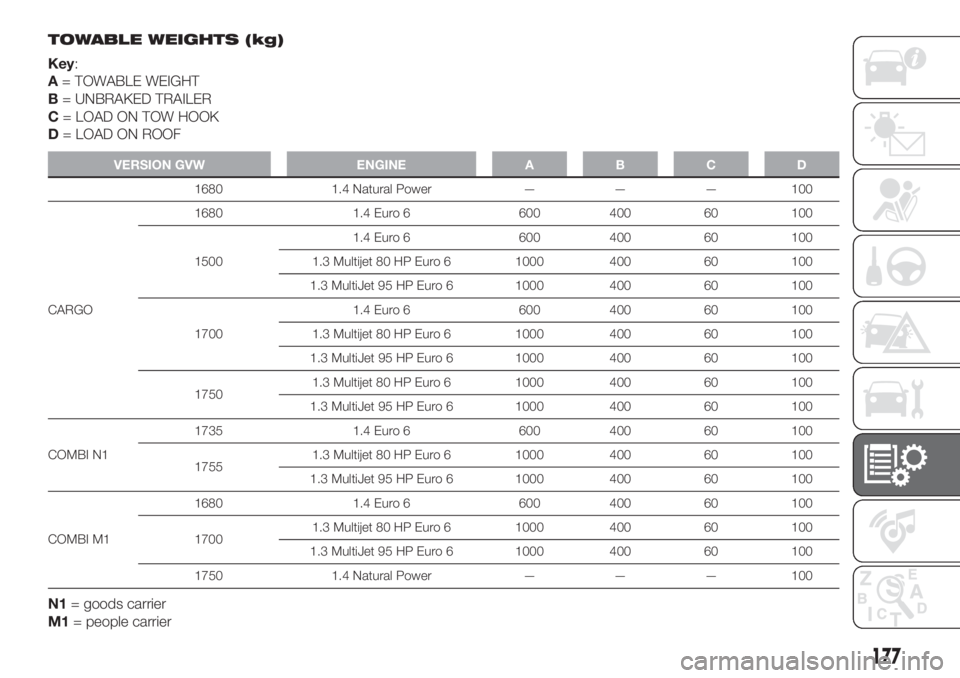

TOWABLE WEIGHTS (kg)
Key:
A= TOWABLE WEIGHT
B= UNBRAKED TRAILER
C= LOAD ON TOW HOOK
D= LOAD ON ROOF
VERSION GVW ENGINE A B C D
1680 1.4 Natural Power — — — 100
CARGO1680 1.4 Euro 6 600 400 60 100
15001.4 Euro 6 600 400 60 100
1.3 Multijet 80 HP Euro 6 1000 400 60 100
1.3 MultiJet 95 HP Euro 6 1000 400 60 100
17001.4 Euro 6 600 400 60 100
1.3 Multijet 80 HP Euro 6 1000 400 60 100
1.3 MultiJet 95 HP Euro 6 1000 400 60 100
17501.3 Multijet 80 HP Euro 6 1000 400 60 100
1.3 MultiJet 95 HP Euro 6 1000 400 60 100
COMBI N11735 1.4 Euro 6 600 400 60 100
17551.3 Multijet 80 HP Euro 6 1000 400 60 100
1.3 MultiJet 95 HP Euro 6 1000 400 60 100
COMBI M11680 1.4 Euro 6 600 400 60 100
17001.3 Multijet 80 HP Euro 6 1000 400 60 100
1.3 MultiJet 95 HP Euro 6 1000 400 60 100
1750 1.4 Natural Power — — — 100
N1= goods carrier
M1= people carrier
177

GENERAL INFORMATION
The radio offers the following functions:
Radio section
PLL tuning with FM/AM/MW
frequency bands;
RDS (Radio Data System) with TA
(traffic alerts) function - TP (traffic
programmes) - EON (Enhanced Other
Network) - REG (regional programmes);
AF: search selection for alternative
frequencies in RDS mode;
automatic/manual tuning into
stations;
FM Multipath detector;
manual storing of 30 stations: 18 on
FM band (6 on FM1, 6 on FM2, 6 on
FMT), 12 on MW band;
automatic storing (AUTOSTORE
function) of 6 stations in the dedicated
FM band;
SPEED VOLUME function:
automatic volume adjustment
according to the vehicle speed;
automatic Stereo/Mono selection.
CD section
Direct selection of the disc;
Track selection (forward/back);
Fast advance (forward/back) through
tracks;
CD Display function: display of disc
name and time elapsed since the
start of the track
Playing of audio CDs, CD-Rs and
CD-RWs.
44)
MP3 CD section
MP3-Info function (ID3-TAG);
Folder selection (previous/next);
Track selection (forward/back);
Fast advance (forward/back) through
tracks;
MP3 Display function: display of
name of folder, ID3-TAG information,
time elapsed since the start of the
track, name of the file;
Reading of audio or data CD, CD-R
and CD-RW.
Audio section
Mute/Pause function;
Soft-Mute function;
Loudness function
7-band graphic equaliser
Separate bass/treble adjustment
Right/left channel balance.FUNCTIONS AND
ADJUSTMENTS
SWITCHING ON THE RADIO
The car radio comes on when the
ON/OFF button/knob is briefly pressed.
When the radio is turned on with the
key extracted from the ignition, it
switches off automatically after about
20 minutes.
SWITCHING OFF THE RADIO
Keep the ON/OFF button/knob
pressed.
SELECTING THE RADIO
FUNCTIONS
By pressing the FM AS button quickly
and repeatedly, the following audio
sources can be selected cyclically:
TUNER (“FM1”, “FM2”, “FMA”).
By pressing the AM button briefly and
repeatedly, the following audio sources
can be selected cyclically:
TUNER (“MW1”, “MW2”).
SELECTING THE CD/CD CHANGER
FUNCTION
By briefly pressing the CD button, the
CD/CD CHANGER audio source can
be selected (only with a CD loaded).
MUTE/PAUSE FUNCTION (zeroing
the volume)
Press the MUTE button briefly to
activate the Mute function.
196
MULTIMEDIA

WARNING
INTERIOR FITTINGS
Never travel with the glove compartment open: it could injure the passenger in the event of a crash.
The cigar lighter gets extremely hot. Handle it carefully and make sure children don't touch it: risk of fire and/or burning.
Do not use the ashtray as a waste paper basket: it may catch fire in contact with cigarette stubs.
Do not use the book rest in a vertical position with the vehicle in motion.
ROOF RACK/SKI RACK
Fully comply with the regulations in force concerning maximum clearance.
After travelling for a few kilometres, check to ensure that the fixing screws for the attachments are well tightened.
INTERIOR
Never use flammable products, such as petroleum ether or modified petrol, to clean the inside of the vehicle. The electrostatic charges
which are generated by rubbing during the cleaning operation may cause a fire.
Do not keep aerosol cans in the vehicle: they might explode. Aerosol cans must not be exposed to temperatures of more than 50°C.
When the vehicle is exposed to sunlight, the temperature inside can greatly exceed this value.
EOBD SYSTEM
If, when the ignition key is turned to MAR, thewarning light does not switch on, switches on constantly or flashes when driving (on
certain versions together with the message on the display), contact a Fiat Dealership as soon as possible. The operation of thewarning
light may be checked by the traffic police using specific devices. Comply with the laws and regulations of the country where you are driving.
WHEELS AND TYRES
You must not exceed 160 km/h on snow tyres with a “Q” mark; in any case, make sure you stick to the rules of the highway code.
POWER SUPPLY
Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into
account can cause malfunctions leading to the risk of fire.
RIM PROTECTOR TYRES
DO NOT fit wheel hub caps when using integral hub caps fixed (with springs) to the steel rim and after sale tyres provided with a Rim
Protector. Use of unsuitable tyres and wheel caps may cause sudden decrease of tyre pressure.
203

Front ceiling light with map
reading lights (changing a
bulb)............................130
Front light clusters.................127
Front light clusters (bulb
replacement)....................127
Fuel consumption..................186
Fuel cut-off system.................140
Fuel tank cap......................110
Fuses (replacement)................132
Gear lever.........................102
Handbrake........................100
Handbrake lever...................100
Hazard warning lights..............117
Headrests
Front ............................19
Rear............................19
Heating and ventilation..............27
Hill Holder (system)..................73
Identification data..................164
Ignition device
starting.........................11
Steering lock....................11
Inflation pressure...................170
Instrument panel....................40
Isofix child restraint systems
(setup)...........................87
Arrangement possibilities for
child restraint system on seats
of vehicle........................88Isofix child seat assembly setup......87
iTPMS..............................76
Jack..............................117
Jump starting......................139
Keys
Key with remote control...........9
Mechanical key...................9
Ordering additional remote
controls.........................10
Lifting the vehicle..................161
Light bulbs
Bulb types.....................125
Luggage compartment
Extending the boot..............34
Removing the parcel shelf........33
Removing the rear seat..........34
Repositioning the rear seat.......34
Luggage compartment
Emergency opening.............33
Main beam headlights..............22
Maintenance and care - regular
checks..........................151
Maintenance and care -
Scheduled Servicing.............143
Maintenance and care -
scheduled servicing plan.........144
Manual climate control system.......27
Manually deactivating the front
airbag and side bag...............91
Mopar® Connect..................200MSR system........................74
Multifunction display
Control buttons..................45
Setup menu.....................46
Standard screen.................45
Number plate lights................129
Number plate lights (bulb
replacement)....................129
Official type approvals.............201
On-board instruments...............40
Ordering additional remote
controls..........................10
Parcel shelf.........................33
Parking lights.......................22
Parking sensors....................106
Parking the vehicle.................101
Partitions...........................31
Securing the load................32
Passenger compartment fuse
box table........................138
Passenger compartment fuses......136
Performance.......................175
Power steering fluid................157
Pre-tensioners......................80
Prescriptions for vehicle at end
of life...........................187
pressure restoring..................123
Procedure for diesel versions.........98
