will display a "CHECK TPM SYSTEM" message for
three seconds and then display dashes (- -) in place of
the pressure value.
5. Once you repair or replace the original road tire and
reinstall it on the vehicle in place of the compact spare,
the TPMS will update automatically. In addition, the
TPMS Telltale Light will turn off and the graphic in the
EVIC will display a new pressure value instead of dashes
(- -), as long as no tire pressure is below the low-
pressure warning limit in any of the four active road
tires. The vehicle may need to be driven for up to
20 minutes above 25 km/h in order for the TPMS to
receive this information.
TPMS Deactivation And Reactivation
The TPMS can be deactivated if replacing all four wheel
and tire assemblies (road tires) with wheel and tire
assemblies that do not have TPMS Sensors, such as
when installing winter wheel and tire assemblies on
your vehicle.
To deactivate the TPMS, first, replace all four wheel and
tire assemblies (road tires) with those not equipped
with TPM Sensors. Then, drive the vehicle for 20 min-
utes above 25 km/h. The TPMS will chime and the Tire
Pressure Monitoring Telltale Light will flash on and off
for 75 seconds and then remain on solid. In addition,
the Electronic Vehicle Information Center (EVIC) will
display a “CHECK TPM SYSTEM” text message, and
the graphic will display “- -“ in place of four tire
pressure values. Upon the next ignition switch cycle,
the TPMS will no longer chime or turn on the TirePressure Monitoring Telltale Light, or display the text
message in the EVIC. However, the graphic will still
display “- -.“
To reactivate the TPMS, first, replace all four wheel and
tire assemblies (road tires) with those equipped with
TPM Sensors. Then, drive the vehicle for up to 20 min-
utes above 25 km/h. The TPMS will chime, the Tire
Pressure Monitoring Telltale Light will flash on and off
for 75 seconds, the EVIC will display a “CHECK TPM
SYSTEM” text message, and the graphic will display tire
pressure values to show that the TPMS is receiving
sensor data.
GENERAL INFORMATION
Transmitter and receivers operate on a carrier fre-
quency of 433.92 MHz as required by EEC regulations.
These devices must be certified to conform to specific
regulations in each individual country. Two sets of
regulations are involved: ETS (European Telecommuni-
cation Standard) 300–220, which most countries use,
and German BZT federal regulation 225Z125, which is
based on ETC 300–220 but has additional unique re-
quirements. Other defined requirements are noted in
ANNEX VI of COMMISSION DIRECTIVE 95/56/EC.
Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received,
including interference that may cause undesired operation.
119
KNOWING
YOURVEHICLESAFETY
STARTING ANDDRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

(Continued)

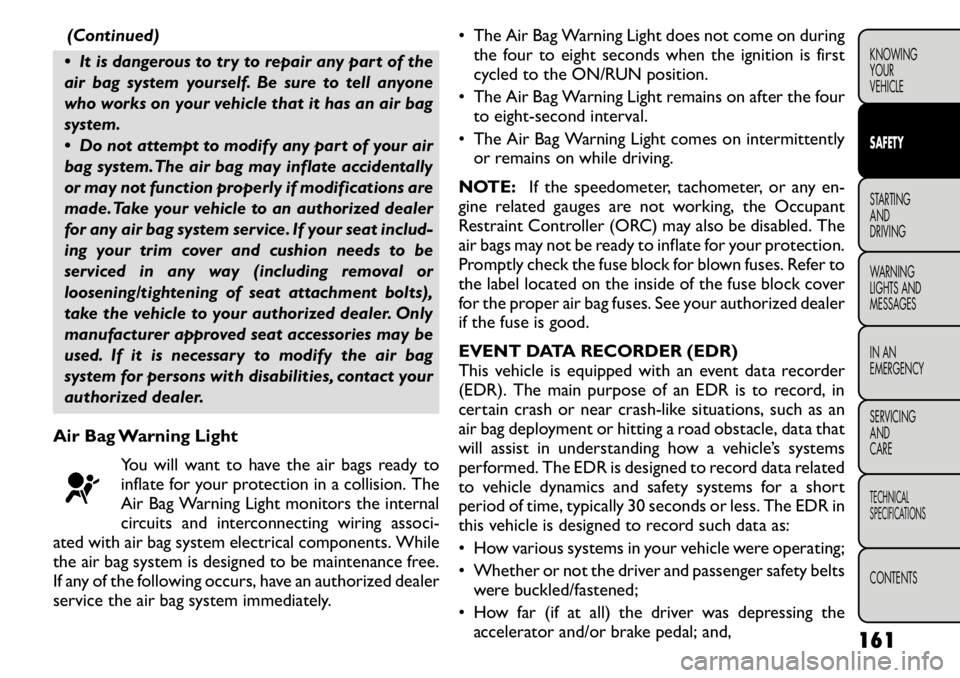

 It is dangerous to try to repair any part of the
air bag system yourself. Be sure to tell anyone
who works on your vehicle that it has an air bag
system.
 Do not attempt to modify any part of your air
bag system.The air bag may inflate accidentally
or may not function properly if modifications are
made.Take your vehicle to an authorized dealer
for any air bag system service. If your seat includ-
ing your trim cover and cushion needs to be
serviced in any way (including removal or
loosening/tightening of seat attachment bolts),
take the vehicle to your authorized dealer. Only
manufacturer approved seat accessories may be
used. If it is necessary to modify the air bag
system for persons with disabilities, contact your
authorized dealer.
Air Bag Warning Light You will want to have the air bags ready to
inflate for your protection in a collision. The
Air Bag Warning Light monitors the internal
circuits and interconnecting wiring associ-
ated with air bag system electrical components. While
the air bag system is designed to be maintenance free.
If any of the following occurs, have an authorized dealer
service the air bag system immediately. • The Air Bag Warning Light does not come on during
the four to eight seconds when the ignition is first
cycled to the ON/RUN position.
• The Air Bag Warning Light remains on after the four to eight-second interval.
• The Air Bag Warning Light comes on intermittently or remains on while driving.
NOTE: If the speedometer, tachometer, or any en-
gine related gauges are not working, the Occupant
Restraint Controller (ORC) may also be disabled. The
air bags may not be ready to inflate for your protection.
Promptly check the fuse block for blown fuses. Refer to
the label located on the inside of the fuse block cover
for the proper air bag fuses. See your authorized dealer
if the fuse is good.
EVENT DATA RECORDER (EDR)
This vehicle is equipped with an event data recorder
(EDR). The main purpose of an EDR is to record, in
certain crash or near crash-like situations, such as an
air bag deployment or hitting a road obstacle, data that
will assist in understanding how a vehicle’s systems
performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or less. The EDR in
this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts
were buckled/fastened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
161KNOWING
YOURVEHICLESAFETYSTARTING ANDDRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

• How fast the vehicle was traveling.
These data can help provide a better understanding of
the circumstances in which crashes and injuries occur.
NOTE:EDR data are recorded by your vehicle only if
a non-trivial crash situation occurs; no data are re-
corded by the EDR under normal driving conditions
and no personal data (e.g., name, gender, age, and crash
location) are recorded. However, other parties, such as
law enforcement, could combine the EDR data with
the type of personally identifying data routinely ac-
quired during a crash investigation.
To read data recorded by an EDR, special equipment is
required, and access to the vehicle or the EDR is
needed. In addition to the vehicle manufacturer, other
parties, such as law enforcement, that have the special
equipment, can read the information if they have access
to the vehicle or the EDR.
Transporting Pets
Air Bags deploying in the front seat could harm your
pet. An unrestrained pet will be thrown about and
possibly injured, or injure a passenger during panic
braking or in an accident.
Pets should be restrained in the rear seat in pet har-
nesses or pet carriers that are secured by seat belts. SAFETY TIPS
TRANSPORTING PASSENGERS
NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.

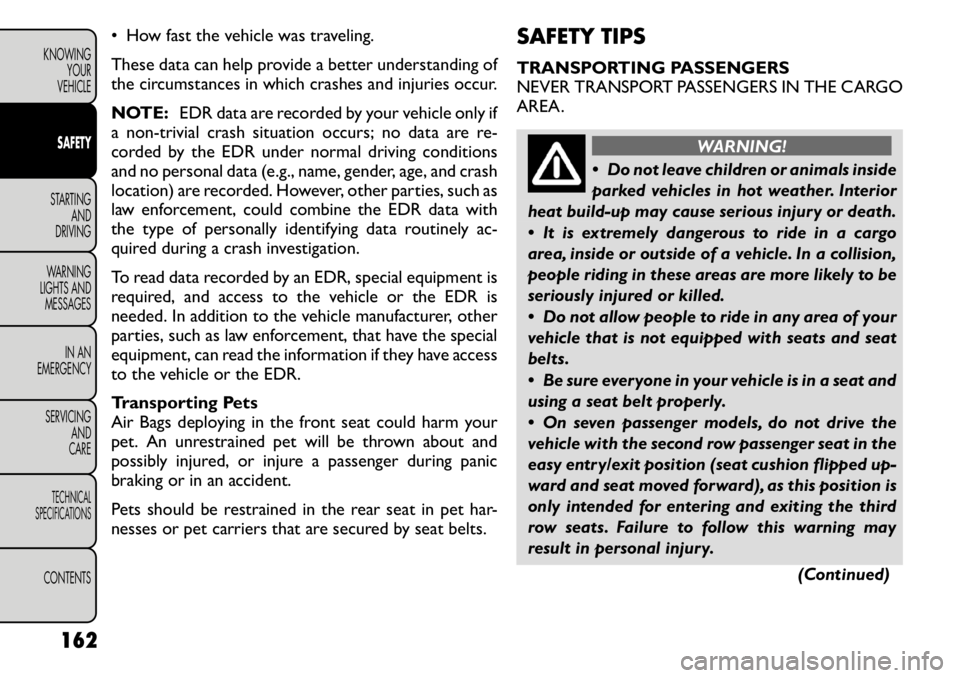

WARNING!
 Do not leave children or animals inside
parked vehicles in hot weather. Interior
heat build-up may cause serious injury or death.
 It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a collision,
people riding in these areas are more likely to be
seriously injured or killed.
 Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
 Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
 On seven passenger models, do not drive the
vehicle with the second row passenger seat in the
easy entry/exit position (seat cushion flipped up-
ward and seat moved forward), as this position is
only intended for entering and exiting the third
row seats. Failure to follow this warning may
result in personal injury.
(Continued)
162
KNOWING YOUR
VEHICLESAFETYSTARTING AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

Camera, Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Capacities, Fluid . . . . . . . . . . . . . . . . . . . . . . . . . 241
Caps, FillerFuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Oil (Engine) . . . . . . . . . . . . . . . . . . . . . . . 218,219
Power Steering . . . . . . . . . . . . . . . . . . . . . . . . 113
Radiator (Coolant Pressure) . . . . . . . . . . . . . . . 227
Car Washes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Carbon Monoxide Warning . . . . . . . . . . . . . . . . . 163
Cargo (Vehicle Loading) . . . . . . . . . . . . . . . . . . . . 100
Cargo Area Cover . . . . . . . . . . . . . . . . . . . . . . . 101
Cargo Area Features . . . . . . . . . . . . . . . . . . . . . . . 99
Cargo Compartment . . . . . . . . . . . . . . . . . . . . . . . 99 Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Luggage Carrier . . . . . . . . . . . . . . . . . . . . . . . . 104
Cargo Load Floor . . . . . . . . . . . . . . . . . . . . . . . . 100
Cargo Management System . . . . . . . . . . . . . . . . . . 100 Rollaway Tonneau Cover . . . . . . . . . . . . . . . . . . 101
Tri-Fold Load Floor . . . . . . . . . . . . . . . . . . . . . 100
Cargo Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . . 100
Cellular Phone . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Changing A Flat Tire . . . . . . . . . . . . . . . . . . . . . . 193
Checking Your Vehicle For Safety . . . . . . . . . . . . . . 162
Checks, Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Child Booster Seat . . . . . . . . . . . . . . . . . . . . . . . 144
Child Restraint . . . . . . . . . . . . . . 141,143,145,149,151
Child Restraint Tether Anchors . . . . . . . . . . . . 146,149
Child Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . 92Cleaning Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Windshield Wiper Blades . . . . . . . . . . . . . . . . . 223
Climate Control . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Coin Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Cold Weather Operation . . . . . . . . . . . . . . . . . . . 168
Compact Disc (CD) Maintenance . . . . . . . . . . . . . 129 Compact Spare Tire . . . . . . . . . . . . . . . . . . . . . . 237
Computer, Trip/Travel . . . . . . . . . . . . . . . . . . . . . . 23
Connector
UCI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Universal Consumer Interface (UCI) . . . . . . . . . . 129
Conserving Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Console, Floor . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Console, Overhead . . . . . . . . . . . . . . . . . . . . . . . . 77
Cool Down, Turbo . . . . . . . . . . . . . . . . . . . . . . . 168
Coolant Pressure Cap (Radiator Cap) . . . . . . . . . . . 227
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . 226 Adding Coolant (Antifreeze) . . . . . . . . . . . . . . . 227
Coolant Capacity . . . . . . . . . . . . . . . . . . . . . . . 241
Coolant Level . . . . . . . . . . . . . . . . . . . . . . 226,228
Diesel Engine . . . . . . . . . . . . . . . . . . . . . . . . . 226
Disposal of Used Coolant . . . . . . . . . . . . . . . . . 227
Drain, Flush, and Refill . . . . . . . . . . . . . . . . . . . 226
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Points to Remember . . . . . . . . . . . . . . . . . . . . 228
Pressure Cap . . . . . . . . . . . . . . . . . . . . . . . . . 227
Radiator Cap . . . . . . . . . . . . . . . . . . . . . . . . . 227
Selection of Coolant (Antifreeze) . . . . . . 226,241,242
Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . . 7
Corrosion Protection . . . . . . . . . . . . . . . . . . . . . 230
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . 85,232
Data Recorder, Event . . . . . . . . . . . . . . . . . . . . . 161
Daytime Brightness, Interior Lights . . . . . . . . . . . . . 69
Daytime Running Lights . . . . . . . . . . . . . . . . . . . . . 67
Defroster, Rear Window . . . . . . . . . . . . . . . . . . . . 74
Defroster, Windshield . . . . . . . . . . . . . . . . . . . 60,164
Delay (Intermittent) Wipers . . . . . . . . . . . . . . . . . . 70
Diagnostic System, Onboard . . . . . . . . . . . . . . . . . 111
Diesel Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 240,242
Diesel Fuel Requirements . . . . . . . . . . . . . . . . . . . 240
248
KNOWING
YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

Dimmer Switch, Headlight . . . . . . . . . . . . . . . . . . . 68 DipsticksOil (Engine) . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Power Steering . . . . . . . . . . . . . . . . . . . . . . . . 113
Disabled Vehicle Towing . . . . . . . . . . . . . . . . . . . . 213Disposal Antifreeze (Engine Coolant) . . . . . . . . . . . . . . . 227
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Door Locks, Automatic . . . . . . . . . . . . . . . . . . . . . 90
Downshifting . . . . . . . . . . . . . . . . . . . . . . . . . . . 170Driving
On Slippery Surfaces . . . . . . . . . . . . . . . . . . . . 171
Through Flowing, Rising, or Shallow Standing
Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Driving to Achieve Maximum Fuel Economy . . . . . . . 22
DVD Player (Video Entertainment System™) . . . . . . 128
Electric Remote Mirrors . . . . . . . . . . . . . . . . . . . . 54
Electrical Outlet, Auxiliary (Power Outlet) . . . . . . . . 82
Electrical Power Outlets . . . . . . . . . . . . . . . . . . . . 82
Electronic Brake Control System . . . . . . . . . . . . . . 106 Anti-Lock Brake System . . . . . . . . . . . . . . . . . . 106
Brake Assist System . . . . . . . . . . . . . . . . . . . . . 108
Electronic Roll Mitigation . . . . . . . . . . . . . . . . . 108
Electronic Stability Program . . . . . . . . . . . . . . . . 109
Traction Control System . . . . . . . . . . . . . . . . . . 108
Electronic Roll Mitigation (ERM) . . . . . . . . . . . . . . 108
Electronic Speed Control (Cruise Control) . . . . . . . . 75
Electronic Stability Program (ESP) . . . . . . . . . . . . . 109
Electronic Vehicle Information Center (EVIC) . . . 18,124
Emergency, In Case of Freeing Vehicle When Stuck . . . . . . . . . . . . . . . 210
Hazard Warning Flasher . . . . . . . . . . . . . . . . . . . 78
Jacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193 Jump Starting . . . . . . . . . . . . . . . . . . . . . . . . . 190
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166,218 Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Break-In Recommendations . . . . . . . . . . . . . . . . 166
Checking Oil Level . . . . . . . . . . . . . . . . . . . . . . 219
Coolant (Antifreeze) . . . . . . . . . . . . . . . . . 226,242
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Exhaust Gas Caution . . . . . . . . . . . . . . . . . . 99,163
Jump Starting . . . . . . . . . . . . . . . . . . . . . . . . . 190
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . 219,241,242
Oil Change Interval . . . . . . . . . . . . . . . . . . . 22,219
Oil Filler Cap . . . . . . . . . . . . . . . . . . . . . . 218,219
Oil Filter Disposal . . . . . . . . . . . . . . . . . . . . . . 220
Oil Selection . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . . 7
Engine Oil Viscosity . . . . . . . . . . . . . . . . . . . . . . . 219
Enhanced Accident Response Feature . . . . . . . . . . . 159
Entry System, Illuminated . . . . . . . . . . . . . . . . . . . . 70
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . . 161
Exhaust Gas Caution . . . . . . . . . . . . . . . . . 99,163,225
Exhaust System . . . . . . . . . . . . . . . . . . . . . . . 163,225
Express Down Windows . . . . . . . . . . . . . . . . . . . . 13
Exterior Folding Mirrors . . . . . . . . . . . . . . . . . . . . 55
Exterior Light Service . . . . . . . . . . . . . . . . . . . . . 201
Exterior Lighting . . . . . . . . . . . . . . . . . . . . . . . . . 66
Exterior Lights . . . . . . . . . . . . . . . . . . . . . . . 165,201
Fabric Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Filters
Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . 220 249
KNOWING
YOURVEHICLE SAFETY
STARTING ANDDRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

Radiator Cap (Coolant Pressure Cap) . . . . . . . . . . . 227
Radio (Sound Systems) . . . . . . . . . . . . . . . . . . . . . 126
Radio Operation . . . . . . . . . . . . . . . . . . . . . . . . . 130
Radio Remote Controls . . . . . . . . . . . . . . . . . . . . 127
Rear Air Conditioning . . . . . . . . . . . . . . . . . . . . . . 62
Rear Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Rear Cupholder . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Rear Fog Lights . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Rear Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Rear Park Sense System . . . . . . . . . . . . . . . . . . . . 120
Rear Seat, Folding . . . . . . . . . . . . . . . . . . . . . . . 47,51
Rear Window Defroster . . . . . . . . . . . . . . . . . . . . 74
Rear Window Features . . . . . . . . . . . . . . . . . . . . . 73
Rear Wiper/Washer . . . . . . . . . . . . . . . . . . . . . . . 73
Rearview Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 53
Reclining Front Seats . . . . . . . . . . . . . . . . . . . . . . . 42
Reclining Rear Seats . . . . . . . . . . . . . . . . . . . . . 48,51
Recorder, Event Data . . . . . . . . . . . . . . . . . . . . . 161
Recreational Towing . . . . . . . . . . . . . . . . . . . . . . 183
Refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Release, Hood . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Reminder, Lights On . . . . . . . . . . . . . . . . . . . . . . . 67
Reminder, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . 141
Remote Keyless Entry (RKE) . . . . . . . . . . . . . . . . . 12
Remote Sound System (Radio) Controls . . . . . . . . . 127
Repeater Lights, Side . . . . . . . . . . . . . . . . . . . . . . 203
Replacement Bulbs . . . . . . . . . . . . . . . . . . . . . . . 200
Replacement Keys . . . . . . . . . . . . . . . . . . . . . . . . . 11
Replacement Tires . . . . . . . . . . . . . . . . . . . . . . . 239
Resetting Oil Change Indicator . . . . . . . . . . . . . 22,186
Restraint, Head . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Restraints, Child . . . . . . . . . . . . . . . . . . . . . . . . . 141
Restraints, Occupant . . . . . . . . . . . . . . . . . . . . . . 132
Retractable Cargo Area Cover . . . . . . . . . . . . . . . 101
Reverse Lights . . . . . . . . . . . . . . . . . . . . . . . . . . 203Rocking Vehicle When Stuck . . . . . . . . . . . . . . . . . 210
Roof Rack (Luggage Rack) . . . . . . . . . . . . . . . . . . . 104
Rotation, Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Safety Checks Inside Vehicle . . . . . . . . . . . . . . . . . 163
Safety Checks Outside Vehicle . . . . . . . . . . . . . . . 165
Safety Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Safety, Exhaust Gas . . . . . . . . . . . . . . . . . . . . . 99,163
Schedule, Maintenance . . . . . . . . . . . . . . . . . . . . . 215
Seat Belt Maintenance . . . . . . . . . . . . . . . . . . . . . 232
Seat Belt Reminder . . . . . . . . . . . . . . . . . . . . . . . 141
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . 132,133,163
Adjustable Upper Shoulder Anchorage . . . . . . . . 136
And Pregnant Women . . . . . . . . . . . . . . . . . . . 141
Child Restraint . . . . . . . . . . . . . . . . 141,143,145,151
Front Seat . . . . . . . . . . . . . . . . . . . . . . . . 133,134
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Operating Instructions . . . . . . . . . . . . . . . . . . . 134
Pretensioners . . . . . . . . . . . . . . . . . . . . . . . . . 138
Rear Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Untwisting Procedure . . . . . . . . . . . . . . . . . . . . 136
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Child Booster . . . . . . . . . . . . . . . . . . . . . . . . . 144
Easy Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Height Adjustment . . . . . . . . . . . . . . . . . . . . 38,43
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Rear Folding . . . . . . . . . . . . . . . . . . . . . . . . . 47,51
Reclining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Reclining Rear . . . . . . . . . . . . . . . . . . . . . . . . 48,51
Seatback Release . . . . . . . . . . . . . . . . . . . . 43,47,51
Tilting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Security Alarm (Theft Alarm) . . . . . . . . . . . . . . 14,189
254
KNOWING
YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

OWNER HANDBOOK
FIATFREEMONT
ENGLISH
The data contained in this publication is intended merely as a guide. FIAT reserves the right to modify the models and
versions described in this booklet at any time for technical and commercial reasons.
If you have any further questions please consult your FIAT dealer.
Printed in recycled paper without chlorine.
