FIAT FREEMONT 2013 Owner handbook (in English)

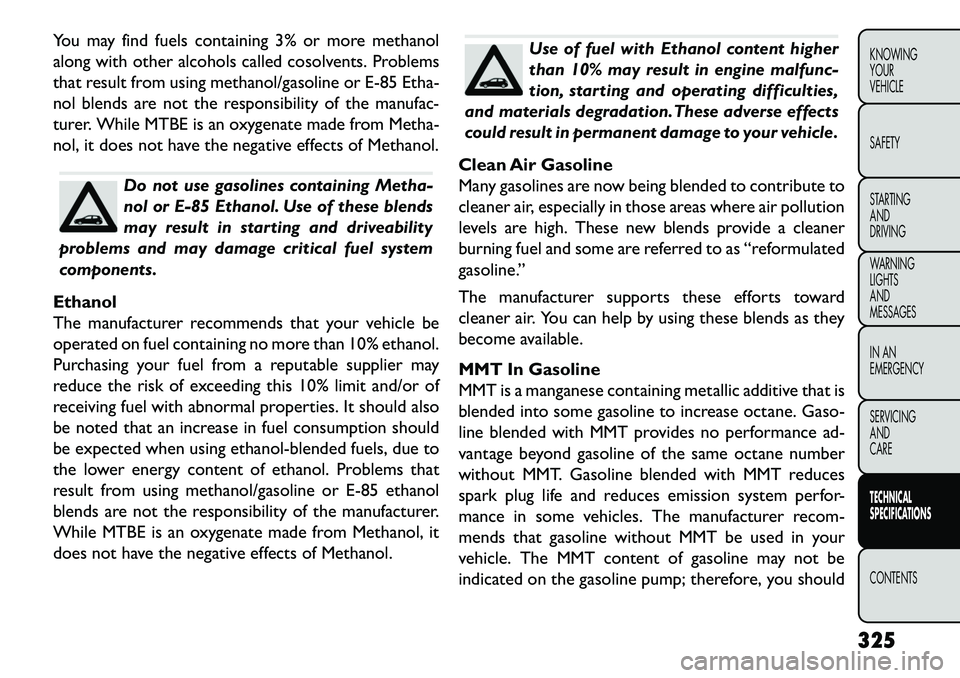

You may find fuels containing 3% or more methanol
along with other alcohols called cosolvents. Problems
that result from using methanol/gasoline or E-85 Etha-
nol blends are not the responsibility of the manufac-
turer. While MTBE is an oxygenate made from Metha-
nol, it does not have the negative effects of Methanol.
Do not use gasolines containing Metha-
nol or E-85 Ethanol. Use of these blends
may result in starting and driveability
problems and may damage critical fuel system
components.
Ethanol
The manufacturer recommends that your vehicle be
operated on fuel containing no more than 10% ethanol.
Purchasing your fuel from a reputable supplier may
reduce the risk of exceeding this 10% limit and/or of
receiving fuel with abnormal properties. It should also
be noted that an increase in fuel consumption should
be expected when using ethanol-blended fuels, due to
the lower energy content of ethanol. Problems that
result from using methanol/gasoline or E-85 ethanol
blends are not the responsibility of the manufacturer.
While MTBE is an oxygenate made from Methanol, it
does not have the negative effects of Methanol.
Use of fuel with Ethanol content higher
than 10% may result in engine malfunc-
tion, starting and operating difficulties,
and materials degradation.These adverse effects
could result in permanent damage to your vehicle.
Clean Air Gasoline
Many gasolines are now being blended to contribute to
cleaner air, especially in those areas where air pollution
levels are high. These new blends provide a cleaner
burning fuel and some are referred to as “reformulated
gasoline.”
The manufacturer supports these efforts toward
cleaner air. You can help by using these blends as they
become available.
MMT In Gasoline
MMT is a manganese containing metallic additive that is
blended into some gasoline to increase octane. Gaso-
line blended with MMT provides no performance ad-
vantage beyond gasoline of the same octane number
without MMT. Gasoline blended with MMT reduces
spark plug life and reduces emission system perfor-
mance in some vehicles. The manufacturer recom-
mends that gasoline without MMT be used in your
vehicle. The MMT content of gasoline may not be
indicated on the gasoline pump; therefore, you should
325
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

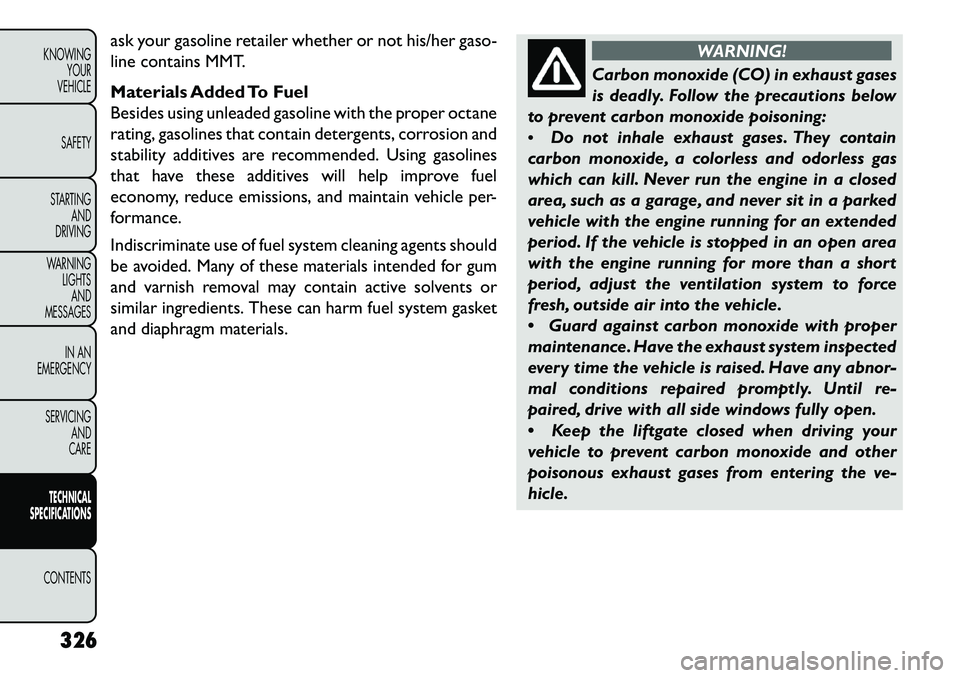

ask your gasoline retailer whether or not his/her gaso-
line contains MMT.
Materials Added To Fuel
Besides using unleaded gasoline with the proper octane
rating, gasolines that contain detergents, corrosion and
stability additives are recommended. Using gasolines
that have these additives will help improve fuel
economy, reduce emissions, and maintain vehicle per-
formance.
Indiscriminate use of fuel system cleaning agents should
be avoided. Many of these materials intended for gum
and varnish removal may contain active solvents or
similar ingredients. These can harm fuel system gasket
and diaphragm materials.
WARNING!
Carbon monoxide (CO) in exhaust gases
is
deadly. Follow the precautions below
to prevent carbon monoxide poisoning:
 Do not inhale exhaust gases. They contain
carbon monoxide, a colorless and odorless gas
which can kill. Never run the engine in a closed
area, such as a garage, and never sit in a parked
vehicle with the engine running for an extended
period. If the vehicle is stopped in an open area
with the engine running for more than a short
period, adjust the ventilation system to force
fresh, outside air into the vehicle.
 Guard against carbon monoxide with proper
maintenance. Have the exhaust system inspected
every time the vehicle is raised. Have any abnor-
mal conditions repaired promptly. Until re-
paired, drive with all side windows fully open.
 Keep the liftgate closed when driving your
vehicle to prevent carbon monoxide and other
poisonous exhaust gases from entering the ve-
hicle.
326
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

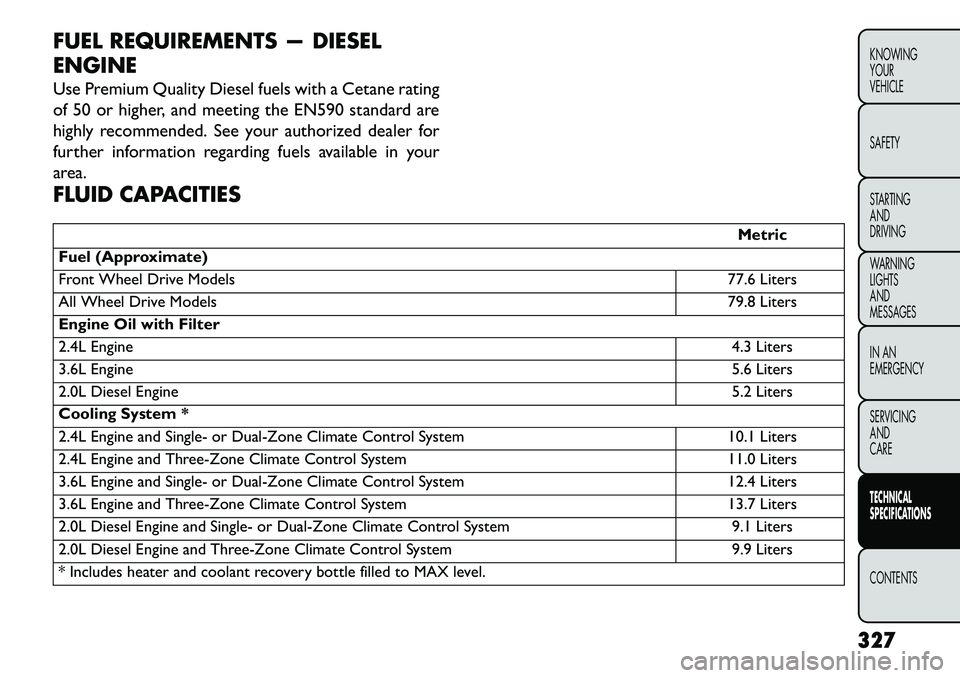

FUEL REQUIREMENTS — DIESEL
ENGINE
Use Premium Quality Diesel fuels with a Cetane rating
of 50 or higher, and meeting the EN590 standard are
highly recommended. See your authorized dealer for
further information regarding fuels available in your
area.
FLUID CAPACITIES
Metric
Fuel (Approximate)
Front Wheel Drive Models 77.6 Liters
All Wheel Drive Models 79.8 Liters
Engine Oil with Filter
2.4L Engine 4.3 Liters
3.6L Engine 5.6 Liters
2.0L Diesel Engine 5.2 Liters
Cooling System *
2.4L Engine and Single- or Dual-Zone Climate Control System 10.1 Liters
2.4L Engine and Three-Zone Climate Control System 11.0 Liters
3.6L Engine and Single- or Dual-Zone Climate Control System 12.4 Liters
3.6L Engine and Three-Zone Climate Control System 13.7 Liters
2.0L Diesel Engine and Single- or Dual-Zone Climate Control System 9.1 Liters
2.0L Diesel Engine and Three-Zone Climate Control System 9.9 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
327
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

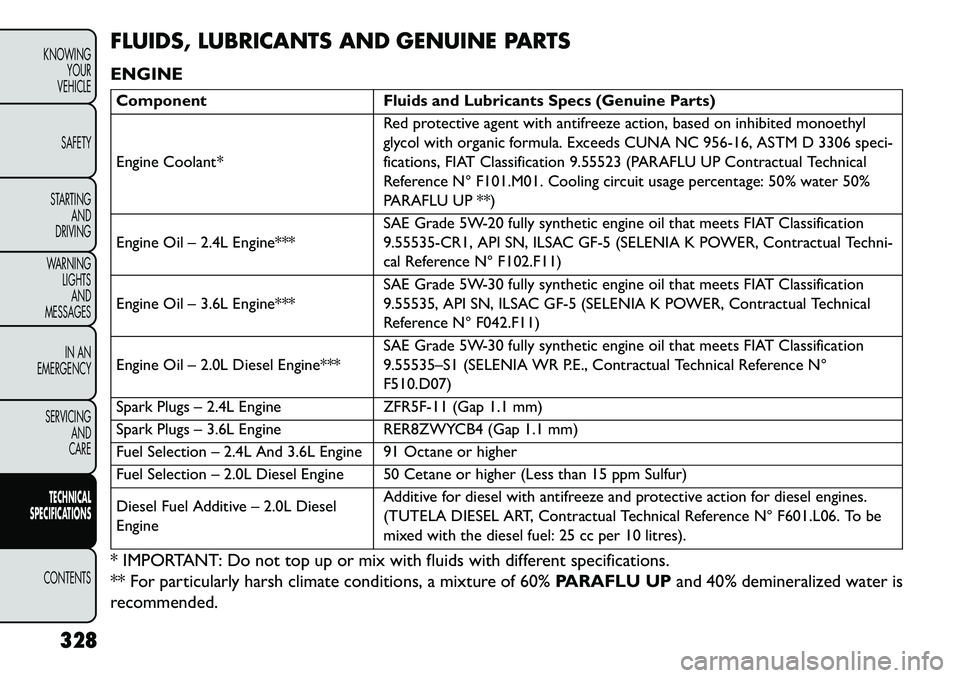

FLUIDS, LUBRICANTS AND GENUINE PARTS
ENGINEComponentFluids and Lubricants Specs (Genuine Parts)
Engine Coolant* Red protective agent with antifreeze action, based on inhibited monoethyl
glycol with organic formula. Exceeds CUNA NC 956-16, ASTM D 3306 speci-
fications, FIAT Classification 9.55523 (PARAFLU UP Contractual Technical
Reference N° F101.M01. Cooling circuit usage percentage: 50% water 50%
PARAFLU UP **)
Engine Oil – 2.4L Engine*** SAE Grade 5W-20 fully synthetic engine oil that meets FIAT Classification
9.55535-CR1, API SN, ILSAC GF-5 (SELENIA K POWER, Contractual Techni-
cal Reference N° F102.F11)
Engine Oil – 3.6L Engine*** SAE Grade 5W-30 fully synthetic engine oil that meets FIAT Classification
9.55535, API SN, ILSAC GF-5 (SELENIA K POWER, Contractual Technical
Reference N° F042.F11)
Engine Oil – 2.0L Diesel Engine*** SAE Grade 5W-30 fully synthetic engine oil that meets FIAT Classification
9.55535–S1 (SELENIA WR P.E., Contractual Technical Reference N°
F510.D07)
Spark Plugs – 2.4L Engine ZFR5F-11 (Gap 1.1 mm)
Spark Plugs – 3.6L Engine RER8ZWYCB4 (Gap 1.1 mm)
Fuel Selection – 2.4L And 3.6L Engine 91 Octane or higher
Fuel Selection – 2.0L Diesel Engine 50 Cetane or higher (Less than 15 ppm Sulfur)
Diesel Fuel Additive – 2.0L Diesel
Engine Additive for diesel with antifreeze and protective action for diesel engines.
(TUTELA DIESEL ART, Contractual Technical Reference N° F601.L06. To be
mixed with the diesel fuel: 25 cc per 10 litres).
* IMPORTANT: Do not top up or mix with fluids with different specifications.
** For particularly harsh climate conditions, a mixture of 60% PARAFLU UPand 40% demineralized water is
recommended.
328
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

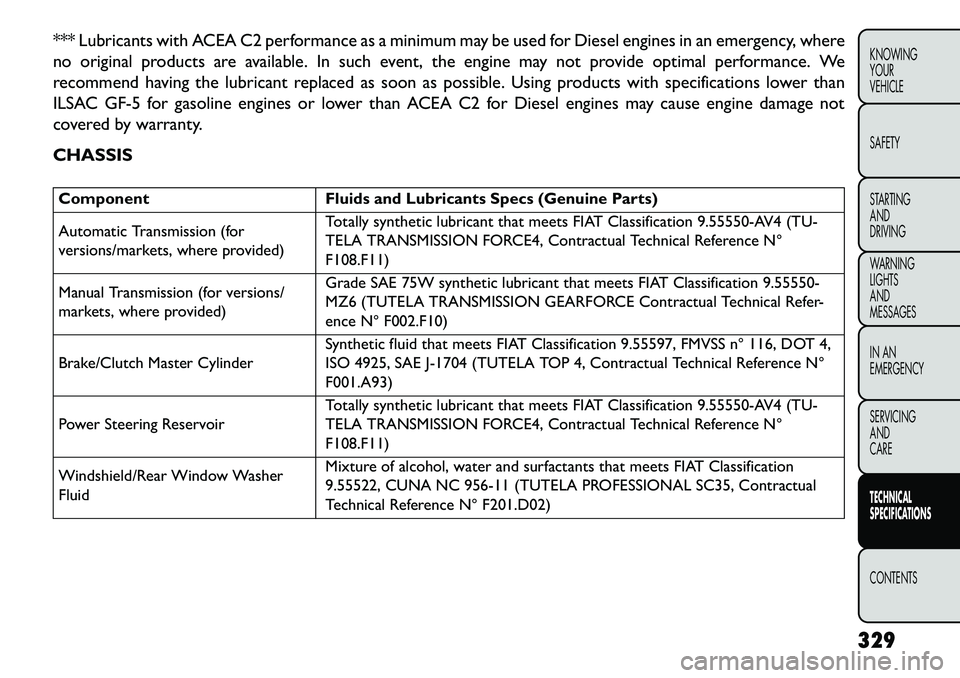

*** Lubricants with ACEA C2 performance as a minimum may be used for Diesel engines in an emergency, where
no original products are available. In such event, the engine may not provide optimal performance. We
recommend having the lubricant replaced as soon as possible. Using products with specifications lower than
ILSAC GF-5 for gasoline engines or lower than ACEA C2 for Diesel engines may cause engine damage not
covered by warranty.
CHASSISComponentFluids and Lubricants Specs (Genuine Parts)
Automatic Transmission (for
versions/markets, where provided) Totally synthetic lubricant that meets FIAT Classification 9.55550-AV4 (TU-
TELA TRANSMISSION FORCE4, Contractual Technical Reference N°
F108.F11)
Manual Transmission (for versions/
markets, where provided) Grade SAE 75W synthetic lubricant that meets FIAT Classification 9.55550-
MZ6 (TUTELA TRANSMISSION GEARFORCE Contractual Technical Refer-
ence N° F002.F10)
Brake/Clutch Master Cylinder Synthetic fluid that meets FIAT Classification 9.55597, FMVSS n° 116, DOT 4,
ISO 4925, SAE J-1704 (TUTELA TOP 4, Contractual Technical Reference N°
F001.A93)
Power Steering Reservoir Totally synthetic lubricant that meets FIAT Classification 9.55550-AV4 (TU-
TELA TRANSMISSION FORCE4, Contractual Technical Reference N°
F108.F11)
Windshield/Rear Window Washer
Fluid Mixture of alcohol, water and surfactants that meets FIAT Classification
9.55522, CUNA NC 956-11 (TUTELA PROFESSIONAL SC35, Contractual
Technical Reference N° F201.D02)
329
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

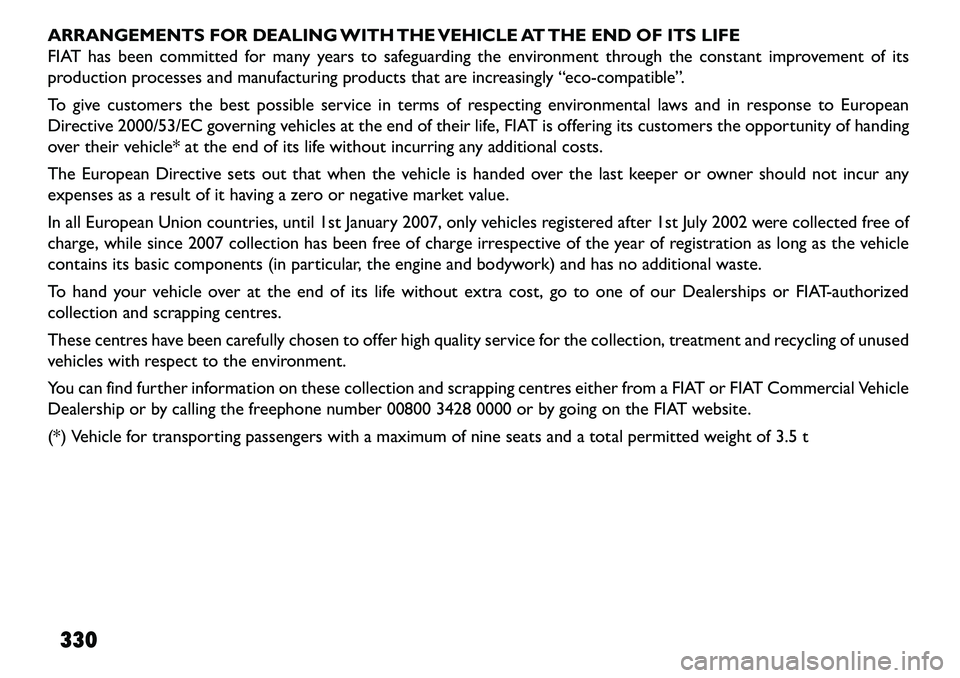

ARRANGEMENTS FOR DEALING WITH THE VEHICLE AT THE END OF ITS LIFE
FIAT has been committed for many years to safeguarding the environment through the constant improvement of its
production processes and manufacturing products that are increasingly “eco-compatible”.
To give customers the best possible service in terms of respecting environmental laws and in response to European
Directive 2000/53/EC governing vehicles at the end of their life, FIAT is offering its customers the opportunity of handing
over their vehicle* at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur any
expenses as a result of it having a zero or negative market value.
In all European Union countries, until 1st January 2007, only vehicles registered after 1st July 2002 were collected free of
charge, while since 2007 collection has been free of charge irrespective of the year of registration as long as the vehicle
contains its basic components (in particular, the engine and bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, go to one of our Dealerships or FIAT-authorized
collection and scrapping centres.
These centres have been carefully chosen to offer high quality service for the collection, treatment and recycling of unused
vehicles with respect to the environment.
You can find further information on these collection and scrapping centres either from a FIAT or FIAT Commercial Vehicle
Dealership or by calling the freephone number 00800 3428 0000 or by going on the FIAT website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t330

331

332

CONTENTS
About Your Brakes. . . . . . . . . . . . . . . . . . . . . .118, 207
ABS (Anti-Lock Brake System) . . . . . . . . . .119, 120, 243
Adding Engine Coolant (Antifreeze) . . . . . . . . . . . . . .305
Adding Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .163
Adding Washer Fluid . . . . . . . . . . . . . . . . . . . . . . . .301
Additives, Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . .326
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187, 194
Airbag Deployment . . . . . . . . . . . . . . . . . . . . . . . .195
Airbag Light. . . . . . . . . . . . . . . . . . . .193, 196, 199, 239
Airbag, Side . . . . . . . . . . . . . . . . . . . . . . .189, 192, 194
Airbag, Window (Side Curtain) . . . . . . . . . .190, 192, 194
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . . . .296
Air Conditioner Maintenance . . . . . . . . . . . . . . . . . .297
Air Conditioning Filter . . . . . . . . . . . . . . . . . . . .73, 298
Air Conditioning, Operating Tips . . . . . . . . . . . . . . . .74
Air Conditioning, Rear Zone . . . . . . . . . . . . . . . . . . .70
Air Conditioning Refrigerant . . . . . . . . . . . . . . .297, 298
Air Conditioning System . . . . . . . . . . . . . . . . . . .68, 297
Air Pressure, Tires . . . . . . . . . . . . . . . . . . . . . .241, 317
Alarm (Security Alarm). . . . . . . . . . . . . . . . . . . .15, 244
Alarm System (Security Alarm) . . . . . . . . . . . . . . .15, 17
All Wheel Drive (AWD) . . . . . . . . . . . . . . . . . . . . .222
Alterations/Modifications, Vehicle . . . . . . . . . . . . . . . . .5
Antifreeze (Engine Coolant) . . . . . . . . . . . .304, 305, 327 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . .306
Anti-Lock Brake System (ABS) . . . . . . . . . . . . . .119, 120
Anti-Lock Warning Light . . . . . . . . . . . . . .120, 121, 243
Anti-Theft Security Alarm (Theft Alarm) . . . . . . . . . . .15
Anti-Theft System . . . . . . . . . . . . . . . . . . . . . . . . .244
Arming Theft System (Security Alarm) . . . . . . . . . . . . .15
Auto Down Power Windows . . . . . . . . . . . . . . . . . .109 Automatic Dimming Mirror . . . . . . . . . . . . . . . . . . . .60
Automatic Door Locks . . . . . . . . . . . . . . . . . . . . . .102
Automatic Headlights . . . . . . . . . . . . . . . . . . . . . . . .75
Automatic Oil Change Indicator . . . . . . . . . . . . . . . . .25
Automatic Temperature Control (ATC) . . . . . . . . . . . .68
Automatic Transmission . . . . . . . . . . . . . . . . . .211, 308
Adding Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . .309
Fluid and Filter Changes . . . . . . . . . . . . . . . . . . .309
Fluid Level Check . . . . . . . . . . . . . . . . . . . . . . .309
Gear Ranges . . . . . . . . . . . . . . . . . . . . . . .213, 217
Auto Unlock, Doors . . . . . . . . . . . . . . . . . . . . . . . .102
Auxiliary Electrical Outlet (Power Outlet) . . . . . . . . . .94
Auxiliary Power Outlet . . . . . . . . . . . . . . . . . . . . . . .94
Back-Up Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . .268
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .296 Gas Caution . . . . . . . . . . . . . . . . . . . . . . . . . . .297
Keyless Transmitter Replacement (RKE) . . . . . . . . .13
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . .296
Belts, Seat . . . . . . . . . . . . . . . . . . . . . . . . . . .167, 199
Body Mechanism Lubrication . . . . . . . . . . . . . . . . . .299
Booster Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . .181
Brake Assist System . . . . . . . . . . . . . . . . . . . . . . . .122
Brake Control System, Electronic . . . . . . . . . . . . . . .120
Brake, Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . .207
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118, 307
Brake System . . . . . . . . . . . . . . . . . . . . . . . . .118, 307
Anti-Lock (ABS) . . . . . . . . . . . . . . . . . . . . .119, 120
Fluid Check . . . . . . . . . . . . . . . . . . . . . . . . . . .307
Master Cylinder . . . . . . . . . . . . . . . . . . . . . . . .307
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .207
333
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . .242
Brake/Transmission Interlock . . . . . . . . . . . . . . . . . .212
Break-In Recommendations, New Vehicle . . . . . . . . . .202
Brightness, Interior Lights . . . . . . . . . . . . . . . . . . . . .78
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . .264, 265
Bulbs, Light. . . . . . . . . . . . . . . . . . . . . . . . . . .201, 264
Camera, Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . .141
Capacities, Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . .327
Caps, Filler Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .163
Oil (Engine) . . . . . . . . . . . . . . . . . . . .291, 293, 296
Power Steering . . . . . . . . . . . . . . . . . . . . . . . . .128
Radiator (Coolant Pressure) . . . . . . . . . . . . . . . .306
Carbon Monoxide Warning . . . . . . . . . . . . . . . . . . .199
Cargo Area Cover . . . . . . . . . . . . . . . . . . . . . . . . .114
Cargo Area Features . . . . . . . . . . . . . . . . . . . . . . . .112
Cargo Compartment . . . . . . . . . . . . . . . . . . . . . . .112 Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Luggage Carrier . . . . . . . . . . . . . . . . . . . . . . . .117
Cargo Load Floor . . . . . . . . . . . . . . . . . . . . . . . . . .112
Cargo Management System . . . . . . . . . . . . . . . . . . .112 Rollaway Tonneau Cover . . . . . . . . . . . . . . . . . .114
Tri-Fold Load Floor . . . . . . . . . . . . . . . . . . . . . .112
Cargo Tie-Downs. . . . . . . . . . . . . . . . . . . . . . . . . .113
Cargo (Vehicle Loading). . . . . . . . . . . . . . . . . . . . . .112
Cellular Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . .163
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . .323
Checking Your Vehicle For Safety . . . . . . . . . . . . . . .198
Checks, Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . .198
Child Booster Seat . . . . . . . . . . . . . . . . . . . . . . . . .181
Child Restraint. . . . . . . . . . . . . . . . . .177, 181, 183, 185
Child Restraint Tether Anchors . . . . . . . . . . . . .184, 185 Child Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . .104
Clean Air Gasoline . . . . . . . . . . . . . . . . . . . . . . . . .325
Cleaning
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .312
Windshield Wiper Blades . . . . . . . . . . . . . . . . . .300
Climate Control . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Coin Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Cold Weather Operation . . . . . . . . . . . . . . . . . . . .204
Compact Disc (CD) Maintenance . . . . . . . . . . . . . . .162
Compact Spare Tire . . . . . . . . . . . . . . . . . . . . . . . .319
Computer, Trip/Travel. . . . . . . . . . . . . . . . . . . . . . . .27
Connector UCI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162
Universal Consumer Interface (UCI) . . . . . . . . . . .162
Conserving Fuel. . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Console, Floor . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Console, Overhead . . . . . . . . . . . . . . . . . . . . . . . . .87
Coolant Pressure Cap (Radiator Cap) . . . . . . . . . . . .306
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . .303 Adding Coolant (Antifreeze) . . . . . . . . . . . . . . . .305
Coolant Capacity . . . . . . . . . . . . . . . . . . . . . . .327
Coolant Level . . . . . . . . . . . . . . . . . . . . . .304, 306
Diesel Engine . . . . . . . . . . . . . . . . . . . . . . . . . .303
Disposal of Used Coolant . . . . . . . . . . . . . . . . . .306
Drain, Flush, and Refill . . . . . . . . . . . . . . . . . . . .304
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . .306
Points to Remember . . . . . . . . . . . . . . . . . . . . .306
Pressure Cap . . . . . . . . . . . . . . . . . . . . . . . . . .306
Radiator Cap . . . . . . . . . . . . . . . . . . . . . . . . . .306
Selection of Coolant (Antifreeze) . . .304, 305, 327, 328
Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . .7
Corrosion Protection . . . . . . . . . . . . . . . . . . . . . . .311
Cupholders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97
334
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS
