AUX FIAT FULLBACK 2018 Owner handbook (in English)

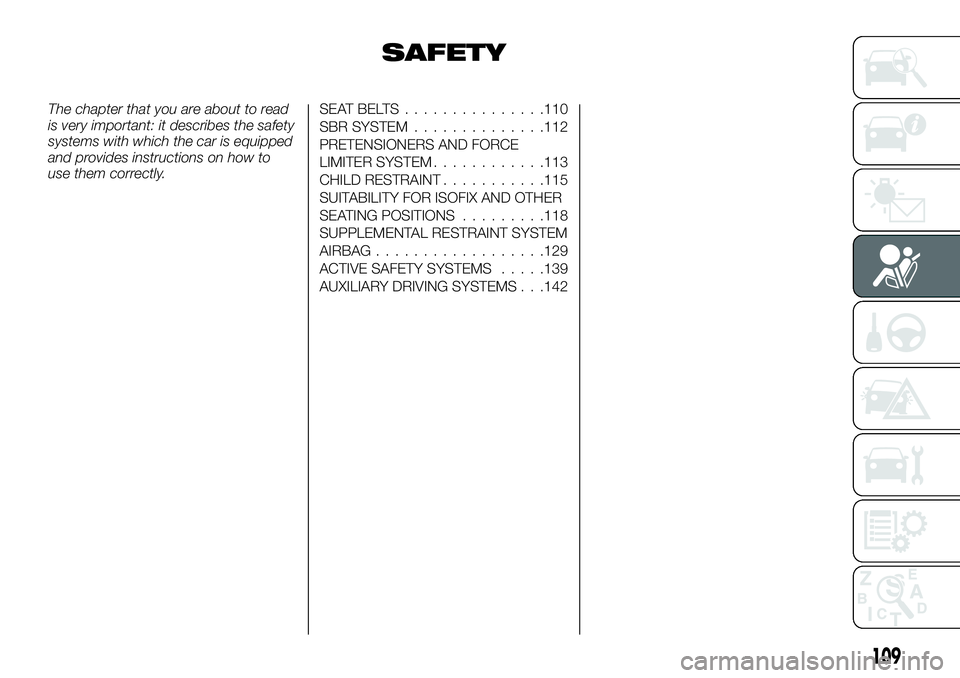

SAFETY
The chapter that you are about to read
is very important: it describes the safety
systems with which the car is equipped
and provides instructions on how to
use them correctly.SEATBELTS...............110
SBR SYSTEM..............112
PRETENSIONERS AND FORCE
LIMITER SYSTEM............113
CHILD RESTRAINT...........115
SUITABILITY FOR ISOFIX AND OTHER
SEATING POSITIONS.........118
SUPPLEMENTAL RESTRAINT SYSTEM
AIRBAG..................129
ACTIVE SAFETY SYSTEMS.....139
AUXILIARY DRIVING SYSTEMS . . .142
109

209)To prevent failure of the ABS, be sure
all 4 wheels and tyres are the same size
and the same type.
210)Do not install any aftermarket limited
slip differential (LSD) on your vehicle. The
ABS may stop functioning properly.
211)The ABS exploits the grip available to
the full, but it cannot improve it. Therefore,
you should take great care when driving on
slippery surfaces, without taking
unnecessary risks.
212)When the ABS intervenes and you
notice the brake pedal pulsating, keep the
pedal pushed down and don’t be alarmed.
This will help you to stop in the shortest
distance possible, depending on the road
conditions.
213)If the ABS intervenes, it means you
have almost reached the grip limit between
the tyres and the road surface: slow down
to make sure that you drive in accordance
with the available grip.
214)The ABS cannot overrule the natural
laws of physics, and can’t increase the grip
available according to the condition of the
road.
215)The ABS cannot prevent accidents,
including those due to excessive speed on
corners, driving on low-grip surfaces or
aquaplaning.
216)The capability of the ABS must never
be tested irresponsibly and dangerously, in
such a way as to compromise personal
safety and the safety of others.217)Do not over-rely on the ESC. Even the
ESC cannot prevent the natural laws of
physics from acting on the vehicle. This
system, like any other system, has limits
and cannot help you to maintain traction
and control of the vehicle in all
circumstances. Reckless driving can lead
to accidents. It is the driver’s responsibility
to drive carefully. This means into account
the traffic, road and environmental
conditions.
218)The ESC system cannot prevent
accidents, including those due to excessive
speed on corners, driving on low-grip
surfaces or aquaplaning.
219)Be sure to use the same specified
type and size of tyre on all 4 wheels.
Otherwise, the ESC may not work
correctly.
220)Do not install any aftermarket limited
slip differential (LSD) on your vehicle. The
electronic stability control function may
stop functioning properly.
221)For safety reasons, the “ESC OFF”
switch should only be operated when the
vehicle is stopped.
222)Be sure to keep the electronic stability
control function on while driving in normal
circumstances.
223)When driving a vehicle on a snowy or
icy road, be sure to install snow tyres and
drive the vehicle at moderate speeds.AUXILIARY DRIVING
SYSTEMS
Hill Start Assist (where provided)
The hill start assist makes it easy to
start off on a steep uphill slope by
preventing the vehicle from moving
backwards. It keeps the braking force
for approximately seconds when you
move your foot from the brake pedal to
the accelerator pedal.
81) 82)
224) 225)
To operate
1. Stop the vehicle completely using the
brake pedal.
2. On vehicles equipped with M/T,
place the gearshift lever into the 1st
position. On vehicles equipped with
A/T, place the selector lever into the “D”
position.
NOTE When reversing on an uphill
slope, place the selector lever or
gearshift lever into the “R” position.
3. Release the brake pedal and the hill
start assist will maintain the braking
force applied while stopping for
approximately 2 seconds.
4. Depress the accelerator pedal and
the hill start assist gradually will
decrease the braking force as the
vehicle starts moving.
142
SAFETY

INDEX
4Wheel drive operation........181
Accessory socket............82
Active safety systems..........139
Air conditioning system.........56
Air purifier..................70
Ashtray....................81
Assist grip..................85
Automatic climate control air
conditioner................63
Automatic transmission.........161
Auxiliary driving system.........142
Battery..................262
Bleeding the fuel system........213
Bottle holder................85
Brake fluid.................259
Capacity.................294
Cargo area.................77
Cargo loads.................77
Catalytic converter............74
Central Door Locks............28
Checking levels..............255
Child restraint...............115
Child restraint system..........118
Child-protection rear doors (Double
cab)....................31
Cigarette lighter..............81
Cleaning the exterior of your vehicle .267Cleaning the interior of your vehicle .266
Clutch fluid................260
Coat hook..................85
Combination headlamps and dipper
switch...................45
Convenient hook.............85
Cruise control...............186
Cup holder.................84
Dead lock system............29
Demanding vehicle use.........254
Diesel particulate filter..........74
Digital clock.................82
Disposal of used battery........303
Doors.....................27
Driving, alcohol and drugs.......147
Easy select 4WD............166
Economical driving...........146
Electric window control.........72
Electrical system.............292
Electronic immobilizer..........13
Emergency starting...........211
Emission..................300
Engine compartment...........76
Engine coolant..............257
Engine oil.................256
Engine overheating...........212
Engine specifications..........278
Engine switch...............25
Era Glonass................206External Lights...............45
Fluids and Lubricants.........297
Fog lamp switch..............48
Force limiter................113
Front seats.................33
Fuel consumption............300
Fuel selection................87
Fuses....................230
Fusible links................230
General maintenance.........265
Graphical index...............9
Handling of 4 wheel drive vehicles .184
Hazard warning flasher switch.....48
Head restraints...............36
Headlamp levelling switch........47
Heater/Manual air conditioning.....60
High Load System.............77
Horn switch.................40
How to change a tyre..........219
If the operation mode cannot be
changed to OFF...........211
If the vehicle breaks down.......210
Ignition switch...............24
Important operation tips for the air
conditioning...............69
Inside rear view mirror..........41
Instruments.................92
Interior features..............80
Interior lamps................51
