clock FIAT FULLBACK 2018 Owner handbook (in English)

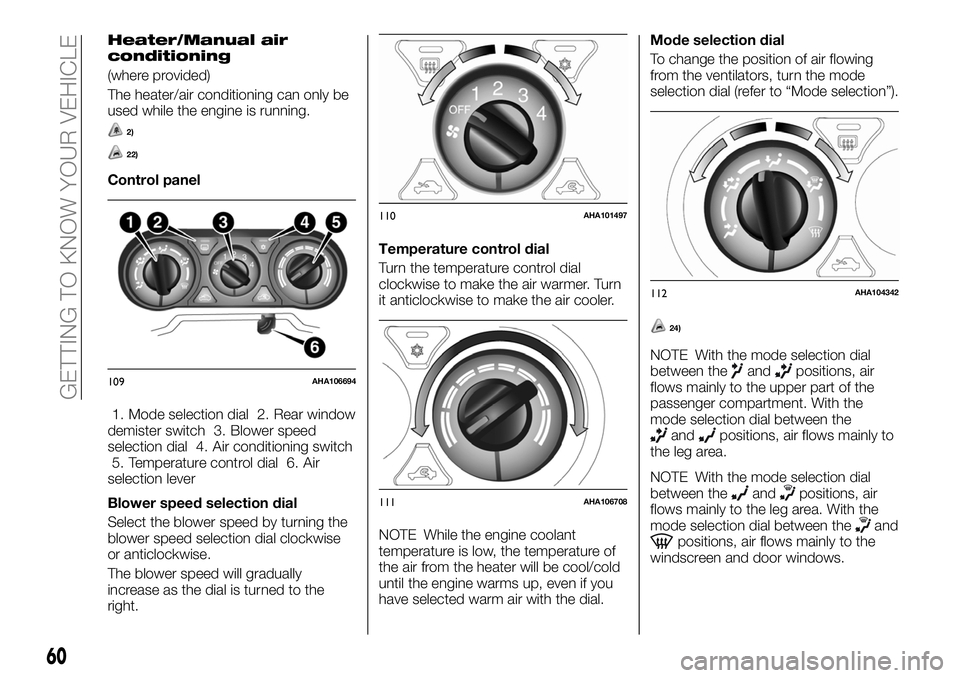

Heater/Manual air
conditioning
(where provided)
The heater/air conditioning can only be
used while the engine is running.
2)
22)
Control panel
1. Mode selection dial 2. Rear window
demister switch 3. Blower speed
selection dial 4. Air conditioning switch
5. Temperature control dial 6. Air
selection lever
Blower speed selection dial
Select the blower speed by turning the
blower speed selection dial clockwise
or anticlockwise.
The blower speed will gradually
increase as the dial is turned to the
right.Temperature control dial
Turn the temperature control dial
clockwise to make the air warmer. Turn
it anticlockwise to make the air cooler.
NOTE While the engine coolant
temperature is low, the temperature of
the air from the heater will be cool/cold
until the engine warms up, even if you
have selected warm air with the dial.Mode selection dial
To change the position of air flowing
from the ventilators, turn the mode
selection dial (refer to “Mode selection”).
24)
NOTE With the mode selection dial
between theandpositions, air
flows mainly to the upper part of the
passenger compartment. With the
mode selection dial between the
andpositions, air flows mainly to
the leg area.
NOTE With the mode selection dial
between the
andpositions, air
flows mainly to the leg area. With the
mode selection dial between the
andpositions, air flows mainly to the
windscreen and door windows.
109AHA106694
110AHA101497
111AHA106708
112AHA104342
60
GETTING TO KNOW YOUR VEHICLE

A — Push all the way in.
The cigarette lighter will automatically
return to its original position with a
“click” when ready. Pull it out for use.
After use, insert the cigarette lighter to
its original position in the socket.
NOTE Do not leave the cigarette lighter
removed from its socket, because the
socket might become clogged by
foreign material and be short-circuited.
91) 92) 93) 94) 95)
ACCESSORY SOCKET
(where provided)
The accessory socket can be used
while the ignition switch or the
operation mode is in ON or ACC. To
use a plug-in type accessory, open the
lid, and insert the plug in the accessory
socket.
40) 41)
DIGITAL CLOCK
(where provided)
The digital clock indicates the time with
the ignition switch or the operation
mode is in ON or ACC.
To set the time
Set the time by pressing the various
buttons as described below.1. To adjust the hour
2. To adjust the minutes
3. To reset the minutes to zero
If the battery cables are disconnected
during repairs or for any other reason,
reset the clock to the correct time after
they are reconnected.
STORAGE SPACES
37)
96)
1. Glove box 2. Sunglasses holder
3. Floor console box 4. Centre
console under tray
156AHA104805157AHA101644
158AHA105961
159AHA105974
82
GETTING TO KNOW YOUR VEHICLE

46)If proper “winter” fuel is not used in
winter, the diesel preheat indicator lamp
may blink and the engine speed may not
rise above the idling speed because of fuel
freezing. In this case, keep the engine idling
for approximately 10 minutes, then turn off
the ignition switch or put the operation
mode in OFF and immediately turn it on or
put in ON again to confirm that the diesel
preheat indicator lamp is off. Refer to
“Diesel preheat indicator lamp”.
47)Do not use more than 7%
concentration of fatty acid methyl esters
(bio diesel) by volume. Use of more than
7% concentration would adversely affect

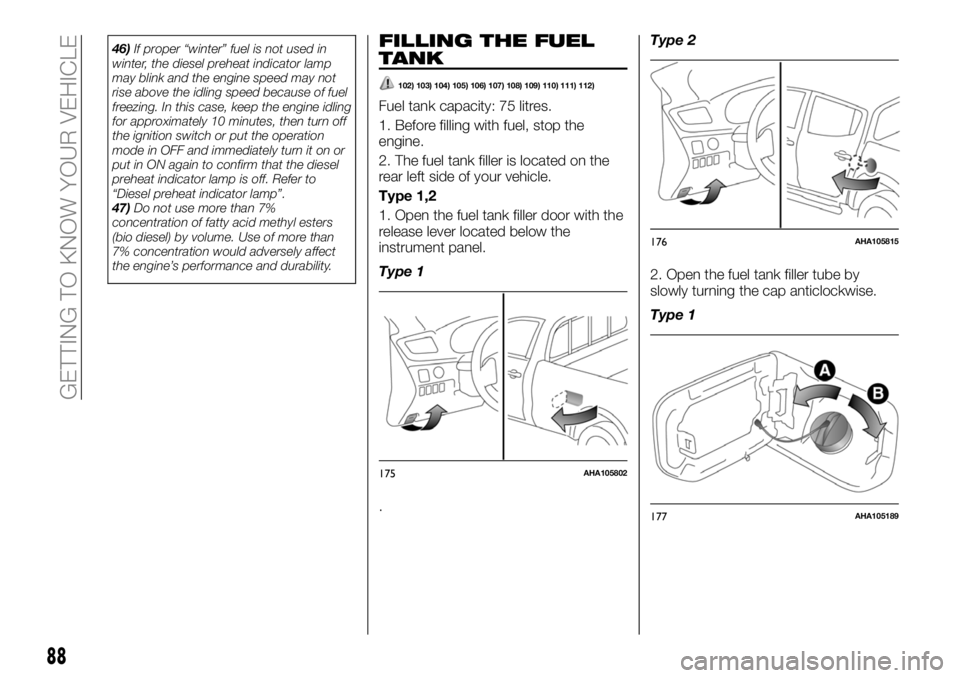

the engine’s performance and durability.FILLING THE FUEL
TANK
102) 103) 104) 105) 106) 107) 108) 109) 110) 111) 112)
Fuel tank capacity: 75 litres.
1. Before filling with fuel, stop the
engine.
2. The fuel tank filler is located on the
rear left side of your vehicle.
Type 1,2
1. Open the fuel tank filler door with the
release lever located below the
instrument panel.
Type 1
.Type 2
2. Open the fuel tank filler tube by
slowly turning the cap anticlockwise.
Type 1
175AHA105802
176AHA105815
177AHA105189
88
GETTING TO KNOW YOUR VEHICLE

Type 2
A — Remove
B — Close
While filling with fuel, hang the fuel cap
on the hook (A) located on the inside of
the fuel tank filler door.
Type 1Type 2
Type 3
1. Open the cover (1). Insert the key in
the cap (2) and unlock it.
2. Turn the cap and remove it.
113)
Type 3
3. Insert the gun in the tank port as far
as it goes.4. When the gun stops automatically,
do not fill with fuel any more.
5. – [Type 1, 2] To close, turn the fuel
cap slowly clockwise until you hear
clicking sounds, then gently push the
fuel tank filler door closed.
– [Type 3] To close, turn the fuel cap
slowly clockwise until you hear clicking
sounds, then turn the key clockwise to
lock the fuel cap.
WARNING
102)When handling fuel, comply with the
safety regulations displayed by garages
and filling stations.
103)Fuel is highly flammable and
explosive. You could be burned or seriously
injured when handling it. When refueling
your vehicle, always turn the engine off and
keep away from flames, sparks and
smoking materials. Always handle fuel in
well ventilated outdoor areas.
104)Before removing the fuel cap, be sure
to get rid of your body’s static electricity by
touching a metal part of the vehicle or fuel
pump. Any static electricity on your body
could create a spark that ignites fuel vapor.
105)Perform the whole refueling process
(opening the fuel tank filler door, removing
the fuel cap, etc.) by yourself. Do not let
any other person come near the fuel tank
filler. If you allowed a person to help you
and that person was carrying static
electricity, fuel vapor could be ignited.
178AHA102032
179AHZ101069
180AHZ100990
181AHA106203
89

any conditions (city/high-speed driving,
varying load weight, etc.).
To remove the spare wheel
1. Set the jack handle. (Club cab) (Refer
to “To use the jack handle (Club cab)”.
2. Insert the jack handle (A) in the hole
(B) below the rear gate.
3. Securely insert the pin (C) on the jack
handle into the holder (D) of the spare
wheel carrier.4. Insert the wheel nut wrench (E)
through the end of the jack handle hole
(F), and then turn it anticlockwise to
lower the spare wheel completely to the
ground and to slack the chain.
168)
5. Remove the hanger disc (G) from the
spare wheel.NOTE Put the spare wheel under the
vehicle body near the flat tyre. This
makes it safer if the jack slips out of
position.
To change a tyre
1. Loosen the wheel nuts a quarter turn
with the wheel nut wrench. Do not
remove the wheel nuts yet.
2. Place the jack under one of the
jacking points shown in the illustration.386AHA102263
387AHA102276
388AHA102289
389AHA102292
390AHA102322
391AHA102335
220
IN AN EMERGENCY

Use the jacking point closest to the tyre
you wish to change.
A — Front jacking point
B — Rear jacking point
309) 310)
NOTE When jacking up the rear of the
vehicle, turn the tip of the jack so that
the grooved portion (C) properly meets
the designated point.3. Using the jack handle, turn the
release valve (D) clockwise until it stops.
4. Insert the jack handle in the bracket
of the jack and hook the notch (E) on
the jack handle end to the claw (F) of
the bracket.
5. Move the jack handle up and down
to raise the ram until just before the jack
contacts the jacking point of the
vehicle. Ensure that the jack willproperly contact the vehicle jacking
point. Move the jack handle up and
down to raise the vehicle.
NOTE This jack is a 2 stage expansion
type.
311) 312) 313) 314) 315) 316) 317) 318)
6. Remove the wheel nuts with the
wheel nut wrench, then take the wheel
off.
7. Clean out any mud, etc. on the hub
surface (G), hub bolts (H) or in the
installation holes (I) in the wheel, and
then mount the spare wheel.
319)
392AHA105730
393AHA105743
C
394AHZ101102
395AHA105756
396AHA105769
221

320)
8. Turn the wheel nuts clockwise by
hand to initially tighten them.
Type 1: On vehicles with steel
wheelsTemporarily tighten the wheel
nuts by hand until the tapered parts of
the wheel nuts make light contact with
the seats of the wheel holes and the
wheel is not loose.Type 2: On vehicles with aluminium
wheelsTemporarily tighten the wheel
nuts by hand until the flange parts of
the wheel nuts make light contact with
the wheel and the wheel is not loose.
NOTE Flange nuts can be temporarily
used on the steel spare wheel as
shown in the illustration below, but
return to the original wheel and tyre as
soon as possible.
169)
NOTE If all 4 aluminium wheels are
changed to steel wheels. e. g. when
fitting winter tyres, use tapered nuts.
9. Put the notch (K) provided on the
jack handle end on the valve (L) of the
jack. Using the jack handle, turn the
release valve anticlockwise slowly to
lower the vehicle until the tyre touches
the ground.
397AHA105772
398AHA105785
399AA0027931
400AHA102364
401AHZ100596
402AHA105798
222
IN AN EMERGENCY

321)

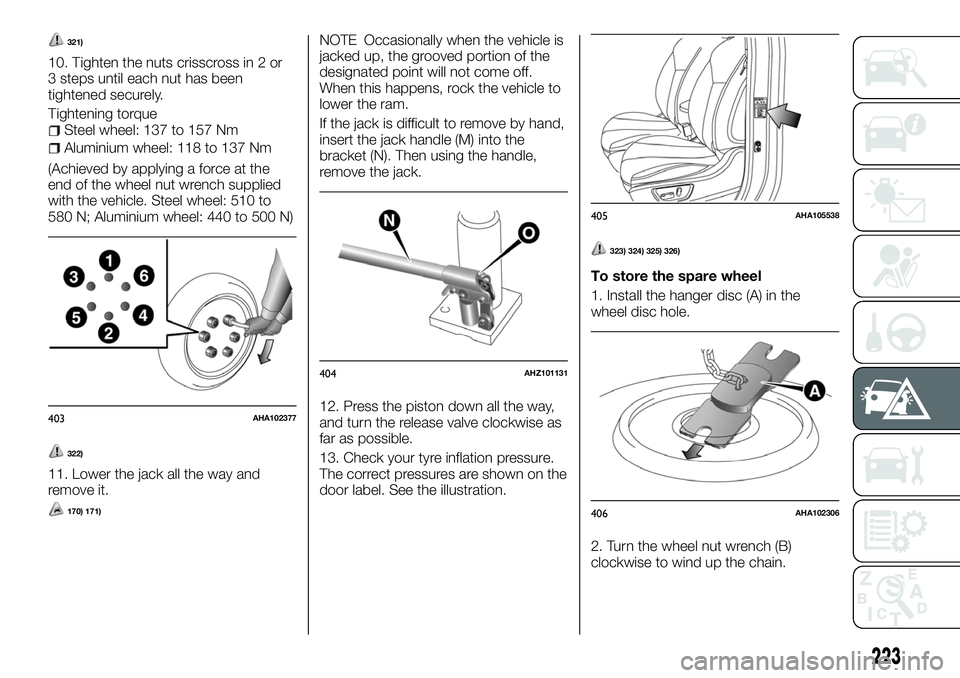

10. Tighten the nuts crisscross in 2 or
3 steps until each nut has been
tightened securely.
Tightening torque
Steel wheel: 137 to 157 Nm
Aluminium wheel: 118 to 137 Nm
(Achieved by applying a force at the
end of the wheel nut wrench supplied
with the vehicle. Steel wheel: 510 to
580 N; Aluminium wheel: 440 to 500 N)
322)
11. Lower the jack all the way and
remove it.
170) 171)
NOTE Occasionally when the vehicle is
jacked up, the grooved portion of the
designated point will not come off.
When this happens, rock the vehicle to
lower the ram.
If the jack is difficult to remove by hand,
insert the jack handle (M) into the
bracket (N). Then using the handle,
remove the jack.
12. Press the piston down all the way,
and turn the release valve clockwise as
far as possible.
13. Check your tyre inflation pressure.
The correct pressures are shown on the
door label. See the illustration.
323) 324) 325) 326)
To store the spare wheel
1. Install the hanger disc (A) in the
wheel disc hole.
2. Turn the wheel nut wrench (B)
clockwise to wind up the chain.
403AHA102377
404AHZ101131
405AHA105538
406AHA102306
223

311)Stop jacking up the vehicle as soon
as the tyre is raised off the ground. It is
dangerous to raise the vehicle any higher.
Do not get under your vehicle while using
the jack. Do not bump the raised vehicle or
leave it sitting on the jack for a long time.
Both are very dangerous. Do not use a jack
except the one that came with your
vehicle. The jack should not be used for
any purpose other than to change a tyre.
No one should be in your vehicle when
using the jack. Do not start or run the
engine while your vehicle is on the jack. Do
not turn the raised wheel. The tyres still on
the ground could turn and make your
vehicle fall off the jack.
312)Do not get under your vehicle while
using the jack.
313)Do not bump the raised vehicle or
leave it sitting on the jack for a long time.
Both are very dangerous.
314)Do not use a jack except the one that
came with your vehicle.
315)The jack should not be used for any
purpose other than to change a tyre.
316)No one should be in your vehicle
when using the jack.
317)Do not start or run the engine while
your vehicle is on the jack.
318)Do not turn the raised wheel. The
tyres still on the ground could turn and
make your vehicle fall off the jack.
319)Handle the wheel carefully when
changing the tyre, to avoid scratching the
wheel surface.
320)Mount the spare wheel with the valve
stem K) facing outboard fig. 0. If you
cannot see the valve stem (K), you have
installed the wheel backwards.Operating the vehicle with the spare wheel
installed backwards can cause vehicle
damage and result in an accident.
321)Be sure to open the release valve
slowly. If it is opened quickly, the vehicle will
drop abruptly and the jack may come out
of position, causing a serious accident.
322)Never use your foot or a pipe
extension for extra force in the wheel nut
wrench. If you do so, you will tighten the
nut too much.
323)The tyre pressure should be
periodically checked and maintained at the
specified pressure while the tyre is stowed.
324)After changing the tyre and driving the
vehicle about 1,000 km, retighten the wheel
nuts to make sure that they have not come
loose.
325)If the steering wheel vibrates when
driving after changing the tyre, we
recommend you to have the tyres checked
for balance.
326)Do not mix one type of tyre with
another or use a different size from the one
listed. This would cause early wear and
poor handling.
327)The spare wheel should always be
securely in position. If a flat tyre is changed,
put the flat tyre in the spare wheel
mounting position with the wheel outer
surface upward, and use the wheel nut
wrench to secure it firmly.
328)Never tamper with the inflation valve.
Never introduce tools of any kind between
rim and tyre. Check tyre and spare wheel
pressure regularly, referring to the values
shown in the "Technical specifications"
section.329)The moving components of the jack
(screw and joints) can also cause injuries:
do not touch them. If you come into
contact with lubricating grease, clean
yourself thoroughly.
IMPORTANT
166)Avoid using different size tyres from
the one listed and the combined use of
different types of tyres, as this can affect
driving safety.
167)Even if a wheel has the same rim size
and offset as the specified type of wheel,
its shape may prevent it from being fitted
correctly. Consult an authorised Fiat
Dealership before using wheels that you
have.
168)When installing or removing the spare
wheel, please observe the followings. If you
do not follow them, it could result in break
the spare wheel carrier. Do not use the
power tool. Use the wheel nut wrench
stowed on the vehicle. Do not apply a force
of 400 N or more at the end of the wheel
nut wrench.
169)Never apply oil to either the wheel
bolts or the nuts or they will tighten too
much.
170)If the release valve is loosened too
much (2 or more turns) in the anticlockwise
direction, the jack’s oil will leak and the jack
cannot be used.
171)Close the release valve slowly when
lowering the vehicle, or the valve may be
damaged.
225

After replacing the bulb, make sure that
the hinges at the front of the vehicle are
firmly set.
2. Disconnect the connector (A).3. Remove the sealing cover (B).
4. Unhook the spring (1) which secures
the bulb, and then remove the
headlamp bulb.
5. To install the bulb, perform the
removal steps in reverse.Position lamps
1. When replacing the bulb on the left
side of the vehicle, remove the clip (A)
holding down the washer tank spout
and move the spout towards the rear of
the vehicle.
2. Turn the bulb socket anticlockwise to
remove it. And remove the bulb from
the socket by pulling out.
3. To install the bulb, perform the
removal steps in reverse.
429AHZ100974
430AHA102771
431AHA102784
432AHA102797
433AHA103967
434AHA102801
240
IN AN EMERGENCY
