for approximately 15 seconds and the
turn-signal lamps will blink twice.
NOTE For vehicles equipped with the
mirror retractor switch, the outside rear
view mirrors automatically retract or
extend when all the doors are locked or
unlocked using the key switches of the
keyless entry system. Refer to “Outside
rear view mirrors”.
NOTE If the UNLOCK switch (2) is
pressed and no door is opened within
approximately 30 seconds, relocking
will automatically occur.
It is possible to modify functions as
follows:
The time from pressing of the
UNLOCK switch (2) to the moment of
automatic locking can be changed.
Activating the operation confirmation
function (blinking of the turn-signal
lamps) only during locking, or only
during unlocking.
The confirmation function (this
indicates locking or unlocking of the
doors with the blink of the turn-signal
lamps) can be deactivated.
The number of times the turn-signal
lamps are blinked by the confirmation
function can be changed.Operation of the Dead Lock System
(where provided)
With a vehicle that has a Dead Lock
System, it is possible to set the Dead
Lock System by pressing the LOCK
switch (1) two times. Refer to “Dead
Lock System”.
Operation of the outside rear view
mirrors (Vehicles equipped with the
mirror retractor switch)
To fold — Locking the doors using the
LOCK switch (1), the outside rear view
mirrors are folded automatically.
To extend — Unlocking the doors using
the UNLOCK switch (2), the outside
rear view mirrors are extended
automatically.
NOTE Functions can be modified as
stated below. Please consult a Fiat
Dealership.
Automatically extend when the
driver’s door is closed, and then the
following operation is performed.
Except for vehicles equipped with the
keyless operation system: turn the
ignition switch to the “ON” or “ACC”
position. Vehicles equipped with the
keyless operation system: put the
operation mode in ON or ACC
Automatically retract when the
ignition switch is turned to the “LOCK”
position or the operation mode is put in
OFF, and the driver’s door is then
opened.
Automatically extend when the
vehicle speed reaches 30 km/h.
Deactivate the automatic extension
function.
NOTE The outside rear view mirrors
can be folded or extended by the
following operations, even if changing
to the any of above. After pressing the
“LOCK” switch to lock the doors, if the
“LOCK” switch is pressed again twice
in a row within about 30 seconds, the
outside rear view mirrors will retract.
After pressing the “UNLOCK” switch to
unlock the doors, if the “UNLOCK”
switch is pressed again twice in a row
within about 30 seconds, the outside
rear view mirrors will extend again.
NOTE The keyless entry system does
not operate in the following conditions:
The key is left in the ignition switch
(except for vehicles with keyless
operation system).
The operation mode is not in OFF
(vehicles with keyless operation
system).
The door is open.
NOTE The key switch will operate
within approximately4mfromthe
vehicle. However, the operating range
of the key switch may change if the
vehicle is located near a TV transmitting
tower, power station, or radio
broadcasting station.
15

NOTE If the keyless operation key is
within the operating range, even
someone not carrying the key can lock
and unlock the doors by pressing the
driver’s or front passenger’s door
lock/unlock switch.
Operating range for starting the
engine and changing the operation
mode
* — indicates front of the vehicle
The operating range is the interior of the
vehicle.
NOTE Even if it is within the operating
range, if the keyless operation key is in
a small item holder such as the glove
box, on top of the instrument panel,
door pocket or in the luggage
compartment, it may be impossible to
start the engine and change the
operation mode.NOTE If a keyless operation key is too
close to the door or door window, it
may be possible to start the engine or
change the operation mode even when
the key is outside the vehicle.
To operate using the keyless
operation function
Locking the doors
When you are carrying the keyless
operation key, if you press the driver’s
or front passenger’s door lock/unlock
switch (A), within the operating range,
the doors are locked.
The turn-signal lamps will blink once
and the outer buzzer will sound once.
Also refer to “Locking and unlocking:
Doors, Central door locks”.
Unlocking the doors
When you are carrying the keyless
operation key, if you press the driver’s
or front passenger’s door lock/unlock
switch (A), within the operating range,
all the doors are unlocked.If the room lamp switch is in the middle
position at this time, the room lamp will
turn on for 15 seconds. The turn-signal
lamps will blink twice and the outer
buzzer will sound twice.
If the driver’s or front passenger’s door
lock/unlock switch is pressed and any
of the doors is not opened within
approximately 30 seconds, relocking
will automatically occur.
Refer to “Locking and unlocking: Doors,
Central door locks”.
NOTE For vehicles equipped with the
mirror retractor switch, the outside rear
view mirrors automatically
retract/extend when all the doors are
locked/unlocked using the keyless
operation function. Refer to “Outside
rear view mirrors”.
NOTE For vehicles equipped with the
Dead Lock System, pressing the
driver’s or front passenger’s door
lock/unlock switch (A) two times in
succession causes the Dead Lock
System to be set (refer to “Setting the
system”).
NOTE The keyless operation function
does not operate under the following
conditions:
The keyless operation key is inside
the vehicle.
A door is open or ajar.
The operation mode is not in OFF.
18AHA101790
19AHA105437
19

ENGINE SWITCH
(Where provided)
In order to prevent theft, the engine will
not start unless a preregistered keyless
operation key is used. (Engine
immobilizer function)
If you are carrying the keyless operation
key, you can start the engine.
4) 5) 6) 7)
NOTE When operating the engine
switch, press the switch all the way in. If
the switch is not fully pressed, the
engine may not start or the operation
mode may not change. If the engine
switch is pressed correctly, there is no
need to hold the engine switch down.
NOTE When the battery in the keyless
operation key has worn out, or the
keyless operation key is out of the
vehicle, a warning lamp will blink for
5 seconds.Operation mode of the engine
switch and its function
OFF
The indicator lamp on the engine switch
turns off. The operation mode cannot
be put in OFF when the selector lever is
in any position other than the “P”
(PARK) position (A/T).
ACC
Electrical devices such as the audio and
accessory socket can be operated. The
indicator lamp on the engine switch
illuminates orange.
ON
All vehicle’s electrical devices can be
operated. The indicator lamp on the
engine switch illuminates green. The
indicator lamp turns off when the
engine is running.NOTE Your vehicle is equipped with an
electronic immobilizer. To start the
engine, the ID code which the
transponder inside the key sends must
match the one registered in the
immobilizer computer. Refer to
“Electronic immobilizer (Anti-theft
starting system)”.
Changing the operation mode
If you press the engine switch without
depressing the brake pedal (A/T) or the
clutch pedal (M/T), you can change the
operation mode in the order of OFF,
ACC, ON, OFF.
NOTE If the operation mode cannot be
changed to OFF, perform the following
procedure:
1 – Move the selector lever to the “P”
(PARK) position, and then change the
operation mode to OFF. (For vehicles
with A/T)
26AHA105990
27AHA103505
28AG0022644
25

WARNING
83)If the vehicle is parked on a very steep
slope or side gradient, opening the rear
flap of the flatbed or a side door may
cause any objects or luggage which is not
fixed to spill out.
84)If you wish to carry a reserve of petrol
in a can, observe the legal restrictions and
only use a can that is type-approved and
properly secured to the load anchorage
eyebolts. Anyway, by doing so, you
increase the risk of fire in the event of an
accident with your vehicle.
85)Respect the maximum permitted
vehicle loads also shown on the
registration certificate. The user is
responsible for arranging goods in the
luggage compartment and/or on the load
platform within the maximum permitted
loads.
86)Do not carry unnecessary objects on
the flatbed. Particularly if the vehicle is
driven in cities, where frequent stopping
and starting is necessary, supplementary
loads on the vehicle may have major
repercussions on fuel consumption.
Furthermore, do not travel with
unnecessary luggage, loads etc. on the
roof: the increased air resistance will
increase fuel consumption.
87)Using a lower gear when travelling with
heavy loads will improve vehicle
performance and extend the life of the
gearbox, limiting gear shifts and
overheating. This action ensures better
exhaust braking.88)All precautions must be adopted to
prevent danger to other road users if the
load protrudes beyond the contour of the
vehicle. The rear and side protrusion must
be indicated according to the laws in force
in the country. The load must not
compromise stability of the vehicle or cover
lights, visual indicators or identifying plates.
Poles, bars and similar loads which are
difficult to see arranged horizontally must
not protrude beyond the contour of the
vehicle.
IMPORTANT
32)Use a roof carrier that properly fits your
vehicle. Do not load luggage directly onto
the roof. For installation, refer to the
instruction manual accompanying the roof
carrier.
33)Make sure that the weight of the
luggage does not exceed the allowable roof
load. If the allowable roof load is exceeded,
this may cause damage to the vehicle. The
roof load is the total allowable load on the
roof (the weight of the roof carrier plus the
weight of luggage placed on the roof
carrier). For the specific value, refer to
“Maximum roof load”.34)When luggage is loaded onto the
vehicle, please make sure to drive slowly
and avoid excessive maneuvers such as
sudden braking or quick turning. In
addition, place the luggage on the carrier
so that its weight is distributed evenly with
the heaviest items on the bottom. Do not
load items that are wider than the roof
carrier. The additional weight on the roof
could raise the vehicle’s centre of gravity
and affect vehicle handling characteristics.
As a result, driving errors or emergency
maneuvers could lead to a loss of control
and result in an accident.
35)Before driving and after travelling a
short distance, always check the load to
make sure it is securely fastened to the roof
carrier. Check periodically during your travel
that the load remains secure.
78
GETTING TO KNOW YOUR VEHICLE

INFORMATION DISPLAY
Each time you lightly press the multi information display switch (A), the display switches in the following order.
1. Odometer 2. Tripmeter A 3. Tripmeter B 4. Meter illumination control 5. Driving range display 6. Average fuel
consumption display 7. Start&Stop monitor* 8. Outside temperature display* 9. Service reminder (distance) 10. Service
reminder (month)
* — if so equipped
NOTE When the ignition switch or the operation mode is OFF, the driving range display, average fuel consumption display and
outside temperature display are not displayed.
NOTE While driving, the service reminder is not displayed even if you operate the multi information display switch.
186AH1100371
93

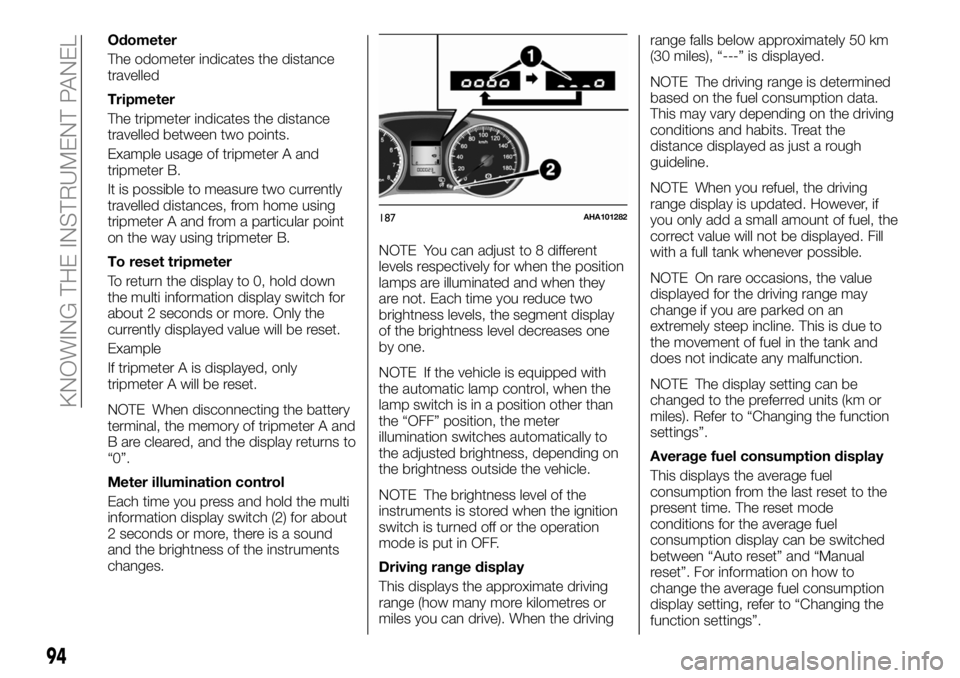

Odometer
The odometer indicates the distance
travelled
Tripmeter
The tripmeter indicates the distance
travelled between two points.
Example usage of tripmeter A and
tripmeter B.
It is possible to measure two currently
travelled distances, from home using
tripmeter A and from a particular point
on the way using tripmeter B.
To reset tripmeter
To return the display to 0, hold down
the multi information display switch for
about 2 seconds or more. Only the
currently displayed value will be reset.
Example
If tripmeter A is displayed, only
tripmeter A will be reset.
NOTE When disconnecting the battery
terminal, the memory of tripmeter A and
B are cleared, and the display returns to
“0”.
Meter illumination control
Each time you press and hold the multi
information display switch (2) for about
2 seconds or more, there is a sound
and the brightness of the instruments
changes.NOTE You can adjust to 8 different
levels respectively for when the position
lamps are illuminated and when they
are not. Each time you reduce two
brightness levels, the segment display
of the brightness level decreases one
by one.
NOTE If the vehicle is equipped with
the automatic lamp control, when the
lamp switch is in a position other than
the “OFF” position, the meter
illumination switches automatically to
the adjusted brightness, depending on
the brightness outside the vehicle.
NOTE The brightness level of the
instruments is stored when the ignition
switch is turned off or the operation
mode is put in OFF.
Driving range display
This displays the approximate driving
range (how many more kilometres or
miles you can drive). When the drivingrange falls below approximately 50 km
(30 miles), “---” is displayed.
NOTE The driving range is determined
based on the fuel consumption data.
This may vary depending on the driving
conditions and habits. Treat the
distance displayed as just a rough
guideline.
NOTE When you refuel, the driving
range display is updated. However, if
you only add a small amount of fuel, the
correct value will not be displayed. Fill
with a full tank whenever possible.
NOTE On rare occasions, the value
displayed for the driving range may
change if you are parked on an
extremely steep incline. This is due to
the movement of fuel in the tank and
does not indicate any malfunction.
NOTE The display setting can be
changed to the preferred units (km or
miles). Refer to “Changing the function
settings”.
Average fuel consumption display
This displays the average fuel
consumption from the last reset to the
present time. The reset mode
conditions for the average fuel
consumption display can be switched
between “Auto reset” and “Manual
reset”. For information on how to
change the average fuel consumption
display setting, refer to “Changing the
function settings”.
187AHA101282
94
KNOWING THE INSTRUMENT PANEL

display will revert to its original
indication.)
3. Lightly press the multi information
display switch while the icon is flashing
to change the display from “---” to
“cLEAr”. After this, the time until the
next periodic inspection will be
displayed.
50)
“---” display cannot be reset when the
ignition switch or the operation mode is
in ON.
When “---” is displayed, after a certain
distance and a certain period of time,
the display is reset and the time until
the next periodic inspection is
displayed.
If you accidentally reset the display,
consult a Fiat Dealership.Changing the function settings
The “Average fuel consumption reset
mode”, “Fuel consumption unit” and
“Temperature unit” setting can be
modified as desired, when the ignition
switch or the operation mode is ON.
117)
118)
Changing the reset mode for
average fuel consumption
The mode conditions for the average
fuel consumption display can be
switched between “Auto reset” and
“Manual reset”.
1. When you lightly press the multi
information display switch a few times,
the information display switches to the
driving range display. Refer to
“Information display”.
2. Each time you press the multi
information display switch for
2 seconds or more on driving range
display, you can switch reset mode for
average fuel consumption (A: Auto reset
mode, B: Manual reset mode).A — Auto Reset Mode
B — Manual Reset Mode
Manual reset mode
When the average fuel consumption
is being displayed, if you hold down the
multi information display switch, the
average fuel consumption displayed at
that time is reset.
When the following operation is
performed, the mode setting is
automatically switched from manual to
auto. Except for vehicles equipped with
the keyless operation system: turn the
ignition switch from the “ACC” or
“LOCK” position to the “ON” position.
For vehicles equipped with the keyless
operation system: change the operation
mode from ACC or OFF to ON.
Switching to auto occurs automatically.
If switching to manual mode is done,
however, the data from the last reset is
displayed.
193AHA101341
194AHA101354
97

Auto reset modeWhen the average fuel consumption
is being displayed, if you hold down the
multi information display switch, the
average fuel consumption displayed at
that time are reset.
When the engine switch or the
operation mode is in the following
conditions, the average fuel
consumption display is automatically
reset. Except for vehicles equipped with
the keyless operation system: the
ignition switch is in the “ACC” or
“LOCK” position for about 4 hours or
longer. For vehicles equipped with the
keyless operation system: the operation
mode is in ACC or OFF for about
4 hours or longer.
IMPORTANT The average fuel
consumption display can be reset
separately for the auto reset mode and
for the manual reset mode.
IMPORTANT The memory of the
manual reset mode or auto reset mode
for the average fuel consumption
display is erased if the battery is
disconnected.
The initial (default) setting is “Auto reset
mode”.Changing the fuel consumption
display unit
The display unit for fuel consumption
can be switched. The distance and
amount units are also switched to
match the selected fuel consumption
unit.When you lightly press the multi
information display switch a few times,
the information display switches to the
average fuel consumption display. Refer
to “Information display”.
Press and hold the multi information
display switch for about 5 seconds or
more until buzzer sound is heard twice.
Press and hold the multi information
display switch to switch in sequence
from “km/L” > “L/100 km” > “mpg” >
“km/L”.The display units for the driving range,
the average fuel consumption are
switched, but the units for the indicating
needle (speedometer), the odometer,
the tripmeter and the service reminder
will remain unchanged.
The memory of the unit setting is
erased if the battery is disconnected,
and it returns automatically to factory
setting.
The distance units is also switched in
the following combinations to match the
selected fuel consumption unit.Fuel
consumptionDistance (driving
range)
km/L km
L/100 km km
mpg mile (s)
Changing the temperature unit
The display unit for outside temperature
can be switched.
1. When you lightly press the multi
information display switch a few times,
the information display switches to the
outside temperature display. Refer to
“Information display”.
2. Each time you press the multi
information display switch for
2 seconds or more on outside
temperature display, you can switch
from °C to °F or from °F to °C unit of
outside temperature display.
195AHA101367
98
KNOWING THE INSTRUMENT PANEL

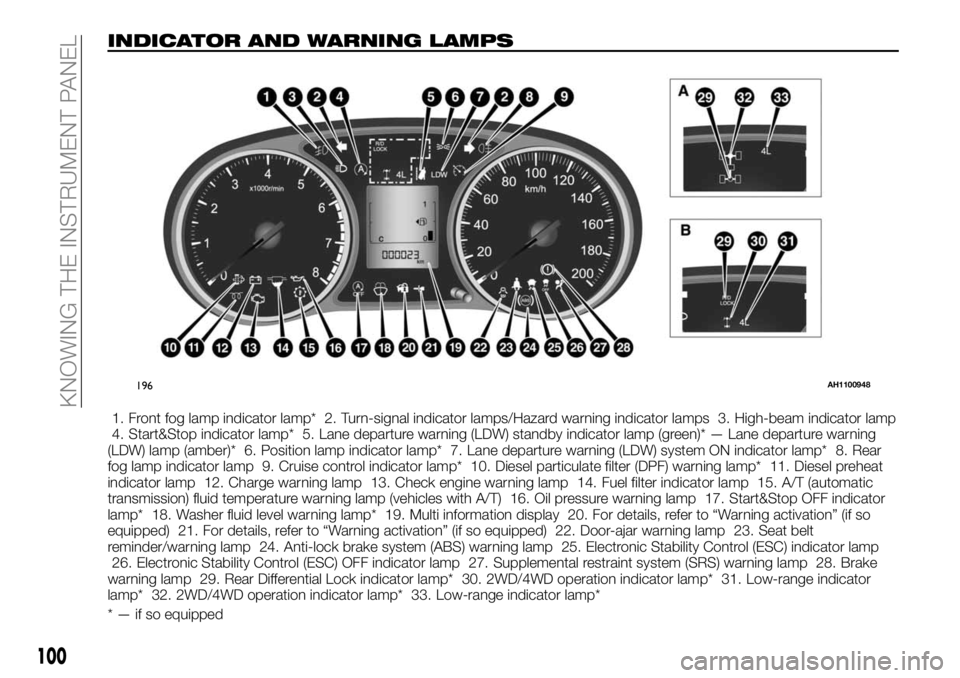

INDICATOR AND WARNING LAMPS
1. Front fog lamp indicator lamp* 2. Turn-signal indicator lamps/Hazard warning indicator lamps 3. High-beam indicator lamp
4. Start&Stop indicator lamp* 5. Lane departure warning (LDW) standby indicator lamp (green)* — Lane departure warning
(LDW) lamp (amber)* 6. Position lamp indicator lamp* 7. Lane departure warning (LDW) system ON indicator lamp* 8. Rear
fog lamp indicator lamp 9. Cruise control indicator lamp* 10. Diesel particulate filter (DPF) warning lamp* 11. Diesel preheat
indicator lamp 12. Charge warning lamp 13. Check engine warning lamp 14. Fuel filter indicator lamp 15. A/T (automatic
transmission) fluid temperature warning lamp (vehicles with A/T) 16. Oil pressure warning lamp 17. Start&Stop OFF indicator
lamp* 18. Washer fluid level warning lamp* 19. Multi information display 20. For details, refer to “Warning activation” (if so
equipped) 21. For details, refer to “Warning activation” (if so equipped) 22. Door-ajar warning lamp 23. Seat belt
reminder/warning lamp 24. Anti-lock brake system (ABS) warning lamp 25. Electronic Stability Control (ESC) indicator lamp
26. Electronic Stability Control (ESC) OFF indicator lamp 27. Supplemental restraint system (SRS) warning lamp 28. Brake
warning lamp 29. Rear Differential Lock indicator lamp* 30. 2WD/4WD operation indicator lamp* 31. Low-range indicator
lamp* 32. 2WD/4WD operation indicator lamp* 33. Low-range indicator lamp*
* — if so equipped
196AH1100948
100
KNOWING THE INSTRUMENT PANEL

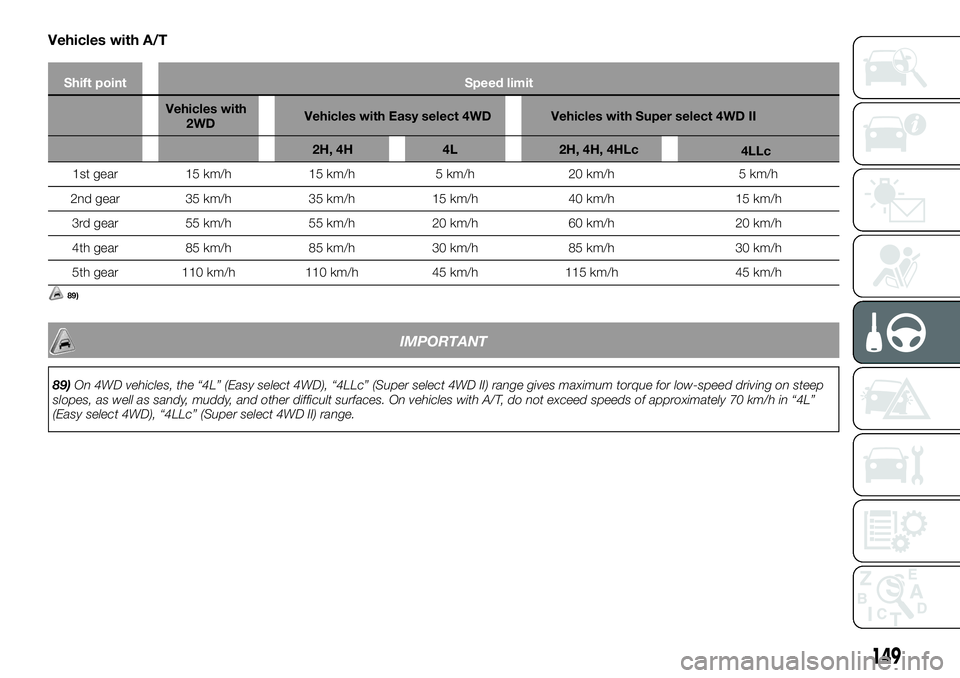

Vehicles with A/T
Shift point Speed limit
Vehicles with
2WDVehicles with Easy select 4WD Vehicles with Super select 4WD II
2H, 4H 4L 2H, 4H, 4HLc
1st gear 15 km/h 15 km/h 5 km/h 20 km/h 5 km/h
2nd gear 35 km/h 35 km/h 15 km/h 40 km/h 15 km/h
3rd gear 55 km/h 55 km/h 20 km/h 60 km/h 20 km/h
4th gear 85 km/h 85 km/h 30 km/h 85 km/h 30 km/h
5th gear 110 km/h 110 km/h 45 km/h 115 km/h 45 km/h
89)
IMPORTANT
89)On 4WD vehicles, the “4L” (Easy select 4WD), “4LLc” (Super select 4WD II) range gives maximum torque for low-speed driving on steep
slopes, as well as sandy, muddy, and other difficult surfaces. On vehicles with A/T, do not exceed speeds of approximately 70 km/h in “4L”
(Easy select 4WD), “4LLc” (Super select 4WD II) range.
149
4LLc
