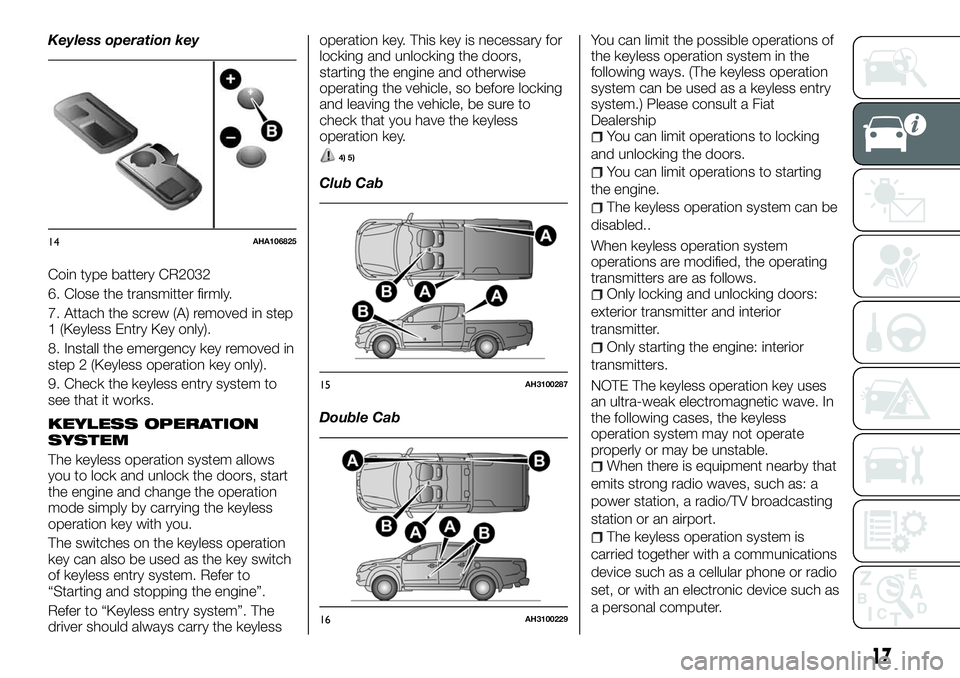

Keyless operation key
Coin type battery CR2032
6. Close the transmitter firmly.
7. Attach the screw (A) removed in step
1 (Keyless Entry Key only).
8. Install the emergency key removed in
step 2 (Keyless operation key only).
9. Check the keyless entry system to
see that it works.
KEYLESS OPERATION
SYSTEM
The keyless operation system allows
you to lock and unlock the doors, start
the engine and change the operation
mode simply by carrying the keyless
operation key with you.
The switches on the keyless operation
key can also be used as the key switch
of keyless entry system. Refer to
“Starting and stopping the engine”.
Refer to “Keyless entry system”. The
driver should always carry the keylessoperation key. This key is necessary for
locking and unlocking the doors,
starting the engine and otherwise
operating the vehicle, so before locking
and leaving the vehicle, be sure to
check that you have the keyless
operation key.
4) 5)
Club Cab
Double CabYou can limit the possible operations of
the keyless operation system in the
following ways. (The keyless operation
system can be used as a keyless entry
system.) Please consult a Fiat
Dealership
You can limit operations to locking
and unlocking the doors.
You can limit operations to starting
the engine.
The keyless operation system can be
disabled..
When keyless operation system
operations are modified, the operating
transmitters are as follows.
Only locking and unlocking doors:
exterior transmitter and interior
transmitter.
Only starting the engine: interior
transmitters.
NOTE The keyless operation key uses
an ultra-weak electromagnetic wave. In
the following cases, the keyless
operation system may not operate
properly or may be unstable.
When there is equipment nearby that
emits strong radio waves, such as: a
power station, a radio/TV broadcasting
station or an airport.
The keyless operation system is
carried together with a communications
device such as a cellular phone or radio
set, or with an electronic device such as
a personal computer.
14AHA106825
15AH3100287
16AH3100229
17

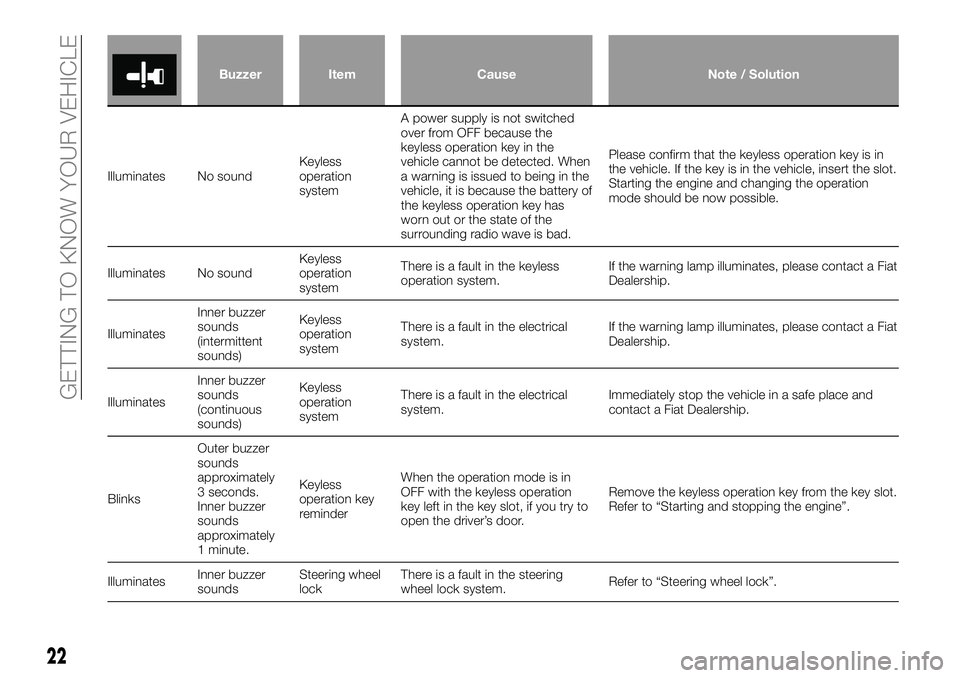

Buzzer Item Cause Note / Solution
Illuminates No soundKeyless
operation
systemA power supply is not switched
over from OFF because the
keyless operation key in the
vehicle cannot be detected. When
a warning is issued to being in the
vehicle, it is because the battery of
the keyless operation key has
worn out or the state of the
surrounding radio wave is bad.Please confirm that the keyless operation key is in
the vehicle. If the key is in the vehicle, insert the slot.
Starting the engine and changing the operation
mode should be now possible.
Illuminates No soundKeyless
operation
systemThere is a fault in the keyless
operation system.If the warning lamp illuminates, please contact a Fiat
Dealership.
IlluminatesInner buzzer
sounds
(intermittent
sounds)Keyless
operation
systemThere is a fault in the electrical
system.If the warning lamp illuminates, please contact a Fiat
Dealership.
IlluminatesInner buzzer
sounds
(continuous
sounds)Keyless
operation
systemThere is a fault in the electrical
system.Immediately stop the vehicle in a safe place and
contact a Fiat Dealership.
BlinksOuter buzzer
sounds
approximately
3 seconds.
Inner buzzer
sounds
approximately
1 minute.Keyless
operation key
reminderWhen the operation mode is in
OFF with the keyless operation
key left in the key slot, if you try to
open the driver’s door.Remove the keyless operation key from the key slot.
Refer to “Starting and stopping the engine”.
IlluminatesInner buzzer
soundsSteering wheel
lockThere is a fault in the steering
wheel lock system.Refer to “Steering wheel lock”.
22
GETTING TO KNOW YOUR VEHICLE

5)When using electro-medical devices
other than implantable cardiac pacemakers
or implantable cardiovascular-defibrillators,
contact the electro-medical device
manufacturer ahead of time to determine
the adverse effects of radio waves on the
devices. Electro-medical device operations
could be affected by radio waves.
IMPORTANT
1)Used batteries are harmful to the
environment. You can dispose of them
either in the correct containers as specified
by law or by taking them to a Fiat
Dealership, which will deal with their
disposal.

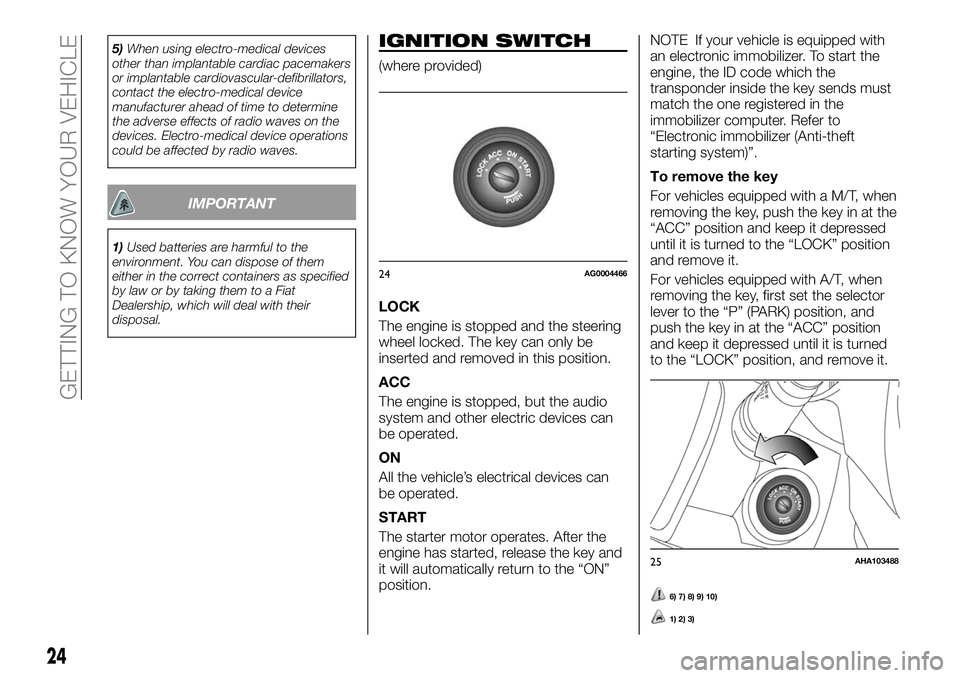

IGNITION SWITCH
(where provided)
LOCK
The engine is stopped and the steering
wheel locked. The key can only be
inserted and removed in this position.
ACC
The engine is stopped, but the audio
system and other electric devices can
be operated.
ON
All the vehicle’s electrical devices can
be operated.
START
The starter motor operates. After the
engine has started, release the key and
it will automatically return to the “ON”
position.NOTE If your vehicle is equipped with
an electronic immobilizer. To start the
engine, the ID code which the
transponder inside the key sends must
match the one registered in the
immobilizer computer. Refer to
“Electronic immobilizer (Anti-theft
starting system)”.
To remove the key
For vehicles equipped with a M/T, when
removing the key, push the key in at the
“ACC” position and keep it depressed
until it is turned to the “LOCK” position
and remove it.
For vehicles equipped with A/T, when
removing the key, first set the selector
lever to the “P” (PARK) position, and
push the key in at the “ACC” position
and keep it depressed until it is turned
to the “LOCK” position, and remove it.
6) 7) 8) 9) 10)
1) 2) 3)
24AG0004466
25AHA103488
24
GETTING TO KNOW YOUR VEHICLE

IMPORTANT
1)If the engine is stopped while driving, the
brake servomechanism will cease to
function and braking efficiency will
deteriorate. Also, the power steering
system will not function and it will require
greater manual effort to operate the
steering.
2)Do not leave the key in the “ON” position
for a long time when the engine is not
running, doing so will cause the battery to
be discharged.
3)Do not turn the key to the “START”
position while the engine is running. Doing
so could damage the starter motor.
4)The indicator lamp (A) fig. 26 will flash
orange when there is a problem or
malfunction in the keyless operation
system. Never drive if the indicator lamp on
the engine switch is flashing orange.
Immediately contact your Fiat Dealership.
5)If the engine switch operation is not
smooth and feels like it is sticking, do not
operate the switch. Immediately contact
your Fiat Dealership.
6)When the engine is not running, put the
operation mode in OFF. Leaving the
operation mode in ON or ACC for a long
time when the engine is not running may
cause the battery to be discharged, making
it impossible to start the engine, lock and
unlock the steering wheel.7)When the battery is disconnected, the
current operation mode is memorized. After
reconnecting the battery, the memorized
mode is selected automatically. Before
disconnecting the battery for repair or
replacement, make sure to put the
operation mode in OFF. Be careful if you
are not sure which operation mode the
vehicle is in when the battery is run down.
8)The operation mode cannot be changed
from OFF to ACC or ON if the keyless
operation key is not detected to be in the
vehicle. Refer to “Keyless operation system:
Operating range for starting the engine and
changing the operation mode”.
9)When there is the keyless operation key
in the vehicle and the operation mode isn’t
change, the keyless operation key may
have worn out.

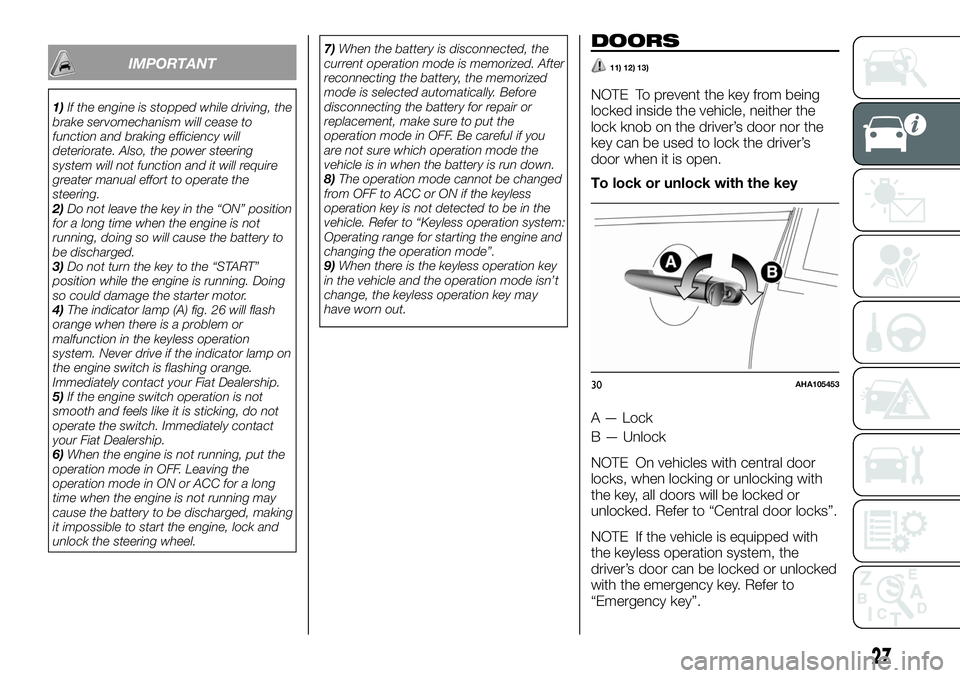

DOORS
11) 12) 13)
NOTE To prevent the key from being
locked inside the vehicle, neither the
lock knob on the driver’s door nor the
key can be used to lock the driver’s
door when it is open.
To lock or unlock with the key
A — Lock
B — Unlock
NOTE On vehicles with central door
locks, when locking or unlocking with
the key, all doors will be locked or
unlocked. Refer to “Central door locks”.
NOTE If the vehicle is equipped with
the keyless operation system, the
driver’s door can be locked or unlocked
with the emergency key. Refer to
“Emergency key”.
30AHA105453
27

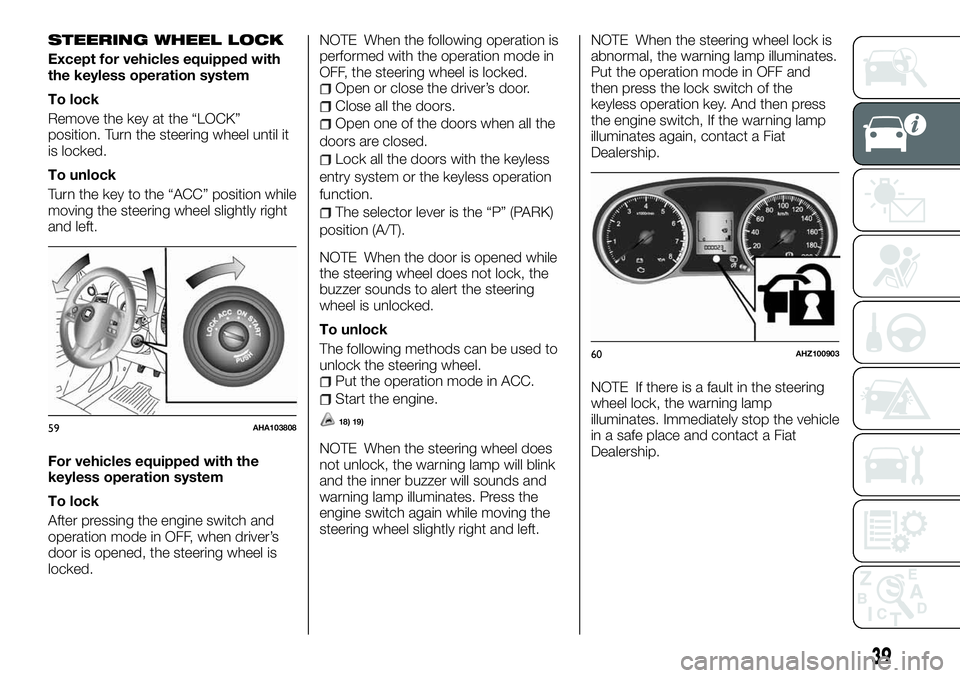

STEERING WHEEL LOCK
Except for vehicles equipped with
the keyless operation system
To lock
Remove the key at the “LOCK”
position. Turn the steering wheel until it
is locked.
To unlock
Turn the key to the “ACC” position while
moving the steering wheel slightly right
and left.
For vehicles equipped with the
keyless operation system
To lock
After pressing the engine switch and
operation mode in OFF, when driver’s
door is opened, the steering wheel is
locked.NOTE When the following operation is
performed with the operation mode in
OFF, the steering wheel is locked.
Open or close the driver’s door.
Close all the doors.
Open one of the doors when all the
doors are closed.
Lock all the doors with the keyless
entry system or the keyless operation
function.
The selector lever is the “P” (PARK)
position (A/T).
NOTE When the door is opened while
the steering wheel does not lock, the
buzzer sounds to alert the steering
wheel is unlocked.
To unlock
The following methods can be used to
unlock the steering wheel.
Put the operation mode in ACC.
Start the engine.
18) 19)
NOTE When the steering wheel does
not unlock, the warning lamp will blink
and the inner buzzer will sounds and
warning lamp illuminates. Press the
engine switch again while moving the
steering wheel slightly right and left.NOTE When the steering wheel lock is
abnormal, the warning lamp illuminates.
Put the operation mode in OFF and
then press the lock switch of the
keyless operation key. And then press
the engine switch, If the warning lamp
illuminates again, contact a Fiat
Dealership.
NOTE If there is a fault in the steering
wheel lock, the warning lamp
illuminates. Immediately stop the vehicle
in a safe place and contact a Fiat
Dealership.
59AHA103808
60AHZ100903
39

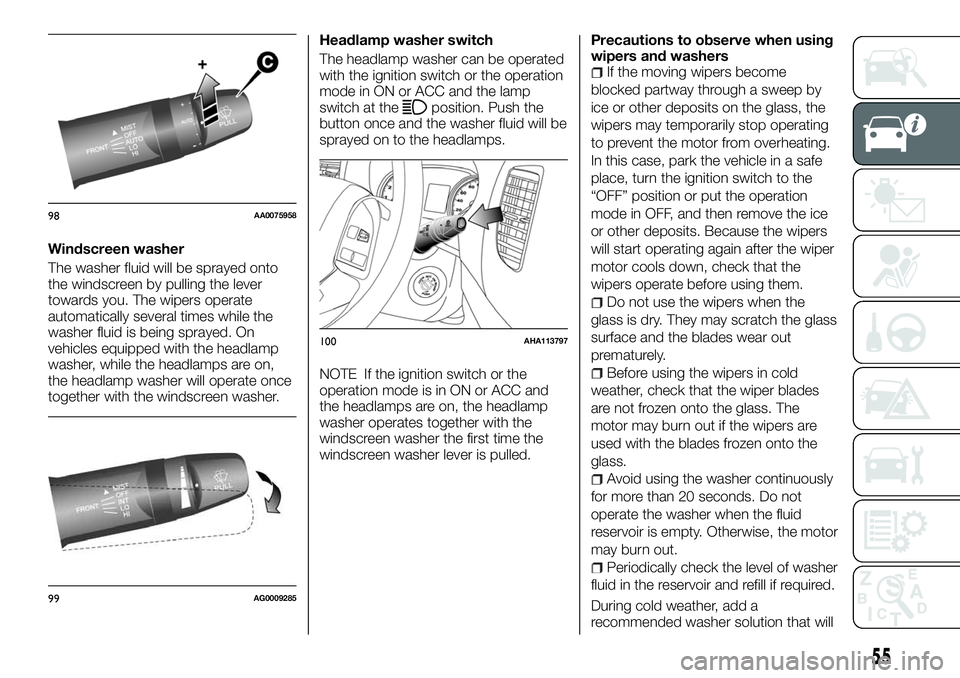

Windscreen washer
The washer fluid will be sprayed onto
the windscreen by pulling the lever
towards you. The wipers operate
automatically several times while the
washer fluid is being sprayed. On
vehicles equipped with the headlamp
washer, while the headlamps are on,
the headlamp washer will operate once
together with the windscreen washer.Headlamp washer switch
The headlamp washer can be operated
with the ignition switch or the operation
mode in ON or ACC and the lamp
switch at the
position. Push the
button once and the washer fluid will be
sprayed on to the headlamps.
NOTE If the ignition switch or the
operation mode is in ON or ACC and
the headlamps are on, the headlamp
washer operates together with the
windscreen washer the first time the
windscreen washer lever is pulled.Precautions to observe when using
wipers and washers
If the moving wipers become
blocked partway through a sweep by
ice or other deposits on the glass, the
wipers may temporarily stop operating
to prevent the motor from overheating.
In this case, park the vehicle in a safe
place, turn the ignition switch to the
“OFF” position or put the operation
mode in OFF, and then remove the ice
or other deposits. Because the wipers
will start operating again after the wiper
motor cools down, check that the
wipers operate before using them.
Do not use the wipers when the
glass is dry. They may scratch the glass
surface and the blades wear out
prematurely.
Before using the wipers in cold
weather, check that the wiper blades
are not frozen onto the glass. The
motor may burn out if the wipers are
used with the blades frozen onto the
glass.
Avoid using the washer continuously
for more than 20 seconds. Do not
operate the washer when the fluid
reservoir is empty. Otherwise, the motor
may burn out.
Periodically check the level of washer
fluid in the reservoir and refill if required.
During cold weather, add a
recommended washer solution that will
98AA0075958
99AG0009285
100AHA113797
55

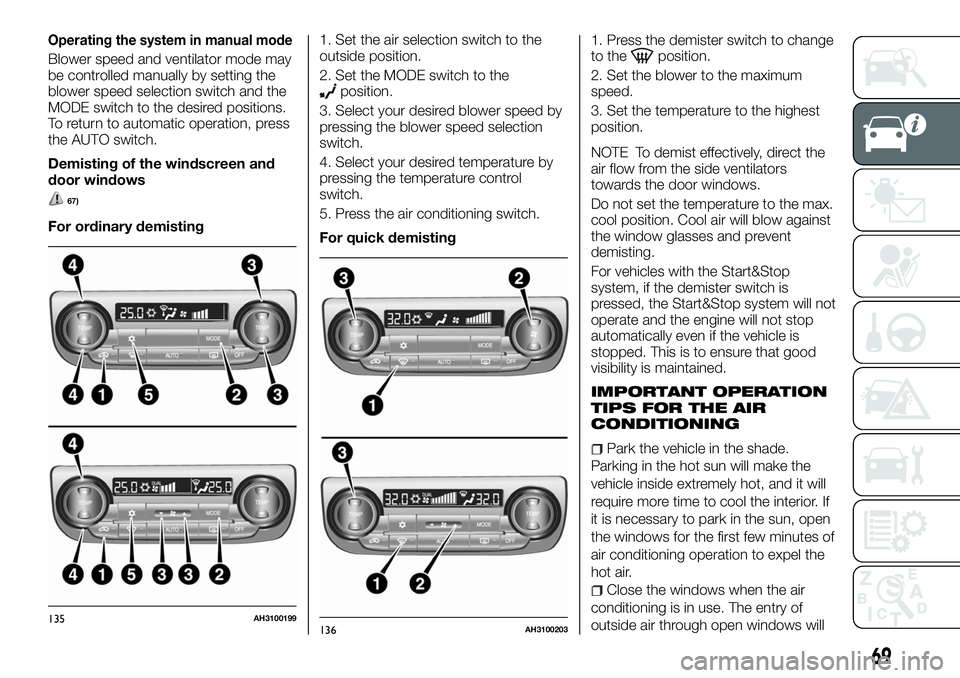

Operating the system in manual mode
Blower speed and ventilator mode may
be controlled manually by setting the
blower speed selection switch and the
MODE switch to the desired positions.
To return to automatic operation, press
the AUTO switch.
Demisting of the windscreen and
door windows
67)
For ordinary demisting1. Set the air selection switch to the
outside position.
2. Set the MODE switch to the
position.
3. Select your desired blower speed by
pressing the blower speed selection
switch.
4. Select your desired temperature by
pressing the temperature control
switch.
5. Press the air conditioning switch.
For quick demisting1. Press the demister switch to change
to the
position.
2. Set the blower to the maximum
speed.
3. Set the temperature to the highest
position.
NOTE To demist effectively, direct the
air flow from the side ventilators
towards the door windows.
Do not set the temperature to the max.
cool position. Cool air will blow against
the window glasses and prevent
demisting.
For vehicles with the Start&Stop
system, if the demister switch is
pressed, the Start&Stop system will not
operate and the engine will not stop
automatically even if the vehicle is
stopped. This is to ensure that good
visibility is maintained.
IMPORTANT OPERATION
TIPS FOR THE AIR
CONDITIONING
Park the vehicle in the shade.
Parking in the hot sun will make the
vehicle inside extremely hot, and it will
require more time to cool the interior. If
it is necessary to park in the sun, open
the windows for the first few minutes of
air conditioning operation to expel the
hot air.
Close the windows when the air
conditioning is in use. The entry of
outside air through open windows will
135AH3100199136AH3100203
69

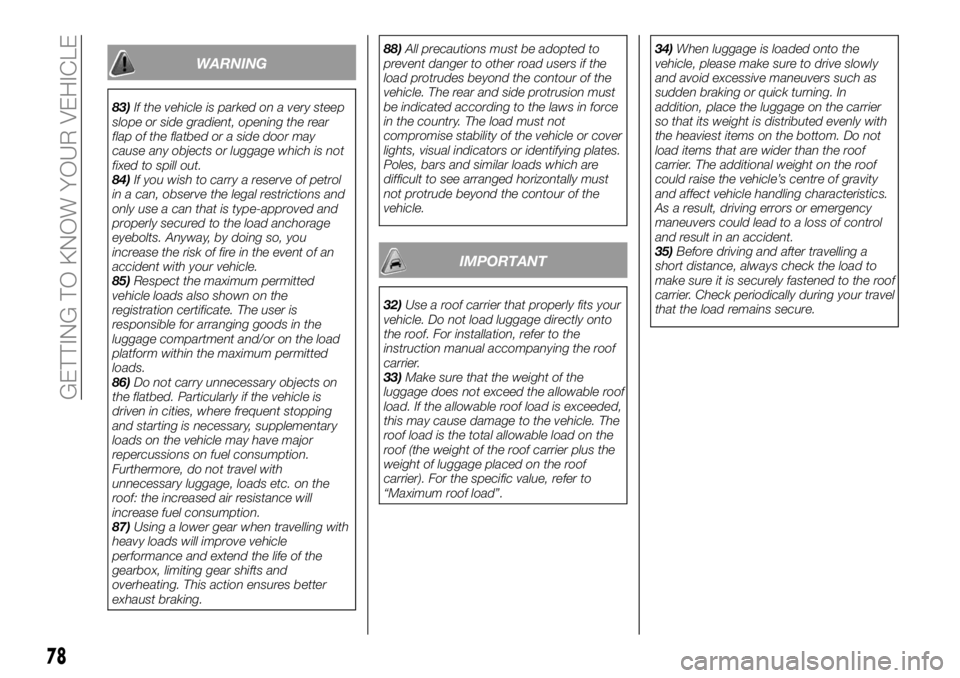

WARNING
83)If the vehicle is parked on a very steep
slope or side gradient, opening the rear
flap of the flatbed or a side door may
cause any objects or luggage which is not
fixed to spill out.
84)If you wish to carry a reserve of petrol
in a can, observe the legal restrictions and
only use a can that is type-approved and
properly secured to the load anchorage
eyebolts. Anyway, by doing so, you
increase the risk of fire in the event of an
accident with your vehicle.
85)Respect the maximum permitted
vehicle loads also shown on the
registration certificate. The user is
responsible for arranging goods in the
luggage compartment and/or on the load
platform within the maximum permitted
loads.
86)Do not carry unnecessary objects on
the flatbed. Particularly if the vehicle is
driven in cities, where frequent stopping
and starting is necessary, supplementary
loads on the vehicle may have major
repercussions on fuel consumption.
Furthermore, do not travel with
unnecessary luggage, loads etc. on the
roof: the increased air resistance will
increase fuel consumption.
87)Using a lower gear when travelling with
heavy loads will improve vehicle
performance and extend the life of the
gearbox, limiting gear shifts and
overheating. This action ensures better
exhaust braking.88)All precautions must be adopted to
prevent danger to other road users if the
load protrudes beyond the contour of the
vehicle. The rear and side protrusion must
be indicated according to the laws in force
in the country. The load must not
compromise stability of the vehicle or cover
lights, visual indicators or identifying plates.
Poles, bars and similar loads which are
difficult to see arranged horizontally must
not protrude beyond the contour of the
vehicle.
IMPORTANT
32)Use a roof carrier that properly fits your
vehicle. Do not load luggage directly onto
the roof. For installation, refer to the
instruction manual accompanying the roof
carrier.
33)Make sure that the weight of the
luggage does not exceed the allowable roof
load. If the allowable roof load is exceeded,
this may cause damage to the vehicle. The
roof load is the total allowable load on the
roof (the weight of the roof carrier plus the
weight of luggage placed on the roof
carrier). For the specific value, refer to
“Maximum roof load”.34)When luggage is loaded onto the
vehicle, please make sure to drive slowly
and avoid excessive maneuvers such as
sudden braking or quick turning. In
addition, place the luggage on the carrier
so that its weight is distributed evenly with
the heaviest items on the bottom. Do not
load items that are wider than the roof
carrier. The additional weight on the roof
could raise the vehicle’s centre of gravity
and affect vehicle handling characteristics.
As a result, driving errors or emergency
maneuvers could lead to a loss of control
and result in an accident.
35)Before driving and after travelling a
short distance, always check the load to
make sure it is securely fastened to the roof
carrier. Check periodically during your travel
that the load remains secure.
78
GETTING TO KNOW YOUR VEHICLE

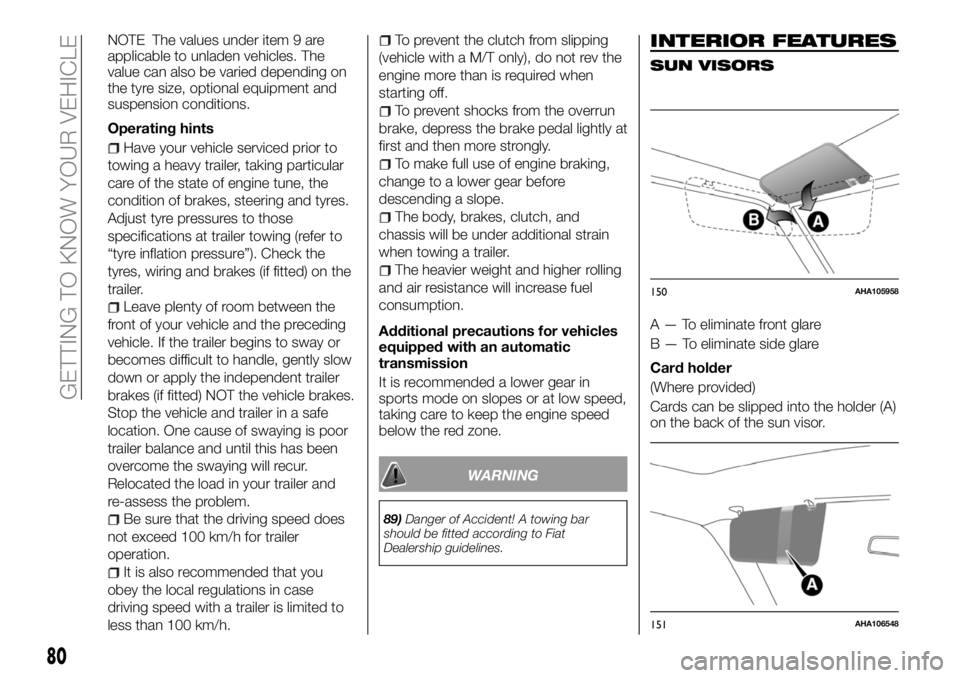

NOTE The values under item 9 are
applicable to unladen vehicles. The
value can also be varied depending on
the tyre size, optional equipment and
suspension conditions.
Operating hints
Have your vehicle serviced prior to
towing a heavy trailer, taking particular
care of the state of engine tune, the
condition of brakes, steering and tyres.
Adjust tyre pressures to those
specifications at trailer towing (refer to
“tyre inflation pressure”). Check the
tyres, wiring and brakes (if fitted) on the
trailer.
Leave plenty of room between the
front of your vehicle and the preceding
vehicle. If the trailer begins to sway or
becomes difficult to handle, gently slow
down or apply the independent trailer
brakes (if fitted) NOT the vehicle brakes.
Stop the vehicle and trailer in a safe
location. One cause of swaying is poor
trailer balance and until this has been
overcome the swaying will recur.
Relocated the load in your trailer and
re-assess the problem.
Be sure that the driving speed does
not exceed 100 km/h for trailer
operation.
It is also recommended that you
obey the local regulations in case
driving speed with a trailer is limited to
less than 100 km/h.
To prevent the clutch from slipping
(vehicle with a M/T only), do not rev the
engine more than is required when
starting off.
To prevent shocks from the overrun
brake, depress the brake pedal lightly at
first and then more strongly.
To make full use of engine braking,
change to a lower gear before
descending a slope.
The body, brakes, clutch, and
chassis will be under additional strain
when towing a trailer.
The heavier weight and higher rolling
and air resistance will increase fuel
consumption.
Additional precautions for vehicles
equipped with an automatic
transmission
It is recommended a lower gear in
sports mode on slopes or at low speed,
taking care to keep the engine speed
below the red zone.
WARNING
89)Danger of Accident! A towing bar
should be fitted according to Fiat
Dealership guidelines.
INTERIOR FEATURES
SUN VISORS
A — To eliminate front glare
B — To eliminate side glare
Card holder
(Where provided)
Cards can be slipped into the holder (A)
on the back of the sun visor.
150AHA105958
151AHA106548
80
GETTING TO KNOW YOUR VEHICLE

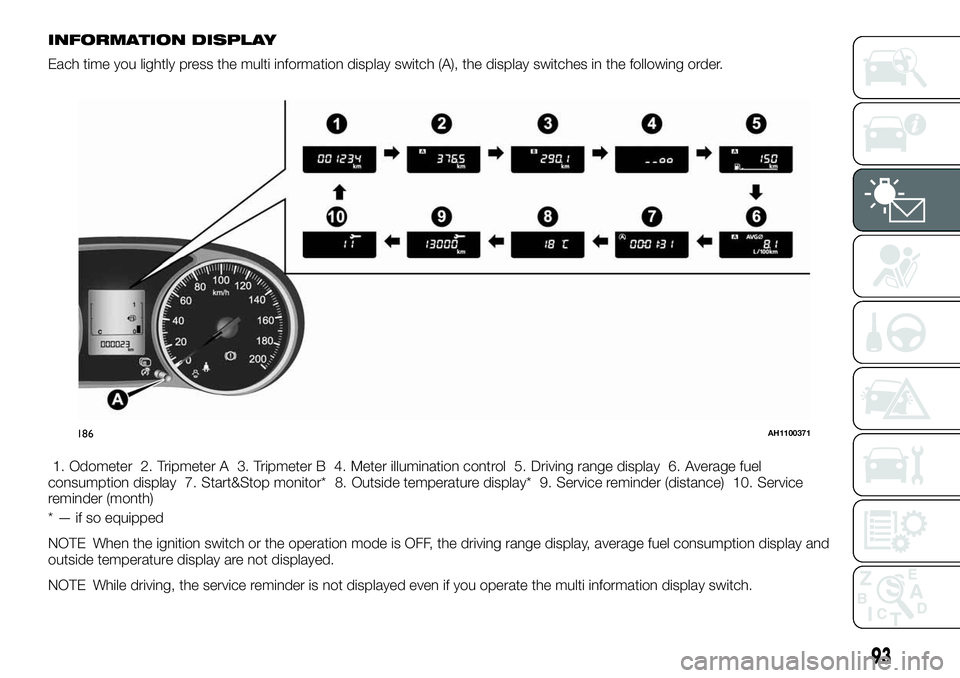

INFORMATION DISPLAY
Each time you lightly press the multi information display switch (A), the display switches in the following order.
1. Odometer 2. Tripmeter A 3. Tripmeter B 4. Meter illumination control 5. Driving range display 6. Average fuel
consumption display 7. Start&Stop monitor* 8. Outside temperature display* 9. Service reminder (distance) 10. Service
reminder (month)
* — if so equipped
NOTE When the ignition switch or the operation mode is OFF, the driving range display, average fuel consumption display and
outside temperature display are not displayed.
NOTE While driving, the service reminder is not displayed even if you operate the multi information display switch.
186AH1100371
93
