FIAT GRANDE PUNTO 2007 199 / 1.G Owners Manual

150
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES

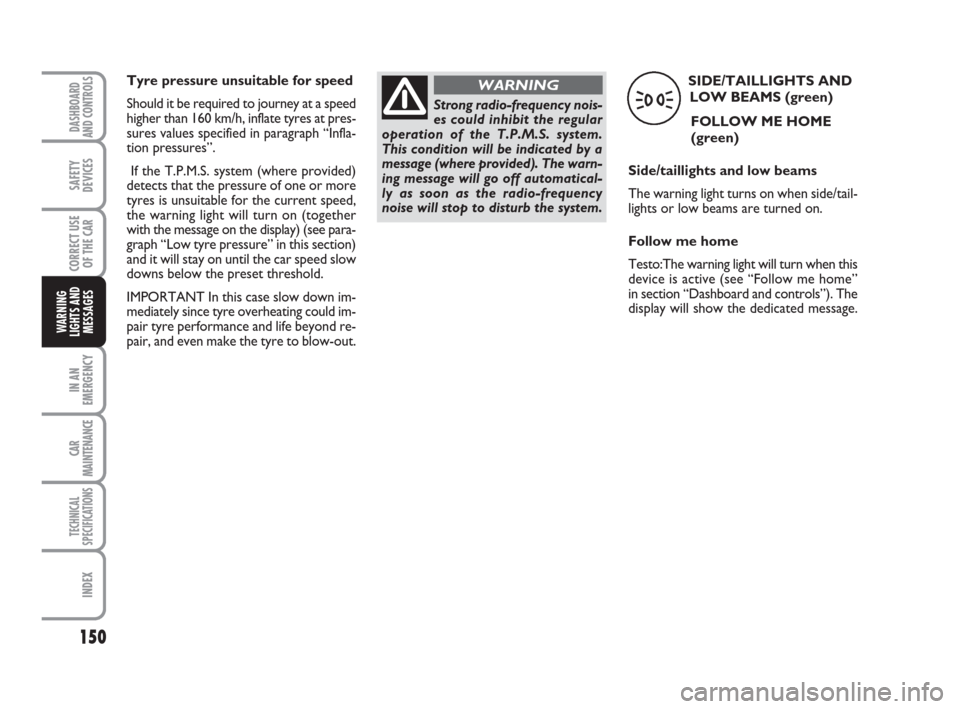

SIDE/TAILLIGHTS AND
LOW BEAMS (green)
FOLLOW ME HOME
(green)
Side/taillights and low beams
The warning light turns on when side/tail-
lights or low beams are turned on.
Follow me home
Testo:The warning light will turn when this
device is active (see “Follow me home”
in section “Dashboard and controls”). The
display will show the dedicated message.
3Strong radio-frequency nois-
es could inhibit the regular
operation of the T.P.M.S. system.
This condition will be indicated by a
message (where provided). The warn-
ing message will go off automatical-
ly as soon as the radio-frequency
noise will stop to disturb the system.
WARNINGTyre pressure unsuitable for speed
Should it be required to journey at a speed
higher than 160 km/h, inflate tyres at pres-
sures values specified in paragraph “Infla-
tion pressures”.
If the T.P.M.S. system (where provided)
detects that the pressure of one or more
tyres is unsuitable for the current speed,
the warning light will turn on (together
with the message on the display) (see para-
graph “Low tyre pressure” in this section)
and it will stay on until the car speed slow
downs below the preset threshold.
IMPORTANT In this case slow down im-
mediately since tyre overheating could im-
pair tyre performance and life beyond re-
pair, and even make the tyre to blow-out.
139-152 Punto GDX GB 20-07-2007 9:42 Pagina 150

151
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES

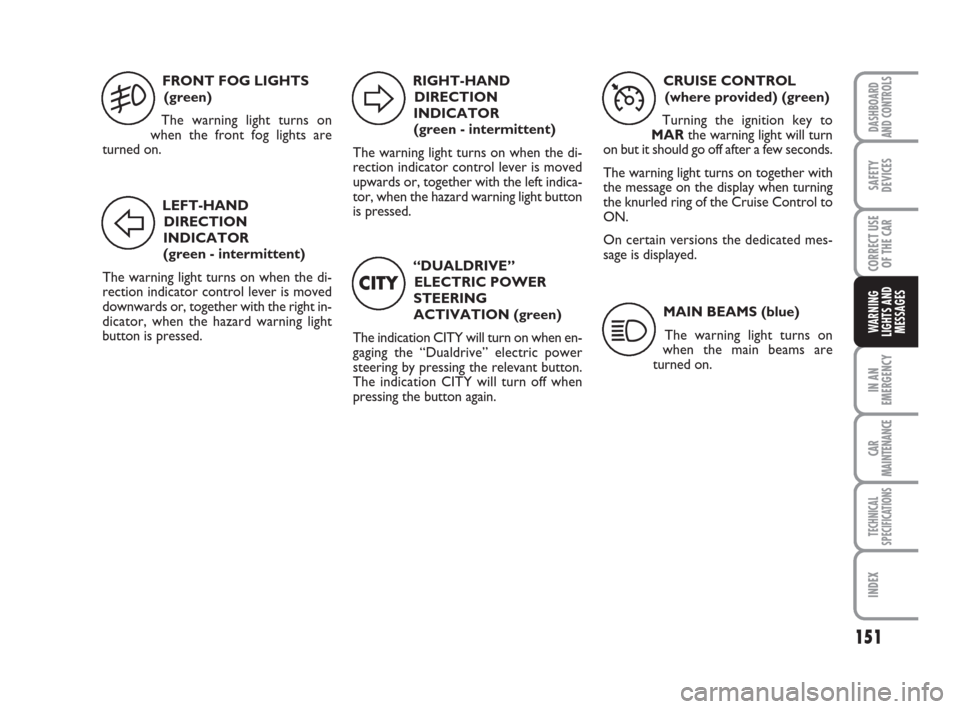

CRUISE CONTROL
(where provided) (green)
Turning the ignition key to
MARthe warning light will turn
on but it should go off after a few seconds.
The warning light turns on together with
the message on the display when turning
the knurled ring of the Cruise Control to
ON.
On certain versions the dedicated mes-
sage is displayed.
Ü
“DUALDRIVE”
ELECTRIC POWER
STEERING
ACTIVATION (green)
The indication CITY will turn on when en-
gaging the “Dualdrive” electric power
steering by pressing the relevant button.
The indication CITY will turn off when
pressing the button again.
CITY
MAIN BEAMS (blue)
The warning light turns on
when the main beams are
turned on.
1
FRONT FOG LIGHTS
(green)
The warning light turns on
when the front fog lights are
turned on.
5
LEFT-HAND
DIRECTION
INDICATOR
(green - intermittent)
The warning light turns on when the di-
rection indicator control lever is moved
downwards or, together with the right in-
dicator, when the hazard warning light
button is pressed.
F
RIGHT-HAND
DIRECTION
INDICATOR
(green - intermittent)
The warning light turns on when the di-
rection indicator control lever is moved
upwards or, together with the left indica-
tor, when the hazard warning light button
is pressed.
D
139-152 Punto GDX GB 20-07-2007 9:42 Pagina 151

152
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES

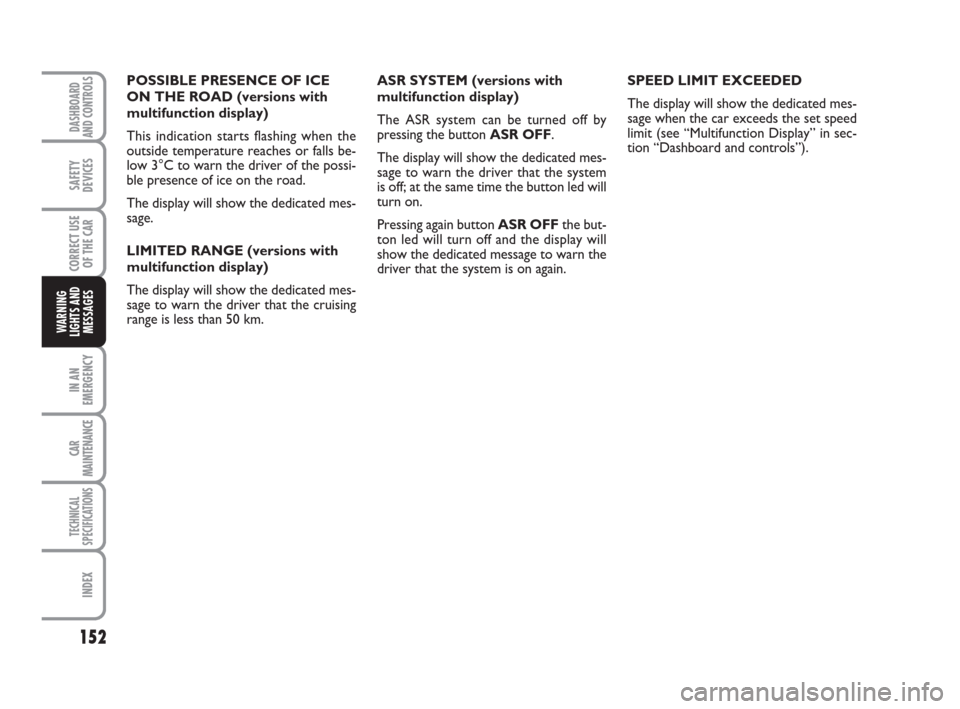

ASR SYSTEM (versions with
multifunction display)
The ASR system can be turned off by
pressing the button ASR OFF.
The display will show the dedicated mes-
sage to warn the driver that the system
is off; at the same time the button led will
turn on.
Pressing again button ASR OFFthe but-
ton led will turn off and the display will
show the dedicated message to warn the
driver that the system is on again. POSSIBLE PRESENCE OF ICE
ON THE ROAD (versions with
multifunction display)
This indication starts flashing when the
outside temperature reaches or falls be-
low 3°C to warn the driver of the possi-
ble presence of ice on the road.
The display will show the dedicated mes-
sage.
LIMITED RANGE (versions with
multifunction display)
The display will show the dedicated mes-
sage to warn the driver that the cruising
range is less than 50 km. SPEED LIMIT EXCEEDED
The display will show the dedicated mes-
sage when the car exceeds the set speed
limit (see “Multifunction Display” in sec-
tion “Dashboard and controls”).
139-152 Punto GDX GB 20-07-2007 9:42 Pagina 152

153
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR

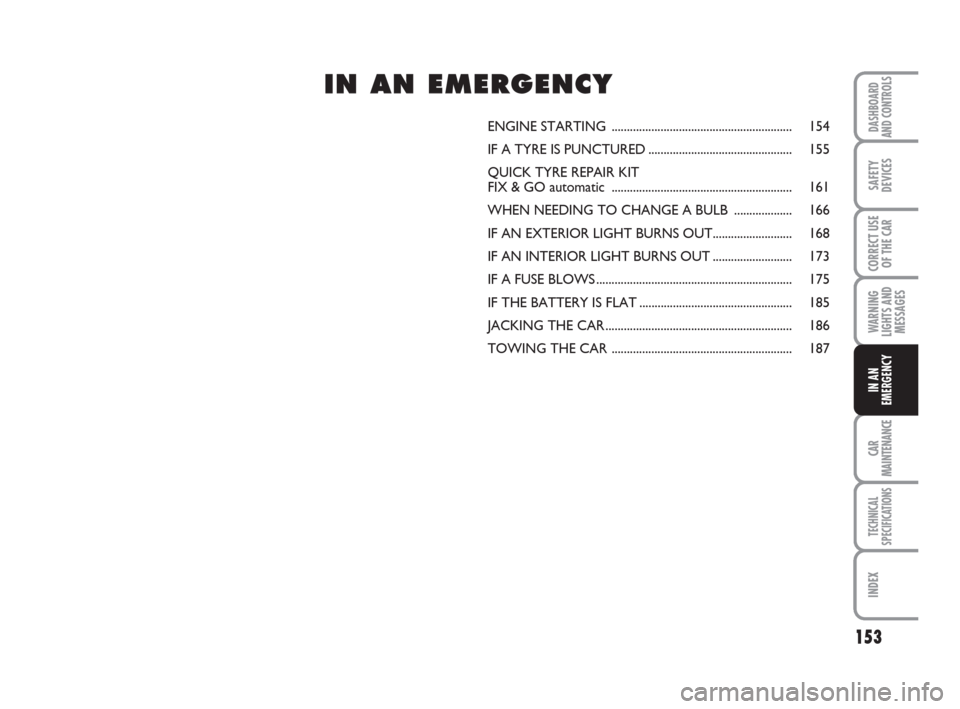

IN AN
EMERGENCY
ENGINE STARTING ........................................................... 154
IF A TYRE IS PUNCTURED............................................... 155
QUICK TYRE REPAIR KIT
FIX & GO automatic ........................................................... 161
WHEN NEEDING TO CHANGE A BULB ................... 166
IF AN EXTERIOR LIGHT BURNS OUT.......................... 168
IF AN INTERIOR LIGHT BURNS OUT.......................... 173
IF A FUSE BLOWS................................................................ 175
IF THE BATTERY IS FLAT .................................................. 185
JACKING THE CAR............................................................. 186
TOWING THE CAR ........................................................... 187
II I
N N
A A
N N
E E
M M
E E
R R
G G
E E
N N
C C
Y Y
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 153

154
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

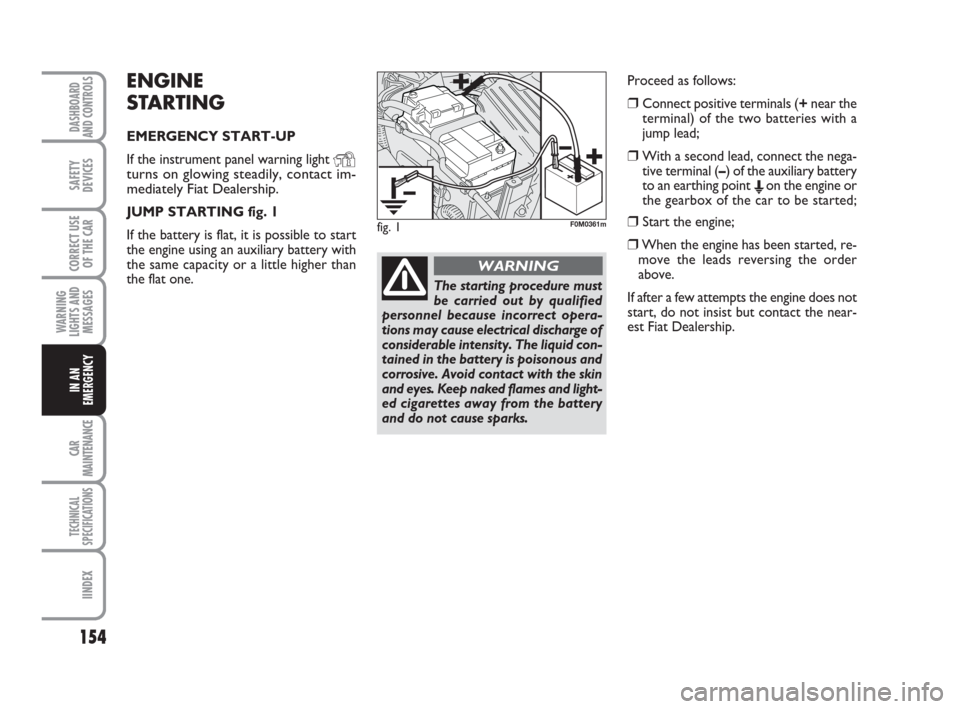

ENGINE
STARTING
EMERGENCY START-UP
If the instrument panel warning light
Yturns on glowing steadily, contact im-
mediately Fiat Dealership.
JUMP STARTING fig. 1
If the battery is flat, it is possible to start
the engine using an auxiliary battery with
the same capacity or a little higher than
the flat one. Proceed as follows:
❒Connect positive terminals (+near the
terminal) of the two batteries with a
jump lead;
❒With a second lead, connect the nega-
tive terminal (–) of the auxiliary battery
to an earthing point
Eon the engine or
the gearbox of the car to be started;
❒ Start the engine;
❒When the engine has been started, re-
move the leads reversing the order
above.
If after a few attempts the engine does not
start, do not insist but contact the near-
est Fiat Dealership.
fig. 1F0M0361m
The starting procedure must
be carried out by qualified
personnel because incorrect opera-
tions may cause electrical discharge of
considerable intensity. The liquid con-
tained in the battery is poisonous and
corrosive. Avoid contact with the skin
and eyes. Keep naked flames and light-
ed cigarettes away from the battery
and do not cause sparks.
WARNING
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 154

155
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

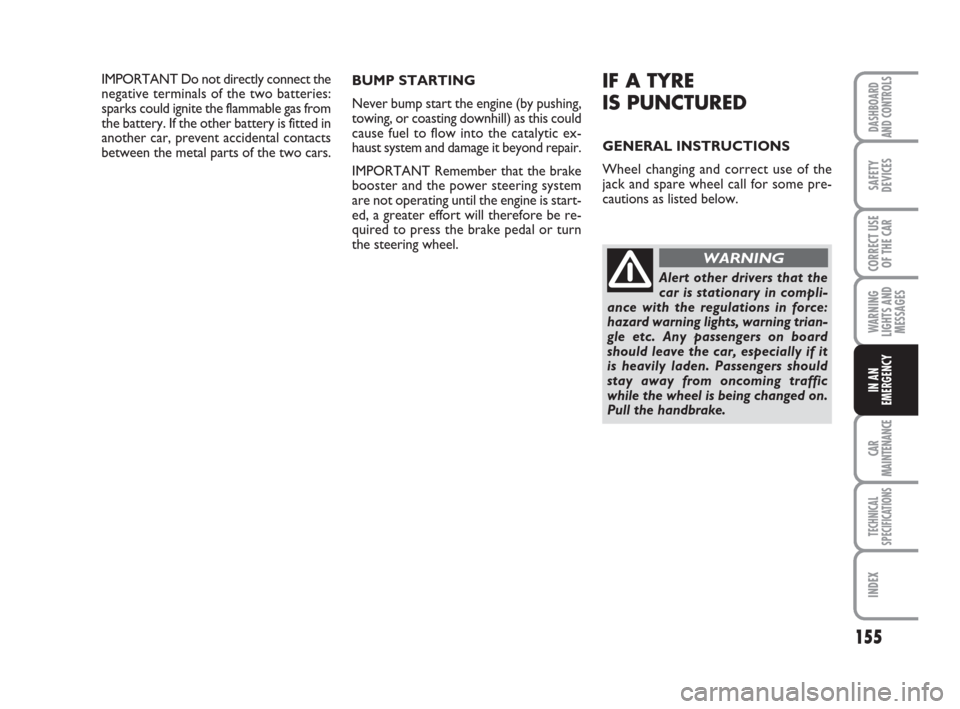

IMPORTANT Do not directly connect the
negative terminals of the two batteries:
sparks could ignite the flammable gas from
the battery. If the other battery is fitted in
another car, prevent accidental contacts
between the metal parts of the two cars.BUMP STARTING
Never bump start the engine (by pushing,
towing, or coasting downhill) as this could
cause fuel to flow into the catalytic ex-
haust system and damage it beyond repair.
IMPORTANT Remember that the brake
booster and the power steering system
are not operating until the engine is start-
ed, a greater effort will therefore be re-
quired to press the brake pedal or turn
the steering wheel.IF A TYRE
IS PUNCTURED
GENERAL INSTRUCTIONS
Wheel changing and correct use of the
jack and spare wheel call for some pre-
cautions as listed below.
Alert other drivers that the
car is stationary in compli-
ance with the regulations in force:
hazard warning lights, warning trian-
gle etc. Any passengers on board
should leave the car, especially if it
is heavily laden. Passengers should
stay away from oncoming traffic
while the wheel is being changed on.
Pull the handbrake.
WARNING
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 155

156
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

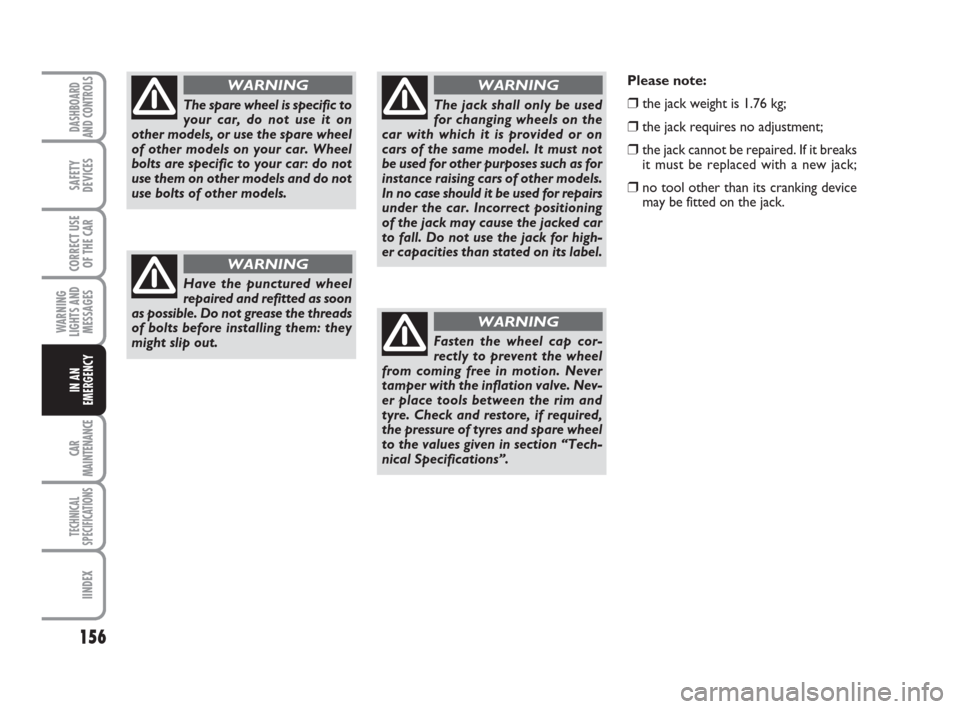

The spare wheel is specific to
your car, do not use it on
other models, or use the spare wheel
of other models on your car. Wheel
bolts are specific to your car: do not
use them on other models and do not
use bolts of other models.
WARNING
Have the punctured wheel
repaired and refitted as soon
as possible. Do not grease the threads
of bolts before installing them: they
might slip out.
WARNING
The jack shall only be used
for changing wheels on the
car with which it is provided or on
cars of the same model. It must not
be used for other purposes such as for
instance raising cars of other models.
In no case should it be used for repairs
under the car. Incorrect positioning
of the jack may cause the jacked car
to fall. Do not use the jack for high-
er capacities than stated on its label.
WARNING
Fasten the wheel cap cor-
rectly to prevent the wheel
from coming free in motion. Never
tamper with the inflation valve. Nev-
er place tools between the rim and
tyre. Check and restore, if required,
the pressure of tyres and spare wheel
to the values given in section “Tech-
nical Specifications”.
WARNING
Please note:
❒ the jack weight is 1.76 kg;
❒the jack requires no adjustment;
❒the jack cannot be repaired. If it breaks
it must be replaced with a new jack;
❒ no tool other than its cranking device
may be fitted on the jack.
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 156

157
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

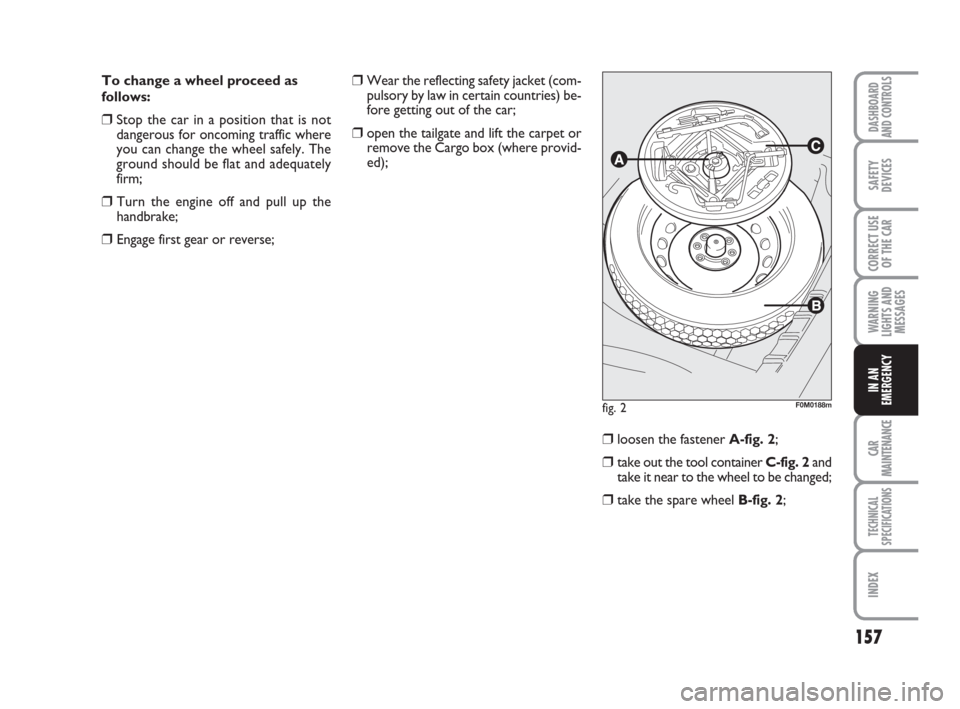

To change a wheel proceed as
follows:
❒Stop the car in a position that is not
dangerous for oncoming traffic where
you can change the wheel safely. The
ground should be flat and adequately
firm;
❒ Turn the engine off and pull up the
handbrake;
❒ Engage first gear or reverse;
❒Wear the reflecting safety jacket (com-
pulsory by law in certain countries) be-
fore getting out of the car;
❒open the tailgate and lift the carpet or
remove the Cargo box (where provid-
ed);
❒loosen the fastener A-fig. 2;
❒take out the tool container C-fig. 2and
take it near to the wheel to be changed;
❒take the spare wheel B-fig. 2;
fig. 2F0M0188m
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 157

158
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

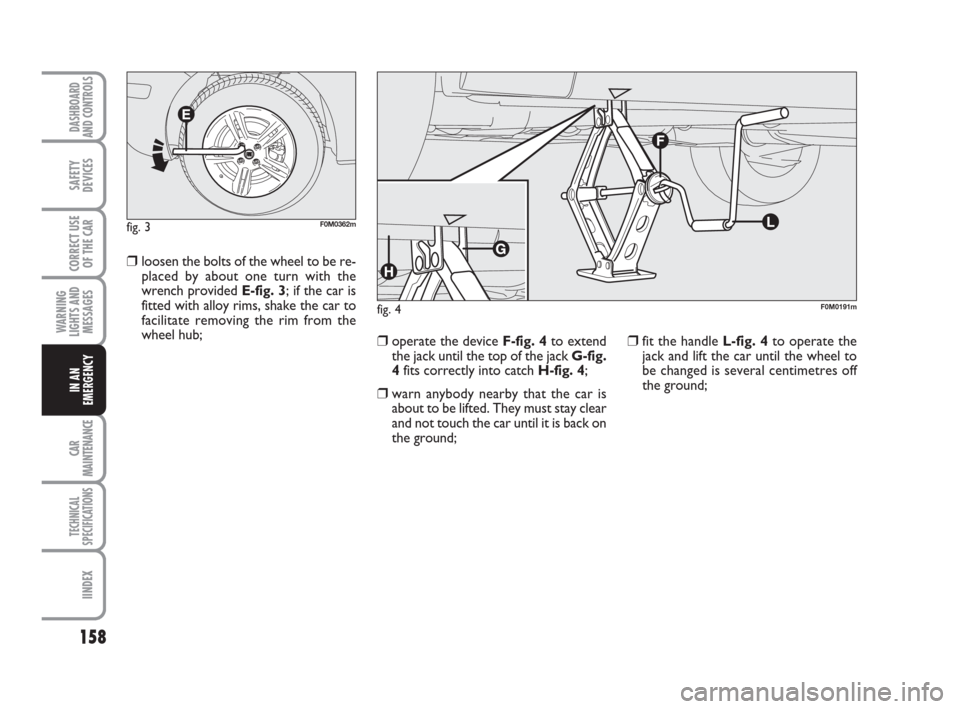

❒loosen the bolts of the wheel to be re-
placed by about one turn with the
wrench provided E-fig. 3; if the car is
fitted with alloy rims, shake the car to
facilitate removing the rim from the
wheel hub;
❒operate the device F-fig. 4to extend
the jack until the top of the jack G-fig.
4fits correctly into catch H-fig. 4;
❒warn anybody nearby that the car is
about to be lifted. They must stay clear
and not touch the car until it is back on
the ground;
❒fit the handle L-fig. 4to operate the
jack and lift the car until the wheel to
be changed is several centimetres off
the ground;
fig. 3F0M0362m
fig. 4F0M0191m
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 158

159
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

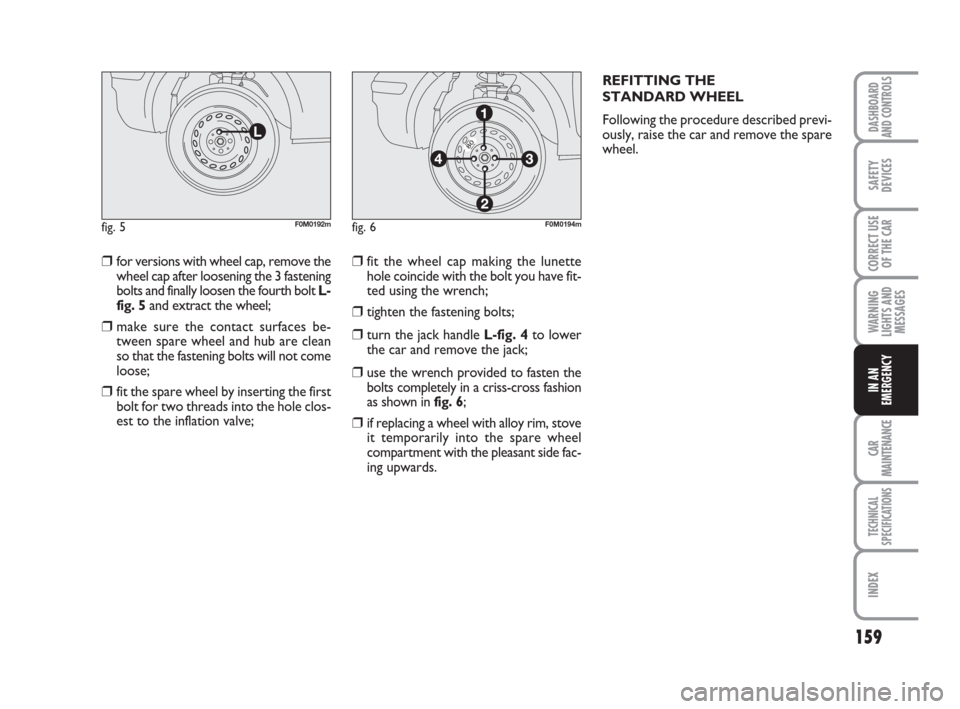

❒for versions with wheel cap, remove the
wheel cap after loosening the 3 fastening
bolts and finally loosen the fourth bolt L-
fig. 5and extract the wheel;
❒make sure the contact surfaces be-
tween spare wheel and hub are clean
so that the fastening bolts will not come
loose;
❒fit the spare wheel by inserting the first
bolt for two threads into the hole clos-
est to the inflation valve;
❒fit the wheel cap making the lunette
hole coincide with the bolt you have fit-
ted using the wrench;
❒tighten the fastening bolts;
❒turn the jack handle L-fig. 4to lower
the car and remove the jack;
❒use the wrench provided to fasten the
bolts completely in a criss-cross fashion
as shown in fig. 6;
❒if replacing a wheel with alloy rim, stove
it temporarily into the spare wheel
compartment with the pleasant side fac-
ing upwards.REFITTING THE
STANDARD WHEEL
Following the procedure described previ-
ously, raise the car and remove the spare
wheel.
fig. 5F0M0192mfig. 6F0M0194m
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 159
