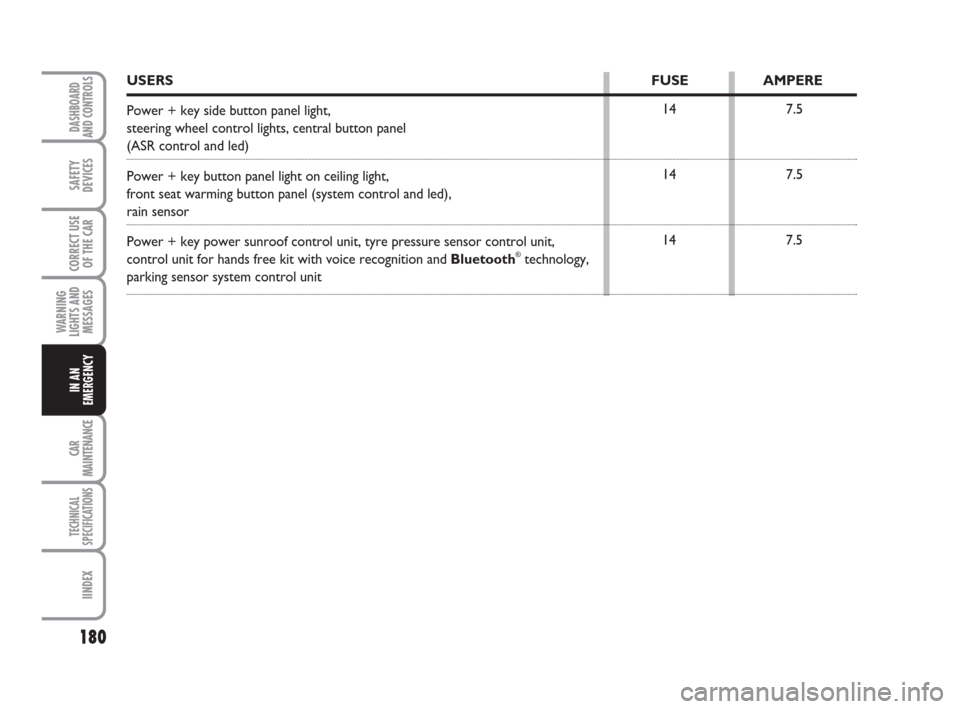

USERSFUSE AMPERE
Power + key side button panel light,
steering wheel control lights, central button panel
(ASR control and led)
Power + key button panel light on ceiling light,
front seat warming button panel (system control and led),
rain sensor
Power + key power sunroof control unit, tyre pressure sensor control unit,
control unit for hands free kit with voice recognition and Bluetooth
®technology,
parking sensor system control unit
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 180

181
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
53
38
39
40
41
47
48
46
34

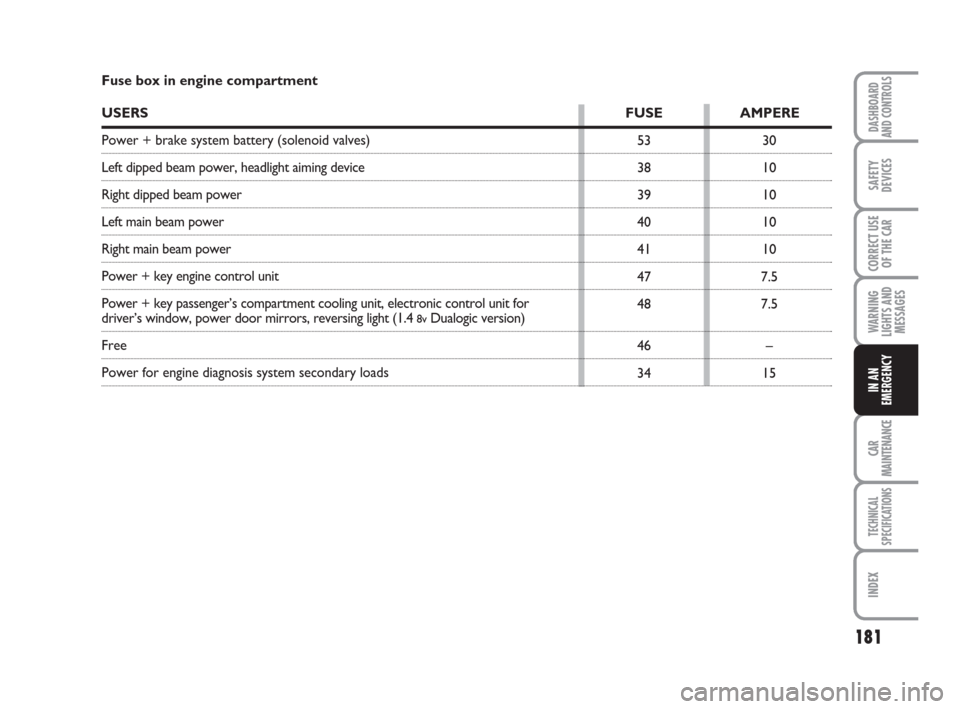

Fuse box in engine compartment
USERSFUSE AMPERE
Power + brake system battery (solenoid valves)
Left dipped beam power, headlight aiming device
Right dipped beam power
Left main beam power
Right main beam power
Power + key engine control unit
Power + key passenger’s compartment cooling unit, electronic control unit for
driver’s window, power door mirrors, reversing light (1.4 8vDualogic version)
Free
Power for engine diagnosis system secondary loads30
10
10
10
10
7.5
7.5
–
15
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 181

182
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
15
10
15
15
30
15
7.5
30
7.5
7.5
7.5
20
10
10 30
33
51
25
27
37
42
49
29
54
32
31
45
43

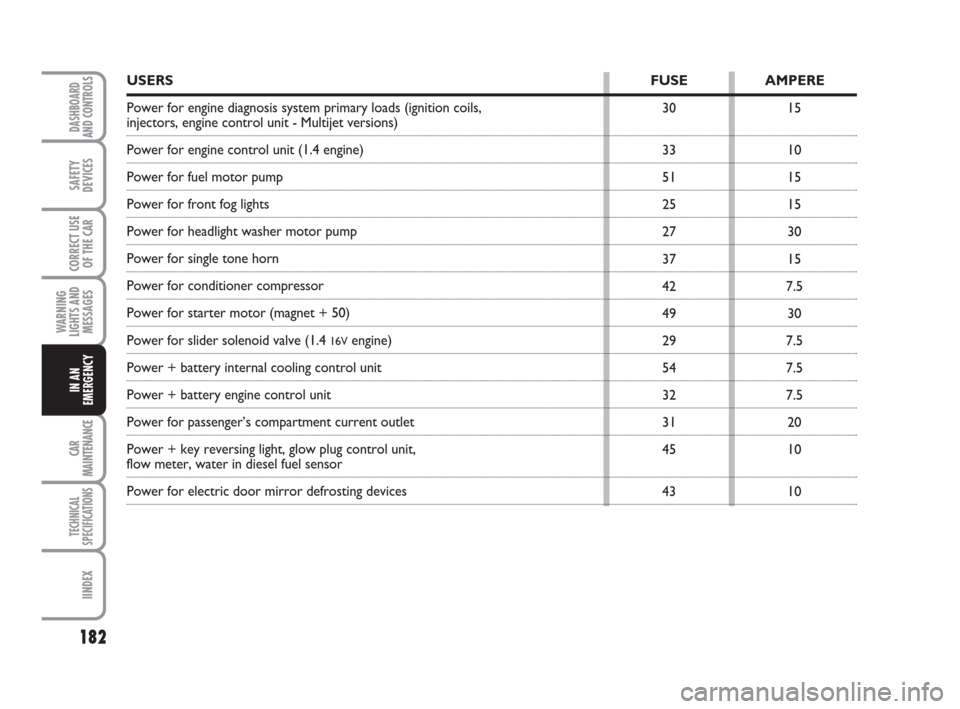

USERSFUSE AMPERE
Power for engine diagnosis system primary loads (ignition coils,
injectors, engine control unit - Multijet versions)
Power for engine control unit (1.4 engine)
Power for fuel motor pump
Power for front fog lights
Power for headlight washer motor pump
Power for single tone horn
Power for conditioner compressor
Power for starter motor (magnet + 50)
Power for slider solenoid valve (1.4 16Vengine)
Power + battery internal cooling control unit
Power + battery engine control unit
Power for passenger’s compartment current outlet
Power + key reversing light, glow plug control unit,
flow meter, water in diesel fuel sensor
Power for electric door mirror defrosting devices
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 182

183
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
20
20
–
– 26
28
52
44
USERSFUSE AMPERE
Power for front passenger’s power window motor
Power for driver’s power window motor
Free
Free
–
–
–
10
15
–
–
10
10
20
20
– 01
02
03
04
05
06
07
08
09
10
11
12

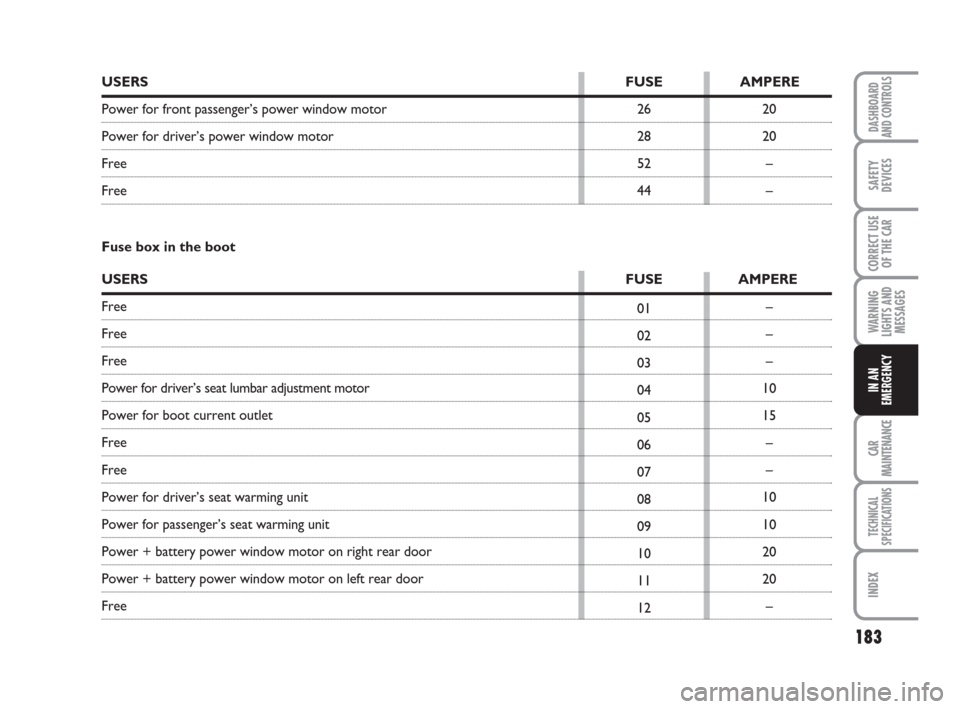

Fuse box in the boot
USERSFUSE AMPERE
Free
Free
Free
Power for driver’s seat lumbar adjustment motor
Power for boot current outlet
Free
Free
Power for driver’s seat warming unit
Power for passenger’s seat warming unit
Power + battery power window motor on right rear door
Power + battery power window motor on left rear door
Free
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 183

184
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
–
–
10
20
20 13
14
15
16
17

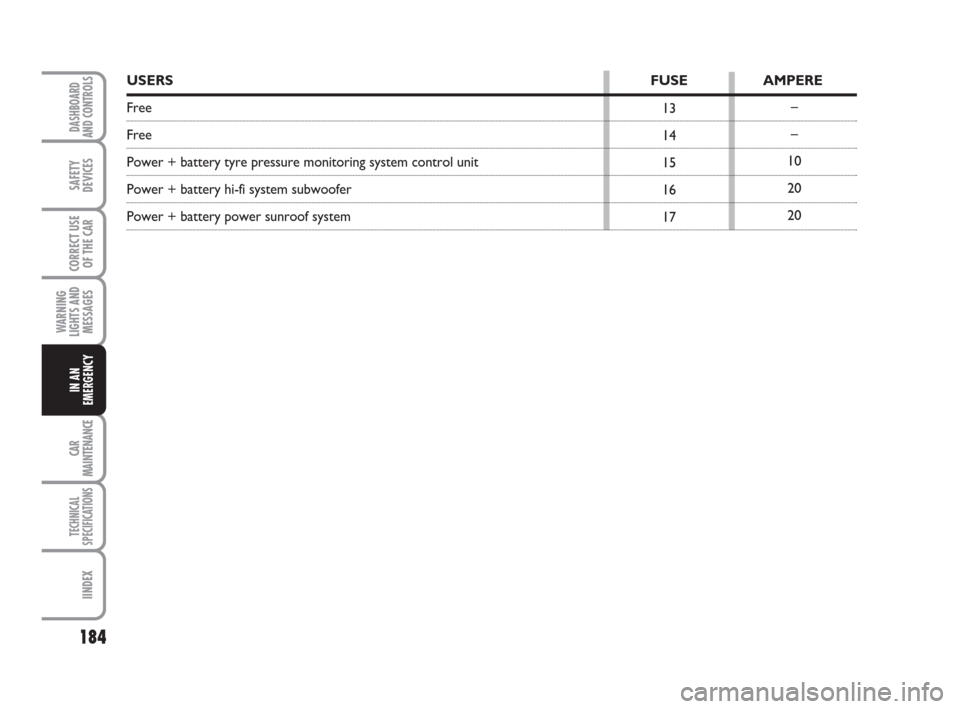

USERSFUSE AMPERE
Free
Free
Power + battery tyre pressure monitoring system control unit
Power + battery hi-fi system subwoofer
Power + battery power sunroof system
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 184

185
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

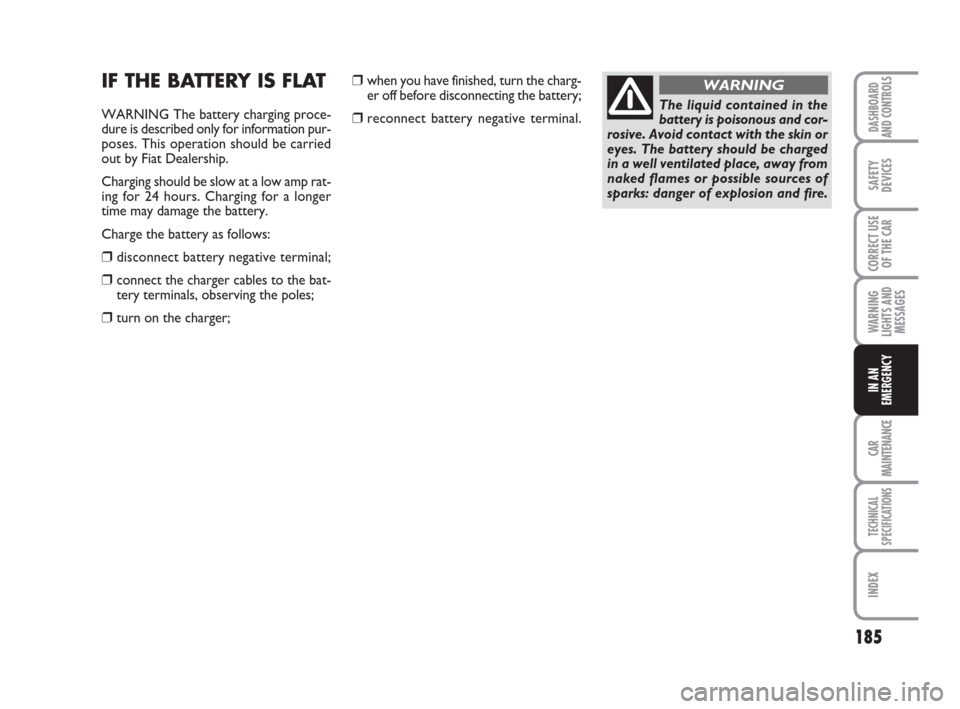

IF THE BATTERY IS FLAT
WARNING The battery charging proce-
dure is described only for information pur-
poses. This operation should be carried
out by Fiat Dealership.
Charging should be slow at a low amp rat-
ing for 24 hours. Charging for a longer
time may damage the battery.
Charge the battery as follows:
❒ disconnect battery negative terminal;
❒ connect the charger cables to the bat-
tery terminals, observing the poles;
❒ turn on the charger;
The liquid contained in the
battery is poisonous and cor-
rosive. Avoid contact with the skin or
eyes. The battery should be charged
in a well ventilated place, away from
naked flames or possible sources of
sparks: danger of explosion and fire.
WARNING❒ when you have finished, turn the charg-
er off before disconnecting the battery;
❒ reconnect battery negative terminal.
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 185

186
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
fig. 45F0M0366m

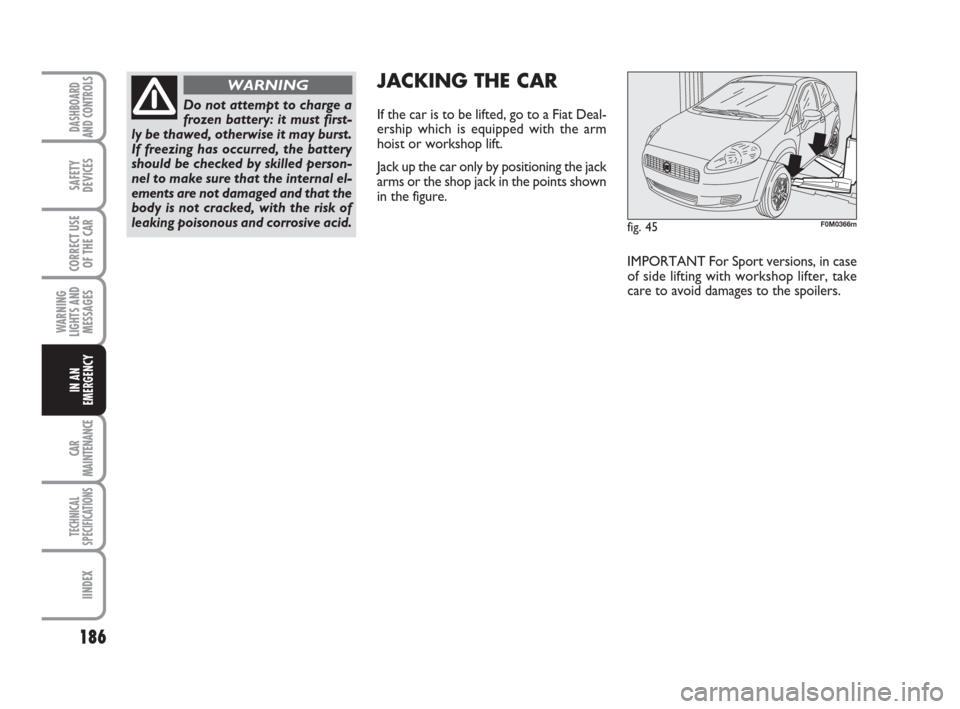

JACKING THE CAR
If the car is to be lifted, go to a Fiat Deal-
ership which is equipped with the arm
hoist or workshop lift.
Jack up the car only by positioning the jack
arms or the shop jack in the points shown
in the figure.Do not attempt to charge a
frozen battery: it must first-
ly be thawed, otherwise it may burst.
If freezing has occurred, the battery
should be checked by skilled person-
nel to make sure that the internal el-
ements are not damaged and that the
body is not cracked, with the risk of
leaking poisonous and corrosive acid.
WARNING
IMPORTANT For Sport versions, in case
of side lifting with workshop lifter, take
care to avoid damages to the spoilers.
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 186

187
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

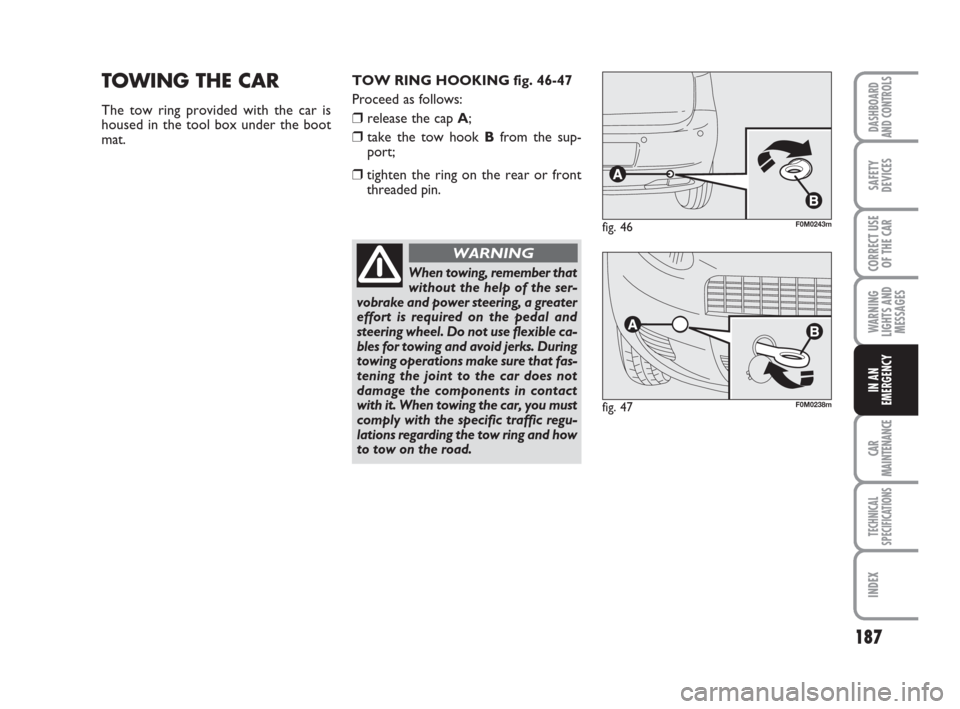

TOWING THE CAR
The tow ring provided with the car is
housed in the tool box under the boot
mat.
fig. 46F0M0243m
fig. 47F0M0238m
TOW RING HOOKING fig. 46-47
Proceed as follows:
❒release the cap A;
❒take the tow hook Bfrom the sup-
port;
❒tighten the ring on the rear or front
threaded pin.
When towing, remember that
without the help of the ser-
vobrake and power steering, a greater
effort is required on the pedal and
steering wheel. Do not use flexible ca-
bles for towing and avoid jerks. During
towing operations make sure that fas-
tening the joint to the car does not
damage the components in contact
with it. When towing the car, you must
comply with the specific traffic regu-
lations regarding the tow ring and how
to tow on the road.
WARNING
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 187

188
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

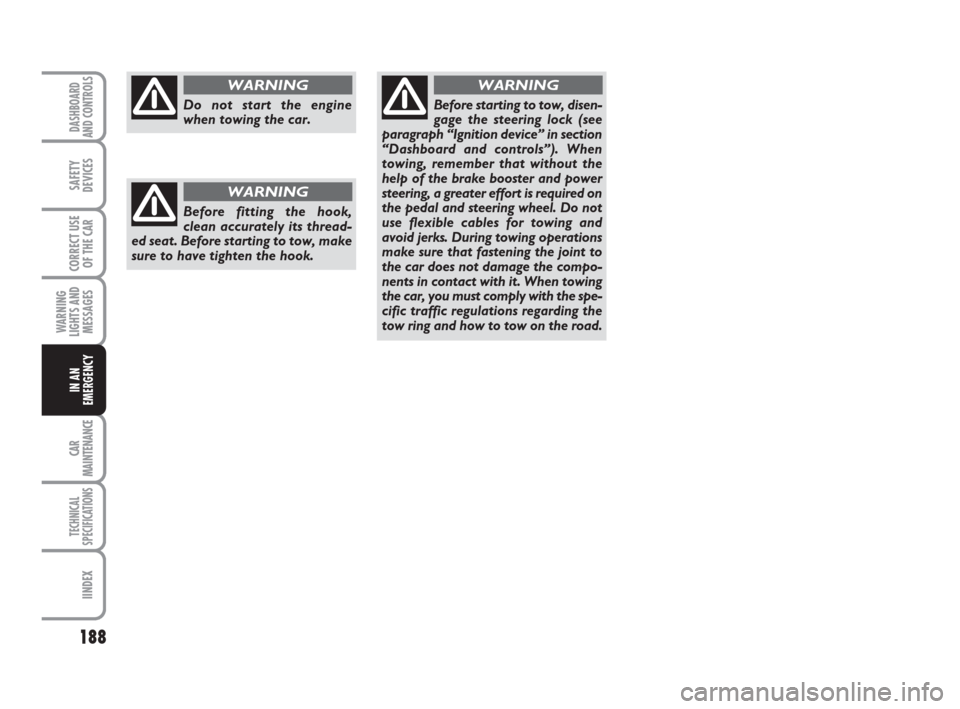

Do not start the engine
when towing the car.
WARNING
Before fitting the hook,
clean accurately its thread-
ed seat. Before starting to tow, make
sure to have tighten the hook.
WARNING
Before starting to tow, disen-
gage the steering lock (see
paragraph “Ignition device” in section
“Dashboard and controls”). When
towing, remember that without the
help of the brake booster and power
steering, a greater effort is required on
the pedal and steering wheel. Do not
use flexible cables for towing and
avoid jerks. During towing operations
make sure that fastening the joint to
the car does not damage the compo-
nents in contact with it. When towing
the car, you must comply with the spe-
cific traffic regulations regarding the
tow ring and how to tow on the road.
WARNING
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 188

189
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

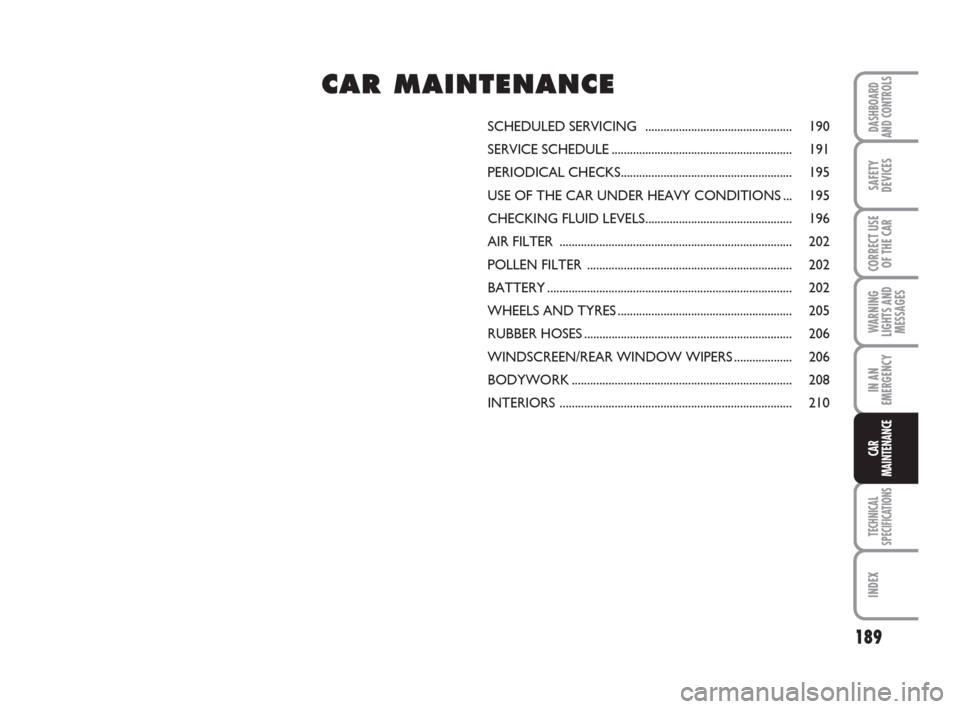

SCHEDULED SERVICING ................................................ 190
