FIAT GRANDE PUNTO 2007 199 / 1.G Owners Manual

170
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

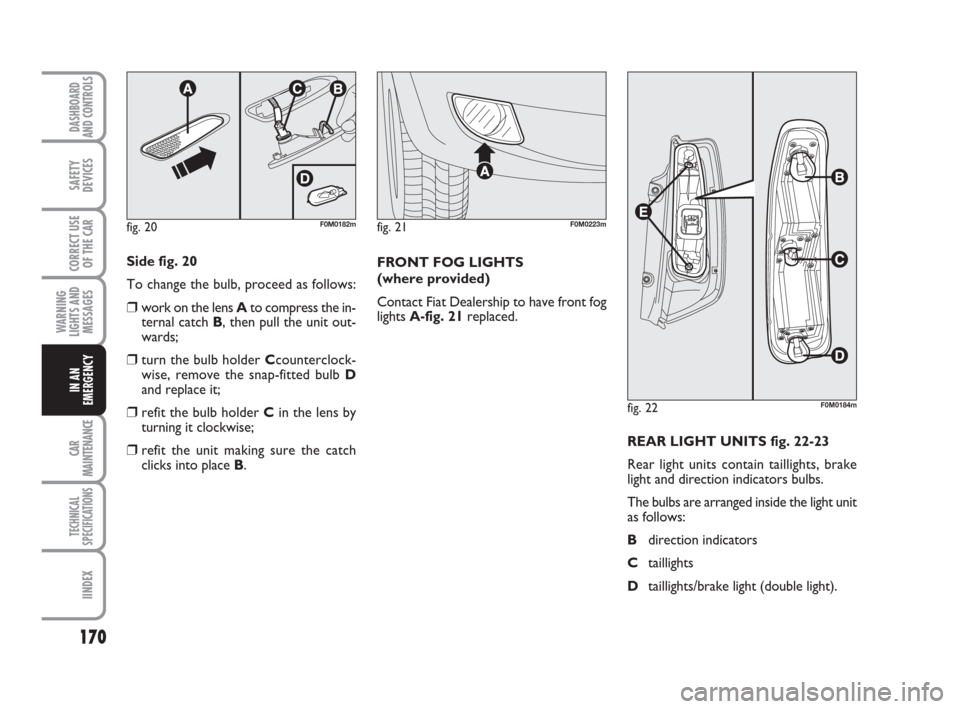

Side fig. 20
To change the bulb, proceed as follows:
❒work on the lens Ato compress the in-
ternal catch B, then pull the unit out-
wards;
❒turn the bulb holder Ccounterclock-
wise, remove the snap-fitted bulb D
and replace it;
❒refit the bulb holder Cin the lens by
turning it clockwise;
❒refit the unit making sure the catch
clicks into place B.FRONT FOG LIGHTS
(where provided)
Contact Fiat Dealership to have front fog
lights A-fig. 21replaced.
REAR LIGHT UNITS fig. 22-23
Rear light units contain taillights, brake
light and direction indicators bulbs.
The bulbs are arranged inside the light unit
as follows:
Bdirection indicators
Ctaillights
Dtaillights/brake light (double light).
fig. 20F0M0182m
fig. 22F0M0184m
fig. 21F0M0223m
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 170

171
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

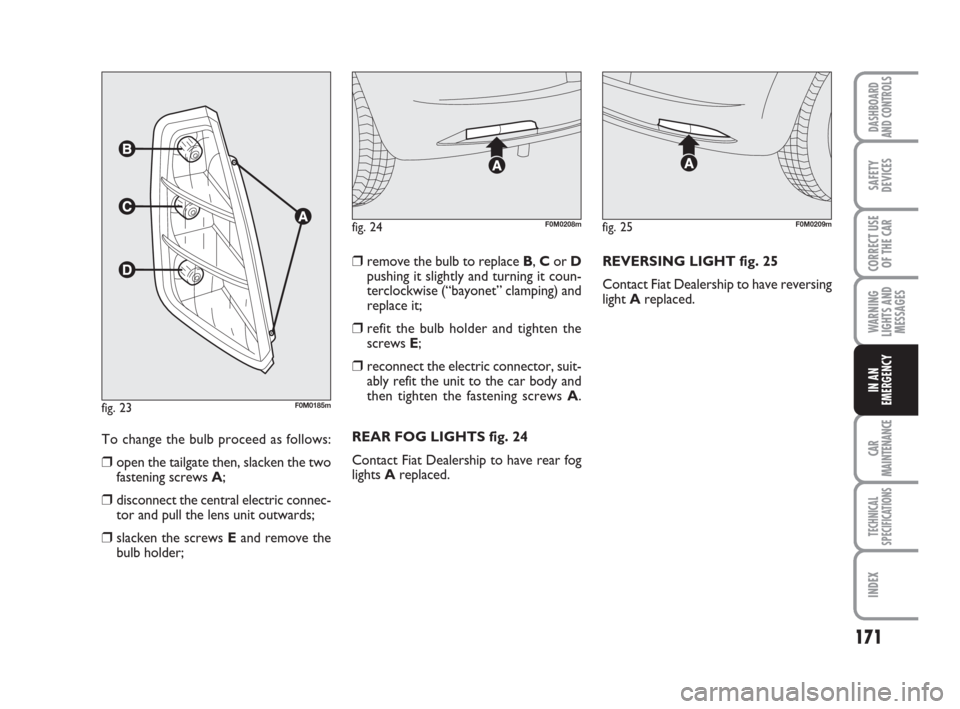

To change the bulb proceed as follows:
❒open the tailgate then, slacken the two
fastening screws A;
❒disconnect the central electric connec-
tor and pull the lens unit outwards;
❒slacken the screws Eand remove the
bulb holder;
❒remove the bulb to replace B, Cor D
pushing it slightly and turning it coun-
terclockwise (“bayonet” clamping) and
replace it;
❒refit the bulb holder and tighten the
screws E;
❒reconnect the electric connector, suit-
ably refit the unit to the car body and
then tighten the fastening screws A.
REAR FOG LIGHTS fig. 24
Contact Fiat Dealership to have rear fog
lights Areplaced.REVERSING LIGHT fig. 25
Contact Fiat Dealership to have reversing
light Areplaced.
fig. 24F0M0208mfig. 25F0M0209m
fig. 23F0M0185m
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 171

172
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
THIRD BRAKE LIGHT fig. 26-27
To change the bulb proceed as follows:
❒open the tailgate;
❒remove the rubber caps A-fig. 26;
❒press the catches B-fig. 26and remove
the lens unit C-fig. 27;
❒disconnect the electric connector;
❒press the tabs D-fig. 27and remove
the bulb holder;
❒remove the snap-fitted bulb and replace
it.
NUMBER PLATE LIGHT fig. 28-29
To change the bulb proceed as follows:
❒work in the point shown by the arrow
and remove lens A-fig. 28;
❒change the bulb fig. 29releasing it from
the side contacts and making sure the
new bulb is correctly fastened between
the contacts;
❒refit the snap-fitted lens unit.
fig. 26F0M0210mfig. 27F0M0211mfig. 28F0M0212m
fig. 29F0M0233m
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 172

173
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

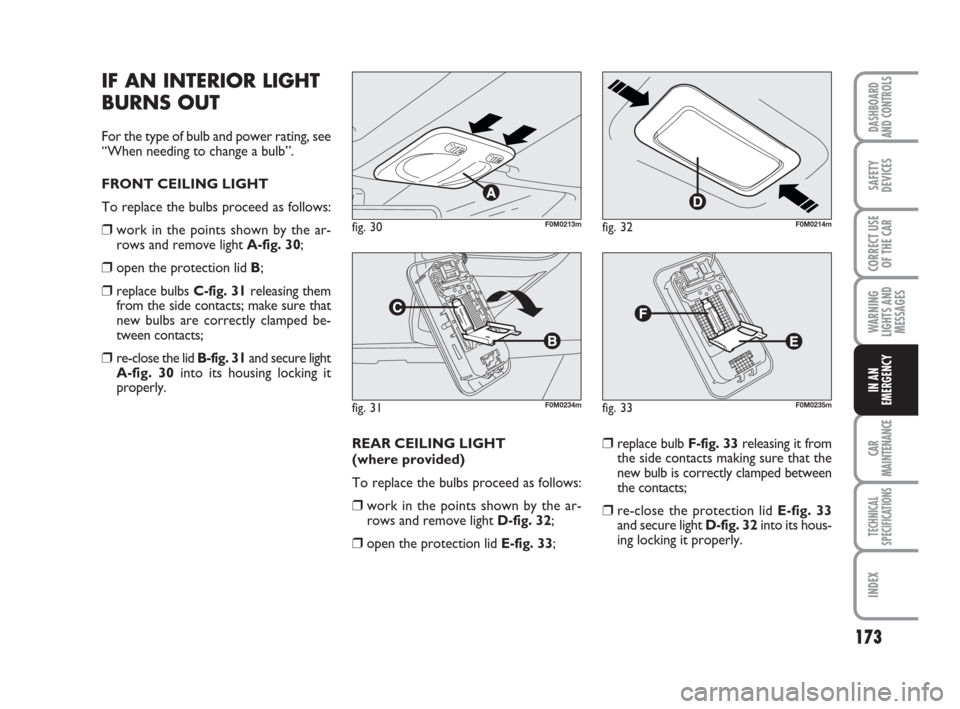

IF AN INTERIOR LIGHT
BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.
FRONT CEILING LIGHT
To replace the bulbs proceed as follows:
❒work in the points shown by the ar-
rows and remove light A-fig. 30;
❒open the protection lid B;
❒replace bulbs C-fig. 31releasing them
from the side contacts; make sure that
new bulbs are correctly clamped be-
tween contacts;
❒re-close the lid B-fig. 31and secure light
A-fig. 30into its housing locking it
properly.
REAR CEILING LIGHT
(where provided)
To replace the bulbs proceed as follows:
❒work in the points shown by the ar-
rows and remove light D-fig. 32;
❒open the protection lid E-fig. 33;
❒replace bulb F-fig. 33releasing it from
the side contacts making sure that the
new bulb is correctly clamped between
the contacts;
❒re-close the protection lid E-fig. 33
and secure light D-fig. 32into its hous-
ing locking it properly.
fig. 30F0M0213m
fig. 31F0M0234m
fig. 32F0M0214m
fig. 33F0M0235m
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 173

174
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

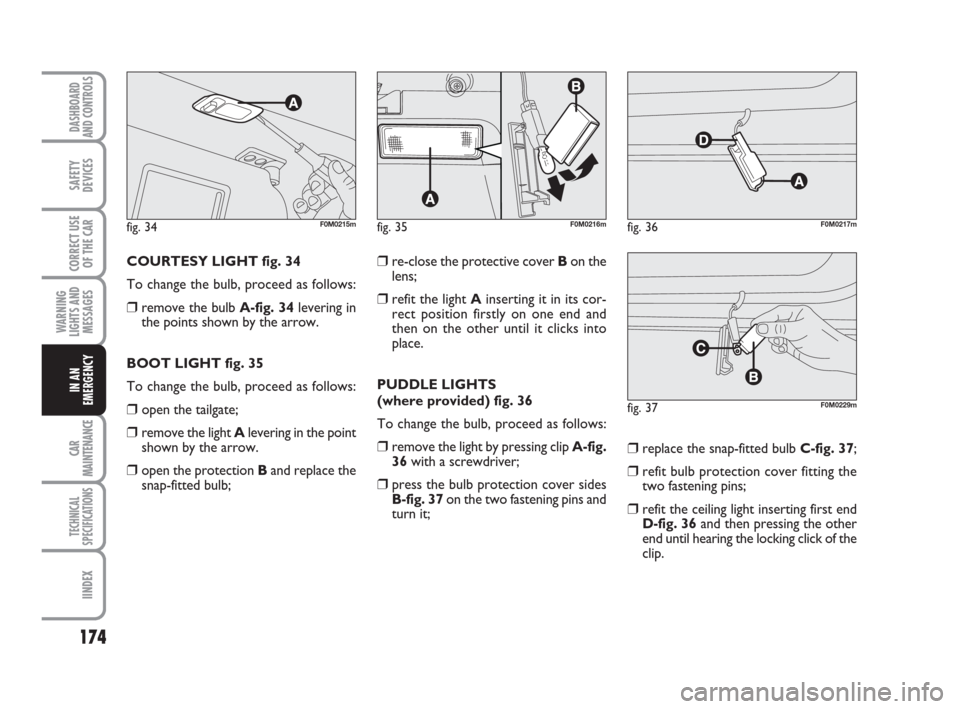

COURTESY LIGHT fig. 34
To change the bulb, proceed as follows:
❒remove the bulb A-fig. 34levering in
the points shown by the arrow.
BOOT LIGHT fig. 35
To change the bulb, proceed as follows:
❒ open the tailgate;
❒remove the light Alevering in the point
shown by the arrow.
❒open the protection Band replace the
snap-fitted bulb;
❒re-close the protective cover Bon the
lens;
❒refit the light Ainserting it in its cor-
rect position firstly on one end and
then on the other until it clicks into
place.
PUDDLE LIGHTS
(where provided) fig. 36
To change the bulb, proceed as follows:
❒remove the light by pressing clip A-fig.
36with a screwdriver;
❒press the bulb protection cover sides
B-fig. 37on the two fastening pins and
turn it;
❒replace the snap-fitted bulb C-fig. 37;
❒refit bulb protection cover fitting the
two fastening pins;
❒refit the ceiling light inserting first end
D-fig. 36and then pressing the other
end until hearing the locking click of the
clip.
fig. 34F0M0215mfig. 35F0M0216mfig. 36F0M0217m
fig. 37F0M0229m
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 174

175
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

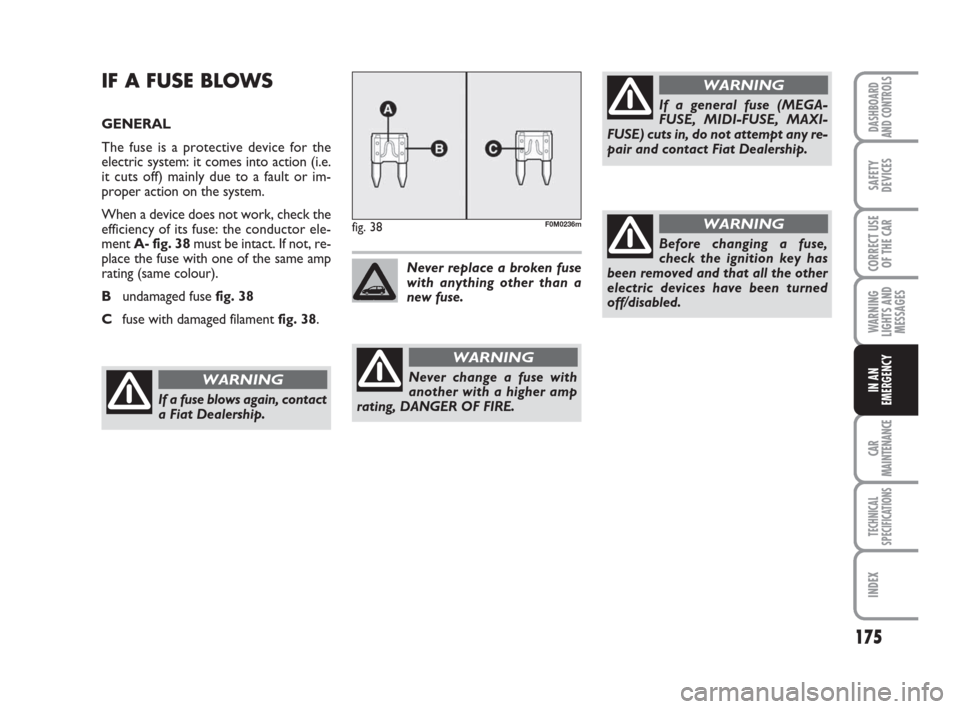

IF A FUSE BLOWS
GENERAL
The fuse is a protective device for the
electric system: it comes into action (i.e.
it cuts off) mainly due to a fault or im-
proper action on the system.
When a device does not work, check the
efficiency of its fuse: the conductor ele-
ment A- fig. 38must be intact. If not, re-
place the fuse with one of the same amp
rating (same colour).
Bundamaged fuse fig. 38
Cfuse with damaged filament fig. 38.
fig. 38F0M0236m
Never change a fuse with
another with a higher amp
rating, DANGER OF FIRE.
WARNING
Never replace a broken fuse
with anything other than a
new fuse.
If a general fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-
FUSE) cuts in, do not attempt any re-
pair and contact Fiat Dealership.
WARNING
If a fuse blows again, contact
a Fiat Dealership.
WARNING
Before changing a fuse,
check the ignition key has
been removed and that all the other
electric devices have been turned
off/disabled.
WARNING
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 175

176
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

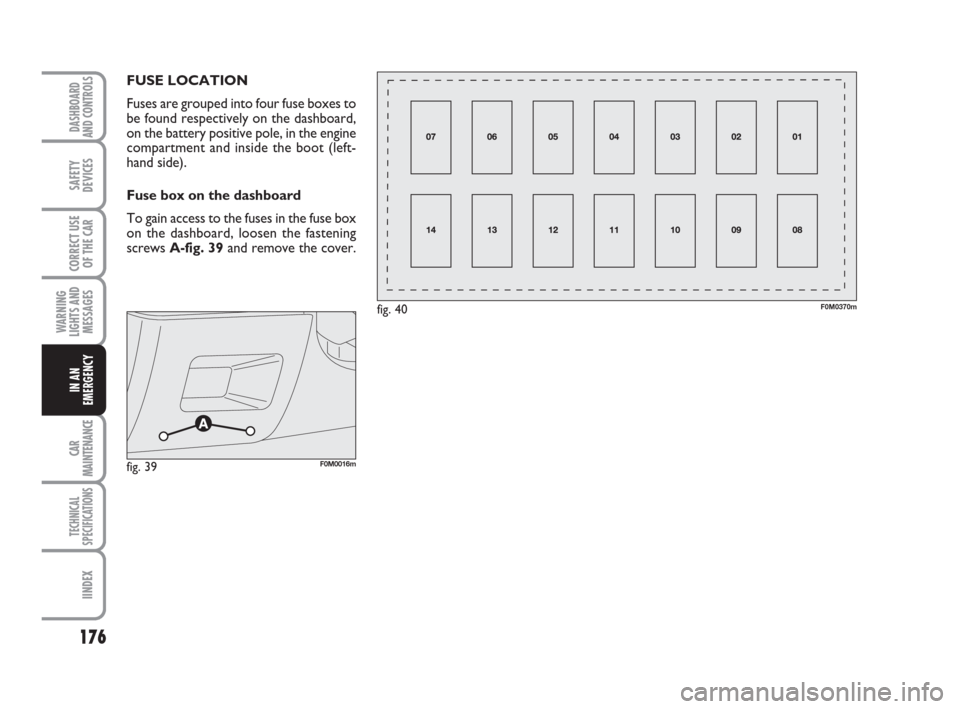

FUSE LOCATION
Fuses are grouped into four fuse boxes to
be found respectively on the dashboard,
on the battery positive pole, in the engine
compartment and inside the boot (left-
hand side).
Fuse box on the dashboard
To gain access to the fuses in the fuse box
on the dashboard, loosen the fastening
screws A-fig. 39and remove the cover.
fig. 40F0M0370m
fig. 39F0M0016m
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 176

177
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

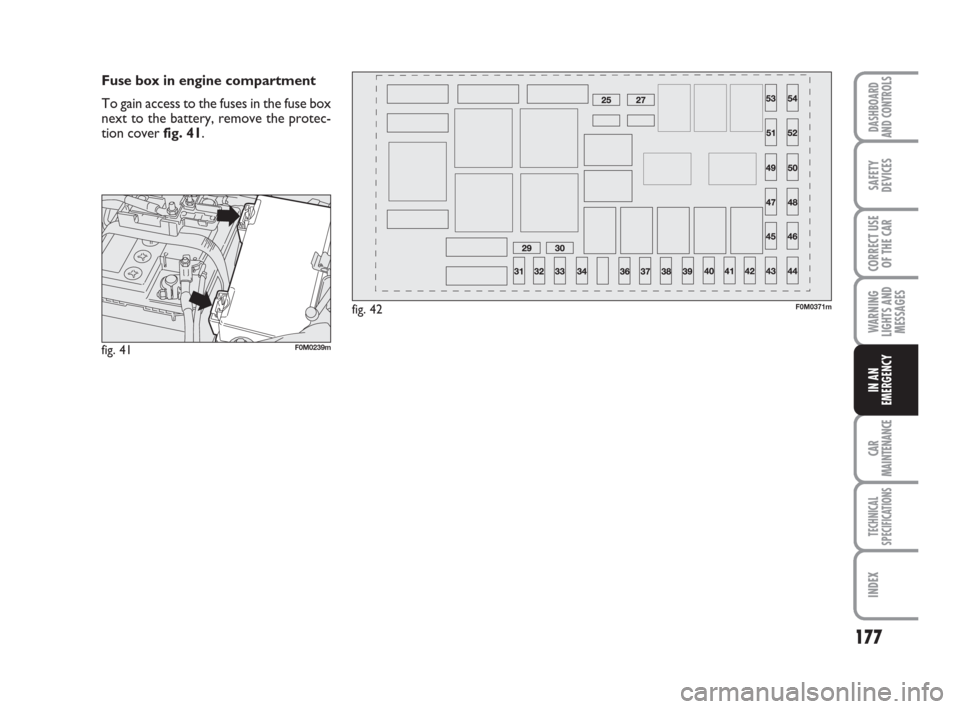

Fuse box in engine compartment
To gain access to the fuses in the fuse box
next to the battery, remove the protec-
tion cover fig. 41.
fig. 41F0M0239m
fig. 42F0M0371m
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 177

178
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

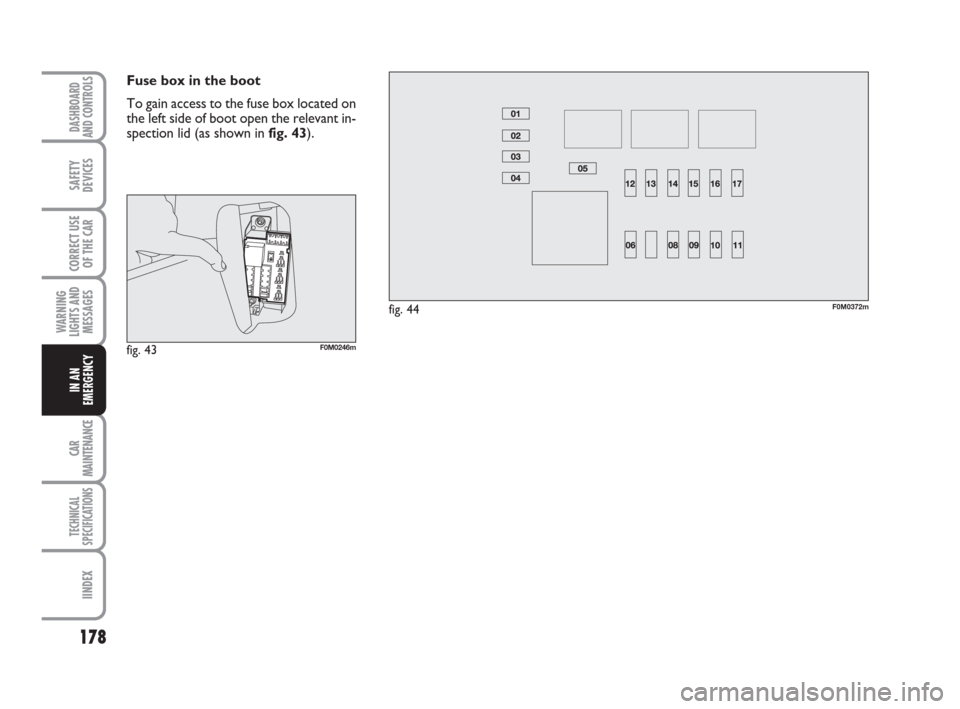

Fuse box in the boot
To gain access to the fuse box located on
the left side of boot open the relevant in-
spection lid (as shown infig. 43).
fig. 44F0M0372m
fig. 43F0M0246m
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 178

179
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
–
10
15
7.5
20
15
20
–
7.5
7.5
7.5
7.5
10 01
02
03
04
05
06
07
08
09
10
11
12
13

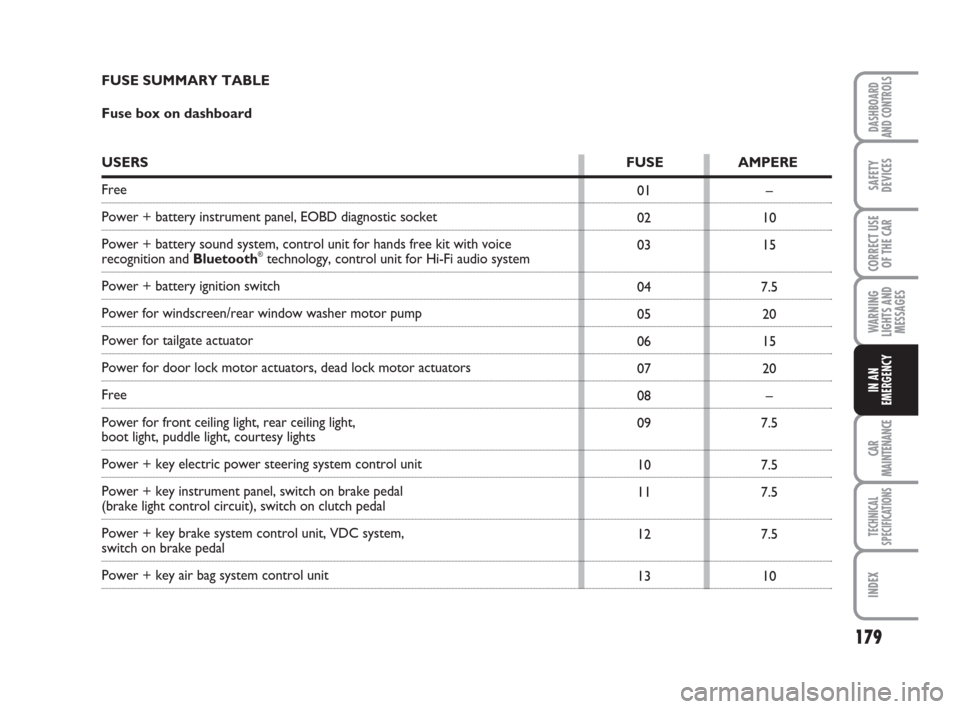

FUSE SUMMARY TABLE
Fuse box on dashboard
USERSFUSE AMPERE
Free
Power + battery instrument panel, EOBD diagnostic socket
Power + battery sound system, control unit for hands free kit with voice
recognition and Bluetooth®technology, control unit for Hi-Fi audio system
Power + battery ignition switch
Power for windscreen/rear window washer motor pump
Power for tailgate actuator
Power for door lock motor actuators, dead lock motor actuators
Free
Power for front ceiling light, rear ceiling light,
boot light, puddle light, courtesy lights
Power + key electric power steering system control unit
Power + key instrument panel, switch on brake pedal
(brake light control circuit), switch on clutch pedal
Power + key brake system control unit, VDC system,
switch on brake pedal
Power + key air bag system control unit
153-188 Punto GDX GB 20-07-2007 9:43 Pagina 179
