FIAT GRANDE PUNTO 2007 199 / 1.G Manual Online

80
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

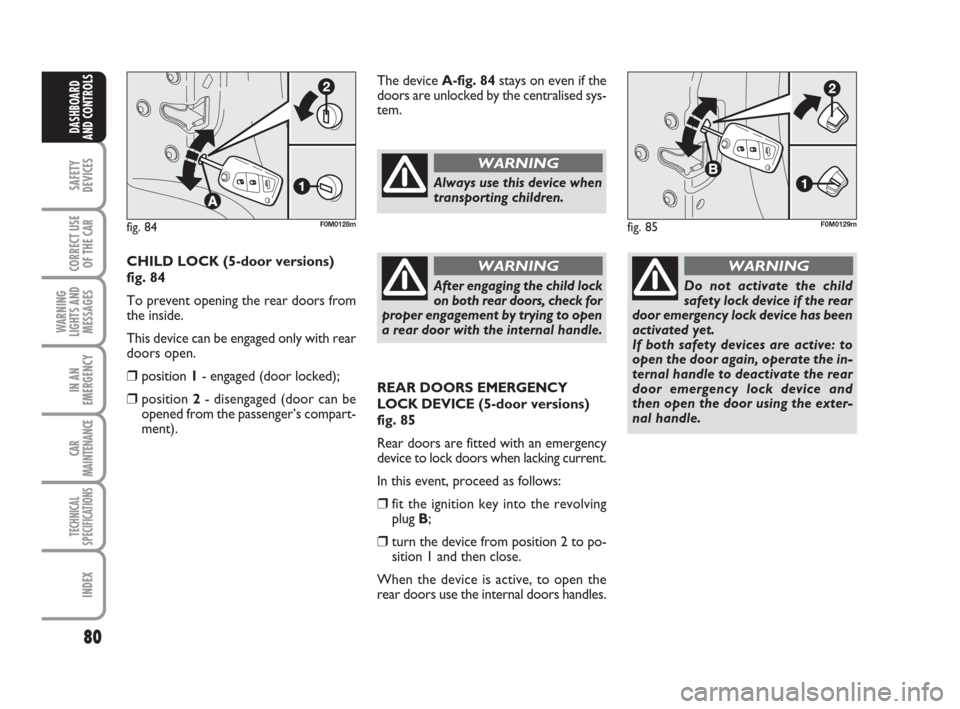

REAR DOORS EMERGENCY
LOCK DEVICE(5-door versions)
fig. 85
Rear doors are fitted with an emergency
device to lock doors when lacking current.
In this event, proceed as follows:
❒fit the ignition key into the revolving
plug B;
❒turn the device from position 2 to po-
sition 1 and then close.
When the device is active, to open the
rear doors use the internal doors handles.
fig. 85F0M0129m
CHILD LOCK (5-door versions)
fig. 84
To prevent opening the rear doors from
the inside.
This device can be engaged only with rear
doors open.
❒position 1- engaged (door locked);
❒position 2- disengaged (door can be
opened from the passenger’s compart-
ment).
fig. 84F0M0128m
The device A-fig. 84stays on even if the
doors are unlocked by the centralised sys-
tem.
Always use this device when
transporting children.
WARNING
After engaging the child lock
on both rear doors, check for
proper engagement by trying to open
a rear door with the internal handle.
WARNING
Do not activate the child
safety lock device if the rear
door emergency lock device has been
activated yet.
If both safety devices are active: to
open the door again, operate the in-
ternal handle to deactivate the rear
door emergency lock device and
then open the door using the exter-
nal handle.
WARNING
037-088 Punto GDX GB 20-07-2007 9:41 Pagina 80

81
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IIN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

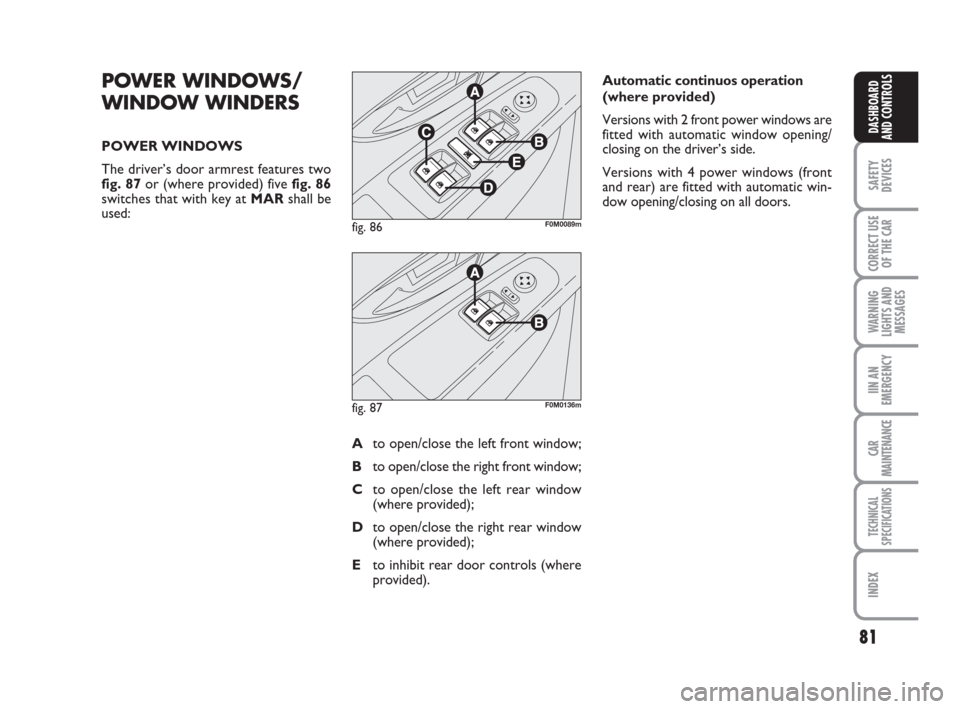

POWER WINDOWS/
WINDOW WINDERS
POWER WINDOWS
The driver’s door armrest features two
fig. 87or (where provided) five fig. 86
switches that with key at MARshall be
used: Automatic continuos operation
(where provided)
Versions with 2 front power windows are
fitted with automatic window opening/
closing on the driver’s side.
Versions with 4 power windows (front
and rear) are fitted with automatic win-
dow opening/closing on all doors.
fig. 86F0M0089m
fig. 87F0M0136m
Ato open/close the left front window;
Bto open/close the right front window;
Cto open/close the left rear window
(where provided);
Dto open/close the right rear window
(where provided);
Eto inhibit rear door controls (where
provided).
037-088 Punto GDX GB 20-07-2007 9:41 Pagina 81

82
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

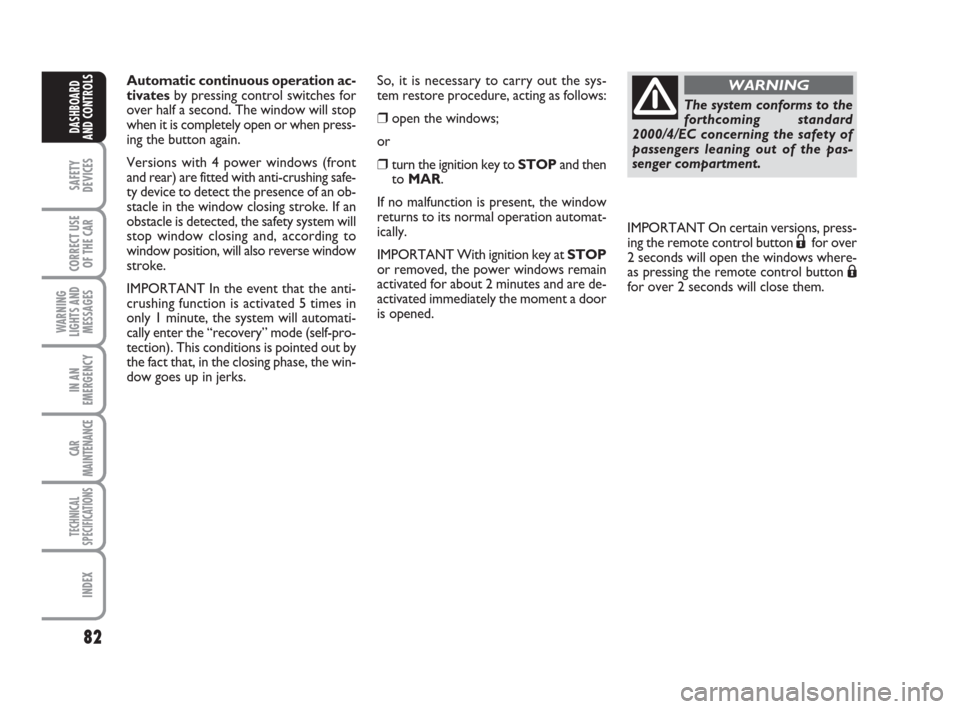

Automatic continuous operation ac-
tivatesby pressing control switches for
over half a second. The window will stop
when it is completely open or when press-
ing the button again.
Versions with 4 power windows (front
and rear) are fitted with anti-crushing safe-
ty device to detect the presence of an ob-
stacle in the window closing stroke. If an
obstacle is detected, the safety system will
stop window closing and, according to
window position, will also reverse window
stroke.
IMPORTANT In the event that the anti-
crushing function is activated 5 times in
only 1 minute, the system will automati-
cally enter the “recovery” mode (self-pro-
tection). This conditions is pointed out by
the fact that, in the closing phase, the win-
dow goes up in jerks.
The system conforms to the
forthcoming standard
2000/4/EC concerning the safety of
passengers leaning out of the pas-
senger compartment.
WARNINGSo, it is necessary to carry out the sys-
tem restore procedure, acting as follows:
❒open the windows;
or
❒turn the ignition key to STOPand then
to MAR.
If no malfunction is present, the window
returns to its normal operation automat-
ically.
IMPORTANT With ignition key at STOP
or removed, the power windows remain
activated for about 2 minutes and are de-
activated immediately the moment a door
is opened.IMPORTANT On certain versions, press-
ing the remote control button
Ëfor over
2 seconds will open the windows where-
as pressing the remote control button
Áfor over 2 seconds will close them.
037-088 Punto GDX GB 20-07-2007 9:41 Pagina 82

83
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IIN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

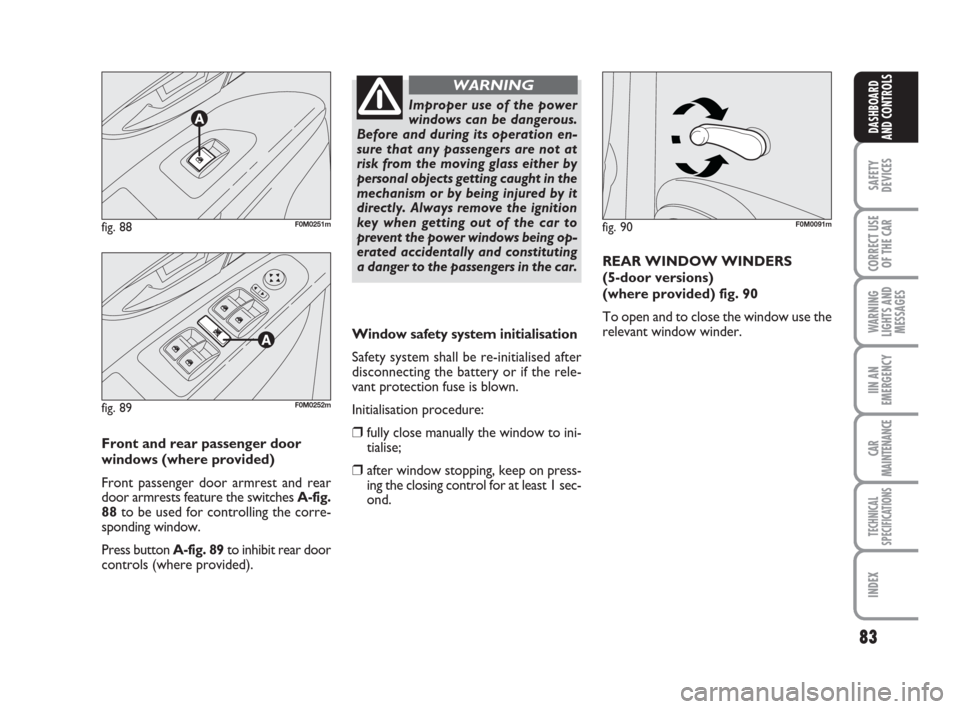

Window safety system initialisation
Safety system shall be re-initialised after
disconnecting the battery or if the rele-
vant protection fuse is blown.
Initialisation procedure:
❒fully close manually the window to ini-
tialise;
❒after window stopping, keep on press-
ing the closing control for at least 1 sec-
ond.
Improper use of the power
windows can be dangerous.
Before and during its operation en-
sure that any passengers are not at
risk from the moving glass either by
personal objects getting caught in the
mechanism or by being injured by it
directly. Always remove the ignition
key when getting out of the car to
prevent the power windows being op-
erated accidentally and constituting
a danger to the passengers in the car.
WARNING
Front and rear passenger door
windows (where provided)
Front passenger door armrest and rear
door armrests feature the switches A-fig.
88to be used for controlling the corre-
sponding window.
Press button A-fig. 89to inhibit rear door
controls (where provided).REAR WINDOW WINDERS
(5-door versions)
(where provided) fig. 90
To open and to close the window use the
relevant window winder.
fig. 90F0M0091mfig. 88F0M0251m
fig. 89F0M0252m
037-088 Punto GDX GB 20-07-2007 9:41 Pagina 83

84
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 94F0M0095m

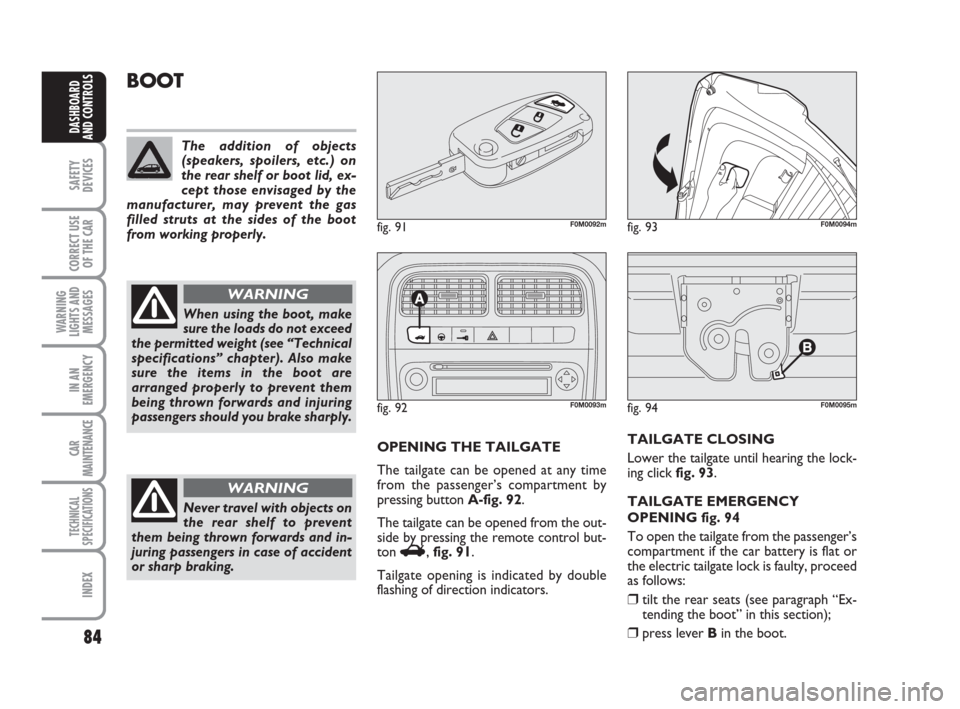

BOOT
OPENING THE TAILGATE
The tailgate can be opened at any time
from the passenger’s compartment by
pressing button A-fig. 92.
The tailgate can be opened from the out-
side by pressing the remote control but-
ton
R, fig. 91.
Tailgate opening is indicated by double
flashing of direction indicators.TAILGATE CLOSING
Lower the tailgate until hearing the lock-
ing click fig. 93.
TAILGATE EMERGENCY
OPENING fig. 94
To open the tailgate from the passenger’s
compartment if the car battery is flat or
the electric tailgate lock is faulty, proceed
as follows:
❒tilt the rear seats (see paragraph “Ex-
tending the boot” in this section);
❒press lever Bin the boot.
fig. 91F0M0092m
fig. 92F0M0093m
fig. 93F0M0094m
The addition of objects
(speakers, spoilers, etc.) on
the rear shelf or boot lid, ex-
cept those envisaged by the
manufacturer, may prevent the gas
filled struts at the sides of the boot
from working properly.
When using the boot, make
sure the loads do not exceed
the permitted weight (see “Technical
specifications” chapter). Also make
sure the items in the boot are
arranged properly to prevent them
being thrown forwards and injuring
passengers should you brake sharply.
WARNING
Never travel with objects on
the rear shelf to prevent
them being thrown forwards and in-
juring passengers in case of accident
or sharp braking.
WARNING
037-088 Punto GDX GB 20-07-2007 9:41 Pagina 84

85
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IIN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

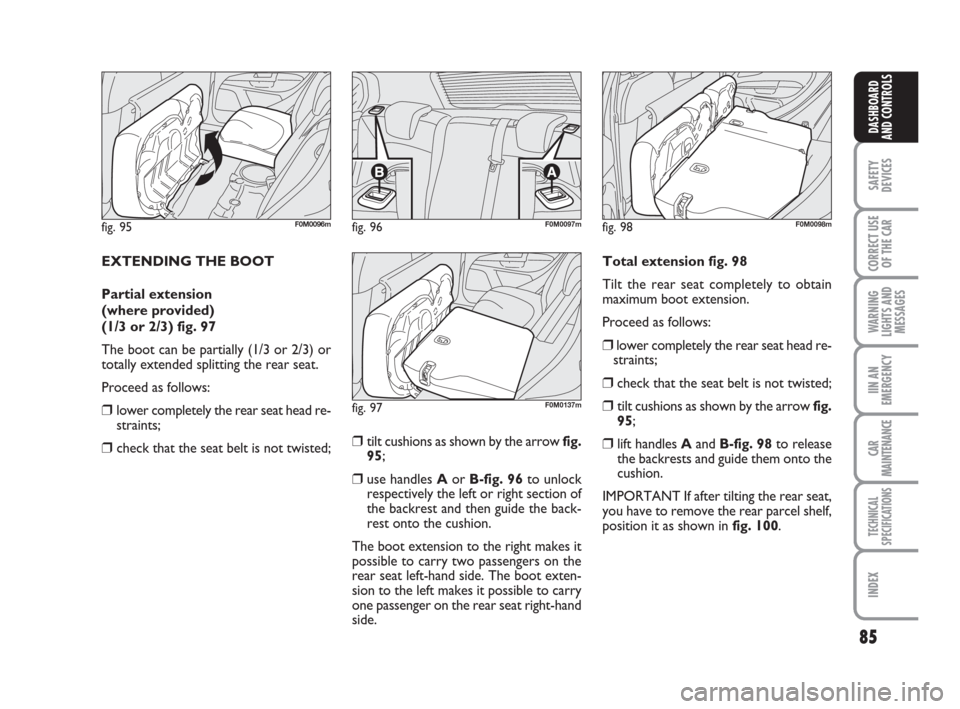

EXTENDING THE BOOT
Partial extension
(where provided)
(1/3 or 2/3) fig. 97
The boot can be partially (1/3 or 2/3) or
totally extended splitting the rear seat.
Proceed as follows:
❒lower completely the rear seat head re-
straints;
❒ check that the seat belt is not twisted;❒tilt cushions as shown by the arrow fig.
95;
❒use handles Aor B-fig. 96to unlock
respectively the left or right section of
the backrest and then guide the back-
rest onto the cushion.
The boot extension to the right makes it
possible to carry two passengers on the
rear seat left-hand side. The boot exten-
sion to the left makes it possible to carry
one passenger on the rear seat right-hand
side.
fig. 95 F0M0096mfig. 96F0M0097m
fig. 97F0M0137m
Total extension fig. 98
Tilt the rear seat completely to obtain
maximum boot extension.
Proceed as follows:
❒lower completely the rear seat head re-
straints;
❒check that the seat belt is not twisted;
❒tilt cushions as shown by the arrow fig.
95;
❒lift handles Aand B-fig. 98to release
the backrests and guide them onto the
cushion.
IMPORTANT If after tilting the rear seat,
you have to remove the rear parcel shelf,
position it as shown in fig. 100.
fig. 98F0M0098m
037-088 Punto GDX GB 20-07-2007 9:41 Pagina 85

86
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 101F0M0101m
fig. 100F0M0099mfig. 99F0M0221mfig. 102F0M0222m

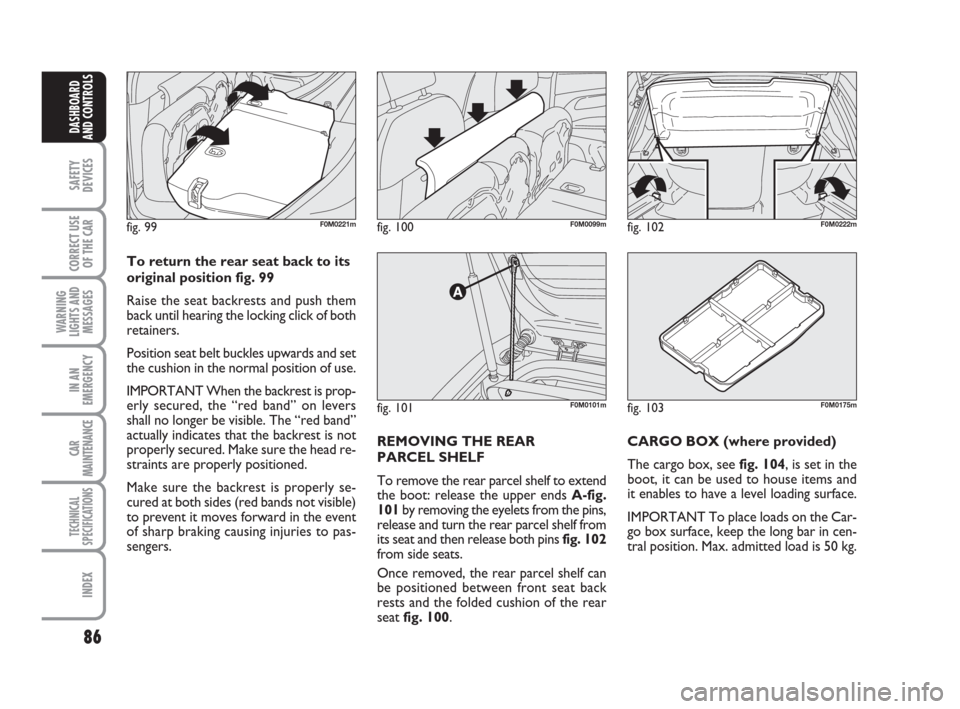

REMOVING THE REAR
PARCEL SHELF
To remove the rear parcel shelf to extend
the boot: release the upper ends A-fig.
101by removing the eyelets from the pins,
release and turn the rear parcel shelf from
its seat and then release both pins fig. 102
from side seats.
Once removed, the rear parcel shelf can
be positioned between front seat back
rests and the folded cushion of the rear
seat fig. 100.CARGO BOX (where provided)
The cargo box, see fig. 104, is set in the
boot, it can be used to house items and
it enables to have a level loading surface.
IMPORTANT To place loads on the Car-
go box surface, keep the long bar in cen-
tral position. Max. admitted load is 50 kg. To return the rear seat back to its
original position fig. 99
Raise the seat backrests and push them
back until hearing the locking click of both
retainers.
Position seat belt buckles upwards and set
the cushion in the normal position of use.
IMPORTANT When the backrest is prop-
erly secured, the “red band” on levers
shall no longer be visible. The “red band”
actually indicates that the backrest is not
properly secured. Make sure the head re-
straints are properly positioned.
Make sure the backrest is properly se-
cured at both sides (red bands not visible)
to prevent it moves forward in the event
of sharp braking causing injuries to pas-
sengers.
fig. 103F0M0175m
037-088 Punto GDX GB 20-07-2007 9:41 Pagina 86

87
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IIN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

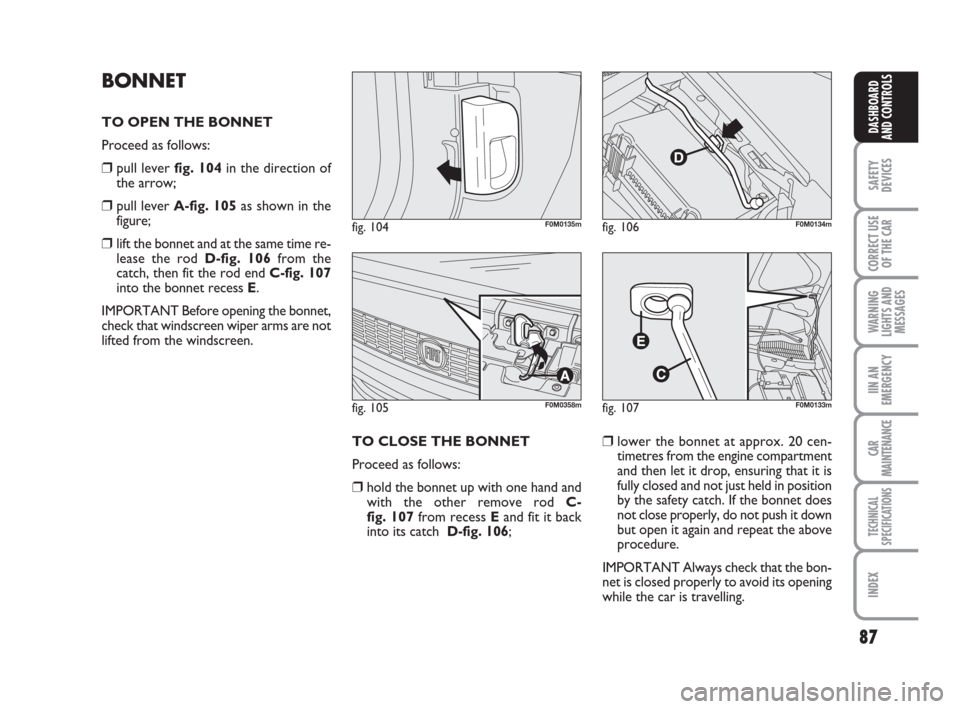

TO CLOSE THE BONNET
Proceed as follows:
❒hold the bonnet up with one hand and
with the other remove rod C-
fig. 107 from recess Eand fit it back
into its catch D-fig. 106;
BONNET
TO OPEN THE BONNET
Proceed as follows:
❒pull lever fig. 104in the direction of
the arrow;
❒pull lever A-fig. 105as shown in the
figure;
❒lift the bonnet and at the same time re-
lease the rod D-fig. 106from the
catch, then fit the rod end C-fig. 107
into the bonnet recess E.
IMPORTANT Before opening the bonnet,
check that windscreen wiper arms are not
lifted from the windscreen.
❒lower the bonnet at approx. 20 cen-
timetres from the engine compartment
and then let it drop, ensuring that it is
fully closed and not just held in position
by the safety catch. If the bonnet does
not close properly, do not push it down
but open it again and repeat the above
procedure.
IMPORTANT Always check that the bon-
net is closed properly to avoid its opening
while the car is travelling.
fig. 104F0M0135m
fig. 105F0M0358m
fig. 106F0M0134m
fig. 107F0M0133m
037-088 Punto GDX GB 20-07-2007 9:41 Pagina 87

88
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

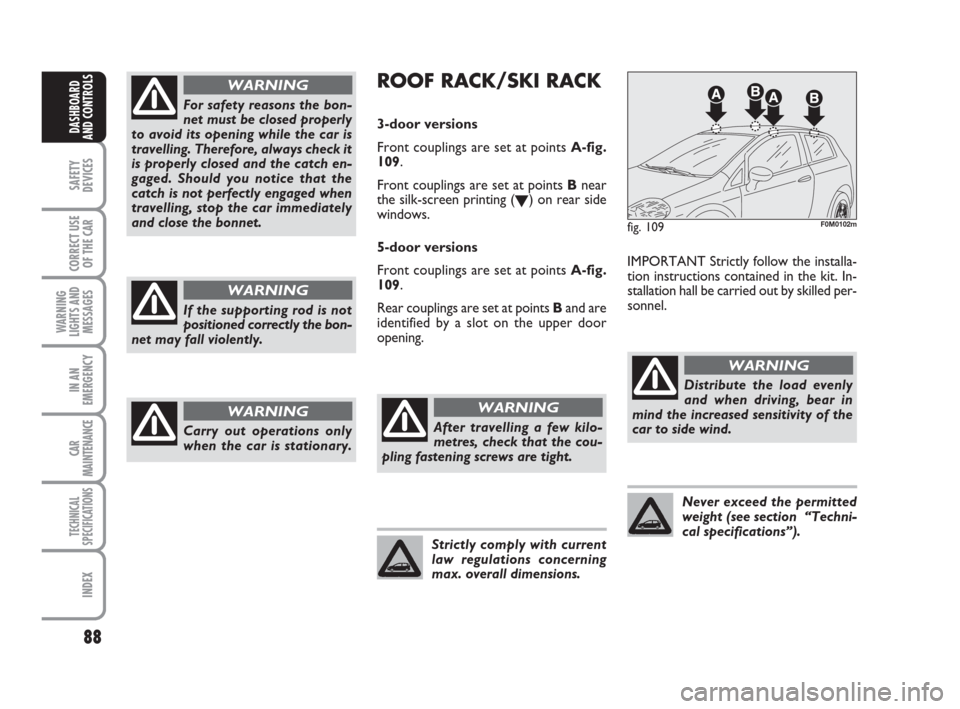

For safety reasons the bon-
net must be closed properly
to avoid its opening while the car is
travelling. Therefore, always check it
is properly closed and the catch en-
gaged. Should you notice that the
catch is not perfectly engaged when
travelling, stop the car immediately
and close the bonnet.
WARNING
If the supporting rod is not
positioned correctly the bon-
net may fall violently.
WARNING
Carry out operations only
when the car is stationary.
WARNING
ROOF RACK/SKI RACK
3-door versions
Front couplings are set at points A-fig.
109.
Front couplings are set at points Bnear
the silk-screen printing (
O) on rear side
windows.
5-door versions
Front couplings are set at points A-fig.
109.
Rear couplings are set at points Band are
identified by a slot on the upper door
opening.IMPORTANT Strictly follow the installa-
tion instructions contained in the kit. In-
stallation hall be carried out by skilled per-
sonnel.
fig. 109F0M0102m
After travelling a few kilo-
metres, check that the cou-
pling fastening screws are tight.
WARNING
Strictly comply with current
law regulations concerning
max. overall dimensions.
Distribute the load evenly
and when driving, bear in
mind the increased sensitivity of the
car to side wind.
WARNING
Never exceed the permitted
weight (see section “Techni-
cal specifications”).
037-088 Punto GDX GB 20-07-2007 9:41 Pagina 88

89
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IIN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

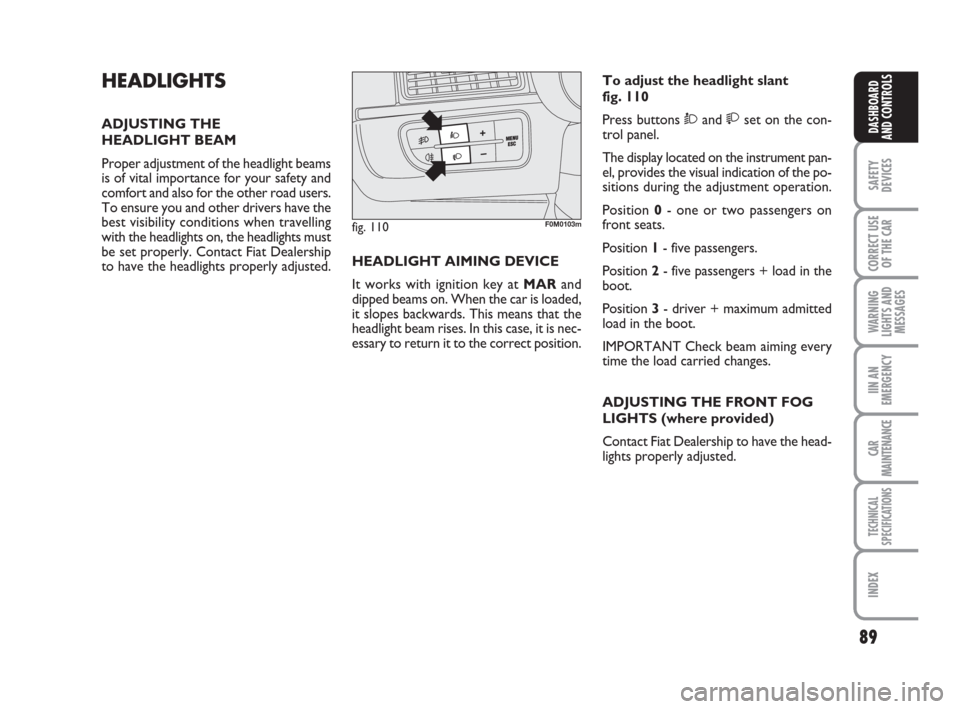

HEADLIGHTS
ADJUSTING THE
HEADLIGHT BEAM
Proper adjustment of the headlight beams
is of vital importance for your safety and
comfort and also for the other road users.
To ensure you and other drivers have the
best visibility conditions when travelling
with the headlights on, the headlights must
be set properly. Contact Fiat Dealership
to have the headlights properly adjusted.HEADLIGHT AIMING DEVICE
It works with ignition key at MARand
dipped beams on. When the car is loaded,
it slopes backwards. This means that the
headlight beam rises. In this case, it is nec-
essary to return it to the correct position.To adjust the headlight slant
fig. 110
Press buttons Òand set on the con-
trol panel.
The display located on the instrument pan-
el, provides the visual indication of the po-
sitions during the adjustment operation.
Position 0- one or two passengers on
front seats.
Position 1- five passengers.
Position 2- five passengers + load in the
boot.
Position 3- driver + maximum admitted
load in the boot.
IMPORTANT Check beam aiming every
time the load carried changes.
ADJUSTING THE FRONT FOG
LIGHTS (where provided)
Contact Fiat Dealership to have the head-
lights properly adjusted.
fig. 110F0M0103m
089-108 Punto GDX GB 20-07-2007 9:41 Pagina 89
