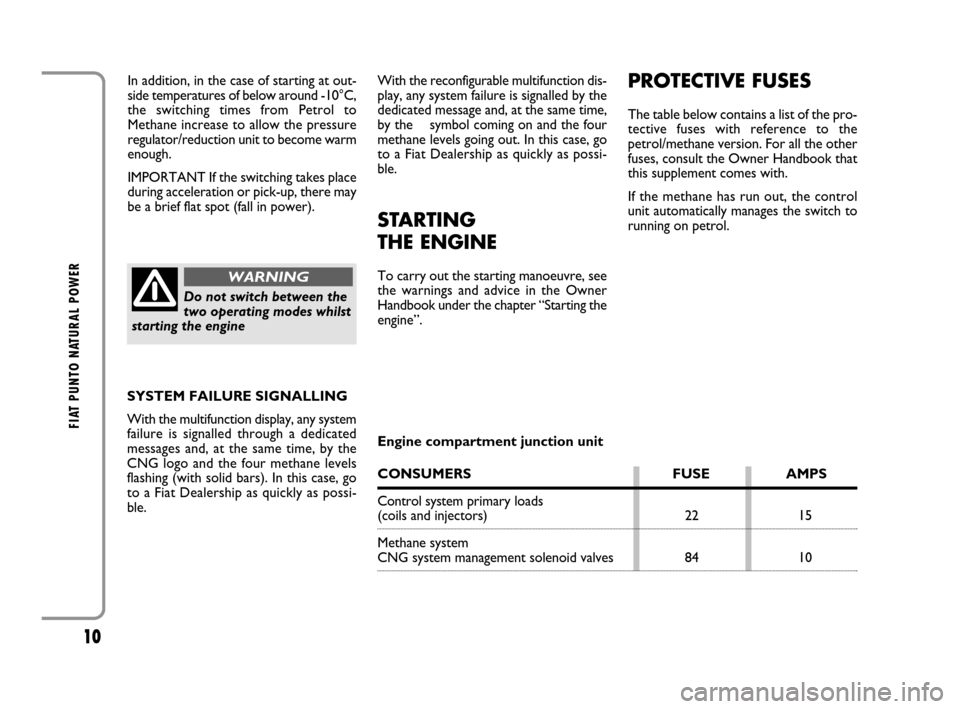

10
FIAT PUNTO NATURAL POWER
Do not switch between the
two operating modes whilst
starting the engine
WARNING
In addition, in the case of starting at out-
side temperatures of below around -10°C,
the switching times from Petrol to
Methane increase to allow the pressure
regulator/reduction unit to become warm
enough.
IMPORTANT If the switching takes place
during acceleration or pick-up, there may
be a brief flat spot (fall in power).With the reconfigurable multifunction dis-
play, any system failure is signalled by the
dedicated message and, at the same time,
by the symbol coming on and the four
methane levels going out. In this case, go
to a Fiat Dealership as quickly as possi-
ble.
STARTING
THE ENGINE
To carry out the starting manoeuvre, see
the warnings and advice in the Owner
Handbook under the chapter “Starting the
engine”.
PROTECTIVE FUSES
The table below contains a list of the pro-
tective fuses with reference to the
petrol/methane version. For all the other
fuses, consult the Owner Handbook that
this supplement comes with.
If the methane has run out, the control
unit automatically manages the switch to
running on petrol.
Engine compartment junction unit
CONSUMERS FUSE AMPS
Control systemprimary loads
(coils and injectors)
Methane system
CNG system management solenoid valves 22
8415
10 SYSTEM FAILURE SIGNALLING
With the multifunction display, any system
failure is signalled through a dedicated
messages and, at the same time, by the
CNG logo and the four methane levels
flashing (with solid bars). In this case, go
to a Fiat Dealership as quickly as possi-
ble.
