FIAT GRANDE PUNTO ACTUAL 2014 1.G Owners Manual
Manufacturer: FIAT, Model Year: 2014, Model line: GRANDE PUNTO ACTUAL, Model: FIAT GRANDE PUNTO ACTUAL 2014 1.GPages: 216, PDF Size: 3.66 MB
Page 101 of 216
100
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY
Do not place a cradle seat
facing backwards on the
front seat if the passenger side airbag
is enabled. Deployment of the airbag
in an accident could cause fatal in-
juries to the baby regardless of the
severity of the collision. It is advisable
to always carry children in dedicat-
ed child seats on the rear seat, which
is the most protected position in the
event of an accident.
WARNING
SERIOUS HAZARD Should
it be absolutely necessary to
carry a child on the front
seat in a backwards-facing
cradle seat, the passenger’s
front and side airbags should
be deactivated through the setup
menu. Deactivation can be verified by
checking the
“warning light on the
instrument panel. Also, the passen-
ger seat should be as far back as pos-
sible to avoid contact between the
child seat and the dashboard.
WARNING
fig. 8F0M0046mfig. 9F0M0504m
The diagram is only an indi-
cation. For assembly, refer to
the instructions supplied with the
child seat.
WARNING

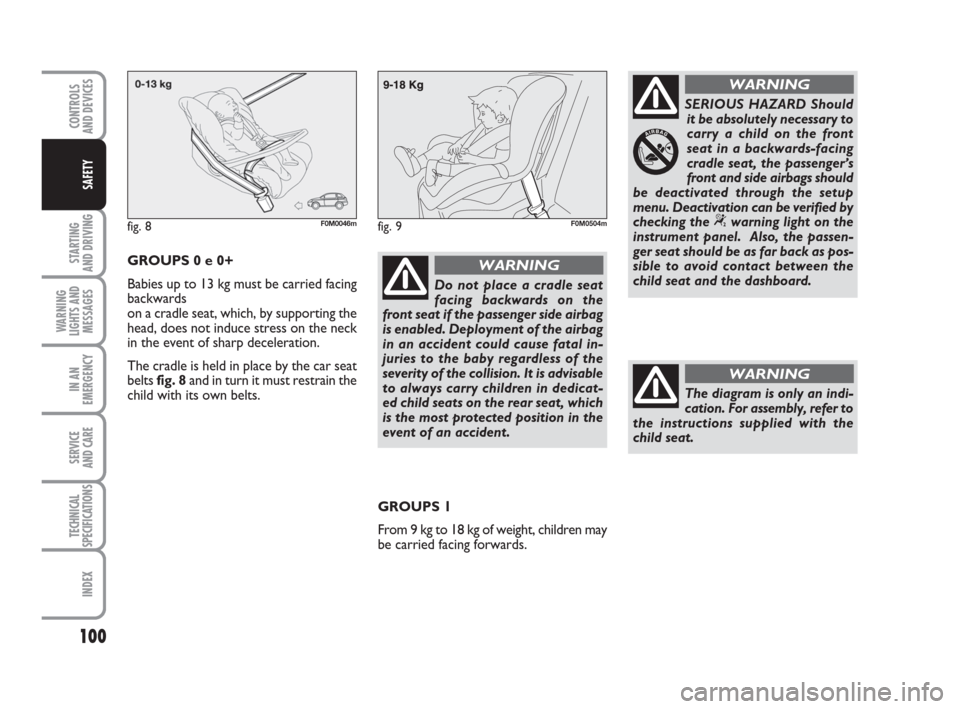

GROUPS 0 e 0+
Babies up to 13 kg must be carried facing
backwards
on a cradle seat, which, by supporting the
head, does not induce stress on the neck
in the event of sharp deceleration.
The cradle is held in place by the car seat
belts fig. 8and in turn it must restrain the
child with its own belts.
GROUPS 1
From 9 kg to 18 kg of weight, children may
be carried facing forwards.
093-110 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 100
Page 102 of 216
101
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY
fig. 10F0M0048m

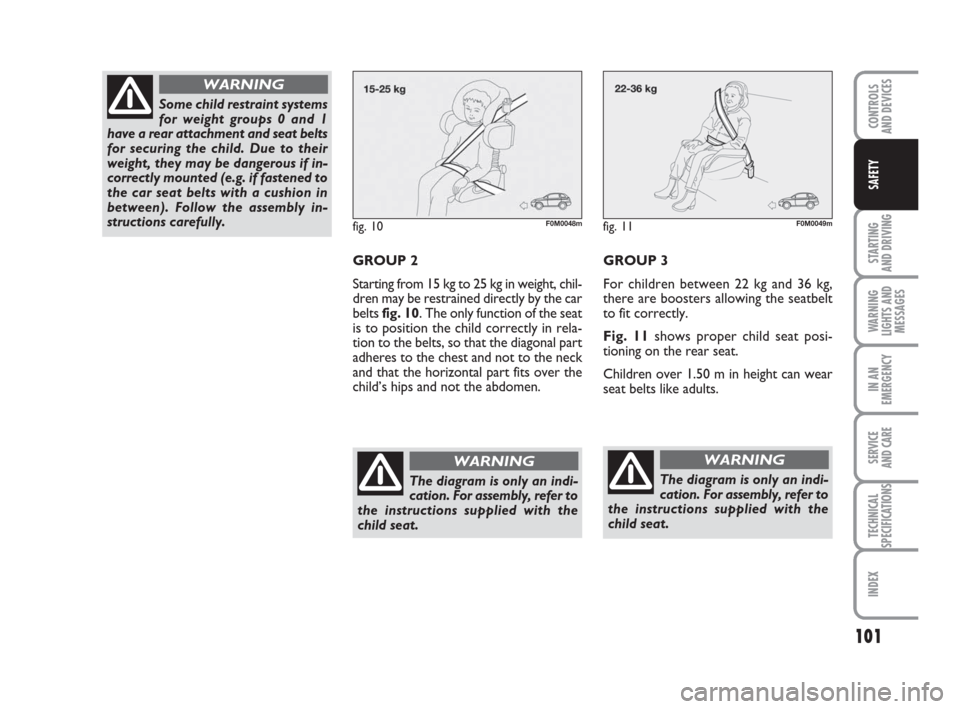

GROUP 2
Starting from 15 kg to 25 kg in weight, chil-
dren may be restrained directly by the car
belts fig. 10. The only function of the seat
is to position the child correctly in rela-
tion to the belts, so that the diagonal part
adheres to the chest and not to the neck
and that the horizontal part fits over the
child’s hips and not the abdomen.
The diagram is only an indi-
cation. For assembly, refer to
the instructions supplied with the
child seat.
WARNING
Some child restraint systems
for weight groups 0 and 1
have a rear attachment and seat belts
for securing the child. Due to their
weight, they may be dangerous if in-
correctly mounted (e.g. if fastened to
the car seat belts with a cushion in
between). Follow the assembly in-
structions carefully.
WARNING
GROUP 3
For children between 22 kg and 36 kg,
there are boosters allowing the seatbelt
to fit correctly.
Fig. 11shows proper child seat posi-
tioning on the rear seat.
Children over 1.50 m in height can wear
seat belts like adults.
fig. 11F0M0049m
The diagram is only an indi-
cation. For assembly, refer to
the instructions supplied with the
child seat.
WARNING
093-110 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 101
Page 103 of 216
102
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY

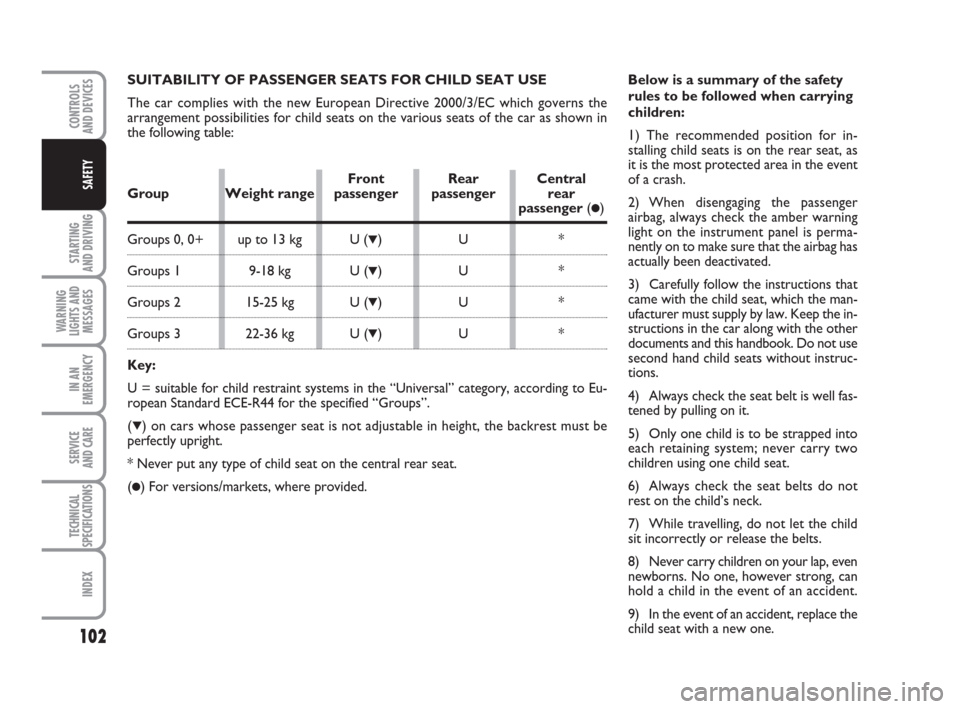

SUITABILITY OF PASSENGER SEATS FOR CHILD SEAT USE
The car complies with the new European Directive 2000/3/EC which governs the
arrangement possibilities for child seats on the various seats of the car as shown in
the following table:Below is a summary of the safety
rules to be followed when carrying
children:
1) The recommended position for in-
stalling child seats is on the rear seat, as
it is the most protected area in the event
of a crash.
2) When disengaging the passenger
airbag, always check the amber warning
light on the instrument panel is perma-
nently on to make sure that the airbag has
actually been deactivated.
3) Carefully follow the instructions that
came with the child seat, which the man-
ufacturer must supply by law. Keep the in-
structions in the car along with the other
documents and this handbook. Do not use
second hand child seats without instruc-
tions.
4) Always check the seat belt is well fas-
tened by pulling on it.
5) Only one child is to be strapped into
each retaining system; never carry two
children using one child seat.
6) Always check the seat belts do not
rest on the child’s neck.
7) While travelling, do not let the child
sit incorrectly or release the belts.
8) Never carry children on your lap, even
newborns. No one, however strong, can
hold a child in the event of an accident.
9) In the event of an accident, replace the
child seat with a new one.
Front Rear Central
Group Weight range passenger passenger rear
passenger (●)
Groups 0, 0+ up to 13 kg U (▼)U *
Groups 1 9-18 kg U (▼)U *
Groups 2 15-25 kg U (▼)U *
Groups 3 22-36 kg U (▼)U *
Key:
U = suitable for child restraint systems in the “Universal” category, according to Eu-
ropean Standard ECE-R44 for the specified “Groups”.
(
▼) on cars whose passenger seat is not adjustable in height, the backrest must be
perfectly upright.
* Never put any type of child seat on the central rear seat.
(
●) For versions/markets, where provided.
093-110 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 102
Page 104 of 216
103
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY
Do not place a child seat
facing backwards on the
front seat if the passenger side airbag
is enabled. Deployment of the airbag
in an accident could cause fatal in-
juries to the baby regardless of the
severity of the collision. It is advisable
to always carry children in a child seat
on the rear seat, which is the most
protected position in the event of a
collision.
WARNING“UNIVERSAL ISOFIX”
CHILD RESTRAINT
ASSEMBLY SETUP
(for versions/markets, where provided)
The car is provisioned for a Universal
Isofix child restraint, a new European stan-
dardised system for carrying children safe-
ly. An example of such a seat is shown in
fig. 12. The Universal Isofix child seat cov-
ers weight group 1.
Due to its different attachment system,
the Universal Isofix child seat must be an-
chored to the special low metal rings A-
fig. 13, located between the backrest and
rear cushion. The upper belt (provided
with the child seat) must be then secured
to ring B-fig. 14located on the back of
the backrest at child seat level. It is pos-
sible to have a mixed assembly of the tra-
ditional child seats and the Universal Isofix
ones.
Remember that, in the case of Universal
Isofix child seats, you can use all those
seats bearing the marking ECE R44/03
Universal Isofix.
fig. 12F0M0253m
The Universal Isofix “Duo Plus” child seat
and the special “G 0/1” seat are available
from Lineaccessori Fiat.
For any further details on installation/use,
refer to the instruction manual for the
child seat.
093-110 ACTUAL 1ed EN 10-11-2010 13:02 Pagina 103
Page 105 of 216
104
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY
fig. 13F0M0050m
fig. 14F0M0051m
Fit the child seat when the
car is stationary. The child
seat is correctly anchored to the
brackets when you hear the click. Fol-
low the instructions for assembly, dis-
assembly and positioning that the
child seat manufacturer must supply.
WARNING
E
E
D
C
D
C
B
B1
A

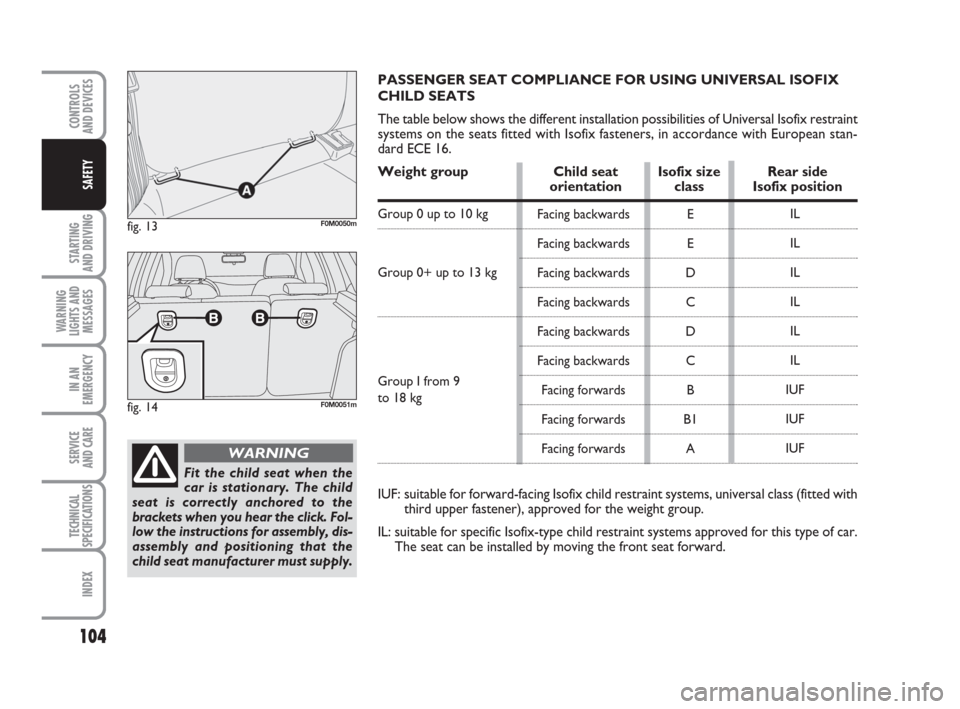

PASSENGER SEAT COMPLIANCE FOR USING UNIVERSAL ISOFIX
CHILD SEATS
The table below shows the different installation possibilities of Universal Isofix restraint
systems on the seats fitted with Isofix fasteners, in accordance with European stan-
dard ECE 16.
Weight group Child seat Isofix size Rear side
orientation class Isofix position
Group 0 up to 10 kg
Group 0+ up to 13 kg
Group I from 9
to 18 kg
IUF: suitable for forward-facing Isofix child restraint systems, universal class (fitted with
third upper fastener), approved for the weight group.
IL: suitable for specific Isofix-type child restraint systems approved for this type of car.
The seat can be installed by moving the front seat forward.
IL
IL
IL
IL
IL
IL
IUF
IUF
IUF Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing backwards
Facing forwards
Facing forwards
Facing forwards
093-110 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 104
Page 106 of 216
105
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY

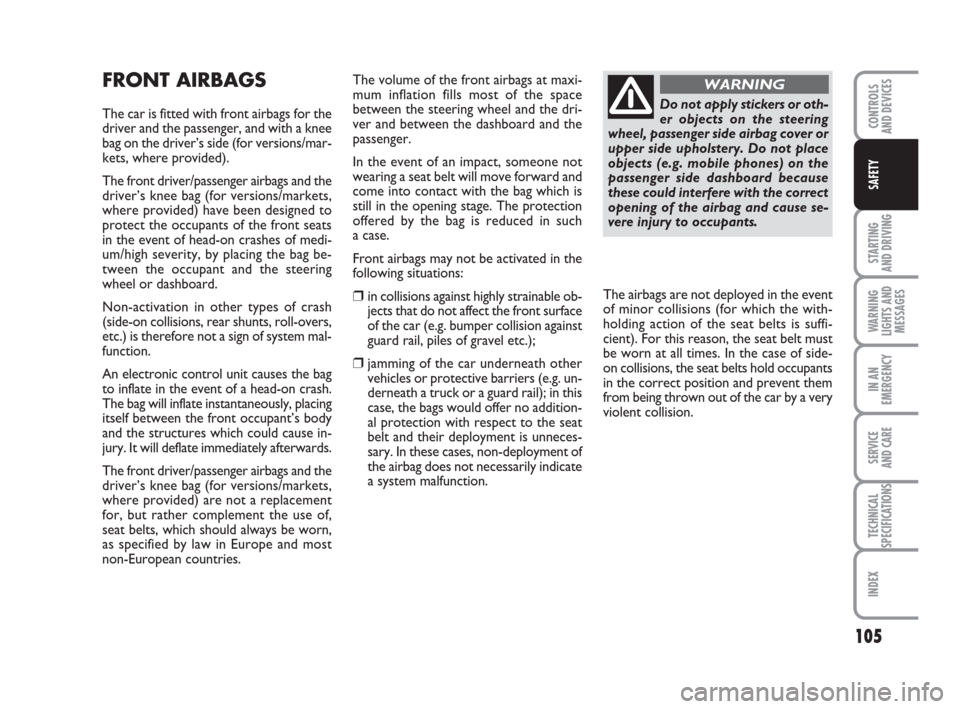

FRONT AIRBAGS
The car is fitted with front airbags for the
driver and the passenger, and with a knee
bag on the driver’s side (for versions/mar -
kets, where provided).
The front driver/passenger airbags and the
driver’s knee bag (for versions/markets,
where provided) have been designed to
protect the occupants of the front seats
in the event of head-on crashes of medi-
um/high severity, by placing the bag be-
tween the occupant and the steering
wheel or dashboard.
Non-activation in other types of crash
(side-on collisions, rear shunts, roll-overs,
etc.) is therefore not a sign of system mal-
function.
An electronic control unit causes the bag
to inflate in the event of a head-on crash.
The bag will inflate instantaneously, placing
itself between the front occupant’s body
and the structures which could cause in-
jury. It will deflate immediately afterwards.
The front driver/passenger airbags and the
driver’s knee bag (for versions/markets,
where provided) are not a replacement
for, but rather complement the use of,
seat belts, which should always be worn,
as specified by law in Europe and most
non-European countries.The volume of the front airbags at maxi-
mum inflation fills most of the space
between the steering wheel and the dri-
ver and between the dashboard and the
passenger.
In the event of an impact, someone not
wearing a seat belt will move forward and
come into contact with the bag which is
still in the opening stage. The protection
offered by the bag is reduced in such
a case.
Front airbags may not be activated in the
following situations:
❒in collisions against highly strainable ob-
jects that do not affect the front surface
of the car (e.g. bumper collision against
guard rail, piles of gravel etc.);
❒jamming of the car underneath other
vehicles or protective barriers (e.g. un-
derneath a truck or a guard rail); in this
case, the bags would offer no addition-
al protection with respect to the seat
belt and their deployment is unneces-
sary. In these cases, non-deployment of
the airbag does not necessarily indicate
a system malfunction.
Do not apply stickers or oth-
er objects on the steering
wheel, passenger side airbag cover or
upper side upholstery. Do not place
objects (e.g. mobile phones) on the
passenger side dashboard because
these could interfere with the correct
opening of the airbag and cause se-
vere injury to occupants.
WARNING
The airbags are not deployed in the event
of minor collisions (for which the with-
holding action of the seat belts is suffi-
cient). For this reason, the seat belt must
be worn at all times. In the case of side-
on collisions, the seat belts hold occupants
in the correct position and prevent them
from being thrown out of the car by a very
violent collision.
093-110 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 105
Page 107 of 216
106
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY

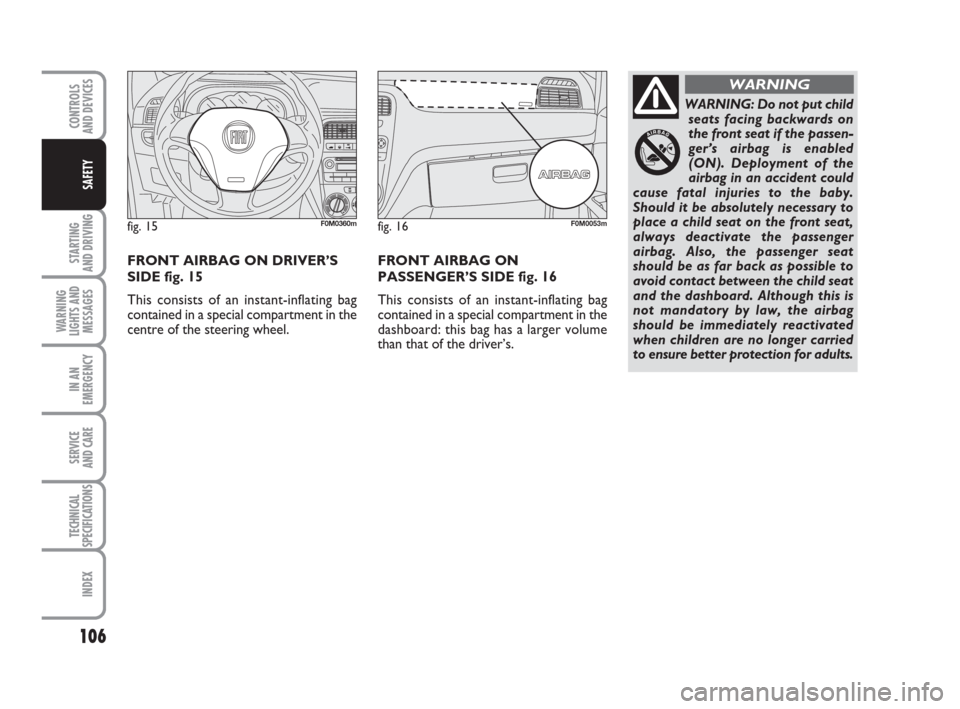

WARNING: Do not put child
seats facing backwards on
the front seat if the passen-
ger’s airbag is enabled
(ON). Deployment of the
airbag in an accident could
cause fatal injuries to the baby.
Should it be absolutely necessary to
place a child seat on the front seat,
always deactivate the passenger
airbag. Also, the passenger seat
should be as far back as possible to
avoid contact between the child seat
and the dashboard. Although this is
not mandatory by law, the airbag
should be immediately reactivated
when children are no longer carried
to ensure better protection for adults.
WARNING
FRONT AIRBAG ON
PASSENGER’S SIDE fig. 16
This consists of an instant-inflating bag
contained in a special compartment in the
dashboard: this bag has a larger volume
than that of the driver’s.
fig. 15F0M0360mfig. 16F0M0053m
FRONT AIRBAG ON DRIVER’S
SIDE fig. 15
This consists of an instant-inflating bag
contained in a special compartment in the
centre of the steering wheel.
093-110 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 106
Page 108 of 216
107
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY

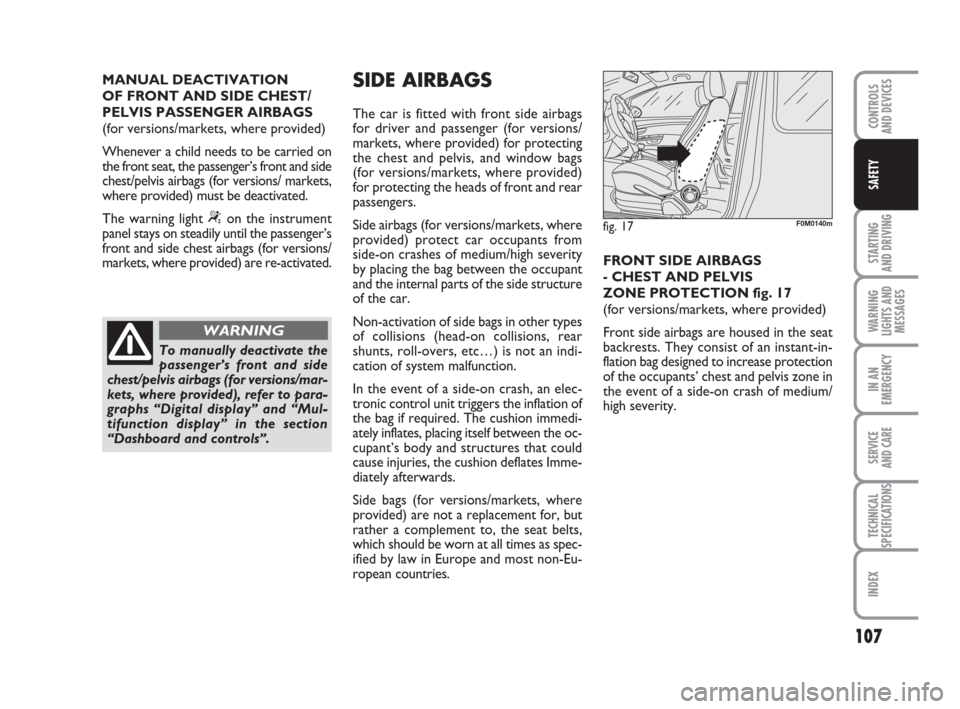

MANUAL DEACTIVATION
OF FRONT AND SIDE CHEST/
PELVIS PASSENGER AIRBAGS
(for versions/markets, where provided)
Whenever a child needs to be carried on
the front seat, the passenger’s front and side
chest/pelvis airbags (for versions/ markets,
where provided) must be deactivated.
The warning light
“on the instrument
panel stays on steadily until the passenger’s
front and side chest airbags (for versions/
markets, where provided) are re-activated.
To manually deactivate the
passenger’s front and side
chest/pelvis airbags (for versions/mar -
kets, where provided), refer to para-
graphs “Digital display” and “Mul -
tifunction display” in the section
“Dashboard and controls”.
WARNING
SIDE AIRBAGS
The car is fitted with front side airbags
for driver and passenger (for versions/
mar kets, where provided) for protecting
the chest and pelvis, and window bags
(for versions/markets, where provided)
for protecting the heads of front and rear
passengers.
Side airbags (for versions/markets, where
provided) protect car occupants from
side-on crashes of medium/high severity
by placing the bag between the occupant
and the internal parts of the side structure
of the car.
Non-activation of side bags in other types
of collisions (head-on collisions, rear
shunts, roll-overs, etc…) is not an indi-
cation of system malfunction.
In the event of a side-on crash, an elec-
tronic control unit triggers the inflation of
the bag if required. The cushion immedi-
ately inflates, placing itself between the oc-
cupant’s body and structures that could
cause injuries, the cushion deflates Imme-
diately afterwards.
Side bags (for versions/markets, where
provided) are not a replacement for, but
rather a complement to, the seat belts,
which should be worn at all times as spec-
ified by law in Europe and most non-Eu-
ropean countries.FRONT SIDE AIRBAGS
- CHEST AND PELVIS
ZONE PROTECTION fig. 17
(for versions/markets, where provided)
Front side airbags are housed in the seat
backrests. They consist of an instant-in-
flation bag designed to increase protection
of the occupants’ chest and pelvis zone in
the event of a side-on crash of medium/
high severity.
fig. 17F0M0140m
093-110 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 107
Page 109 of 216
108
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY

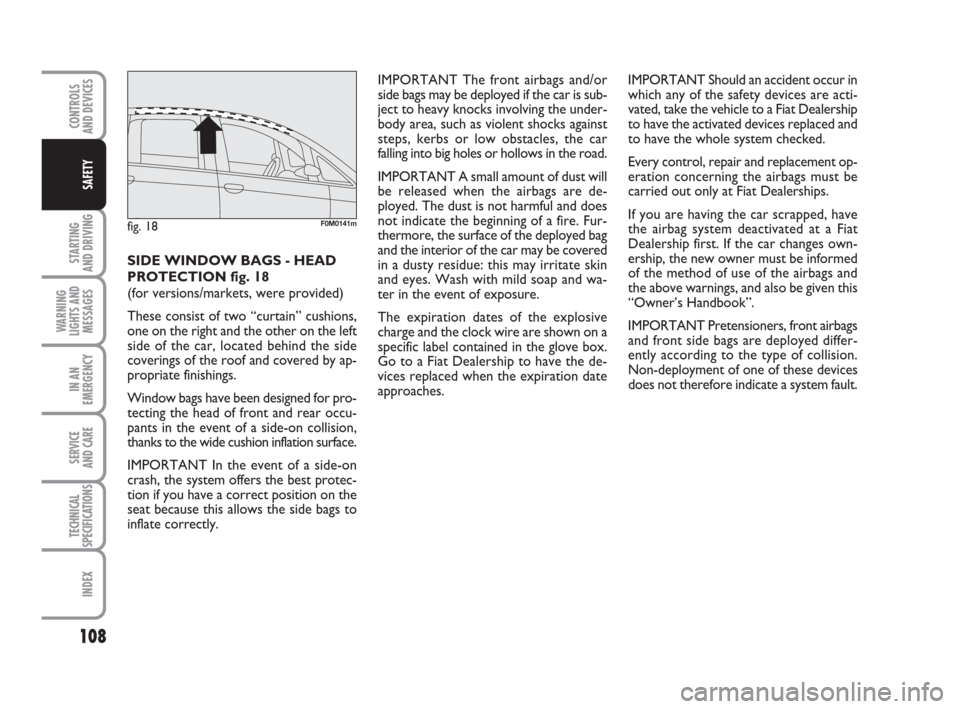

IMPORTANT The front airbags and/or
side bags may be deployed if the car is sub-
ject to heavy knocks involving the under-
body area, such as violent shocks against
steps, kerbs or low obstacles, the car
falling into big holes or hollows in the road.
IMPORTANT A small amount of dust will
be released when the airbags are de-
ployed. The dust is not harmful and does
not indicate the beginning of a fire. Fur-
thermore, the surface of the deployed bag
and the interior of the car may be covered
in a dusty residue: this may irritate skin
and eyes. Wash with mild soap and wa-
ter in the event of exposure.
The expiration dates of the explosive
charge and the clock wire are shown on a
specific label contained in the glove box.
Go to a Fiat Dealership to have the de-
vices replaced when the expiration date
approaches.IMPORTANT Should an accident occur in
which any of the safety devices are acti-
vated, take the vehicle to a Fiat Dealership
to have the activated devices replaced and
to have the whole system checked.
Every control, repair and replacement op-
eration concerning the airbags must be
carried out only at Fiat Dealerships.
If you are having the car scrapped, have
the airbag system deactivated at a Fiat
Dealership first. If the car changes own-
ership, the new owner must be informed
of the method of use of the airbags and
the above warnings, and also be given this
“Owner’s Handbook”.
IMPORTANT Pretensioners, front airbags
and front side bags are deployed differ-
ently according to the type of collision.
Non-deployment of one of these devices
does not therefore indicate a system fault. SIDE WINDOW BAGS - HEAD
PROTECTION fig. 18
(for versions/markets, were provided)
These consist of two “curtain” cushions,
one on the right and the other on the left
side of the car, located behind the side
coverings of the roof and covered by ap-
propriate finishings.
Window bags have been designed for pro-
tecting the head of front and rear occu-
pants in the event of a side-on collision,
thanks to the wide cushion inflation surface.
IMPORTANT In the event of a side-on
crash, the system offers the best protec-
tion if you have a correct position on the
seat because this allows the side bags to
inflate correctly.
fig. 18F0M0141m
093-110 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 108
Page 110 of 216
109
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY

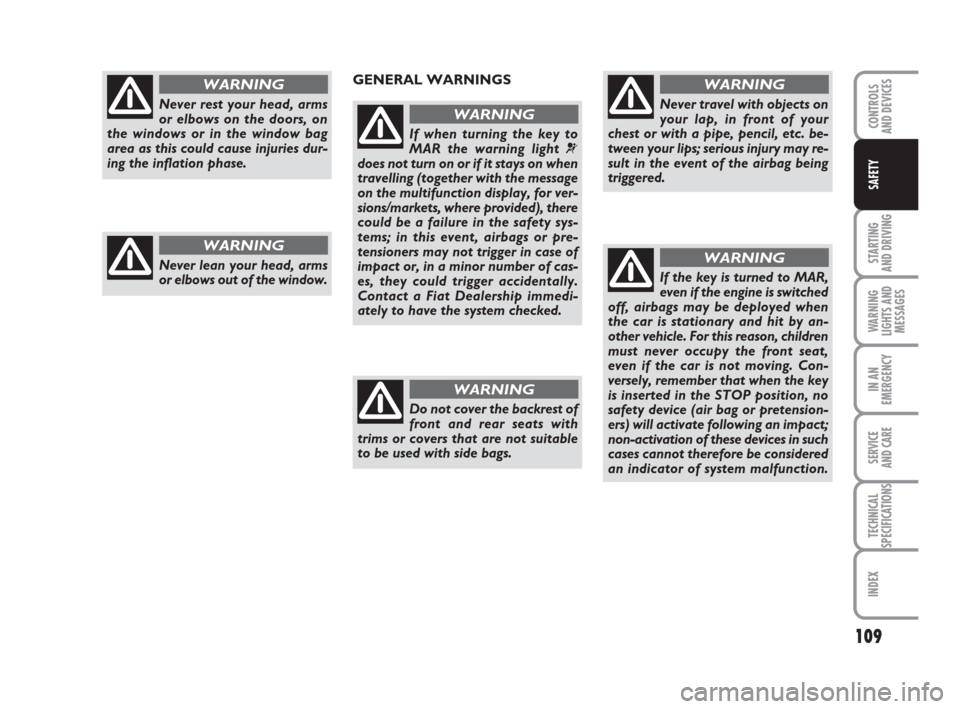

Never rest your head, arms
or elbows on the doors, on
the windows or in the window bag
area as this could cause injuries dur-
ing the inflation phase.
WARNING
Never lean your head, arms
or elbows out of the window.
WARNING
GENERAL WARNINGS
If when turning the key to
MAR the warning light ¬does not turn on or if it stays on when
travelling (together with the message
on the multifunction display, for ver-
sions/markets, where provided), there
could be a failure in the safety sys-
tems; in this event, airbags or pre-
tensioners may not trigger in case of
impact or, in a minor number of cas-
es, they could trigger accidentally.
Contact a Fiat Dealership immedi-
ately to have the system checked.
WARNING
Do not cover the backrest of
front and rear seats with
trims or covers that are not suitable
to be used with side bags.
WARNING
Never travel with objects on
your lap, in front of your
chest or with a pipe, pencil, etc. be-
tween your lips; serious injury may re-
sult in the event of the airbag being
triggered.
WARNING
If the key is turned to MAR,
even if the engine is switched
off, airbags may be deployed when
the car is stationary and hit by an-
other vehicle. For this reason, children
must never occupy the front seat,
even if the car is not moving. Con-
versely, remember that when the key
is inserted in the STOP position, no
safety device (air bag or pretension-
ers) will activate following an impact;
non-activation of these devices in such
cases cannot therefore be considered
an indicator of system malfunction.
WARNING
093-110 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 109
