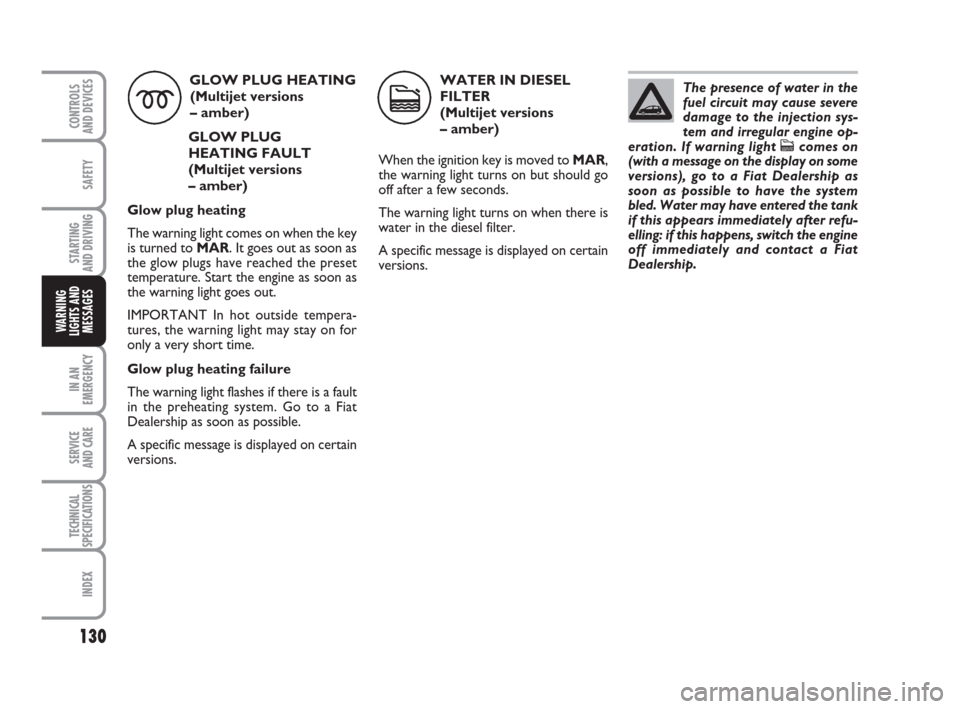

FIAT GRANDE PUNTO ACTUAL 2014 1.G Owners Manual

130
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
GLOW PLUG HEATING
(Multijet versions
– amber)
GLOW PLUG
HEATING FAULT
(Multijet versions
– amber)
Glow plug heating
The warning light comes on when the key
is turned to MAR. It goes out as soon as
the glow plugs have reached the preset
temperature. Start the engine as soon as
the warning light goes out.
IMPORTANT In hot outside tempera-
tures, the warning light may stay on for
only a very short time.
Glow plug heating failure
The warning light flashes if there is a fault
in the preheating system. Go to a Fiat
Dealership as soon as possible.
A specific message is displayed on certain
versions.
m
WATER IN DIESEL
FILTER
(Multijet versions
– amber)
When the ignition key is moved to MAR,
the warning light turns on but should go
off after a few seconds.
The warning light turns on when there is
water in the diesel filter.
A specific message is displayed on certain
versions.
c
The presence of water in the
fuel circuit may cause severe
damage to the injection sys-
tem and irregular engine op-
eration. If warning light
ccomes on
(with a message on the display on some
versions), go to a Fiat Dealership as
soon as possible to have the system
bled. Water may have entered the tank
if this appears immediately after refu-
elling: if this happens, switch the engine
off immediately and contact a Fiat
Dealership.
123-134 ACTUAL 1ed EN 31-08-2010 9:23 Pagina 130

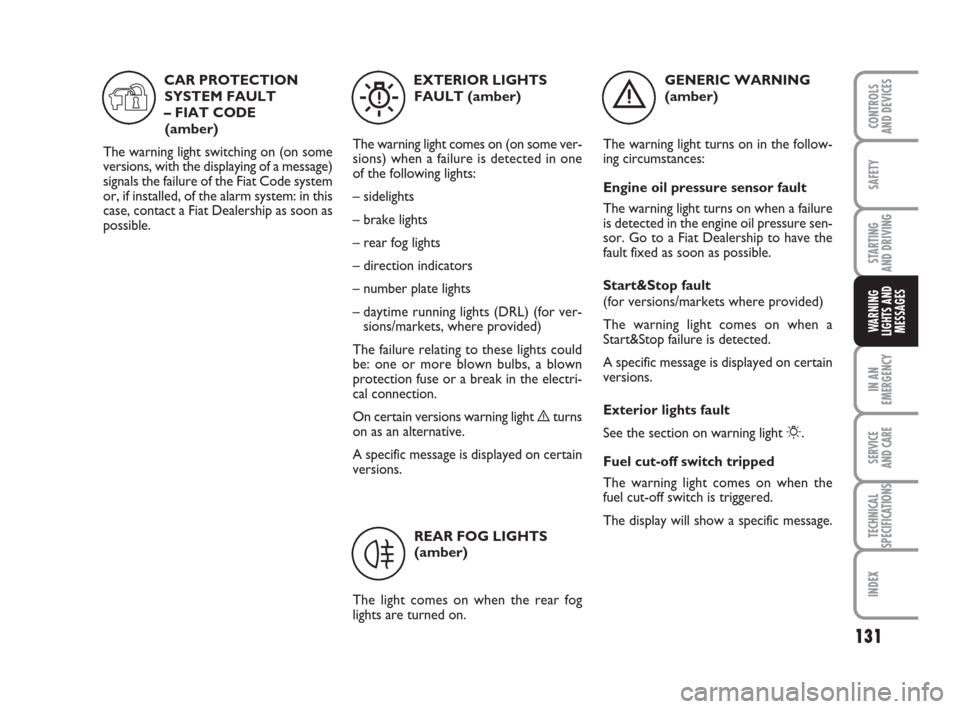

131
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
GENERIC WARNING
(amber)
The warning light turns on in the follow-
ing circumstances:
Engine oil pressure sensor fault
The warning light turns on when a failure
is detected in the engine oil pressure sen-
sor. Go to a Fiat Dealership to have the
fault fixed as soon as possible.
Start&Stop fault
(for versions/markets where provided)
The warning light comes on when a
Start&Stop failure is detected.
A specific message is displayed on certain
versions.
Exterior lights fault
See the section on warning light
6.
Fuel cut-off switch tripped
The warning light comes on when the
fuel cut-off switch is triggered.
The display will show a specific message.
è
EXTERIOR LIGHTS
FAULT (amber)
The warning light comes on (on some ver-
sions) when a failure is detected in one
of the following lights:
– sidelights
– brake lights
– rear fog lights
– direction indicators
– number plate lights
– daytime running lights (DRL) (for ver-
sions/markets, where provided)
The failure relating to these lights could
be: one or more blown bulbs, a blown
protection fuse or a break in the electri-
cal connection.
On certain versions warning light èturns
on as an alternative.
A specific message is displayed on certain
versions.
W
REAR FOG LIGHTS
(amber)
The light comes on when the rear fog
lights are turned on.
4
CAR PROTECTION
SYSTEM FAULT
– FIAT CODE
(amber)
The warning light switching on (on some
versions, with the displaying of a message)
signals the failure of the Fiat Code system
or, if installed, of the alarm system: in this
case, contact a Fiat Dealership as soon as
possible.
Y
123-134 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 131

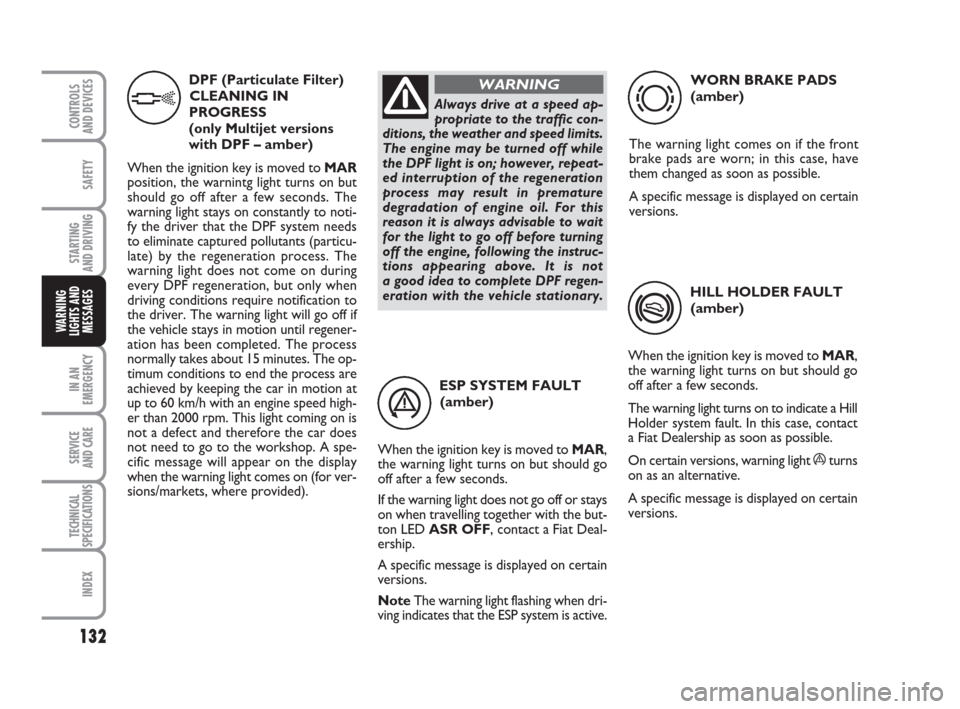

132
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
ESP SYSTEM FAULT
(amber)
When the ignition key is moved to MAR,
the warning light turns on but should go
off after a few seconds.
If the warning light does not go off or stays
on when travelling together with the but-
ton LED ASR OFF, contact a Fiat Deal-
ership.
A specific message is displayed on certain
versions.
NoteThe warning light flashing when dri-
ving indicates that the ESP system is active.
á
HILL HOLDER FAULT
(amber)
When the ignition key is moved to MAR,
the warning light turns on but should go
off after a few seconds.
The warning light turns on to indicate a Hill
Holder system fault. In this case, contact
a Fiat Dealership as soon as possible.
On certain versions, warning light
áturns
on as an alternative.
A specific message is displayed on certain
versions.
*
WORN BRAKE PADS
(amber)
The warning light comes on if the front
brake pads are worn; in this case, have
them changed as soon as possible.
A specific message is displayed on certain
versions.
d
DPF (Particulate Filter)
CLEANING IN
PROGRESS
(only Multijet versions
with DPF – amber)
When the ignition key is moved to MAR
position, the warnintg light turns on but
should go off after a few seconds. The
warning light stays on constantly to noti-
fy the driver that the DPF system needs
to eliminate captured pollutants (particu-
late) by the regeneration process. The
warning light does not come on during
every DPF regeneration, but only when
driving conditions require notification to
the driver. The warning light will go off if
the vehicle stays in motion until regener-
ation has been completed. The process
normally takes about 15 minutes. The op-
timum conditions to end the process are
achieved by keeping the car in motion at
up to 60 km/h with an engine speed high-
er than 2000 rpm. This light coming on is
not a defect and therefore the car does
not need to go to the workshop. A spe-
cific message will appear on the display
when the warning light comes on (for ver-
sions/markets, where provided).
hAlways drive at a speed ap-
propriate to the traffic con-
ditions, the weather and speed limits.
The engine may be turned off while
the DPF light is on; however, repeat-
ed interruption of the regeneration
process may result in premature
degradation of engine oil. For this
reason it is always advisable to wait
for the light to go off before turning
off the engine, following the instruc-
tions appearing above. It is not
a good idea to complete DPF regen-
eration with the vehicle stationary.
WARNING
123-134 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 132

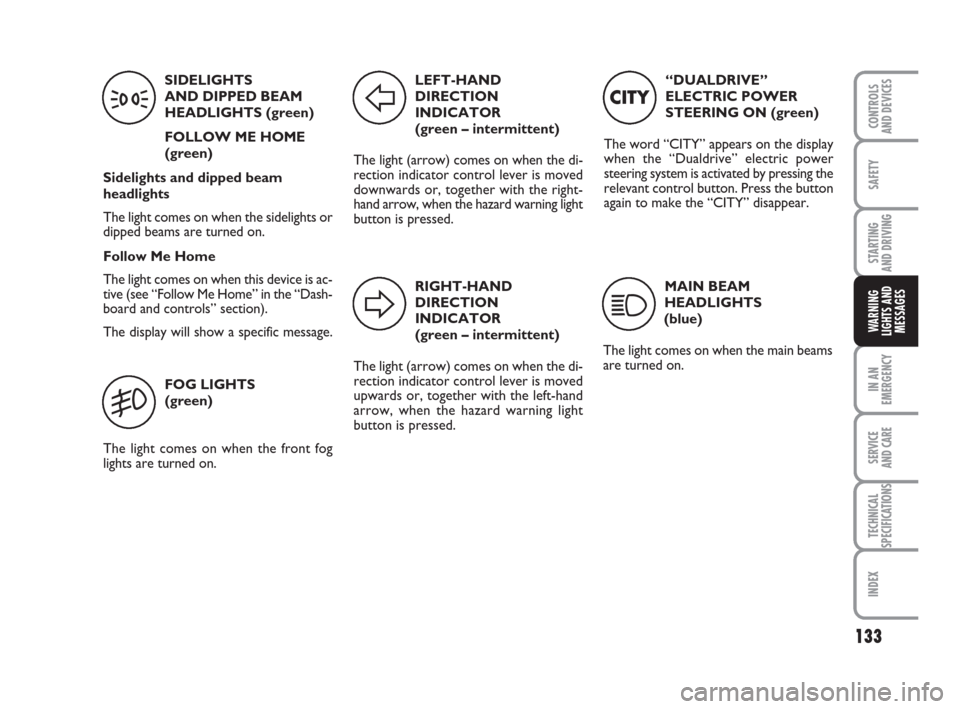

133
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
“DUALDRIVE”
ELECTRIC POWER
STEERING ON (green)
The word “CITY” appears on the display
when the “Dualdrive” electric power
steering system is activated by pressing the
relevant control button. Press the button
again to make the “CITY” disappear.
CITY
MAIN BEAM
HEADLIGHTS
(blue)
The light comes on when the main beams
are turned on.
1
FOG LIGHTS
(green)
The light comes on when the front fog
lights are turned on.
5
LEFT-HAND
DIRECTION
INDICATOR
(green – intermittent)
The light (arrow) comes on when the di-
rection indicator control lever is moved
downwards or, together with the right-
hand arrow, when the hazard warning light
button is pressed.
F
RIGHT-HAND
DIRECTION
INDICATOR
(green – intermittent)
The light (arrow) comes on when the di-
rection indicator control lever is moved
upwards or, together with the left-hand
arrow, when the hazard warning light
button is pressed.
D
SIDELIGHTS
AND DIPPED BEAM
HEADLIGHTS (green)
FOLLOW ME HOME
(green)
Sidelights and dipped beam
headlights
The light comes on when the sidelights or
dipped beams are turned on.
Follow Me Home
The light comes on when this device is ac-
tive (see “Follow Me Home” in the “Dash-
board and controls” section).
The display will show a specific message.
3
123-134 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 133

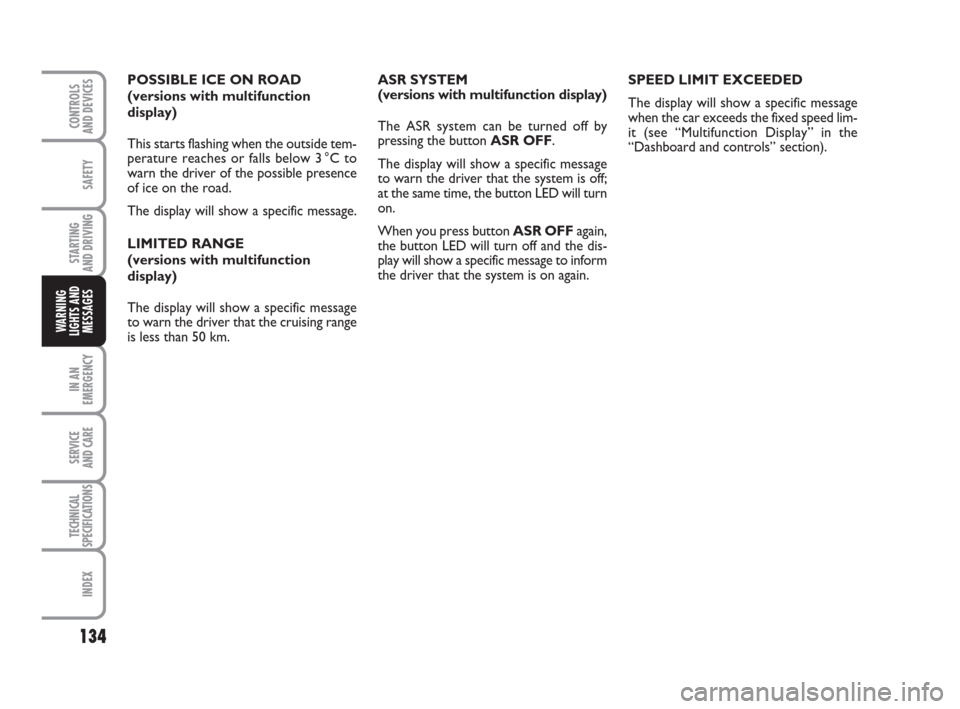

134
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
ASR SYSTEM
(versions with multifunction display)
The ASR system can be turned off by
pressing the button ASR OFF.
The display will show a specific message
to warn the driver that the system is off;
at the same time, the button LED will turn
on.
When you press button ASR OFFagain,
the button LED will turn off and the dis-
play will show a specific message to inform
the driver that the system is on again. POSSIBLE ICE ON ROAD
(versions with multifunction
display)
This starts flashing when the outside tem-
perature reaches or falls below 3 °C to
warn the driver of the possible presence
of ice on the road.
The display will show a specific message.
LIMITED RANGE
(versions with multifunction
display)
The display will show a specific message
to warn the driver that the cruising range
is less than 50 km. SPEED LIMIT EXCEEDED
The display will show a specific message
when the car exceeds the fixed speed lim-
it (see “Multifunction Display” in the
“Dashboard and controls” section).
123-134 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 134

135
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

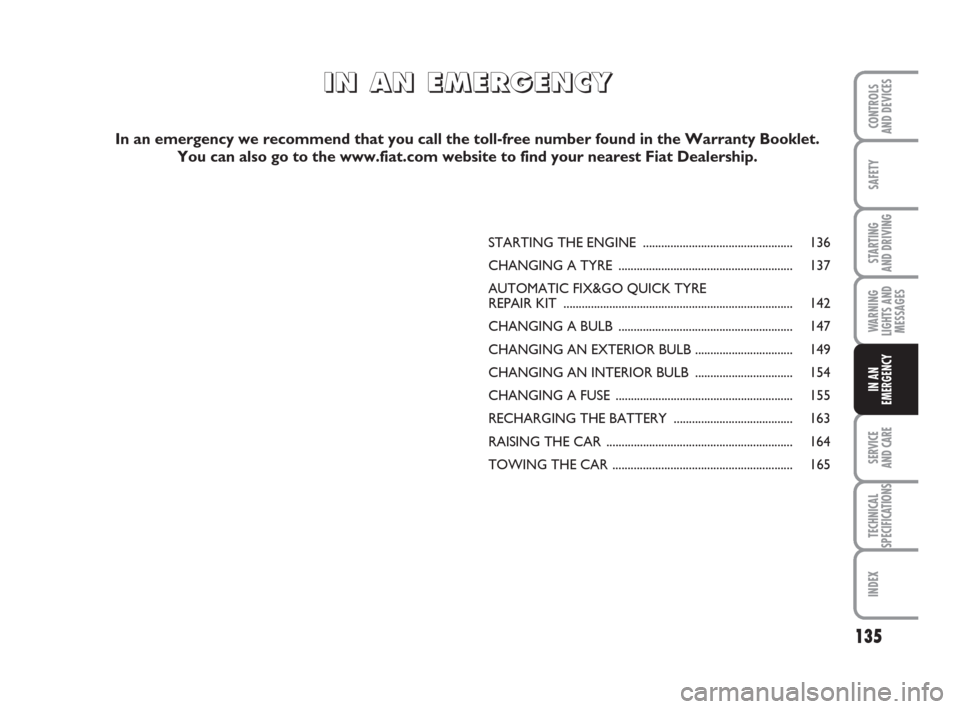

STARTING THE ENGINE ................................................. 136
CHANGING A TYRE ......................................................... 137
AUTOMATIC FIX&GO QUICK TYRE
REPAIR KIT ........................................................................... 142
CHANGING A BULB ......................................................... 147
CHANGING AN EXTERIOR BULB ................................ 149
CHANGING AN INTERIOR BULB ................................ 154
CHANGING A FUSE .......................................................... 155
RECHARGING THE BATTERY ....................................... 163
RAISING THE CAR ............................................................. 164
TOWING THE CAR ........................................................... 165
I I
N N

A A
N N

E E
M M
E E
R R
G G
E E
N N
C C
Y Y
In an emergency we recommend that you call the toll-free number found in the Warranty Booklet.
You can also go to the www.fiat.com website to find your nearest Fiat Dealership.
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 135

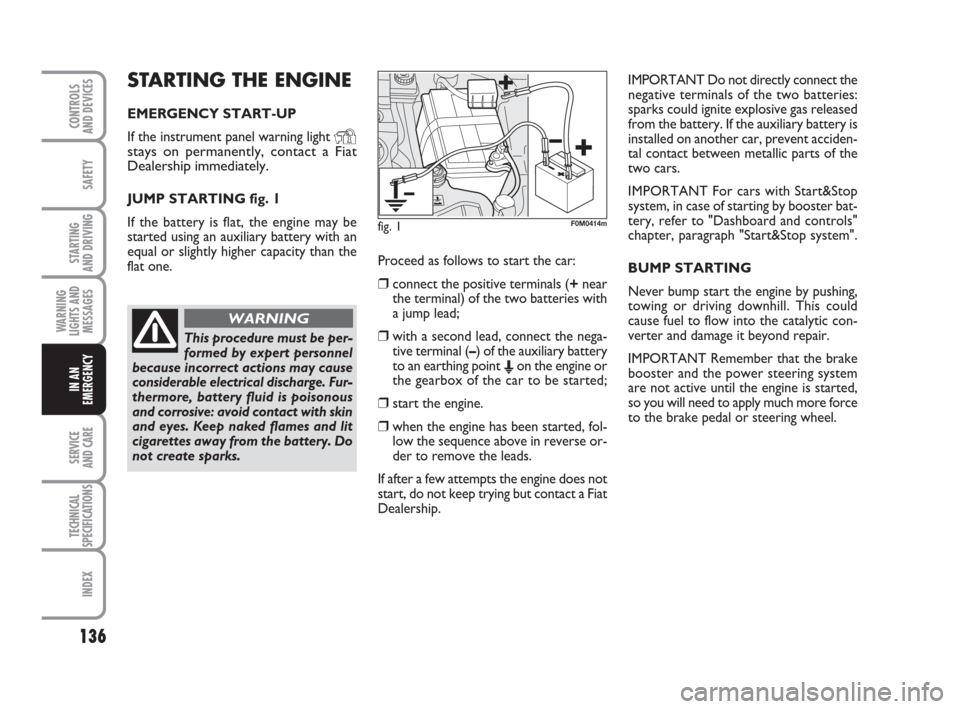

136
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
STARTING THE ENGINE
EMERGENCY START-UP
If the instrument panel warning light
Ystays on permanently, contact a Fiat
Dealership immediately.
JUMP STARTING fig. 1
If the battery is flat, the engine may be
started using an auxiliary battery with an
equal or slightly higher capacity than the
flat one. Proceed as follows to start the car:
❒connect the positive terminals (+near
the terminal) of the two batteries with
a jump lead;
❒with a second lead, connect the nega-
tive terminal (–) of the auxiliary battery
to an earthing point
Eon the engine or
the gearbox of the car to be started;
❒start the engine.
❒when the engine has been started, fol-
low the sequence above in reverse or-
der to remove the leads.
If after a few attempts the engine does not
start, do not keep trying but contact a Fiat
Dealership.IMPORTANT Do not directly connect the
negative terminals of the two batteries:
sparks could ignite explosive gas released
from the battery. If the auxiliary battery is
installed on another car, prevent acciden-
tal contact between metallic parts of the
two cars.
IMPORTANT For cars with Start&Stop
system, in case of starting by booster bat-
tery, refer to "Dashboard and controls"
chapter, paragraph "Start&Stop system".
BUMP STARTING
Never bump start the engine by pushing,
towing or driving downhill. This could
cause fuel to flow into the catalytic con-
verter and damage it beyond repair.
IMPORTANT Remember that the brake
booster and the power steering system
are not active until the engine is started,
so you will need to apply much more force
to the brake pedal or steering wheel.
This procedure must be per-
formed by expert personnel
because incorrect actions may cause
considerable electrical discharge. Fur-
thermore, battery fluid is poisonous
and corrosive: avoid contact with skin
and eyes. Keep naked flames and lit
cigarettes away from the battery. Do
not create sparks.
WARNING
fig. 1F0M0414m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 136

137
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

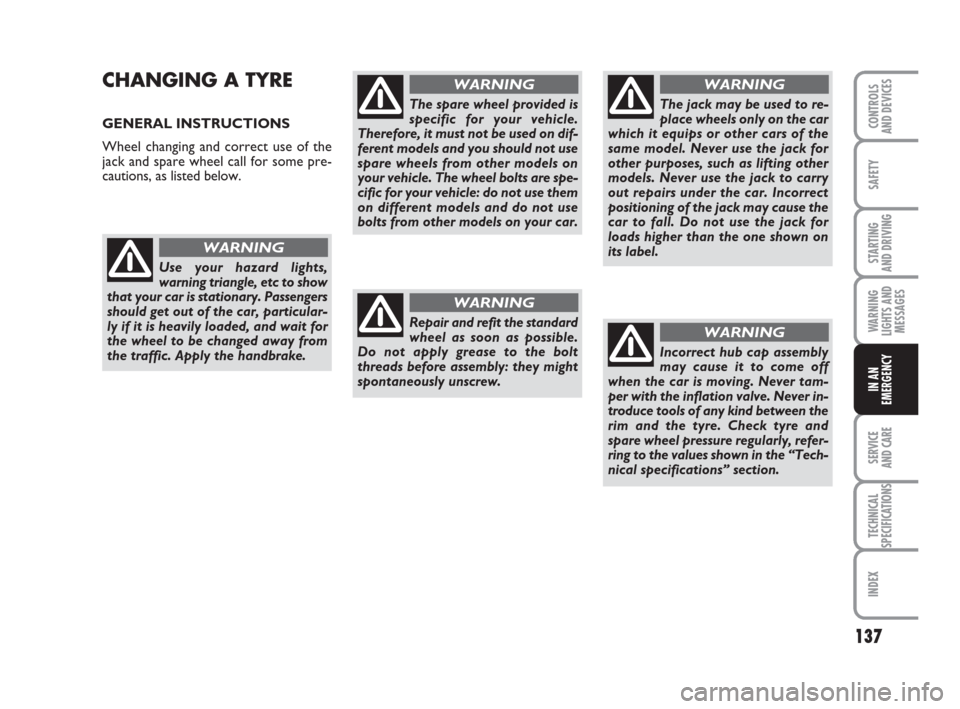

CHANGING A TYRE
GENERAL INSTRUCTIONS
Wheel changing and correct use of the
jack and spare wheel call for some pre-
cautions, as listed below.
Use your hazard lights,
warning triangle, etc to show
that your car is stationary. Passengers
should get out of the car, particular-
ly if it is heavily loaded, and wait for
the wheel to be changed away from
the traffic. Apply the handbrake.
WARNING
The spare wheel provided is
specific for your vehicle.
Therefore, it must not be used on dif-
ferent models and you should not use
spare wheels from other models on
your vehicle. The wheel bolts are spe-
cific for your vehicle: do not use them
on different models and do not use
bolts from other models on your car.
WARNING
Repair and refit the standard
wheel as soon as possible.
Do not apply grease to the bolt
threads before assembly: they might
spontaneously unscrew.
WARNING
The jack may be used to re-
place wheels only on the car
which it equips or other cars of the
same model. Never use the jack for
other purposes, such as lifting other
models. Never use the jack to carry
out repairs under the car. Incorrect
positioning of the jack may cause the
car to fall. Do not use the jack for
loads higher than the one shown on
its label.
WARNING
Incorrect hub cap assembly
may cause it to come off
when the car is moving. Never tam-
per with the inflation valve. Never in-
troduce tools of any kind between the
rim and the tyre. Check tyre and
spare wheel pressure regularly, refer-
ring to the values shown in the “Tech-
nical specifications” section.
WARNING
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 137

138
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

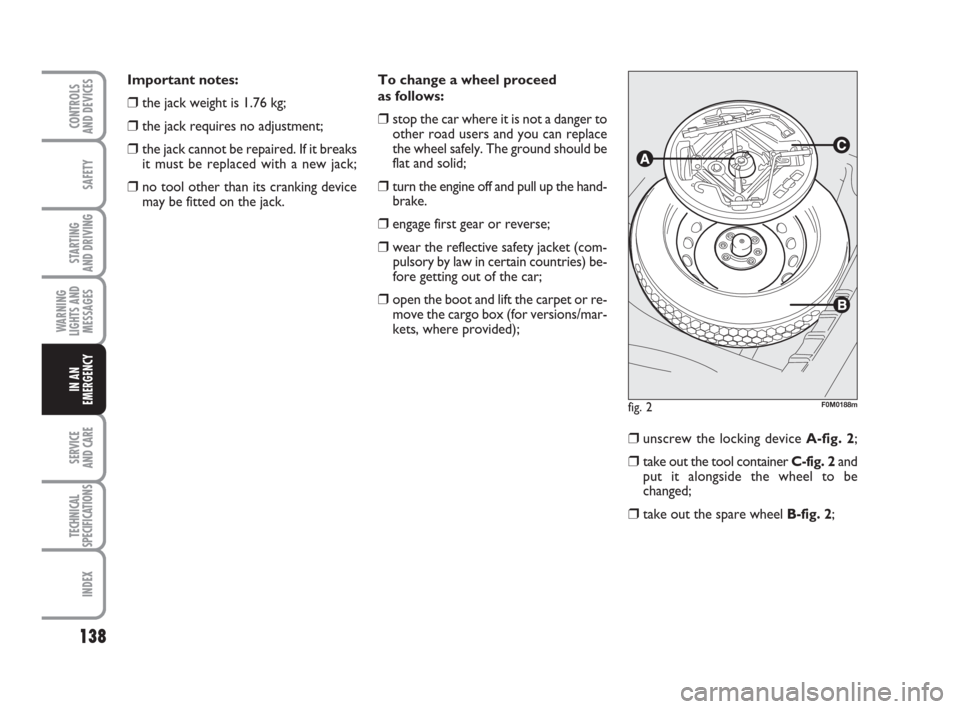

To change a wheel proceed
as follows:
❒stop the car where it is not a danger to
other road users and you can replace
the wheel safely. The ground should be
flat and solid;
❒turn the engine off and pull up the hand-
brake.
❒engage first gear or reverse;
❒ wear the reflective safety jacket (com-
pulsory by law in certain countries) be-
fore getting out of the car;
❒open the boot and lift the carpet or re-
move the cargo box (for versions/mar-
kets, where provided);
❒unscrew the locking device A-fig. 2;
❒take out the tool container C-fig. 2and
put it alongside the wheel to be
changed;
❒take out the spare wheel B-fig. 2;
fig. 2F0M0188m
Important notes:
❒the jack weight is 1.76 kg;
❒the jack requires no adjustment;
❒the jack cannot be repaired. If it breaks
it must be replaced with a new jack;
❒no tool other than its cranking device
may be fitted on the jack.
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 138

139
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY

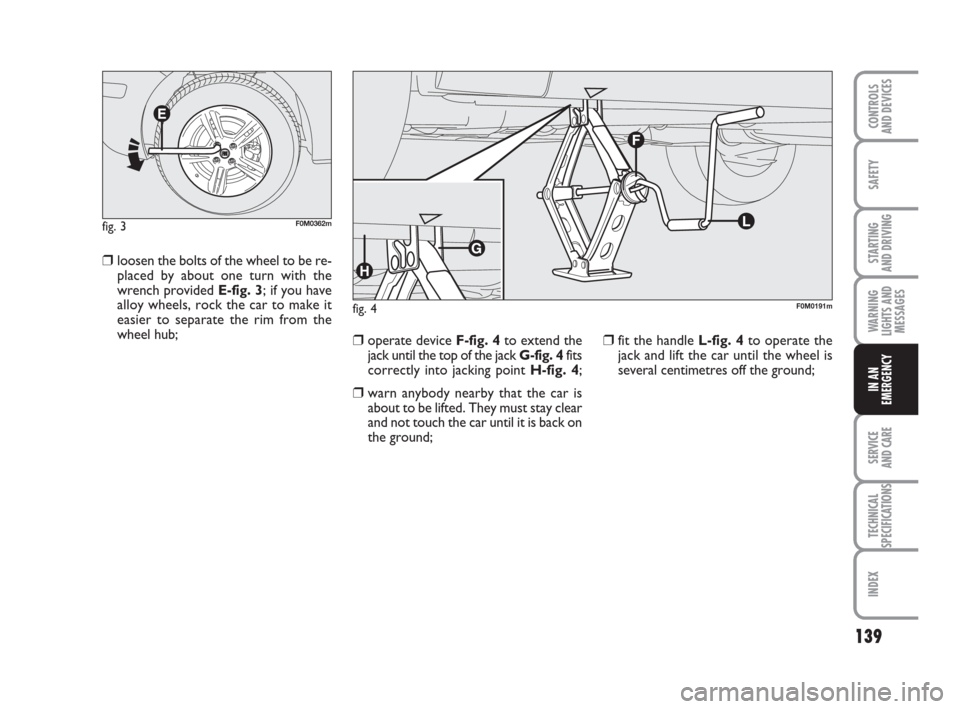

❒loosen the bolts of the wheel to be re-
placed by about one turn with the
wrench provided E-fig. 3; if you have
alloy wheels, rock the car to make it
easier to separate the rim from the
wheel hub;
❒ operate device F-fig. 4to extend the
jack until the top of the jack G-fig. 4fits
correctly into jacking point H-fig. 4;
❒ warn anybody nearby that the car is
about to be lifted. They must stay clear
and not touch the car until it is back on
the ground;
❒fit the handle L-fig. 4to operate the
jack and lift the car until the wheel is
several centimetres off the ground;
fig. 3F0M0362m
fig. 4F0M0191m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 139
