FIAT IDEA 2005 1.G Radio CD Manual

70
RADIO WITH COMPACT DISC
AND MP3 CD PLAYERRADIO WITH
COMPACT DISC PLAYER
MP3 DISPLAY function (MP3 CD data display)
With this function it is possible to choose the
information shown on the display, when listening to a
MP3 CD.
This function can be chosen only if a MP3 CD is
inserted.In this case the display will show “MP3
DISPLAY”. To change the function use buttons 7
(
÷) or 5 (˜).
The display shows the setting among the four possible:
❒“DIR” (directory name);
❒“TRACK” (track name).
❒“TIME” (time elapsed from start of track);
❒“NAME” (CD name).
CDC DISPLAY function
(CD Changer data display) (if installed)
This function can be chosen only if a CD Changer is
connected.In this case the display will show “CDC
DISPLAY”.
To change the function use buttons 7 (
÷) or 5
(
˜).
The display shows the setting among the three
possible:
❒“TIME” (time elapsed from start of track);
❒“CD NR” (CD number);
❒“NAME” (CD name).SENSITIVITY function
(tuner sensitivity adjustment)
With this function it is possible to change the
sensitivity of automatic station searching. When low
sensitivity is set “SENSITIVITY: LOCAL” only stations
with excellent reception are sought;when high
sensitivity is set “SENSITIVITY: DISTANCE” all
stations are sought. Therefore, if the car is in an area
with a considerable number of stations and you want
to choose only those with a strong signal, set to low
sensitivity “SENSITIVITY: LOCAL”.
To set the sensitivity, use button 7 (
÷) or 5 (˜).
The display will show the current status of the
function:
❒“SENSITIVITY: LOCAL” (low sensitivity);
❒“SENSITIVITY: DISTANCE” (high sensitivity).

71
RADIO WITH COMPACT DISC
AND MP3 CD PLAYERRADIO WITH
COMPACT DISC PLAYER
SVC SETTING function
(volume changing with speed)
The SVC function makes it possible to automatically
adapt the volume level to the speed of the car,
increasing it as the speed increases to maintain the
ratio with the noise level in the passenger
compartment.
To turn the function on/off use button 7 (
÷) or 5
(
˜). The display will show the current status of the
function:
❒“SVC SETTING: ON” (function on);
❒“SVC SETTING: OFF” (function off).
CD NAMING function
(allocating a name to a CD)
Use the CD NAME function to give a name (max.
name length = 8 characters) to max. 30 CDs.
This function can be selected only if in Compact Disc
or CD Changer mode. To turn this function on, use
button 7 (
÷) or 5 (˜): the display shows “CD
NAMING FUNCTION”. If the CD already has a name,
this will be shown on the display, if not, eight dashes
will be shown. If storage is no longer available for a
new name, the display will show the first name stored.To change the name or give a name to the new CD
press button 7 (
÷) or 5 (˜). Press the buttons
again to choose the position of the character to be
changed. Press buttons 3 (
N) or 6 (O) to choose or
change the character.
To store the name, press button 12 (MENU-PRESET
SCAN) again. The display will show “CD NAME”.
To clear a name, turn the function on and press
button 16 (2-CLR) for about 5 seconds. The system
beeps and the display shows “ONE NAME DELETED”
for about 2 seconds. At this point the procedure can
be started to give a new name.
To clear all the names, turn the function on and keep
button 16 (2-CLR) pressed for over 8 seconds. The
set gives two beeps and the display shows “ALL
NAMES DELETED” for about 2 seconds. At this point
it is possible to start the name allocation procedure.

72
RADIO WITH COMPACT DISC
AND MP3 CD PLAYERRADIO WITH
COMPACT DISC PLAYER
PHONE SETTINGS function
(telephone volume adjustment)
With this function it is possible to adjust (setting from
1 to 66) or cut off (OFF setting) the telephone sound.
To turn the function on/off use button 7 (
÷) or 5
(
˜).
To adjust, turn the button/knob 19 (ON/OFF
VOLUME).
The display will show the current status of the
function:
❒“PHONE FUNCTION”: function on
❒“PHONE VOLUME 23”: function on with volume
setting 23
❒“OFF”: function off.
HICUT function (treble reduction)
Using this function it is possible to reduce the treble
tones, in accordance with the signal transmitted.
To turn the function on/off, use button
7 (
÷) or 5 (˜).
The display will show the current status of the
function:
❒“HICUT FUNCTION: ON” (function on);
❒“HICUT FUNCTION: OFF” (function off).IGNITION TIMER function
(system power off mode)
This function enables to switch off the sound system
according to two different modes. To turn this
function on/off, use buttons 7 (
÷) or 5 (˜).
The display will show the chosen mode:
❒“00 MIN”: deactivation dependent on ignition key.
Sound system will switch off automatically when
turning the ignition key to STOP;
❒“20 MIN”: deactivation independent of ignition key.
After having turned the ignition key to STOP, the
sound system will stay on for 20 minutes max.
IMPORTANT When the sound system is switched off
automatically after turning the ignition key to STOP
(for both immediate or 20-minute delayed power off),
it will switch on automatically turning the ignition key
to MAR. If the sound system has been switched off
pressing the knob/button 19 (ON/OFF VOLUME),
when turning the key to MAR it will stay off.

73
RADIO WITH COMPACT DISC
AND MP3 CD PLAYERRADIO WITH
COMPACT DISC PLAYER
TECHNICAL INFORMATION
Radio
Maximum power: 4x40W
Speakers
The system includes:
❒2 tweeters (A) with 30W max. power;
❒2 mid-woofers (B) with a diameter of 165 mm and 30W max. power;
❒2 rear full-range speakers (C) with a diameter of 165 mm and 30W
max. power;
F0H0005m
F0H0006m
F0H0007m

74
RADIO WITH COMPACT DISC
AND MP3 CD PLAYERRADIO WITH
COMPACT DISC PLAYER
CD Changer (where provided)
The car can be fitted with a CD Changer for 10 discs located in the boot
(see the figure).
Aerial
The aerial is located on the car roof.
Protection fuse
The radio has a 10A fuse.
Hi-Fi system (where provided)
The system includes:
❒two front tweeters and two woofers with a diameter of 165 mm and
40 W max. power (see previous page);
❒two rear tweeters (A) and two woofers with a diameter of 165 mm
and 40 W max. power (see previous page);
❒1 subwoofer, 100 W power set on the right side of the boot (see
figure). Subwoofer is protected by a fuse
F0H0240m
F0H0223m
F0H0224m

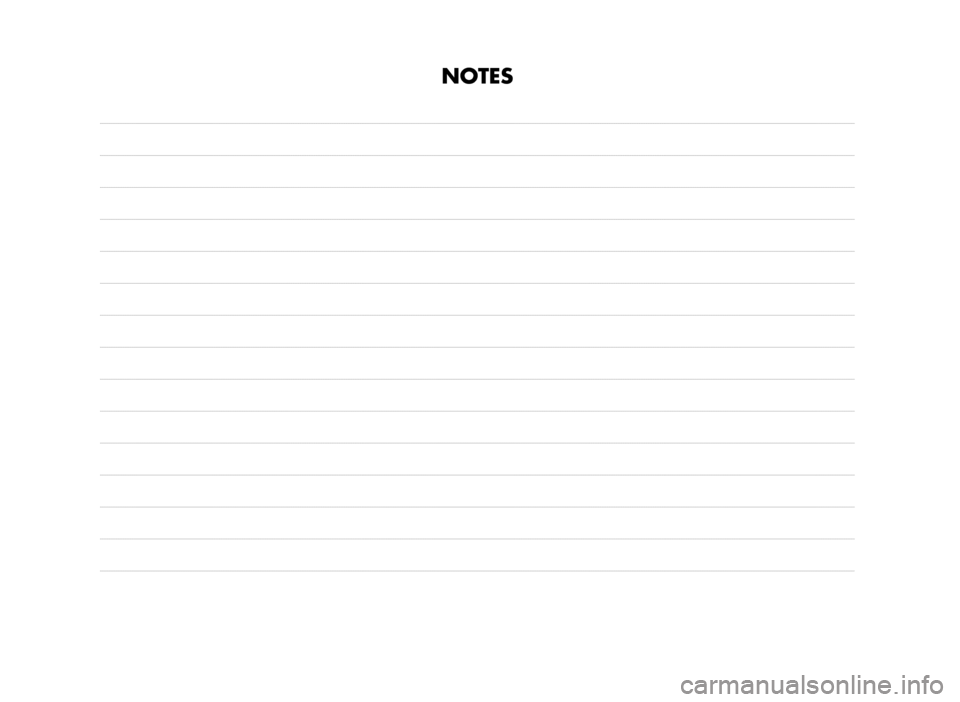

NOTES
