technical specifications FIAT IDEA 2007 1.G Workshop Manual

54
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

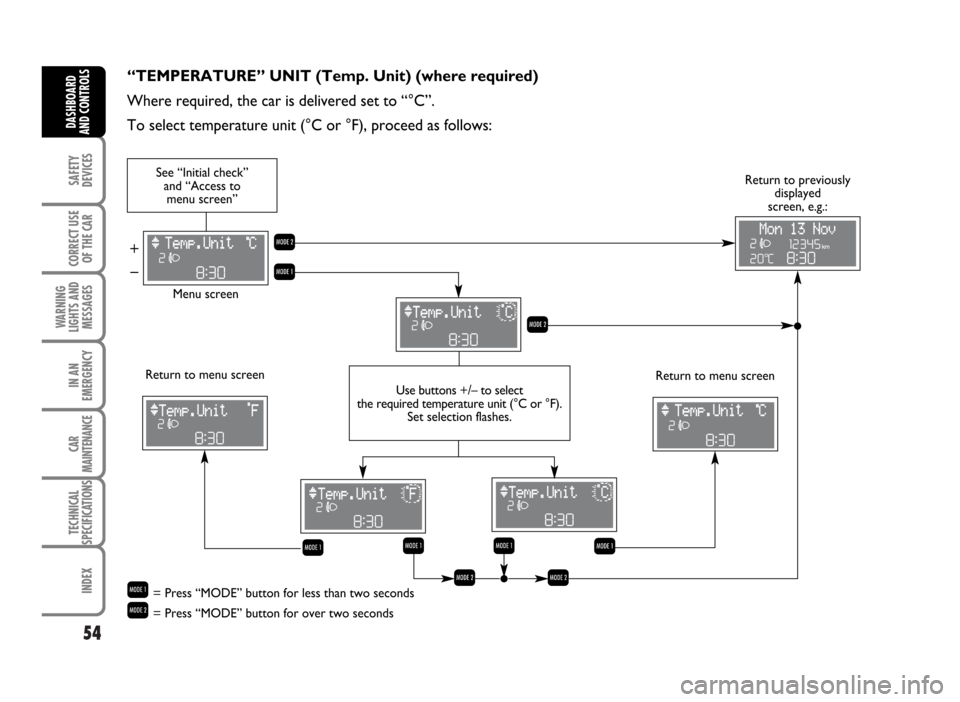

“TEMPERATURE” UNIT (Temp. Unit) (where required)
Where required, the car is delivered set to “°C”.
To select temperature unit (°C or °F), proceed as follows:
R
Q
See “Initial check”
and “Access to
menu screen”
Menu screen
– +
Use buttons +/– to select
the required temperature unit (°C or °F).
Set selection flashes.
R
Return to menu screen Return to menu screen
Q
Q
Return to previously
displayed
screen, e.g.:
Q= Press “MODE” button for less than two seconds
R= Press “MODE” button for over two seconds
Q Q
RR

55
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

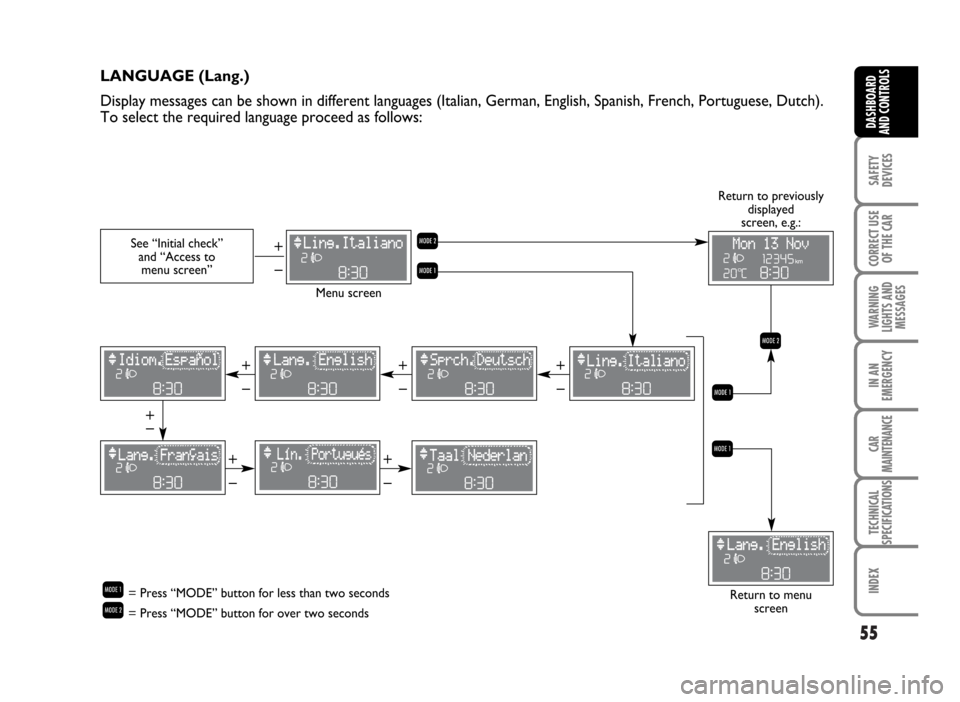

LANGUAGE (Lang.)
Display messages can be shown in different languages (Italian, German, English, Spanish, French, Portuguese, Dutch).
To select the required language proceed as follows:
RSee “Initial check”
and “Access to
menu screen”
Menu screen
– +– +– +
– +
– +– +
– +
Q
Q
Return to menu
screen Return to previously
displayed
screen, e.g.:
Q
Q
= Press “MODE” button for less than two seconds
R= Press “MODE” button for over two seconds
R

56
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

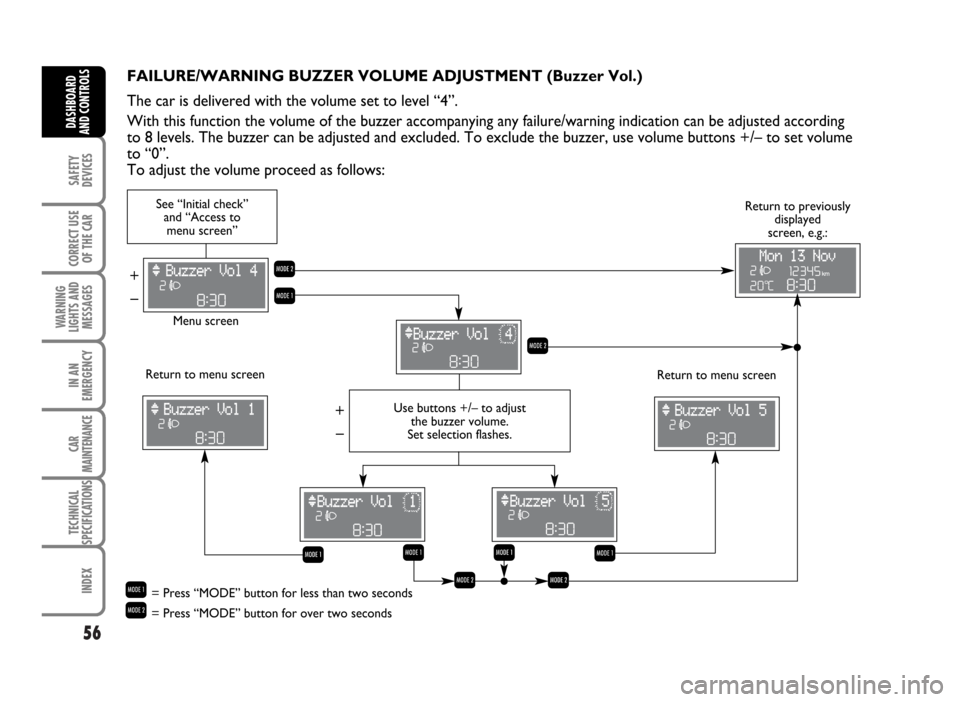

FAILURE/WARNING BUZZER VOLUME ADJUSTMENT (Buzzer Vol.)
The car is delivered with the volume set to level “4”.
With this function the volume of the buzzer accompanying any failure/warning indication can be adjusted according
to 8 levels. The buzzer can be adjusted and excluded. To exclude the buzzer, use volume buttons +/– to set volume
to “0”.
To adjust the volume proceed as follows:
See “Initial check”
and “Access to
menu screen”
Menu screen
Use buttons +/– to adjust
the buzzer volume.
Set selection flashes.
Return to menu screen Return to menu screenReturn to previously
displayed
screen, e.g.:
R
Q
8:30R
– + – +
Q
Q
Q= Press “MODE” button for less than two seconds
R= Press “MODE” button for over two seconds
Q
Q
RR

57
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

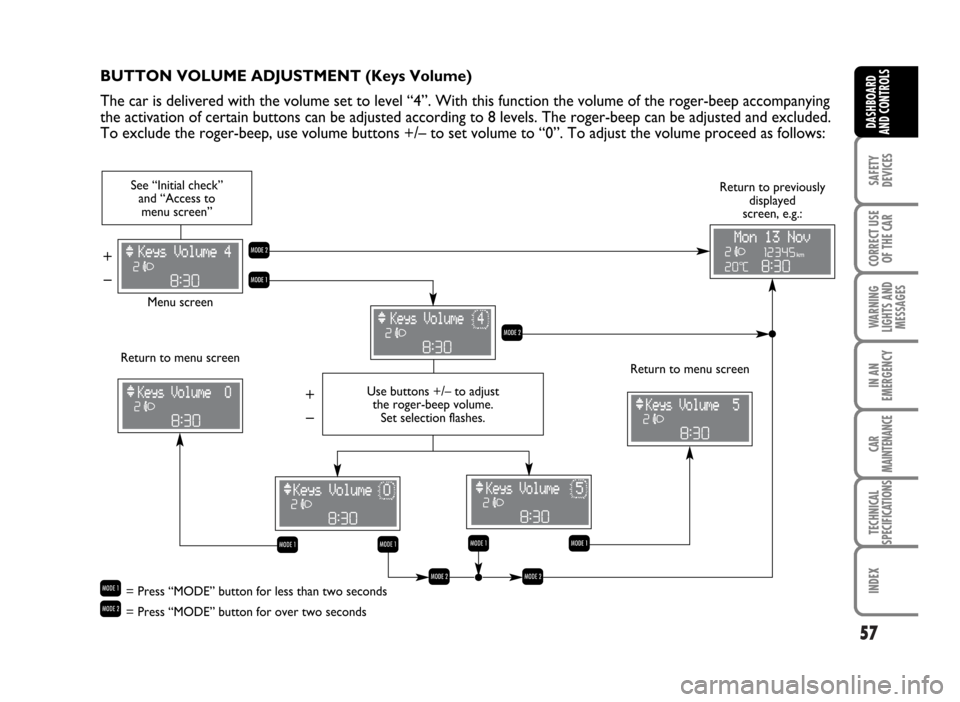

BUTTON VOLUME ADJUSTMENT (Keys Volume)
The car is delivered with the volume set to level “4”. With this function the volume of the roger-beep accompanying
the activation of certain buttons can be adjusted according to 8 levels. The roger-beep can be adjusted and excluded.
To exclude the roger-beep, use volume buttons +/– to set volume to “0”. To adjust the volume proceed as follows:
Menu screen See “Initial check”
and “Access to
menu screen”
Use buttons +/– to adjust
the roger-beep volume.
Set selection flashes.
Return to menu screenReturn to previously
displayed
screen, e.g.:
R
Q
Q
Q
– + – +
R
Return to menu screen
Q= Press “MODE” button for less than two seconds
R= Press “MODE” button for over two seconds
Q
Q
RR

58
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

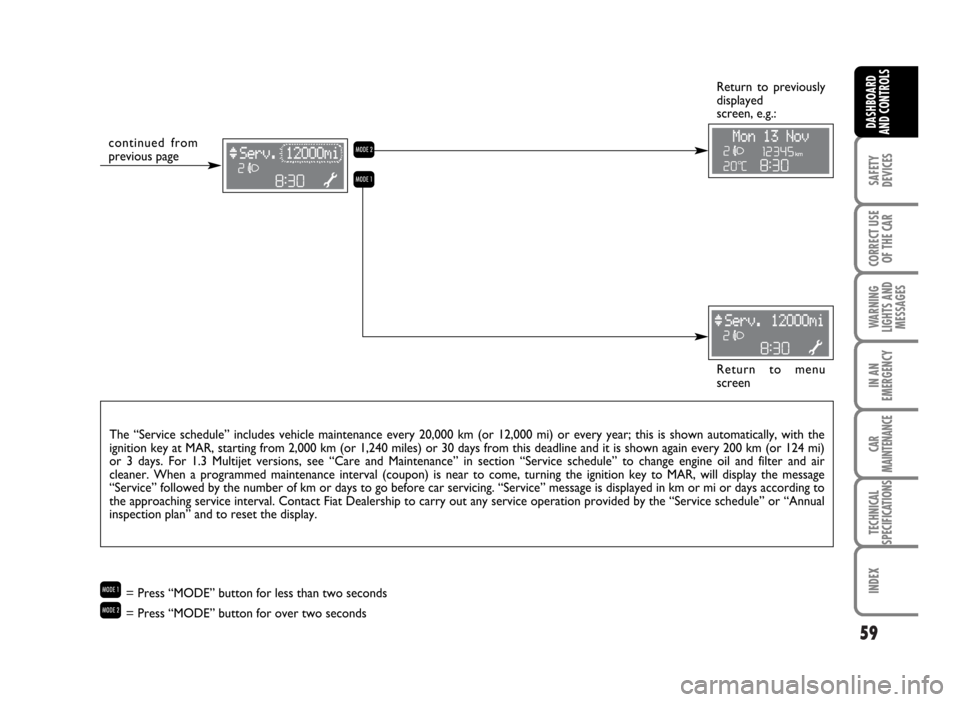

SERVICE (Serv.)
Through the “Service” function it is possible to receive information connected with correct vehicle maintenance.
R
Q
See “Initial check”
and “Access to
menu screen”
Menu screen
Use buttons +/– to select
displaying in km, miles
(mi) or days (dd). Set selection flashes.
R
Return to menu screen
Return to menu screenReturn to previously
displayed
screen, e.g.:
continues on next page
– + – +
RQ
QR
Q= Press “MODE” button for less than two seconds
R= Press “MODE” button for over two seconds

59
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
The “Service schedule” includes vehicle maintenance every 20,000 km (or 12,000 mi) or every year; this is shown automatically, with the
ignition key at MAR, starting from 2,000 km (or 1,240 miles) or 30 days from this deadline and it is shown again every 200 km (or 124 mi)
or 3 days. For 1.3 Multijet versions, see “Care and Maintenance” in section “Service schedule” to change engine oil and filter and air
cleaner. When a programmed maintenance interval (coupon) is near to come, turning the ignition key to MAR, will display the message
“Service” followed by the number of km or days to go before car servicing. “Service” message is displayed in km or mi or days according to
the approaching service interval. Contact Fiat Dealership to carry out any service operation provided by the “Service schedule” or “Annual
inspection plan” and to reset the display.
Return to menu
screen Return to previously
displayed
screen, e.g.:
continued from
previous page
R
Q
Q= Press “MODE” button for less than two seconds
R= Press “MODE” button for over two seconds

60
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
EXIT MENU (Exit Menu)
This is the last function that closes the circular setting cycle listed in the initial menu screen.
R
See “Initial check”
and “Access to
menu screen”
Menu screen
Use button + to return to Speed Lim.
screen (first Menu item).
Return to previously
displayed
screen, e.g.:
– +
Q= Press “MODE” button for less than two seconds
R= Press “MODE” button for over two seconds

61
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
TRIP COMPUTER
The “Trip computer” displays information relating to the operating status of the car. This function comprises the
“General trip”, concerning the complete mission of the car and “Trip B”, concerning the partial car mission. The car is
delivered with “Trip B” set to “ON”. This function (as shown in the graph below) is contained within the complete
mission. Both functions are resettable. The “General trip” displays the figures relating to Cruising Range, Travelled
Distance, Average fuel consumption, Current fuel consumption, Average speed, Travel time (driving time). “Trip B”
displays information concerning Travel Distance B, Average fuel consumption B, Average speed B, Travel time B
(driving time). The “Trip B” function can be excluded.
Start of journey procedure (reset)
To start a new journey monitored by the “General Trip”, with the key to MAR, press button
{on right steering
column stalk with mode
&(see paragraph “Display control buttons”).
The reset operation in the presence of the screens concerning the “General trip” makes it possible to reset also the
“Trip B”. The reset operation in the presence of the screens concerning only the “Trip B” makes it possible to reset
only the information associated with this function.
IMPORTANT The “Cruising range” information cannot be reset.
Reset TRIP B
End of partial mission
Start of new partial mission
End of partial mission
Start of new partial mission
Reset TRIP B
End of partial mission
Start of new partial mission Reset GENERAL TRIP
End of complete mission - Start of new missionReset GENERAL TRIP
End of complete mission - Start of new mission
End of partial mission
Start of new partial mission Reset TRIP B
Reset TRIP B
TRIP B
TRIP B
TRIP B GENERAL TRIP˙
˙
˙
˙˙
˙
˙ ˙
%= Press “TRIP” button for less than two seconds - &= Press “TRIP” button for over two seconds

62
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
“Trip computer” information are displayed according to the following diagram:
See “Initial check”
and “Access to
menu screen”
Previously
displayed
screen, e.g.:(*)
%%%%
%%
continues on next page
&= “Reset General trip” and “Trip B” excluding
“Cruising range” (see paragraph “Reset General trip”).The two screens concerning a trip item
alternate three times, then the second
one stays on fixed on the display.
%
(*)
(*)
(*) (*) (*)
(*)
%= Press “TRIP” button for less than two seconds - &= Press “TRIP” button for over two seconds

63
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
continued from previous pageTrip B ON?NO
YES
Return to previously
displayed screen,
e.g.:
8:3020oC%%%%
&= “Reset Trip B”
(see paragraph “Reset Trip B”).
(*)(*)(*) (*)
%= Press “TRIP” button for less than two seconds - &= Press “TRIP” button for over two seconds
