radio FIAT IDEA 2008 1.G Connect NavPlus Manual

3
CONNECT Nav+
ADVICE, CONTROLS AND GENERAL INFORMATION... 5
ADVICE .......................................................................................................... 5
CONTROLS .................................................................................................. 10
Front panel controls .................................................................................... 10
Steering wheel controls .............................................................................. 14
GENERAL INFORMATION ...................................................................... 15
System power on ......................................................................................... 16
System power off ......................................................................................... 17

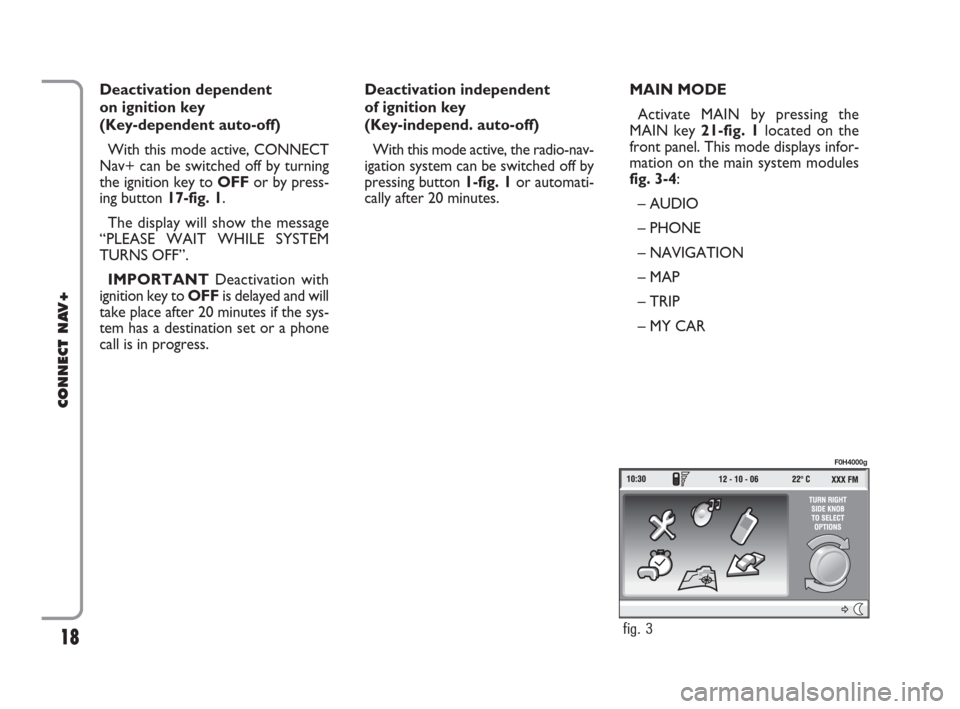

Main mode ..................................................................................................... 18
Protection against theft ............................................................................... 19

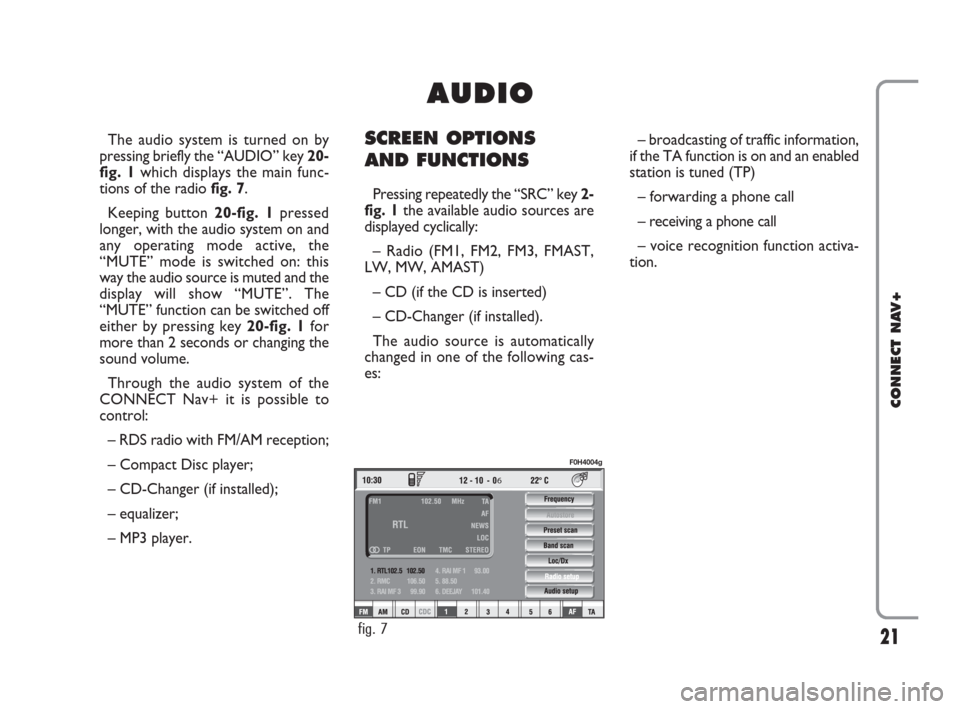

AUDIO......................................................................................................... 21
SCREEN OPTIONS AND FUNCTIONS ............................................... 21

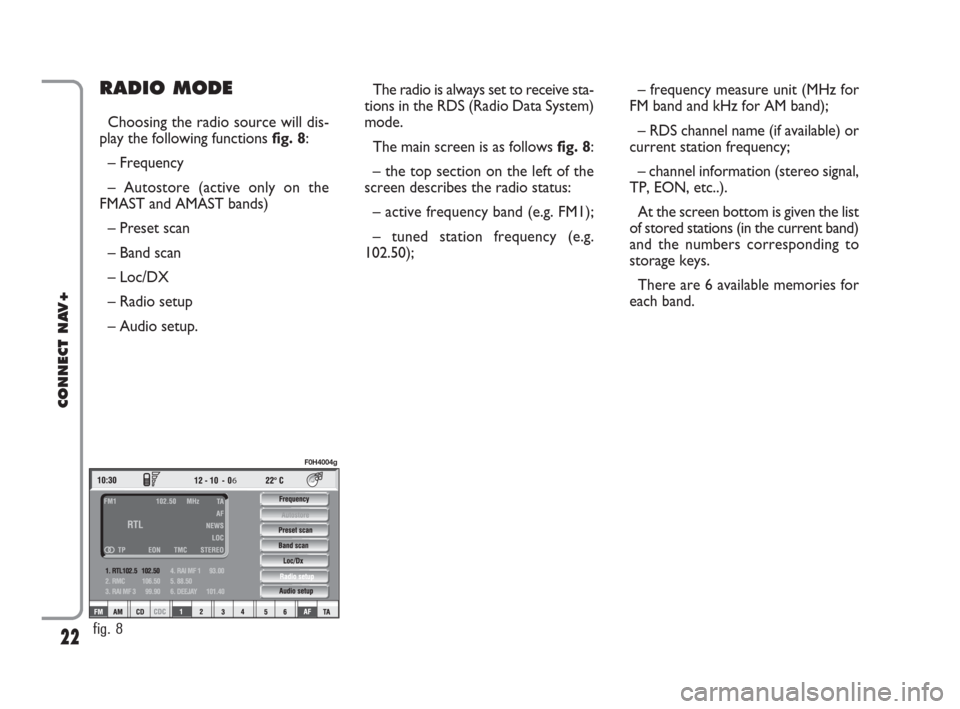

RADIO MODE ............................................................................................. 22
Traffic information ....................................................................................... 24
Seeking alternative frequencies ................................................................. 26
“Frequency” function ................................................................................... 26
Autostore function ....................................................................................... 27
Band Scan function ....................................................................................... 28
Preset Scan function .................................................................................... 28
Radio setup function .................................................................................... 29
LOC/DX function ......................................................................................... 29
Mono/Stereo function ................................................................................. 29
PTY-Prog. Type function ............................................................................ 30
RDS function ................................................................................................. 31
Regional function .......................................................................................... 31
Audio setup function ................................................................................... 32
Bass .................................................................................................................. 33
Treble .............................................................................................................. 33
Balance/Fader function ................................................................................ 33
Loudness ........................................................................................................ 33
Equalizer ......................................................................................................... 34
Auto Vol. Cont. function ............................................................................ 35
CD MODE ..................................................................................................... 37
Shuffle function .............................................................................................. 38
Scan function ................................................................................................. 39Compression function ................................................................................. 39
CD setup function ........................................................................................ 39
Audio setup function ................................................................................... 42
CD-CHANGER MODE .............................................................................. 42
Shuffle function .............................................................................................. 44
Prog function ................................................................................................. 45
Scan function ................................................................................................. 45
Compression function ................................................................................. 45
CDC setup function ..................................................................................... 45
Audio setup function ................................................................................... 47
MP3 MODE ................................................................................................... 47
Main screen options and functions............................................................ 49
Audio setup function ................................................................................... 50
Direct selection function ............................................................................ 50
Define Playlist function ................................................................................ 50
Playlist function ............................................................................................. 50
Compression function ................................................................................. 51
Scan function ................................................................................................. 51
Shuffle function .............................................................................................. 51
Playing the Playlist ........................................................................................ 52
Playing MP3 CD ............................................................................................ 53
Define Playlist function ................................................................................ 54
CELLULAR TELEPHONE WITH VOICE COMMANDS...60
GENERAL INFORMATION...................................................................... 60
PRELIMINARY OPERATIONS .................................................................. 61
Entering and exiting the telephone mode ............................................... 61
Inserting the telephone card ...................................................................... 63
Entering the PIN code ................................................................................. 64
INCOMING CALLS .................................................................................... 65
OUTGOING CALLS ................................................................................... 65
DIALLING A SERVICE NUMBER ............................................................. 66
Frequent Numbers function ....................................................................... 67
Ph/Book function .......................................................................................... 68
Message function............................................................................................ 75
LAST CALL function .................................................................................... 79
001-020 Connect IDEA GB 17-01-2008 13:32 Pagina 3

5
CONNECT NAV+

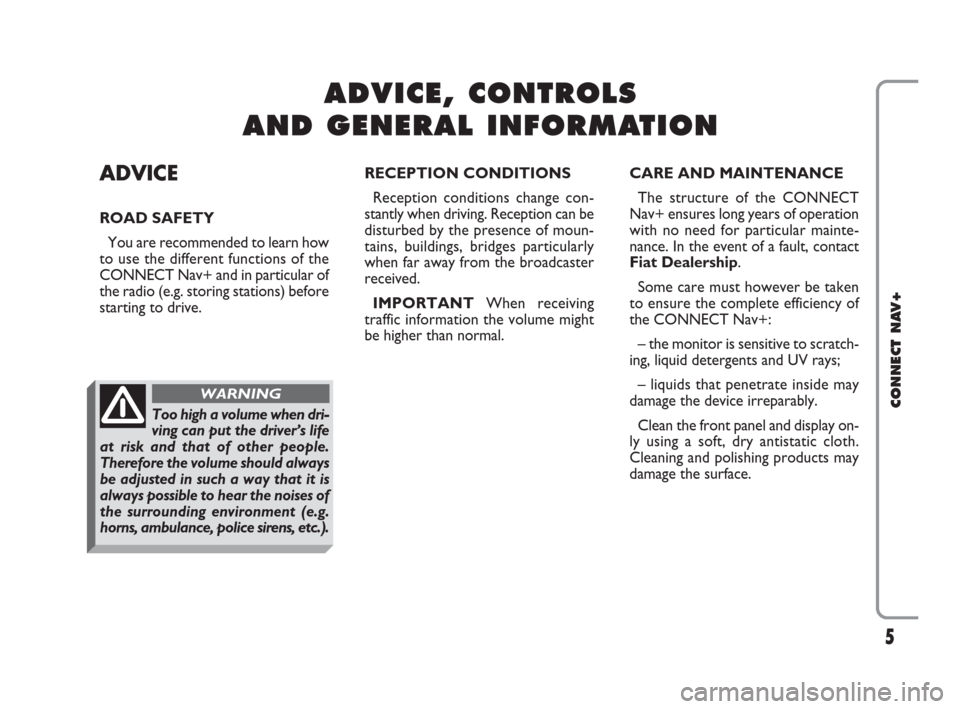

ADVICE
ROAD SAFETY
You are recommended to learn how
to use the different functions of the
CONNECT Nav+ and in particular of
the radio (e.g. storing stations) before
starting to drive.RECEPTION CONDITIONS
Reception conditions change con-
stantly when driving. Reception can be
disturbed by the presence of moun-
tains, buildings, bridges particularly
when far away from the broadcaster
received.
IMPORTANTWhen receiving
traffic information the volume might
be higher than normal.CARE AND MAINTENANCE
The structure of the CONNECT
Nav+ ensures long years of operation
with no need for particular mainte-
nance. In the event of a fault, contact
Fiat Dealership.
Some care must however be taken
to ensure the complete efficiency of
the CONNECT Nav+:
– the monitor is sensitive to scratch-
ing, liquid detergents and UV rays;
– liquids that penetrate inside may
damage the device irreparably.
Clean the front panel and display on-
ly using a soft, dry antistatic cloth.
Cleaning and polishing products may
damage the surface.
A A
D D
V V
I I
C C
E E
, ,
C C
O O
N N
T T
R R
O O
L L
S S
A A
N N
D D
G G
E E
N N
E E
R R R
A A
L L
I I
N N
F F
O O
R R
M M
A A
T T
I I
O O
N N
Too high a volume when dri-
ving can put the driver’s life
at risk and that of other people.
Therefore the volume should always
be adjusted in such a way that it is
always possible to hear the noises of
the surrounding environment (e.g.
horns, ambulance, police sirens, etc.).
WARNING
001-020 Connect IDEA GB 17-01-2008 13:32 Pagina 5

9
CONNECT NAV+
Do not expose Compact Discs to di-
rect sunlight or any other source of
heat.GENERAL INFORMATION
The CONNECT Nav+ controls and
provides information for the following
systems and functions:
– GPS (Global Positioning System)
based navigation;
– Sound system with RDS (Radio Da-
ta System) radio, MP3, CD and CD
Changer;
– GSM (Global System for Mobile
Communication) based telephone
with WAP and SOS-call (emergency
call) functions;
– Voice recognition (VR module)
with voice synthesis and voice memo.
The CONNECT Nav+ system main-
ly consists of the following:
– a keypad consisting of 28 push-but-
tons and 2 knobs;
– controls on steering wheel (8 push-
buttons + 1 encoder)
– electronics boxed in a properly
housing located inside the dashboard.
The interface is the multifunction in-
formation display for all the integrat-
ed components.Multifunction information
display
The system uses a graphic 6,5” 16/9
LCD 256-colour TFT display with a
resolution of 400 x 240 pixels.
The display brightness can be
changed depending on the environ-
ment conditions and the driver’s re-
quirements, storing two settings, day
and night, which are automatically set
to correspond with the turning on/off
of the external lights, if this has been
set in MY CAR menu.
No
001-020 Connect IDEA GB 17-01-2008 13:32 Pagina 9

11
CONNECT NAV+
As shown in fig. 1, the CONNECT Nav+ front panel features 28 buttons and two knobs, acting also as buttons.
Certain controls have multiple functions which depend on the system operating conditions active.
Turning on the function chosen is in some cases controlled by the push duration (short or long), as shown in the following
table:
Legend
1 - }
2 -
SRC
3 - £
4 - TRIP
5 -
÷
Prolonged pressure of the key
(more than 2 seconds)
“Voice Memo” function on. This function can be
stopped by a further short or long push.
–
- Refuse the incoming call.
- Stop current conversation.
–
Radio mode: activation of the scan function
with frequency lower than the initial one.
Station scanning will stop to the first audible
station.
CD mode: select previous track.
MP3 mode: skip to previous 10 tracks
or previous folder.
Short push function
(less than 1 second)
“Voice Recognition” function on/off.
Audio source selection: FM1/2/3/FMAST – LW/
MW/AMAST – CD – CDC
- Forward the phone call set.
- Re-dial last called number and start call by pressing
the button within 5 seconds.
- Accept the incoming call
TRIP computer mode on.
Radio mode: searching the first tunable radio station
with frequency lower than the initial station.
CD mode: select previous track.
MP3 mode: select previous track.
001-020 Connect IDEA GB 17-01-2008 13:32 Pagina 11

12
CONNECT NAV+
Legend
6 - ˜
7
8 - ˚
9 - ˙/II
10
11
12 - SOS
13 - •
14 - ESC
15
Short push function
(less than 1 second)
Radio mode: searching the first tunable radio station
with frequency higher than the initial station.
CD mode: select next track
MP3 mode: select next track.
Slot for CD.
Eject navigation CD–ROM or audio CD.
Play/pause for CD/CDC.
SIM CARD slot ejection key.
Slot for SIM CARD.
SOS mode on
(assistance services and functions).
Infomobility bCONNECTmode on.
This button lets the user get out from a selection list
or jump from a submenu to an upper menu.
Knob for selecting the required function, press the
knob to confirm selection.
Prolonged pressure of the key
(more than 2 seconds)
Radio mode: activation of the scan function
with frequency higher than the initial one.
Station scanning will stop to the first audible
station.
CD mode: select next track.
MP3 mode: skip to next 10 tracks
or next folder.
–
–
Stop for CD/CDC
–
–
–
–
–
–
001-020 Connect IDEA GB 17-01-2008 13:32 Pagina 12

14
CONNECT NAV+
fig. 2
F0H0331m
STEERING WHEEL CONTROLS
The main functions of the CONNECT Nav+ are repeated on the steering wheel, which facilitates control. As shown in fig. 2,
there are 8 buttons and one encoder. Turning on the function chosen is in some cases controlled by the push duration (short
or long), as shown in the following table:
Legend
22 - =
23 - +/-
24 -
}
25 - SRC
26 - ÷/˜
27 - R/E
28 - i
29 -
ß
Short push function
(less than 2 seconds)
To select the different CONNECT Nav+ modes, MAIN, AUDIO,
TRIP, TEL, NAV, MAP from the currently active function.
To turn volume up or down.
“Voice recognition” on/off.
To select operating mode: FM1 / 2 / 3 / AST-MW / LW /
AMAST- CD - CDC.
“SCAN” buttons: in Radio Mode: to tune previous or next radio sta-
tion; in CD/MP3/CDC Mode: to select previous or next track.
To scroll the screen options and select the required one.
To confirm selection previously performed through buttons 27
- To start set call.
- To dial the last called number and to start the call by pressing the
button within 5 seconds.
- To accept the incoming call. Long push function
(more than 2 seconds)
_
To turn volume up or down continuously
To activate the “Voice Memo” function, that can be deactivated by
pressing the button again (long or short push)
–
–
–
–
- To refuse the incoming call.
- To stop dialling new phone number
- To stop current call
001-020 Connect IDEA GB 17-01-2008 13:32 Pagina 14

18
CONNECT NAV+
Deactivation dependent
on ignition key
(Key-dependent auto-off)
With this mode active, CONNECT
Nav+ can be switched off by turning
the ignition key to OFFor by press-
ing button 17-fig. 1.
The display will show the message
“PLEASE WAIT WHILE SYSTEM
TURNS OFF”.
IMPORTANTDeactivation with
ignition key to OFFis delayed and will
take place after 20 minutes if the sys-
tem has a destination set or a phone
call is in progress.Deactivation independent
of ignition key
(Key-independ. auto-off)
With this mode active, the radio-nav-
igation system can be switched off by
pressing button 1-fig. 1or automati-
cally after 20 minutes.MAIN MODE
Activate MAIN by pressing the
MAIN key 21-fig. 1located on the
front panel. This mode displays infor-
mation on the main system modules
fig. 3-4:
– AUDIO
– PHONE
– NAVIGATION
– MAP
– TRIP
– MY CAR
fig. 3
F0H4000g
001-020 Connect IDEA GB 17-01-2008 13:32 Pagina 18

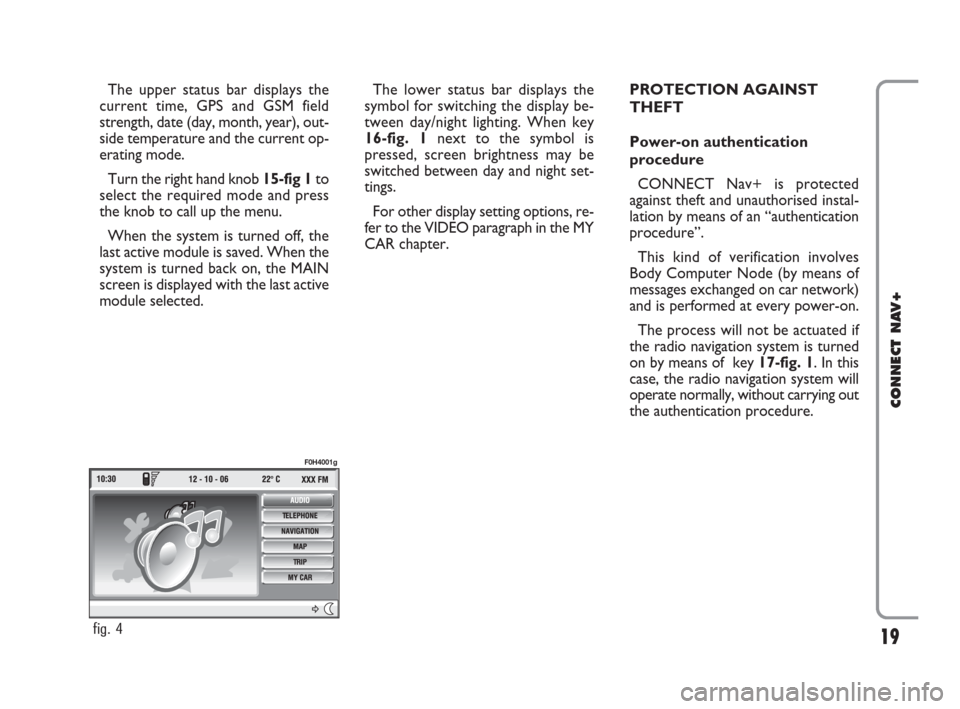

19
CONNECT NAV+
The upper status bar displays the
current time, GPS and GSM field
strength, date (day, month, year), out-
side temperature and the current op-
erating mode.
Turn the right hand knob 15-fig 1 to
select the required mode and press
the knob to call up the menu.
When the system is turned off, the
last active module is saved. When the
system is turned back on, the MAIN
screen is displayed with the last active
module selected.The lower status bar displays the
symbol for switching the display be-
tween day/night lighting. When key
16-fig. 1next to the symbol is
pressed, screen brightness may be
switched between day and night set-
tings.
For other display setting options, re-
fer to the VIDEO paragraph in the MY
CAR chapter.PROTECTION AGAINST
THEFT
Power-on authentication
procedure
CONNECT Nav+ is protected
against theft and unauthorised instal-
lation by means of an “authentication
procedure”.
This kind of verification involves
Body Computer Node (by means of
messages exchanged on car network)
and is performed at every power-on.
The process will not be actuated if
the radio navigation system is turned
on by means of key 17-fig. 1. In this
case, the radio navigation system will
operate normally, without carrying out
the authentication procedure.
fig. 4
F0H4001g
001-020 Connect IDEA GB 17-01-2008 13:32 Pagina 19

21
CONNECT NAV+
The audio system is turned on by
pressing briefly the “AUDIO” key 20-
fig. 1which displays the main func-
tions of the radio fig. 7.
Keeping button 20-fig. 1pressed
longer, with the audio system on and
any operating mode active, the
“MUTE” mode is switched on: this
way the audio source is muted and the
display will show “MUTE”. The
“MUTE” function can be switched off
either by pressing key 20-fig. 1for
more than 2 seconds or changing the
sound volume.
Through the audio system of the
CONNECT Nav+ it is possible to
control:
– RDS radio with FM/AM reception;
– Compact Disc player;
– CD-Changer (if installed);
– equalizer;
– MP3 player.SCREEN OPTIONS
AND FUNCTIONS
Pressing repeatedly the “SRC” key 2-
fig. 1the available audio sources are
displayed cyclically:
– Radio (FM1, FM2, FM3, FMAST,
LW, MW, AMAST)
– CD (if the CD is inserted)
– CD-Changer (if installed).
The audio source is automatically
changed in one of the following cas-
es:– broadcasting of traffic information,
if the TA function is on and an enabled
station is tuned (TP)
– forwarding a phone call
– receiving a phone call
– voice recognition function activa-
tion.
A A
U U
D D
I I
O O
6
fig. 7
F0H4004g
021-059 Connect IDEA GB 17-01-2008 13:33 Pagina 21

22
CONNECT NAV+
– frequency measure unit (MHz for
FM band and kHz for AM band);
– RDS channel name (if available) or
current station frequency;
– channel information (stereo signal,
TP, EON, etc..).
At the screen bottom is given the list
of stored stations (in the current band)
and the numbers corresponding to
storage keys.
There are 6 available memories for
each band.RADIO MODE
Choosing the radio source will dis-
play the following functions fig. 8:
– Frequency
– Autostore (active only on the
FMAST and AMAST bands)
– Preset scan
– Band scan
– Loc/DX
– Radio setup
– Audio setup.The radio is always set to receive sta-
tions in the RDS (Radio Data System)
mode.
The main screen is as follows fig. 8:
– the top section on the left of the
screen describes the radio status:
– active frequency band (e.g. FM1);
– tuned station frequency (e.g.
102.50);
6
fig. 8
F0H4004g
021-059 Connect IDEA GB 17-01-2008 13:33 Pagina 22
