Page 185 of 210
184
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

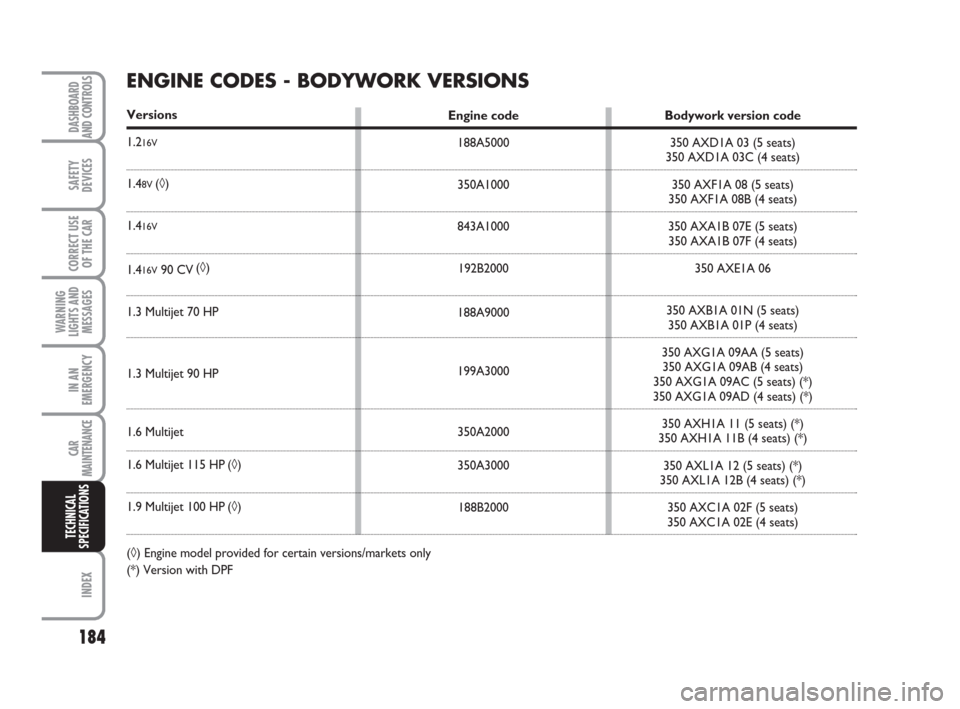

ENGINE CODES - BODYWORK VERSIONS
Versions
1.2
16V
1.48V (◊)
1.416V
1.416V90 CV(◊)
1.3 Multijet 70 HP
1.3 Multijet 90 HP
1.6 Multijet
1.6 Multijet 115 HP (◊)
1.9 Multijet 100 HP (◊)
(◊) Engine model provided for certain versions/markets only
(*) Version with DPFEngine code
188A5000
350A1000
843A1000
192B2000
188A9000
199A3000
350A2000
350A3000
188B2000Bodywork version code
350 AXD1A 03 (5 seats)
350 AXD1A 03C (4 seats)
350 AXF1A 08 (5 seats)
350 AXF1A 08B (4 seats)
350 AXA1B 07E (5 seats)
350 AXA1B 07F (4 seats)
350 AXE1A 06
350 AXB1A 01N (5 seats)
350 AXB1A 01P (4 seats)
350 AXG1A 09AA (5 seats)
350 AXG1A 09AB (4 seats)
350 AXG1A 09AC (5 seats) (*)
350 AXG1A 09AD (4 seats) (*)
350 AXH1A 11 (5 seats) (*)
350 AXH1A 11B (4 seats) (*)
350 AXL1A 12 (5 seats) (*)
350 AXL1A 12B (4 seats) (*)
350 AXC1A 02F (5 seats)
350 AXC1A 02E (4 seats)
181-199 idea GB 1 ed 10-07-2008 8:31 Pagina 184
Page 186 of 210
185
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
1.48V (◊)
350A1000
Otto
4 in line
2
72 x 84
1368
11 ± 0.2
57
77
6000
115
11.7
3000
NGK ZKR7A-10
Unleaded petrol
95 RON
(EN228 Specifications)
ENGINE
GENERAL FEATURES
Engine code
Cycle
Number and layout of cylinders
Valves per cylinder
Piston bore and stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio: rpm
Maximum torque (EEC) Nm
kgm
corresponding ratio: rpm
Spark plugs
Fuel
(◊) Engine model provided for certain versions/markets only
1.216V
188A5000
Otto
4 in line
4
70.8 x 78.86
1242
10.6 ± 0.2
59
80
5000
114
11.6
4000
NGK DCPR7E-N-10
BOSCH YR7DEU
Unleaded petrol
95 RON
(EN228 Specifications)1.4
16V
843A1000
Otto
4 in line
4
72 x 84
1368
11 ± 0.2
70
95
5800
128
13
4500
NGK ZKR7A-10
Unleaded petrol
95 RON
(EN228 Specifications)
181-199 idea GB 1 ed 10-07-2008 8:31 Pagina 185
Page 187 of 210
186
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
GENERAL FEATURES
Engine code:
Cycle:
Number and layout of cylinders:
Valves per cylinder:
Piston bore and stroke mm:
Total displacement cm3
:
Compression ratio:
Maximum power (EEC): kW
HP
corresponding ratio: rpm
Maximum torque (EEC): Nm
kgm
corresponding ratio: rpm
Spark plugs:
Fuel:
1.6 Multijet
350A2000
Diesel
4 in line
4
79.5 x 80.5
1598
16.5 ±1
88
120
3500
300
30.5
1500
–
Diesel fuel
for motor vehicles
(EN590 Specifications) 1.3 Multijet 70 HP
188A9000
Diesel
4 in line
4
69.6 x 82
1248
18 ±0.4
51
70
4000
180
18.3
1750
–
Diesel fuel
for motor vehicles
(EN590 Specifications)1.3 Multijet 90 HP
199A3000
Diesel
4 in line
4
69.6 x 82
1248
17.6 ±0.4
66
90
4000
200
20
1750
–
Diesel fuel
for motor vehicles
(EN590 Specifications)
181-199 idea GB 1 ed 10-07-2008 8:31 Pagina 186
Page 188 of 210
187
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

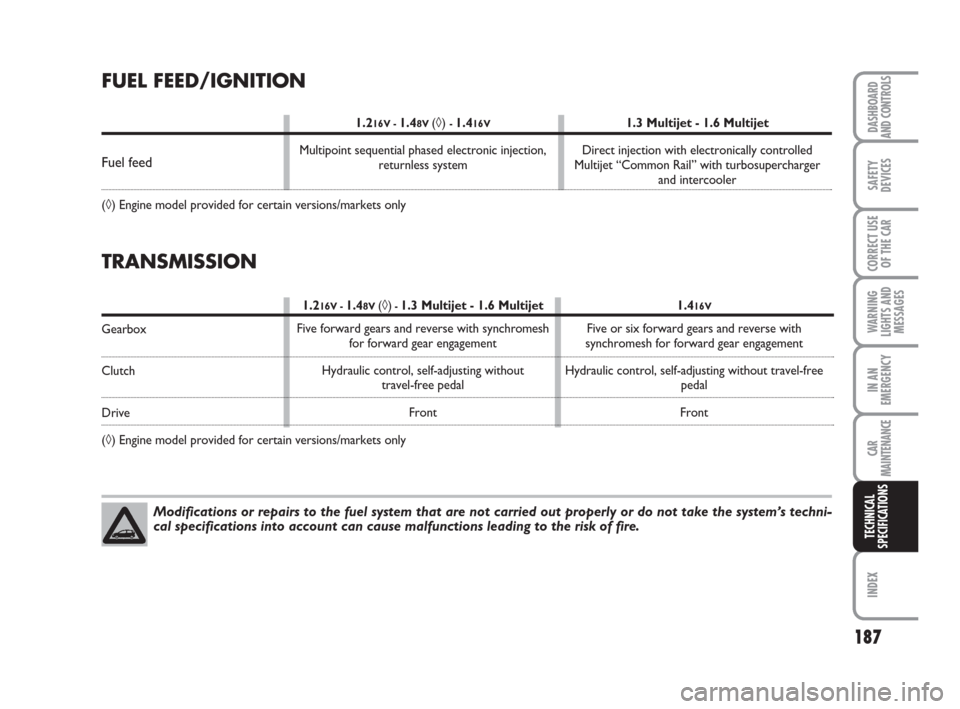

TRANSMISSION
Gearbox
Clutch
Drive
(◊) Engine model provided for certain versions/markets only1.2
16V - 1.48V (◊)- 1.3 Multijet - 1.6 Multijet
Five forward gears and reverse with synchromesh
for forward gear engagement
Hydraulic control, self-adjusting without
travel-free pedal
Front1.416V
Five or six forward gears and reverse with
synchromesh for forward gear engagement
Hydraulic control, self-adjusting without travel-free
pedal
Front
Modifications or repairs to the fuel system that are not carried out properly or do not take the system’s techni-
cal specifications into account can cause malfunctions leading to the risk of fire.
FUEL FEED/IGNITION
Fuel feed
(◊) Engine model provided for certain versions/markets only1.3 Multijet - 1.6 Multijet
Direct injection with electronically controlled
Multijet “Common Rail” with turbosupercharger
and intercooler 1.2
16V - 1.48V (◊) - 1.416V
Multipoint sequential phased electronic injection,
returnless system
181-199 idea GB 1 ed 10-07-2008 8:31 Pagina 187
Page 189 of 210
188
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

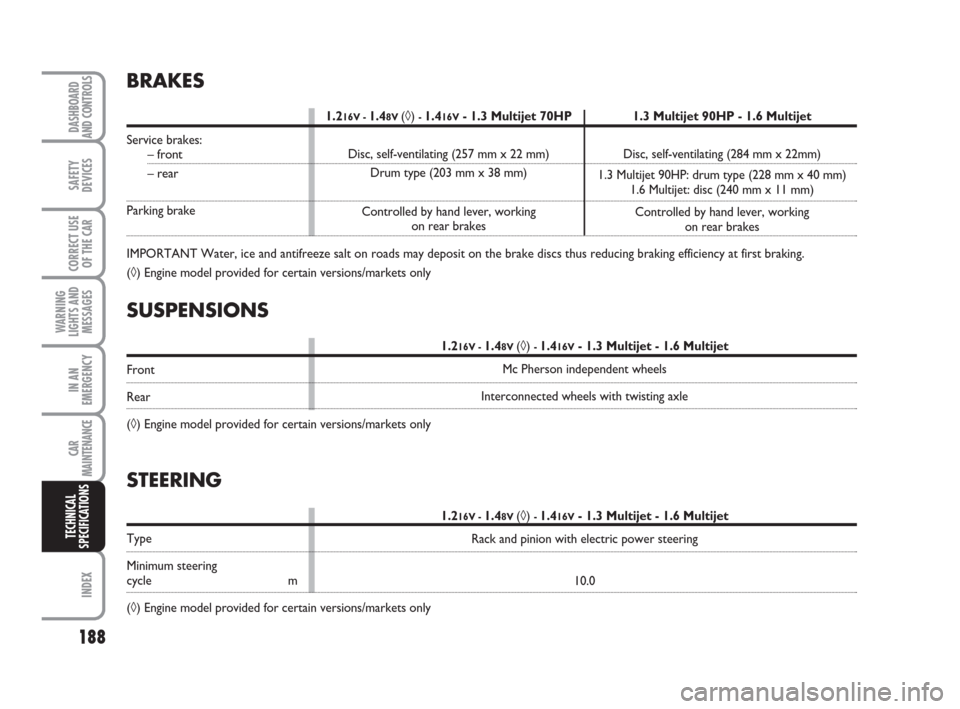

SUSPENSIONS
Front
Rear
(◊) Engine model provided for certain versions/markets only1.2
16V - 1.48V (◊) - 1.416V- 1.3 Multijet - 1.6 Multijet
Mc Pherson independent wheels
Interconnected wheels with twisting axle
STEERING
Type
Minimum steering
cycle m
(◊) Engine model provided for certain versions/markets only1.2
16V - 1.48V (◊) - 1.416V- 1.3 Multijet - 1.6 Multijet
Rack and pinion with electric power steering
10.0
BRAKES
Service brakes:– front
– rear
Parking brake
IMPORTANT Water, ice and antifreeze salt on roads may deposit on the brake discs thus reducing braking efficiency at first braking.
(◊) Engine model provided for certain versions/markets only1.2
16V - 1.48V (◊) - 1.416V- 1.3 Multijet 70HP
Disc, self-ventilating (257 mm x 22 mm)
Drum type (203 mm x 38 mm)
Controlled by hand lever, working
on rear brakes1.3 Multijet 90HP - 1.6 Multijet
Disc, self-ventilating (284 mm x 22mm)
1.3 Multijet 90HP: drum type (228 mm x 40 mm)
1.6 Multijet: disc (240 mm x 11 mm)
Controlled by hand lever, working
on rear brakes
181-199 idea GB 1 ed 10-07-2008 8:31 Pagina 188
Page 190 of 210
189
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
fig. 5F0H0229m

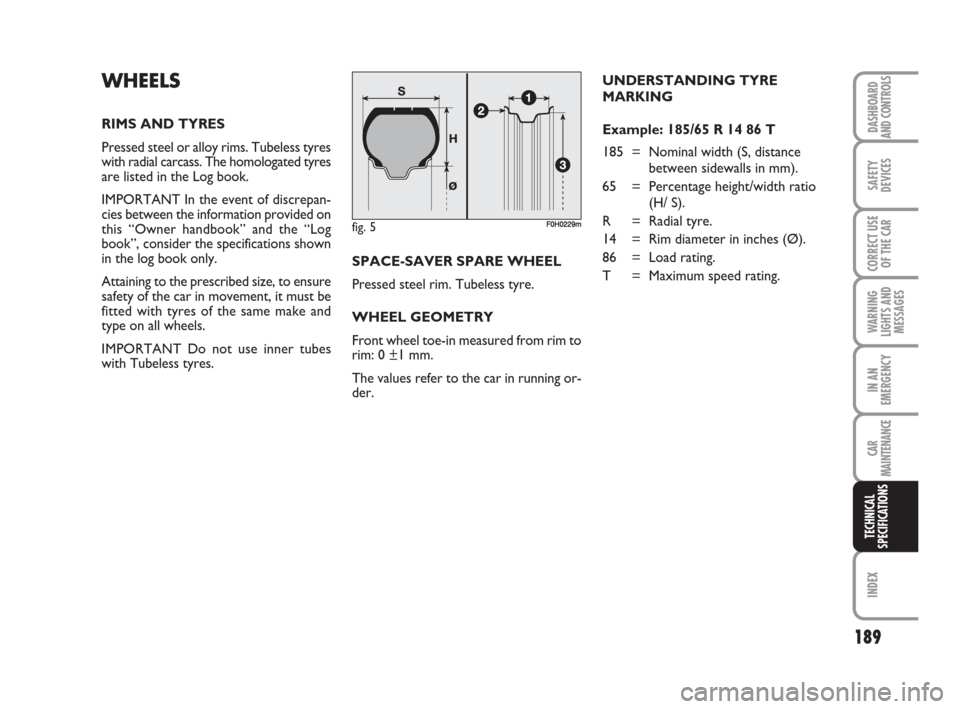

WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless tyres
with radial carcass. The homologated tyres
are listed in the Log book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner handbook” and the “Log
book”, consider the specifications shown
in the log book only.
Attaining to the prescribed size, to ensure
safety of the car in movement, it must be
fitted with tyres of the same make and
type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.UNDERSTANDING TYRE
MARKING
Example: 185/65 R 14 86 T
185 = Nominal width (S, distance
between sidewalls in mm).
65 = Percentage height/width ratio
(H/ S).
R = Radial tyre.
14 = Rim diameter in inches (Ø).
86 = Load rating.
T = Maximum speed rating. SPACE-SAVER SPARE WHEEL
Pressed steel rim. Tubeless tyre.
WHEEL GEOMETRY
Front wheel toe-in measured from rim to
rim: 0 ±1 mm.
The values refer to the car in running or-
der.
181-199 idea GB 1 ed 10-07-2008 8:31 Pagina 189
Page 191 of 210
190
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

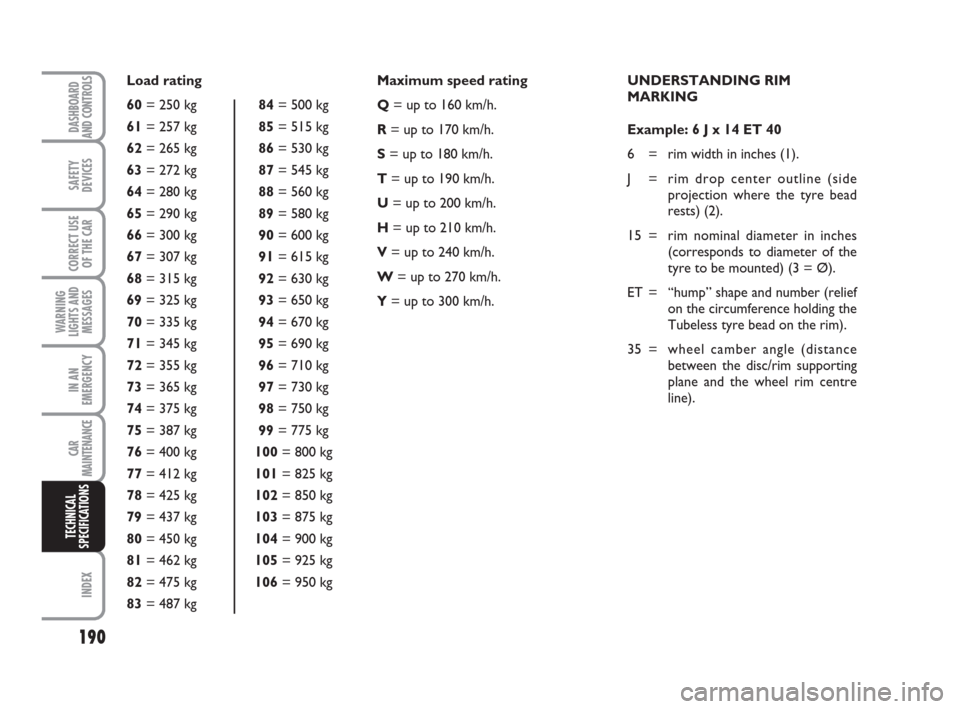

Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
W= up to 270 km/h.
Y= up to 300 km/h.UNDERSTANDING RIM
MARKING
Example: 6 J x 14 ET 40
6 = rim width in inches (1).
J = rim drop center outline (side
projection where the tyre bead
rests) (2).
15 = rim nominal diameter in inches
(corresponds to diameter of the
tyre to be mounted) (3 = Ø).
ET = “hump” shape and number (relief
on the circumference holding the
Tubeless tyre bead on the rim).
35 = wheel camber angle (distance
between the disc/rim supporting
plane and the wheel rim centre
line). Load rating
60= 250 kg 84= 500 kg
61= 257 kg 85= 515 kg
62= 265 kg 86 = 530 kg
63= 272 kg 87= 545 kg
64= 280 kg 88= 560 kg
65= 290 kg 89= 580 kg
66= 300 kg 90= 600 kg
67 = 307 kg 91= 615 kg
68= 315 kg 92= 630 kg
69 = 325 kg 93 = 650 kg
70 = 335 kg 94= 670 kg
71 = 345 kg 95= 690 kg
72= 355 kg 96 = 710 kg
73= 365 kg 97= 730 kg
74 = 375 kg 98= 750 kg
75= 387 kg 99= 775 kg
76 = 400 kg 100= 800 kg
77= 412 kg
101= 825 kg
78= 425 kg 102= 850 kg
79= 437 kg 103= 875 kg
80= 450 kg 104= 900 kg
81= 462 kg 105= 925 kg
82= 475 kg 106 = 950 kg
83= 487 kg
181-199 idea GB 1 ed 10-07-2008 8:31 Pagina 190
Page 192 of 210
191
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

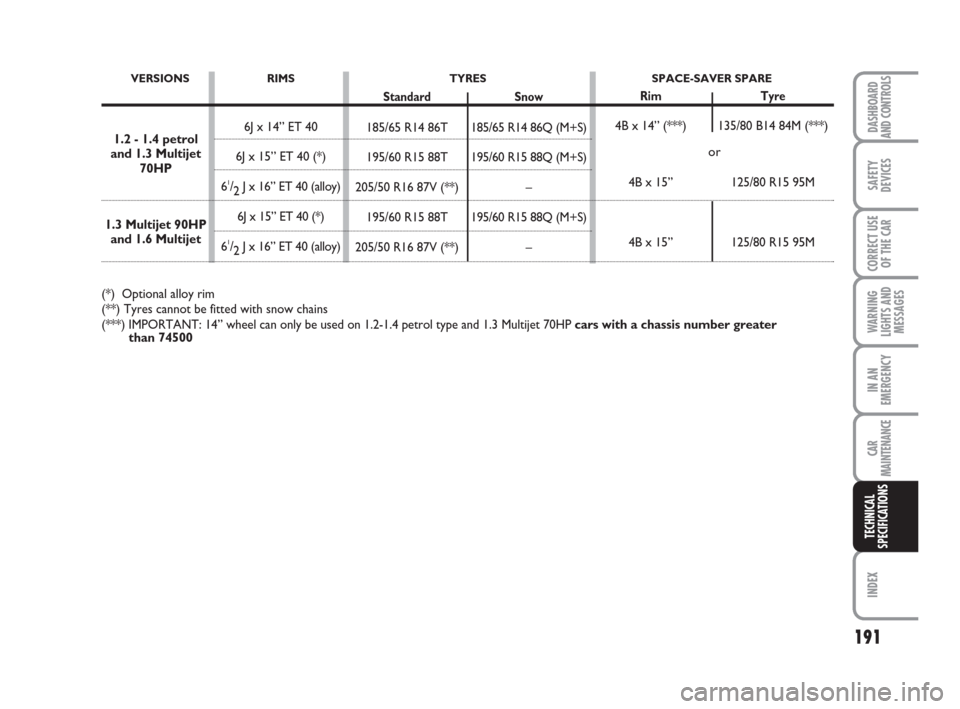

RIMS
6J x 14” ET 40
6J x 15” ET 40 (*)
6
1/
2J x 16” ET 40 (alloy)
6J x 15” ET 40 (*)
6
1/
2J x 16” ET 40 (alloy)
Standard
185/65 R14 86T
195/60 R15 88T
205/50 R16 87V (**)
195/60 R15 88T
205/50 R16 87V (**)
Snow
185/65 R14 86Q (M+S)
195/60 R15 88Q (M+S)
–
195/60 R15 88Q (M+S)
–
Rim
4B x 14” (***)
4B x 15”
4B x 15”
Tyre
135/80 B14 84M (***)
125/80 R15 95M
125/80 R15 95M
TYRES SPACE-SAVER SPARE
1.2 - 1.4 petrol
and 1.3 Multijet
70HP
1.3 Multijet 90HP
and 1.6 Multijet
(*) Optional alloy rim
(**) Tyres cannot be fitted with snow chains
(***) IMPORTANT: 14” wheel can only be used on 1.2-1.4 petrol type and 1.3 Multijet 70HP cars with a chassis number greater
than 74500
or
VERSIONS
181-199 idea GB 1 ed 10-07-2008 8:31 Pagina 191
Page 193 of 210
192
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
COLD TYRE INFLATION PRESSURE (bar)
STANDARD TYRES
Size Medium load Full load
Front Rear Front Rear
185/65 R14 86T 2.2 2.1 2.3 2.3
195/60 R15 88T 2.2 2.1 2.3 2.3
205/50 R16 87V 2.2 2.1 2.3 2.3
135/80 B14 84M 2.8SPARE WHEEL
125/80 R15 95M 4.2
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for standard tyres.
181-199 idea GB 1 ed 10-07-2008 8:31 Pagina 192
Page 194 of 210
193
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

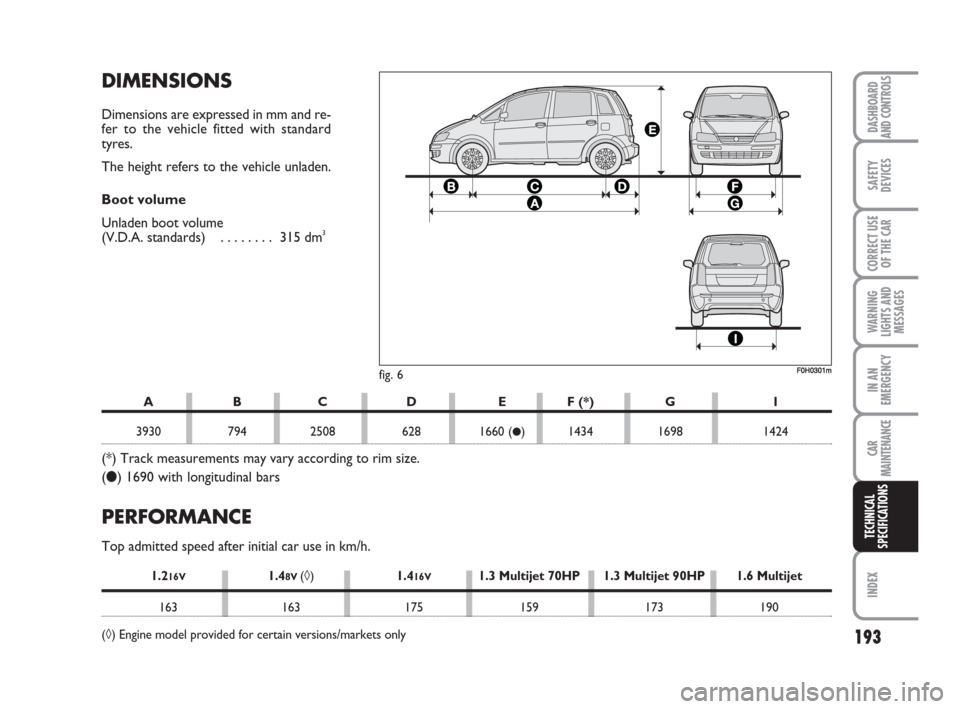

DIMENSIONS
Dimensions are expressed in mm and re-
fer to the vehicle fitted with standard
tyres.
The height refers to the vehicle unladen.
Boot volume
Unladen boot volume
(V.D.A. standards) . . . . . . . . 315 dm
3
F0H0301m
A B C D E F (*) G I
3930 794 2508 628 1660 (●) 1434 1698 1424
(*) Track measurements may vary according to rim size.
(●) 1690 with longitudinal bars
fig. 6
PERFORMANCE
Top admitted speed after initial car use in km/h.
1.216V1.48V (◊)1.416V1.3 Multijet 70HP 1.3 Multijet 90HP 1.6 Multijet
163 163 175 159 173 190
(◊) Engine model provided for certain versions/markets only
181-199 idea GB 1 ed 10-07-2008 8:31 Pagina 193
